Model Maytag AMV2307PFS0 MICROWAVE HOOD, 1.6 CUBIC FOOT – Common Parts & Diagrams

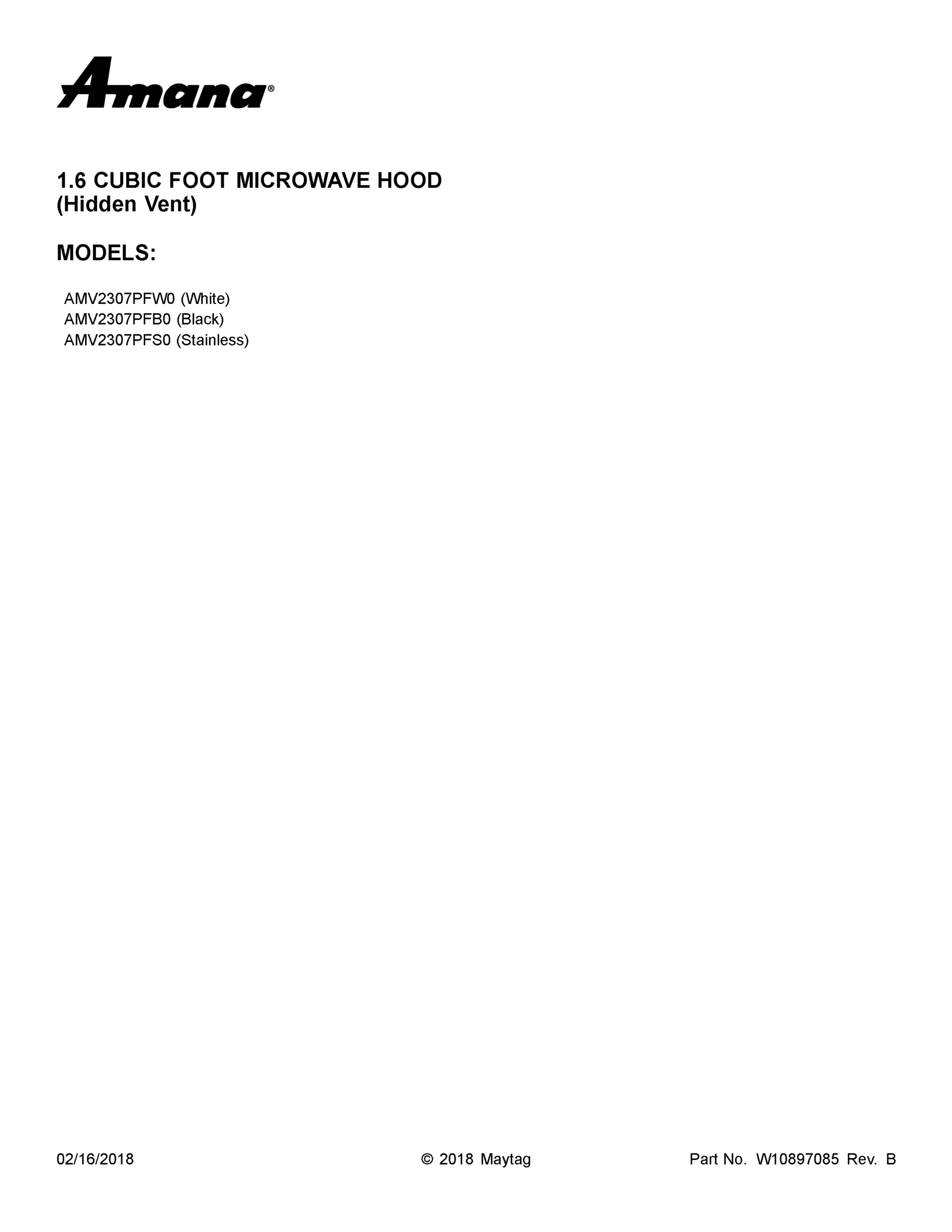

01 - COVER SHEET

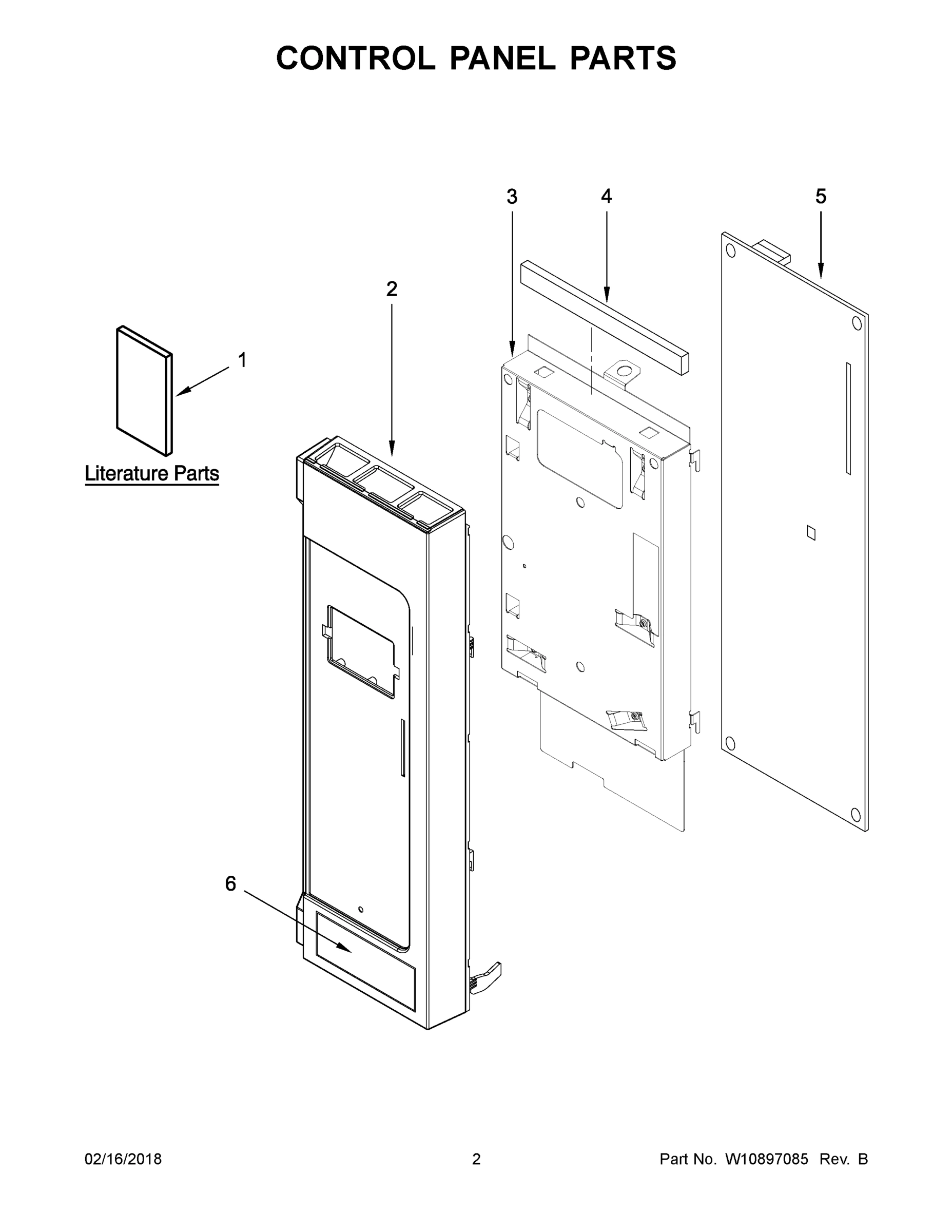

02 - CONTROL PANEL PARTS

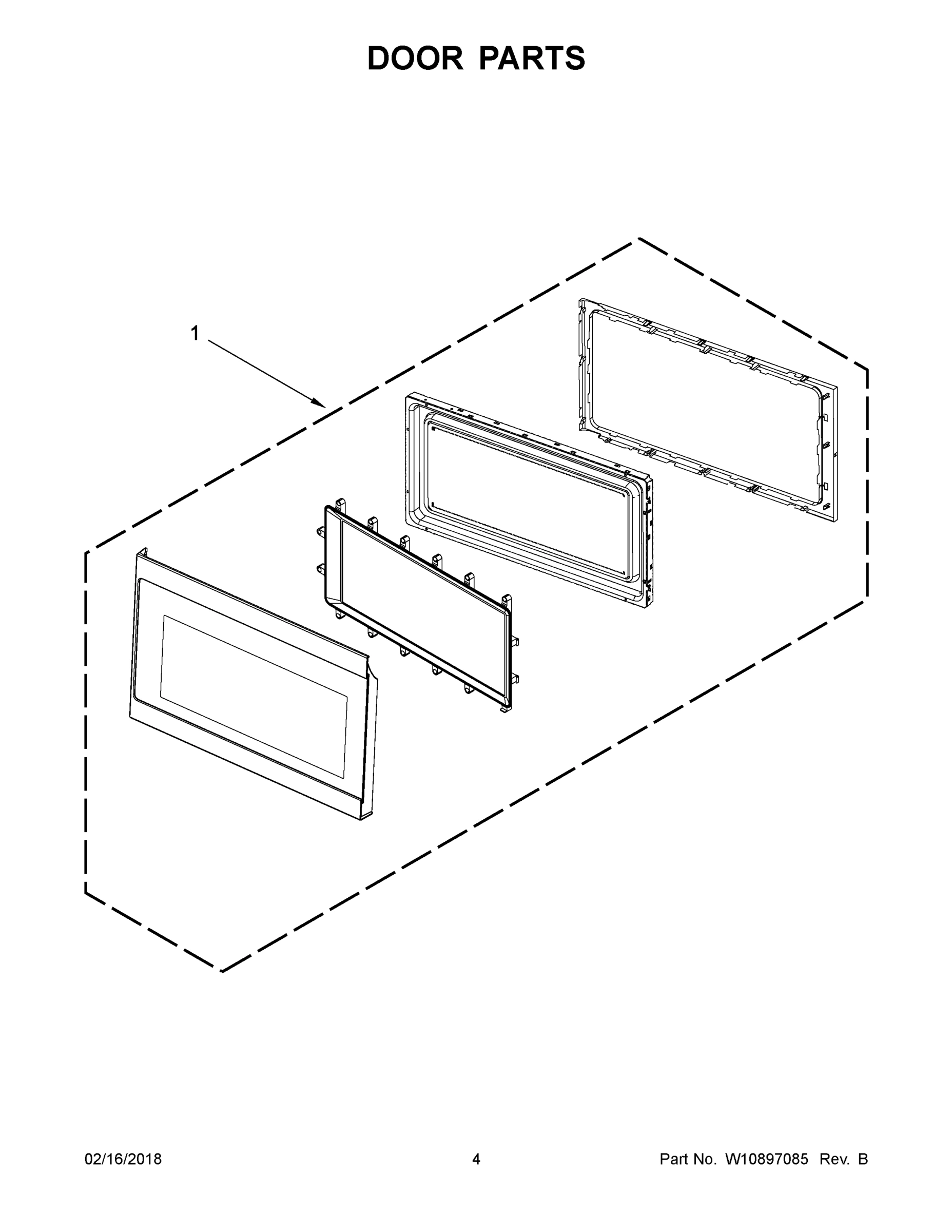

03 - DOOR PARTS

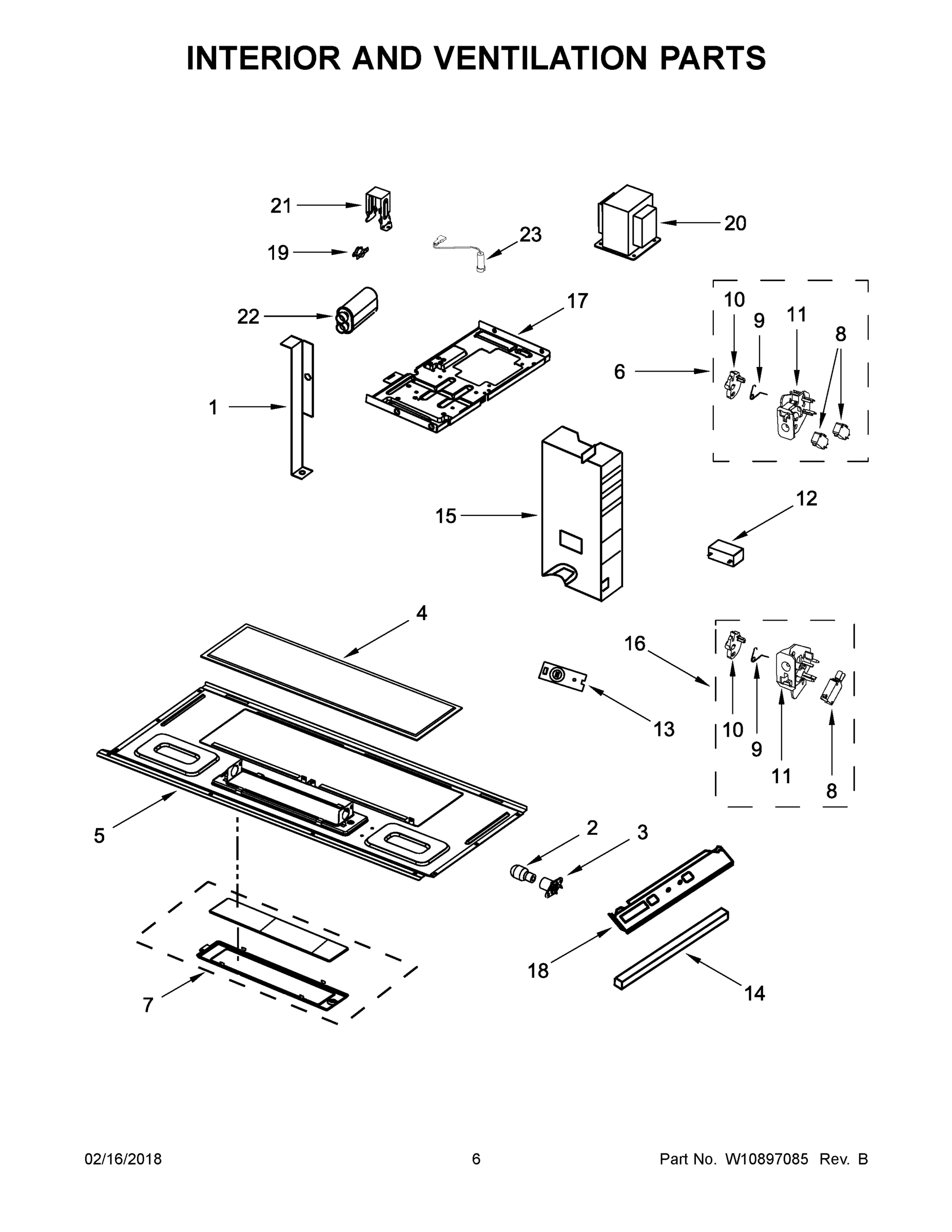

04 - INTERIOR AND VENTILATION PARTS

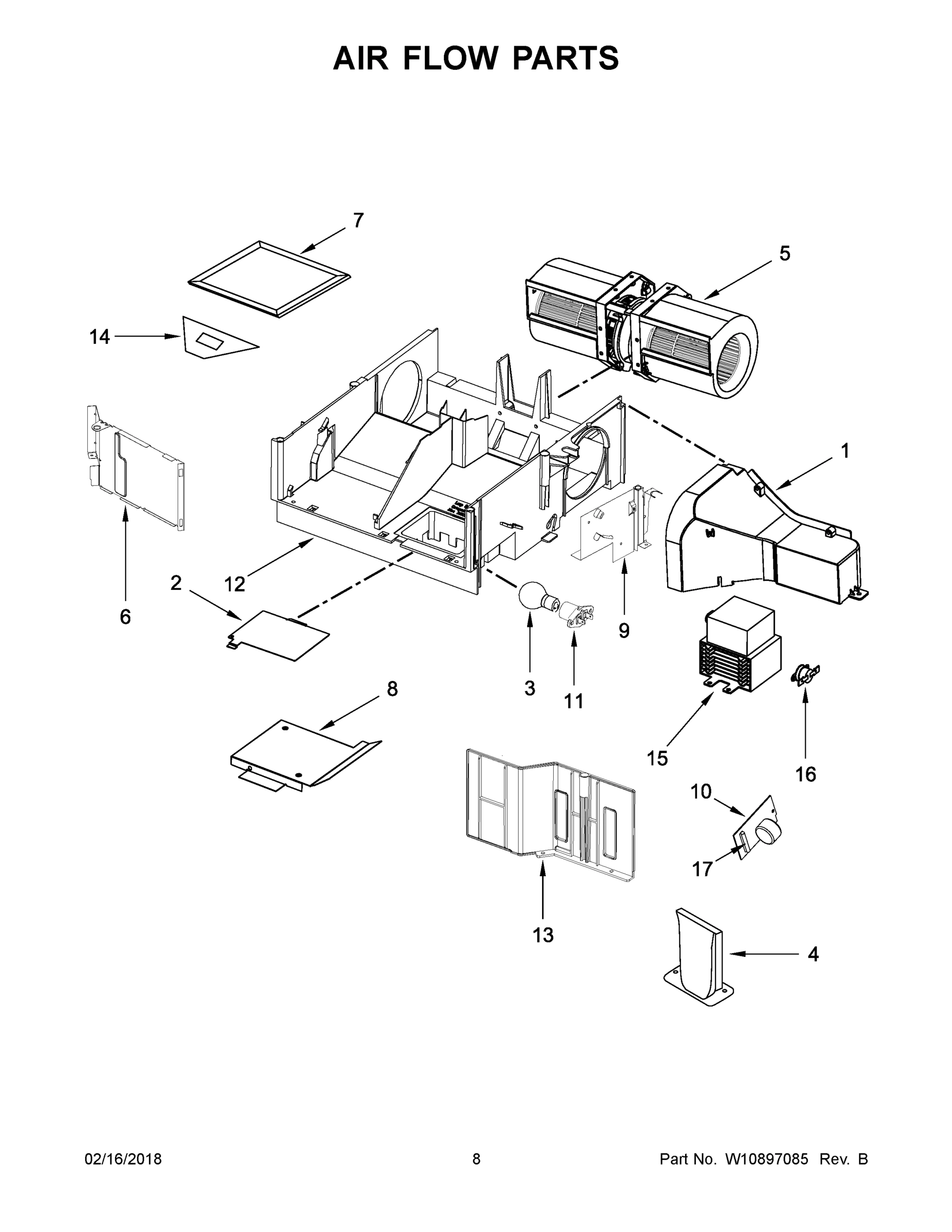

05 - AIR FLOW PARTS

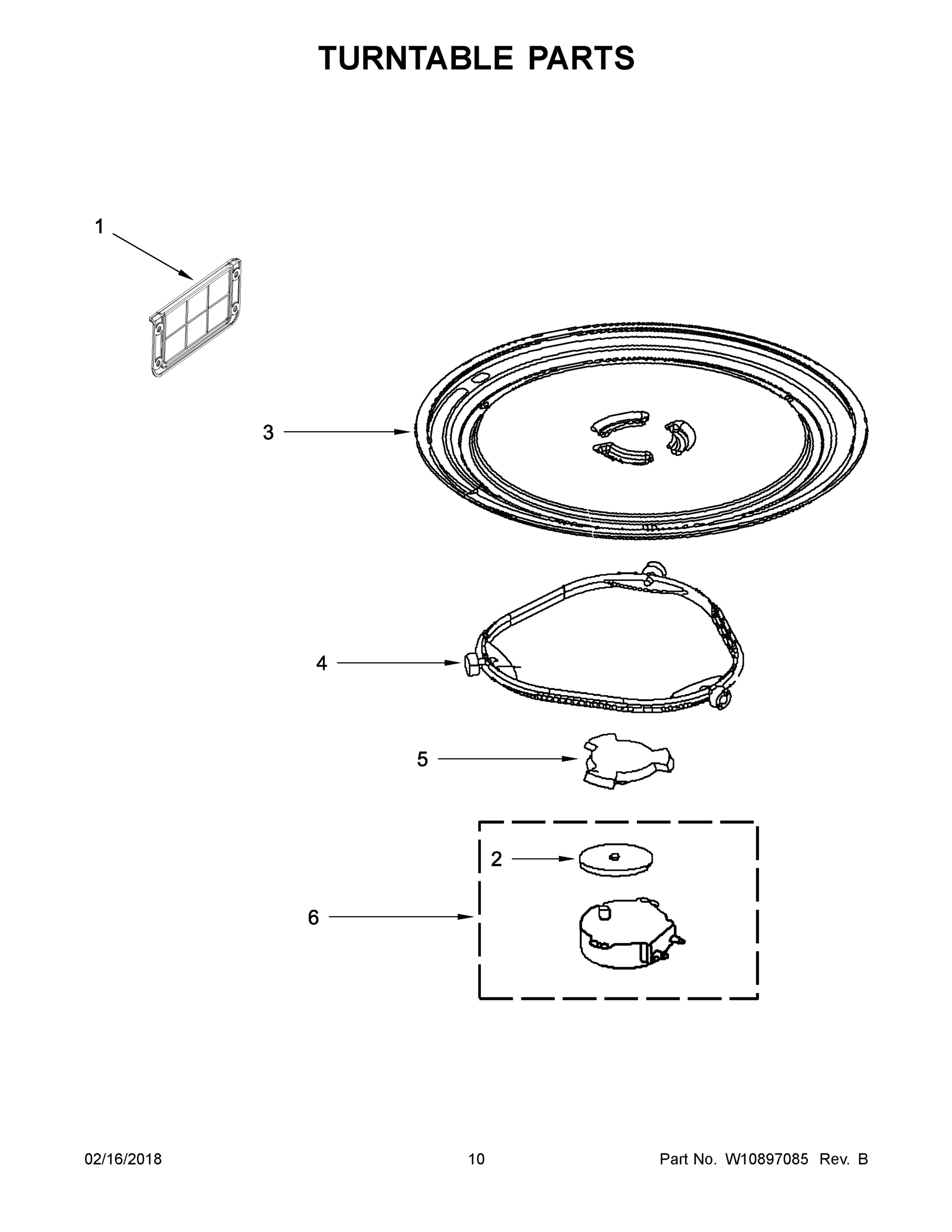

06 - TURNTABLE PARTS

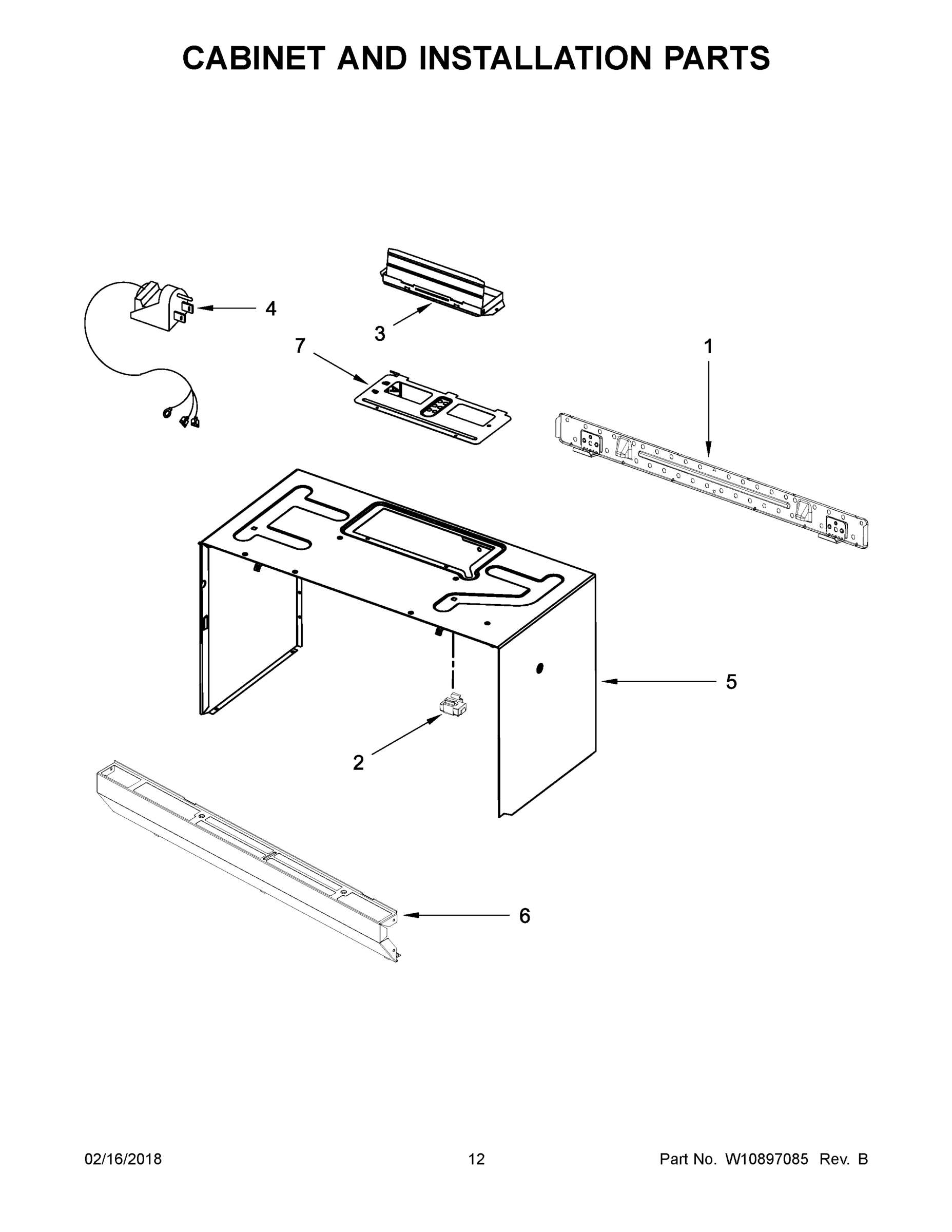

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag AMV2307PFS0 MICROWAVE HOOD, 1.6 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10823831 Contact Us For Availability
1
COMPLETE DOOR (WHITE) MAY W10890777 Contact Us For Availability
1
BRACKET, TOP CAVITY MAY W10313275 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10471570 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W10313272 Contact Us For Availability
1
PLATE, MOUNTING MAY W11025649 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10866741 Contact Us For Availability
1A
COMPLETE DOOR (BLACK) MAY W10890775 Contact Us For Availability
1B
COOK GUIDE LABEL MAY W10851837 Contact Us For Availability
1B
COMPLETE DOOR (STAINLESS) MAY W10890776 Contact Us For Availability
1C
TECH SHEET MAY W10868837 Contact Us For Availability
2
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM MAY W10890779 Contact Us For Availability
2
LAMP, 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
2
ASSEMBLY, MOUNTING NUT MAY W10596040 Contact Us For Availability
2A
CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEM MAY W10890778 Contact Us For Availability
2B
MAY W10918931 MAY W10918931 Contact Us For Availability
3
BACKER, CONTROL MAY W10833365 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
TURNTABLE MAY W10337247 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
SEAL, CONTROL MAY W10833531 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
PLATE, WATERPROOF MAY W10770968 Contact Us For Availability
4
RING, TURNTABLE (WITH ROLLERS) MAY W10654906 Contact Us For Availability
4
CORD, POWER MAY W10654511 Contact Us For Availability
5
MICROCOMPUTER MAY W10849846 Contact Us For Availability
5
PLATE, BOTTOM MAY W10245196 Contact Us For Availability
5
MOTOR, HOOD FAN MAY W10825649 Contact Us For Availability
5
DRIVER, TURNTABLE MAY W10337248 Contact Us For Availability
5
CASE, OUTER (WHITE) MAY W10846309 Contact Us For Availability
5A
CASE, OUTER (BLACK) MAY W10845689 Contact Us For Availability
6
ASSEMBLY, PUSH BUTTON (WHITE) MAY W10850630 Contact Us For Availability
6
ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES) MAY W11169310 Contact Us For Availability
6
PLATE, AIR GUIDE SEALING MAY W10827148 Contact Us For Availability
6
MOTOR, TURNTABLE MAY W10642989 Contact Us For Availability
6
GRILLE, VENT (WHITE) MAY W10845642 Contact Us For Availability
6A
ASSEMBLY, PUSH BUTTON (BLACK) MAY W10850629 Contact Us For Availability
6A
GRILLE, VENT (BLACK) MAY W10845643 Contact Us For Availability
7
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
7
FILTER, CHARCOAL MAY W10845250 Contact Us For Availability
7
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
8
SWITCHES, INTERLOCK (NOT SERVICED, ORDER INTE MAY N/P Contact Us For Availability
8
GUIDE, AIR MAY W10138797 Contact Us For Availability
9
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
9
COVER, RIGHT DUCT MAY W10700156 Contact Us For Availability
10
PLATE, CAM MAY W10562613 Contact Us For Availability
10
FILTER, NOISE MAY W10422269 Contact Us For Availability
11
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
11
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
11A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
12
CAPACITOR, HOOD MOTOR MAY W10605896 Contact Us For Availability
12
PLATE, AIR GUIDE BASE MAY W10828030 Contact Us For Availability
13
THERMISTOR MAY W10163422 Contact Us For Availability
13
SHIELD, FINGER MAY W10342991 Contact Us For Availability
14
SEAL, COOLING MAY W10571179 Contact Us For Availability
14
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
15
AIR GUIDE, LOWER MAY W10771884 Contact Us For Availability
15
MAGNETRON MAY W10754299 Contact Us For Availability
16
ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES) MAY W11169312 Contact Us For Availability
16
THERMOSTAT, MAGNETRON MAY W10832024 Contact Us For Availability
17
CHASSIS MAY W10827115 Contact Us For Availability
17
FUSE MAY W10138793 Contact Us For Availability
18
SUPPORT, NTC MAY W10904020 Contact Us For Availability
19
THERMOSTAT, CAVITY MAY W10269232 Contact Us For Availability
20
TRANSFORMER, HIGH VOLTAGE MAY W10754523 Contact Us For Availability
21
BRACKET, CAPACITOR MAY W10532063 Contact Us For Availability
22
CAPACITOR, HIGH VOLTAGE MAY W10343300 Contact Us For Availability
23
DIODE, HIGH VOLTAGE MAY W10886077 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HI MAY W10498567 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W10907653 Contact Us For Availability
× ![]()
