Model Whirlpool A22CA WASHER – Common Parts & Diagrams
01 - FRONT VIEW

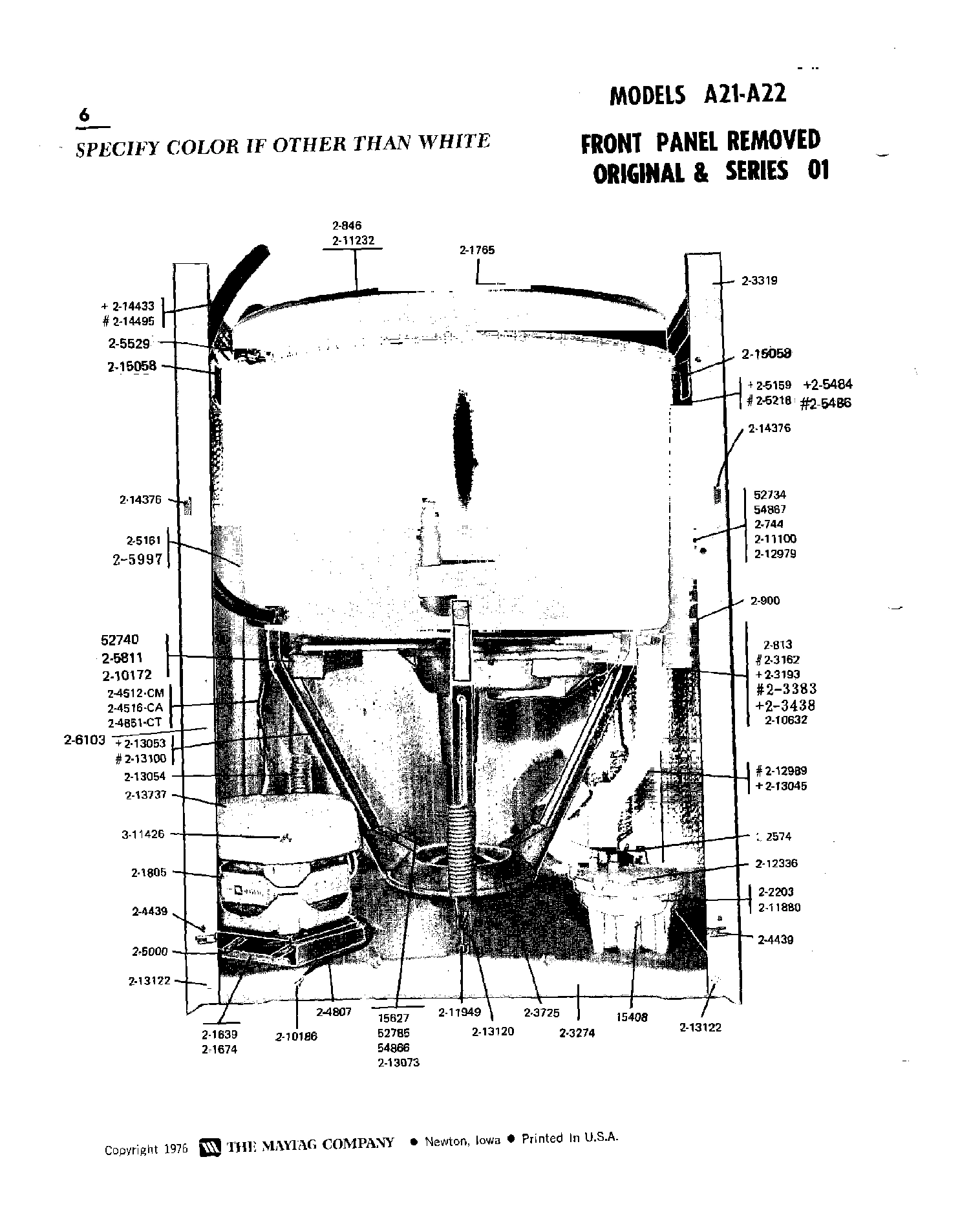

03 - FRONT PANEL REMOVED

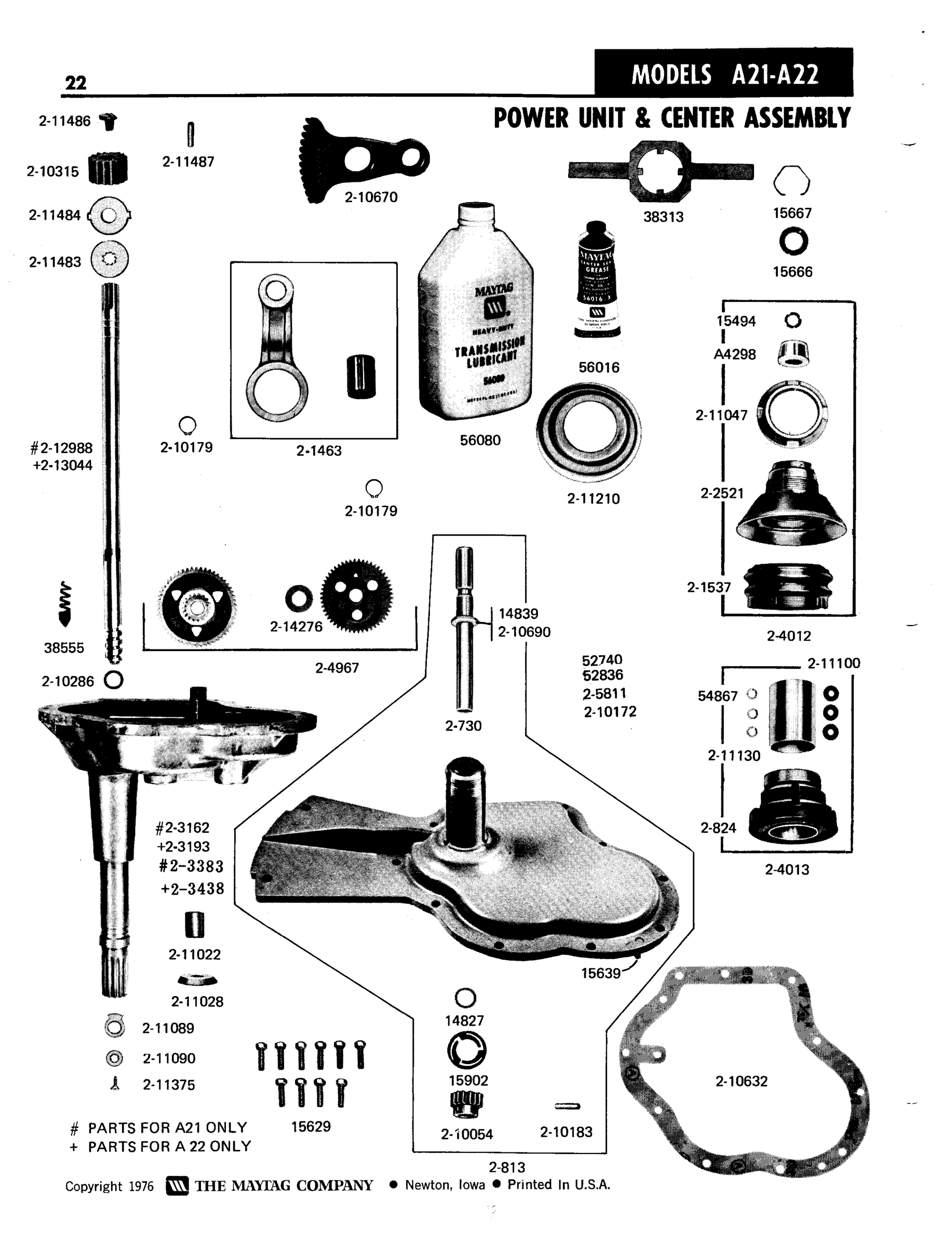

08 - POWER UNIT & CENTER ASSEMBLY
10 - BRAKE & CLUTCH ASSEMBLY

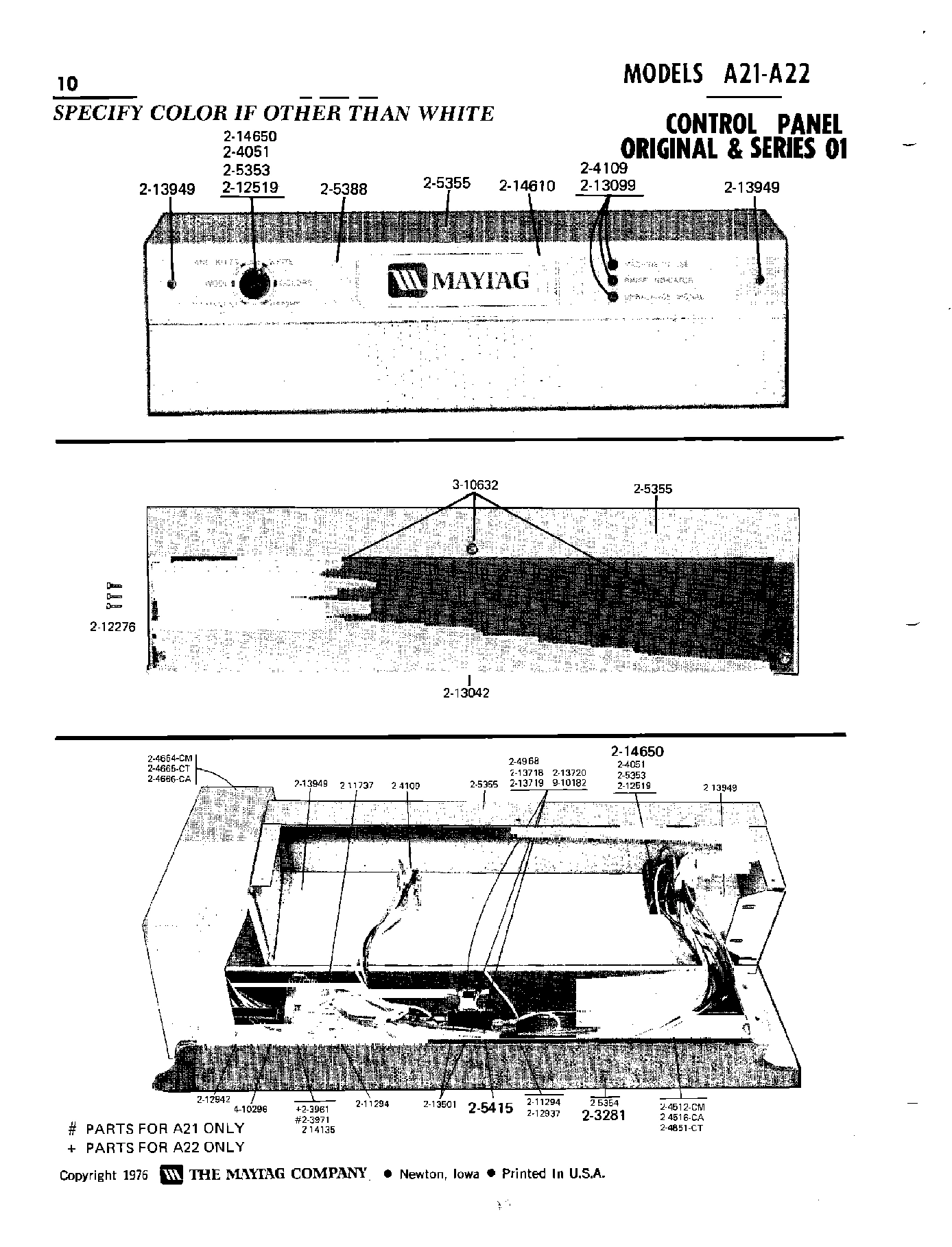

05 - CONTROL PANEL

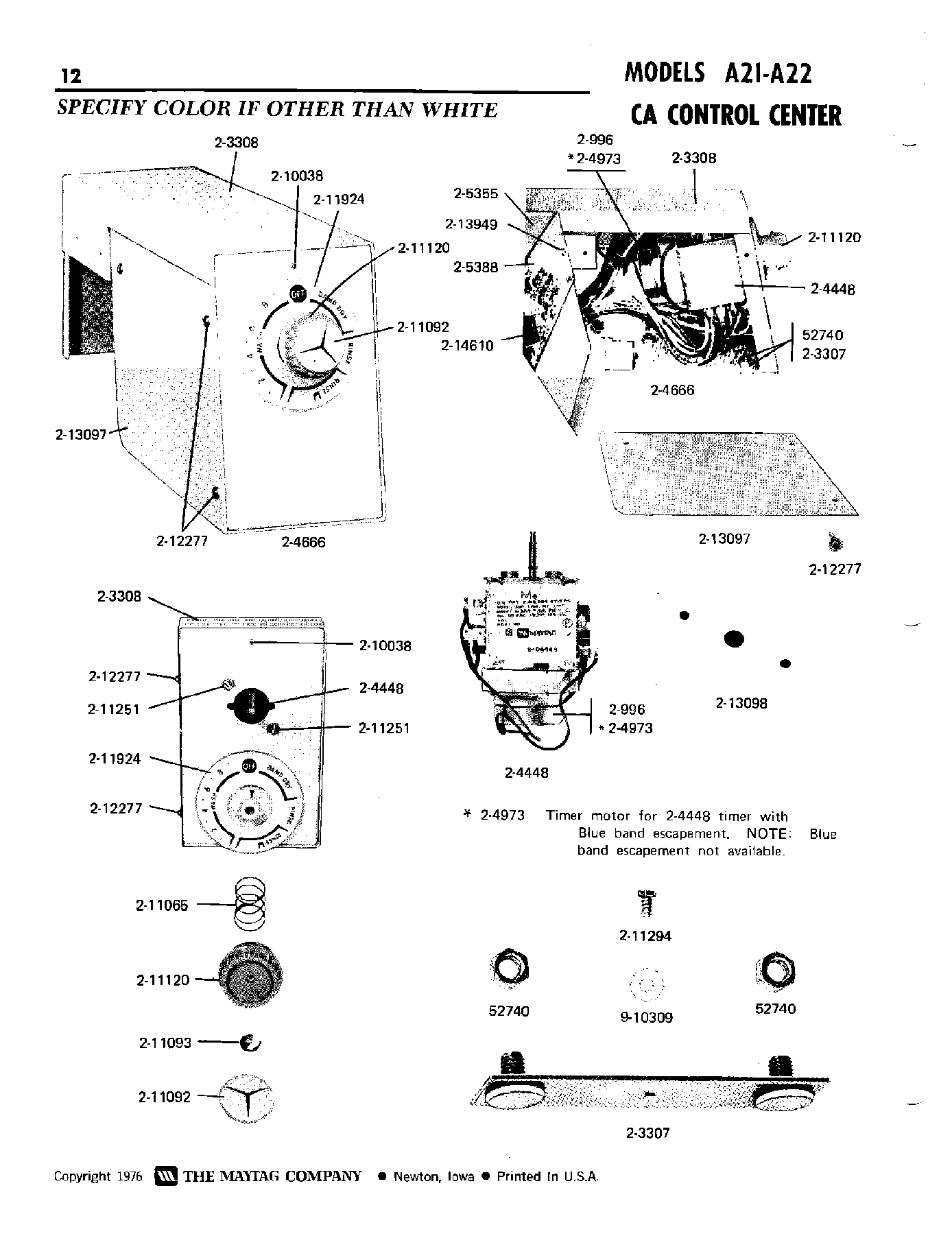

06 - CA CONTROL CENTER

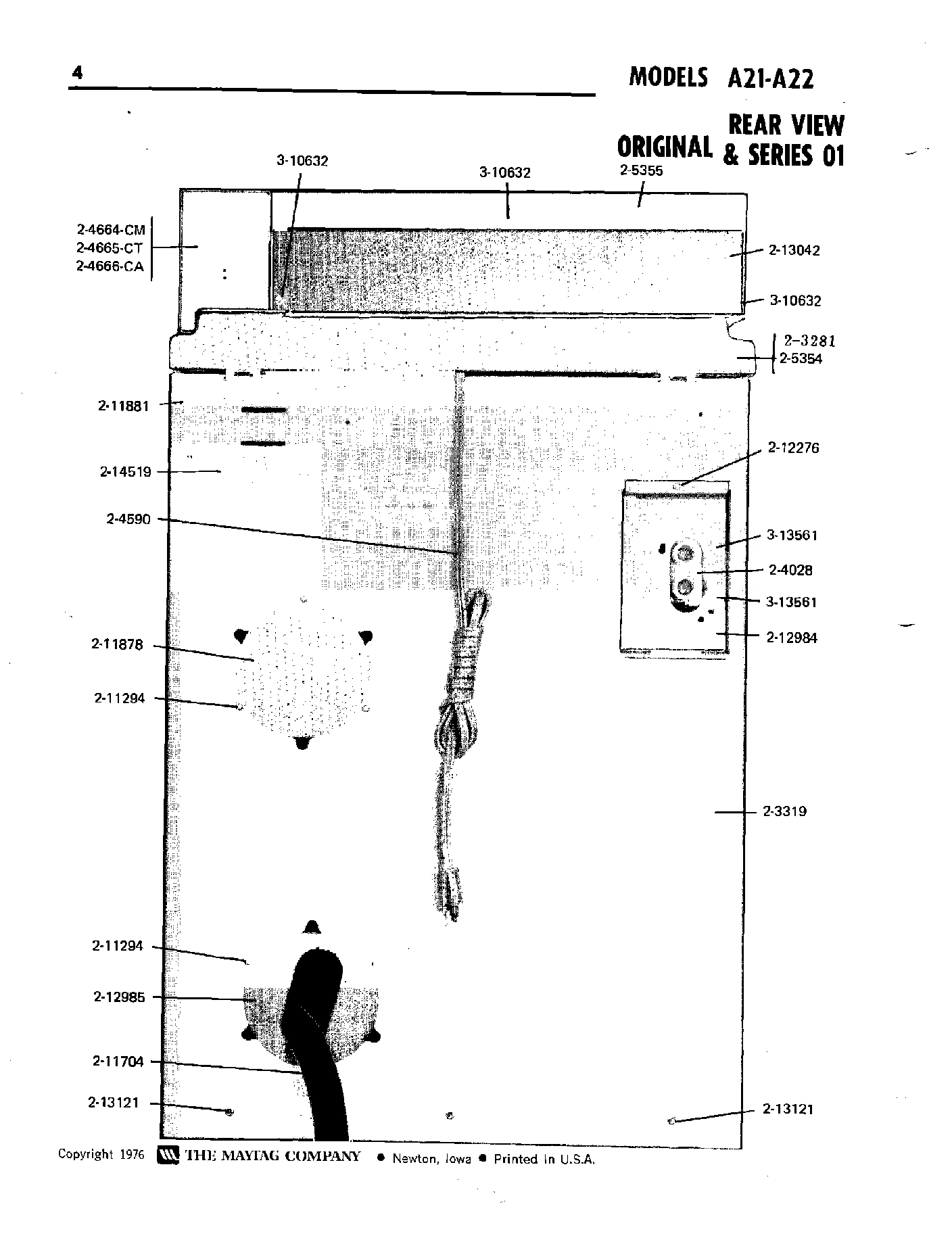

02 - REAR VIEW

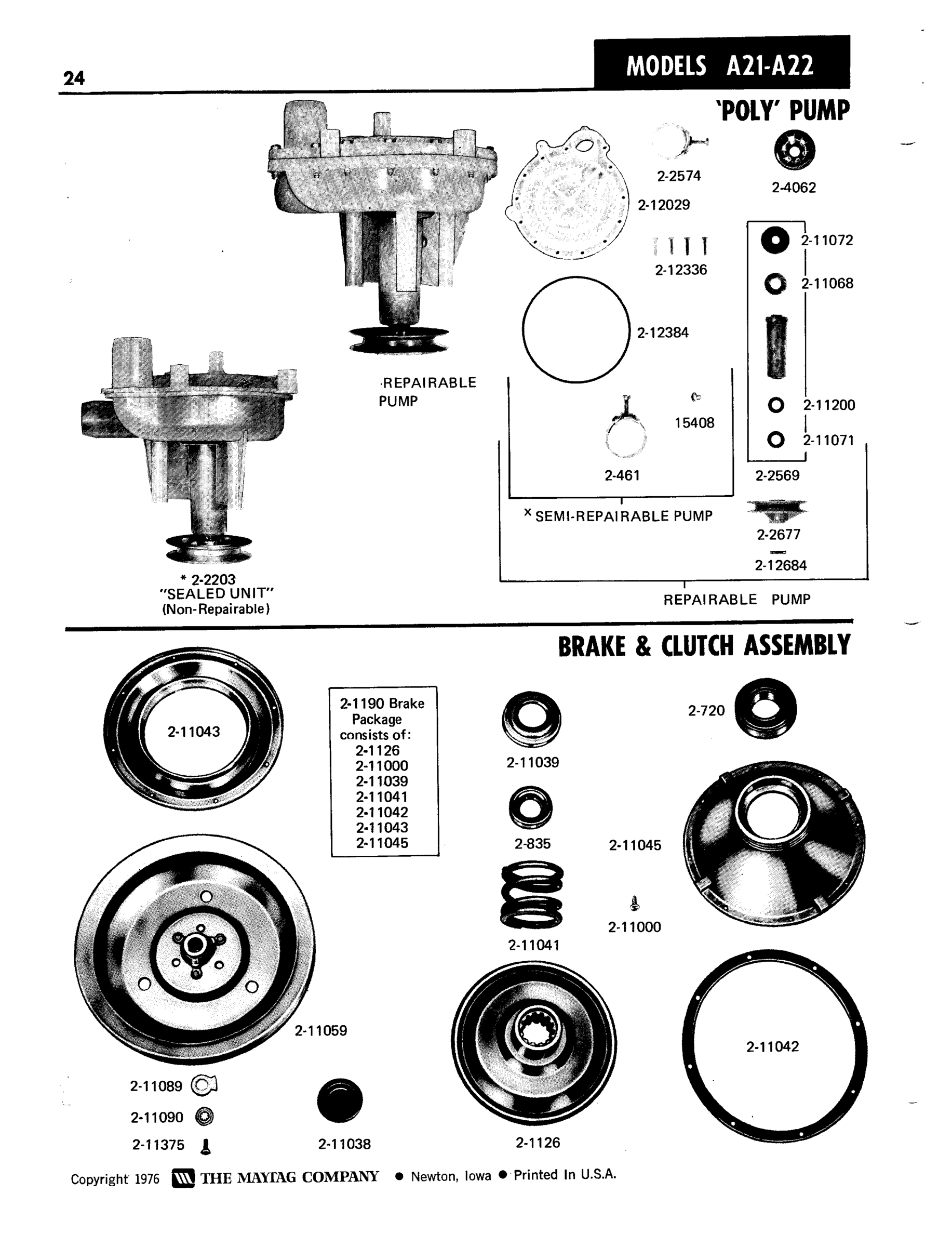

09 - `POLY` PUMP
13 - 230 VOLT, 50 CYCLE PARTS

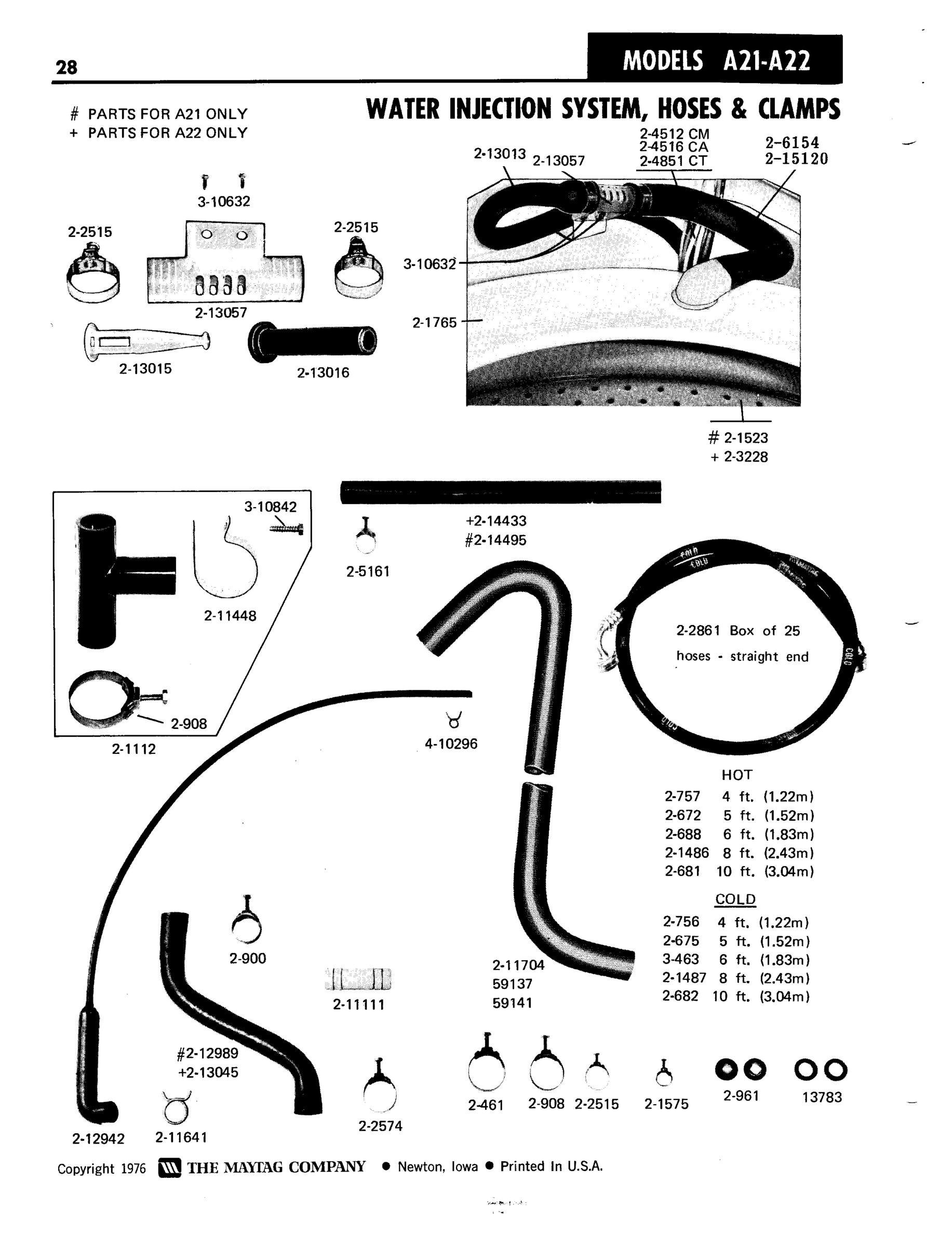

12 - WATER INJECTION SYSTEM, HOSES & CLAMPS

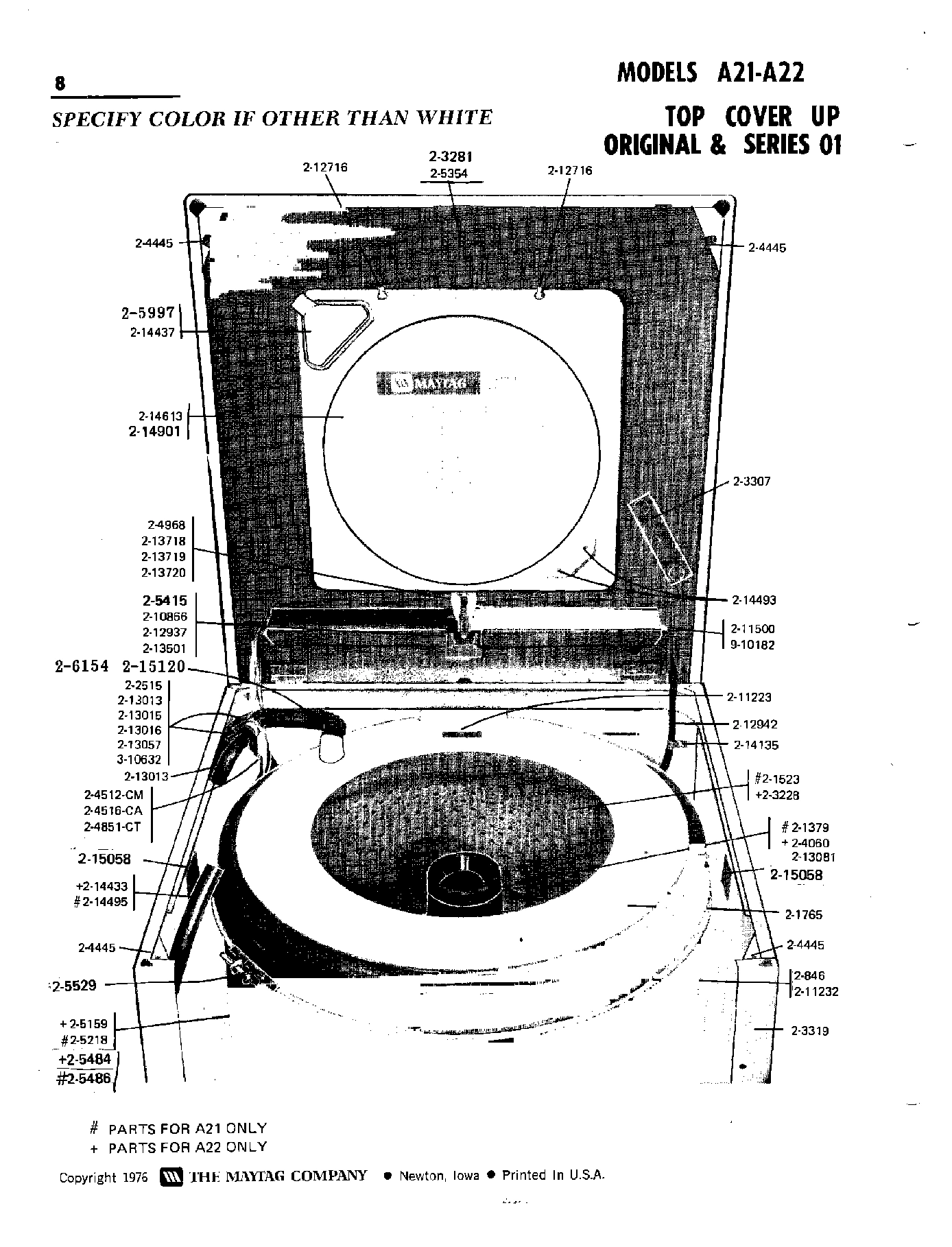

04 - TOP COVER UP

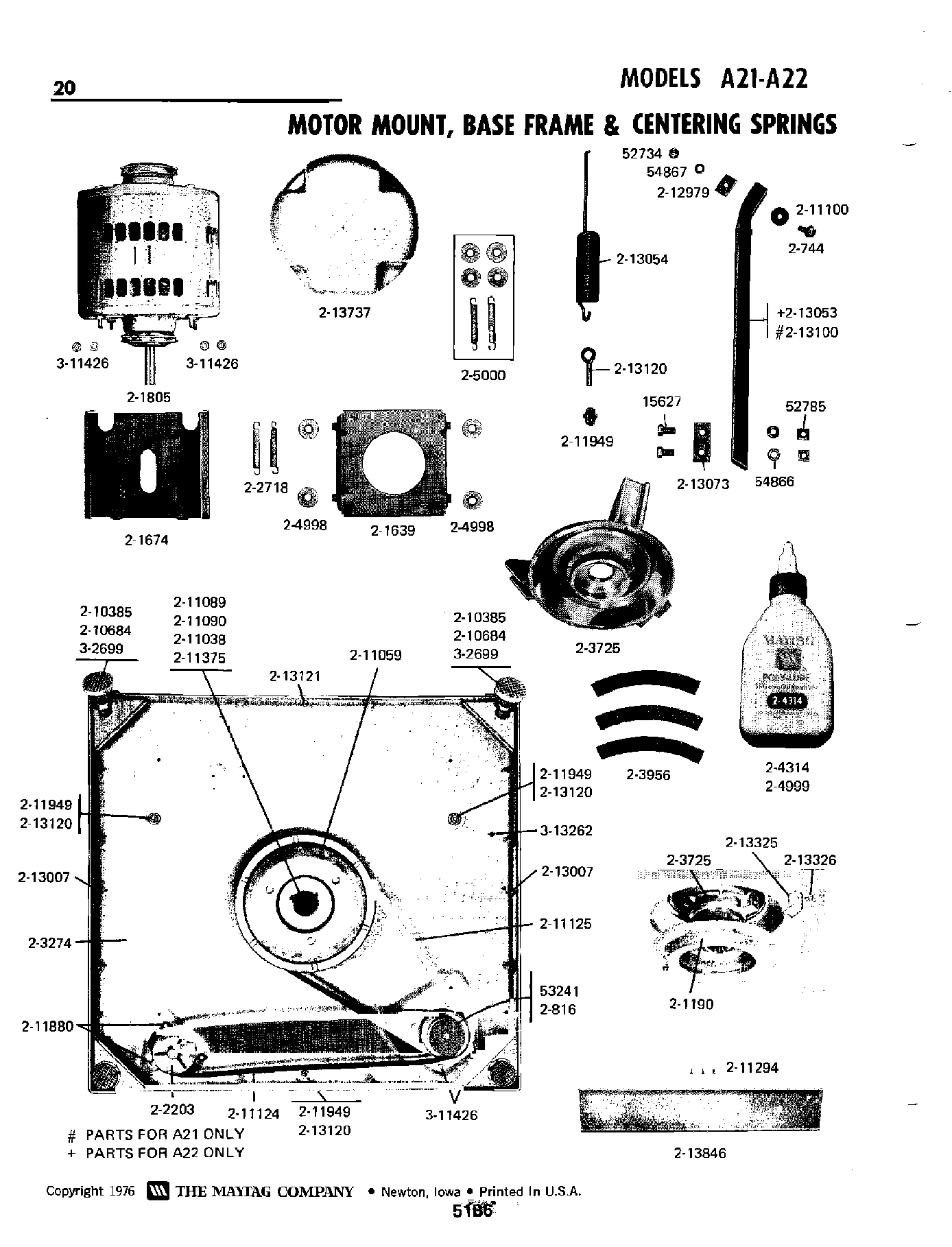

07 - MOTOR MOUNT, BASE FRAME & CENTERING SPRS

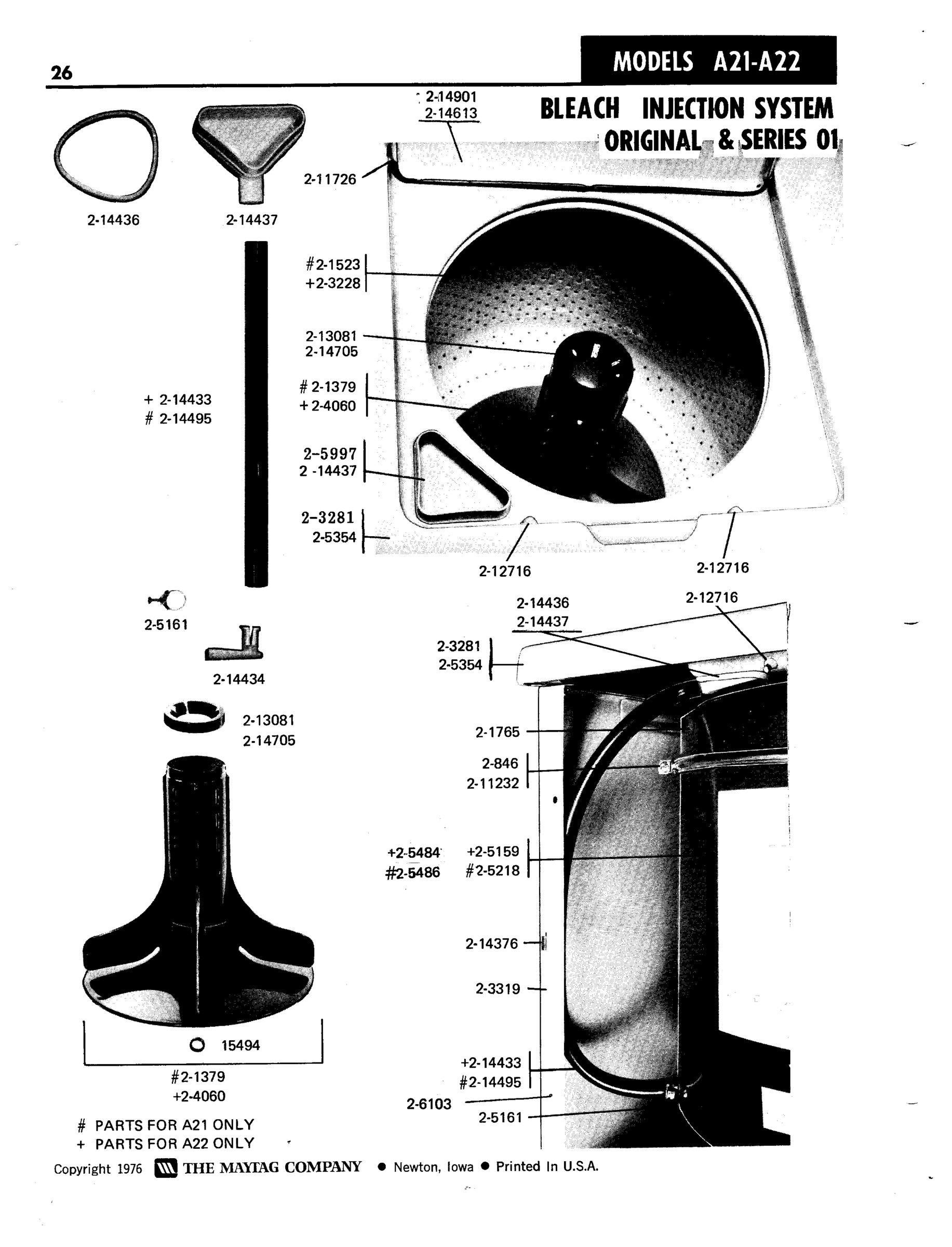

11 - BLEACH INJECTION SYSTEM
Common parts from model Whirlpool A22CA WASHER
001
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
001
STOP RING-AGITATOR SHAFT WPL Y015494 Contact Us For Availability
001
BALL BEARING, RADIAL----S WPL Y200720 Contact Us For Availability
001
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
002
NUT WPL Y052734 Contact Us For Availability
002
BEARING, BRAKE ROTOR WPL 200835 Contact Us For Availability
002
CAPACITOR WPL 201101 Contact Us For Availability
002
HOSE 31/32`` PER FOOT BRANCH ST WPL Y059137 Contact Us For Availability
003
NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability
003
TUB COVER WPL 201765 Contact Us For Availability
003
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
003
ROTOR, BRAKE (W/FACING) WPL 201126 Contact Us For Availability
003
PRESSURE SWITCH WPL 203961 Contact Us For Availability
003
CTN. 50 FT. 31/32 DRAIN HOS WPL Y059141 Contact Us For Availability
004
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
004
PULLEY, MOTOR (W/SET SCREW) WPL Y202496 Contact Us For Availability
004
INNER TUB WPL 203228 Contact Us For Availability
004
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
005
LOCK WASHER WPL Y054866 Contact Us For Availability
005
BRASS WASHER-AGITATOR SEAL WPL Y015149 Contact Us For Availability
005
KNOB WPL 204051 Contact Us For Availability
006
WASHER, LOCK WPL Y054867 Contact Us For Availability
006
3 BULB SIGNAL LIGHT WPL 204109 Contact Us For Availability
006
SEAL FOR IMPELLER WPL 204062 Contact Us For Availability
006
AGITATOR-BLACK WPL 204060 Contact Us For Availability
007
OUTER TUB WPL 205159 Contact Us For Availability
007
BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability
007
RETAINER, BRAKE SPRING WPL 211039 Contact Us For Availability
007
TIMER MOTOR WPL 204973 Contact Us For Availability
007
WICKING-TOP WPL 211068 Contact Us For Availability
007
3 LIGHT INDICATOR WPL 204110 Contact Us For Availability
007
INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability
008
SPRING, BRAKE WPL 211041 Contact Us For Availability
008
TIMER 240-50 WPL 204579 Contact Us For Availability
008
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
009
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
009
BRAKE ASSEMBLY WPL 201190 Contact Us For Availability
009
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
009
OIL & WATER SLINGER-TOP WPL 211072 Contact Us For Availability
010
UPPER MOTOR MOUNT WPL 201639 Contact Us For Availability
010
RETAINING RING WPL Y015667 Contact Us For Availability
010
INLET HOSE-COLD (4`LONG) WPL 200756 Contact Us For Availability
010
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
011
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
011
LOWER MOTOR MOUNT----NA WPL 201674 Contact Us For Availability
011
SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability
011
WASHER WPL 211200 Contact Us For Availability
011
INLET HOSE, HOT 4 FT. WPL 200757 Contact Us For Availability
012
WRENCH, SPANNER WPL 038313 Contact Us For Availability
013
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
013
PUMP AS PAK WPL 202203 Contact Us For Availability
013
TOOL-INSTALL CENTER SHAFT WPL Y038555 Contact Us For Availability
013
RETAINER WPL 211093 Contact Us For Availability
013
CLIP, CAPACITOR WPL 211149 Contact Us For Availability
013
DISPENSER CAP-BLACK WPL 213081 Contact Us For Availability
014
SPACER, FRONT PANEL WPL 214376 Contact Us For Availability
014
SWITCH, TEMP. WPL 205353 Contact Us For Availability
014
TIMER KNOB WPL 211120 Contact Us For Availability
014
GROMMET, CORD WPL 211881 Contact Us For Availability
014
GASKET FOR POLY PUMP WPL 212384 Contact Us For Availability
014
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
015
BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability
016
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
016
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
016
SCREW WPL 211251 Contact Us For Availability
016
LID-WHITE WPL 212073 Contact Us For Availability
016
INLET HOSE, HOT 8 FT. WPL 201486 Contact Us For Availability
016
SPOUT, DEFLECTOR WPL 214434 Contact Us For Availability
017
AGITATOR SHAFT WPL 200730 Contact Us For Availability
017
PLATE, ACCESS (W/HOLE) WPL 212985 Contact Us For Availability
017
TWIN SPEED NUT WPL 210866 Contact Us For Availability
017
GASKET WPL 214436 Contact Us For Availability
018
BACK PANEL WPL 213042 Contact Us For Availability
018
UNBALANCE BUMPER WPL 211223 Contact Us For Availability
018
BLEACH INLET WPL 214437 Contact Us For Availability
018
POLY LUBE - 4 OZ WPL 204314 Contact Us For Availability
019
BUMPER WPL Y202734 Contact Us For Availability
019
POWER CORD WPL 204590 Contact Us For Availability
019
PLASTI-RIVET WPL 214493 Contact Us For Availability
020
LID-WHITE WPL NLA Contact Us For Availability
020
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
020
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
020
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
021
SEAL AND SPRING WPL 201537 Contact Us For Availability
021
AGITATOR CAP WPL 214705 Contact Us For Availability
022
OUTER TUB WPL 205484 Contact Us For Availability
022
MOUNTING STEM WPL 202521 Contact Us For Availability
022
SCREW----NA WPL Y313561 Contact Us For Availability
023
LID-WHITE WPL 214901 Contact Us For Availability
023
MOISTURE BARRIER WPL 212937 Contact Us For Availability
023
BUMPER, LID WPL 214610 Contact Us For Availability
024
TRANS & CENTER ASSM. LG TUB WPL 203438 Contact Us For Availability
024
CAPACITOR KIT WPL 206103 Contact Us For Availability
024
WASHER WPL 910309 Contact Us For Availability
025
NON-BLEACH CONVERSION KIT WPL 205997 Contact Us For Availability
025
POWER UNIT W/GEARS WPL 203723 Contact Us For Availability
025
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
026
TRANS & CENTER ASSM. REG TU WPL 203383 Contact Us For Availability
026
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
026
DRUM, BRAKE WPL 211043 Contact Us For Availability
027
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
027
HOUSING, BRAKE WPL 211045 Contact Us For Availability
028
INJECTOR TUBE WPL 213055 Contact Us For Availability
029
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
030
PINION WPL 210054 Contact Us For Availability
030
CLAMP WPL 211448 Contact Us For Availability
031
WASHER, CUSHION WPL 211100 Contact Us For Availability
031
SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability
032
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
032
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
032
DRAIN HOSE WPL 211704 Contact Us For Availability
033
SEAL WPL 210286 Contact Us For Availability
033
UNBALANCE LEVER WPL 213719 Contact Us For Availability
034
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
034
PINION WPL 210315 Contact Us For Availability
035
GASKET WPL 210632 Contact Us For Availability
035
FASTENER CLIP WPL 214135 Contact Us For Availability
036
SCREW FOR 2-4051 KNOB WPL 214650 Contact Us For Availability
036
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
037
SEAL, RUBBER WPL 210690 Contact Us For Availability
038
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
039
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
040
BRACE, TUB WPL 213053 Contact Us For Availability
040
SCREW WPL Y310632 Contact Us For Availability
041
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
042
WASHER, DOUBLE WPL 213073 Contact Us For Availability
044
LINER, TUB BEARING WPL 211130 Contact Us For Availability
044
SCREW WPL Y310842 Contact Us For Availability
045
WASHER,CLAMPING NUT(STAINLESS) WPL 211210 Contact Us For Availability
047
INJECTOR TUBE WITH SEAL WPL 206154 Contact Us For Availability
047
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
048
MOTOR SHIELD - POLY WPL 213737 Contact Us For Availability
048
LUG WASHER WPL 211484 Contact Us For Availability
049
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
049
GUARD, BELT WPL 213846 Contact Us For Availability
052
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
054
CENTER SHAFT WPL 213044 Contact Us For Availability
× ![]()
