Model Whirlpool A18CM WASHER – Common Parts & Diagrams

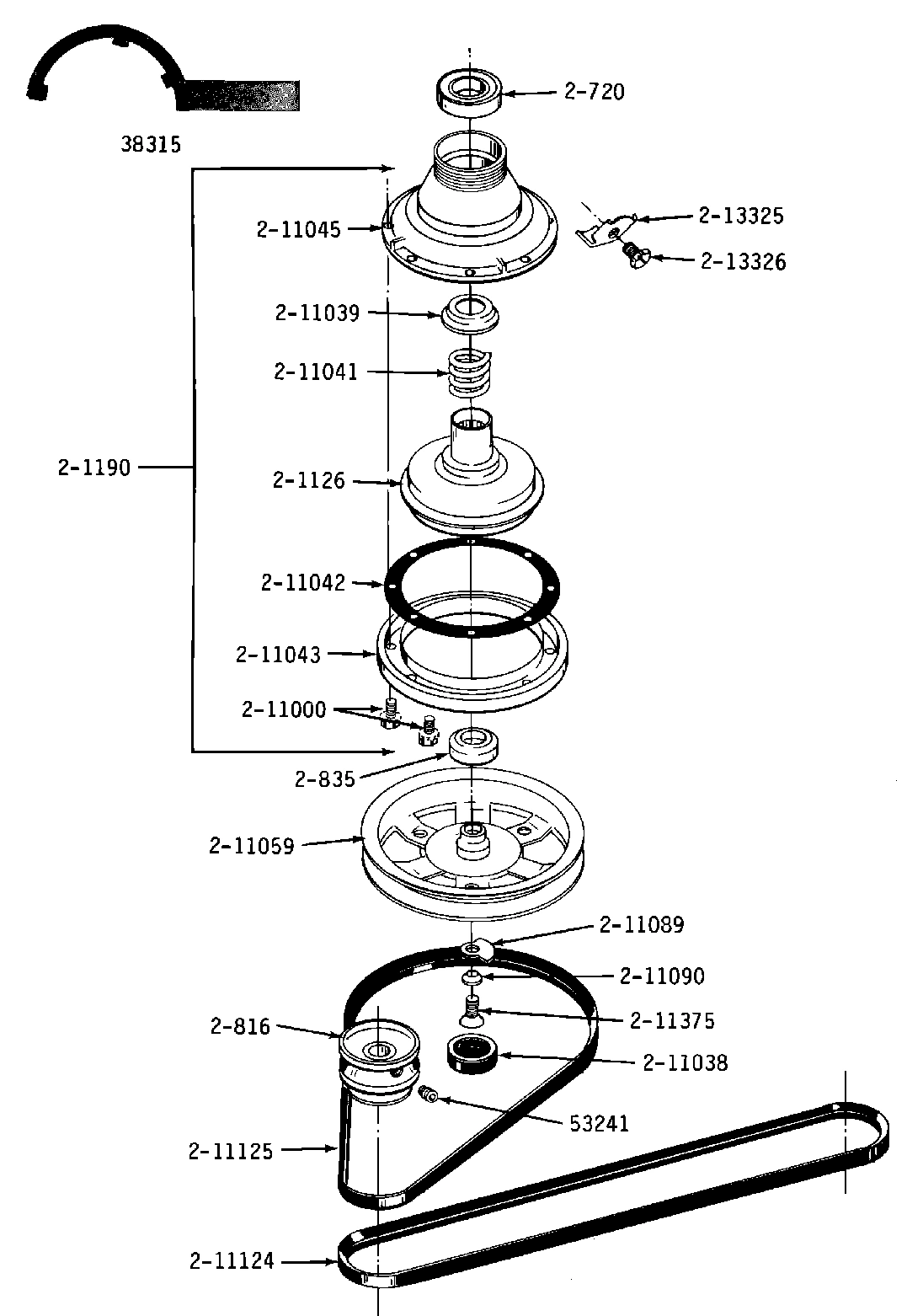

09 - CLUTCH, BRAKE & BELTS

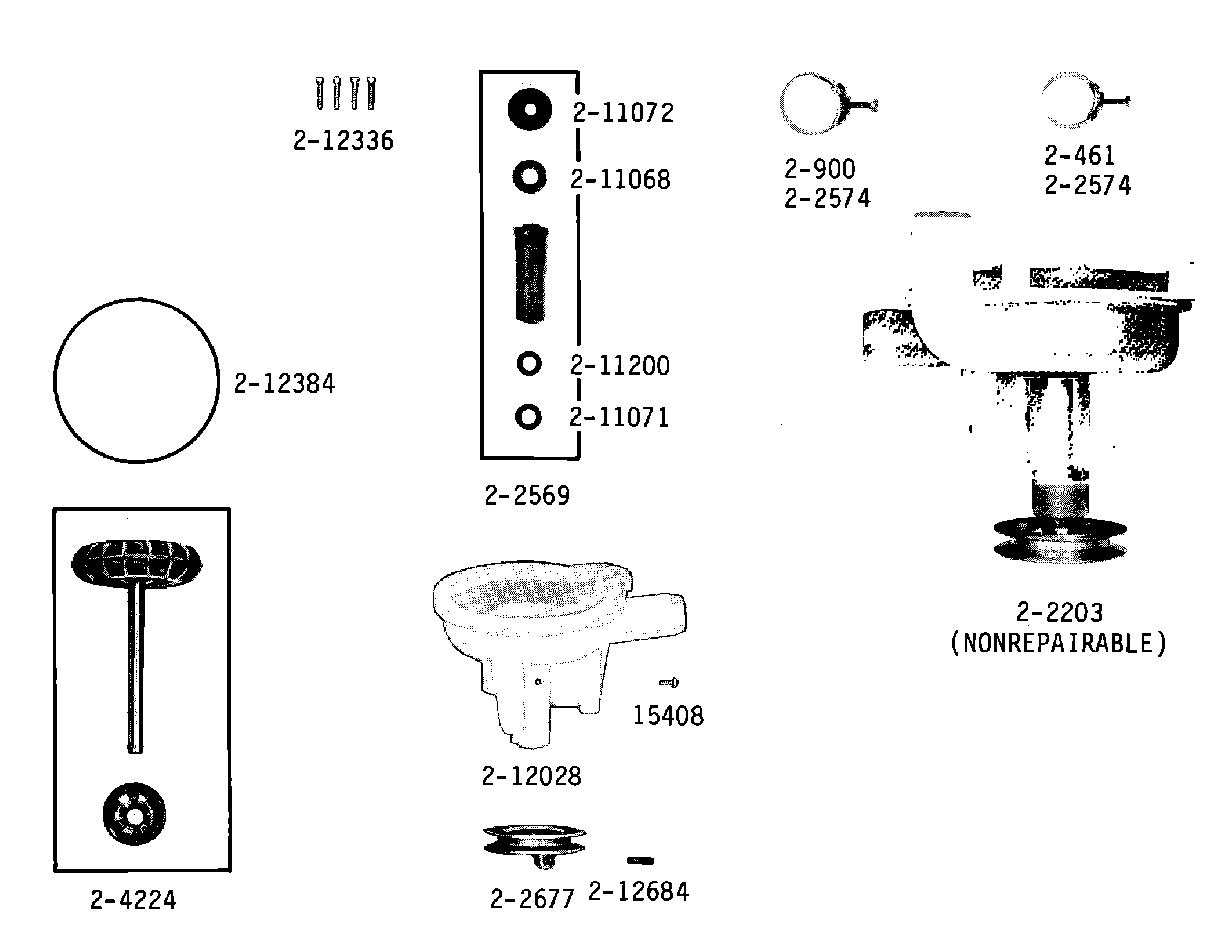

11 - `POLY` PUMP

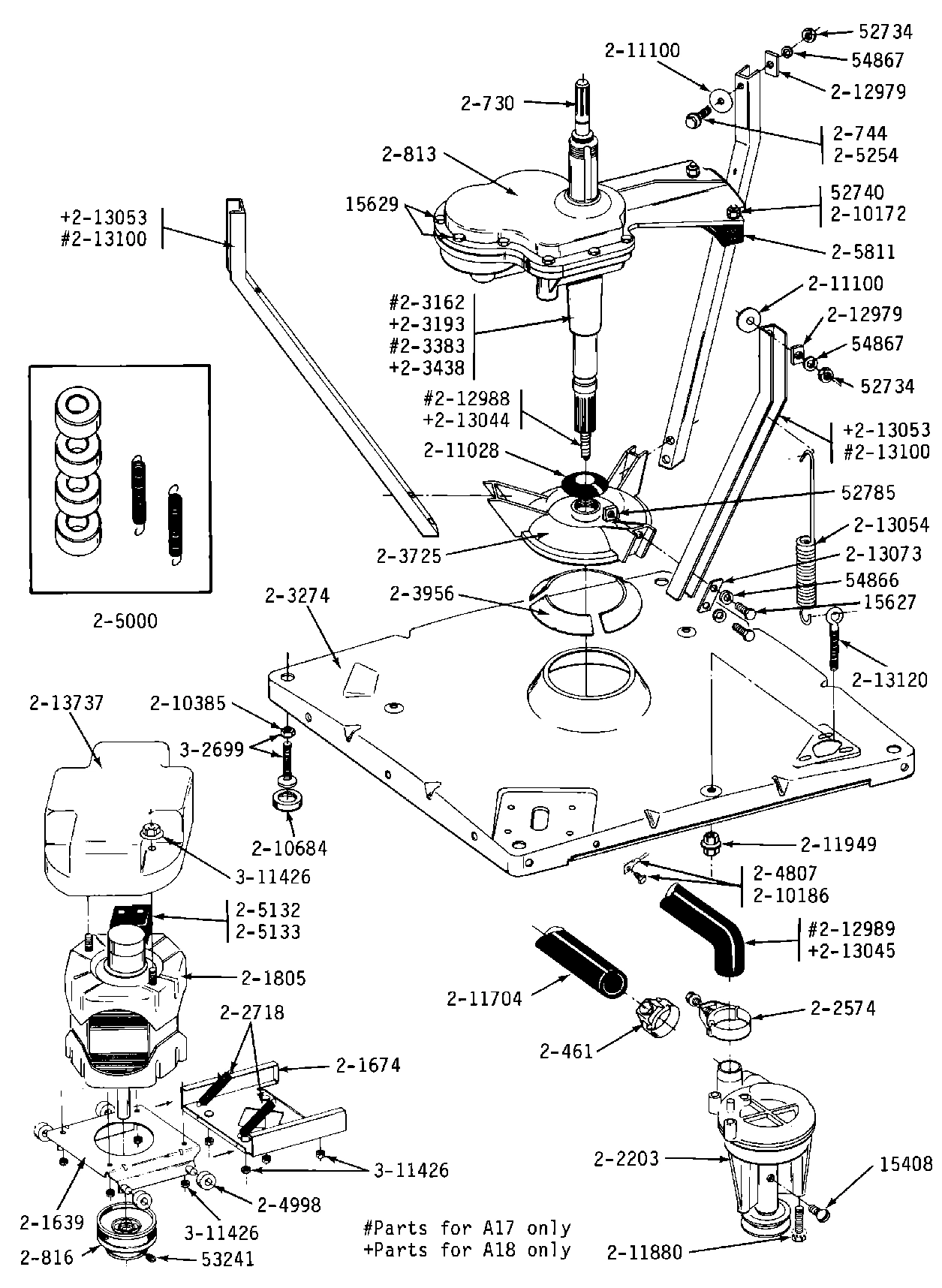

08 - BASE, PUMP, MOTOR & COMPONENTS

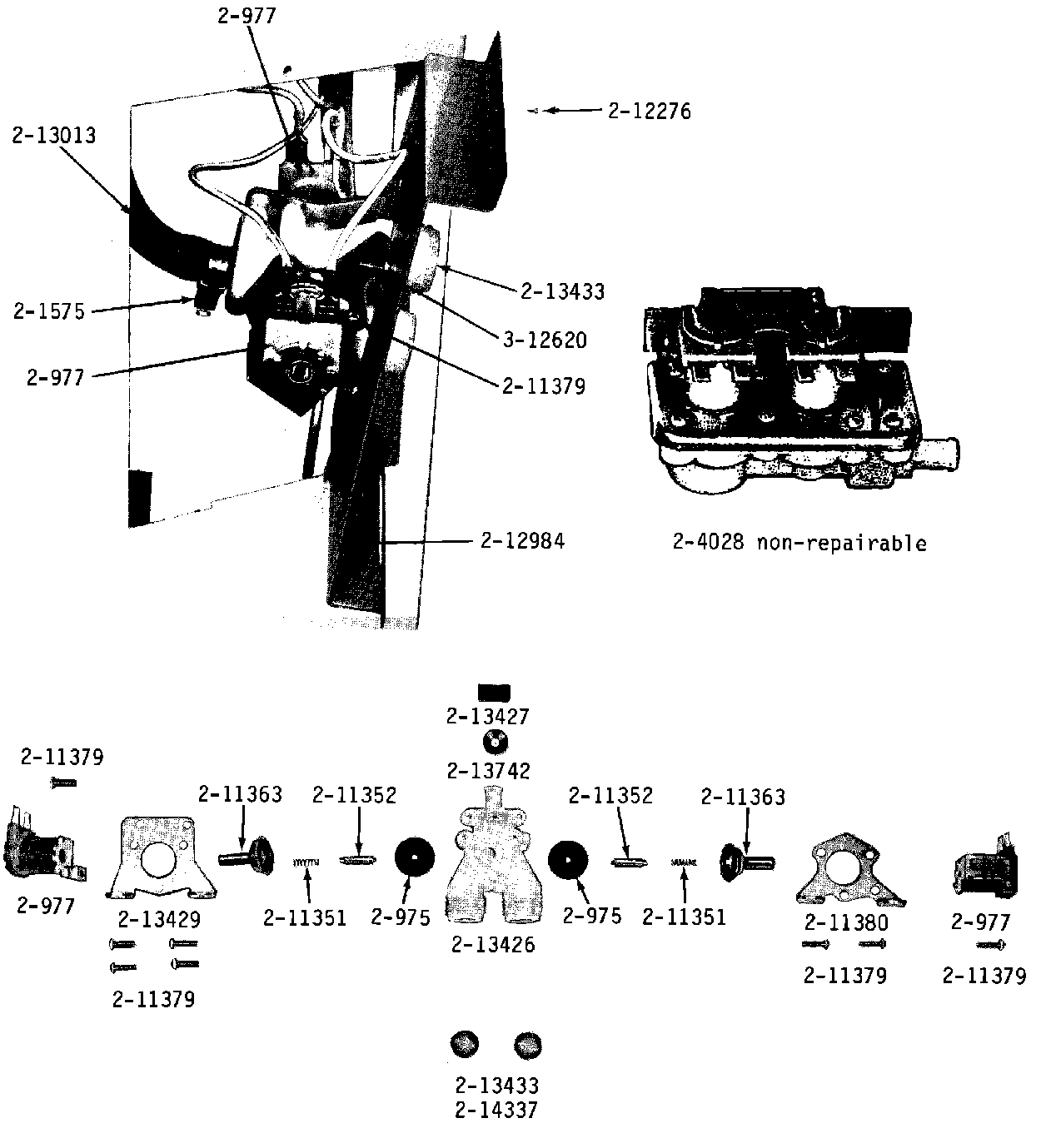

10 - WATER VALVE

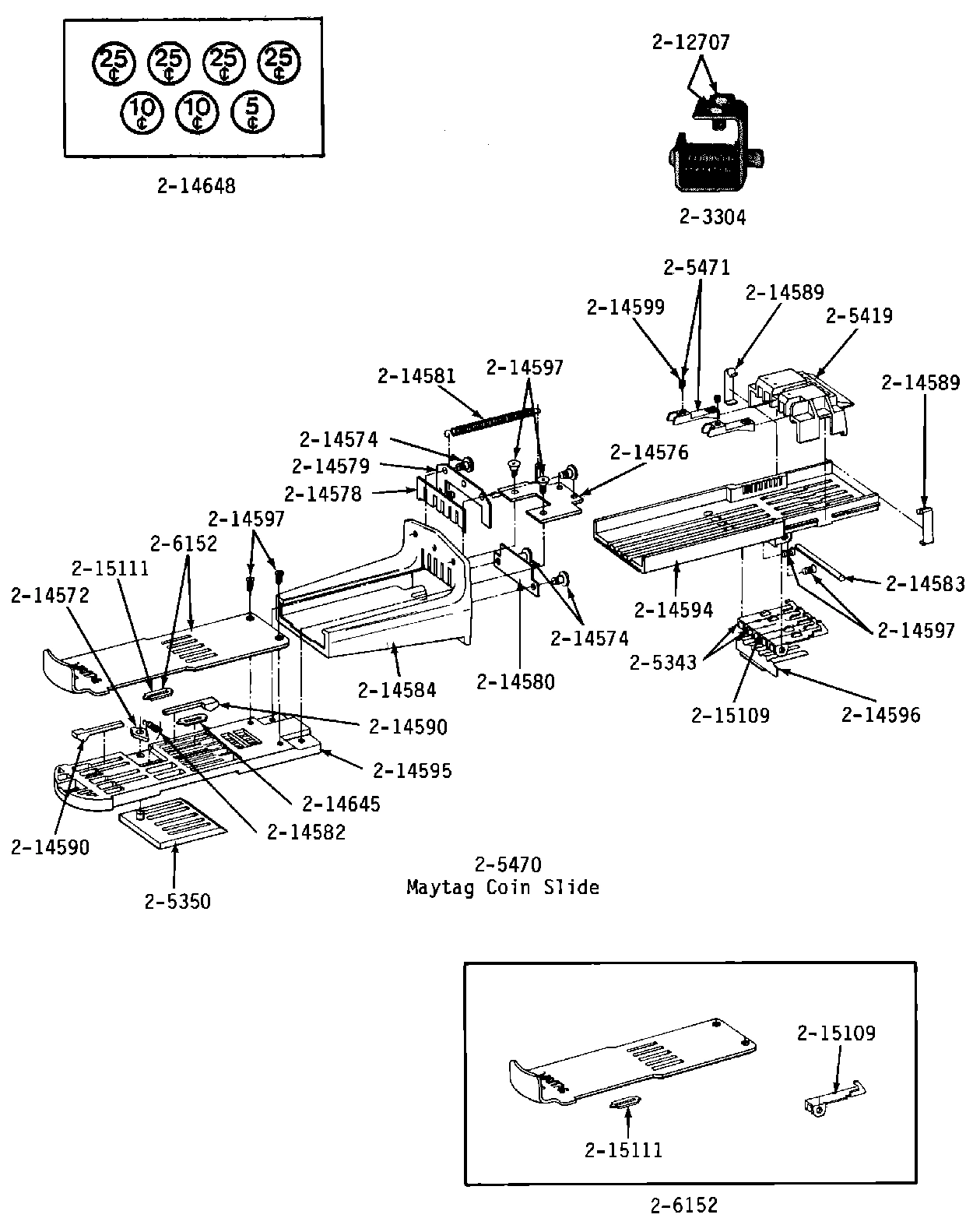

04 - MAYTAG COIN SLIDE (A18CM)

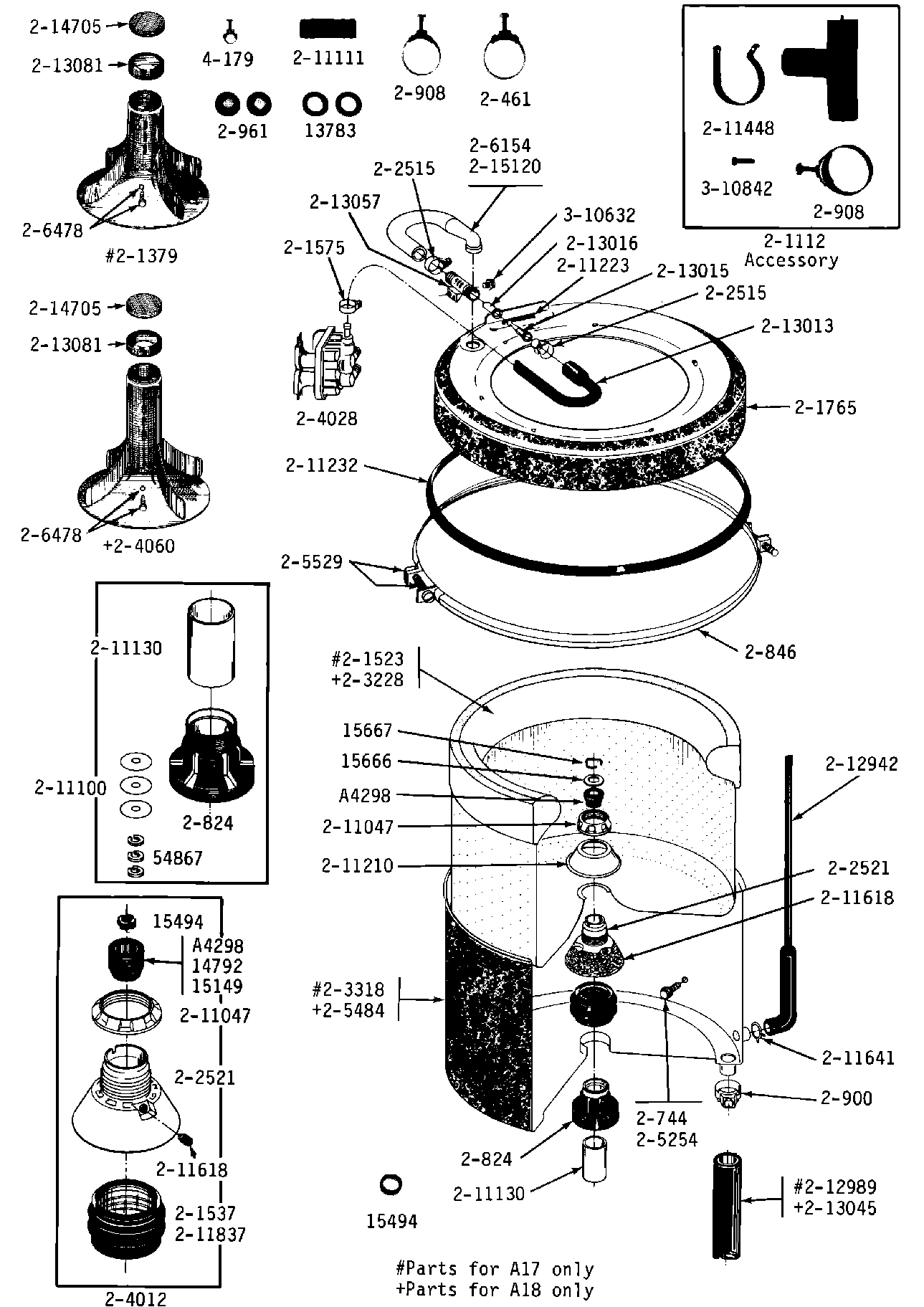

06 - TUB, AGITATOR, MTG. STEM, HOSES & CLAMPS

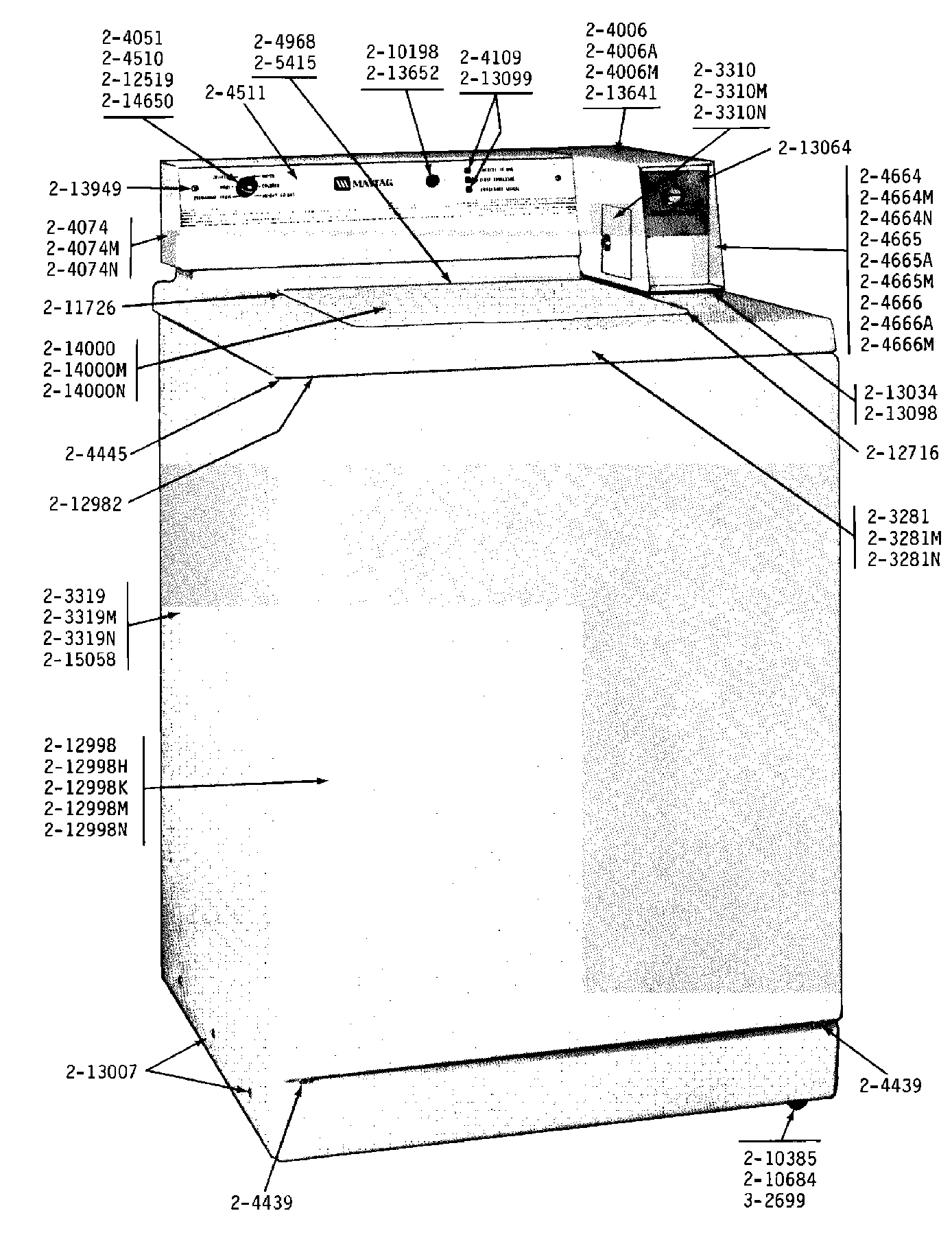

01 - FRONT VIEW

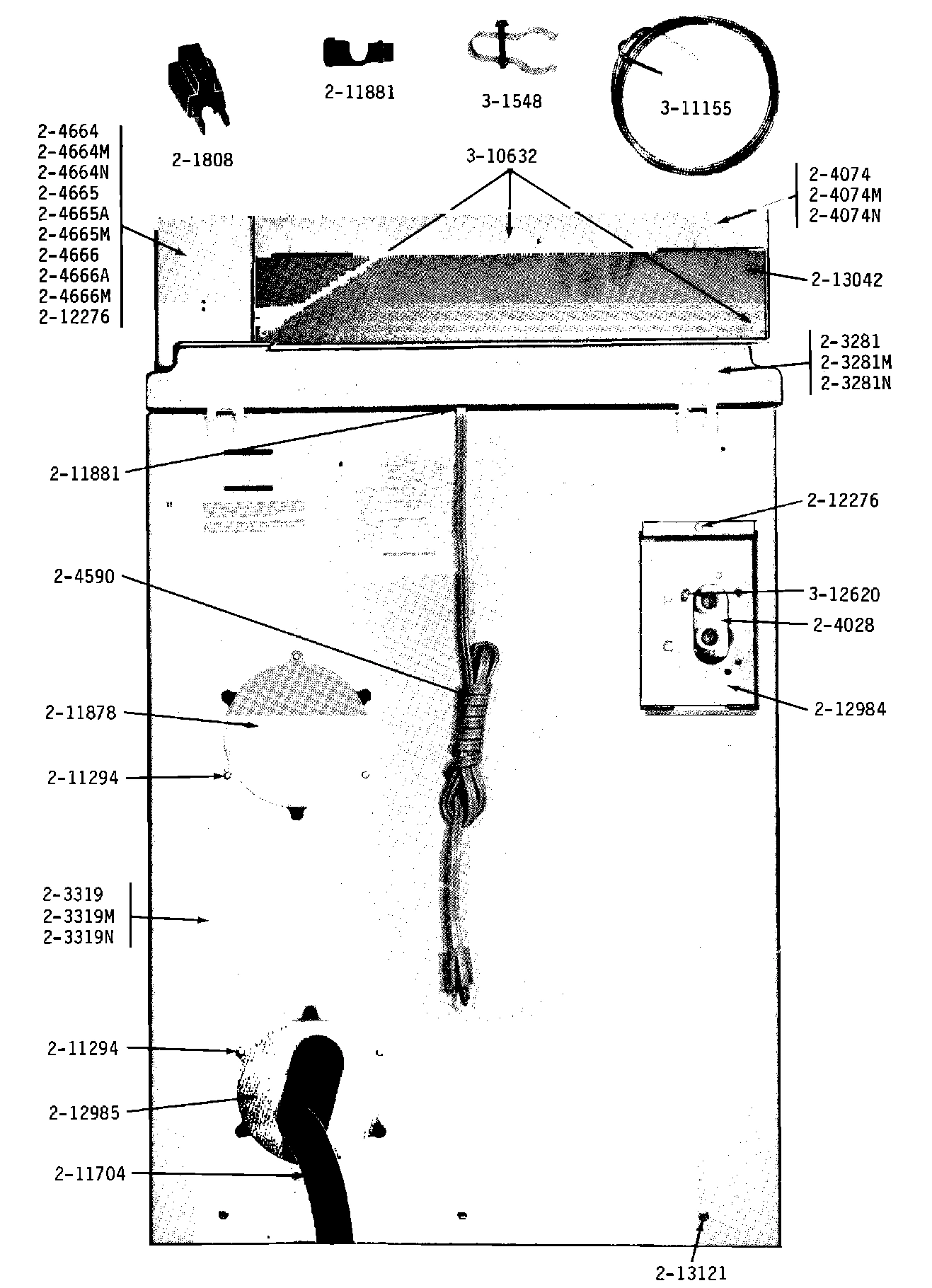

02 - REAR VIEW

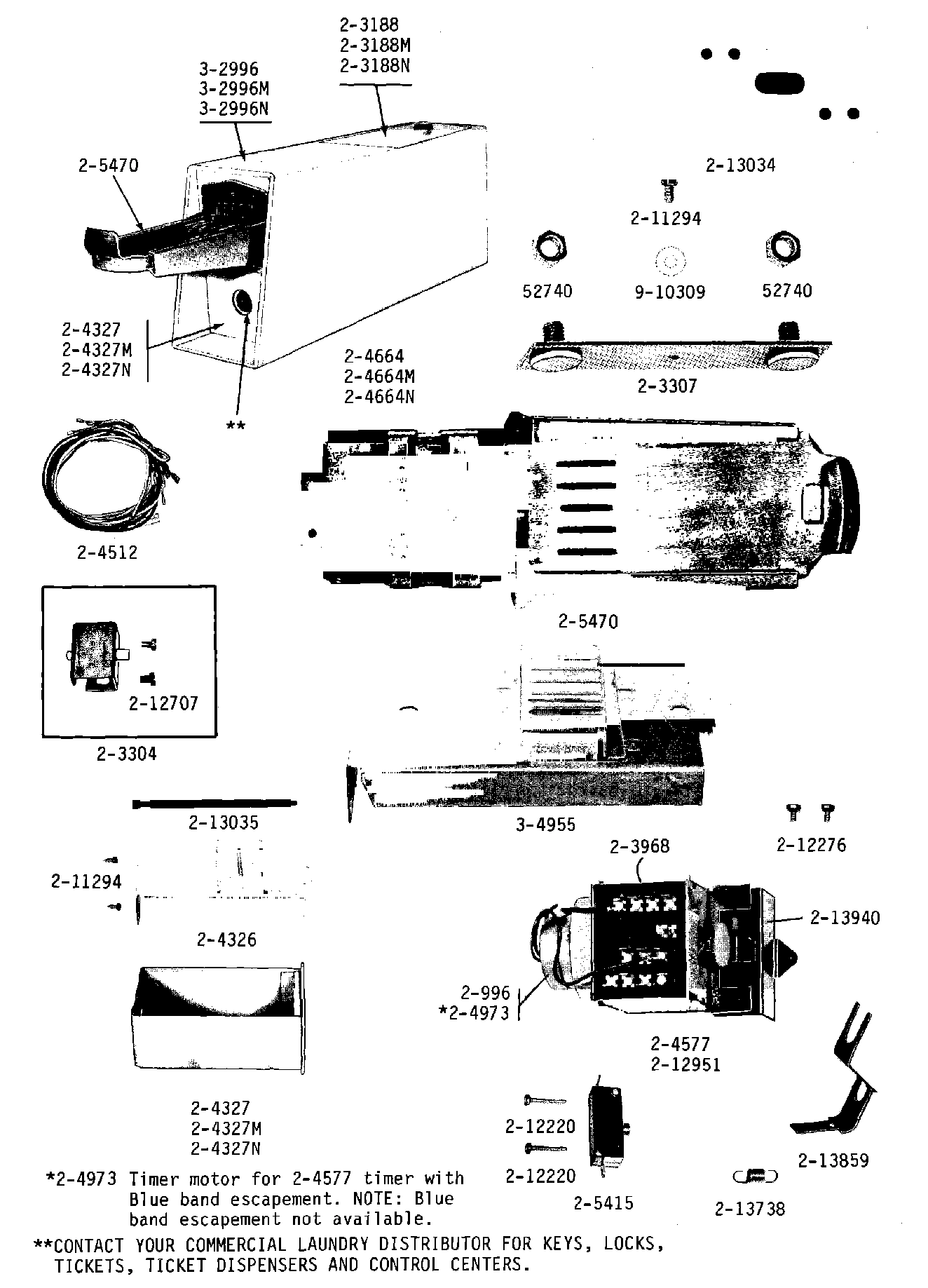

03 - CM CONTROL CENTER

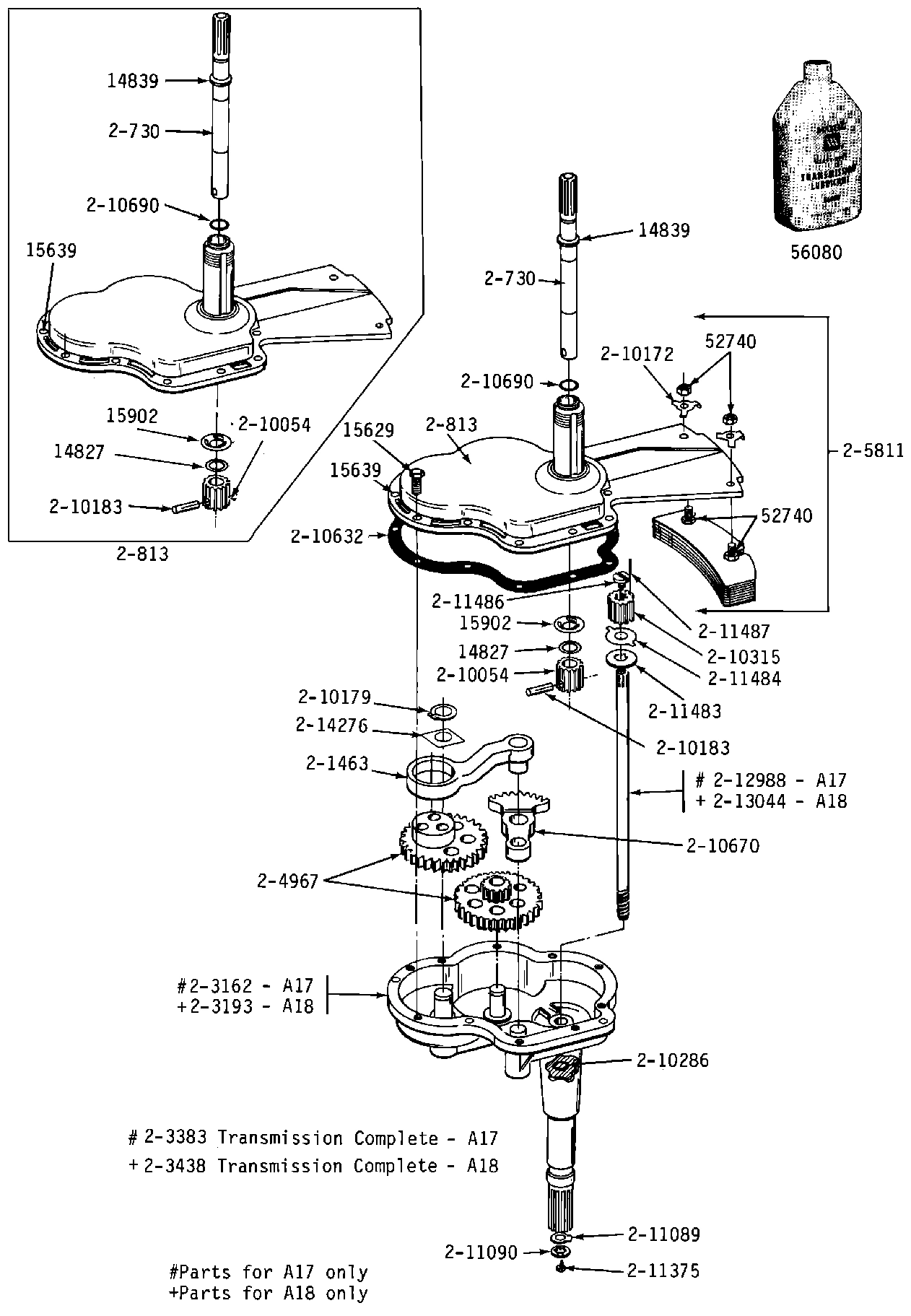

07 - TRANSMISSION

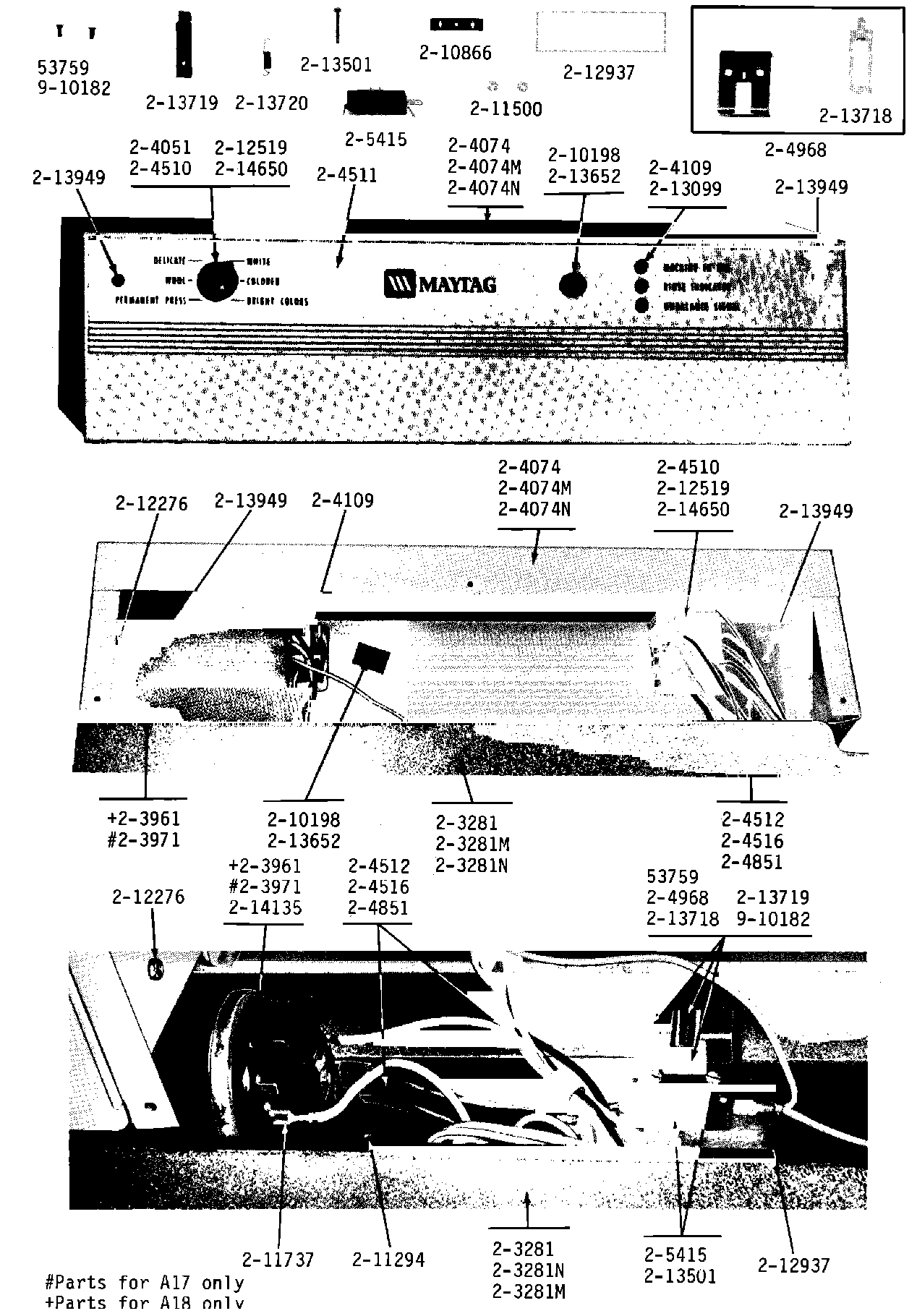

05 - CONTROL PANELS
Common parts from model Whirlpool A18CM WASHER
001
DIAPHRAGM WPL 200975 Contact Us For Availability
001
CONVERTER WPL Y201808 Contact Us For Availability
001
WASHER-CENTER SHAFT WPL Y014827 Contact Us For Availability
002
SCREW, HEX HD CAP 5/16 X 5/8 WPL Y015627 Contact Us For Availability
002
SOLENOID FOR WATER VALVE WPL 200977 Contact Us For Availability
002
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
002
GASKET, INLET HOSE WPL Y013783 Contact Us For Availability
002
COLLAR-DRIVE SHAFT WPL Y014839 Contact Us For Availability
003
BOLT, GRINDING CHAMBER-DRAI WPL Y015629 Contact Us For Availability
003
STOP BLOCK ASSEMBLY WPL 205350 Contact Us For Availability
003
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
004
NUT WPL Y052734 Contact Us For Availability
004
BRASS WASHER-AGITATOR SEAL WPL Y015149 Contact Us For Availability
004
PRESSURE SWITCH WPL 203961 Contact Us For Availability
005
SPRING FOR PLUNGER WPL 211351 Contact Us For Availability
005
STOP RING-AGITATOR SHAFT WPL Y015494 Contact Us For Availability
005
KNOB WPL 204051 Contact Us For Availability
005
SPRING FOR AGITATOR WPL Y015902 Contact Us For Availability
006
WASHER,RETAINING(CENTER SEAL)- WPL Y015666 Contact Us For Availability
006
NUT,BRACE TO DAMPER WPL Y052785 Contact Us For Availability
006
POWER CORD WPL 204590 Contact Us For Availability
007
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
007
SOLENOID GUIDE WPL 211363 Contact Us For Availability
007
RETAINING RING WPL Y015667 Contact Us For Availability
007
3 BULB SIGNAL LIGHT WPL 204109 Contact Us For Availability
007
TRANS LUBE - AUTO, 34 OZ. WPL Y056080 Contact Us For Availability
008
IMPELLER & SEAL ASSEMBLY WPL 204224 Contact Us For Availability
008
LOCK WASHER WPL Y054866 Contact Us For Availability
008
WASHER, LOCK WPL Y054867 Contact Us For Availability
008
AGITATOR SHAFT WPL 200730 Contact Us For Availability
008
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
008
FABRIC CONTROL SWITCH WPL 204510 Contact Us For Availability
009
WICKING-TOP WPL 211068 Contact Us For Availability
009
RATCHET ARM WPL 214572 Contact Us For Availability
009
HOSE 31/32`` PER FOOT BRANCH ST WPL Y059137 Contact Us For Availability
009
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
010
CTN. 50 FT. 31/32 DRAIN HOS WPL Y059141 Contact Us For Availability
010
TIMER WITH KNOB AND PIN WPL 204577 Contact Us For Availability
011
OIL & WATER SLINGER-TOP WPL 211072 Contact Us For Availability
011
DRAIN HOSE WPL 211704 Contact Us For Availability
012
SPRING, BRAKE WPL 211041 Contact Us For Availability
012
WASHER WPL 211200 Contact Us For Availability
012
GATE FOR COIN OPENING WPL 214578 Contact Us For Availability
012
TIMER MOTOR WPL 204973 Contact Us For Availability
013
PLUNGER & BRACKET ASSEMBLY--W WPL 204968 Contact Us For Availability
013
GASKET, BRAKE DRUM WPL 211042 Contact Us For Availability
013
GROMMET, CORD WPL 211881 Contact Us For Availability
014
DRUM, BRAKE WPL 211043 Contact Us For Availability
014
TRANS & CENTER ASSM. LG TUB WPL 203438 Contact Us For Availability
014
INLET HOSE, HOT 10 FT. WPL 200681 Contact Us For Availability
015
HOUSING, BRAKE WPL 211045 Contact Us For Availability
015
GASKET FOR POLY PUMP WPL 212384 Contact Us For Availability
015
PULLEY, MOTOR (W/SET SCREW) WPL 200816 Contact Us For Availability
015
RETURN SPRING WPL 214581 Contact Us For Availability
015
FASTENER WPL 210198 Contact Us For Availability
015
GEAR KIT-POWER FIN AGITATOR WPL 204967 Contact Us For Availability
016
ROLLPIN FOR PUMP PULLEY WPL 212684 Contact Us For Availability
016
UPPER MOTOR MOUNT WPL 201639 Contact Us For Availability
016
SPRING FOR RATCHET ARM WPL 214582 Contact Us For Availability
016
PLATE, ACCESS (W/HOLE) WPL 212985 Contact Us For Availability
016
TWIN SPEED NUT WPL 210866 Contact Us For Availability
017
LOWER MOTOR MOUNT----NA WPL 201674 Contact Us For Availability
017
INLET HOSE-COLD (4`LONG) WPL 200756 Contact Us For Availability
017
SCREW-HEX HD TYPE B No.6 X 15/16 WPL 212220 Contact Us For Availability
017
PINION WPL 210054 Contact Us For Availability
018
HOUSING FOR COIN SLIDE WPL 214584 Contact Us For Availability
018
INLET HOSE, HOT 4 FT. WPL 200757 Contact Us For Availability
018
WASHER,BRACKE TO TOP COVER WPL 211500 Contact Us For Availability
019
PUMP AS PAK WPL 202203 Contact Us For Availability
019
SPRING CLIP WPL 214589 Contact Us For Availability
019
ELECTRICAL INSTRUCTION LABE WPL 214518 Contact Us For Availability
020
CLAMP - TUB COVER WPL 200846 Contact Us For Availability
020
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
020
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
020
GROOV-PIN, 1/4 X 1-1/4 WPL 210183 Contact Us For Availability
021
BASE INSERT FOR HOUSING WPL 214594 Contact Us For Availability
021
SEAL WPL 210286 Contact Us For Availability
022
BOLT, LOCKING WPL 213035 Contact Us For Availability
022
PINION WPL 210315 Contact Us For Availability
022
MOISTURE BARRIER WPL 212937 Contact Us For Availability
023
SCREW, RETAINING CLIP WPL 213326 Contact Us For Availability
023
BASE WITH DAMPER PADS WPL 203274 Contact Us For Availability
023
SEMS SCREW, No.10-16 X 1/2`` WPL 312620 Contact Us For Availability
023
SPRING FOR LOWER GAGE ARM WPL 214596 Contact Us For Availability
023
SCREEN WASHER, INLET HOSE WPL 200961 Contact Us For Availability
023
BACK PANEL WPL 213042 Contact Us For Availability
023
GASKET WPL 210632 Contact Us For Availability
024
SCREW WPL 214597 Contact Us For Availability
024
FRONT PANEL-WHITE WPL 212998 Contact Us For Availability
024
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
025
DAMPER W/BOLT & CLIP WPL 203725 Contact Us For Availability
025
INLET HOSE, HOT 8 FT. WPL 201486 Contact Us For Availability
025
SEAL, RUBBER WPL 210690 Contact Us For Availability
025
SCREW, No.6-20 X 1-1/8 INCH WPL 213501 Contact Us For Availability
026
LID BUMPER WPL NLA Contact Us For Availability
027
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
027
COINAGE DECAL WPL 214648 Contact Us For Availability
027
SEAL AND SPRING WPL 201537 Contact Us For Availability
027
LID SWITCH PLUNGER WPL 213718 Contact Us For Availability
028
GLIDE KIT (4 W/POLY LUBE) WPL Y204998 Contact Us For Availability
028
UNBALANCE LEVER WPL 213719 Contact Us For Availability
029
TUB COVER WPL 201765 Contact Us For Availability
029
WASHER WPL 910309 Contact Us For Availability
030
SWITCH, MOTOR START WPL 205132 Contact Us For Availability
030
LUG WASHER WPL 211484 Contact Us For Availability
031
SCREW, 3/8-16 X 1/2 INCH WPL 211486 Contact Us For Availability
031
FASTENER CLIP WPL 214135 Contact Us For Availability
032
MOUNTING STEM WPL 202521 Contact Us For Availability
032
SCREW FOR 2-4051 KNOB WPL 214650 Contact Us For Availability
033
SCREW WPL Y310632 Contact Us For Availability
033
LID-WHITE WPL 214000 Contact Us For Availability
034
CENTER SHAFT WPL 213044 Contact Us For Availability
034
INNER TUB WPL 203228 Contact Us For Availability
035
MOUNTING STEM REPAIR KIT WPL 204012 Contact Us For Availability
035
PAD, CABINET BUMPER WPL 215058 Contact Us For Availability
038
DEFLECTOR,WATER (DRIVE TUBE) WPL 211028 Contact Us For Availability
038
AGITATOR-BLACK WPL 204060 Contact Us For Availability
040
OUTER TUB WPL 205484 Contact Us For Availability
041
NUT & BOLT KIT FOR TUB CLAM WPL 205529 Contact Us For Availability
042
INJECTOR TUBE WITH SEAL WPL 206154 Contact Us For Availability
043
WASHER, TUB BRACE WPL 212979 Contact Us For Availability
043
SCREW & WASHER FOR AGITATOR WPL 206478 Contact Us For Availability
045
WASHER, CUSHION WPL 211100 Contact Us For Availability
046
BRACE, TUB WPL 213053 Contact Us For Availability
047
CENTERING SPRING - 3 USED WPL 213054 Contact Us For Availability
047
LINER, TUB BEARING WPL 211130 Contact Us For Availability
048
WASHER, DOUBLE WPL 213073 Contact Us For Availability
048
WASHER,CLAMPING NU WPL 211210 Contact Us For Availability
049
WPL 211223 WPL 211223 Contact Us For Availability
050
MOTOR SHIELD - POLY WPL 213737 Contact Us For Availability
051
WPL 211448 WPL 211448 Contact Us For Availability
063
WPL 213081 WPL 213081 Contact Us For Availability
064
WPL 214705 WPL 214705 Contact Us For Availability
068
WPL Y310842 WPL Y310842 Contact Us For Availability
× ![]()
