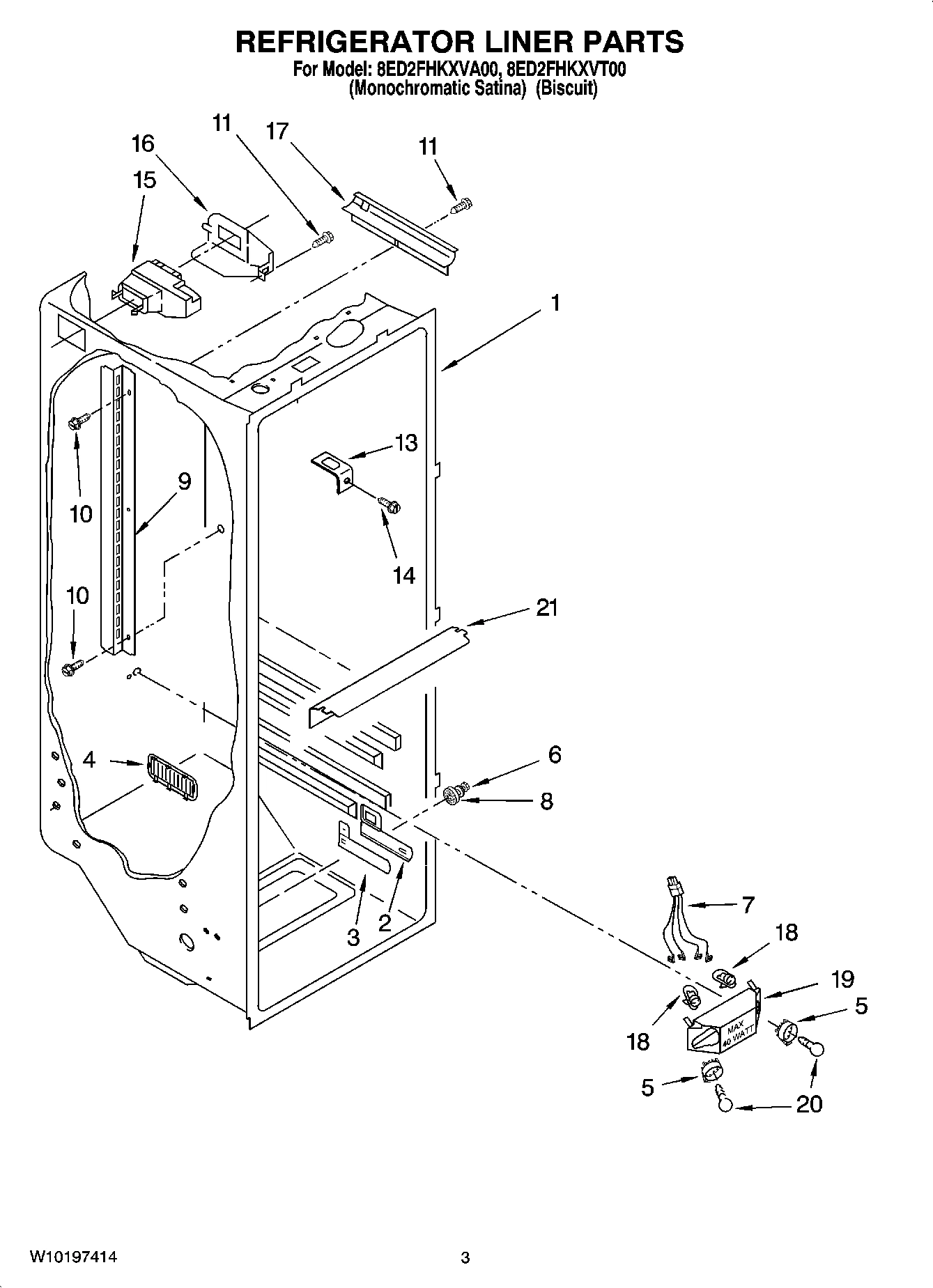

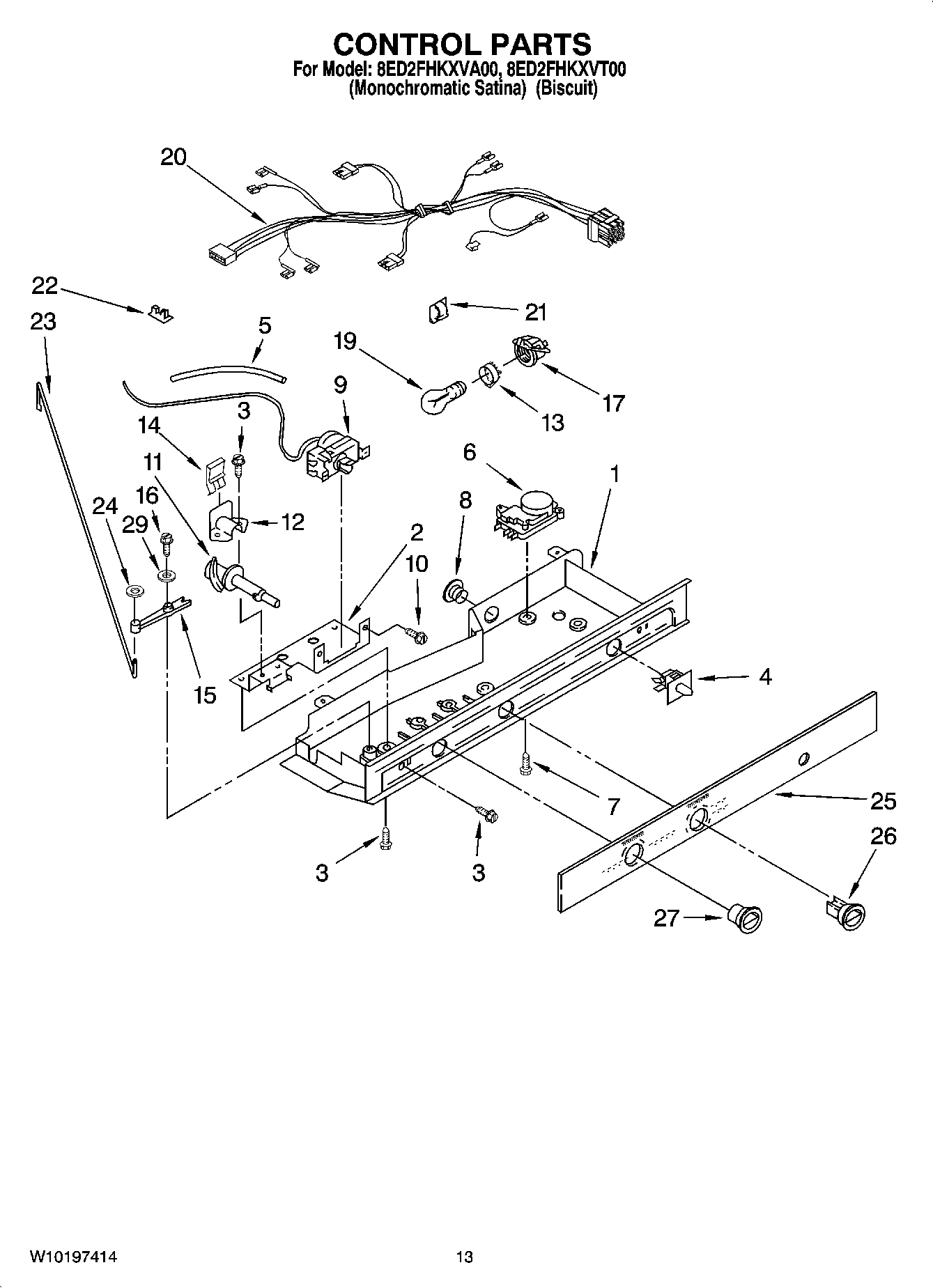

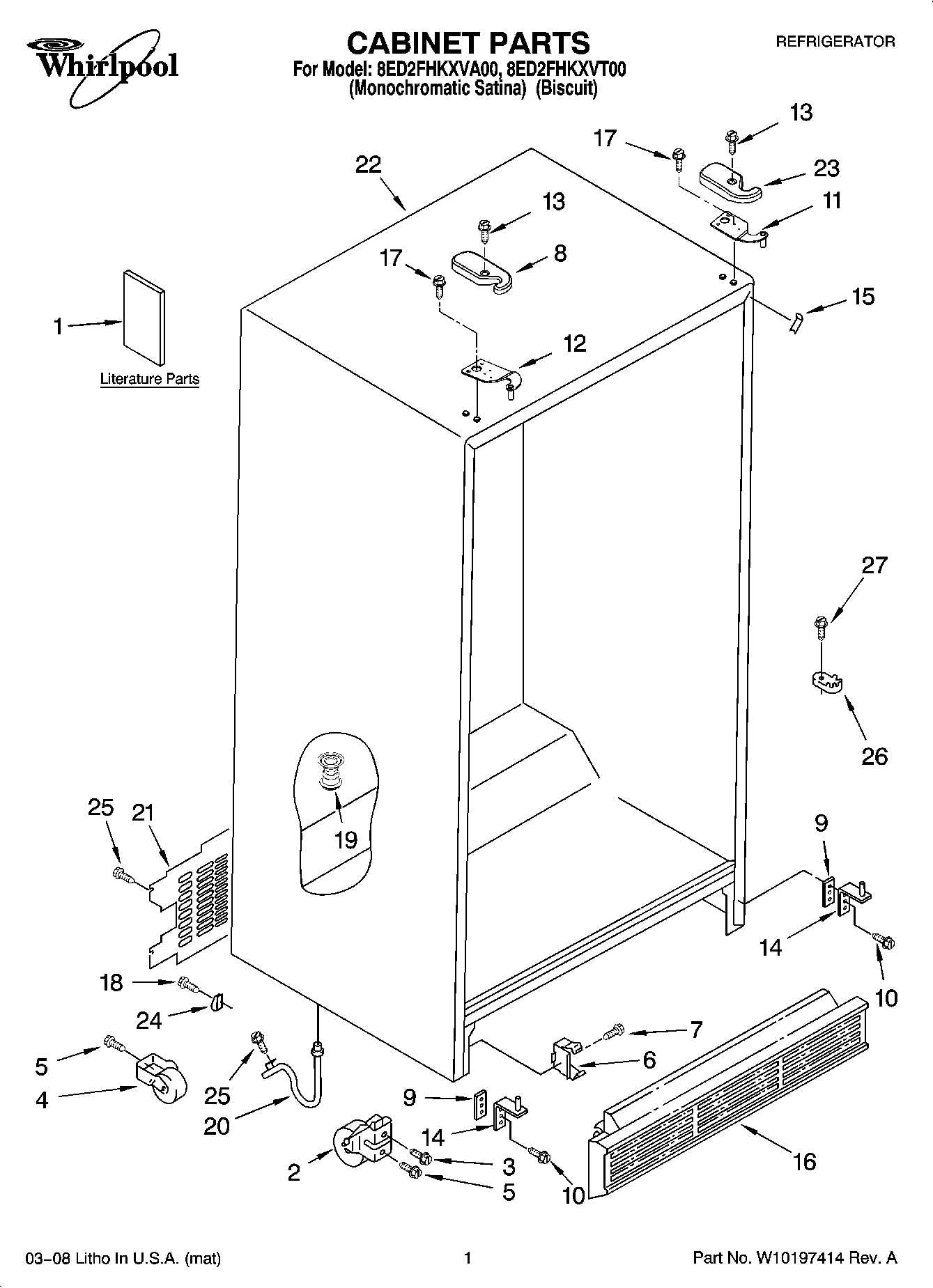

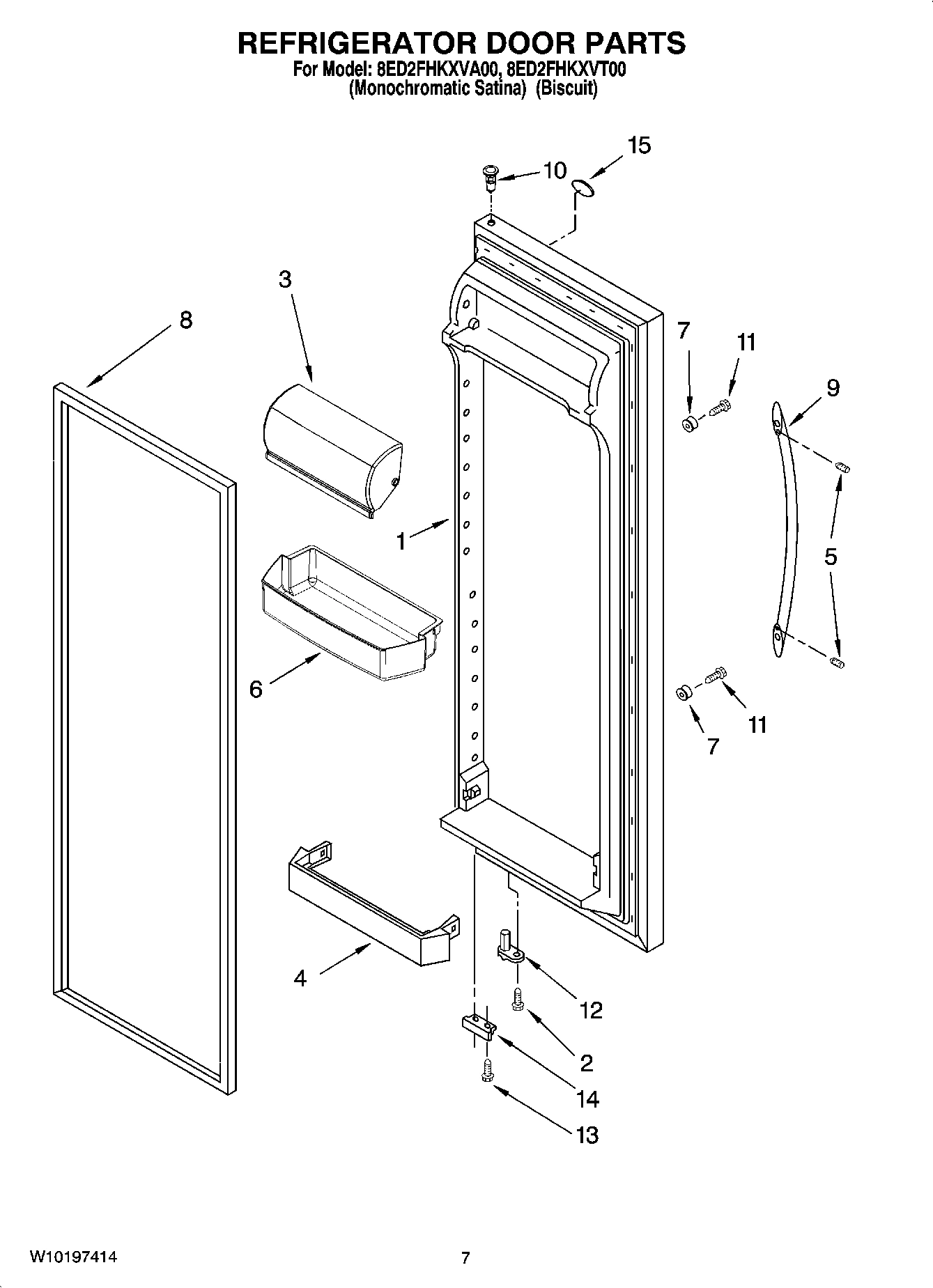

Model Whirlpool 8ED2FHKXVT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI18485A4 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-13 WPL ARI18486A1 Contact Us For Availability

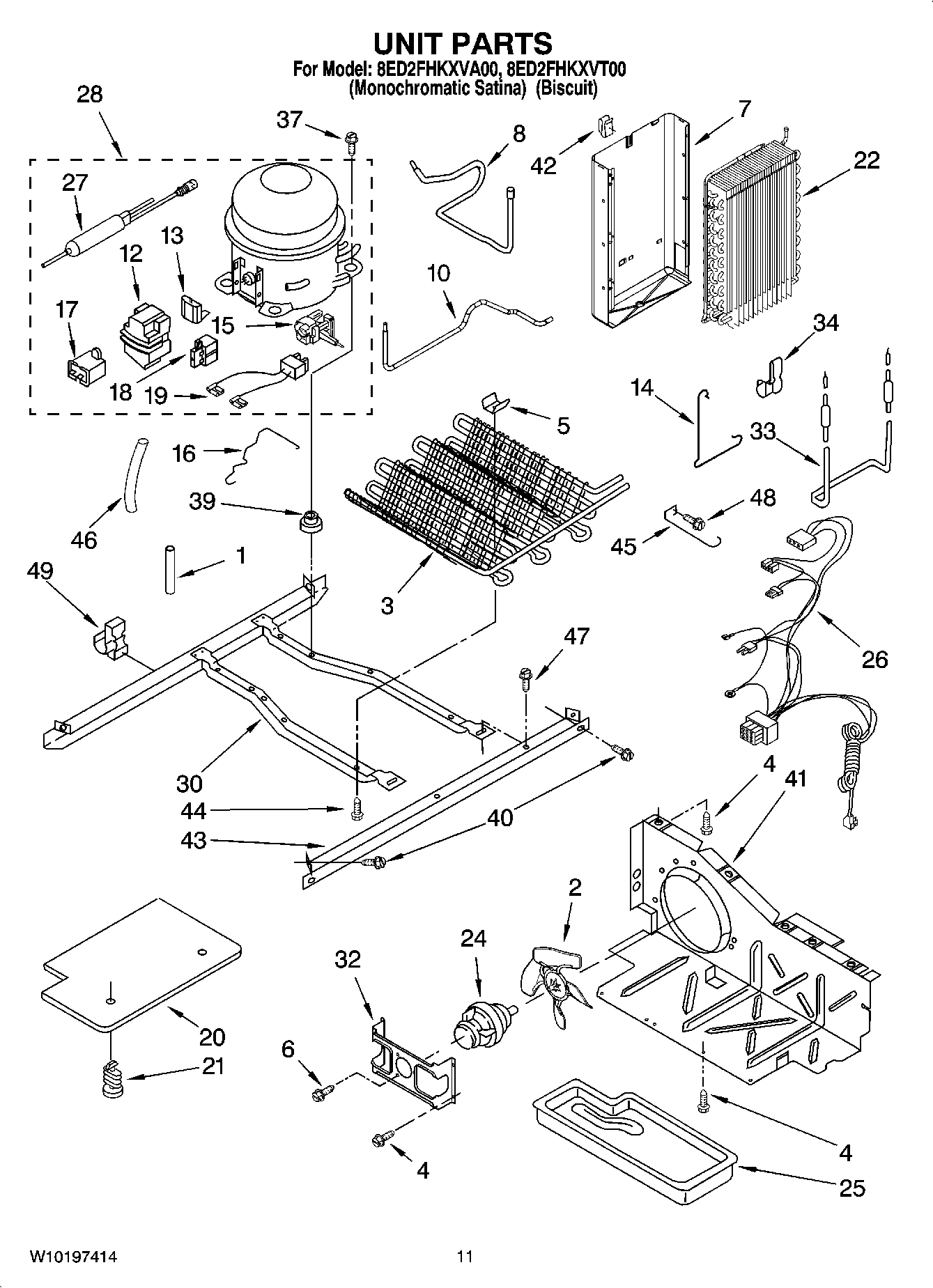

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $143.67

1

Glass, Shelf (3) WPL 2177986 Contact Us For Availability

1

Bushing WPL W10132427 Contact Us For Availability

1

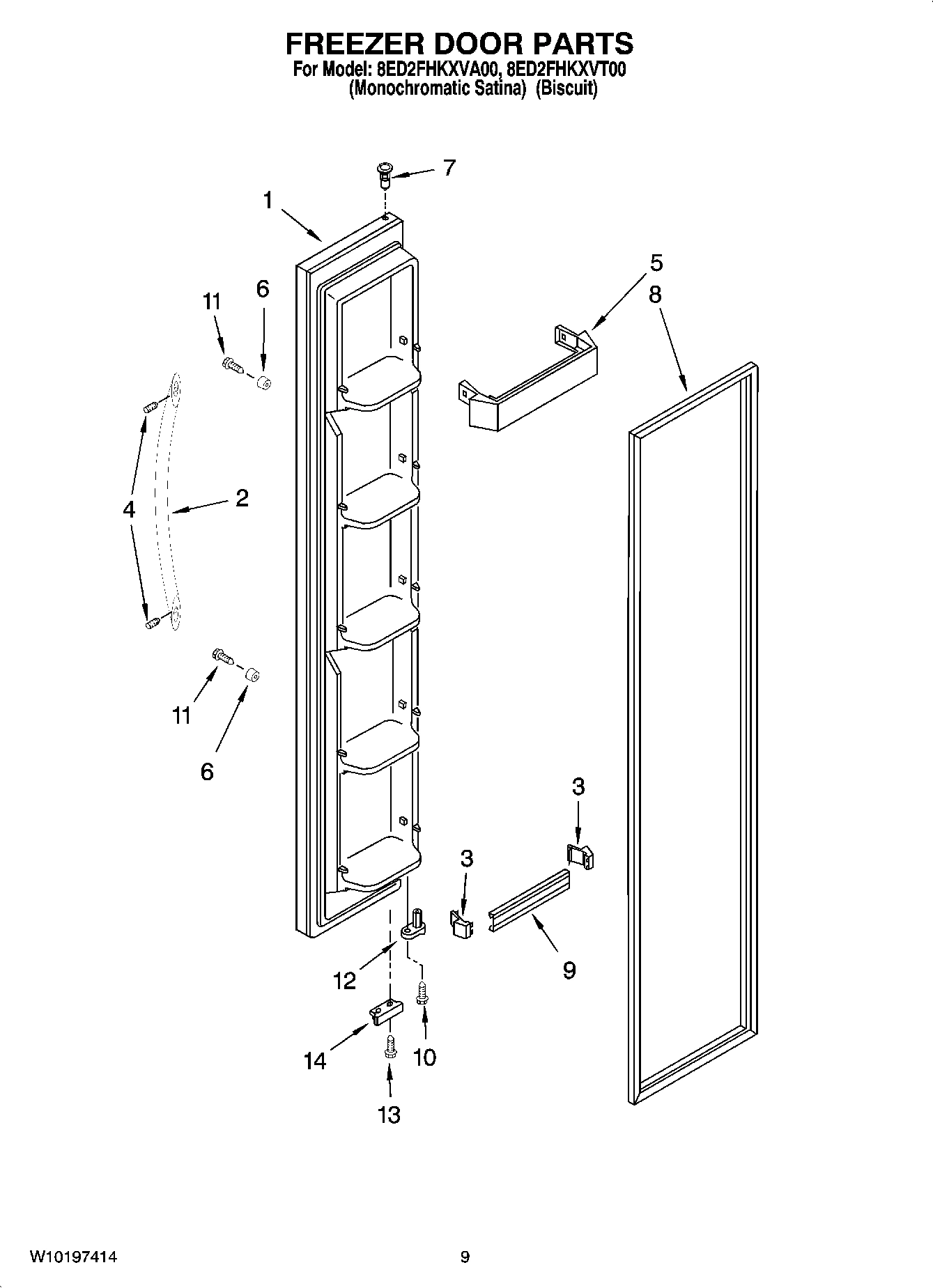

Freezer Door (Includes Item 8) (Mono Satina) WPL 2309925LA Contact Us For Availability

1

Freezer Door (Includes Item 8) (Biscuit) WPL 2309925T Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $61.68

2

2254608S Whirlpool Handle Backorder WPL 2254608S $124.37

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $13.59

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $3.22

2

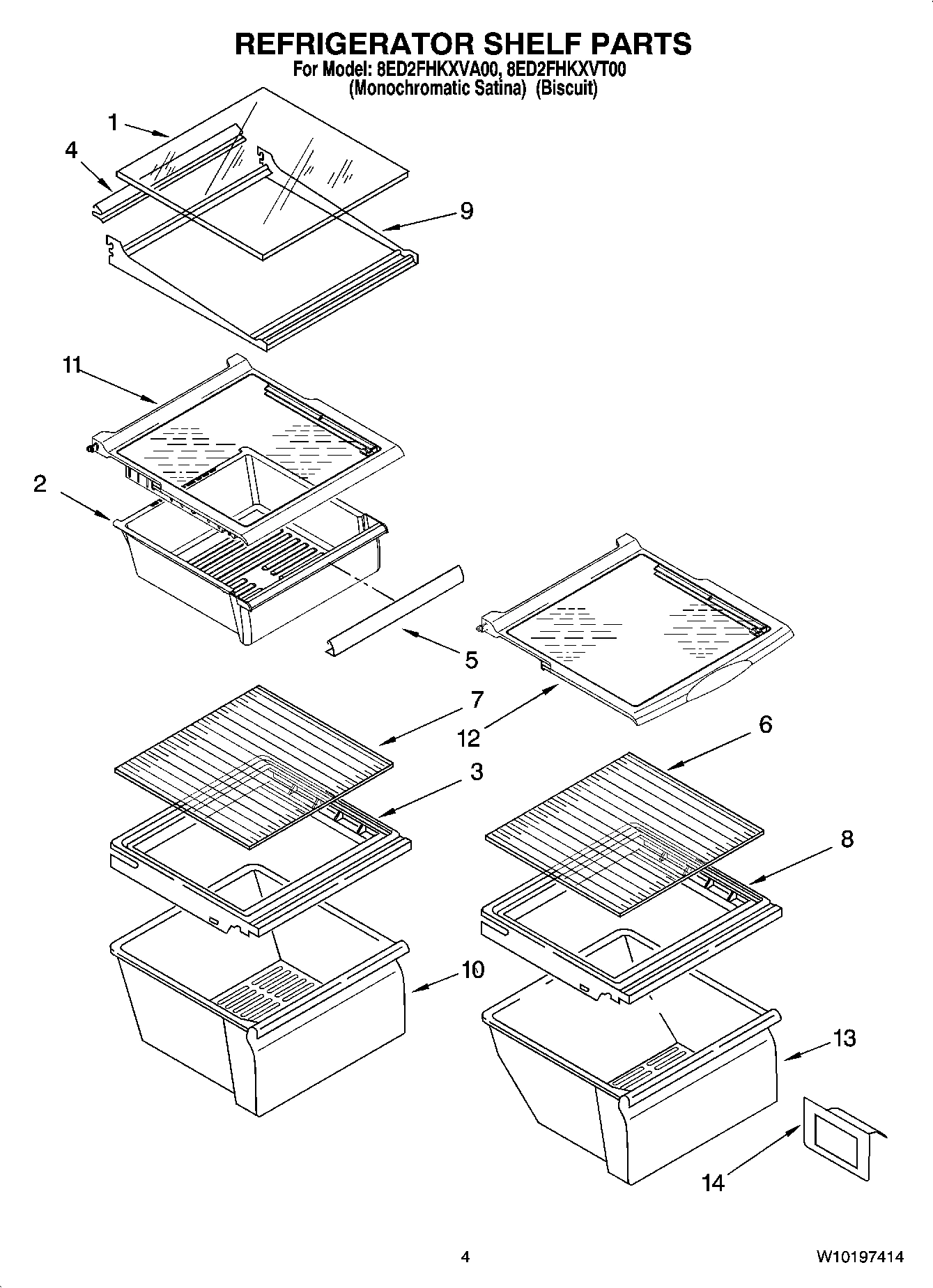

WP2309517 Whirlpool Crisper Snack Pan In Stock WPL WP2309517 $76.54

2

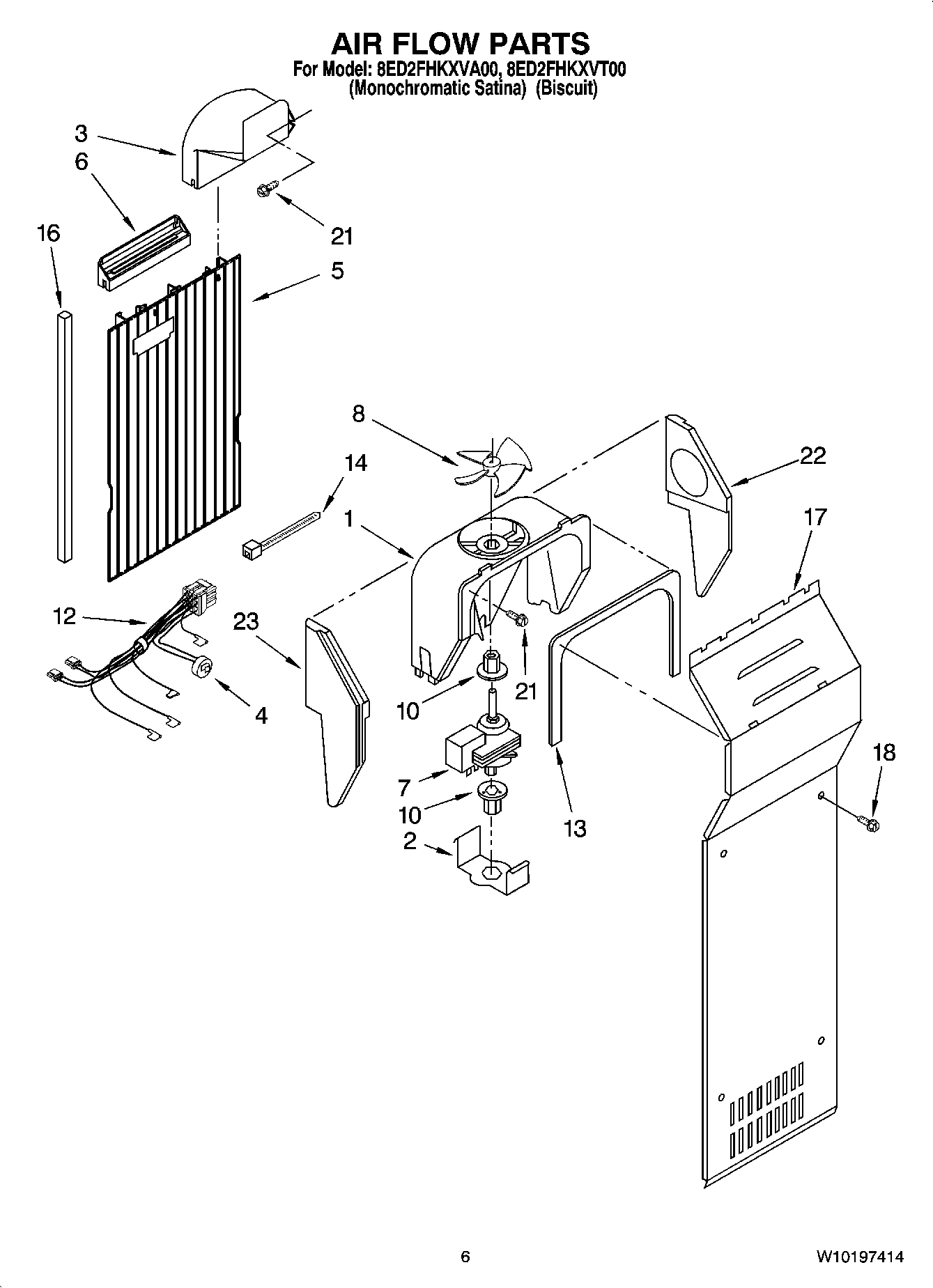

Fan, Blade WPL 2190685 Contact Us For Availability

2

Handle (Biscuit) WPL 2304413T Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $55.66

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $255.27

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $129.51

3

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $8.69

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $58.04

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.36

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $40.56

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.89

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $18.54

4

Retainer (3) WPL 1125594 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.15

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $11.39

5

WP2156021 Whirlpool Refrigerator Door Trim Backorder WPL WP2156021 $62.24

5

WP2179243 Whirlpool Refrigerator Pan Trim In Stock WPL WP2179243 $35.59

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.11

5

Air Duct Freezer WPL 2203592 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $14.22

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.32

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $126.87

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.19

7

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.30

7

Heat Shield And Drain Pan WPL 2304288 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $96.93

8

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $21.55

8

2220642 Whirlpool Refrigerator Tube Backorder WPL 2220642 $193.49

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.21

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $65.04

9

Frame, Shelf (3) WPL 2304542 Contact Us For Availability

9

Trim, Shelf (5) WPL 2313198K Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $200.75

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $77.39

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.31

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $38.78

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $68.45

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $5.76

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $143.64

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.35

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $59.99

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $39.02

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.15

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $36.39

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $154.73

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.51

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.42

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $62.83

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $52.03

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $5.85

Grommet WPL 2176134 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $55.60

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $17.66

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

Bracket, Door Stop (Apollo Grey) WPL 2321218AP Contact Us For Availability

15

WP2188831 Whirlpool Refrigerator Start Device Backorder WPL WP2188831 $74.52

15

Nameplate (Gold Medallion) WPL 2220214 Contact Us For Availability

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $39.78

16

2255009 Whirlpool Retainer Backorder WPL 2255009 $11.40

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $32.28

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $17.30

4388357 Whirlpool Refrigerator Evaporator Cov Backorder WPL 4388357 $161.68

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $55.92

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $47.49

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.57

18

4389654 Whirlpool Screw Backorder WPL 4389654 $10.90

18

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $49.55

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.32

19

W11566763 Whirlpool Fitting In Stock WPL W11566763 $22.78

19

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $3.22

20

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

20

Extension Tube WPL 2304937 Contact Us For Availability

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.35

22

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $17.42

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $231.58

22

Stud, Rear (9) WPL 2196207 Contact Us For Availability

24

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $8.38

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.90

24

Fastener, Push-On WPL 489285 Contact Us For Availability

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.22

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $12.20

26

Harness, Unit WPL 2310063 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $26.71

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $403.27

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $164.86

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $6.17

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $61.39

34

Clip WPL 2161324 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.19

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $5.76

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $5.84

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $63.20

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

Unit Mounting Rail WPL 2149718 Contact Us For Availability

44

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $14.93

45

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $37.53

46

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $18.95

47

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

48

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

49

Clip, Wire & Tube WPL 2208280 Contact Us For Availability
