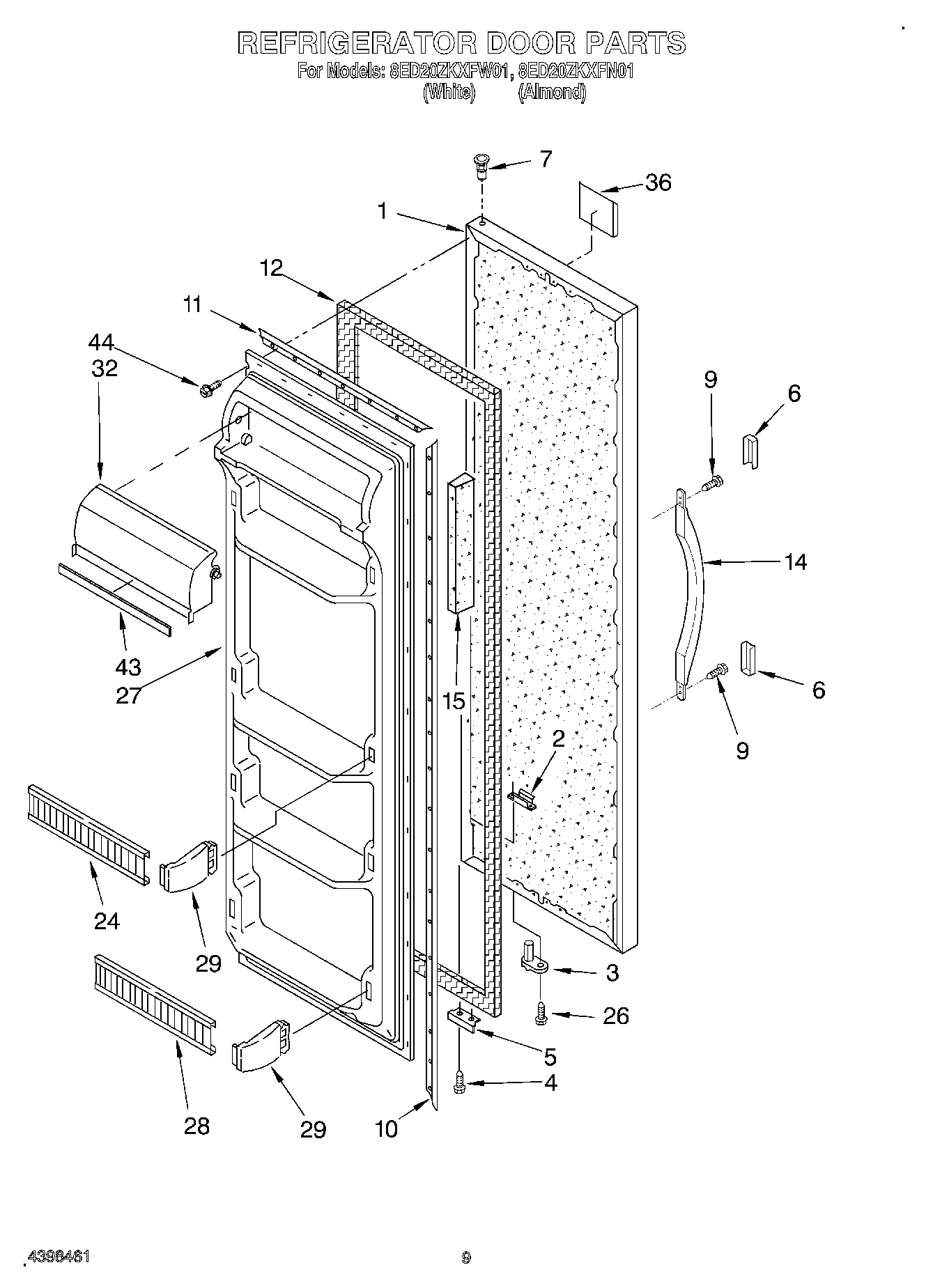

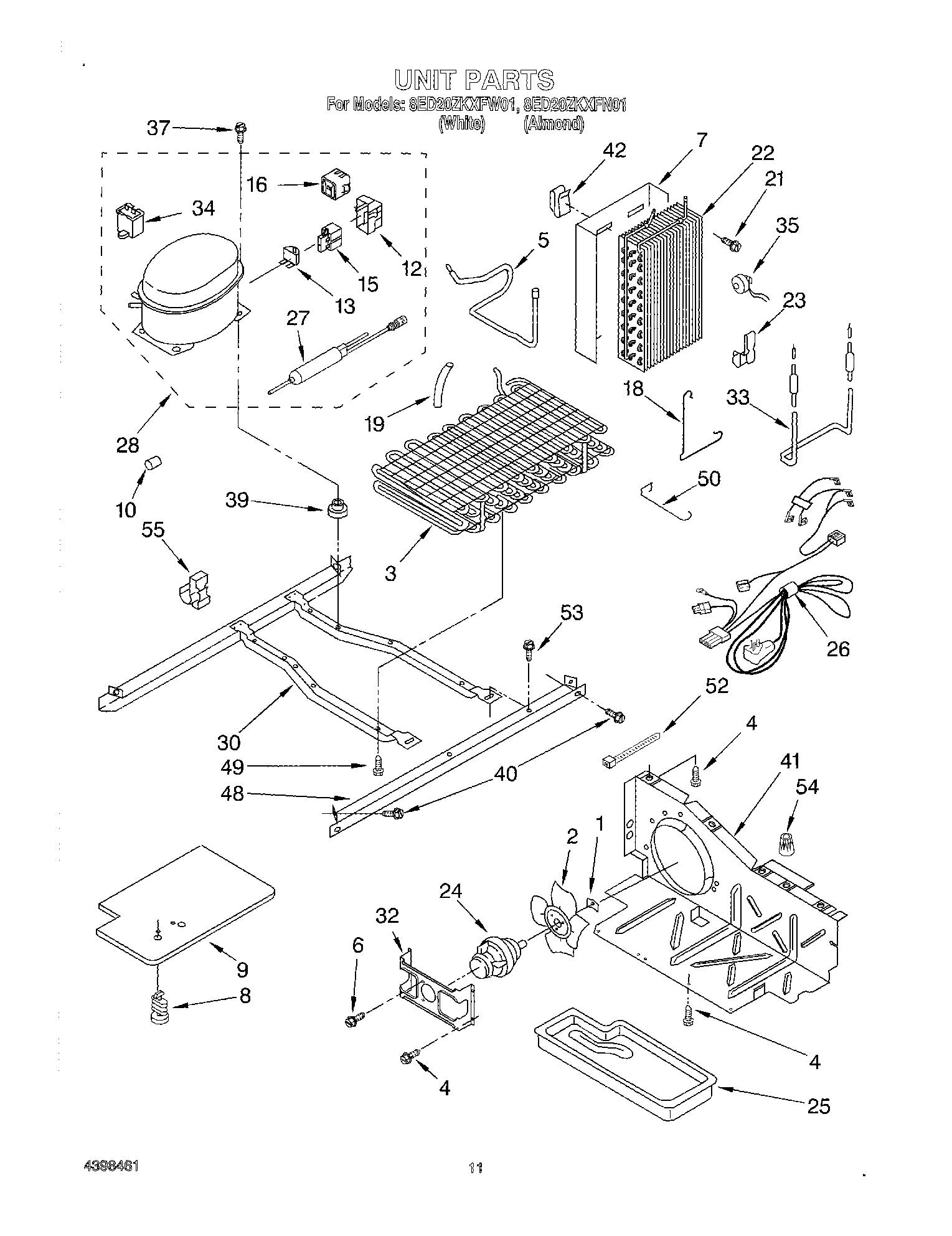

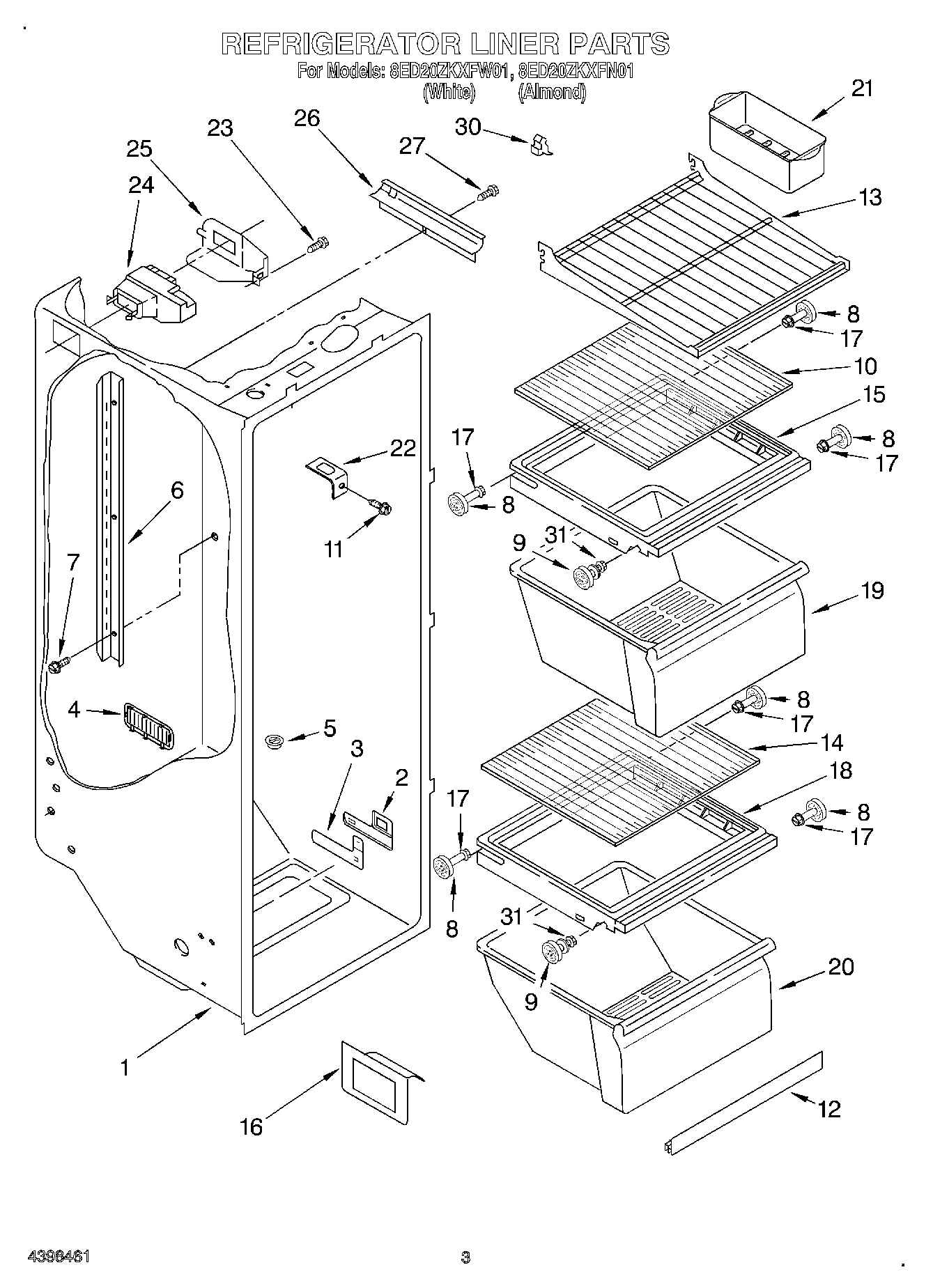

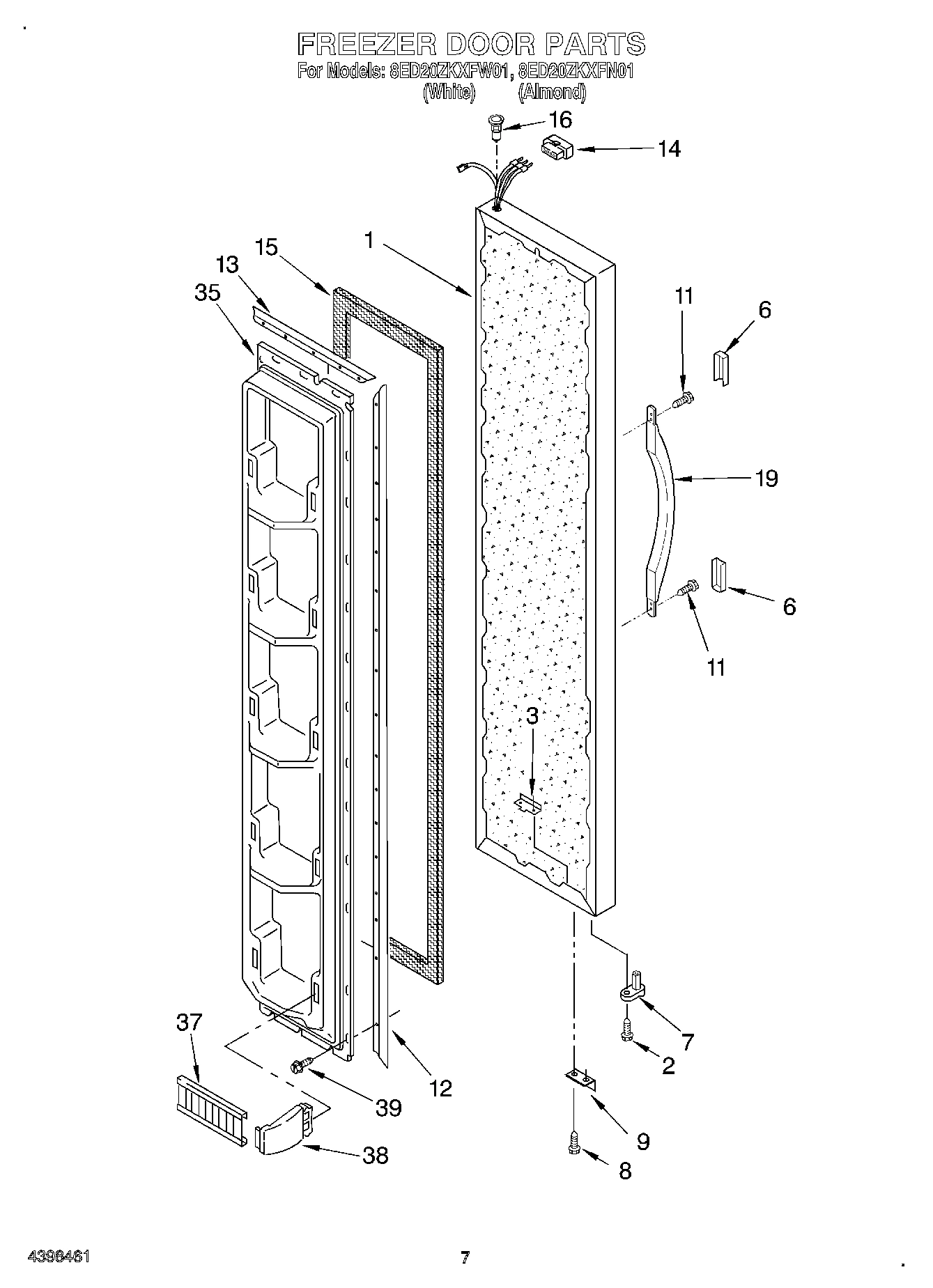

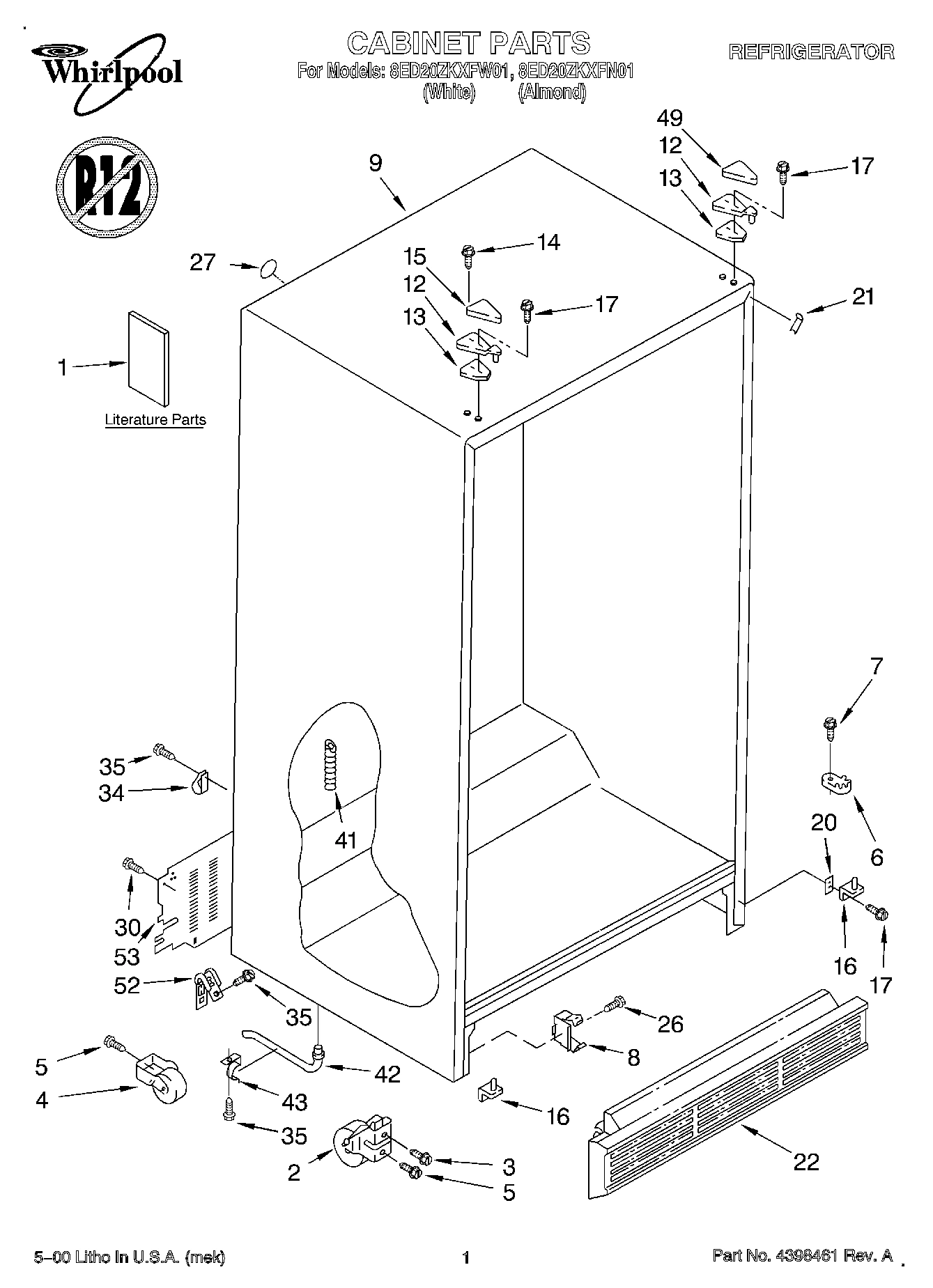

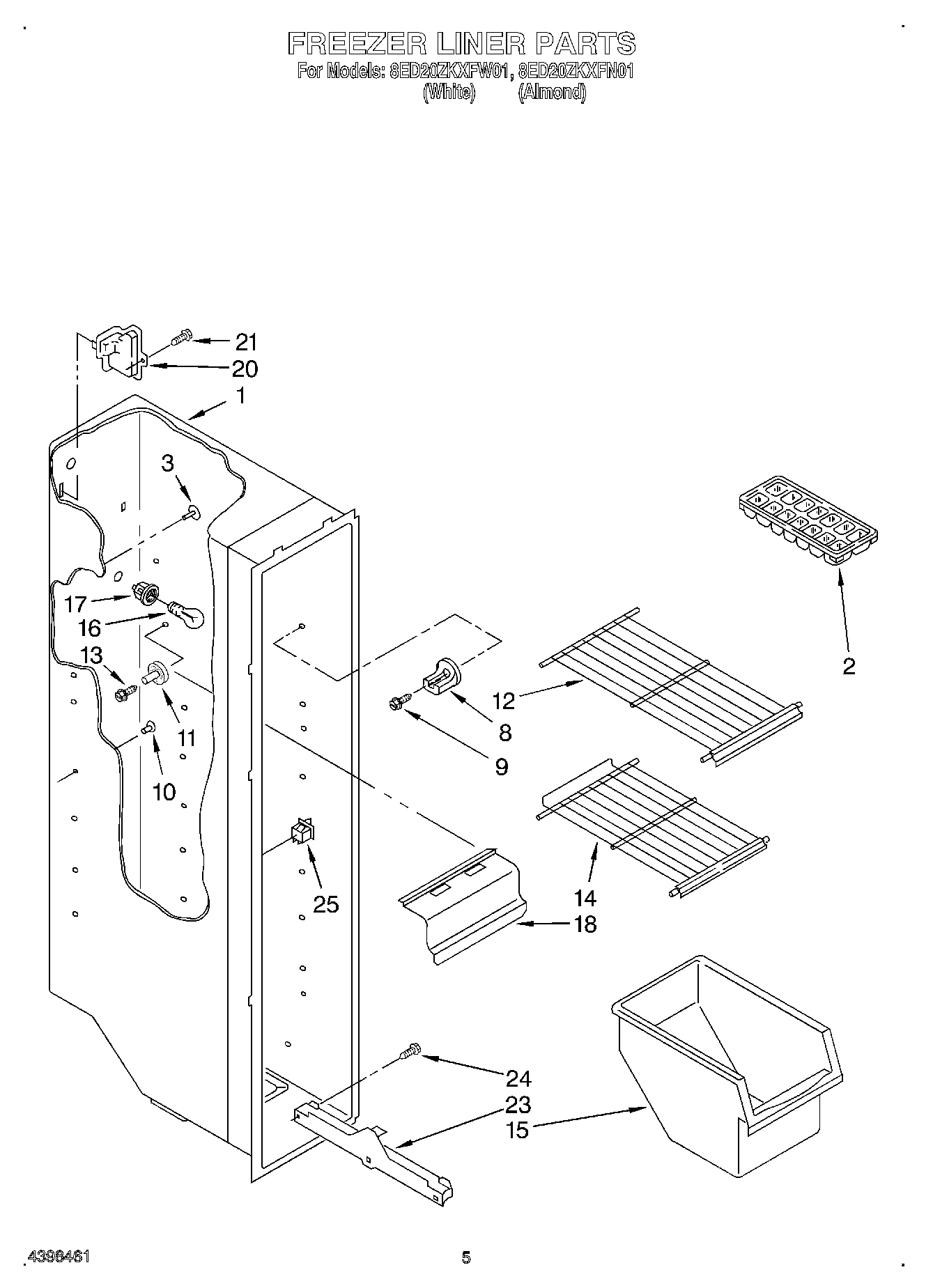

Model Whirlpool 8ED20ZKXFN01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Liner (Not A Serviceable Part) WPL ARI18011A1 Contact Us For Availability

1

Refrigerator Door Panel (Almond) WPL 2194612N Contact Us For Availability

1

Refrigerator Door Panel (White) WPL 2194612W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Tap, Plate WPL 2196135 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

Air Duct Freezer WPL 2203592 Contact Us For Availability

6

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $5.99

6

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

6

Shelf Ladder (2) WPL 2181796 Contact Us For Availability

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

Stud, Rear (4) WPL 2196207 Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

9

Bracket, Door Stop WPL 2195950 Contact Us For Availability

9

Cover, Unit Compartment WPL 2182057 Contact Us For Availability

9

Cabinet (Not A Serviceable Part) WPL ARI18010A6 Contact Us For Availability

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

Grommet (10) WPL 2176134 Contact Us For Availability

Gasket Retainer, Side (2) WPL 1117766 Contact Us For Availability

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

Gasket Retainer, Top & Bottom WPL 1118301 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

2188404A Whirlpool Refrigerator Door Gasket In Stock WPL 2188404A $201.57

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

Extension WPL 2179561 Contact Us For Availability

Harness, Fan, Evaporator, And Heater WPL 2186800 Contact Us For Availability

13

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

13

Shim, Hinge (2) WPL 2196048 Contact Us For Availability

13

Shelf, Cantilever WPL 2163617 Contact Us For Availability

14

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

14

Screw WPL 489284 Contact Us For Availability

14

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Reinforcement, Shelf WPL 2152266 Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

16

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

17

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

17

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

18

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

18

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

19

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $148.73

19

Handle, Center (White) WPL 2186649W Contact Us For Availability

20

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

20

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

Grille (Almond) WPL 2198469N Contact Us For Availability

Grille (White) WPL 2198469W Contact Us For Availability

23

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

24

WP2182189 Whirlpool Door Shelf Bar In Stock WPL WP2182189 $87.99

24

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $58.99

24

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Cover, Conduit WPL 2150330 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

Knob, Air Control WPL 2197871 Contact Us For Availability

Hole Plug WPL 1129056 Contact Us For Availability

Interior Door Panel (Also Order Item No.15) WPL 2196137 Contact Us For Availability

28

Trim, Door Shelf (2) WPL 2182190 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP2196189 Whirlpool Shelf Retainer Bar Backorder WPL WP2196189 $8.78

WP2196190 Whirlpool Shelf Retainer Bar Suppor In Stock WPL WP2196190 $8.79

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

30

NLA:SCREW Backorder WPL WPW10141645 $4.82

31

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

Compartment Door WPL 2148289 Contact Us For Availability

34

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

34

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

36

Nameplate (White) WPL 2175383 Contact Us For Availability

36

Nameplate (Almond) WPL 2175384 Contact Us For Availability

37

Trim, Door Shelf WPL 2195921 Contact Us For Availability

38

WP2196100 Whirlpool Shelf Retainer Bar Suppor In Stock WPL WP2196100 $4.82

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

43

Trim, Door Compartment WPL 2188148 Contact Us For Availability

44

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $89.30

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
