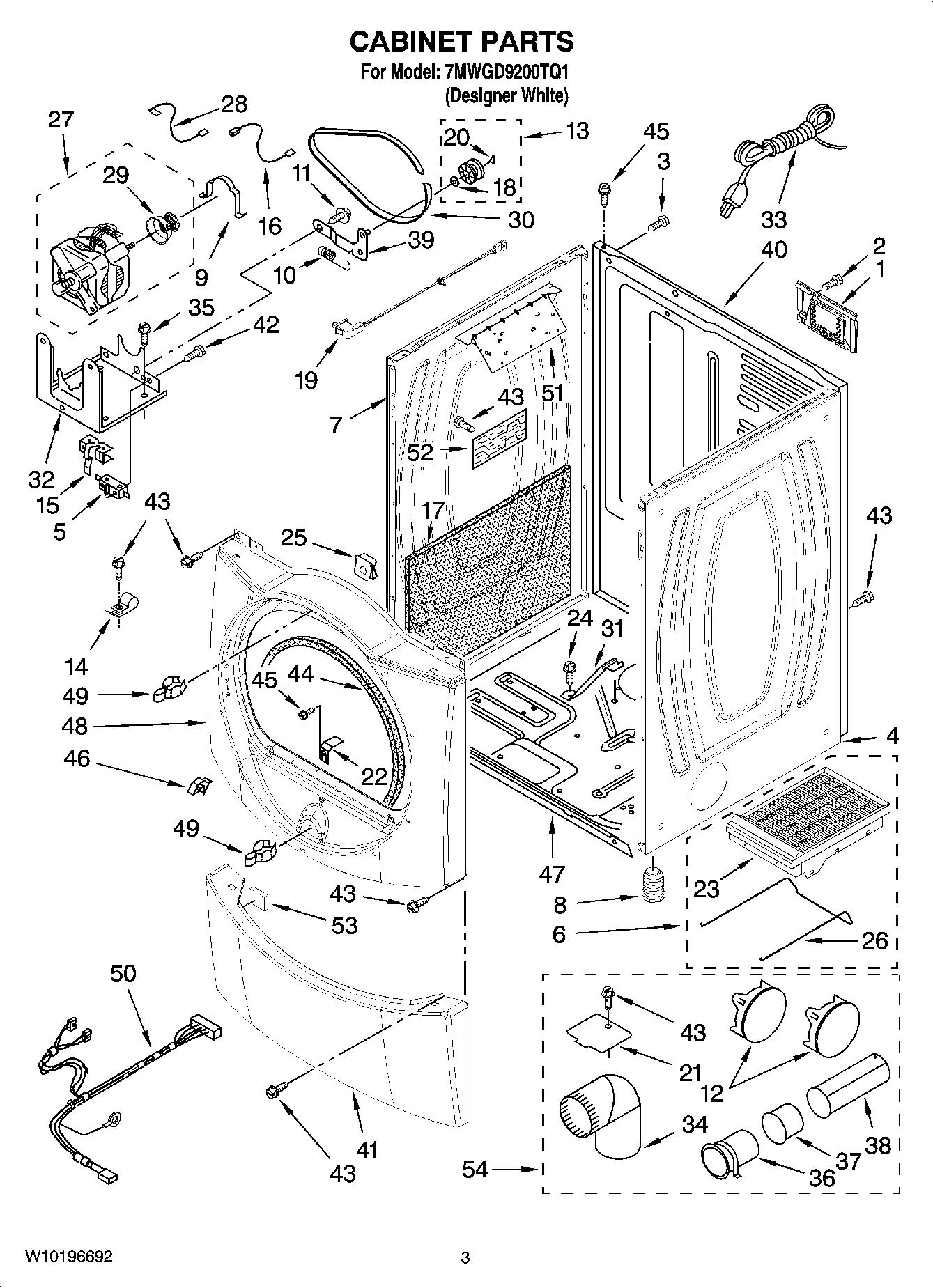

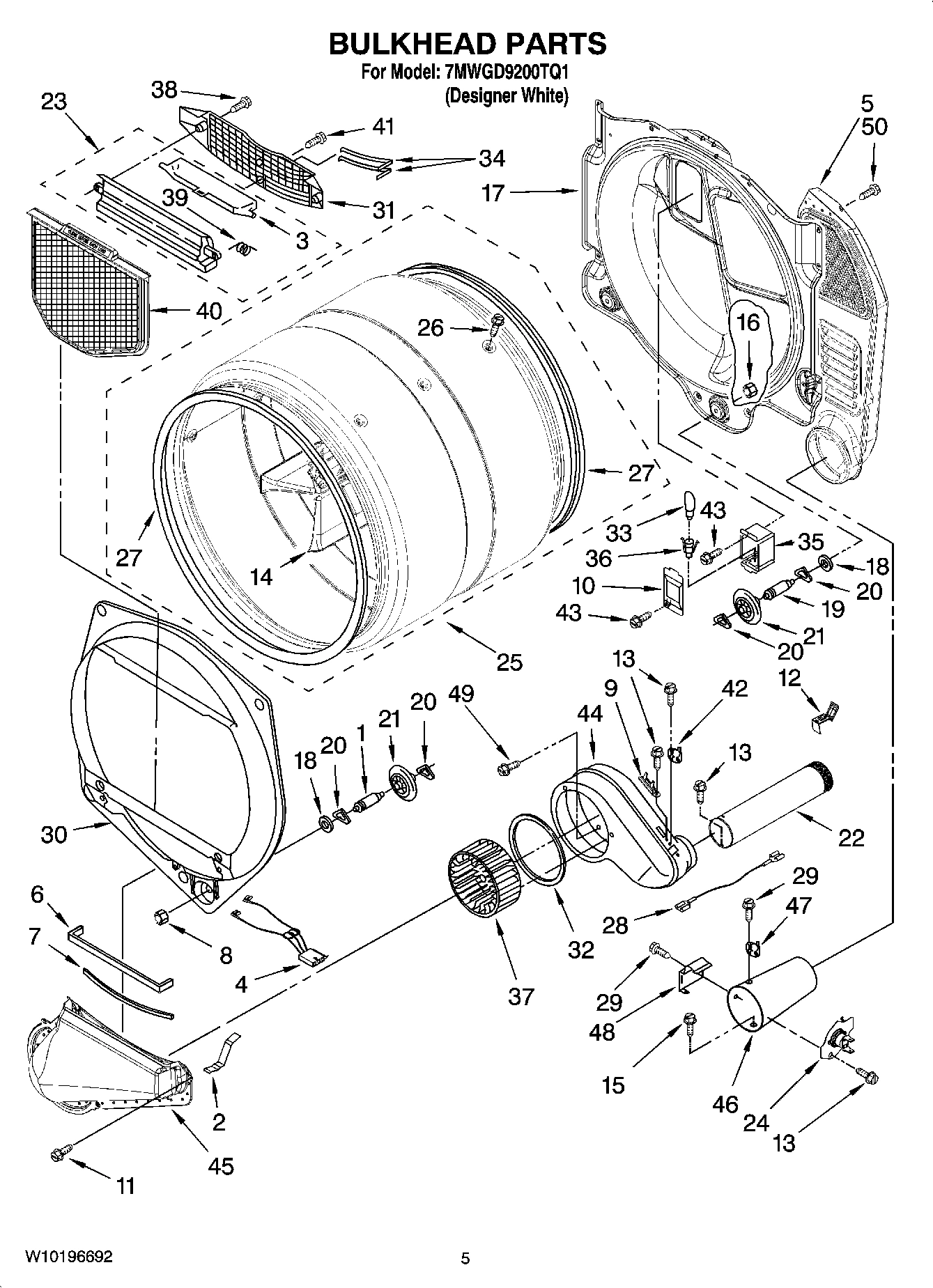

Model Whirlpool 7MWGD9200TQ1 27`` GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $52.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

8579666ARP Whirlpool Door Kit In Stock WPL 8579666ARP $34.43

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $53.99

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Following Parts Not Illustrated WPL ARI143023A Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability

ACCESSORY PARTS WPL ARI143025A Contact Us For Availability

1

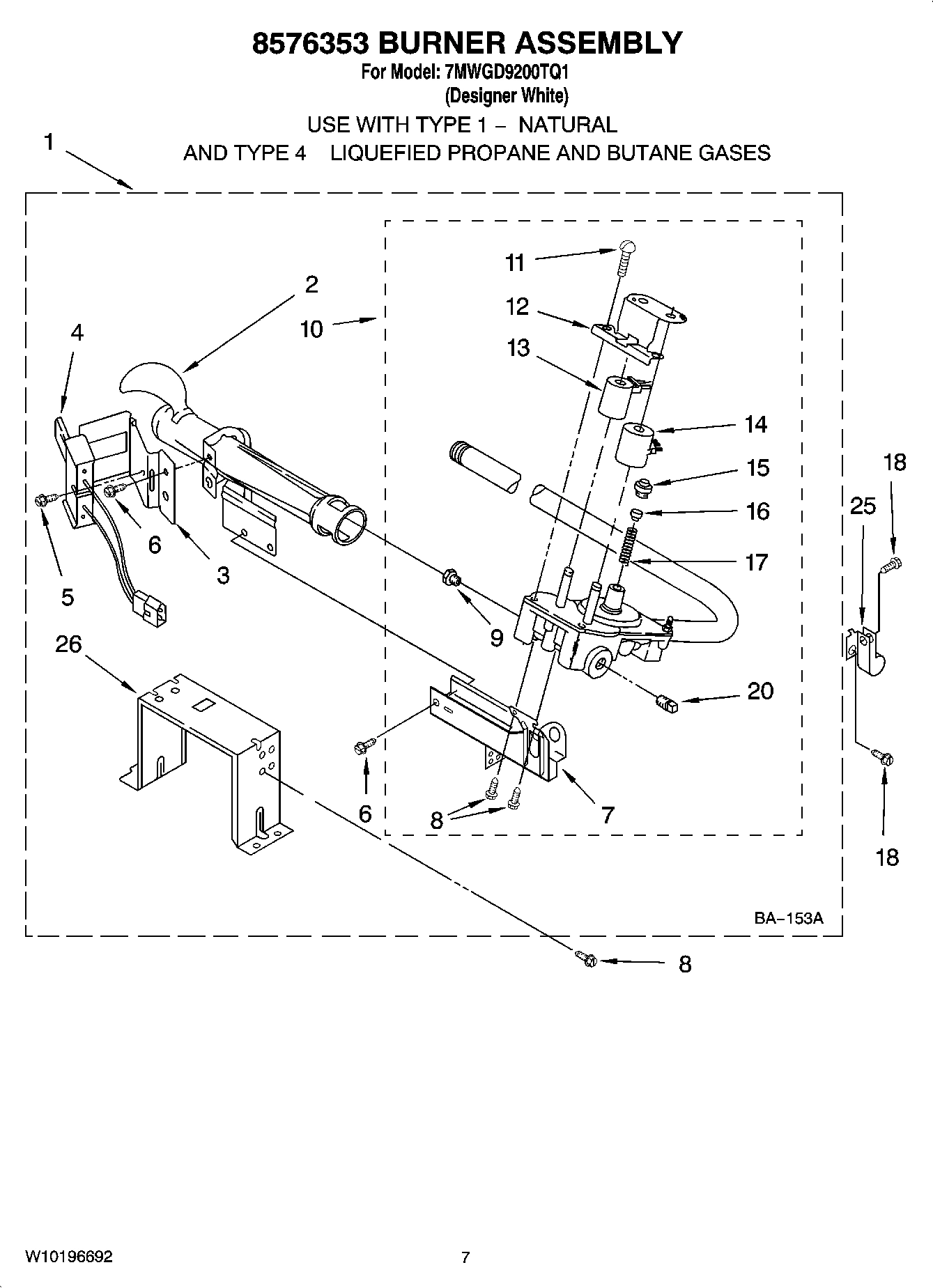

280119 Whirlpool Gas Burner In Stock WPL 280119 $266.87

1

W10085210 Whirlpool Label Backorder WPL W10085210 $55.57

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $124.13

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $175.63

3

W10111011 Whirlpool Wire Harness Backorder WPL W10111011 $193.20

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.82

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $73.46

7

353424 Whirlpool Connector Backorder WPL 353424 $14.02

7

Base, Burner WPL 3389871 Contact Us For Availability

7

Handle, Door Ring Assembly WPL 8578154 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $16.99

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

ORIFICE, BURNER (TYPE 4) (BUTANE) WPL 15422 Contact Us For Availability

9

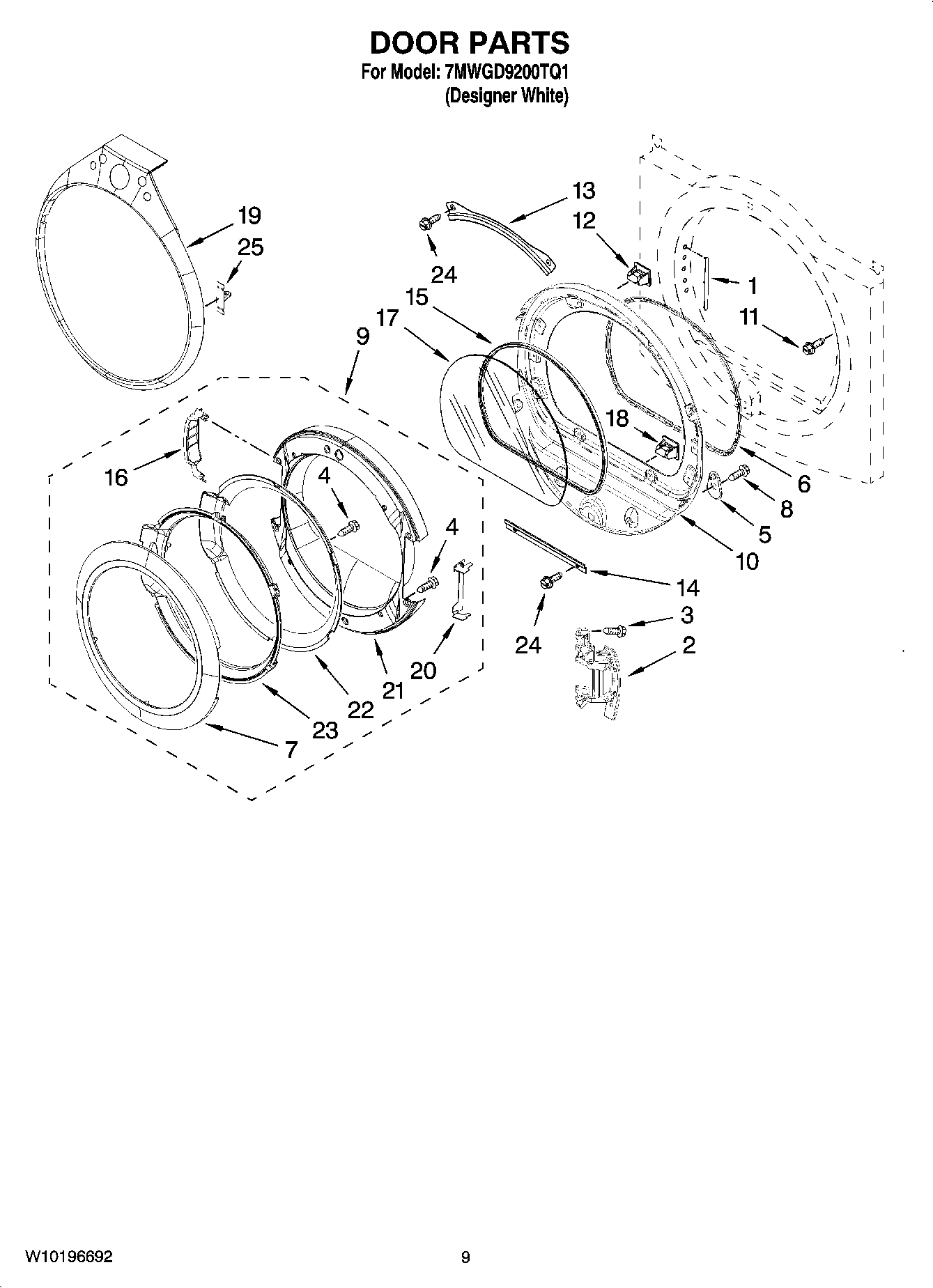

Door Assembly (Outer) WPL W10180111 Contact Us For Availability

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $250.51

10

Power Cable, User-Interface WPL W10111020 Contact Us For Availability

10

Door Assembly (Inner) (Includes Illus. 12) WPL 8578229 Contact Us For Availability

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

12

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.98

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $9.85

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Seal-Window WPL 8579662 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

COVER HINGE (STATIONARY (RH)) WPL W10181197 Contact Us For Availability

(Following Parts Not Included) WPL ARI143024A Contact Us For Availability

Cover-Hinge, Stationary (LH) WPL W10180119 Contact Us For Availability

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $202.28

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

Tear-Drop Trim & Clip Assembly WPL W10180493 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

20

Door Shield WPL W10180120 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

22

Door Mask WPL W10180117 Contact Us For Availability

23

Door Screen WPL 8578155 Contact Us For Availability

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $39.99

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

25

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $7.17

25

Clip-S Type WPL 62825 Contact Us For Availability

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

26

Dry Rack Support WPL 8521961 Contact Us For Availability

26

Bracket, Support WPL 3389889 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

29

Harness, Communication WPL W10095960 Contact Us For Availability

31

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

32

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $47.31

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $26.69

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

Panel, Rear WPL W10180481 Contact Us For Availability

41

Panel, Toe WPL W10116271 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $115.91

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $65.50

47

Base, Cabinet WPL 8519207 Contact Us For Availability

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

48

Front Panel (Includes Illus. 44) WPL 8578388 Contact Us For Availability

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

50

W10181464 Whirlpool Wire Harness Backorder WPL W10181464 $87.60

51

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $113.65

52

Control Board WPL W10182366 Contact Us For Availability

53

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.85

53

Optional Parts Not Included WPL ARI143022A Contact Us For Availability

54

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $66.95
