Model Whirlpool 3RLEC8600SL1 27`` ELECTRIC DRYER – Common Parts & Diagrams

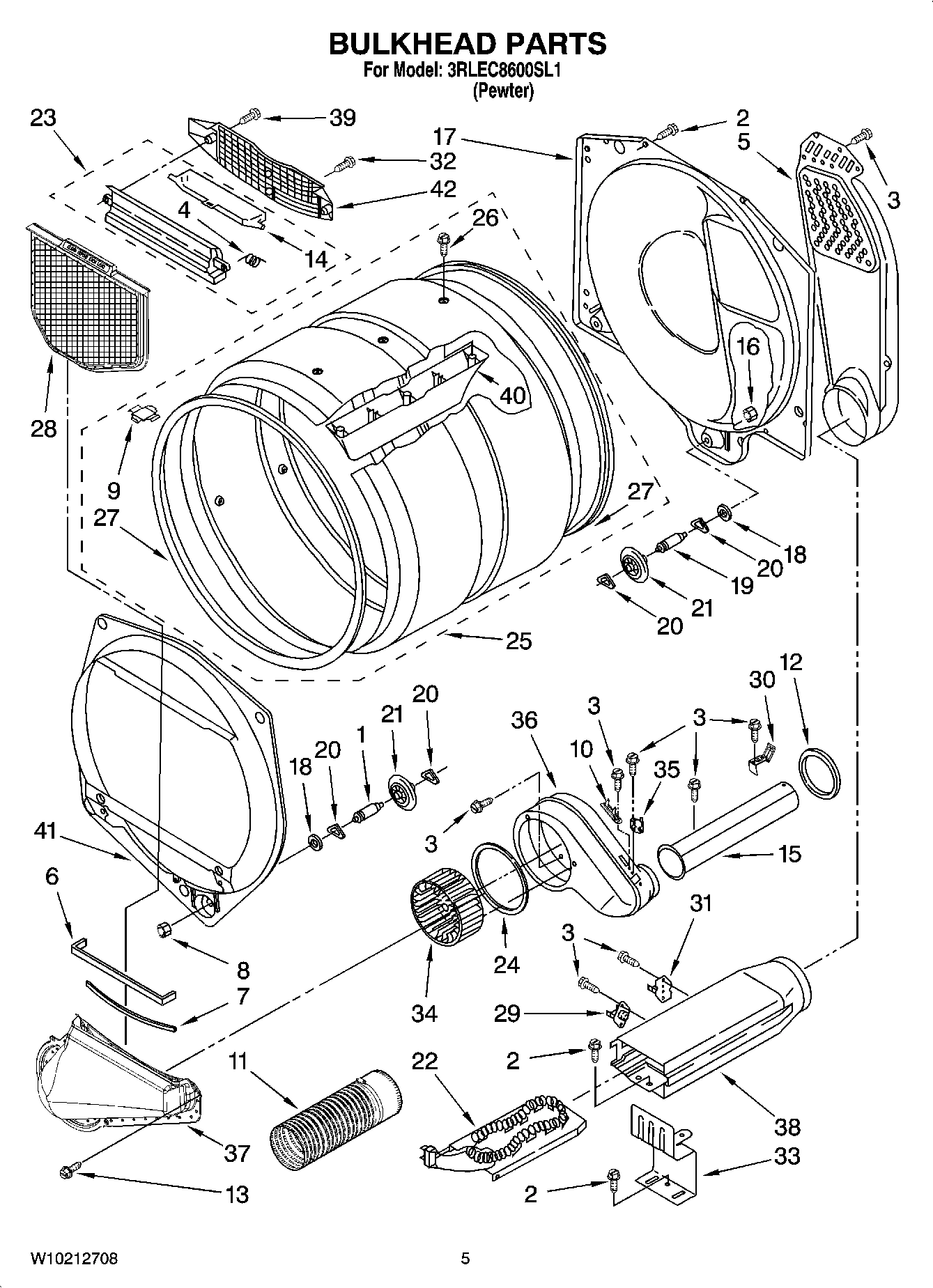

03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

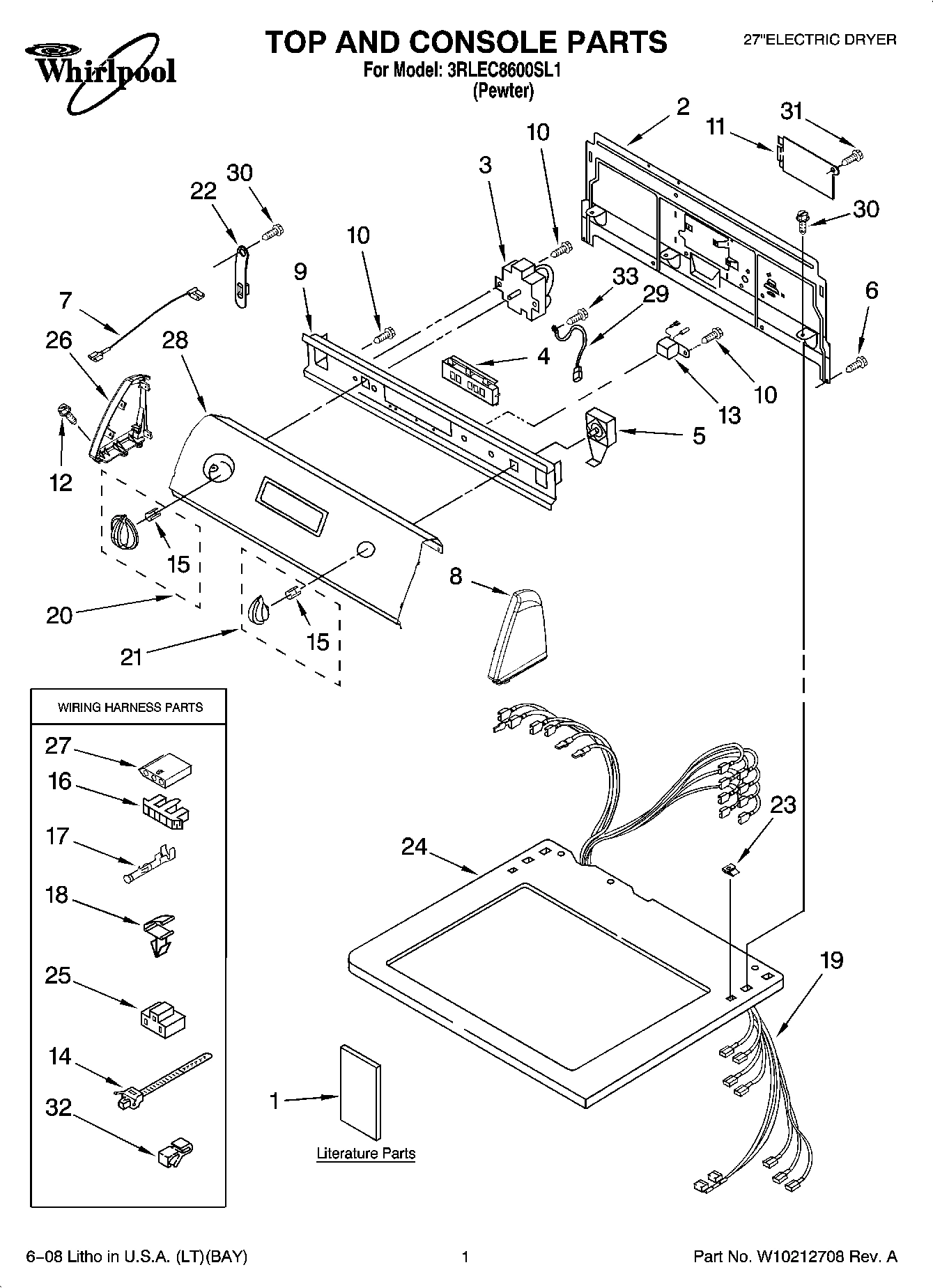

01 - TOP AND CONSOLE PARTS

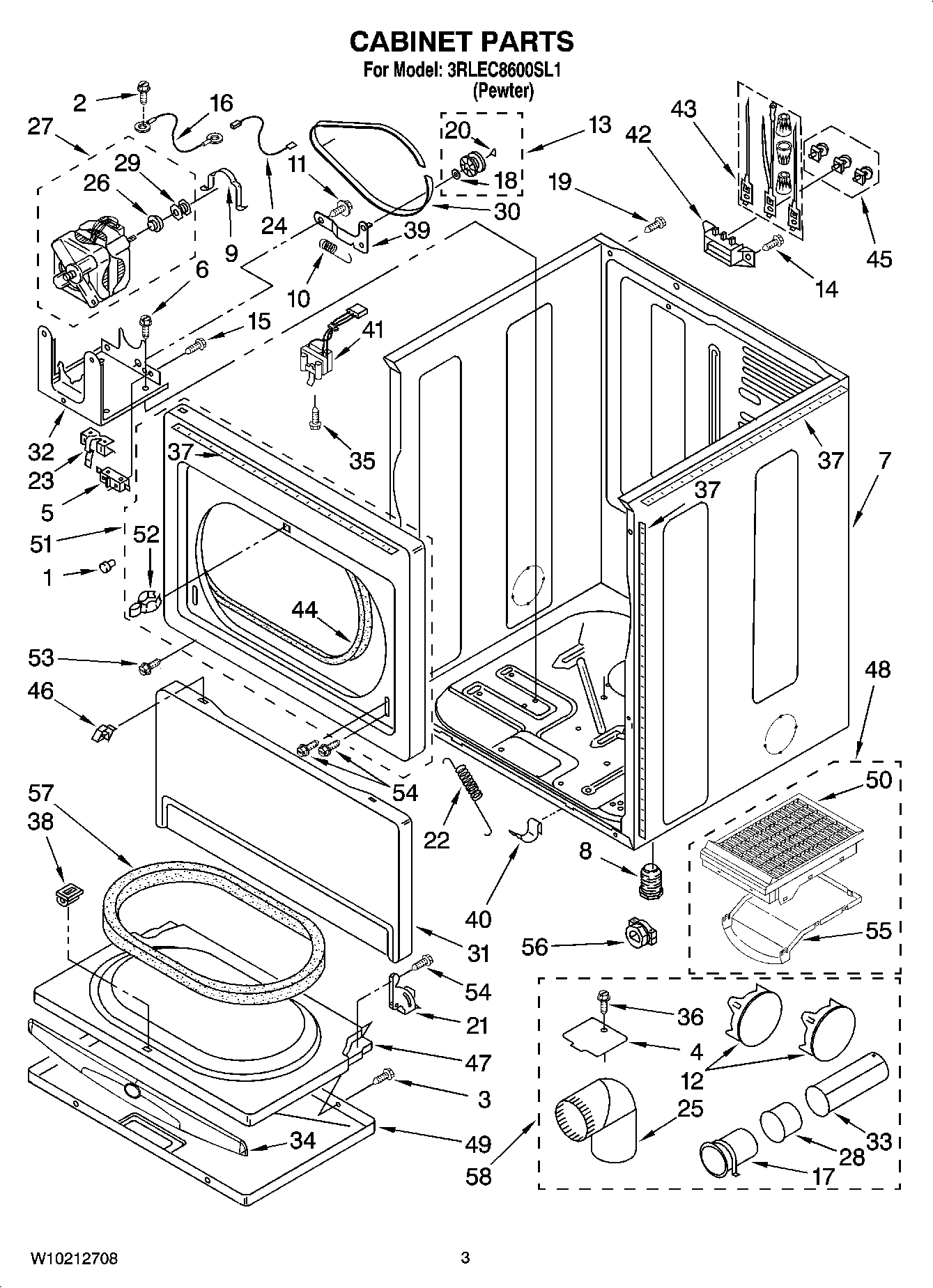

02 - CABINET PARTS
Common parts from model Whirlpool 3RLEC8600SL1 27`` ELECTRIC DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
3
Screw, 8-18 x 3/8 WPL W10080300 Contact Us For Availability
6
Screw, 10-24 x 3/8 WPL W10080760 Contact Us For Availability
7
Cabinet WPL 8528155 Contact Us For Availability
11
Retainer, Idler WPL W10080670 Contact Us For Availability
14
Screw, 10-16 x 1/2 WPL W10080710 Contact Us For Availability
15
Screw, 6-20 x 1 1/16 WPL W10118188 Contact Us For Availability
16
Connector, Timer WPL 3397269 Contact Us For Availability
16
Wire, Ground WPL 340025 Contact Us For Availability
19
Screw, 10-32 x 5/8 WPL W10080830 Contact Us For Availability
20
Timer Knob Assembly WPL 8544957 Contact Us For Availability
21
Knob, Push-To-Start WPL 8544937 Contact Us For Availability
22
Strap, Console WPL 8318225 Contact Us For Availability
24
Wire, Belt Switch WPL 3394081 Contact Us For Availability
24
Top WPL 8546092 Contact Us For Availability
26
Cap, End (L.H.) WPL 8541780 Contact Us For Availability
28
Control Panel WPL 8575087 Contact Us For Availability
29
Wire, Ground WPL W10110977 Contact Us For Availability
31
Screw, 8-32 x 5/16 WPL W10130935 Contact Us For Availability
31
Toe Panel (Includes Illus. 1) WPL 3979197 Contact Us For Availability
34
Handle, Door WPL 8563821 Contact Us For Availability
35
Screw, 6-20 x 7/8 WPL W10080540 Contact Us For Availability
37
Seal, Foam WPL 8318396 Contact Us For Availability
47
Door, Rear WPL 697655 Contact Us For Availability
49
Door, Front WPL 8521936 Contact Us For Availability
51
Upper Front Panel WPL 3979198 Contact Us For Availability
57
WPL ARI12272A8 WPL ARI12272A8 Contact Us For Availability
× ![]()
