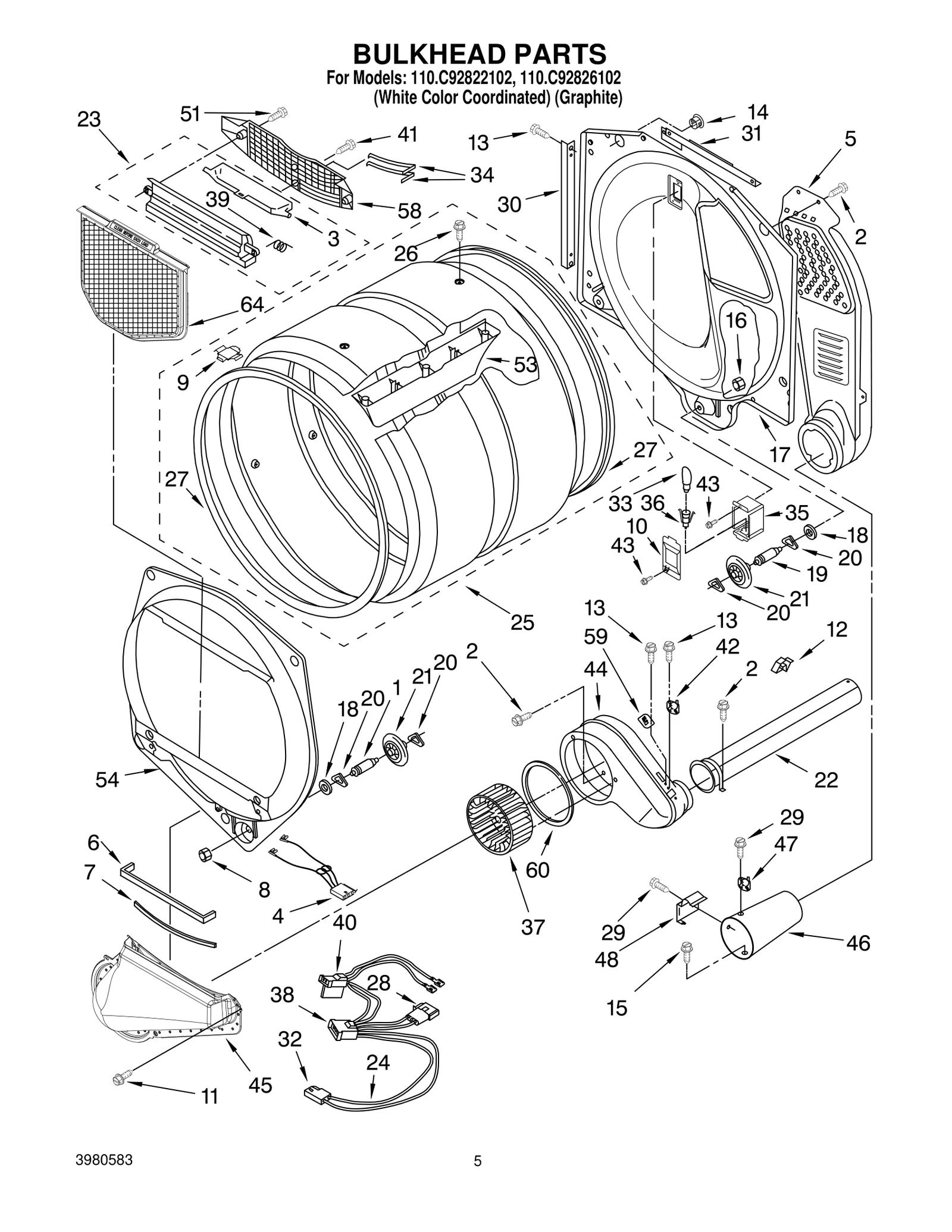

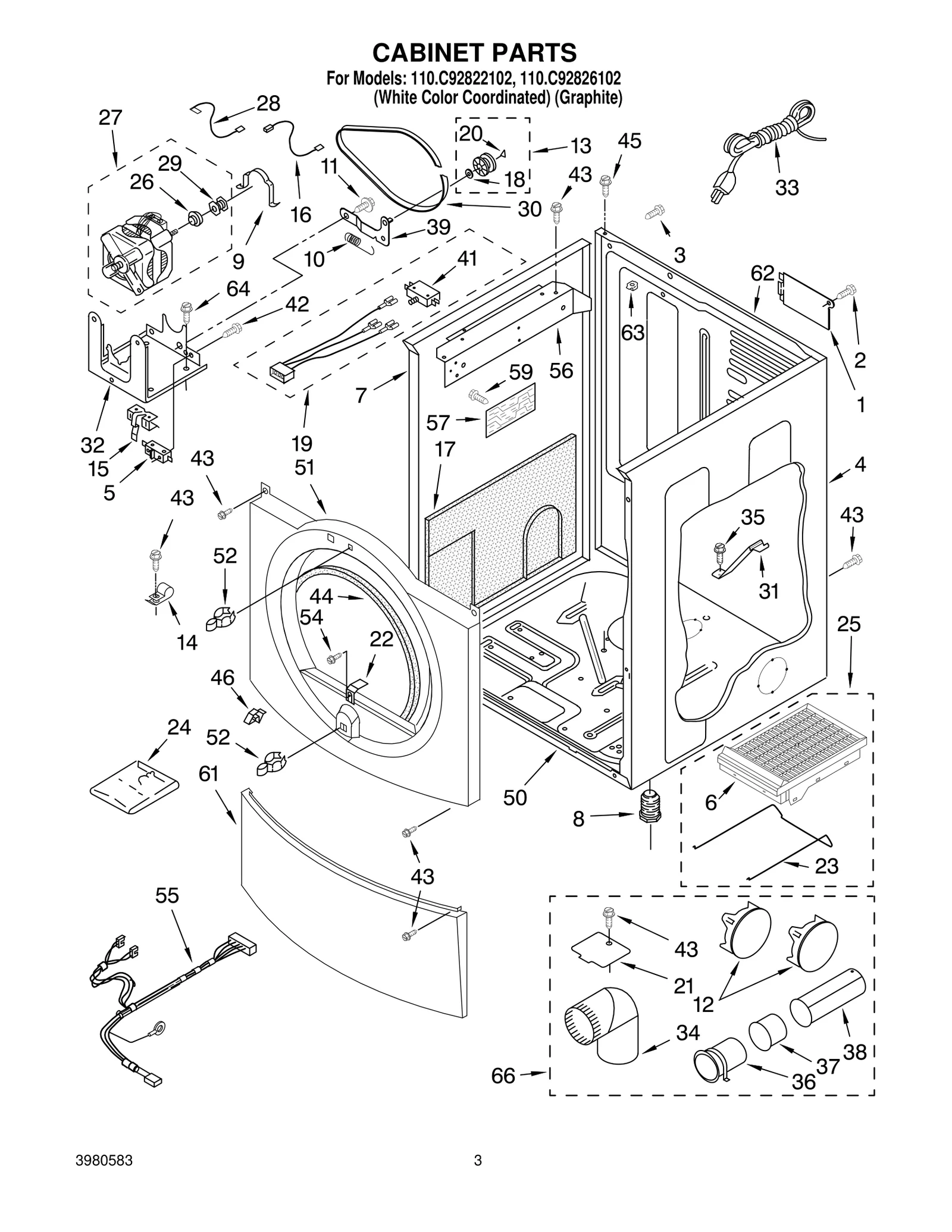

Model Whirlpool 110.C92822102 Gas Dryer – Common Parts &amp; Diagrams

1

Plug, Strip WPL 8563855 Contact Us For Availability

2

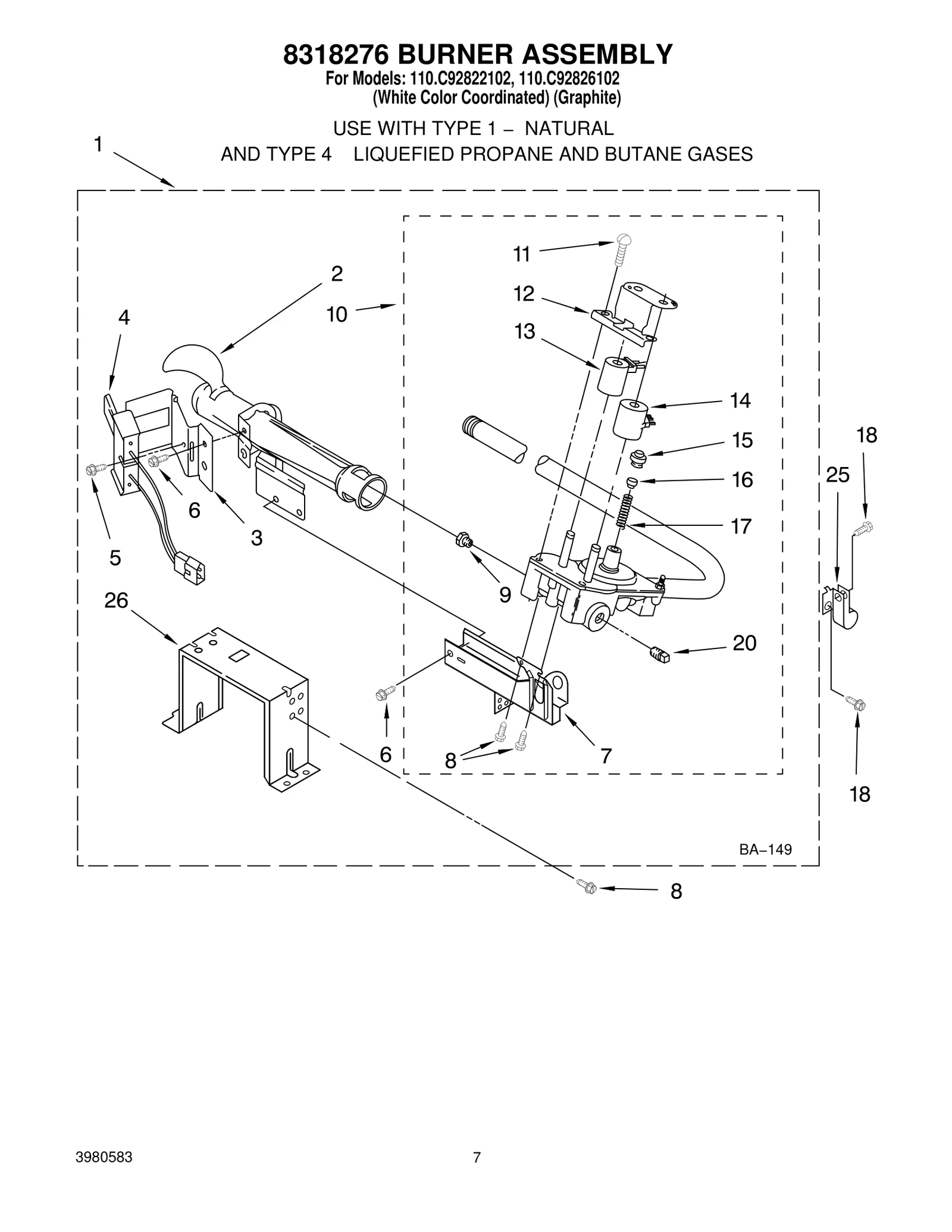

WP693140 Whirlpool Burner Backorder WPL WP693140 $132.83

2

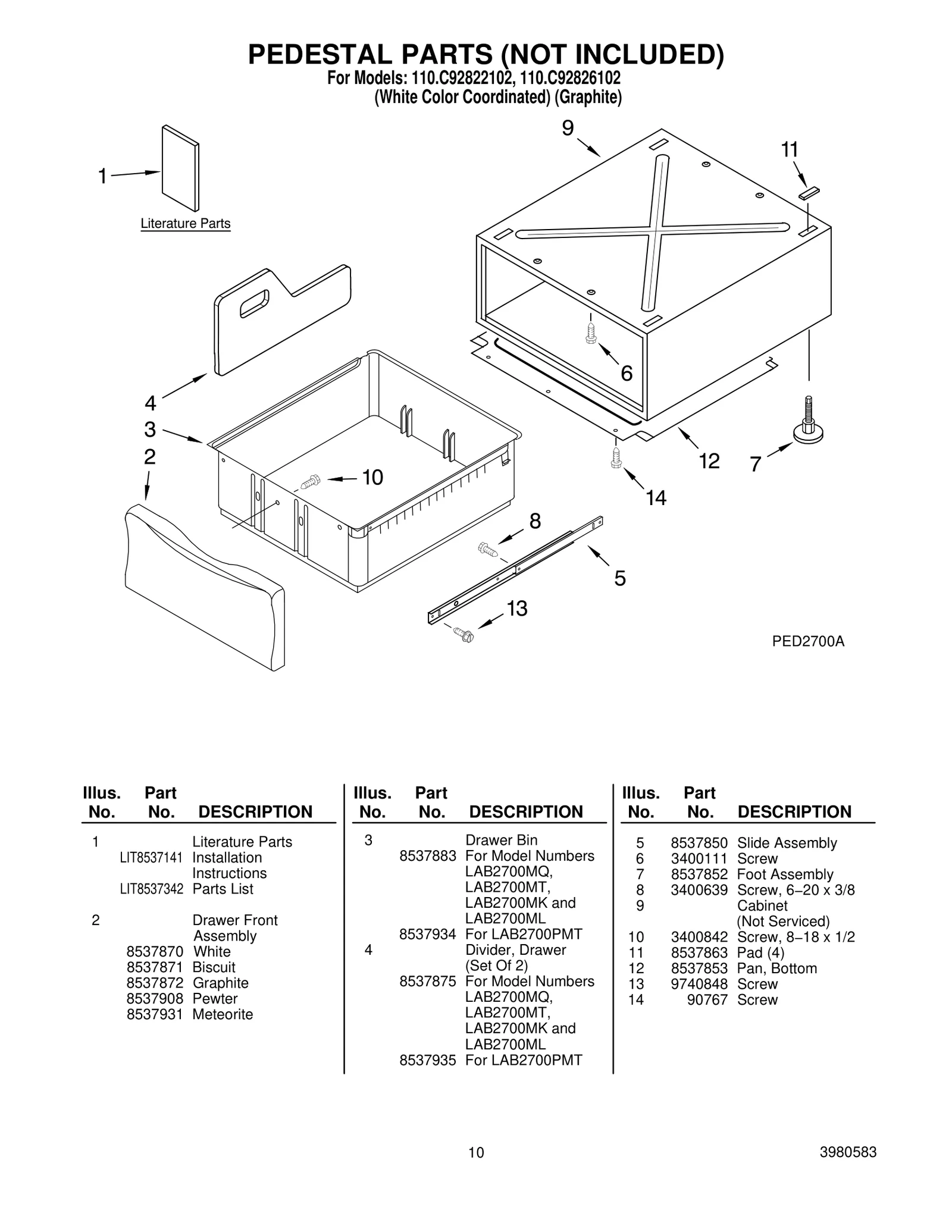

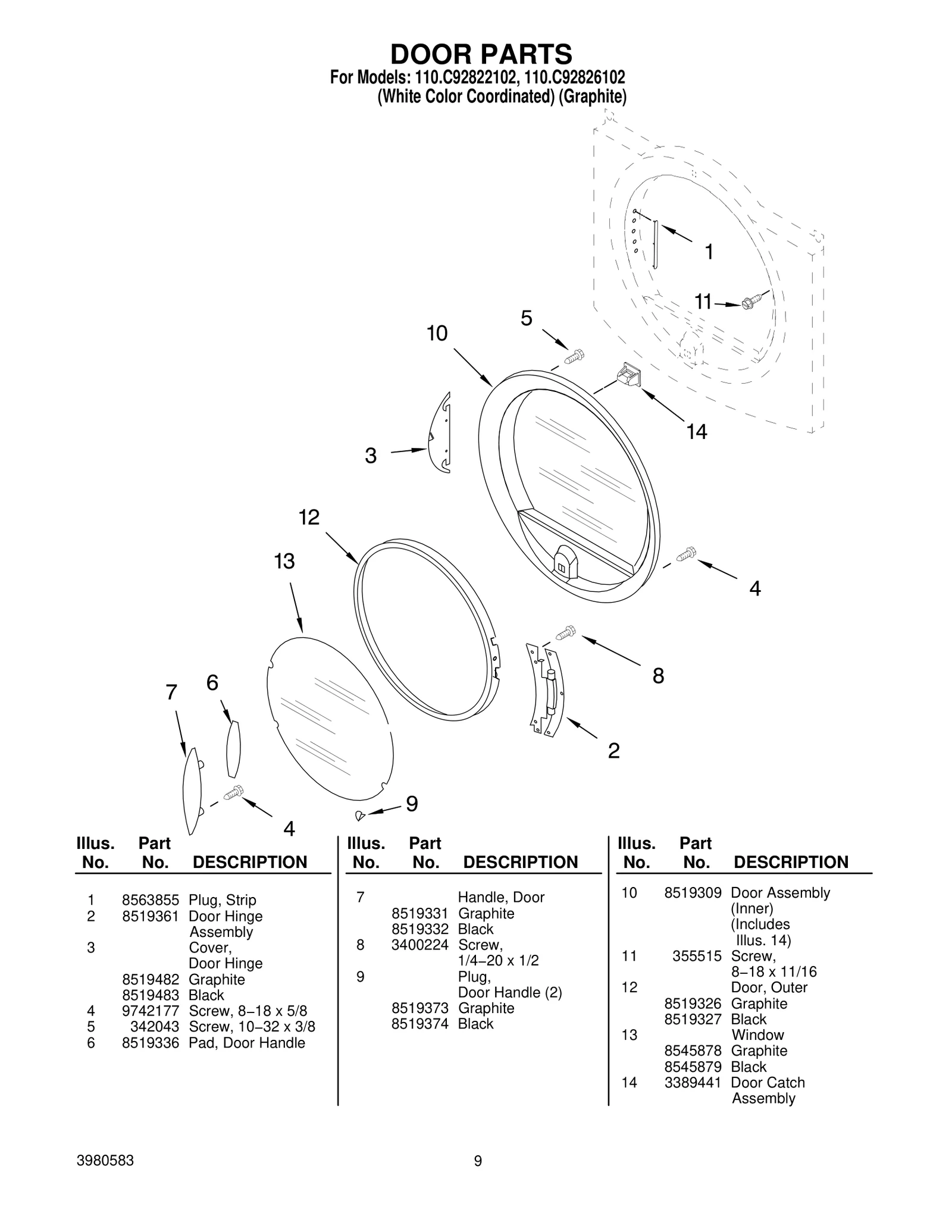

Door Hinge Assembly WPL 8519361 Contact Us For Availability

2

Drawer Front Assembly — White WPL 8537870 Contact Us For Availability

2

Drawer Front Assembly — Biscuit WPL 8537871 Contact Us For Availability

2

Drawer Front Assembly — Graphite WPL 8537872 Contact Us For Availability

2

Drawer Front Assembly — Pewter WPL 8537908 Contact Us For Availability

2

Drawer Front Assembly — Meteorite WPL 8537931 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.81

3

Harness, Main WPL 8299950 Contact Us For Availability

3

Cover, Door Hinge — Graphite WPL 8519482 Contact Us For Availability

3

Cover, Door Hinge — Black WPL 8519483 Contact Us For Availability

3

Drawer Bin — For Model Numbers WPL 8537883 Contact Us For Availability

3

Drawer Bin — For LAB2700PMT WPL 8537934 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $74.58

4

Panel, Console (Includes Buttons & Control Bo WPL 8529879 Contact Us For Availability

4

Screw, 8−18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Buttons & Control Bo WPL 8529881 Contact Us For Availability

4

Divider, Drawer — For Model Numbers WPL 8537875 Contact Us For Availability

4

Divider, Drawer — For LAB2700PMT WPL 8537935 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $105.51

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

WP8578394 Whirlpool Slide Assembly Backorder WPL WP8578394 $72.49

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

5

Screw, 10−32 x 3/8 WPL 342043 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

6

WPW10346892 Whirlpool Screw In Stock WPL WPW10346892 $3.92

6

Pad, Door Handle WPL 8519336 Contact Us For Availability

7

WP8559751 Whirlpool Handle In Stock WPL WP8559751 $34.11

7

WP8563585 Whirlpool Foot Assembly In Stock WPL WP8563585 $9.19

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3388228 Whirlpool Screw In Stock WPL WP3388228 $4.99

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

Screw, 1/4−20 x 1/2 WPL 3400224 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Plug, Door Handle (2) — Black WPL 8519374 Contact Us For Availability

9

Cabinet WPL N/S Contact Us For Availability

9

Plug, Door Handle (2) — Graphite WPL 8519373 Contact Us For Availability

10

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

10

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $263.47

10

Door Assembly (Includes WPL 8519309 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

Pad (4) WPL 8537863 Contact Us For Availability

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $5.30

WP8519326 Whirlpool Door Assembly Backorder WPL WP8519326 $235.79

Door, Outer — Black WPL 8519327 Contact Us For Availability

Bracket, Coil WPL 694538 Contact Us For Availability

Pan, Bottom WPL 8537853 Contact Us For Availability

13

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

13

Window — Graphite WPL 8545878 Contact Us For Availability

13

Window — Black WPL 8545879 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

14

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

15

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $77.75

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $48.67

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

26

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $26.29

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

26

Bracket, Support Following Parts Not Illustra WPL 3389889 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $37.02

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

28

Plug, 3−Way WPL 353424 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $64.16

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

32

Plug, 2−Way WPL 717252 Contact Us For Availability

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.64

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.63

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

38

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $4.82

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $4.55

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $31.82

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $51.17

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $133.28

46

WP8066047 Whirlpool Funnel Backorder WPL WP8066047 $103.46

47

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $9.66

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

55

Harness, Digital Interface WPL 8299929 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $26.66

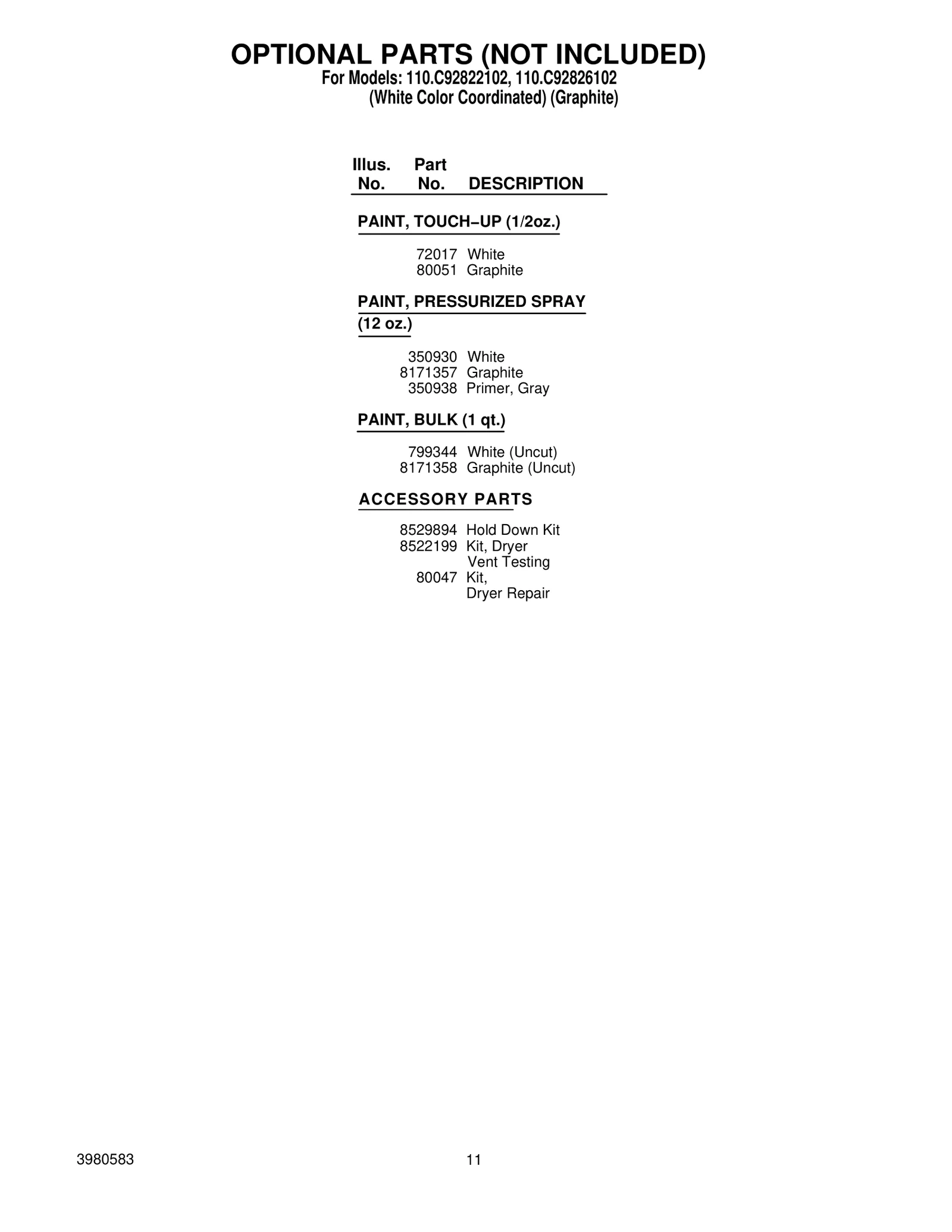

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-2

Graphite WPL 80051 Contact Us For Availability

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-4

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

OPT-5

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

OPT-6

White (Uncut) WPL 799344 Contact Us For Availability

OPT-7

Graphite (Uncut) WPL 8171358 Contact Us For Availability

OPT-8

Hold Down Kit WPL 8529894 Contact Us For Availability

OPT-9

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

OPT-10

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $37.72
