Model Whirlpool 110.C87739701 Electric Dryer – Common Parts &amp; Diagrams

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $13.10

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $38.09

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $110.44

3

W11222846 Whirlpool Door Backorder WPL W11222846 $143.50

3

Cover, Door Hinge WPL W10180095 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $74.58

4

Screw, 8−18 x 5/8 WPL 9742177 Contact Us For Availability

5

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.98

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $228.03

6

W10822054 Whirlpool Retainer Backorder WPL W10822054 $9.85

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

7

Handle, Door WPL 8577305 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.82

8

Nut,3/8 x 16(R.H.) WPL 3934666 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

W10665050 Whirlpool Plug Backorder WPL W10665050 $12.73

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Screw−Plug WPL W10048910 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly Backorder WPL W11226088 $19.60

10

Door Assembly (Includes WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

11

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

12

Door, Outer Assembly WPL W10180090 Contact Us For Availability

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

13

Screen & Mass Assembly WPL W10180093 Contact Us For Availability

13

Medallion WPL W10176673 Contact Us For Availability

14

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

14

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $111.58

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Window WPL 8566254 Contact Us For Availability

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $5.30

16

Seal−Window WPL 8579662 Contact Us For Availability

17

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

17

Bulkhead, Rear WPL W10124071 Contact Us For Availability

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $11.95

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

18

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $46.53

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.89

19

Door Intermediate WPL W10180094 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

20

Door Shield WPL W10180096 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $18.60

21

Pad−Handle WPL 8580117 Contact Us For Availability

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $104.07

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $38.13

23

WPW10023220 Whirlpool Adapter Backorder WPL WPW10023220 $4.82

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

8529007 Whirlpool Plug Backorder WPL 8529007 $55.15

25

W10545923 Whirlpool Drum Assembly Backorder WPL W10545923 $285.16

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $37.02

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

30

W10859554 Whirlpool Coupler Backorder WPL W10859554 $58.26

31

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $48.67

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $19.81

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.64

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

35

Clip, S−Type (3) WPL 62825 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

38

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

41

Nozzle & Screen Assembly WPL W10044629 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $31.82

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $51.17

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $133.28

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $118.53

47

280148 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 280148 $45.93

48

WP8557403 Whirlpool Thermostat In Stock WPL WP8557403 $66.41

Housing−Tab, Heater Box WPL 8544770 Contact Us For Availability

Panel, Toe — Ocean Sapphire WPL W10144445 Contact Us For Availability

Panel, Toe — Cashmere Nouveau WPL W10143689 Contact Us For Availability

Panel, Toe — Burlesque WPL W10116276 Contact Us For Availability

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

50

Base, Cabinet WPL 8519207 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

Front Panel — White WPL W10180423 Contact Us For Availability

Front Panel — Ocean Sapphire WPL W10180436 Contact Us For Availability

Front Panel — Cashmere Nouveau WPL W10180435 Contact Us For Availability

Front Panel — Burlesque WPL W10180428 Contact Us For Availability

52

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $12.01

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

54

Bulkhead, Front (Includes Illus. 2 & 62 ) WPL 8519245 Contact Us For Availability

55

Harness, Digital Interface WPL W10181463 Contact Us For Availability

55

Hose (Not Servicable Included With WPL W10044598 Contact Us For Availability

56

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

56

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $121.61

57

Control Board WPL W10182365 Contact Us For Availability

57

Bracket−Valve WPL W10044597 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

58

CORD-POWER Backorder WPL W11095079 $82.05

59

W11712577 Whirlpool Clip In Stock WPL W11712577 $5.27

59

Valve, Water Inlet (Includes Illus. 30,31,57 WPL W10044596 Contact Us For Availability

60

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $70.15

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

61

W10044599 Whirlpool Clip Backorder WPL W10044599 $9.35

62

W11257251 Whirlpool Shield Backorder WPL W11257251 $48.38

63

W10815373 Whirlpool Valve In Stock WPL W10815373 $93.71

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $26.66

65

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

66

W10044628 Whirlpool Nut Backorder WPL W10044628 $67.84

67

Nozzle & Hose Assembly (Includes Illus: 41,55 WPL W10044606 Contact Us For Availability

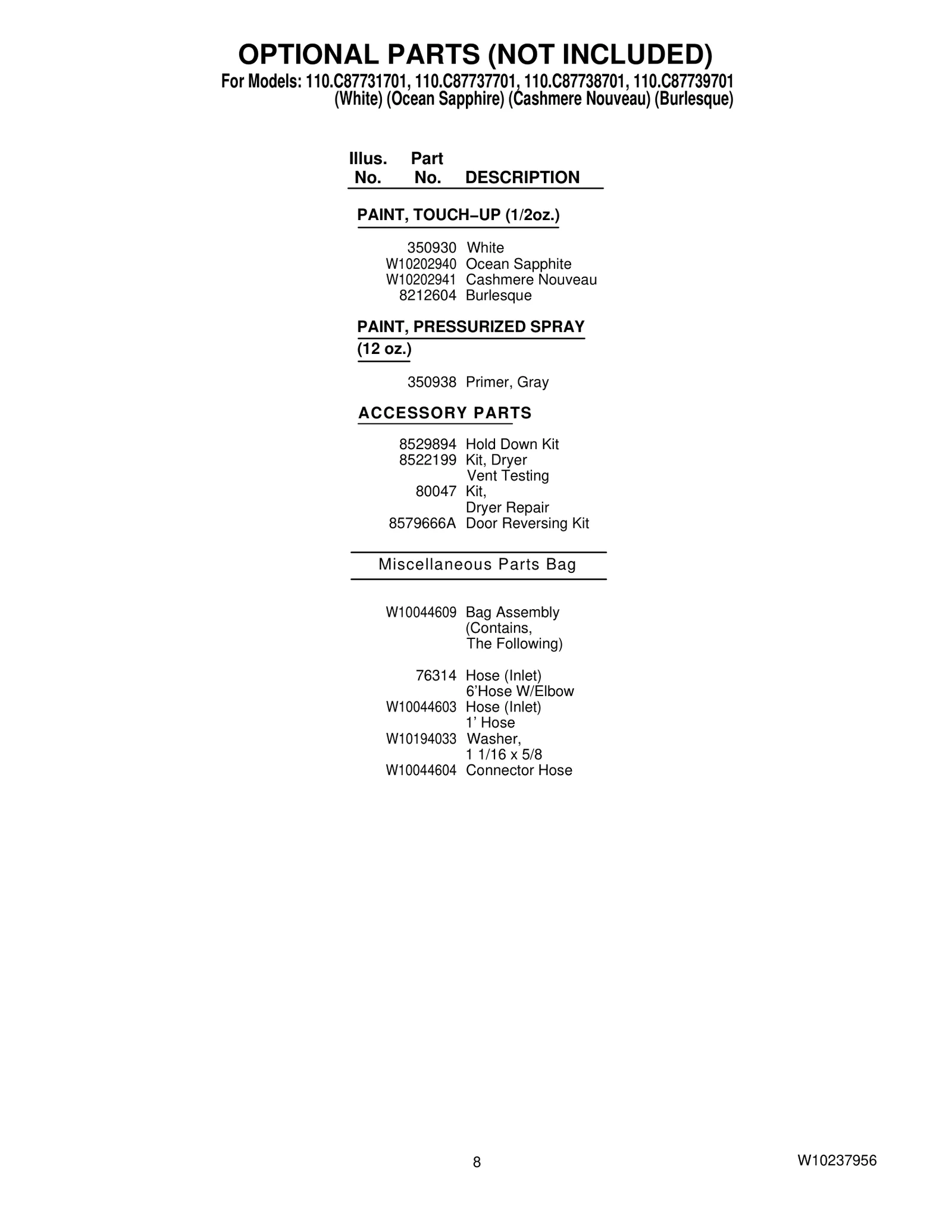

OPT-1

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-2

W10202940 Whirlpool Touch-Up Backorder WPL W10202940 $11.43

OPT-3

Cashmere Nouveau WPL W10202941 Contact Us For Availability

OPT-4

8212604 Whirlpool Red Merlot Touch-Up Paint Backorder WPL 8212604 $8.00

OPT-5

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

OPT-6

Hold Down Kit WPL 8529894 Contact Us For Availability

OPT-7

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

OPT-8

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $37.72

OPT-9

8579666ARP Whirlpool Door Kit In Stock WPL 8579666ARP $34.43

OPT-10

W10044609A Whirlpool Steam Dryer Hose Install In Stock WPL W10044609A $21.92

OPT-11

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

OPT-12

Hose (Inlet) WPL W10044603 Contact Us For Availability

OPT-13

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

OPT-14

49586 Whirlpool Mixer In Stock WPL 49586 $9.23
