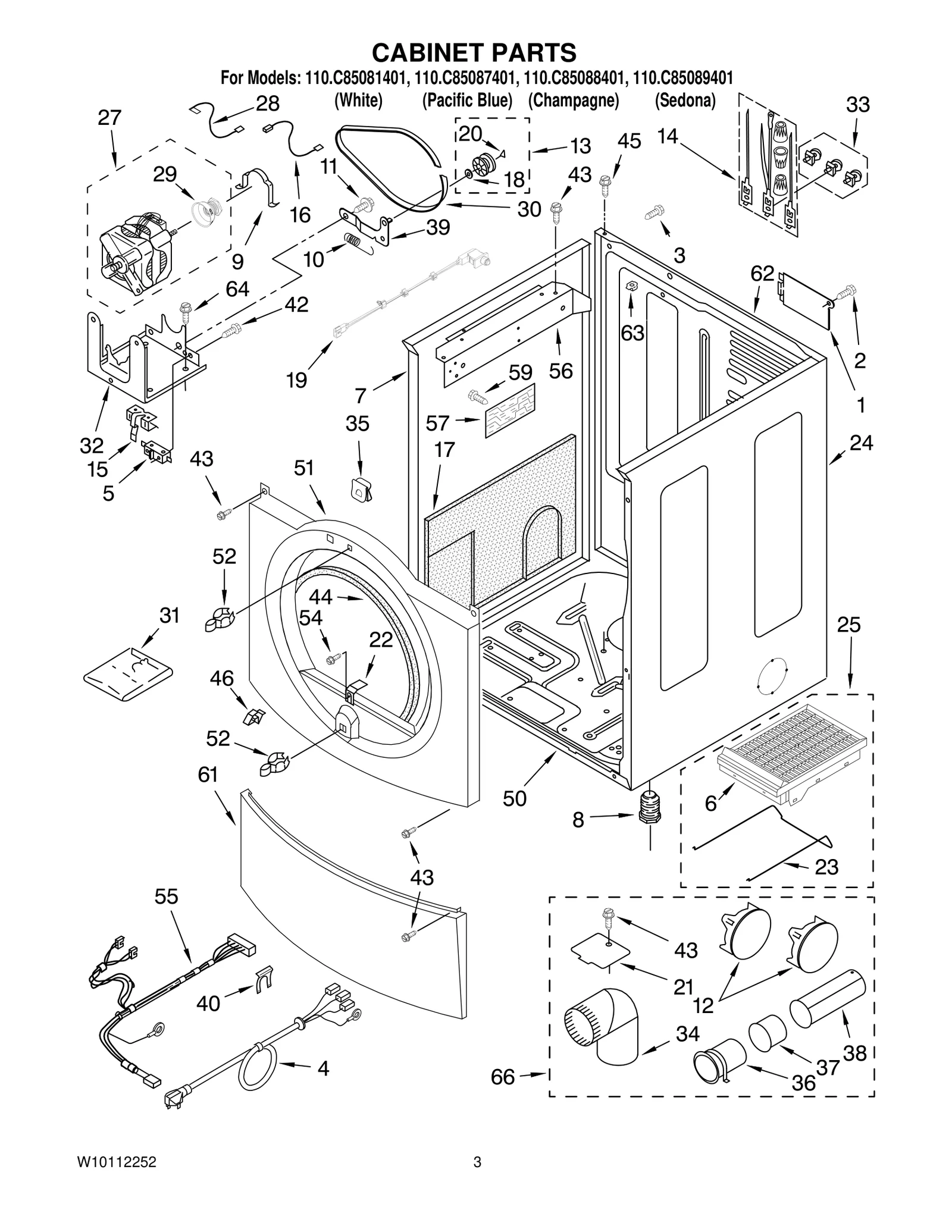

Model Whirlpool 110.C85081401 Electric Dryer – Common Parts &amp; Diagrams

1

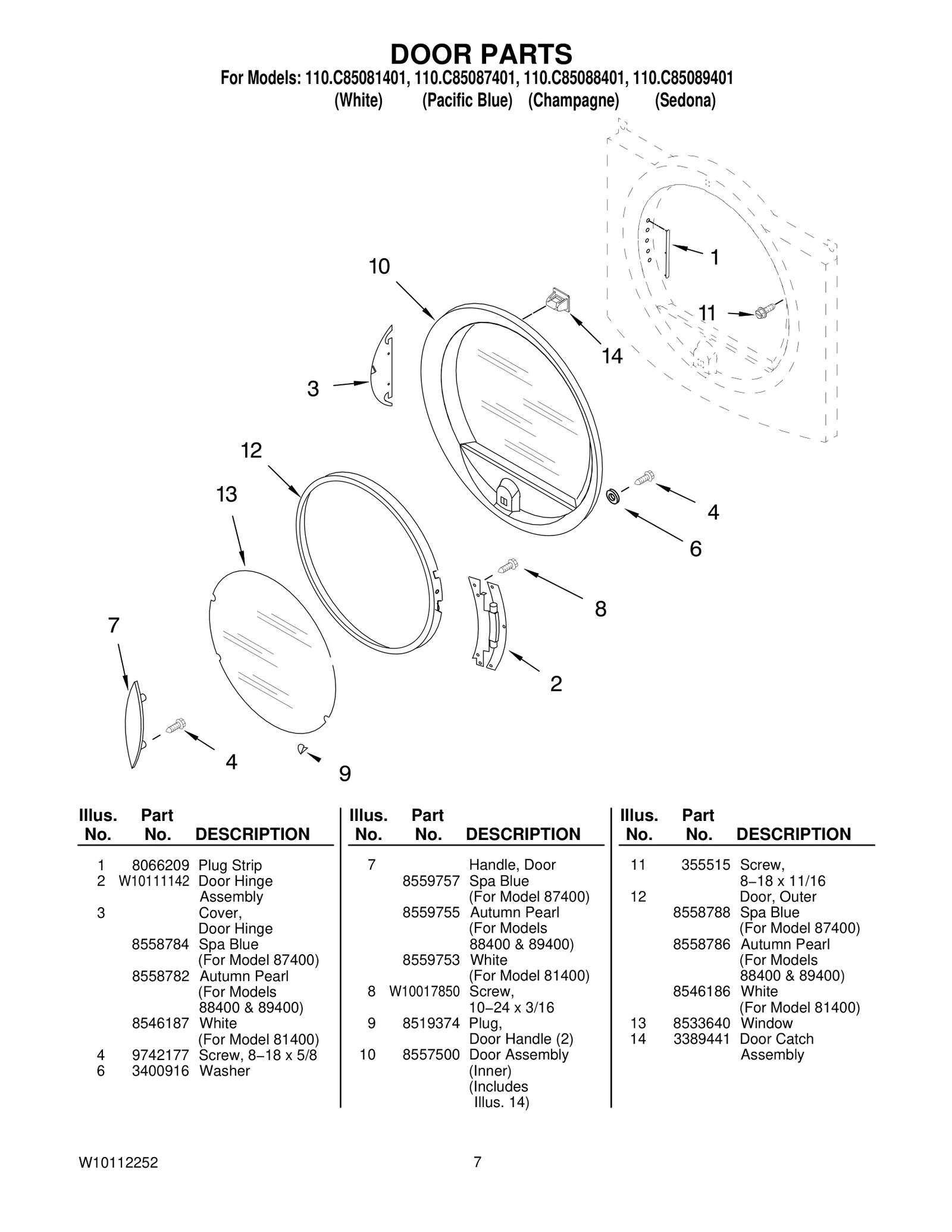

Plug Strip WPL 8066209 Contact Us For Availability

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

2

Door Hinge Assembly WPL W10111142 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $143.50

3

Cover, Door Hinge — Spa Blue WPL 8558784 Contact Us For Availability

3

Cover, Door Hinge — Autumn Pearl WPL 8558782 Contact Us For Availability

3

Cover, Door Hinge — White WPL 8546187 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $74.58

4

Screw, 8−18 x 5/8 WPL 9742177 Contact Us For Availability

4

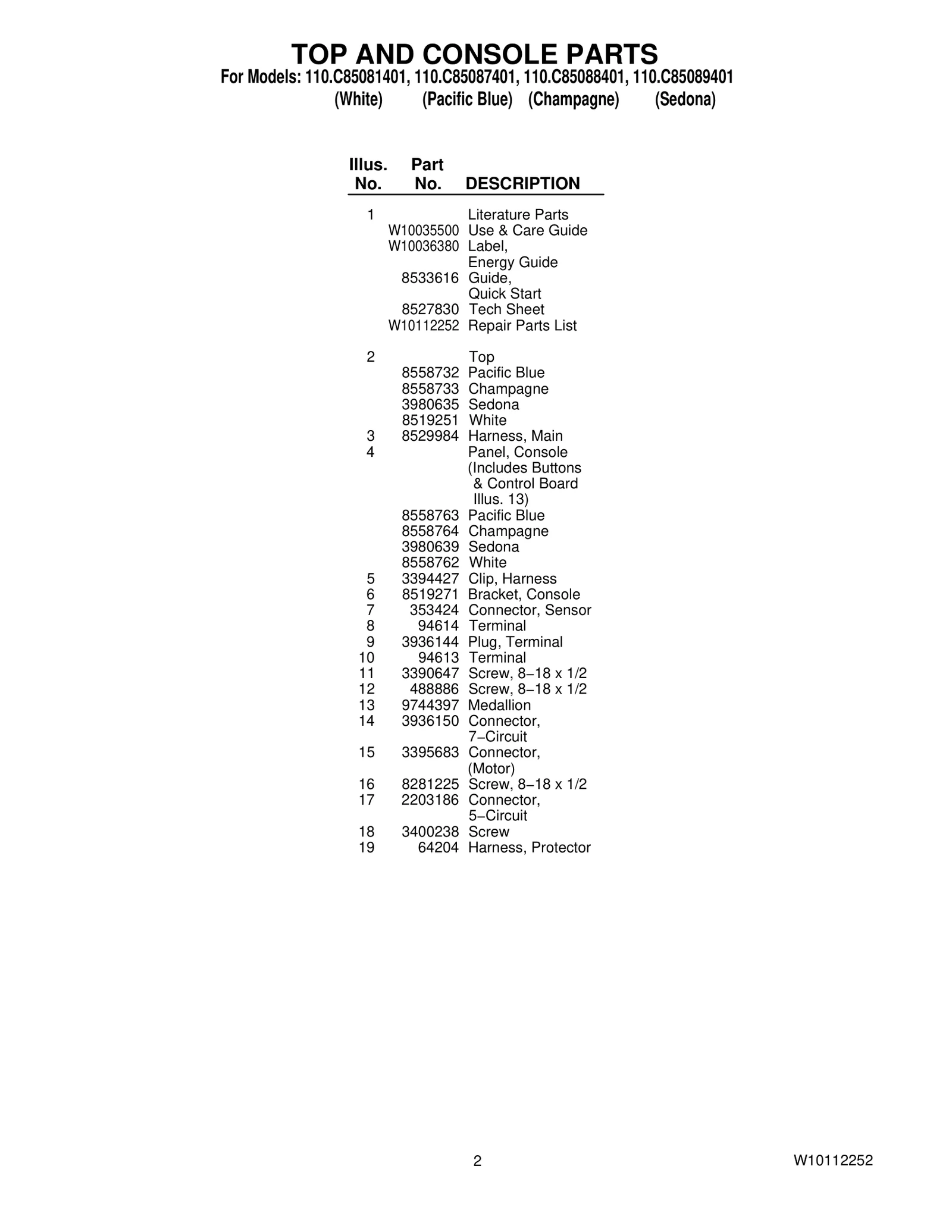

Panel, Console (Includes Buttons & Control Bo WPL 8558764 Contact Us For Availability

4

Panel, Console (Includes Buttons & Control Bo WPL 3980639 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $228.03

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

6

Washer WPL 3400916 Contact Us For Availability

7

W10819774 Whirlpool Dryer Door Handle Assembl Backorder WPL W10819774 $56.67

7

Connector, Sensor WPL 353424 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

Nut,3/8 x 16(R.H.) WPL 3934666 Contact Us For Availability

8

Screw, 10−24 x 3/16 WPL W10017850 Contact Us For Availability

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Plug, Door Handle (2) WPL 8519374 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly Backorder WPL W11226088 $19.60

10

Door Assembly (Includes WPL 8557500 Contact Us For Availability

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

11

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

Door, Outer — White WPL 8546186 Contact Us For Availability

Door, Outer — & 89400) WPL 88400 Contact Us For Availability

Door, Outer — Spa Blue WPL 8558788 Contact Us For Availability

Door, Outer — Autumn Pearl WPL 8558786 Contact Us For Availability

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

13

Window WPL 8533640 Contact Us For Availability

14

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

14

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $76.93

14

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

15

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $5.30

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

17

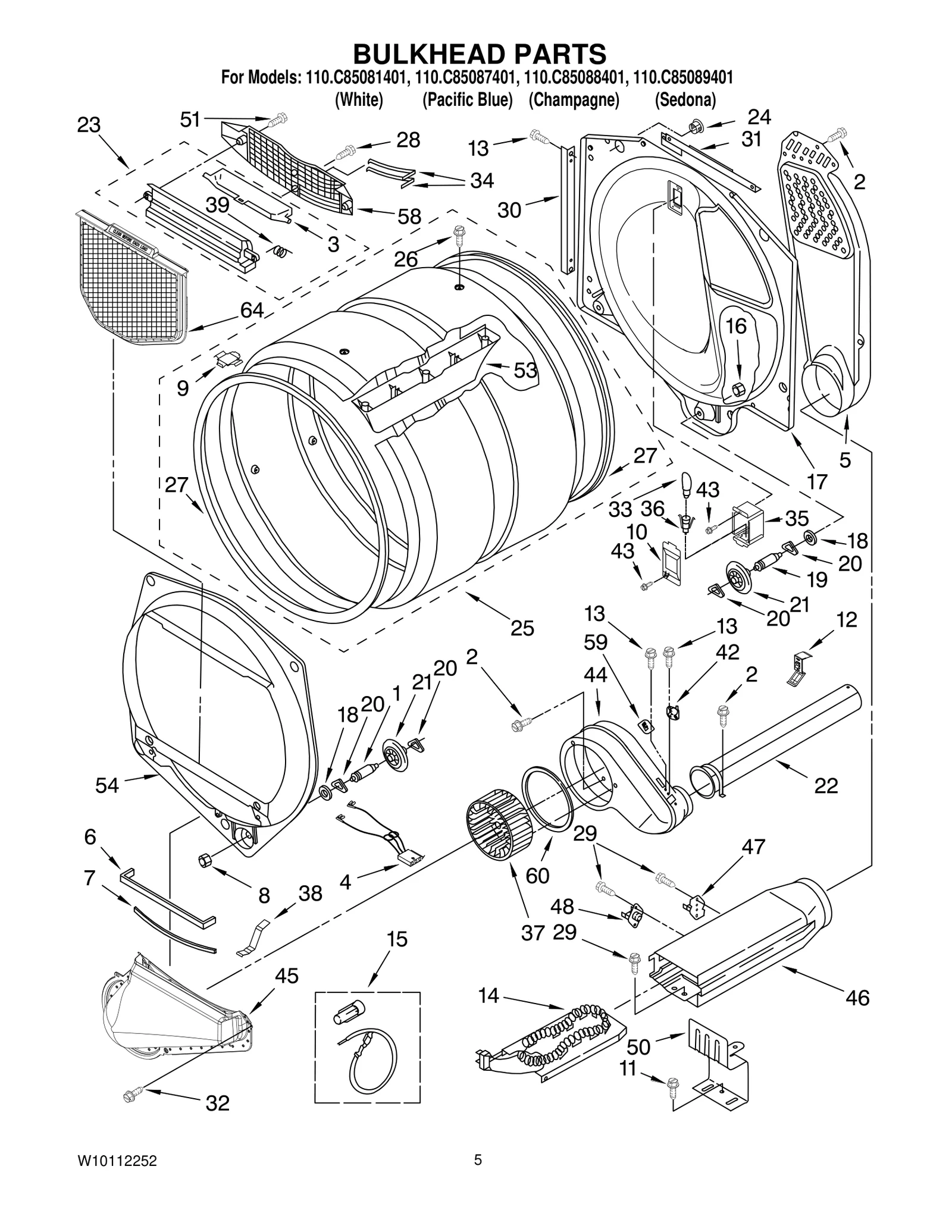

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $11.95

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.89

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $18.60

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $104.07

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $38.13

23

Dry Rack Support WPL 8521961 Contact Us For Availability

24

8529007 Whirlpool Plug Backorder WPL 8529007 $55.15

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.87

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $37.02

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

30

Channel Bracket, Rear Bulkhead (2) WPL 8519221 Contact Us For Availability

31

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $48.67

31

W10118337 Whirlpool Bracket Assembly Backorder WPL W10118337 $64.16

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $19.81

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.64

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.63

35

Clip, S−Type (3) WPL 62825 Contact Us For Availability

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

38

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $31.82

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $51.17

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $133.28

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $84.95

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $45.51

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $70.79

50

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

50

Base, Cabinet WPL 8519207 Contact Us For Availability

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

Front Panel (Includes — Pacific Blue WPL 8562165 Contact Us For Availability

Front Panel (Includes — Champagne WPL 8562166 Contact Us For Availability

Front Panel (Includes — Sedona WPL 3980631 Contact Us For Availability

Front Panel (Includes — White WPL 8562162 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

54

Bulkhead, Front WPL 8519245 Contact Us For Availability

55

Harness, Digital Interface WPL 8299925 Contact Us For Availability

56

Bracket, Control WPL 8519273 Contact Us For Availability

57

Control Board WPL 8546219 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

59

3400826 Whirlpool Screw Backorder WPL 3400826 $5.51

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

Toe, Panel — Pacific Blue WPL 8558729 Contact Us For Availability

Toe, Panel — Champagne WPL 8558730 Contact Us For Availability

Toe, Panel — Sedona WPL 3980630 Contact Us For Availability

Toe, Panel — White WPL 8519233 Contact Us For Availability

62

Panel, Rear WPL 8519219 Contact Us For Availability

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $26.66

64

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $70.15

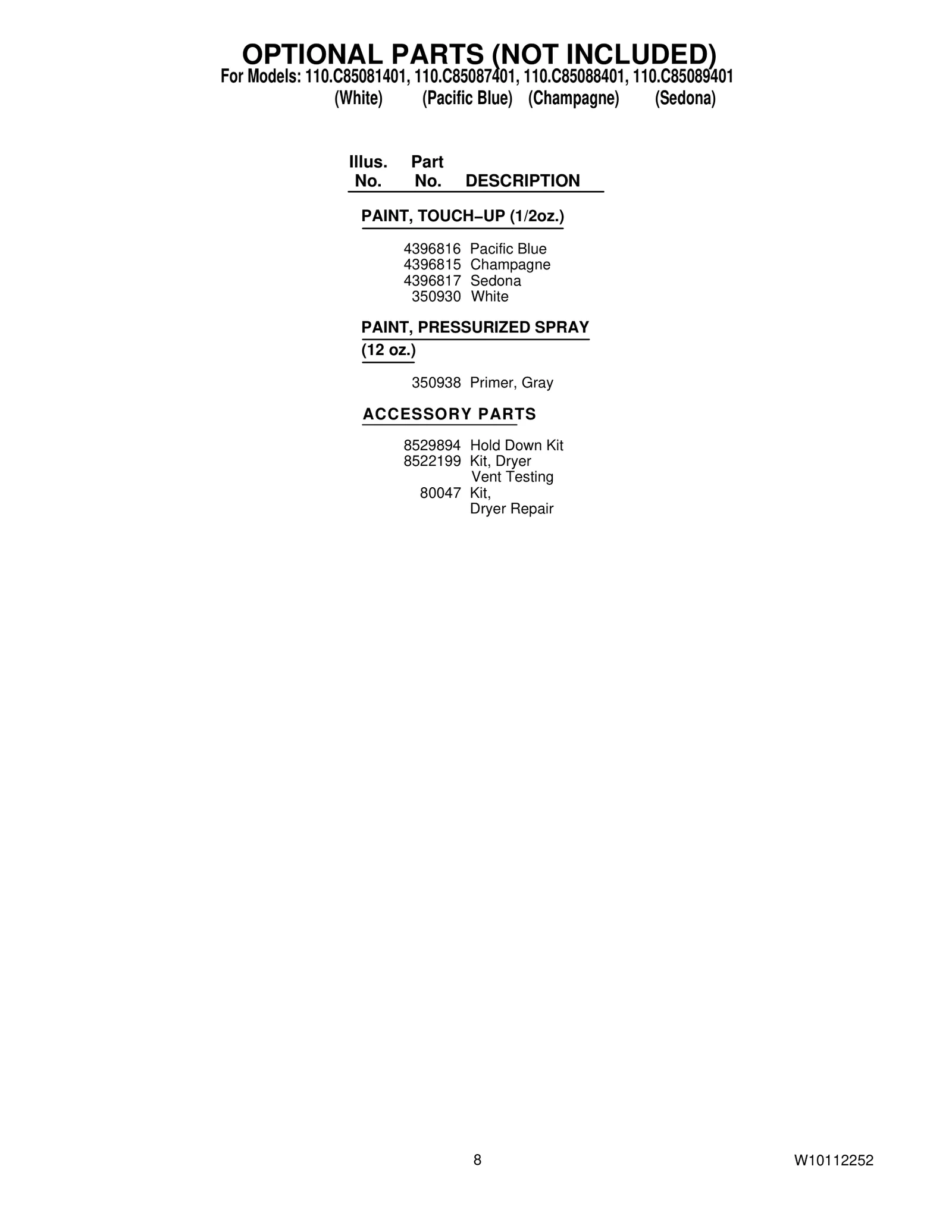

OPT-1

4396816 Whirlpool Touch-Up Backorder WPL 4396816 $8.00

OPT-2

Champagne WPL 4396815 Contact Us For Availability

OPT-3

Sedona WPL 4396817 Contact Us For Availability

OPT-4

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-5

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

OPT-6

Hold Down Kit WPL 8529894 Contact Us For Availability

OPT-7

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

OPT-8

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $37.72
