Model Whirlpool 110.88732791 Washer/Dryer Laundry System (Kenmore 11088732791) – Common Parts &amp; Diagrams

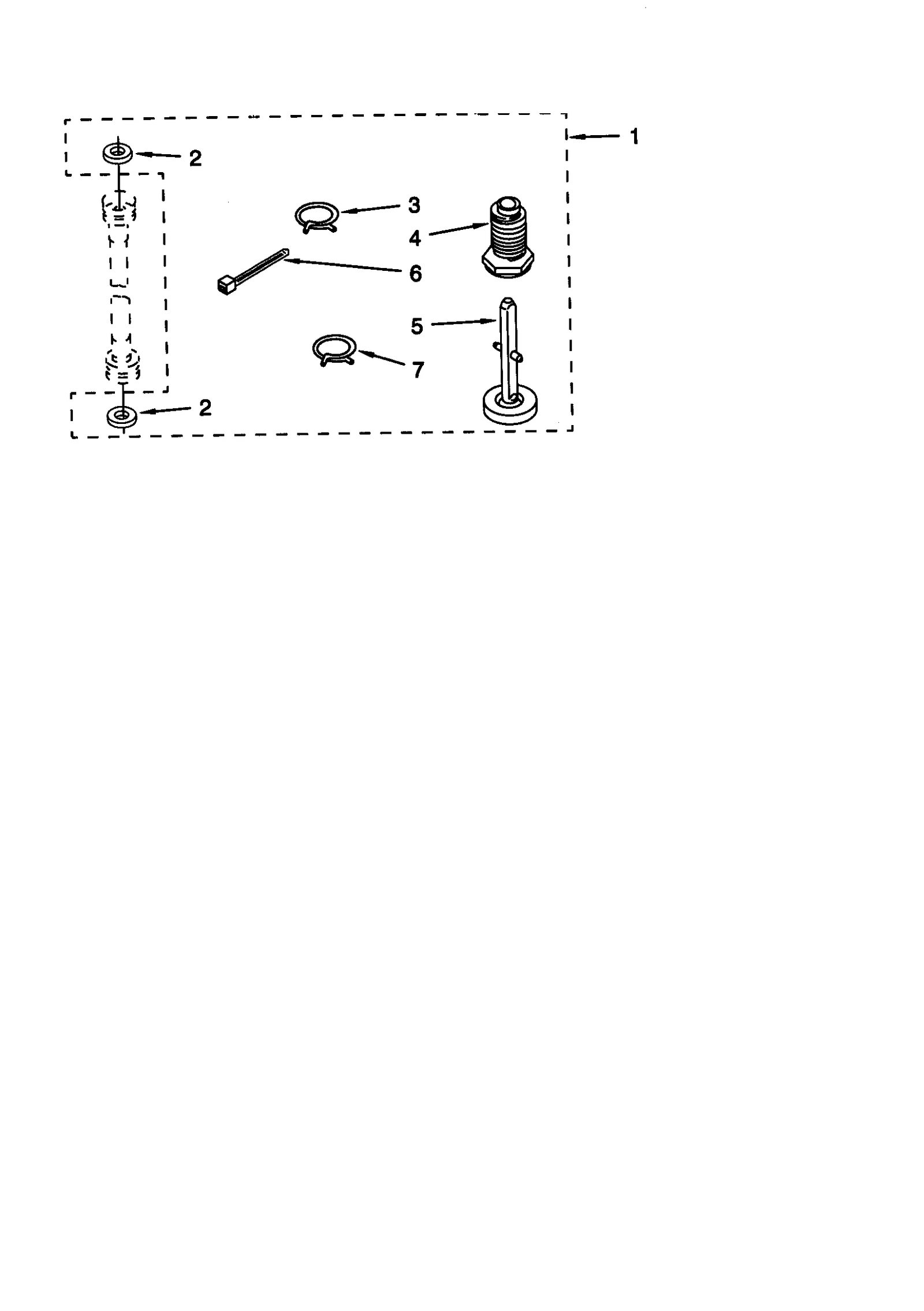

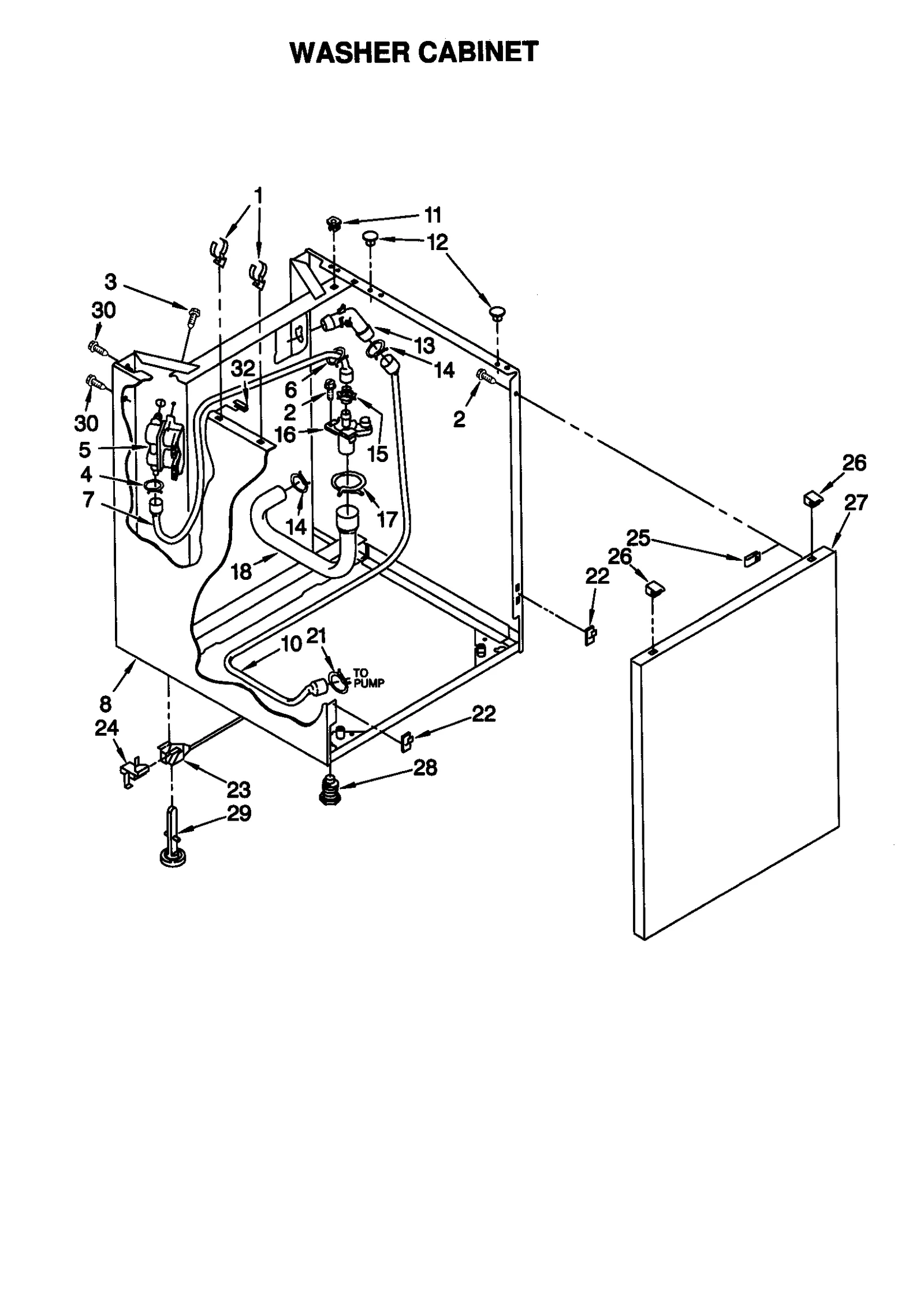

1

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

1

356746 Whirlpool Clip Backorder WPL 356746 $14.02

1

WP387095 Whirlpool Cap Backorder WPL WP387095 $39.10

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

1

Laundry Center Wire Harness WPL 3406287 Contact Us For Availability

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.82

1B

696073 Whirlpool Connector Backorder WPL 696073 $64.30

1C

Washer Timer Wire Harness Connector WPL 3948614 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP3406108 Whirlpool Door Switch In Stock WPL WP3406108 $17.96

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP3952379 Whirlpool Timer In Stock WPL WP3952379 $179.95

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

3

63977 Whirlpool Agitator Auger Backorder WPL 63977 $135.27

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

3

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $79.15

4

Slide Bar WPL 694320 Contact Us For Availability

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $61.94

5

696541 Whirlpool Base Backorder WPL 696541 $64.59

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

5

Washer Tub Ring WPL 64175 Contact Us For Availability

5

Master Switch WPL 694302 Contact Us For Availability

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

6

Control Bracket WPL 8054285 Contact Us For Availability

6B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

6C

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

7

3976428 Whirlpool End Cap Backorder WPL 3976428 $58.07

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $17.57

7

WP348205 Whirlpool Door Backorder WPL WP348205 $97.40

7

WP692699 Whirlpool Hose Backorder WPL WP692699 $27.63

8

Washer Cover WPL 3394228 Contact Us For Availability

8

Appliance Screw, 8-18 x 3/4-in WPL 348689 Contact Us For Availability

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $4.82

9

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

9

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

9

Washer Outer Tub WPL 63782 Contact Us For Availability

10

WP3362987 Whirlpool Washer Water Level Switch In Stock WPL WP3362987 $144.20

10

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

10

WP696710 Whirlpool Hose Backorder WPL WP696710 $39.99

11

W10834213 Whirlpool Hose Backorder WPL W10834213 $23.39

11

WP3401380 Whirlpool Box In Stock WPL WP3401380 $120.30

285442 Whirlpool Coupling Backorder WPL 285442 $63.41

WP3403591 Whirlpool Element Backorder WPL WP3403591 $215.79

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

WP384693 Whirlpool Top Backorder WPL WP384693 $202.20

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

WP8054143 Whirlpool Temperature Switch In Stock WPL WP8054143 $90.85

280120 Whirlpool Hose Backorder WPL 280120 $24.55

693711 Whirlpool Sleeve Backorder WPL 693711 $5.42

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $5.36

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $4.82

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.44

356398 Whirlpool Tube Backorder WPL 356398 $58.38

63636 Whirlpool Bracket Backorder WPL 63636 $32.75

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

WP356471 Whirlpool Cap In Stock WPL WP356471 $4.82

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $5.30

Console Lock Screw WPL 693710 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

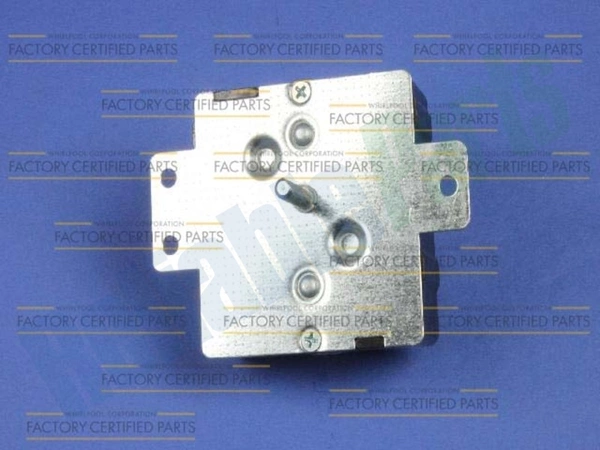

WP3406722 Whirlpool Timer Backorder WPL WP3406722 $269.10

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.30

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $5.30

3399603 Whirlpool Elbow Backorder WPL 3399603 $83.21

384459 Whirlpool Hinge Backorder WPL 384459 $62.36

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

Strut WPL 693175 Contact Us For Availability

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP696394 Whirlpool Hose In Stock WPL WP696394 $46.00

Filtr-lint WPL 3351992 Contact Us For Availability

Push-to-Start Switch WPL 660936 Contact Us For Availability

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

W10863713 Whirlpool Support In Stock WPL W10863713 $243.69

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

WP3404153 Whirlpool Thermostat In Stock WPL WP3404153 $55.95

Clip WPL 383718 Contact Us For Availability

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $48.48

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

O-Ring WPL 64002 Contact Us For Availability

21

694037 Whirlpool Clip Backorder WPL 694037 $60.49

21

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

21

Stopper WPL 21265 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $4.85

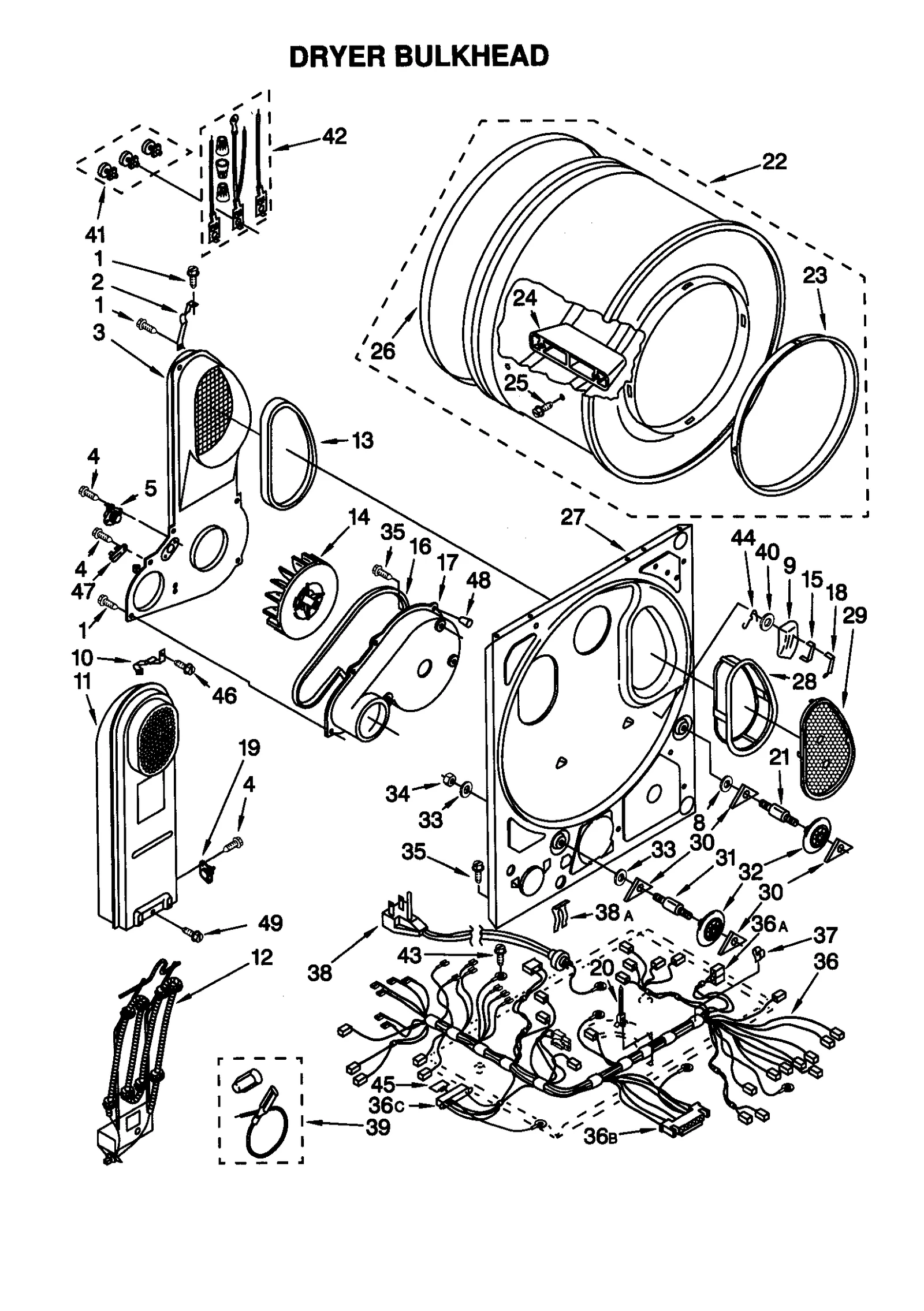

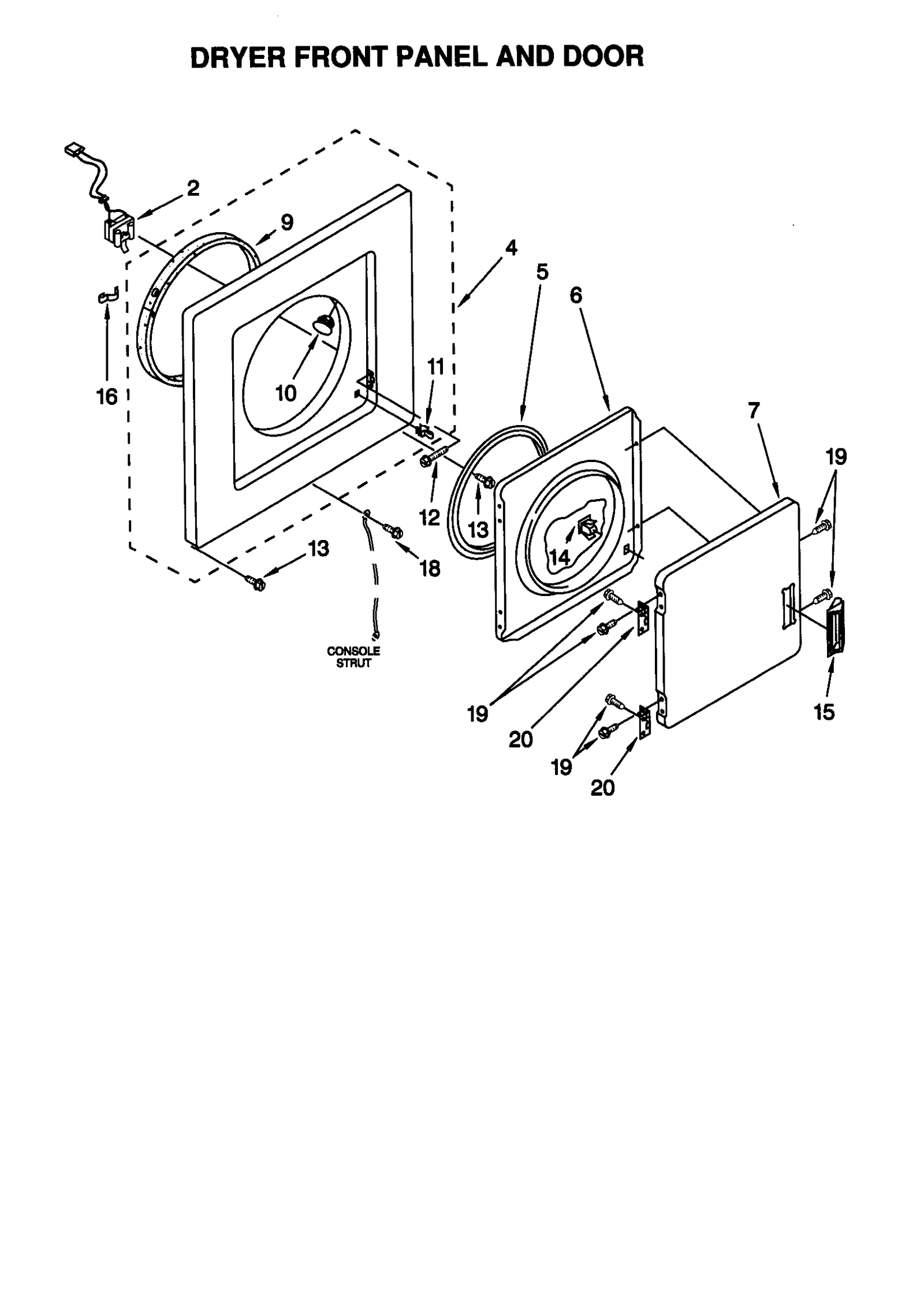

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

WP3355806 Whirlpool Lid Switch In Stock WPL WP3355806 $33.37

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

285751 Whirlpool Washer Agitator Cam and 4 Do In Stock WPL 285751 $18.91

386011 Whirlpool Screw Backorder WPL 386011 $32.38

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

Laundry Center Control Panel WPL 3976400 Contact Us For Availability

696044 Whirlpool Block In Stock WPL 696044 $61.59

WP359364 Whirlpool Clip In Stock WPL WP359364 $5.30

Dryer Control Knob WPL 3402594 Contact Us For Availability

Sears Canada Dryer Drum Baffle WPL 685207 Contact Us For Availability

285550 Whirlpool Cap Backorder WPL 285550 $63.20

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

Knob (White) WPL 3402566 Contact Us For Availability

26

285620 Whirlpool Washer In Stock WPL 285620 $7.86

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $5.30

26

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

692933 Whirlpool Panel Backorder WPL 692933 $159.16

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $5.30

Washer Control Knob WPL 3402572 Contact Us For Availability

Washer Front Panel WPL 692628 Contact Us For Availability

28

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

28

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

28

Washer Timer Dial WPL 3949428 Contact Us For Availability

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $9.46

29

WP3950715 Whirlpool Knob In Stock WPL WP3950715 $39.19

30

3976430 Whirlpool Button Bar Backorder WPL 3976430 $8.82

30

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.89

30

WP693145 Whirlpool Lid Latch In Stock WPL WP693145 $58.20

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $61.81

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

34

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

35

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

36B

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

36C

3391885 Whirlpool Connector Backorder WPL 3391885 $63.26

37

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

39

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $19.81

42

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

46

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

47

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability
