Online Sale!
100% Guaranteed Genuine Parts

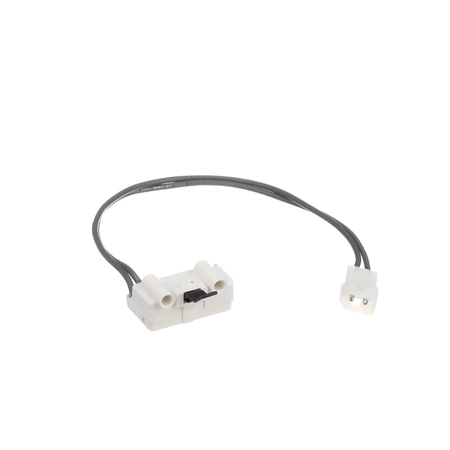

WP3406108 Whirlpool Door Switch
Maytag Whirlpool Magic Chef KitchenAid Roper Norge Sears Kenmore Admiral Amana Clothes Dryer Door Switch 3406108
We are a Factory Authorized Parts Distributor for Whirlpool Maytag. Trust us for all of your Whirlpool Maytag appliance parts and accessories needs.
We are a Factory Authorized Parts Distributor for Whirlpool Maytag. Trust us for all of your Whirlpool Maytag appliance parts and accessories needs.
Weight : 0.097000 lbs
Dimension : 5.314900 x 3.582600 x 0.708600
Compatible Brands
About this product
Maytag Whirlpool Magic Chef KitchenAid Roper Norge Sears Kenmore Admiral Amana Clothes Dryer Door Switch 3406108
We are a Factory Authorized Parts Distributor for Whirlpool Maytag. Trust us for all of your Whirlpool Maytag appliance parts and accessories needs.
We are a Factory Authorized Parts Distributor for Whirlpool Maytag. Trust us for all of your Whirlpool Maytag appliance parts and accessories needs.
Weight : 0.097000 lbs
Dimension : 5.314900 x 3.582600 x 0.708600
The following parts are replaced by this product
- 3406108
No more associated models for this part.
Replacing the WP3406108 Whirlpool Door Switch
1. Unplug your appliance from the power source to ensure safety during the replacement process.
2. Lift up and remove the top of your dryer to expose the inside.
3. Remove the screws that secure the back panel to the frame of the dryer.
4. Carefully remove the back panel and set aside.
5. Locate the old door switch at the top right of the opening on the front of the dryer.
6. Using a screwdriver, remove the two screws that secure the door switch to the dryer cabinet.
7. Carefully pull the door switch away from the cabinet.
8. Disconnect the two wiring harnesses from the rear of the door switch.
9. Connect the two wiring harnesses to the new door switch.
10. Secure the new door switch to the dryer cabinet with the two screws.
11. Replace the back panel and secure it to the frame of the dryer with the screws.
12. Lower the top of the dryer and plug the appliance into the power source.
13. Test the operation of the new door switch by opening and closing the door.
Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
1. Unplug your appliance from the power source to ensure safety during the replacement process.
2. Lift up and remove the top of your dryer to expose the inside.
3. Remove the screws that secure the back panel to the frame of the dryer.
4. Carefully remove the back panel and set aside.
5. Locate the old door switch at the top right of the opening on the front of the dryer.
6. Using a screwdriver, remove the two screws that secure the door switch to the dryer cabinet.
7. Carefully pull the door switch away from the cabinet.
8. Disconnect the two wiring harnesses from the rear of the door switch.
9. Connect the two wiring harnesses to the new door switch.
10. Secure the new door switch to the dryer cabinet with the two screws.
11. Replace the back panel and secure it to the frame of the dryer with the screws.
12. Lower the top of the dryer and plug the appliance into the power source.
13. Test the operation of the new door switch by opening and closing the door.
Please keep in mind, these instructions are for general guidance and should always be used in conjunction with the manufacturer's manual, if available.
