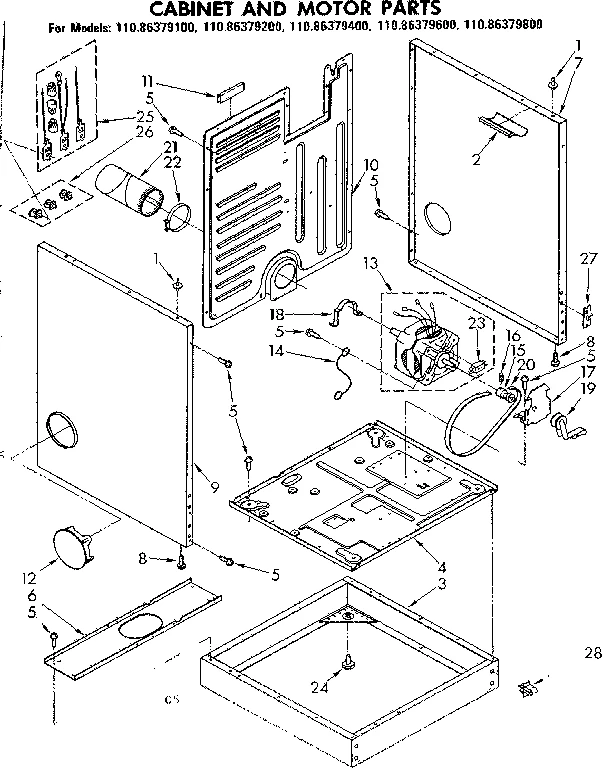

Model Whirlpool 110.86379200 Electric Dryer (Kenmore 11086379200) – Common Parts &amp; Diagrams

1

WP345670 Whirlpool Lock In Stock WPL WP345670 $5.30

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

2

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

2

Air Duct WPL 693032 Contact Us For Availability

2

Panel WPL 357942 Contact Us For Availability

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

3

Timer 60hz WPL 690347 Contact Us For Availability

4

279872 Whirlpool Resistor In Stock WPL 279872 $36.07

4

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

5

Support WPL 686768 Contact Us For Availability

5

Switch WPL 660388 Contact Us For Availability

6

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

6

Clip WPL 692238 Contact Us For Availability

6A

Panel (White) WPL 693044 Contact Us For Availability

6B

Panel (Almond) WPL 693045 Contact Us For Availability

6E

Panel WPL 693048 Contact Us For Availability

7

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.39

7

End Cap Clip WPL 689559 Contact Us For Availability

7

Dryer Blower Wheel WPL 345317 Contact Us For Availability

8

279220 Whirlpool Clip Backorder WPL 279220 $18.99

8

Cap (Chestnut) WPL 372127 Contact Us For Availability

9

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $29.98

9

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

9

Bracket WPL 692660 Contact Us For Availability

10

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

10

Fan Scroll WPL 347798 Contact Us For Availability

10

Screw WPL 358225 Contact Us For Availability

11

Bulkhead WPL 349727 Contact Us For Availability

11

Panel WPL 693055 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12A

692790 Whirlpool Plug Backorder WPL 692790 $57.71

13

Box WPL 685457 Contact Us For Availability

13

Compression Ring WPL 90015 Contact Us For Availability

13A

Panel (White) WPL 692662 Contact Us For Availability

13B

Panel (Almond) WPL 692663 Contact Us For Availability

13E

Panel WPL 692666 Contact Us For Availability

14

Ground Wire WPL 340025 Contact Us For Availability

15

Cap (Chestnut) WPL 372134 Contact Us For Availability

15A

WP348205 Whirlpool Door Backorder WPL WP348205 $97.40

15B

Dryer Door (Almond) WPL 689314 Contact Us For Availability

15C

Door WPL 689315 Contact Us For Availability

15D

Door WPL 689318 Contact Us For Availability

15E

Door WPL 689319 Contact Us For Availability

16

Buzzer WPL 347137 Contact Us For Availability

16A

280077 Whirlpool Door Backorder WPL 280077 $124.82

17

279080 Whirlpool Thermostat Backorder WPL 279080 $68.33

17

Screw, Nibbed WPL 339607 Contact Us For Availability

17A

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $5.30

17B

Handle (Almond) WPL 689497 Contact Us For Availability

17C

Handle WPL 689498 Contact Us For Availability

17D

Handle WPL 689500 Contact Us For Availability

17E

Handle WPL 689499 Contact Us For Availability

18

279304 Whirlpool Block Terminal Backorder WPL 279304 $130.28

18

Screw WPL 355326 Contact Us For Availability

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

Support WPL 692697 Contact Us For Availability

Harness WPL 692835 Contact Us For Availability

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $31.31

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $48.48

Dryer Timer Knob WPL 688865 Contact Us For Availability

Screw WPL 689791 Contact Us For Availability

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

Pipe WPL 692873 Contact Us For Availability

Dryer Control Knob WPL 349796 Contact Us For Availability

22

Clamp WPL 692874 Contact Us For Availability

22

Heater Element WPL 685592 Contact Us For Availability

23

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $42.20

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

23A

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

24

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $4.82

24A

Top (White) WPL 692651 Contact Us For Availability

24B

Top (Almond) WPL 692652 Contact Us For Availability

24E

Top WPL 692655 Contact Us For Availability

25

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

25

Wire WPL 279139 Contact Us For Availability

26

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $19.81

26

345325 Whirlpool Gusset Backorder WPL 345325 $61.38

26

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

27

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

28

3391834 Whirlpool Drum Backorder WPL 3391834 $215.70

28

Clip WPL 690625 Contact Us For Availability

28

Knob WPL 382823 Contact Us For Availability

29

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $44.53

30

Screw WPL 690372 Contact Us For Availability

31

Sears Canada Dryer Drum Baffle WPL 685207 Contact Us For Availability

32

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

33

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

34

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

35

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

36

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

37

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

38

Socket WPL 691034 Contact Us For Availability

41

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $41.03

42

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

45

Lens WPL 341165 Contact Us For Availability

46

Duct Seal WPL 345685 Contact Us For Availability

50

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Operating Instructions WPL LIT692149 Contact Us For Availability

Checklist WPL LIT692171 Contact Us For Availability

Label WPL LIT692834 Contact Us For Availability

Parts List WPL LIT692913 Contact Us For Availability

Owner's Manual WPL LIT693160 Contact Us For Availability

Installation Instructions WPL LIT693161 Contact Us For Availability

Service Manual WPL LIT828693 Contact Us For Availability
