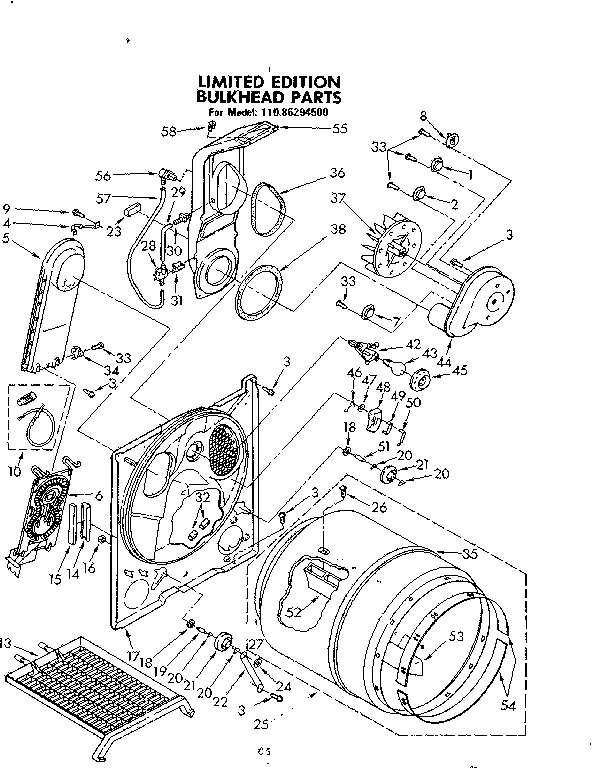

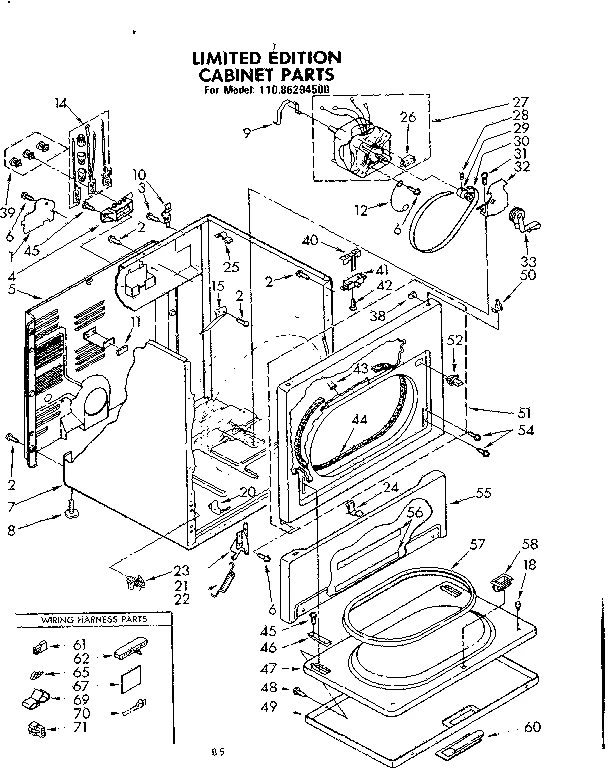

Whirlpool 110.86294500 Electric Dryer (Kenmore 11086294500) Parts List

1

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $42.20

View on Model

1

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $29.98

View on Model

3

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

4

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $31.31

View on Model

4

279771 Whirlpool Clip Backorder WPL 279771 $9.33

View on Model

5

Panel WPL 693958 Contact Us For Availability

View on Model

5

Box WPL 685457 Contact Us For Availability

View on Model

6

WP4391960 Whirlpool Dryer Heating Element In Stock WPL WP4391960 $27.66

View on Model

7

End Cap Clip WPL 689559 Contact Us For Availability

View on Model

7

Cabinet WPL 693914 Contact Us For Availability

View on Model

7

Thermostat WPL 690031 Contact Us For Availability

View on Model

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

View on Model

8

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $18.68

View on Model

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

View on Model

10

WP8066217 Whirlpool Hinge In Stock WPL WP8066217 $4.82

View on Model

12

Wire WPL 690236 Contact Us For Availability

View on Model

13

Dryer Rack WPL 692990 Contact Us For Availability

View on Model

14

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

View on Model

14

686889 Whirlpool Pad Backorder WPL 686889 $14.02

View on Model

15

Shield WPL 690262 Contact Us For Availability

View on Model

15

Pad WPL 693918 Contact Us For Availability

View on Model

18

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

View on Model

18

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

View on Model

19

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

View on Model

20

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

View on Model

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

View on Model

21

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

View on Model

21

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $38.28

View on Model

21A

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $49.07

View on Model

22

W11684613 Whirlpool Bracket Backorder WPL W11684613 $13.15

View on Model

22

WPW10041960 Whirlpool Door Spring Backorder WPL WPW10041960 $25.61

View on Model

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

View on Model

23

Clip WPL 690625 Contact Us For Availability

View on Model

23

Pad WPL 693917 Contact Us For Availability

View on Model

24

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

View on Model

24

Clip WPL 341776 Contact Us For Availability

View on Model

25

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

25

Drum WPL 694017 Contact Us For Availability

View on Model

26

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

View on Model

26

Screw WPL 690372 Contact Us For Availability

View on Model

27

279408 Whirlpool Dryer Rear Drum Seal In Stock WPL 279408 $36.85

View on Model

27

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

View on Model

28

Screw WPL 690046 Contact Us For Availability

View on Model

28

Switch WPL 339524 Contact Us For Availability

View on Model

29

Relay WPL 691359 Contact Us For Availability

View on Model

29

Pulley WPL 348946 Contact Us For Availability

View on Model

29

Tubing WPL 339892 Contact Us For Availability

View on Model

30

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $16.28

View on Model

30

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

View on Model

30

Tap WPL 339624 Contact Us For Availability

View on Model

31

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

View on Model

31

Relay WPL 691360 Contact Us For Availability

View on Model

31

Clip WPL 339745 Contact Us For Availability

View on Model

32

WP348780 Whirlpool Base In Stock WPL WP348780 $80.94

View on Model

32

Shield WPL 693880 Contact Us For Availability

View on Model

32

Pad WPL 693916 Contact Us For Availability

View on Model

33

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

View on Model

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

View on Model

33

Transformer WPL 60996 Contact Us For Availability

View on Model

34

Socket WPL 358830 Contact Us For Availability

View on Model

35

Bulb WPL 354341 Contact Us For Availability

View on Model

35

Shield WPL 693926 Contact Us For Availability

View on Model

36

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

View on Model

37

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.81

View on Model

37

Hanger WPL 690109 Contact Us For Availability

View on Model

38

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

View on Model

38

Trim WPL 693762 Contact Us For Availability

View on Model

39

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $19.81

View on Model

40

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

View on Model

40

Clip WPL 357144 Contact Us For Availability

View on Model

41

Housing WPL 359188 Contact Us For Availability

View on Model

41

Switch WPL 691361 Contact Us For Availability

View on Model

42

W11415783 Whirlpool Seal In Stock WPL W11415783 $12.37

View on Model

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

View on Model

42

Socket WPL 691034 Contact Us For Availability

View on Model

43

279220 Whirlpool Clip Backorder WPL 279220 $18.99

View on Model

43

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

View on Model

44

W11035878 Whirlpool Bearing and Seal In Stock WPL W11035878 $55.94

View on Model

44

Wire WPL 690078 Contact Us For Availability

View on Model

44

Housing WPL 348493 Contact Us For Availability

View on Model

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

View on Model

45

Lens WPL 341165 Contact Us For Availability

View on Model

46

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $14.02

View on Model

46

WP342267 Whirlpool Clip Backorder WPL WP342267 $4.62

View on Model

47

WP298877 Whirlpool Washer Backorder WPL WP298877 $15.23

View on Model

47

Microcomputer WPL 61202 Contact Us For Availability

View on Model

47

Door WPL 694013 Contact Us For Availability

View on Model

48

279366 Whirlpool Sensor Kit In Stock WPL 279366 $57.37

View on Model

48

Screw WPL 690756 Contact Us For Availability

View on Model

48

Screw WPL 693922 Contact Us For Availability

View on Model

49

WP348859 Whirlpool Electrode Assembly Backorder WPL WP348859 $4.82

View on Model

49

Door WPL 693886 Contact Us For Availability

View on Model

49A

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

View on Model

49B

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

View on Model

50

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

View on Model

50

WP348860 Whirlpool Electrode Backorder WPL WP348860 $4.82

View on Model

50

Bumper WPL 297535 Contact Us For Availability

View on Model

51

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

View on Model

51

Washer WPL 237446 Contact Us For Availability

View on Model

51

Panel WPL 692451 Contact Us For Availability

View on Model

52

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $109.12

View on Model

52

Cover WPL 693912 Contact Us For Availability

View on Model

53

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $98.74

View on Model

53

Clip WPL 445159 Contact Us For Availability

View on Model

54

279441 Whirlpool Front Bearing Ring In Stock WPL 279441 $53.87

View on Model

54

Screw WPL 342043 Contact Us For Availability

View on Model

55

Toe Panel WPL 693885 Contact Us For Availability

View on Model

55

Lint Chute WPL 349242 Contact Us For Availability

View on Model

55A

W11117429 Whirlpool Chute Assembly In Stock WPL W11117429 $111.01

View on Model

56

Shield WPL 693925 Contact Us For Availability

View on Model

56

Tap WPL 339625 Contact Us For Availability

View on Model

57

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $45.31

View on Model

57

Tubing WPL 339893 Contact Us For Availability

View on Model

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

View on Model

58

98460 Whirlpool Nut Backorder WPL 98460 $8.89

View on Model

60

Handle WPL 693848 Contact Us For Availability

View on Model

61

Receptacle WPL 717252 Contact Us For Availability

View on Model

62

Connector WPL 60278 Contact Us For Availability

View on Model

65

Terminal WPL 60279 Contact Us For Availability

View on Model

67

Shield WPL 359232 Contact Us For Availability

View on Model

69

Clip WPL 689180 Contact Us For Availability

View on Model

70A

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

View on Model

71

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

View on Model

NI

Spray WPL 786020 Contact Us For Availability

View on Model

NI

Installation Instructions WPL LIT691174 Contact Us For Availability

View on Model

NI

Label WPL LIT691356 Contact Us For Availability

View on Model

NI

Technical Sheet WPL LIT691553 Contact Us For Availability

View on Model

NI

Checklist WPL LIT691911 Contact Us For Availability

View on Model

NI

Operating Instructions WPL LIT693480 Contact Us For Availability

View on Model

NI

Parts List WPL LIT693512 Contact Us For Availability

View on Model

NI

Owner's Manual WPL LIT694025 Contact Us For Availability

View on Model

NI

Service Manual WPL LIT828693 Contact Us For Availability

View on Model
