Model Whirlpool 110.86093110 Electric Dryer (Kenmore 11086093110) – Common Parts & Diagrams
CABINET PARTS

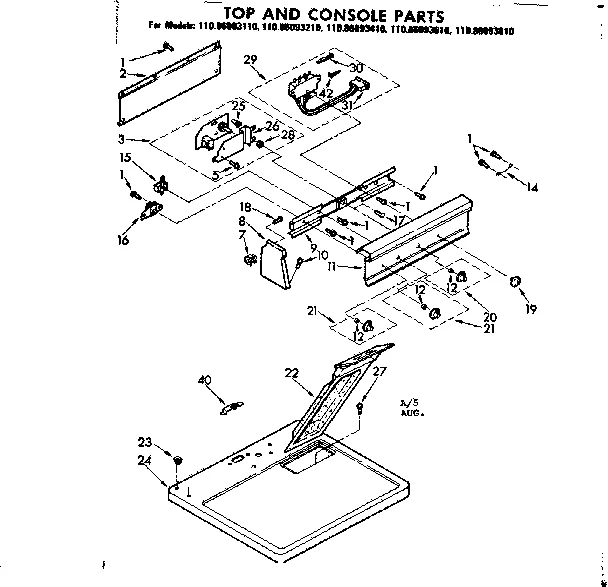

TOP AND CONSOLE PARTS
All Parts

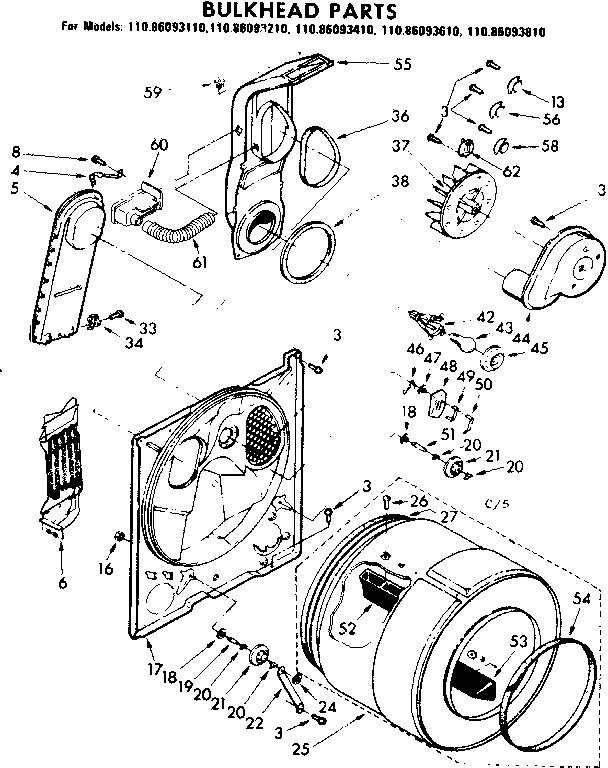

BULKHEAD ASSEMBLY
Common parts from model Whirlpool 110.86093110 Electric Dryer (Kenmore 11086093110)
2
Panel WPL 359374 Contact Us For Availability
3
Control WPL 689978 Contact Us For Availability
5
Box WPL 685457 Contact Us For Availability
7
End Cap Clip WPL 689559 Contact Us For Availability
8A
Cap (Chestnut) WPL 372134 Contact Us For Availability
8B
Cap (Chestnut) WPL 372127 Contact Us For Availability
9
Bracket WPL 687072 Contact Us For Availability
10
Screw WPL 358225 Contact Us For Availability
11
Panel WPL 690543 Contact Us For Availability
12
Compression Ring WPL 90015 Contact Us For Availability
14
Ground Wire WPL 340025 Contact Us For Availability
15
Switch WPL 691033 Contact Us For Availability
16
Buzzer WPL 347137 Contact Us For Availability
17
Screw, Nibbed WPL 339607 Contact Us For Availability
17
Bulkhead WPL 685817 Contact Us For Availability
18
Screw WPL 355326 Contact Us For Availability
19
Knob WPL 687129 Contact Us For Availability
20
Knob WPL 687092 Contact Us For Availability
21
Dryer Hinge WPL 687905 Contact Us For Availability
21
Knob WPL 365952 Contact Us For Availability
22B
Screen WPL 689466 Contact Us For Availability
22C
Screen WPL 689468 Contact Us For Availability
22D
Dryer Lint Filter WPL 689467 Contact Us For Availability
24A
Top (White) WPL 685958 Contact Us For Availability
24B
Top WPL 689474 Contact Us For Availability
24C
Top WPL 689476 Contact Us For Availability
24D
Top WPL 689475 Contact Us For Availability
24E
Top (Almond) WPL 689473 Contact Us For Availability
25
Stud WPL 685196 Contact Us For Availability
25
Drum WPL 347875 Contact Us For Availability
26
Bracket WPL 688018 Contact Us For Availability
26
Screw WPL 690372 Contact Us For Availability
26A
Motor Switch WPL 298699 Contact Us For Availability
28
Screw WPL 690046 Contact Us For Availability
28
Nut WPL 273505 Contact Us For Availability
29
Pulley WPL 348946 Contact Us For Availability
29
Relay WPL 690045 Contact Us For Availability
30
Terminal WPL 347654 Contact Us For Availability
31
Connector WPL 347698 Contact Us For Availability
40
Clip WPL 357144 Contact Us For Availability
42
Connector WPL 347700 Contact Us For Availability
42
Socket WPL 691034 Contact Us For Availability
44
Housing WPL 348493 Contact Us For Availability
45
Lens WPL 341165 Contact Us For Availability
47A
Door (White) WPL 346370 Contact Us For Availability
47B
Door WPL 689259 Contact Us For Availability
47C
Door WPL 689260 Contact Us For Availability
47D
Door WPL 689261 Contact Us For Availability
47E
Door (Almond) WPL 689258 Contact Us For Availability
48
Screw WPL 689791 Contact Us For Availability
49A
Door (White) WPL 348728 Contact Us For Availability
49B
Door WPL 689331 Contact Us For Availability
49C
Door WPL 689332 Contact Us For Availability
49D
Door WPL 689333 Contact Us For Availability
49E
Door (Almond) WPL 689330 Contact Us For Availability
51A
Panel (White) WPL 338012 Contact Us For Availability
51B
Panel WPL 689534 Contact Us For Availability
51C
Panel WPL 689536 Contact Us For Availability
51D
Panel WPL 689535 Contact Us For Availability
51E
Panel (Almond) WPL 689533 Contact Us For Availability
52
Baffle WPL 347892 Contact Us For Availability
53
Baffle WPL 348868 Contact Us For Availability
54
Screw WPL 342043 Contact Us For Availability
55
Chute WPL 686214 Contact Us For Availability
56A
Toe Panel (White) WPL 237035 Contact Us For Availability
56B
Panel WPL 689538 Contact Us For Availability
56C
Panel WPL 689540 Contact Us For Availability
56D
Panel WPL 689539 Contact Us For Availability
56E
Panel (Almond) WPL 689537 Contact Us For Availability
60
Signal WPL 690981 Contact Us For Availability
60B
Handle WPL 689458 Contact Us For Availability
60D
Handle WPL 689459 Contact Us For Availability
60E
Handle (Almond) WPL 689457 Contact Us For Availability
61
Hose WPL 686577 Contact Us For Availability
62
Connector WPL 347699 Contact Us For Availability
63
Clamp WPL 690987 Contact Us For Availability
66
Clip WPL 688412 Contact Us For Availability
67
Clip WPL 689180 Contact Us For Availability
68
Shield WPL 690262 Contact Us For Availability
69
Filler WPL 691207 Contact Us For Availability
70
Filler WPL 691206 Contact Us For Availability
NI
Paint (White) WPL 799344 Contact Us For Availability
NI
(338471) (ALT.) WPL N/P Contact Us For Availability
NI
Spray Cf WPL 261886 Contact Us For Availability
NI
Paint Cf WPL 261887 Contact Us For Availability
NI
Spray (Avocado) WPL 261888 Contact Us For Availability
NI
Paint Na WPL 261889 Contact Us For Availability
NI
Spray (Golden Harvest) WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray Th WPL 350941 Contact Us For Availability
NI
Touch-Up WPL 72108 Contact Us For Availability
NI
Thinnr 1 Gal WPL 799351 Contact Us For Availability
NI
Paint (Almond) WPL 978883 Contact Us For Availability
NI
Wiring Diagram WPL LIT230083 Contact Us For Availability
NI
Instructions WPL LIT339896 Contact Us For Availability
NI
Installation Instructions WPL LIT340704 Contact Us For Availability
NI
Technical Sheet WPL LIT689611 Contact Us For Availability
NI
Operating Instructions WPL LIT690605 Contact Us For Availability
NI
Owner's Manual WPL LIT690811 Contact Us For Availability
NI
Checklist WPL LIT690824 Contact Us For Availability
NI
Parts List WPL LIT691424 Contact Us For Availability
NI
Label WPL LIT691494 Contact Us For Availability
NI
Service Manual WPL LIT828693 Contact Us For Availability
× ![]()
