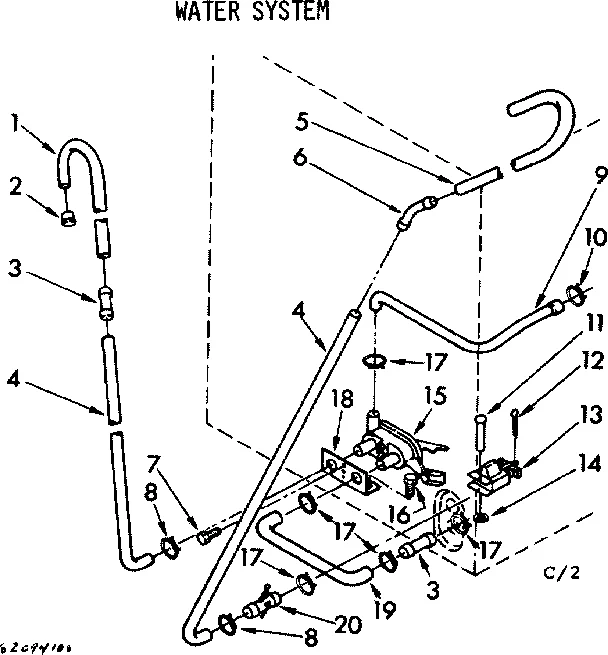

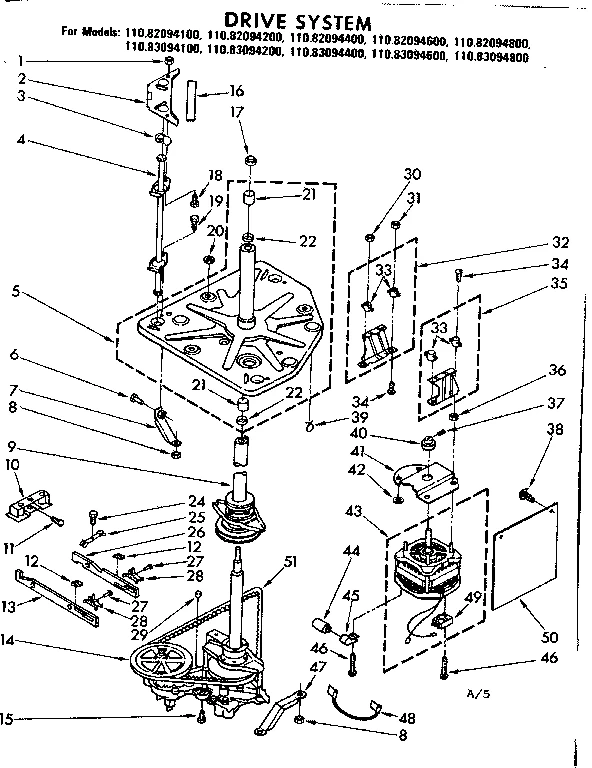

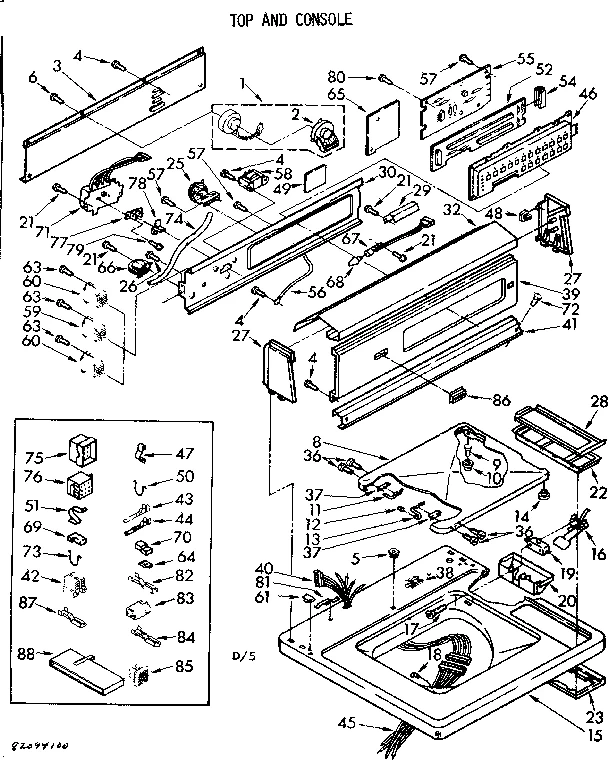

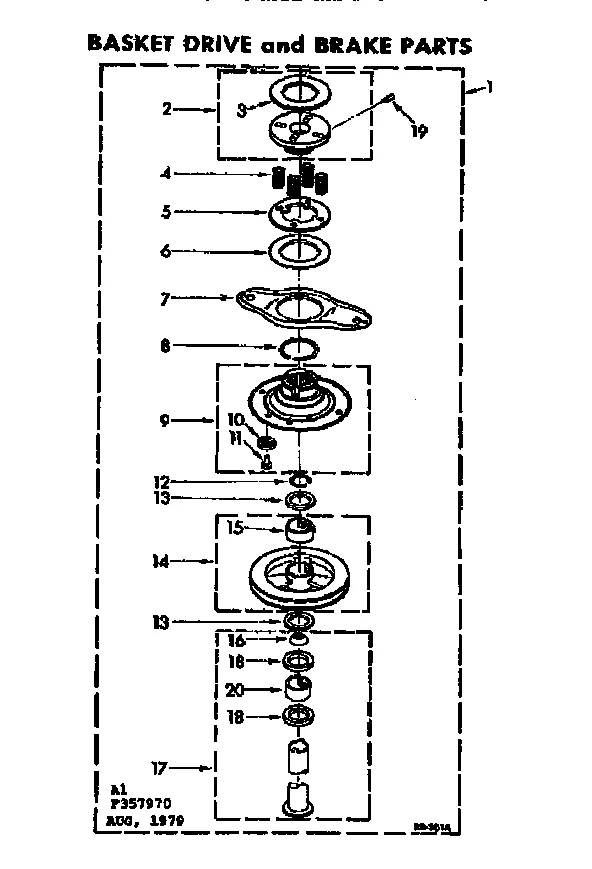

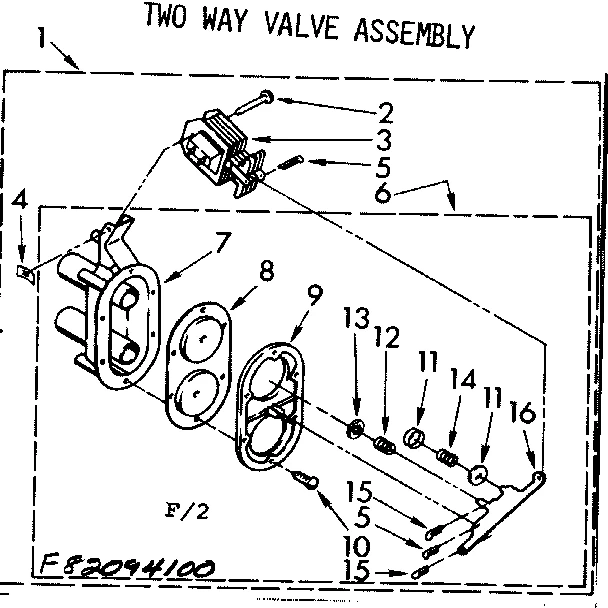

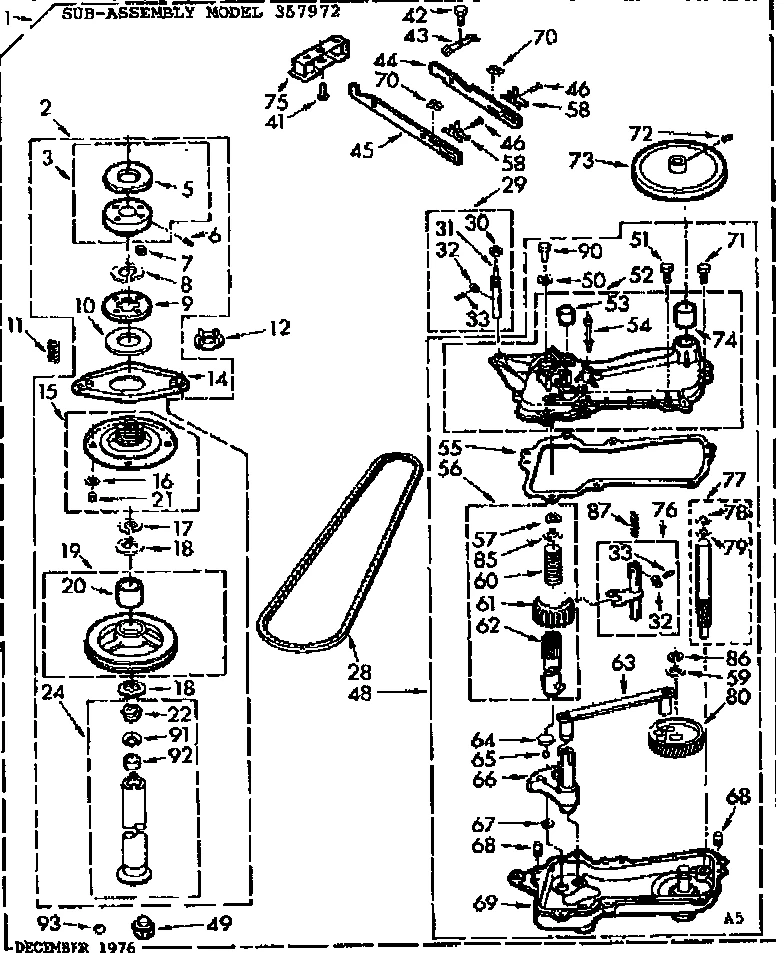

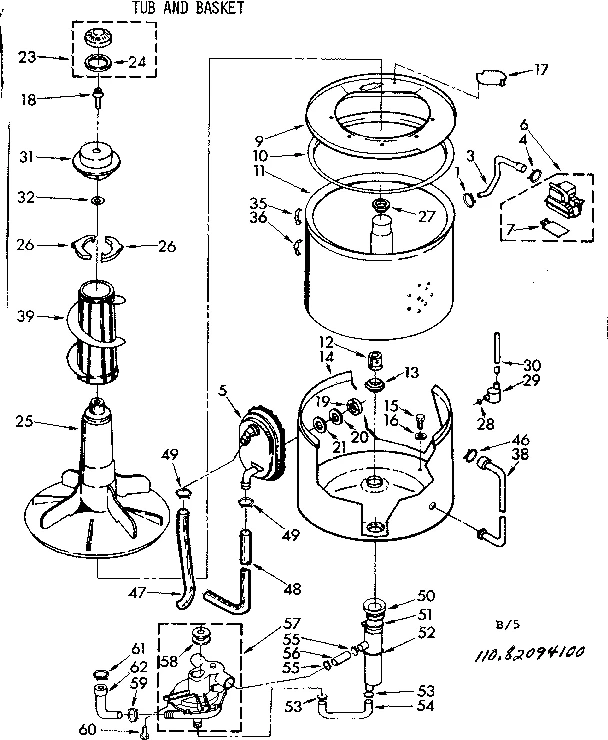

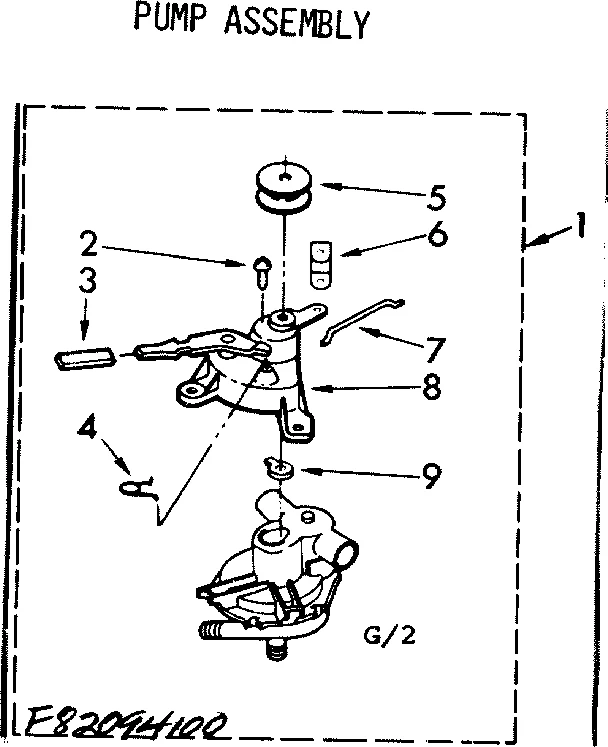

Model Whirlpool 110.83094200 Washer (Kenmore 11083094200) – Common Parts &amp; Diagrams

1

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

1

Valve WPL 360168 Contact Us For Availability

1

Housing WPL 359204 Contact Us For Availability

1

Discharge Hose WPL 91273 Contact Us For Availability

1

Pump (Black) WPL 362175 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

2

Housing WPL 359188 Contact Us For Availability

2

Washer Gear Case Brake Line and Guide WPL 350522 Contact Us For Availability

2

Cover WPL 352143 Contact Us For Availability

2

Strainer WPL 352833 Contact Us For Availability

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

3

Panel WPL 359189 Contact Us For Availability

3

Lining WPL 354550 Contact Us For Availability

3

Ball WPL 91073 Contact Us For Availability

3

Hose WPL 356349 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

4

96746 Whirlpool Drain Hose Assembly Backorder WPL 96746 $56.97

4

Brake Spring WPL 354275 Contact Us For Availability

4

Rod WPL 87270 Contact Us For Availability

4

Spring WPL 96266 Contact Us For Availability

5

98460 Whirlpool Nut Backorder WPL 98460 $8.89

5

Drum WPL 97664 Contact Us For Availability

5

Base Plate WPL 358948 Contact Us For Availability

5

Washer Lint Filter WPL 368772 Contact Us For Availability

5

Pump Pulley WPL 16113 Contact Us For Availability

6

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

6

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

6

Washer Drain Hose Connector WPL 95440 Contact Us For Availability

6

Lining WPL 354244 Contact Us For Availability

6

Inlet WPL 366072 Contact Us For Availability

6

Lever WPL 355538 Contact Us For Availability

7

Valve Body WPL 85205 Contact Us For Availability

7

Brake Yoke WPL 92903 Contact Us For Availability

7

Brace WPL 353301 Contact Us For Availability

7

Screw WPL 190575 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

Rod WPL 96264 Contact Us For Availability

8

Diaphragm WPL 75183 Contact Us For Availability

8

Ring WPL 16049 Contact Us For Availability

8

Nut WPL 96101 Contact Us For Availability

8

Bearng Blck WPL 87290 Contact Us For Availability

8A

Lid (White) WPL 371394 Contact Us For Availability

8B

Lid (Almond) WPL 371395 Contact Us For Availability

8C

Lid WPL 371396 Contact Us For Availability

8D

Lid WPL 371397 Contact Us For Availability

8E

Lid WPL 371398 Contact Us For Availability

9

Valve Cover WPL 16293 Contact Us For Availability

9

Strike WPL 357141 Contact Us For Availability

9

Drive WPL 357970 Contact Us For Availability

9

Plate WPL 357155 Contact Us For Availability

9

Hose WPL 357189 Contact Us For Availability

9

Ring WPL 356038 Contact Us For Availability

9

Wick Oil WPL 96265 Contact Us For Availability

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

Lining WPL 354243 Contact Us For Availability

Wig Way Ay WPL 365998 Contact Us For Availability

Washer Seal WPL 356584 Contact Us For Availability

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

Rivet WPL 356990 Contact Us For Availability

Washer WPL 16299 Contact Us For Availability

Spring WPL 17261 Contact Us For Availability

Eyelet WPL 98281 Contact Us For Availability

Tap End Scr WPL 16135 Contact Us For Availability

Basket WPL 358400 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Pin WPL 90228 Contact Us For Availability

Spring WPL 16287 Contact Us For Availability

Washer Basket Drive Spring Retainer WPL 356444 Contact Us For Availability

Cam Bar Guide WPL 95462 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

Solenoid WPL 86798 Contact Us For Availability

Washer WPL 16295 Contact Us For Availability

Washer Lid Hinge WPL 91367 Contact Us For Availability

Washer WPL 353320 Contact Us For Availability

Cam Bar WPL 354838 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

Spring WPL 16291 Contact Us For Availability

Case WPL 357972 Contact Us For Availability

Pulley WPL 364032 Contact Us For Availability

Tub WPL 370869 Contact Us For Availability

Valve Kit WPL 99830 Contact Us For Availability

Pin WPL 90222 Contact Us For Availability

Bearing WPL 16033 Contact Us For Availability

Screw WPL 356973 Contact Us For Availability

15A

Top (White) WPL 376195 Contact Us For Availability

15B

Top (Almond) WPL 377697 Contact Us For Availability

15C

Top WPL 377698 Contact Us For Availability

15D

Top WPL 377699 Contact Us For Availability

15E

Top WPL 377700 Contact Us For Availability

WP21365 Whirlpool Washer Backorder WPL WP21365 $7.12

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

Actuator WPL 370959 Contact Us For Availability

Lever WPL 16292 Contact Us For Availability

Pad WPL 352434 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

Tube WPL 357965 Contact Us For Availability

Washer Snubber Plate WPL 355852 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

Bracket WPL 357191 Contact Us For Availability

18A

Bolt WPL 126358 Contact Us For Availability

18B

Carriage Bolt WPL 126211 Contact Us For Availability

18C

Bolt WPL 353770 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

Screw WPL 356057 Contact Us For Availability

Screw WPL 98048 Contact Us For Availability

Hose WPL 97784 Contact Us For Availability

Nut WPL 92229 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Spacer WPL 356937 Contact Us For Availability

Gasket WPL 17235 Contact Us For Availability

Connector WPL 357334 Contact Us For Availability

Washer WPL 92232 Contact Us For Availability

21

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

21

Washer WPL 92235 Contact Us For Availability

21A

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

21B

Bearing WPL 354195 Contact Us For Availability

22

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

22

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

22A

Bezel (White) WPL 355033 Contact Us For Availability

22B

Bezel (Almond) WPL 376970 Contact Us For Availability

22C

Bezel WPL 376971 Contact Us For Availability

22D

Bezel WPL 376972 Contact Us For Availability

22E

Bezel WPL 376973 Contact Us For Availability

23

Gasket WPL 355030 Contact Us For Availability

23

Washer Agitator Cap WPL 358348 Contact Us For Availability

24

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

24

Bolt WPL 98001 Contact Us For Availability

25

Washer Brake Pad Retainer WPL 94726 Contact Us For Availability

25

Switch WPL 359193 Contact Us For Availability

25

Agitator WPL 359071 Contact Us For Availability

26

Washer Agitator Dog WPL 358692 Contact Us For Availability

26

Screw WPL 355326 Contact Us For Availability

26

Bar Cam WPL 18642 Contact Us For Availability

27

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

27

Rivet WPL 354959 Contact Us For Availability

27A

Cap (Chestnut) WPL 372127 Contact Us For Availability

27B

Cap (Chestnut) WPL 372134 Contact Us For Availability

28

Washer Seal WPL 351830 Contact Us For Availability

28

Plunger WPL 84866 Contact Us For Availability

28A

Lid (White) WPL 355032 Contact Us For Availability

28B

Lid (Almond) WPL 376875 Contact Us For Availability

28C

Lid WPL 376876 Contact Us For Availability

28D

Lid WPL 376877 Contact Us For Availability

28E

Lid WPL 376878 Contact Us For Availability

Shield WPL 358829 Contact Us For Availability

Clutch Shaft WPL 76220 Contact Us For Availability

Spacer WPL 16062 Contact Us For Availability

Air Dome WPL 360804 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Bracket WPL 359128 Contact Us For Availability

Nut WPL 90715 Contact Us For Availability

Nut Washer WPL 354376 Contact Us For Availability

30A

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

31

Shaft WPL 18930 Contact Us For Availability

31

Cam WPL 358691 Contact Us For Availability

Appliance O-Ring WPL 357574 Contact Us For Availability

Panel WPL 359129 Contact Us For Availability

Roller WPL 92119 Contact Us For Availability

Bracket WPL 362131 Contact Us For Availability

33

Washer Water Inlet Valve Assembly WPL 358277 Contact Us For Availability

33

Pin WPL 90532 Contact Us For Availability

33

Grommet WPL 352955 Contact Us For Availability

34

Bolt WPL 98537 Contact Us For Availability

35

Washer Snubber Pad WPL 358336 Contact Us For Availability

35

Bracket WPL 362130 Contact Us For Availability

35

Clip WPL 356701 Contact Us For Availability

36

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

36

Nut WPL 95721 Contact Us For Availability

36

Clip WPL 356700 Contact Us For Availability

37

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

37

WP96743 Whirlpool Hose In Stock WPL WP96743 $63.89

37

Screw WPL 355345 Contact Us For Availability

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $13.22

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

Boot WPL 302143 Contact Us For Availability

Hose WPL 357006 Contact Us For Availability

39

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

39

Panel WPL 379767 Contact Us For Availability

39

Agitator Auger WPL 358690 Contact Us For Availability

40

Pulley WPL 357514 Contact Us For Availability

40A

Harness WPL 359226 Contact Us For Availability

40B

Harness WPL 359227 Contact Us For Availability

41

WP18776 Whirlpool Lock In Stock WPL WP18776 $7.90

41

Panel WPL 359130 Contact Us For Availability

41

Shield WPL 356217 Contact Us For Availability

42

Housing WPL 60688 Contact Us For Availability

42

Washer WPL 92217 Contact Us For Availability

43

Motor WPL 357822 Contact Us For Availability

44

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

44

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

45

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

45A

Harness WPL 358875 Contact Us For Availability

45B

Harness WPL 359229 Contact Us For Availability

46

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

46

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

46A

Switch WPL 359186 Contact Us For Availability

46B

Switch WPL 359187 Contact Us For Availability

47

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

47

Hose WPL 357018 Contact Us For Availability

47A

Brace WPL 351500 Contact Us For Availability

47B

Brace WPL 351499 Contact Us For Availability

End Cap Clip WPL 689559 Contact Us For Availability

Gear Case WPL 362901 Contact Us For Availability

Wire WPL 370950 Contact Us For Availability

Hose WPL 356645 Contact Us For Availability

48A

Hose WPL 357052 Contact Us For Availability

49

Shield WPL 359232 Contact Us For Availability

49

Bearing WPL 358586 Contact Us For Availability

49

Clamp WPL 353096 Contact Us For Availability

49A

Motor Switch WPL 362738 Contact Us For Availability

49B

Switch WPL 362086 Contact Us For Availability

Clip WPL 357469 Contact Us For Availability

Ring WPL 352430 Contact Us For Availability

Shield WPL 356246 Contact Us For Availability

Washer Outer Tub Grommet WPL 96386 Contact Us For Availability

WP95405 Whirlpool Belt In Stock WPL WP95405 $35.33

Clip WPL 351482 Contact Us For Availability

Bolt WPL 356599 Contact Us For Availability

Clamp WPL 9421321 Contact Us For Availability

52

Cover WPL 367552 Contact Us For Availability

52

Manifold WPL 366305 Contact Us For Availability

52A

Printed Circuit Board WPL 60678 Contact Us For Availability

52B

Printed Circuit Board WPL 60679 Contact Us For Availability

53

Bearing WPL 96853 Contact Us For Availability

54

Connector WPL 60680 Contact Us For Availability

54

Support WPL 356445 Contact Us For Availability

54

Hose WPL 355699 Contact Us For Availability

55

Washer Gear Case Cover Seal WPL 95089 Contact Us For Availability

55A

Printed Circuit Board WPL 60652 Contact Us For Availability

55B

Printed Circuit Board WPL 60653 Contact Us For Availability

56

3184020 Whirlpool Oven Wire Backorder WPL 3184020 $63.26

56

Shaft WPL 362642 Contact Us For Availability

56

Hose WPL 96251 Contact Us For Availability

57

Shaft Seal WPL 92814 Contact Us For Availability

58

Transformer WPL 60300 Contact Us For Availability

59

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

59

Relay WPL 359301 Contact Us For Availability

59

Washer WPL 95083 Contact Us For Availability

60

386011 Whirlpool Screw Backorder WPL 386011 $32.38

60

Motor Relay WPL 359171 Contact Us For Availability

60

Spring WPL 92815 Contact Us For Availability

61

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

61

Drive Gear WPL 17553 Contact Us For Availability

62

Shaft WPL 362098 Contact Us For Availability

62

Hose WPL 96731 Contact Us For Availability

63

Screw WPL 339583 Contact Us For Availability

63

Cnnctng Rod WPL 76577 Contact Us For Availability

64

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

64

Ring WPL 357695 Contact Us For Availability

65

Barrier WPL 359242 Contact Us For Availability

66

Clip WPL 355928 Contact Us For Availability

66

Switch WPL 358664 Contact Us For Availability

66

Gr Sec/shaft WPL 75073 Contact Us For Availability

67

Socket WPL 358830 Contact Us For Availability

67

Ring WPL 52083 Contact Us For Availability

68

Mounting Plate WPL 356356 Contact Us For Availability

68

Bulb WPL 354341 Contact Us For Availability

68

Pin WPL 5018 Contact Us For Availability

69

Receptacle WPL 717252 Contact Us For Availability

69

Gear Case WPL 362906 Contact Us For Availability

70

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $4.55

71

Relay WPL 359127 Contact Us For Availability

71

Screw WPL 356512 Contact Us For Availability

72

Screw WPL 358225 Contact Us For Availability

73

16515 Whirlpool Clip Backorder WPL 16515 $12.46

73

Washer Transmission Pulley WPL 360840 Contact Us For Availability

74

Gusset WPL 356459 Contact Us For Availability

74

Bearing WPL 17250 Contact Us For Availability

75

Plug WPL 96894 Contact Us For Availability

76

Cap WPL 96895 Contact Us For Availability

76

Fork Gear WPL 80398 Contact Us For Availability

77

Pivot WPL 358563 Contact Us For Availability

77

Drive Pinion WPL 84467 Contact Us For Availability

78

Lever WPL 358834 Contact Us For Availability

78

Washer WPL 16024 Contact Us For Availability

79

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

79

Ring WPL 90094 Contact Us For Availability

80

Screw WPL 690756 Contact Us For Availability

80

Drive Gear WPL 353397 Contact Us For Availability

81

Clip WPL 357144 Contact Us For Availability

82

Terminal WPL 308569 Contact Us For Availability

83

Connector WPL 359267 Contact Us For Availability

84

Terminal WPL 359158 Contact Us For Availability

85

Connector WPL 359160 Contact Us For Availability

85

Shield WPL 94276 Contact Us For Availability

86

Knob WPL 358846 Contact Us For Availability

86

Ring WPL 95082 Contact Us For Availability

87

Terminal WPL 60279 Contact Us For Availability

87

Spring WPL 16015 Contact Us For Availability

88

Connector WPL 60683 Contact Us For Availability

90

Screw WPL 355613 Contact Us For Availability

91

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

93

Ball WPL 358585 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Washer Agitator Grease WPL 350849 Contact Us For Availability

Paint (White) WPL 799344 Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Bag WPL 369747 Contact Us For Availability

Parts Bag WPL 369752 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Guide WPL LIT358052 Contact Us For Availability

Instructions WPL LIT359270 Contact Us For Availability

Installation Instructions WPL LIT374208 Contact Us For Availability

Installation Instructions WPL LIT375048 Contact Us For Availability

Technical Sheet WPL LIT377744 Contact Us For Availability

Check List WPL LIT378165 Contact Us For Availability

Operating Instructions WPL LIT378509 Contact Us For Availability

Operating Instructions WPL LIT378510 Contact Us For Availability

Label WPL LIT379376 Contact Us For Availability

Parts List WPL LIT379659 Contact Us For Availability

Service Manual WPL LIT821462 Contact Us For Availability
