Model Whirlpool 110.80754002 Washer – Common Parts &amp; Diagrams

1

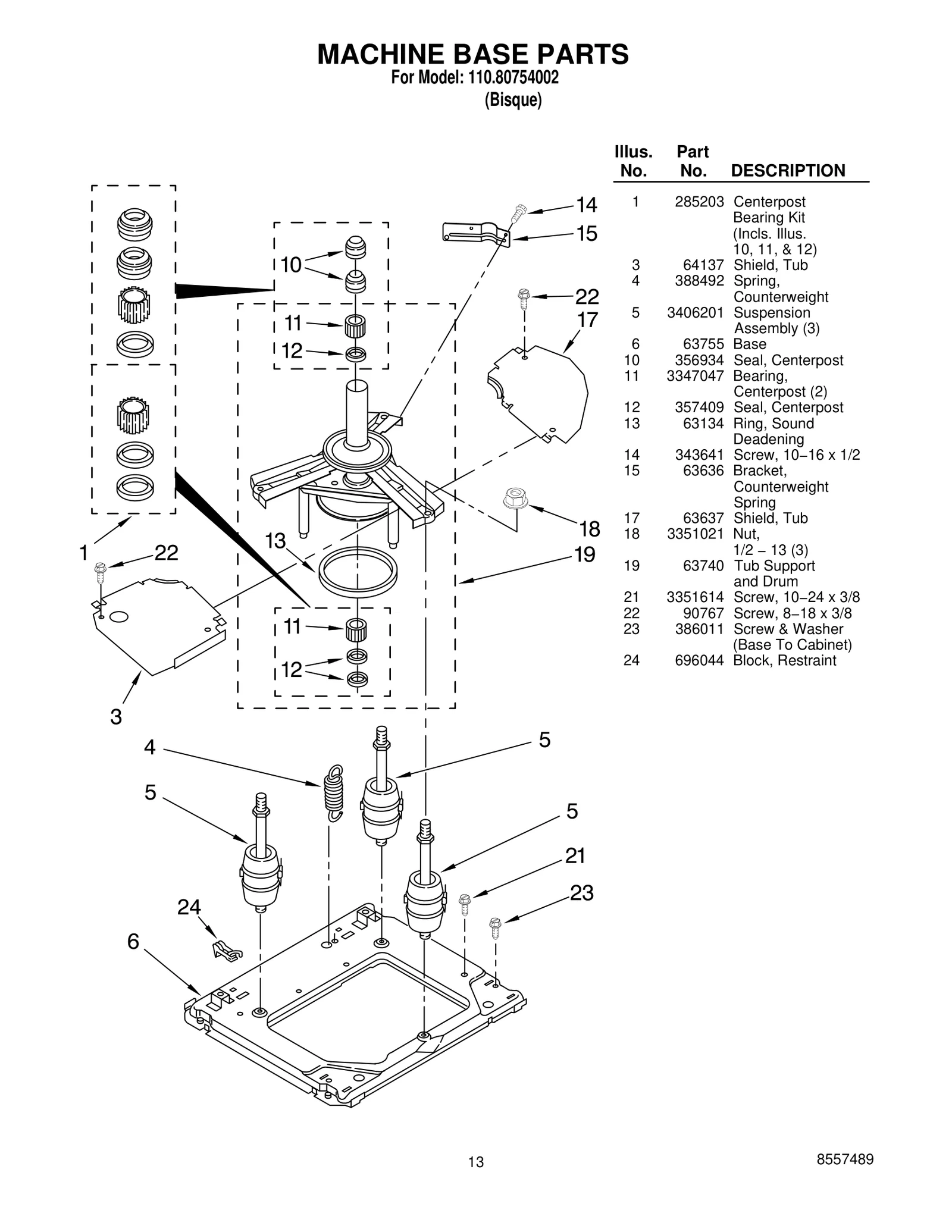

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

1

356746 Whirlpool Clip Backorder WPL 356746 $14.02

1

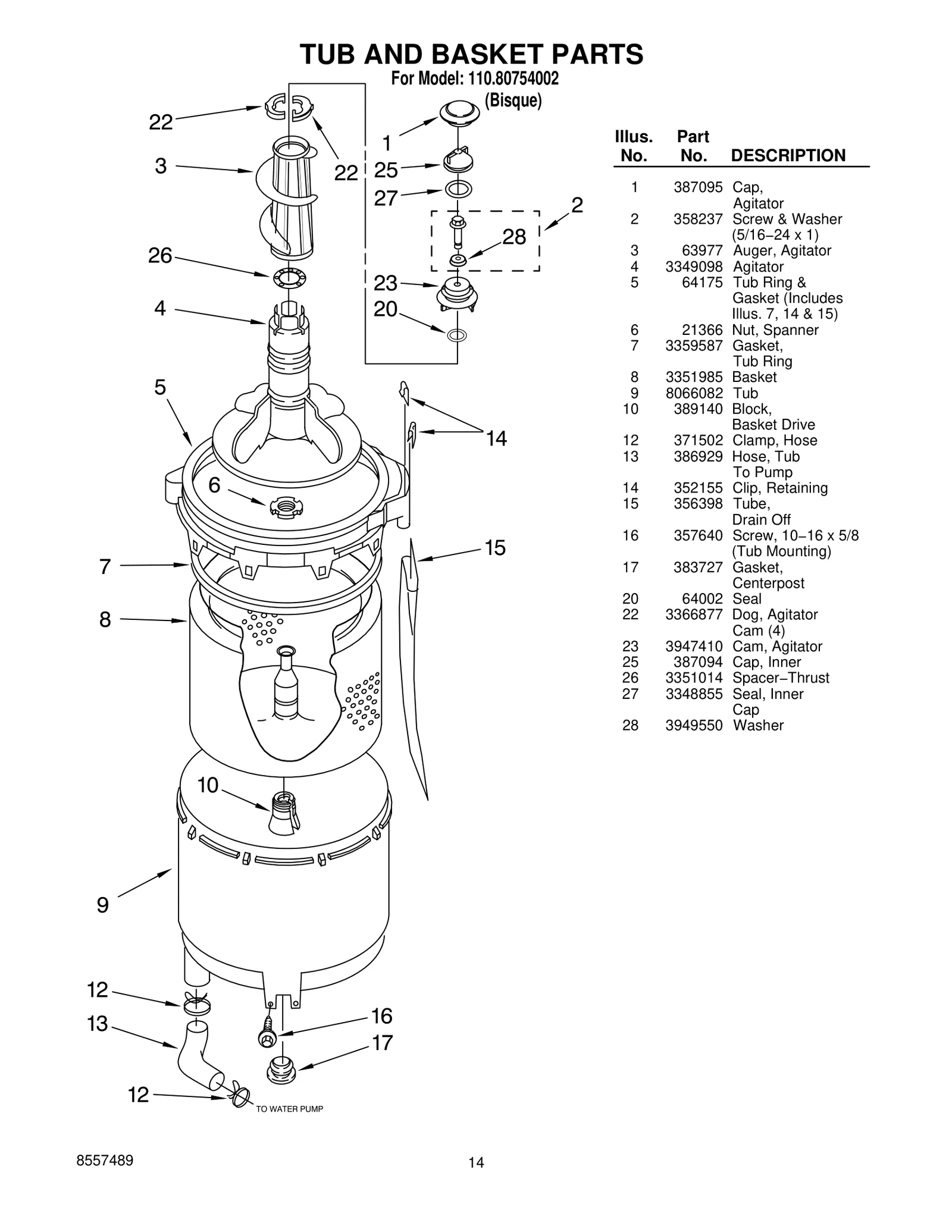

WP387095 Whirlpool Cap Backorder WPL WP387095 $39.10

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

2

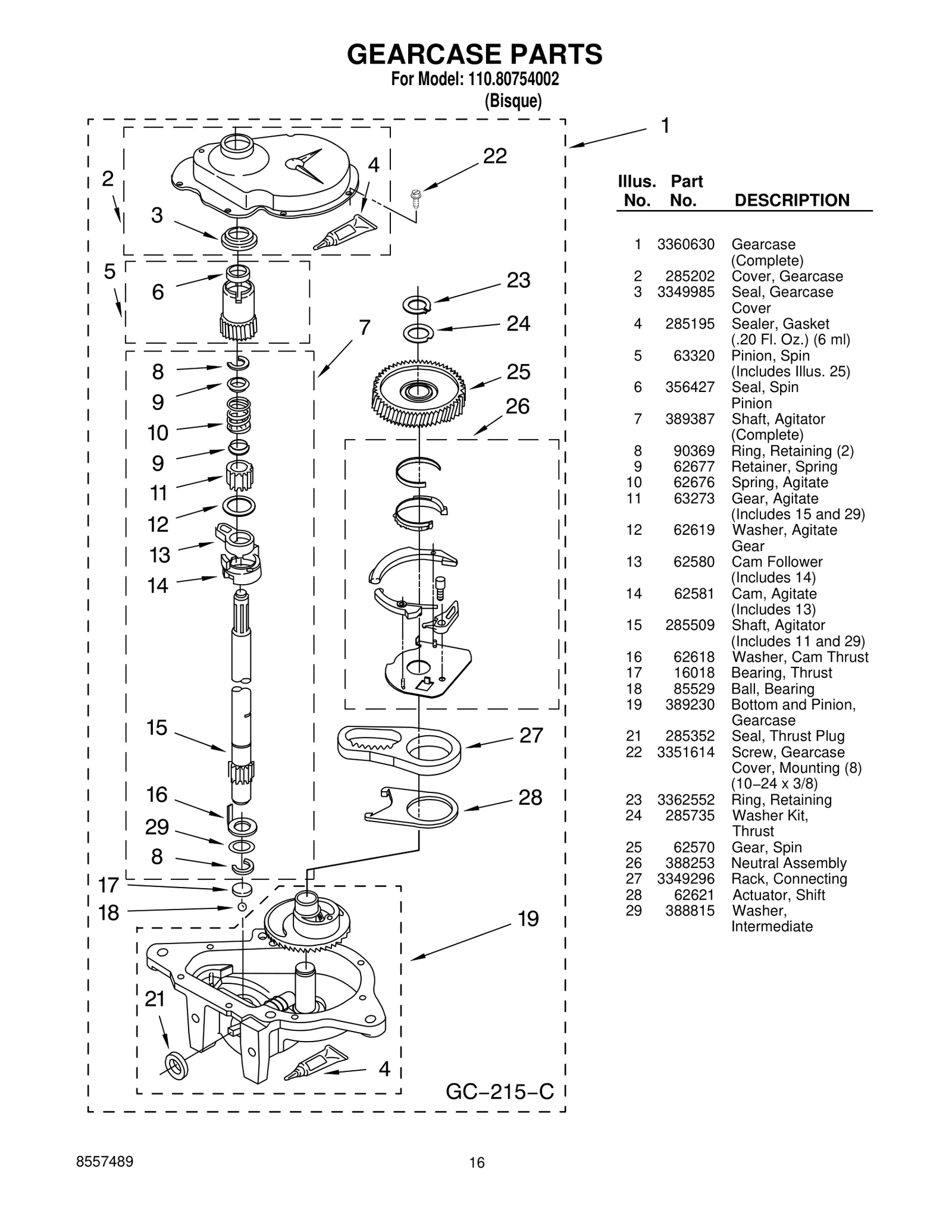

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

3350130 Whirlpool Connector Backorder WPL 3350130 $8.82

2

696073 Whirlpool Connector Backorder WPL 696073 $64.30

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

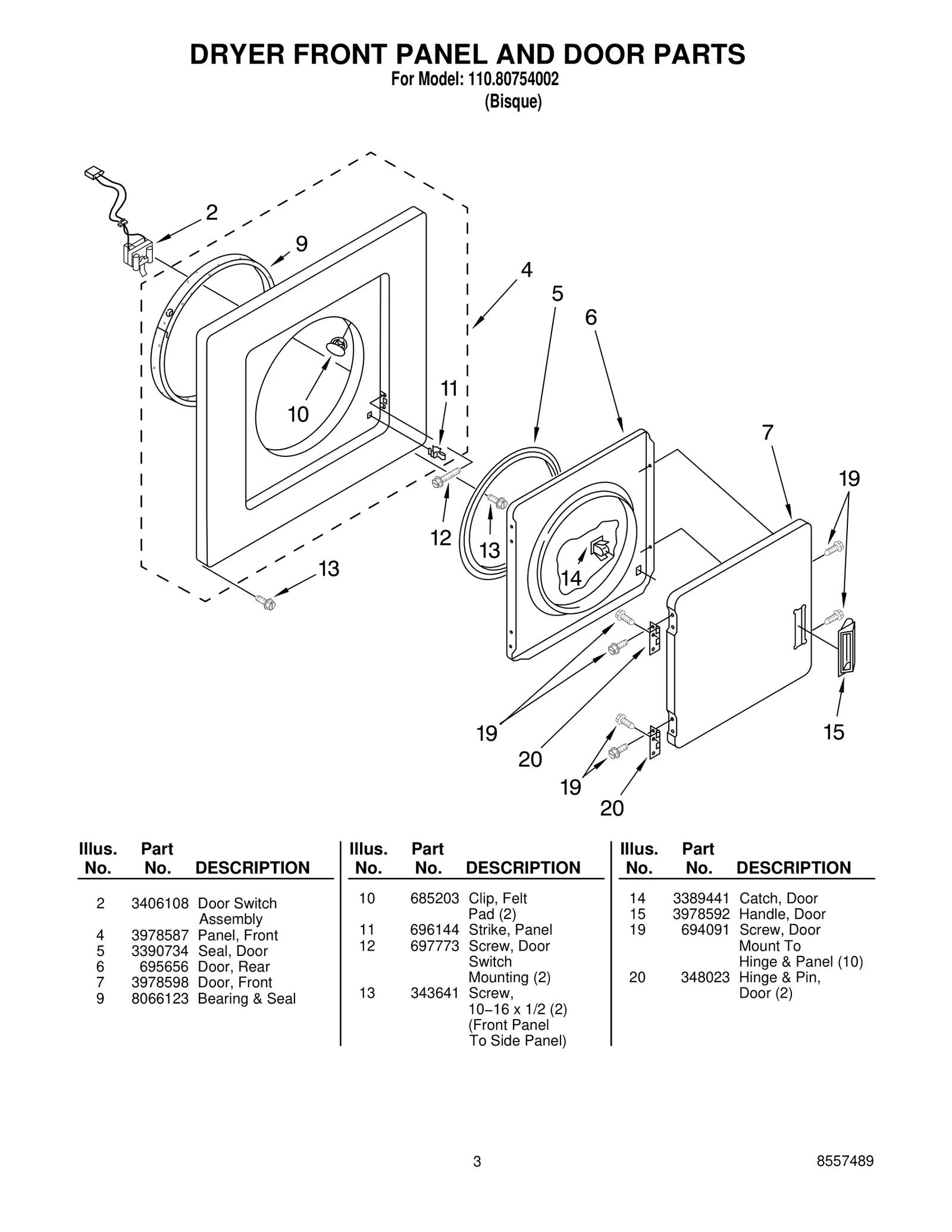

WP3406108 Whirlpool Door Switch In Stock WPL WP3406108 $17.96

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

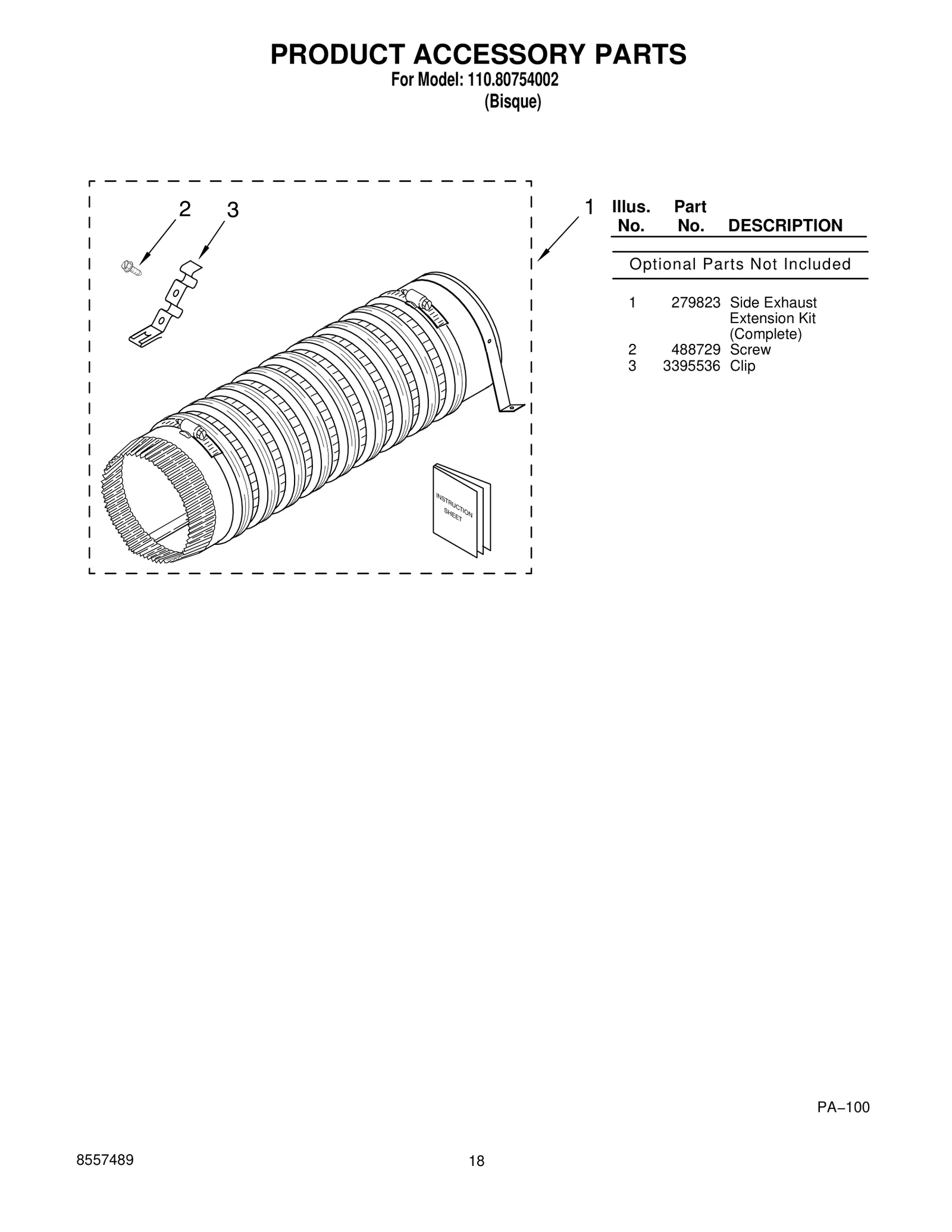

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

Harness, Console Wiring (Automatic) (Includes WPL 3406287 Contact Us For Availability

2

Disconnect Block (Connects With Automatic Tim WPL 3948614 Contact Us For Availability

3

63977 Whirlpool Agitator Auger Backorder WPL 63977 $135.27

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

3

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

4

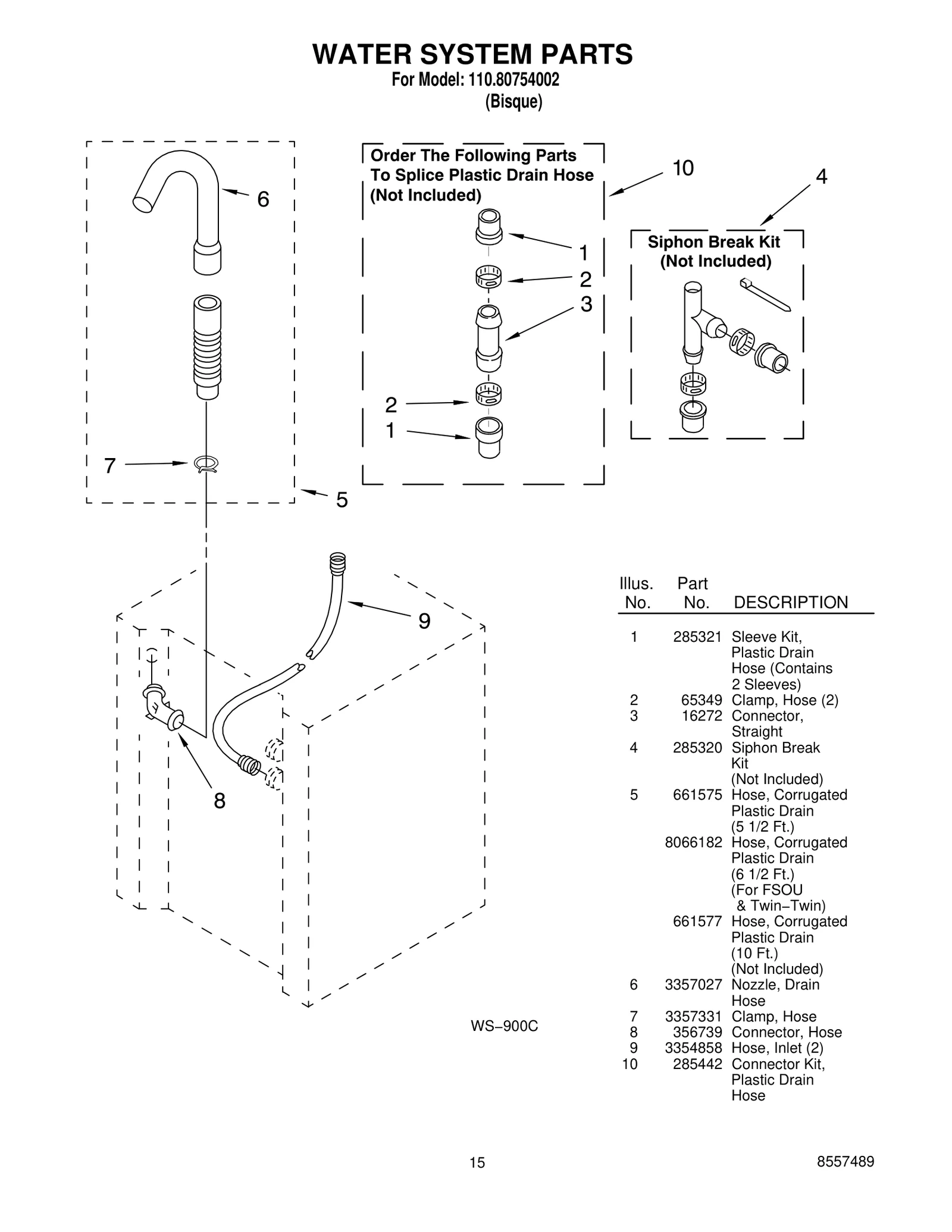

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

4

WP3349098 Whirlpool Agitator Assembly In Stock WPL WP3349098 $79.15

4

WP3400860 Whirlpool Screw Backorder WPL WP3400860 $7.17

5

384458 Whirlpool Hinge Assembly Backorder WPL 384458 $61.94

5

696541 Whirlpool Base Backorder WPL 696541 $64.59

5

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

5

WP3398128 Whirlpool Cycling Thermostat In Stock WPL WP3398128 $40.72

5

Tub Ring & Gasket (Includes WPL 64175 Contact Us For Availability

6

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

6

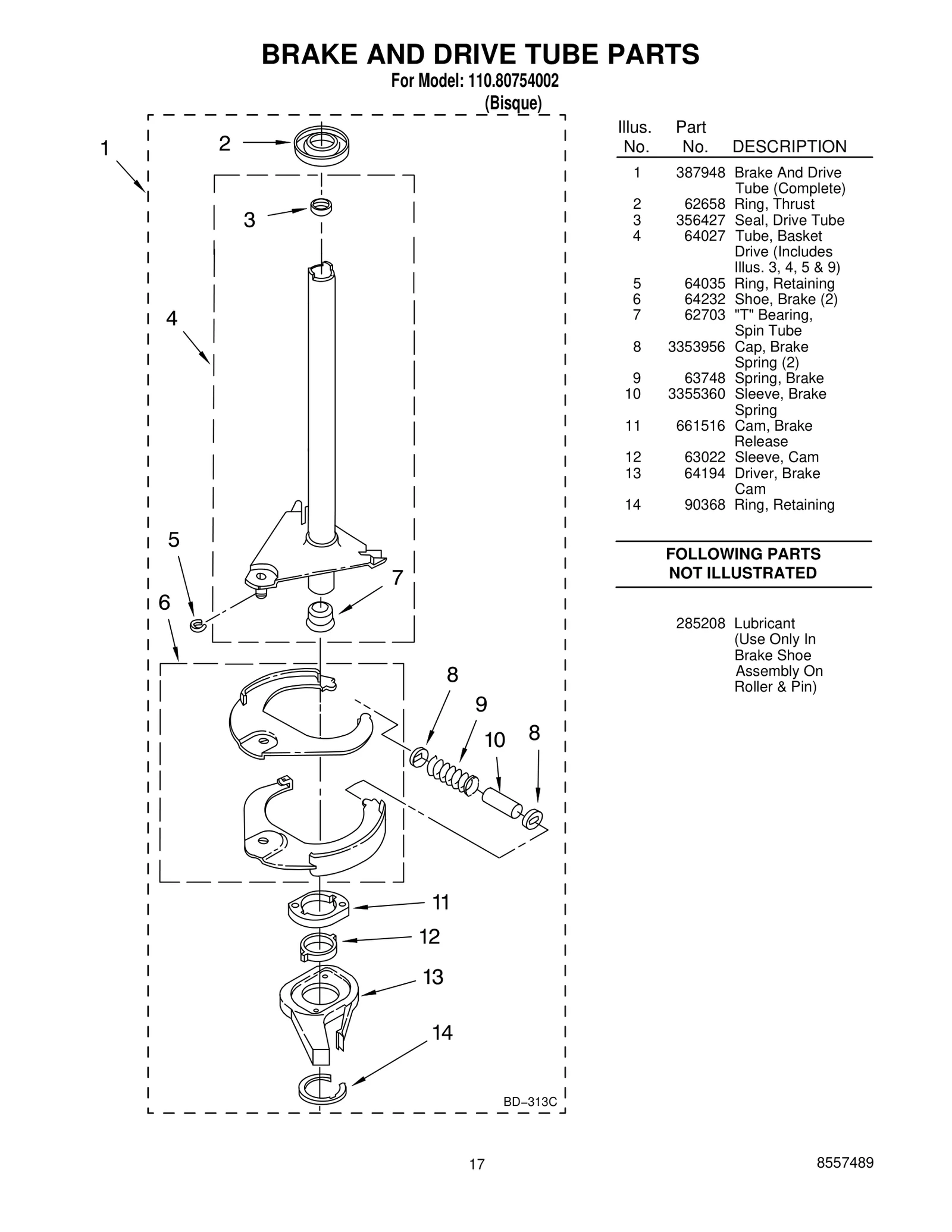

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

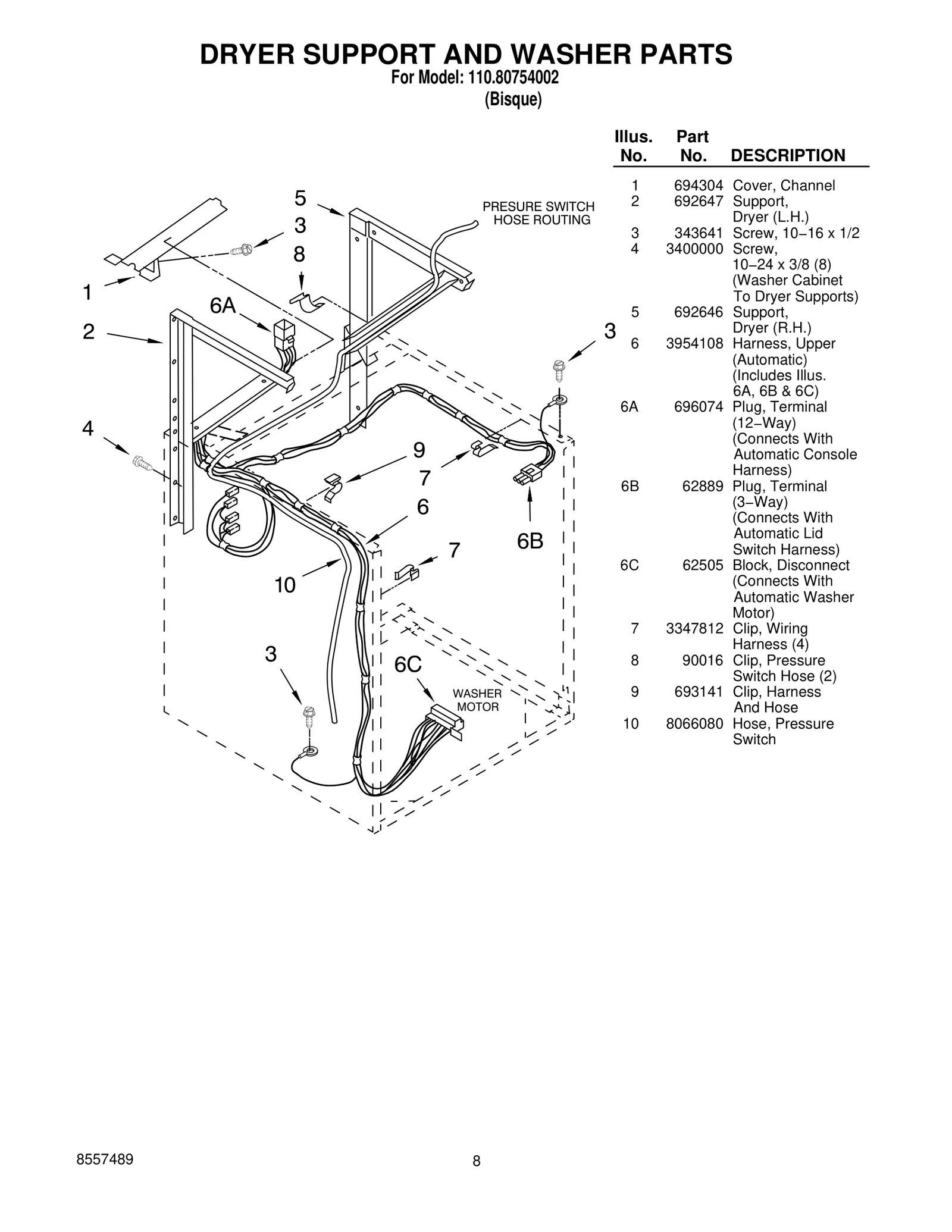

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

6

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

6

Bracket, Control WPL 8528154 Contact Us For Availability

6

Harness, Upper (Includes Illus. 6A, 6B & 6C) WPL 3954108 Contact Us For Availability

7

3978584 Whirlpool End Cap Backorder WPL 3978584 $4.66

7

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

7

WP3359587 Whirlpool Tub Seal Backorder WPL WP3359587 $17.57

7

WP692699 Whirlpool Hose Backorder WPL WP692699 $27.63

8

Basket WPL 3351985 Contact Us For Availability

8

Cover, Terminal Block WPL 3394228 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

W10811358 Whirlpool Tub Backorder WPL W10811358 $150.63

9

WP692985 Whirlpool Clip Assembly Backorder WPL WP692985 $4.82

9

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

285442 Whirlpool Coupling Backorder WPL 285442 $63.41

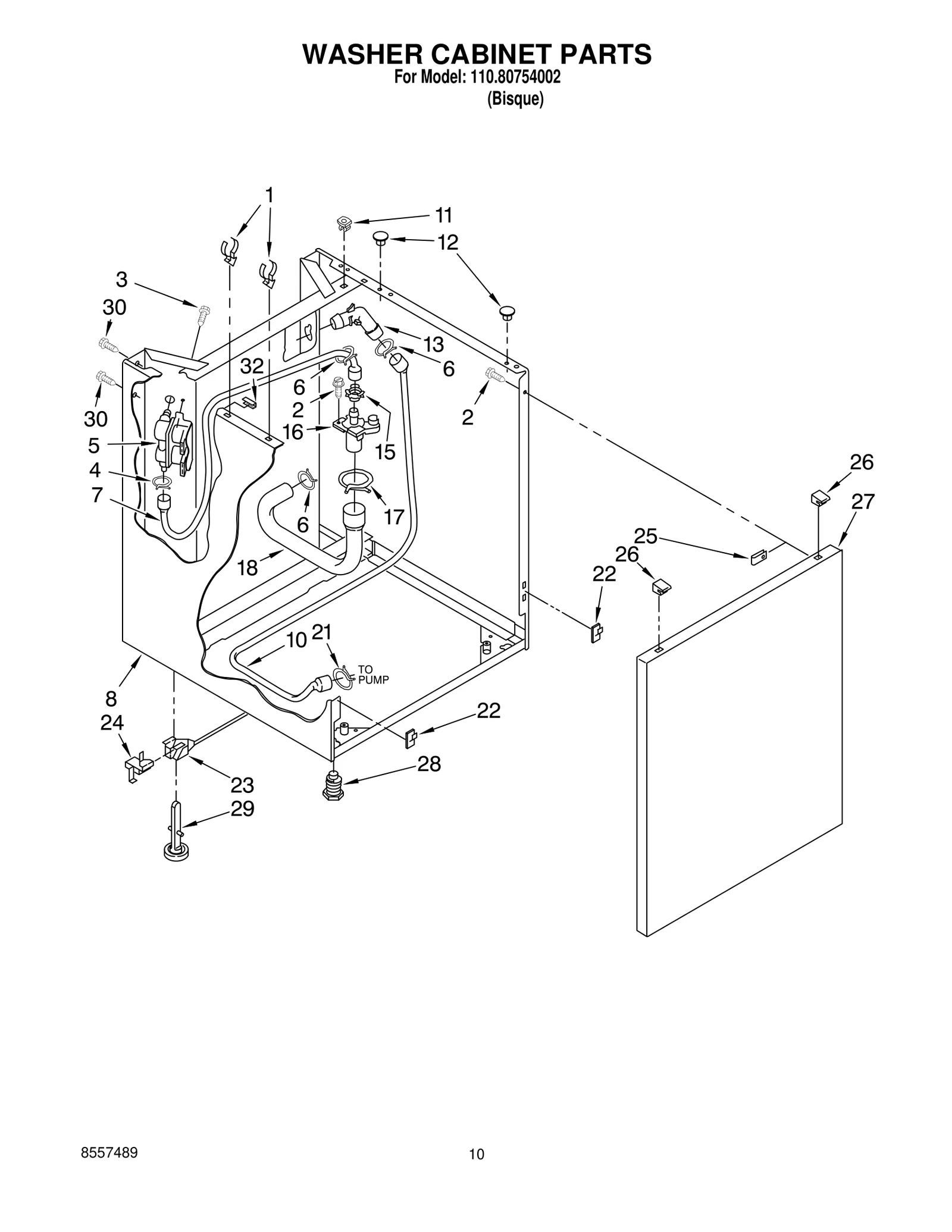

WP3362987 Whirlpool Washer Water Level Switch In Stock WPL WP3362987 $144.20

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP696710 Whirlpool Hose In Stock WPL WP696710 $39.99

11

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

11

WP3401380 Whirlpool Box In Stock WPL WP3401380 $120.30

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

WP8054143 Whirlpool Temperature Switch In Stock WPL WP8054143 $90.85

W11213338 Whirlpool Connector Backorder WPL W11213338 $51.27

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

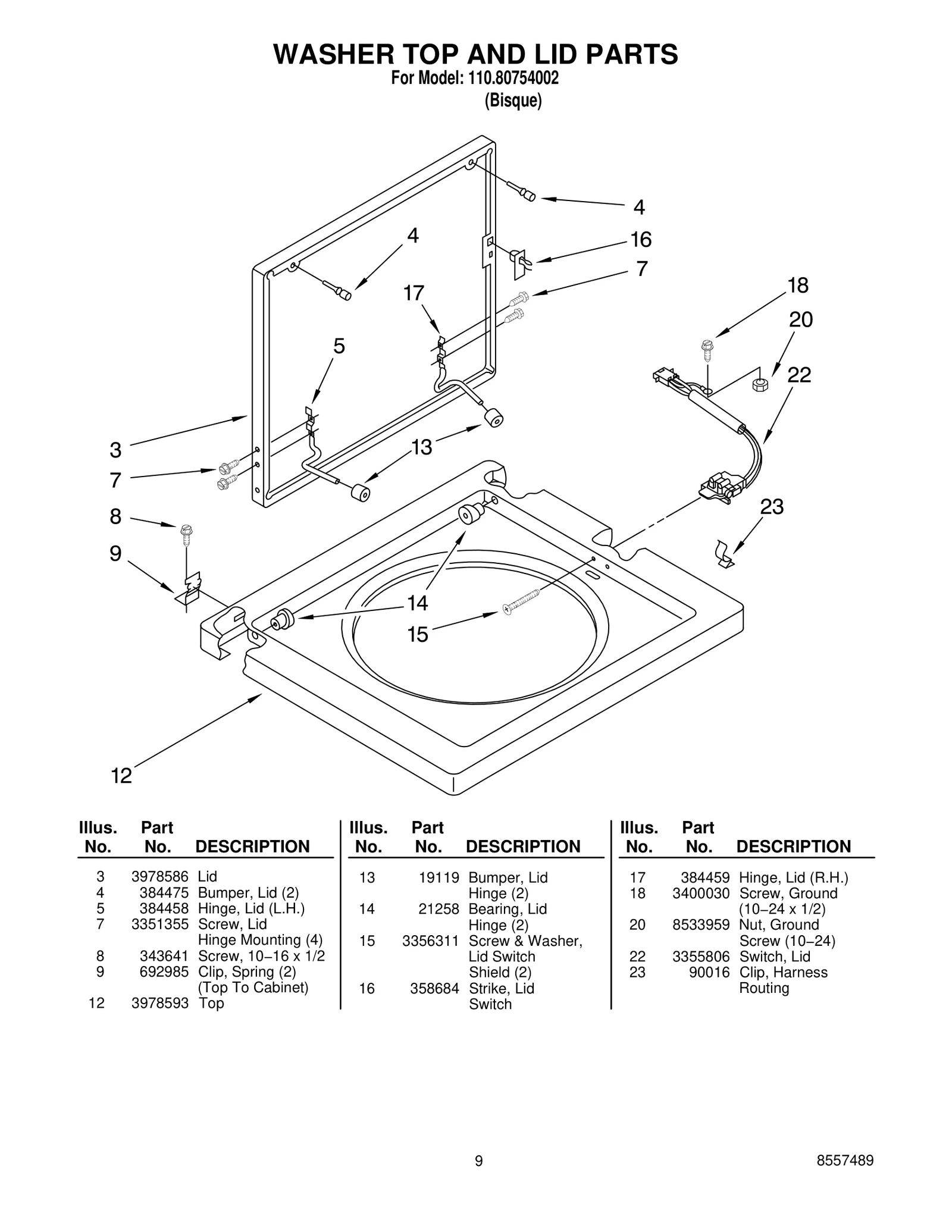

Bumper, Lid Hinge (2) WPL 19119 Contact Us For Availability

8577411 Whirlpool Pad Backorder WPL 8577411 $5.36

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

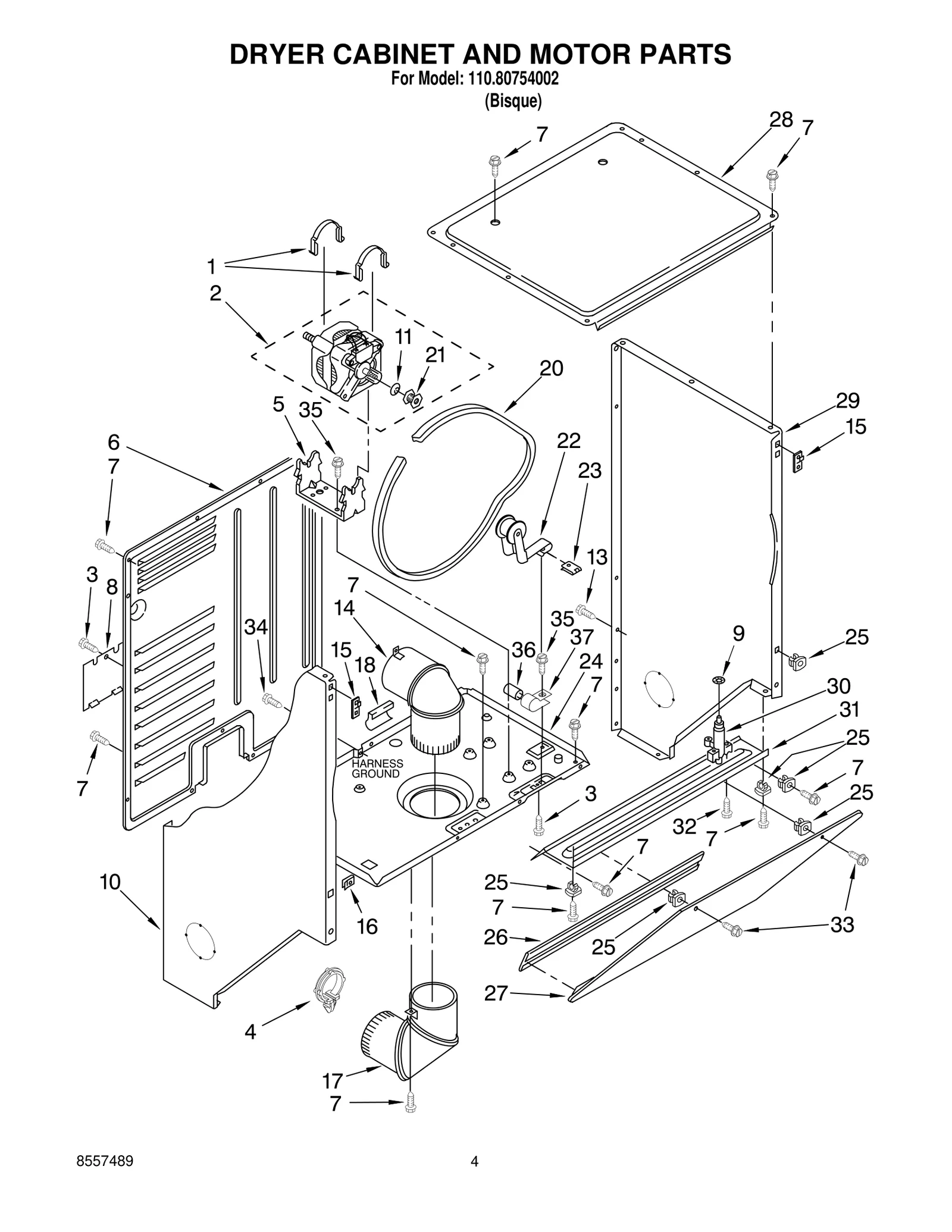

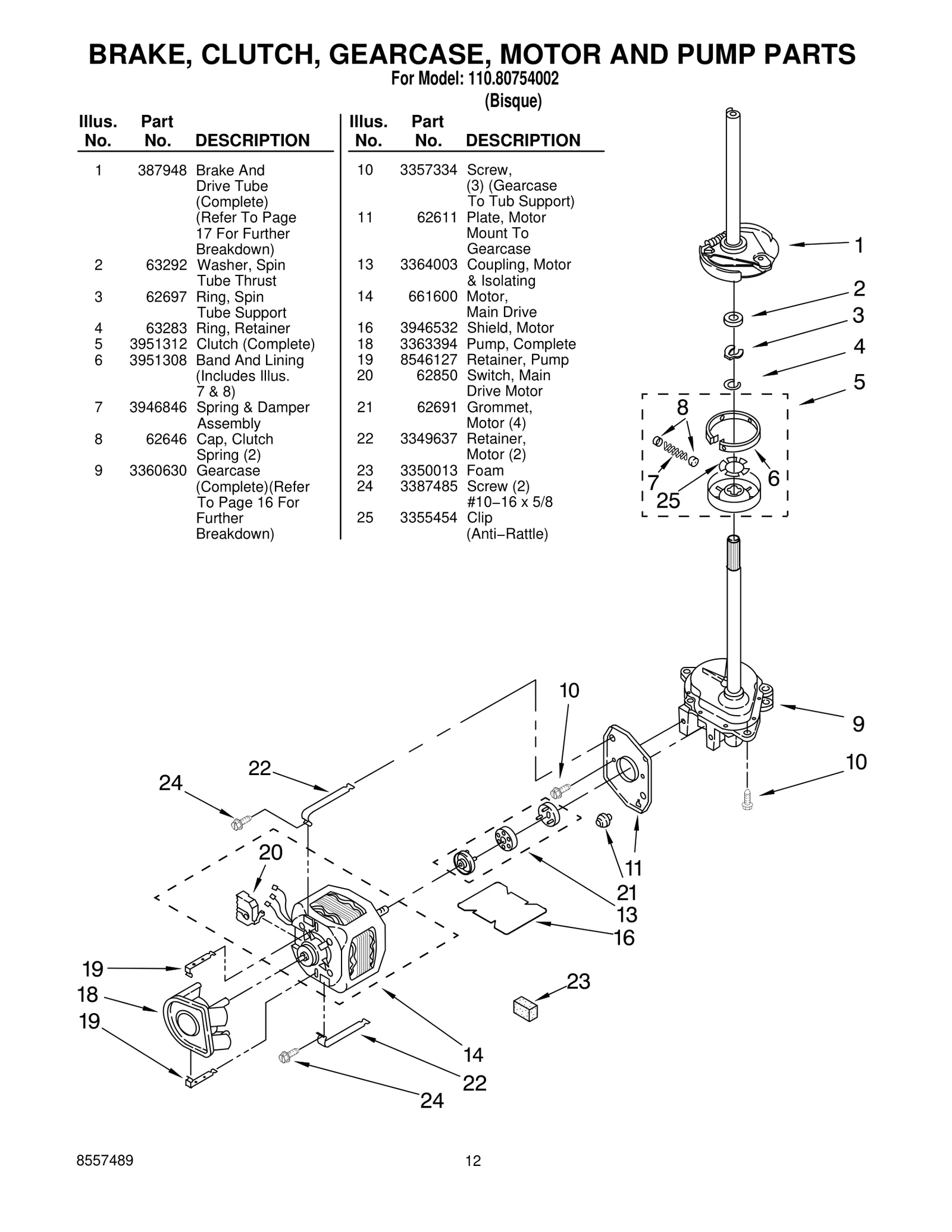

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

WP693151 Whirlpool Lock Spring Backorder WPL WP693151 $4.82

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.44

356398 Whirlpool Tube Backorder WPL 356398 $58.38

3978592 Whirlpool Handle Backorder WPL 3978592 $46.47

63636 Whirlpool Bracket Backorder WPL 63636 $32.75

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

WP3403607 Whirlpool Thermoprotector In Stock WPL WP3403607 $28.46

WP356471 Whirlpool Cap In Stock WPL WP356471 $4.82

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

8066094 Whirlpool Seal In Stock WPL 8066094 $8.99

WP3406723 Whirlpool Timer Assembly Backorder WPL WP3406723 $231.38

WP356363 Whirlpool Siphon Break In Stock WPL WP356363 $5.30

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $5.30

17

3399603 Whirlpool Elbow Backorder WPL 3399603 $83.21

17

384459 Whirlpool Hinge Backorder WPL 384459 $62.36

17

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

18

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

18

WP3977456 Whirlpool Start Switch In Stock WPL WP3977456 $25.69

18

WP696394 Whirlpool Hose In Stock WPL WP696394 $46.00

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

W10863713 Whirlpool Support In Stock WPL W10863713 $243.69

WP3404154 Whirlpool High Limit Thermostat In Stock WPL WP3404154 $57.42

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

20

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

20

Seal WPL 64002 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

694037 Whirlpool Clip Backorder WPL 694037 $60.49

8066051 Whirlpool Motor Pulley Backorder WPL 8066051 $81.61

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3355806 Whirlpool Lid Switch In Stock WPL WP3355806 $33.37

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

23

386011 Whirlpool Screw Backorder WPL 386011 $32.38

23

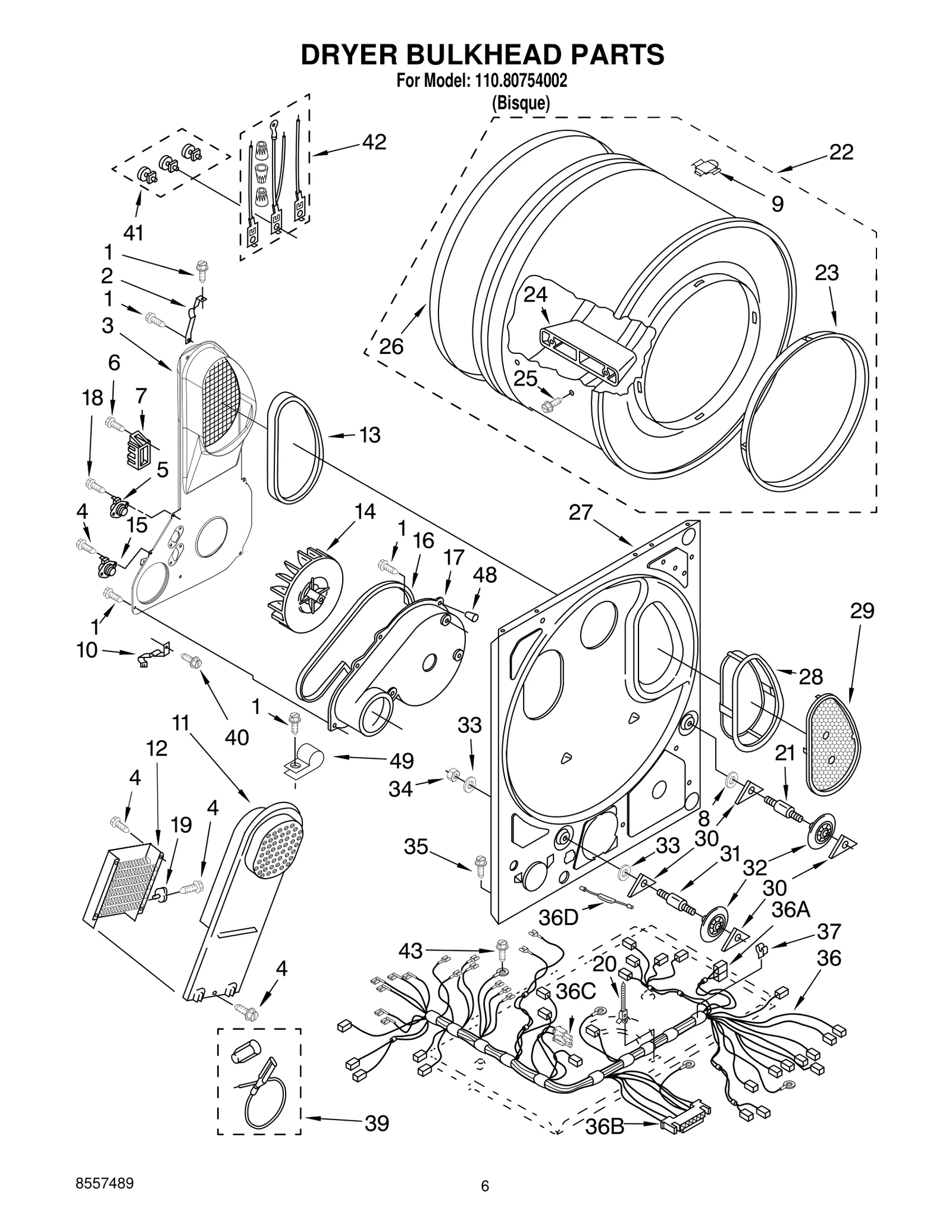

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

23

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

24

696044 Whirlpool Block In Stock WPL 696044 $61.59

24

WP359364 Whirlpool Clip In Stock WPL WP359364 $5.30

24

Baffle, Drum (3) WPL 685207 Contact Us For Availability

25

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

25

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $5.30

26

WP3952379 Whirlpool Timer In Stock WPL WP3952379 $179.95

27

Knob, Control (2) WPL 3402575 Contact Us For Availability

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $41.03

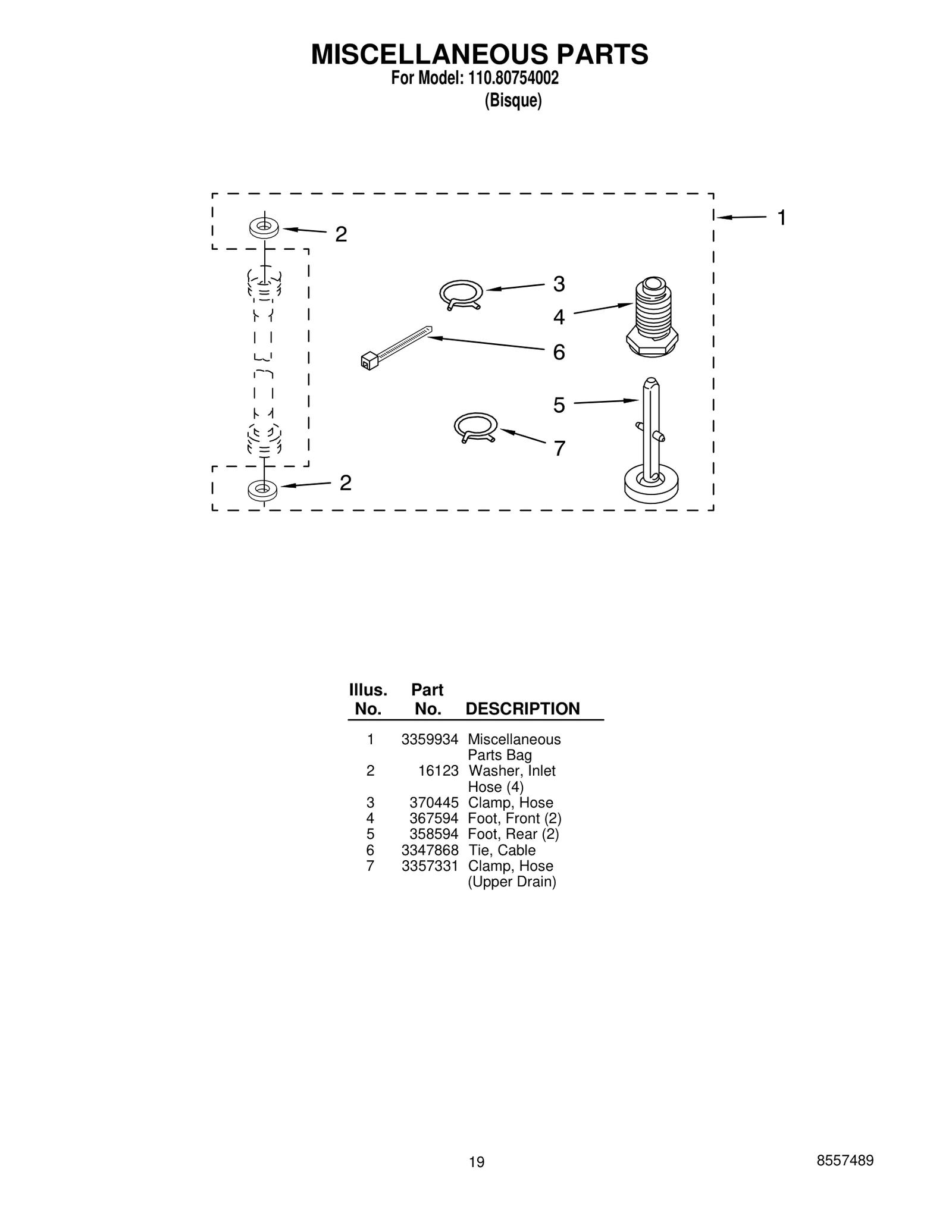

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $11.69

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

Dial, Timer WPL 3949431 Contact Us For Availability

29

3950714 Whirlpool Knob Backorder WPL 3950714 $56.74

29

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $9.46

30

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.89

30

WP693145 Whirlpool Lid Latch In Stock WPL WP693145 $58.20

31

WP692983 Whirlpool Console Lock Backorder WPL WP692983 $61.81

32

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

33

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

33

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

34

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

35

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

36

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

37

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

39

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

40

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

41

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $19.81

42

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

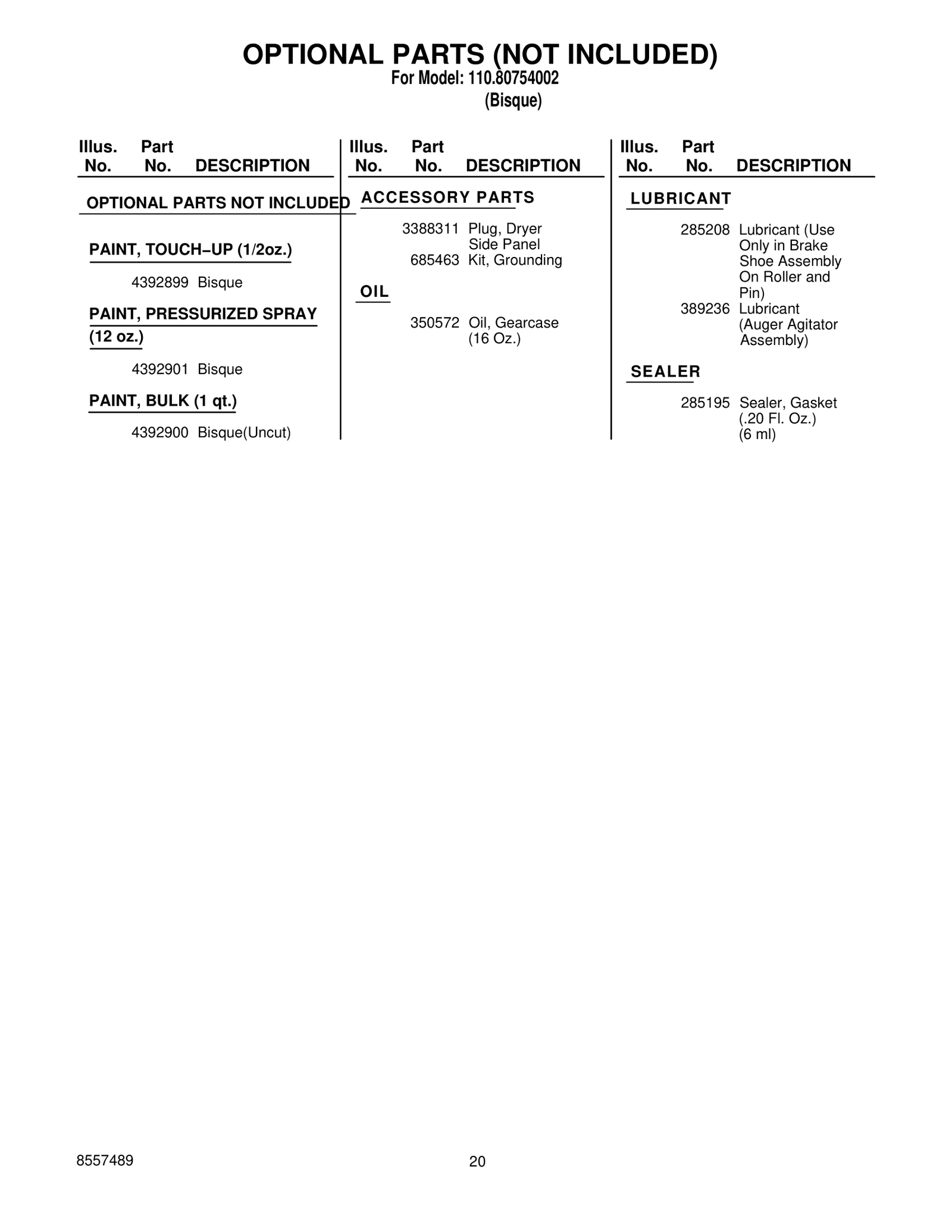

OPT-1

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

OPT-2

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

OPT-3

Bisque(Uncut) WPL 4392900 Contact Us For Availability

OPT-4

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

OPT-5

Kit, Grounding WPL 685463 Contact Us For Availability

OPT-6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

OPT-7

Lubricant (Use WPL 285208 Contact Us For Availability

OPT-8

Lubricant WPL 389236 Contact Us For Availability

OPT-9

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06
