Model Whirlpool 110.79496610 Gas Dryer (Kenmore 11079496610) – Common Parts & Diagrams

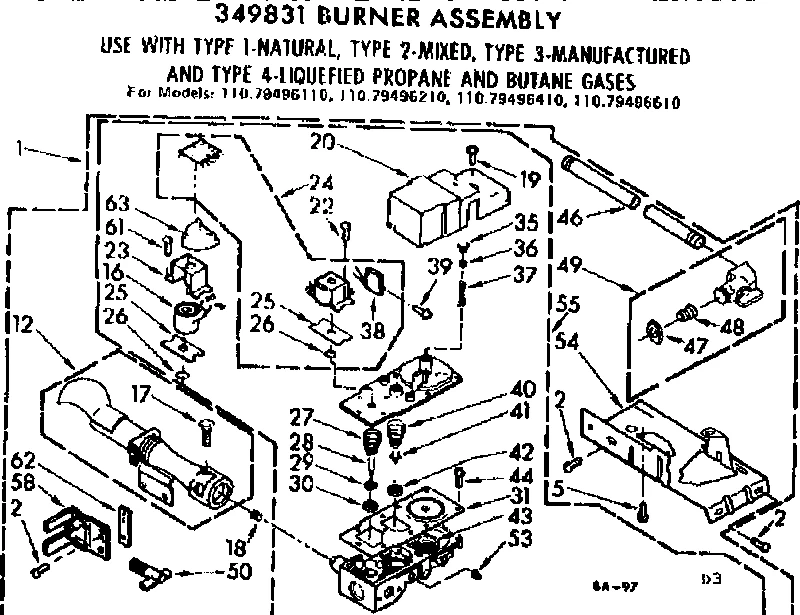

BURNER ASM 50 HZ

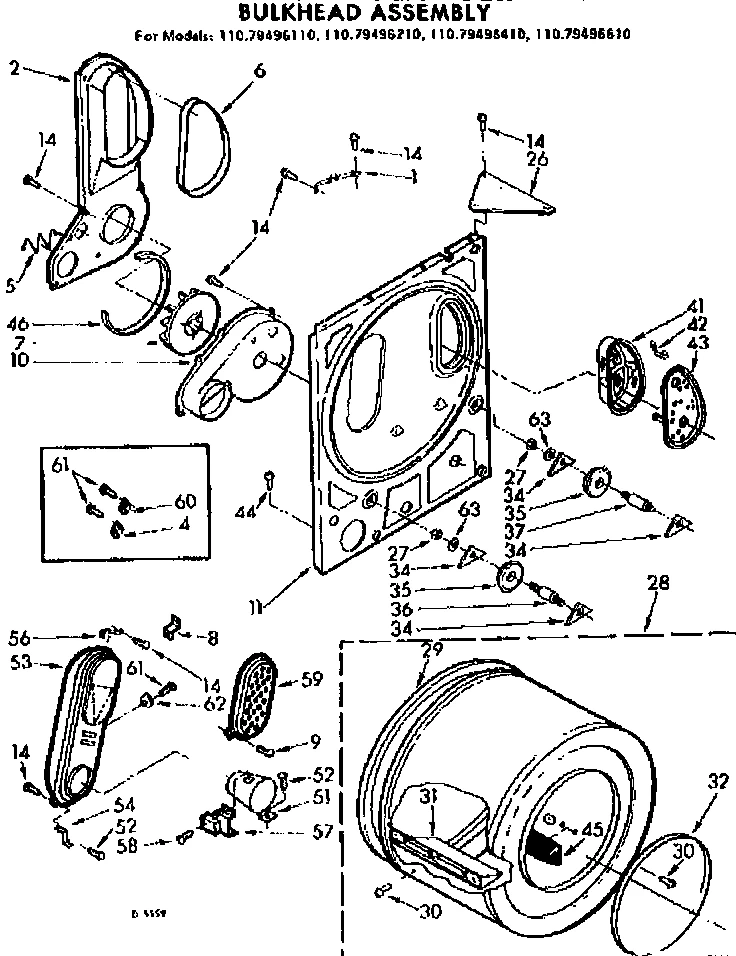

BULKHEAD ASM

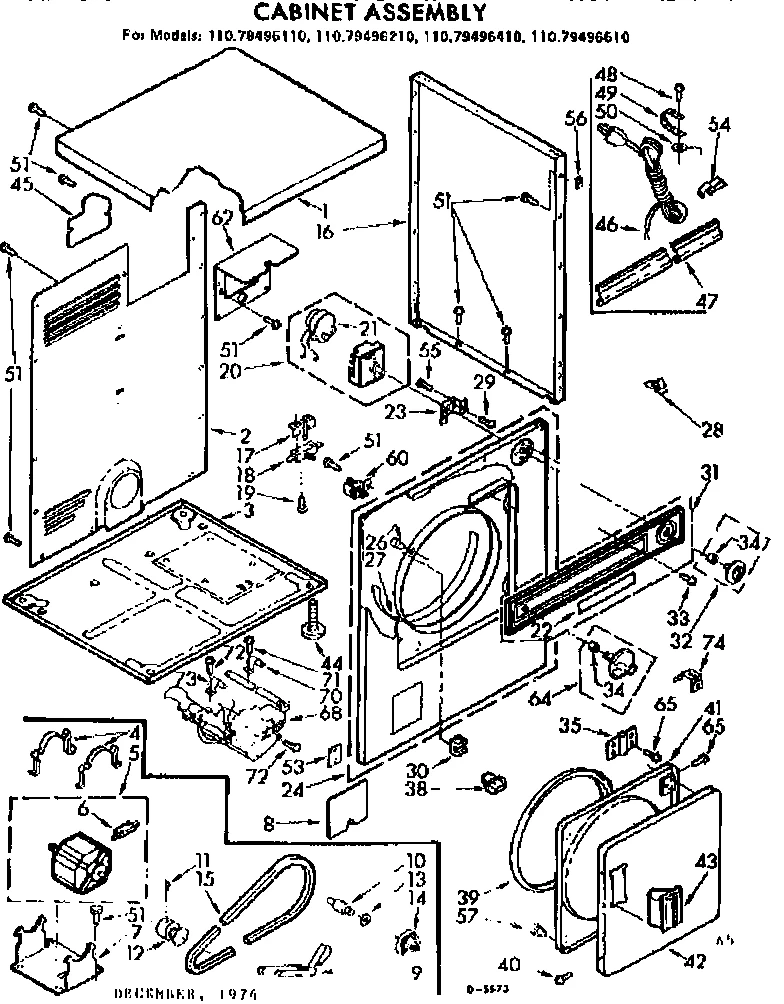

CABINET ASM
All Parts

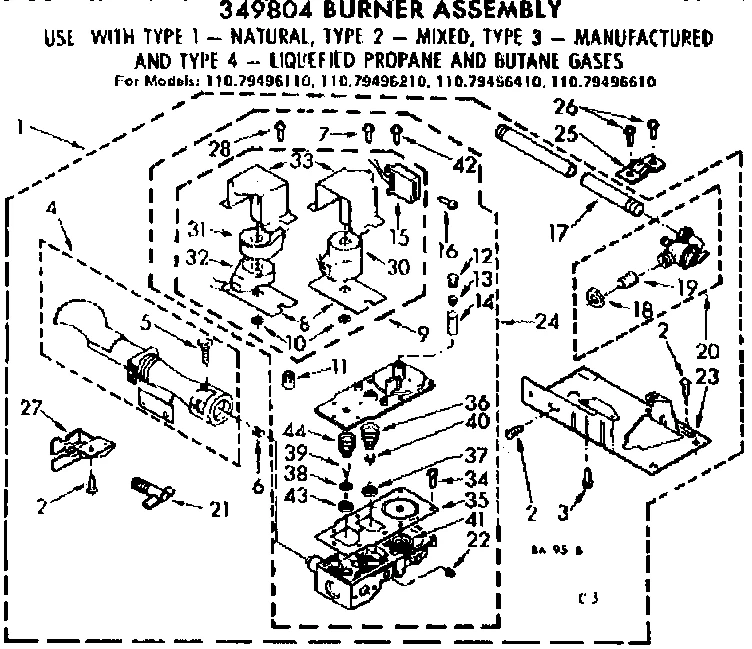

BURNER ASSEMBLY 60 HZ
Common parts from model Whirlpool 110.79496610 Gas Dryer (Kenmore 11079496610)
1
Burner WPL 349804 Contact Us For Availability
1B
Top WPL 345890 Contact Us For Availability
1C
Top WPL 345766 Contact Us For Availability
1D
Top WPL 345889 Contact Us For Availability
2
Duct WPL 348921 Contact Us For Availability
2
Panel WPL 349641 Contact Us For Availability
4
Thermostat WPL 341197 Contact Us For Availability
4
Brnr/shttr WPL 297536 Contact Us For Availability
5
Screw WPL 98611 Contact Us For Availability
5B
Motor WPL 338742 Contact Us For Availability
6
(338471) (ALT.) WPL N/P Contact Us For Availability
6B
Orifice WPL 296301 Contact Us For Availability
6C
Motor Switch WPL 298699 Contact Us For Availability
6C
Orifice WPL 234660 Contact Us For Availability
7
Dryer Blower Wheel WPL 345317 Contact Us For Availability
8
Spacer WPL 347641 Contact Us For Availability
8
Plate WPL 338869 Contact Us For Availability
8A
Door (White) WPL 347458 Contact Us For Availability
8B
Door WPL 347562 Contact Us For Availability
8C
Door WPL 347561 Contact Us For Availability
8D
Door WPL 347560 Contact Us For Availability
9
Coil WPL 349748 Contact Us For Availability
10
O-Ring WPL 296302 Contact Us For Availability
10
Fan Scroll WPL 347798 Contact Us For Availability
11
Bulkhead WPL 349723 Contact Us For Availability
11
Connector WPL 340140 Contact Us For Availability
11A
Screw WPL 90193 Contact Us For Availability
11B
Set Screw WPL 98166 Contact Us For Availability
12
Leak Limiter WPL 338868 Contact Us For Availability
12A
Pulley WPL 347260 Contact Us For Availability
13
Screw WPL 99996 Contact Us For Availability
13
Washer WPL 345323 Contact Us For Availability
14
Spring WPL 339226 Contact Us For Availability
15
Washer Terminal Connector WPL 353424 Contact Us For Availability
16
Tap Screw WPL 98824 Contact Us For Availability
16A
Panel (White) WPL 348705 Contact Us For Availability
16B
Panel WPL 348706 Contact Us For Availability
16C
Panel WPL 348707 Contact Us For Availability
16D
Panel WPL 348708 Contact Us For Availability
17
Pipe WPL 347363 Contact Us For Availability
18
Nut Union WPL 233076 Contact Us For Availability
20
Valve WPL 346932 Contact Us For Availability
20A
Timer WPL 348878 Contact Us For Availability
20B
Timer WPL 348879 Contact Us For Availability
21A
Motor WPL 299647 Contact Us For Availability
21B
Motor WPL 343545 Contact Us For Availability
21C
Motor WPL 343544 Contact Us For Availability
21D
Motor WPL 299666 Contact Us For Availability
22
Insert WPL 349082 Contact Us For Availability
23
Base WPL 347384 Contact Us For Availability
24
Valve WPL 685208 Contact Us For Availability
24A
Panel (White) WPL 349128 Contact Us For Availability
24C
Panel WPL 685722 Contact Us For Availability
24D
Panel WPL 685723 Contact Us For Availability
28
Screw WPL 340182 Contact Us For Availability
30
Coil WPL 348376 Contact Us For Availability
31
Drum Baffle WPL 345311 Contact Us For Availability
31
Escutcheon WPL 349163 Contact Us For Availability
31
Coil WPL 348375 Contact Us For Availability
32
Timer Knob WPL 348808 Contact Us For Availability
32
Coil WPL 348374 Contact Us For Availability
33
Screw WPL 346893 Contact Us For Availability
33
Bracket Tube WPL 338870 Contact Us For Availability
34
Compression Ring WPL 90015 Contact Us For Availability
35
Diaph/gask WPL 338874 Contact Us For Availability
36
Spring WPL 338866 Contact Us For Availability
37
Seat Pilot WPL 338877 Contact Us For Availability
38
Valve Seat WPL 338876 Contact Us For Availability
39
Armature WPL 338879 Contact Us For Availability
40
Armature WPL 342884 Contact Us For Availability
40
Screw WPL 9425761 Contact Us For Availability
41
Seat WPL 339227 Contact Us For Availability
42
Clip WPL 685272 Contact Us For Availability
42
Screw WPL 98487 Contact Us For Availability
42B
Door WPL 348206 Contact Us For Availability
42C
Door (Almond) WPL 348207 Contact Us For Availability
42D
Door WPL 348208 Contact Us For Availability
43
Seat Main WPL 338878 Contact Us For Availability
43B
Handle WPL 345750 Contact Us For Availability
43C
Handle WPL 345749 Contact Us For Availability
43D
Handle WPL 345748 Contact Us For Availability
44
Spring WPL 338865 Contact Us For Availability
45
Cover WPL 343630 Contact Us For Availability
46
Duct Seal WPL 345685 Contact Us For Availability
47
Strip WPL 349733 Contact Us For Availability
48
Screw WPL 132848 Contact Us For Availability
49
Ground Strap WPL 22965 Contact Us For Availability
50
Ground Wire WPL 364089 Contact Us For Availability
53
Heater Box WPL 346952 Contact Us For Availability
54
Clip WPL 344083 Contact Us For Availability
55
Valve WPL 685210 Contact Us For Availability
58
Screw WPL 98520 Contact Us For Availability
60
Thermostat WPL 341375 Contact Us For Availability
60
Buzzer WPL 348871 Contact Us For Availability
62
Insulator WPL 340609 Contact Us For Availability
62
Dryer High-Limit Thermostat WPL 341227 Contact Us For Availability
63
Spacer WPL 345693 Contact Us For Availability
64
Knob WPL 369153 Contact Us For Availability
68B
Burner WPL 349831 Contact Us For Availability
73
Clamp WPL 347362 Contact Us For Availability
NI
Wire WPL 347027 Contact Us For Availability
NI
Owner's Manual WPL 347149 Contact Us For Availability
NI
LP Gas Kit WPL 347701 Contact Us For Availability
NI
Label WPL 349134 Contact Us For Availability
NI
Instructions WPL 349350 Contact Us For Availability
NI
Harness WPL 349921 Contact Us For Availability
NI
Instructions WPL 685647 Contact Us For Availability
NI
Adapter Plug WPL 92925 Contact Us For Availability
NI
Parts List WPL LIT685573 Contact Us For Availability
× ![]()
