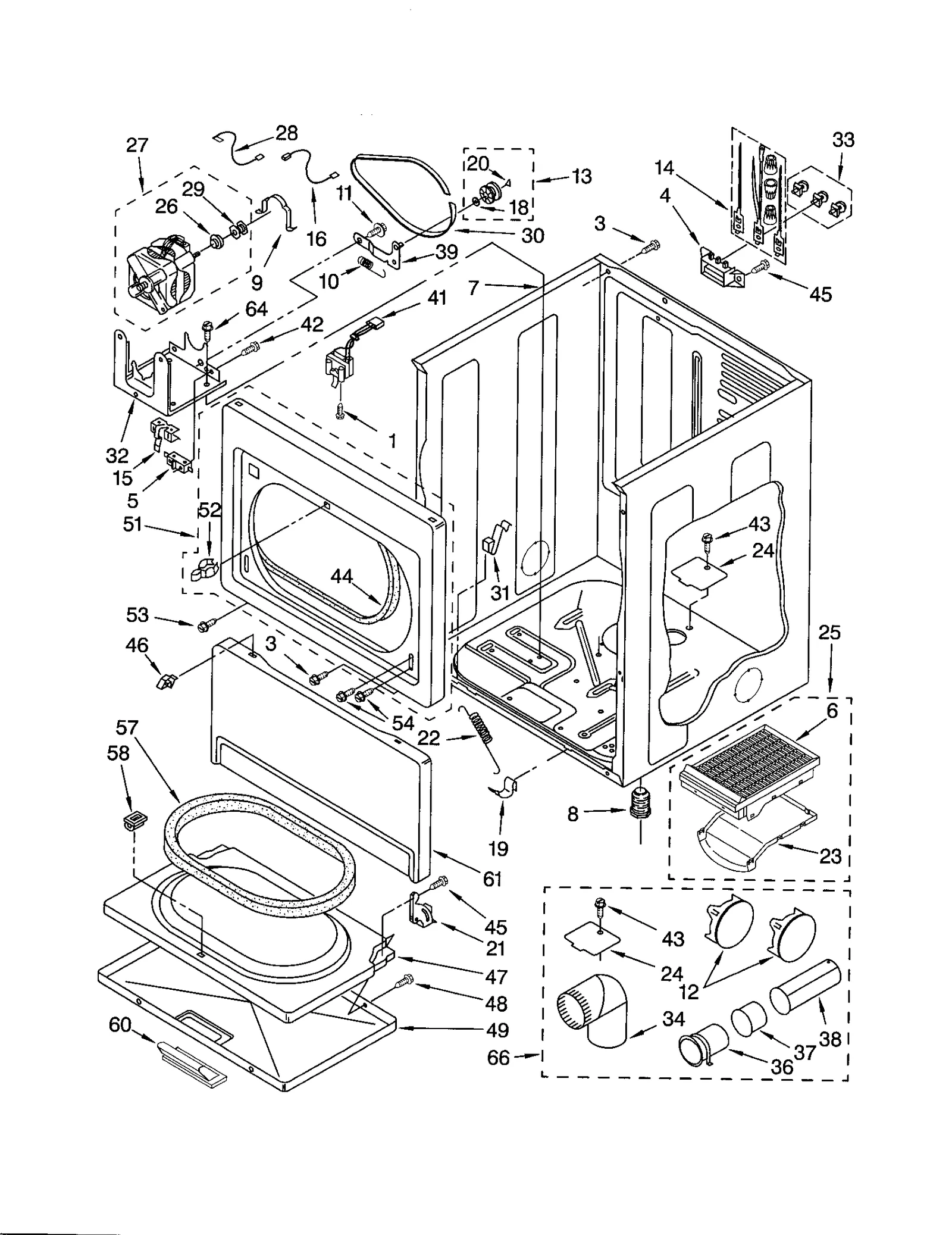

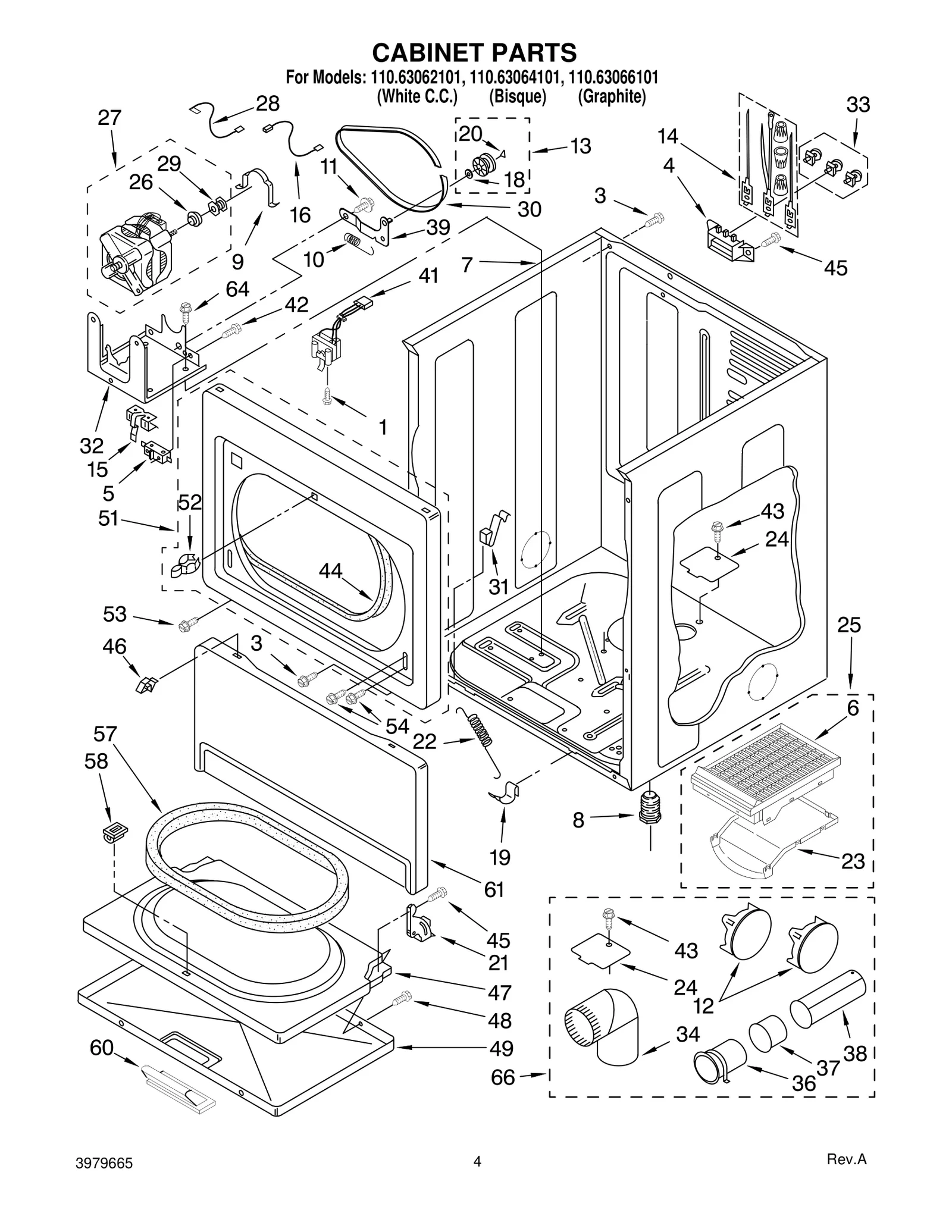

Model Whirlpool 110.63062101 Electric Dryer (Kenmore 11063062101) – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $41.41

1

Wiring Diagram WPL LIT3979716 Contact Us For Availability

1A

Operating Instructions WPL LIT3394996 Contact Us For Availability

1B

Owner's Manual WPL LIT3979093 Contact Us For Availability

1C

Technical Sheet WPL LIT3979717 Contact Us For Availability

1D

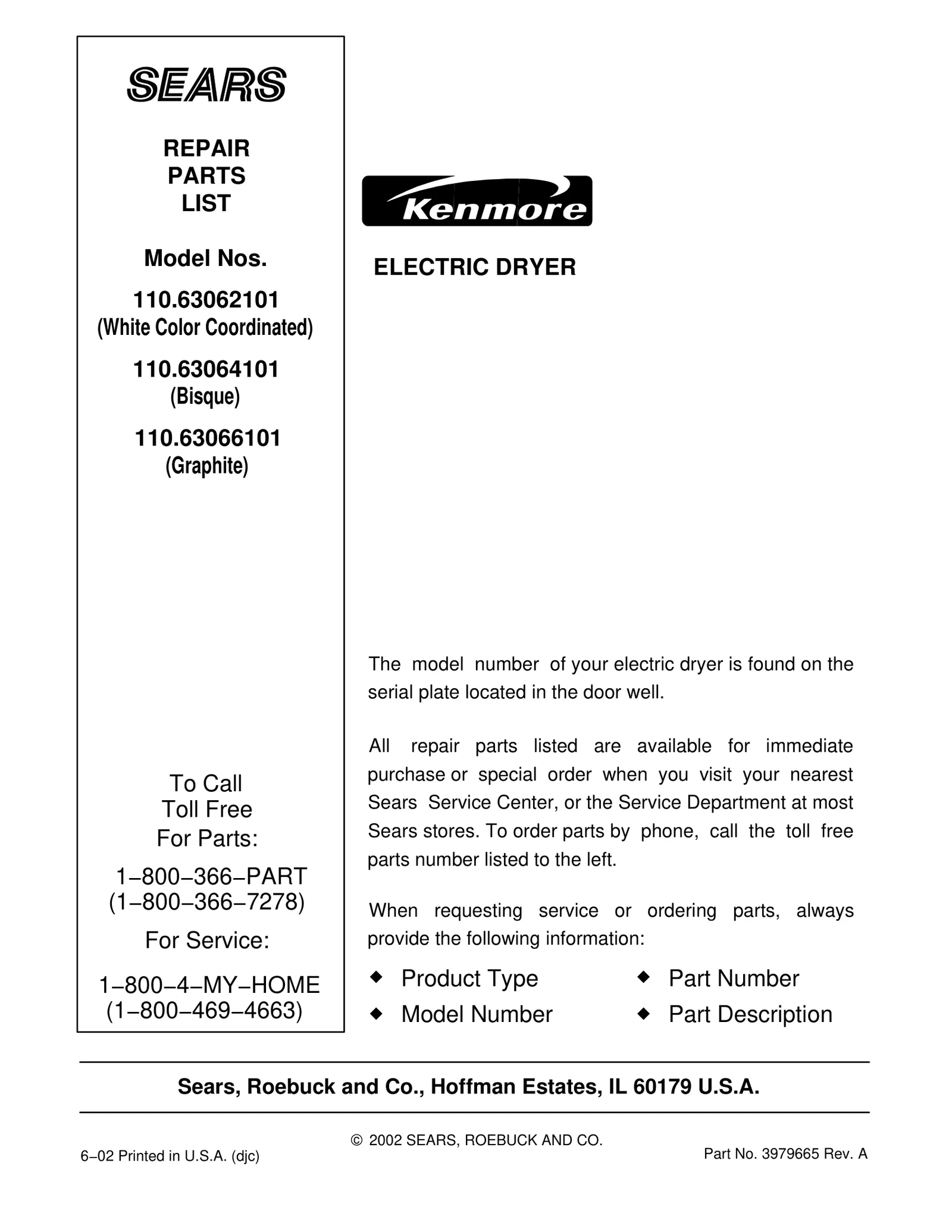

Parts List WPL LIT3979665 Contact Us For Availability

1E

Serv Manul WPL LIT787207 Contact Us For Availability

2

2203186 Whirlpool Connector Backorder WPL 2203186 $8.09

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

2A

Trim WPL 3977760 Contact Us For Availability

2B

Trim WPL 3953668 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $143.50

3

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

3

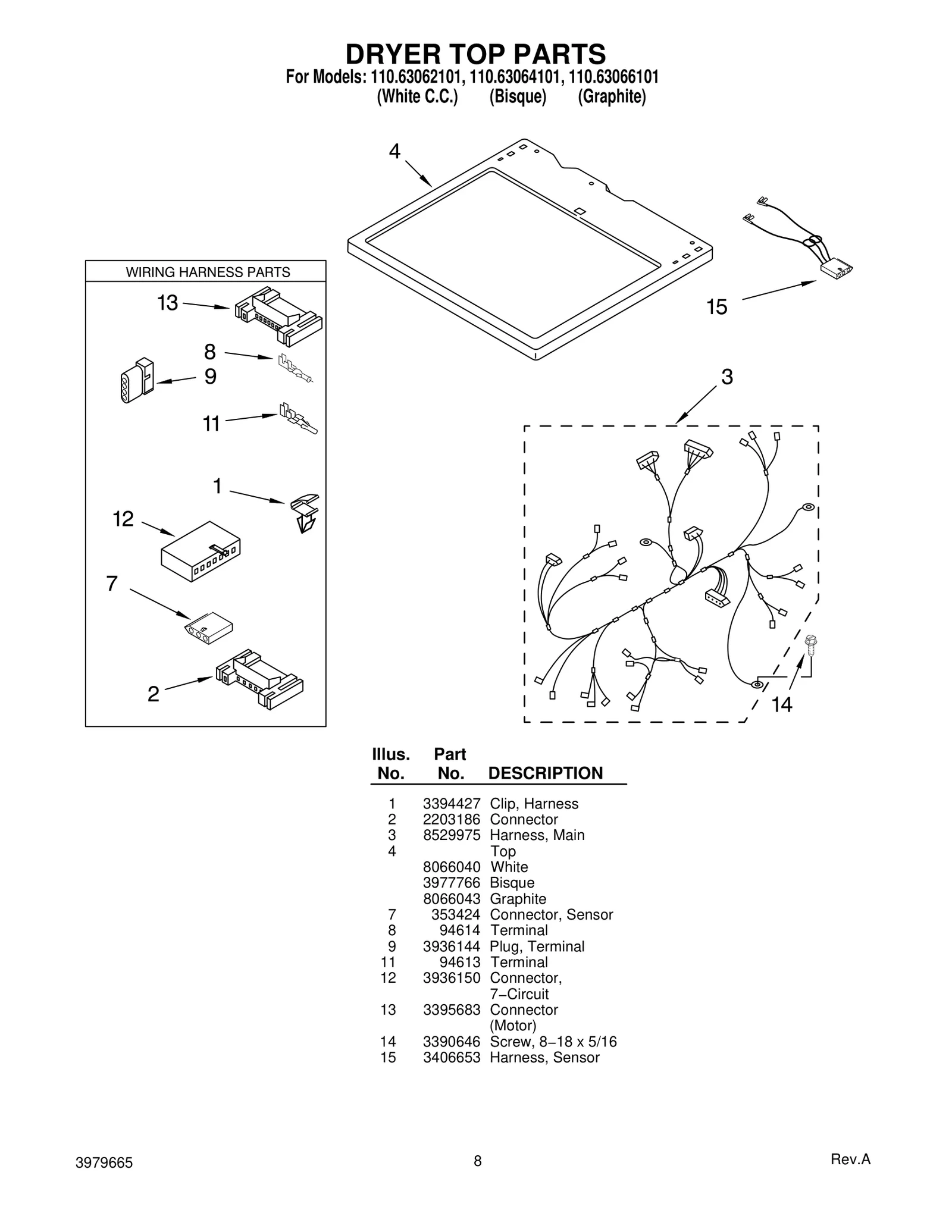

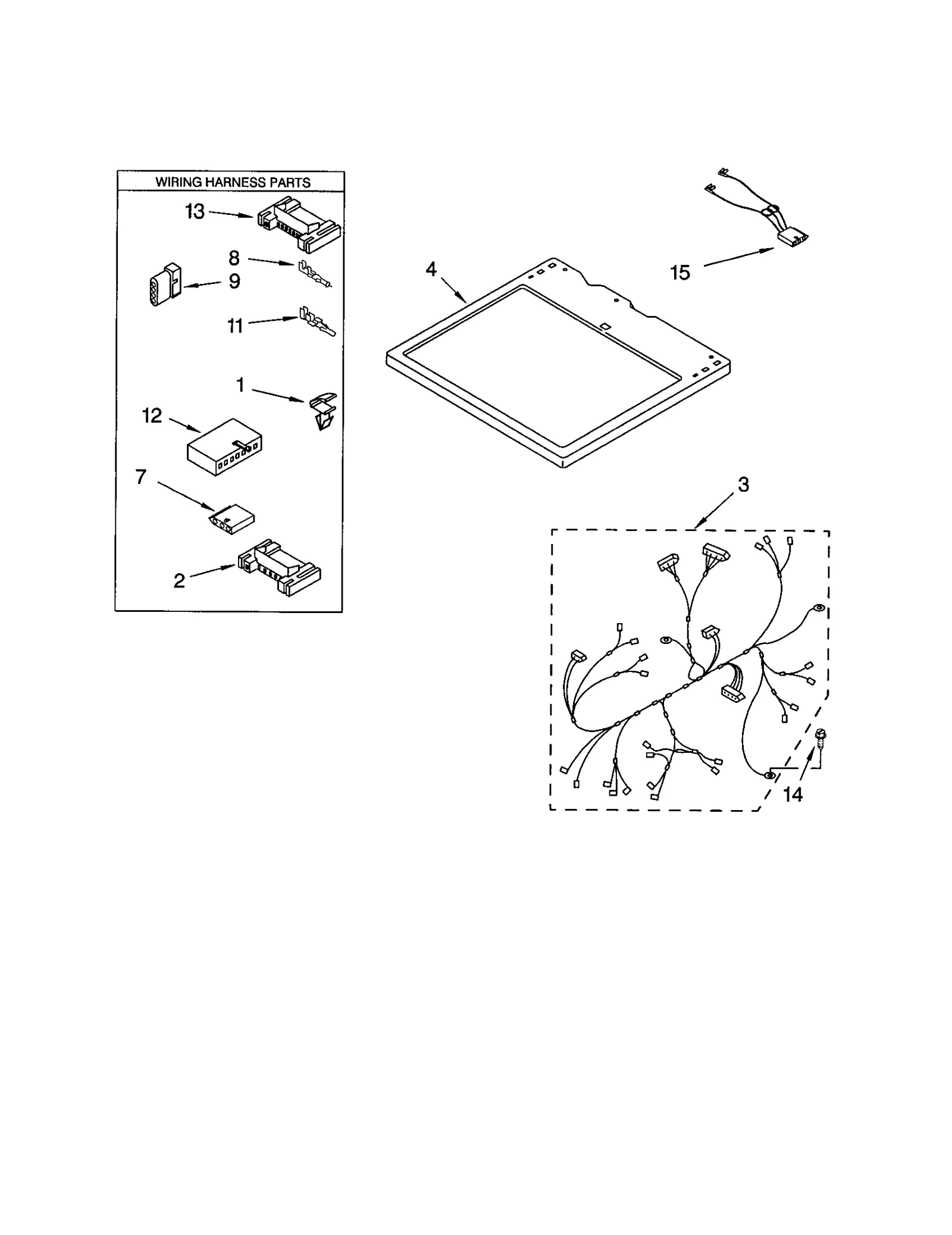

Harness, Main WPL 8529975 Contact Us For Availability

4

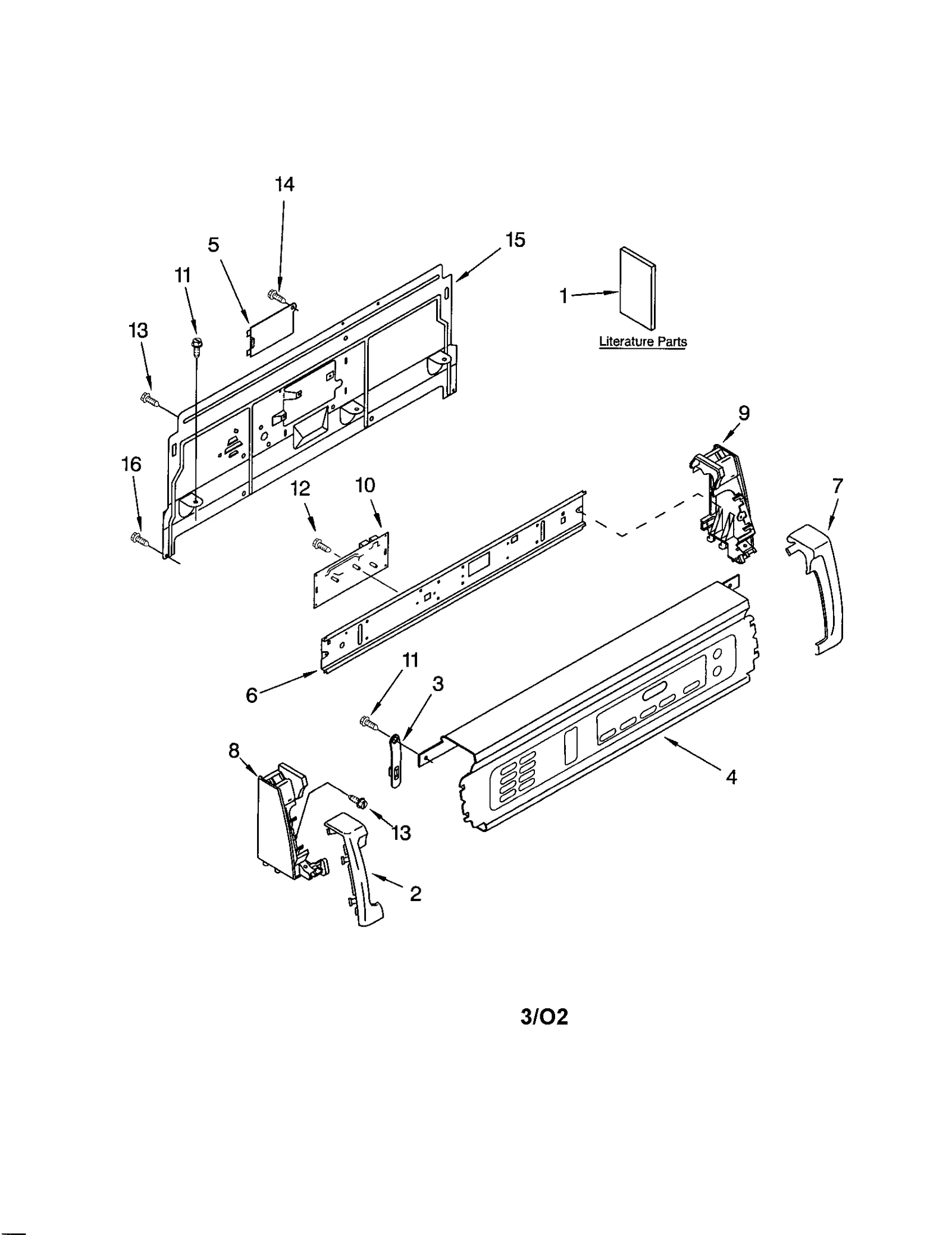

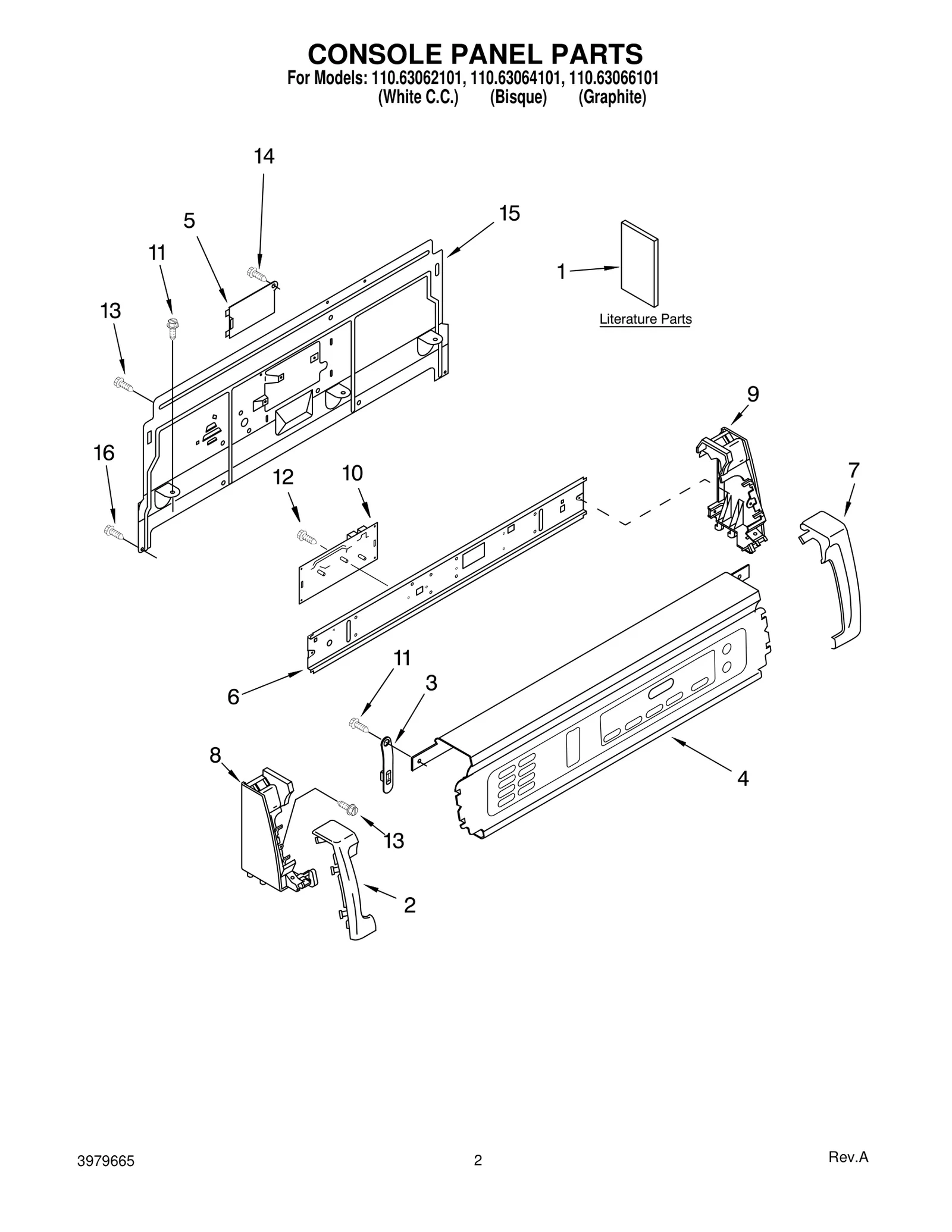

Dryer Control Panel (White) WPL 3979125 Contact Us For Availability

4

Top — White WPL 8066040 Contact Us For Availability

4

Top — Bisque WPL 3977766 Contact Us For Availability

4

Top — Graphite WPL 8066043 Contact Us For Availability

4A

Control Panel (Off-White) WPL 3979126 Contact Us For Availability

4B

Console and User Interface Assembly WPL 3979127 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct Backorder WPL WP3387911 $228.03

5

WPW10119283 Whirlpool Terminal Cover Backorder WPL WPW10119283 $90.54

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

6

Bracket WPL 8055055 Contact Us For Availability

7

Connector, Sensor WPL 353424 Contact Us For Availability

7A

Trim WPL 3977759 Contact Us For Availability

7B

Trim WPL 3953667 Contact Us For Availability

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8A

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.43

8A

End Cap WPL 3949284 Contact Us For Availability

8B

End Cap WPL 3949283 Contact Us For Availability

9

279954 Whirlpool Endcap Kit (Left/Right) Backorder WPL 279954 $81.90

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

W11700522 Whirlpool Socket Backorder WPL W11700522 $50.62

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9A

End Cap (Off-White) WPL 3949278 Contact Us For Availability

9B

End Cap WPL 3949277 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly Backorder WPL W11226088 $19.60

10

Microcomputer WPL 3978916 Contact Us For Availability

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

12

3400826 Whirlpool Screw Backorder WPL 3400826 $5.51

12

Connector, 7−Circuit WPL 3936150 Contact Us For Availability

13

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

279318 Whirlpool Terminal In Stock WPL 279318 $56.86

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $76.93

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.27

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

15

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

15

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $81.07

15

Rear Panel WPL 8317303 Contact Us For Availability

16

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.45

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Hex Nut WPL 3387709 Contact Us For Availability

17

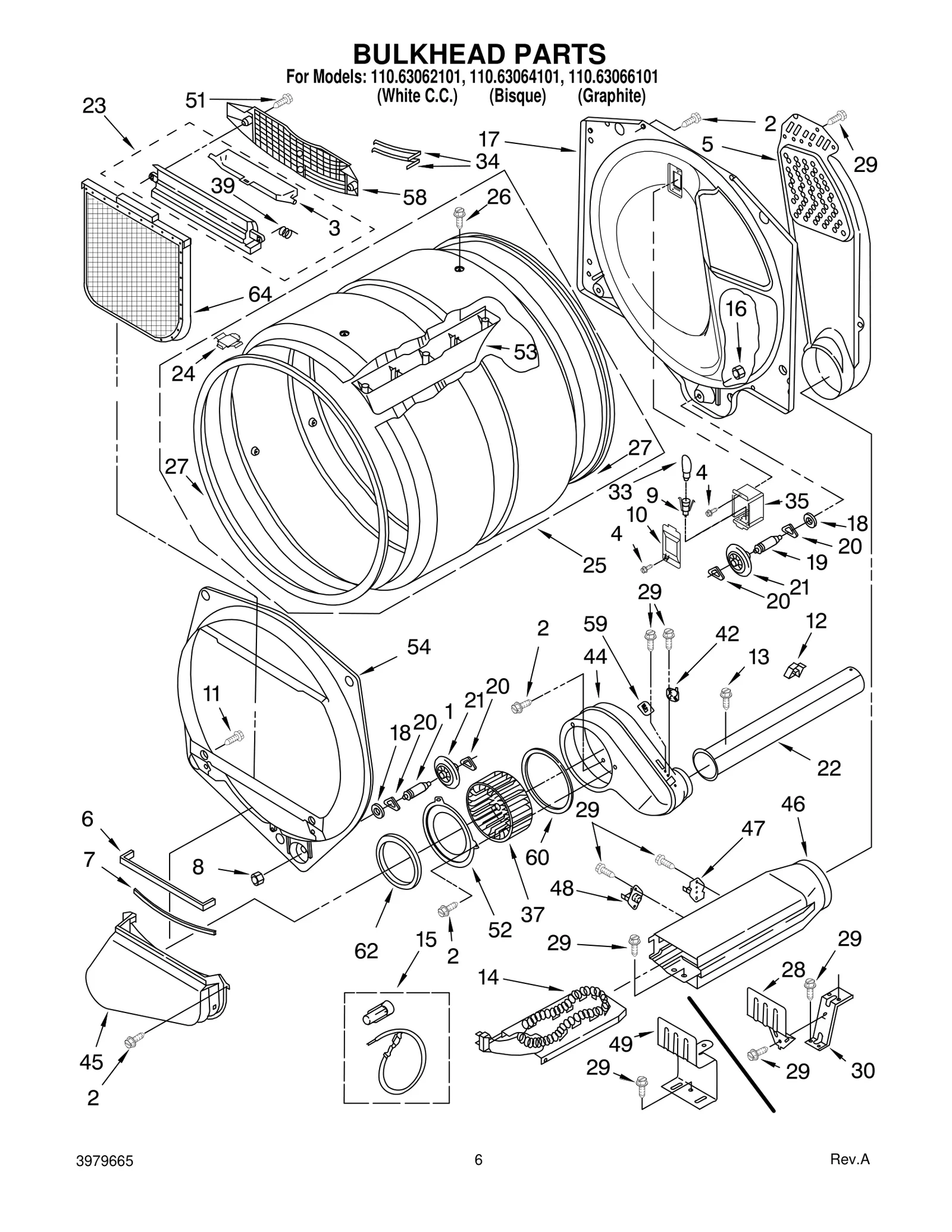

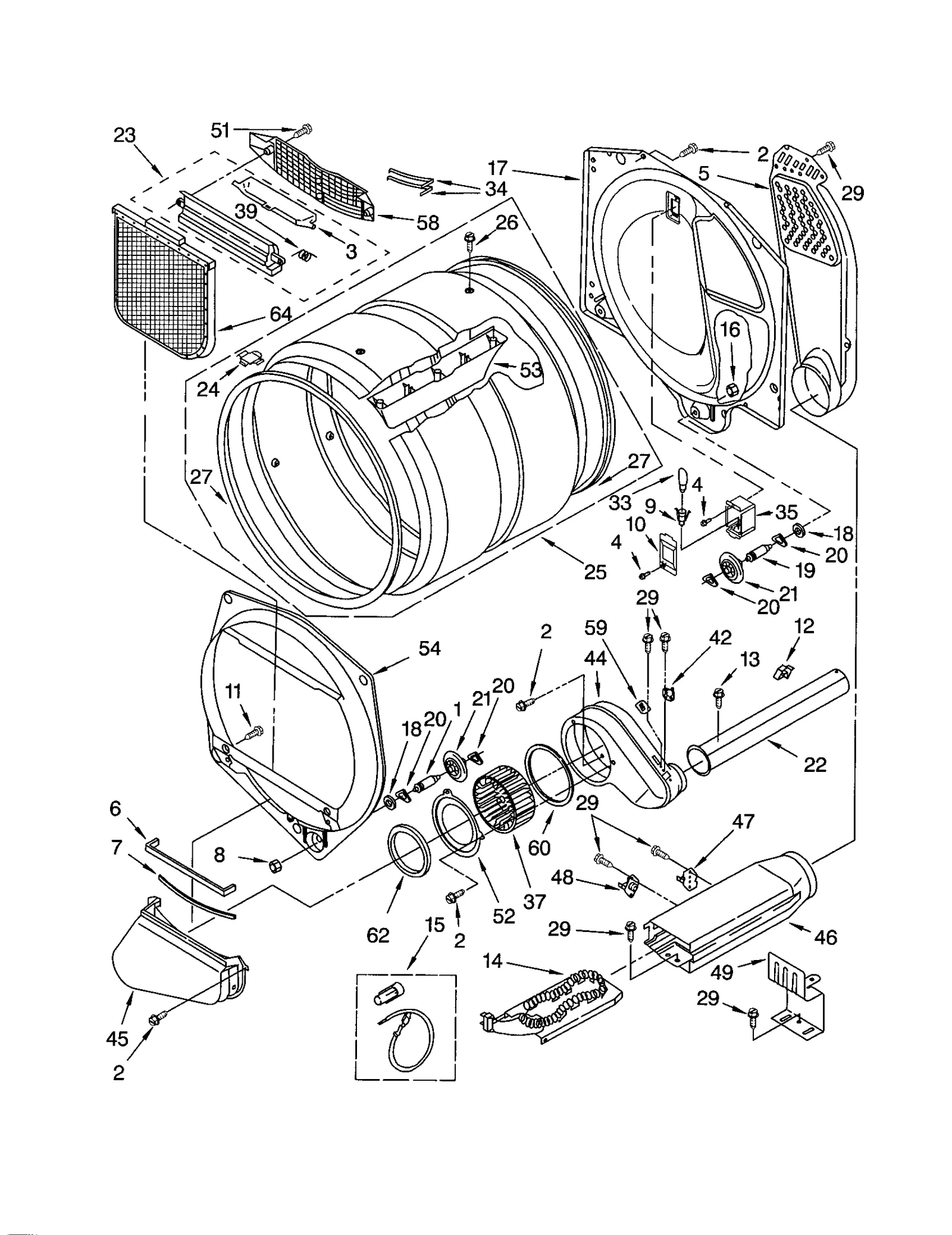

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $11.95

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $5.30

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $48.80

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

21

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $79.52

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $18.60

21A

WP3387559 Whirlpool Door Hinge Backorder WPL WP3387559 $71.28

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $104.07

22

WP3387565 Whirlpool Door Spring Backorder WPL WP3387565 $25.62

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $41.45

24

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

25

W10545923 Whirlpool Drum Assembly Backorder WPL W10545923 $285.16

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $40.24

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

28

Shield, Heat WPL 697699 Contact Us For Availability

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

30

Bracket, Heater WPL 697700 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $21.54

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.40

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.63

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $49.05

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

41

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $24.47

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $32.82

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $17.25

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $106.28

45

Duct Lint WPL 8530036 Contact Us For Availability

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $92.34

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $5.30

47

279769 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279769 $22.89

47

WP8066045 Whirlpool Door Assembly Backorder WPL WP8066045 $133.02

48

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $55.74

49

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $65.26

53

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.66

53

Drum Baffle WPL 697693 Contact Us For Availability

54

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $138.45

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $20.74

WP348721 Whirlpool Handle In Stock WPL WP348721 $49.64

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

Handle, Door — Graphite WPL 3977745 Contact Us For Availability

Handle, Door — Bisque WPL 3977746 Contact Us For Availability

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $37.28

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $38.92

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $28.98

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

Graphite PAINT, PRESSURIZED SPRAY WPL 80051 Contact Us For Availability

White (Uncut) WPL 799344 Contact Us For Availability

Bisque (Uncut) WPL 4392900 Contact Us For Availability

Graphite (Uncut) WPL 8171358 Contact Us For Availability

NI02

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $9.04

NI03

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $14.22

NI05

350930 Whirlpool White Spray Paint In Stock WPL 350930 $26.50

NI06

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $53.67

NI07

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

NI08

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04
