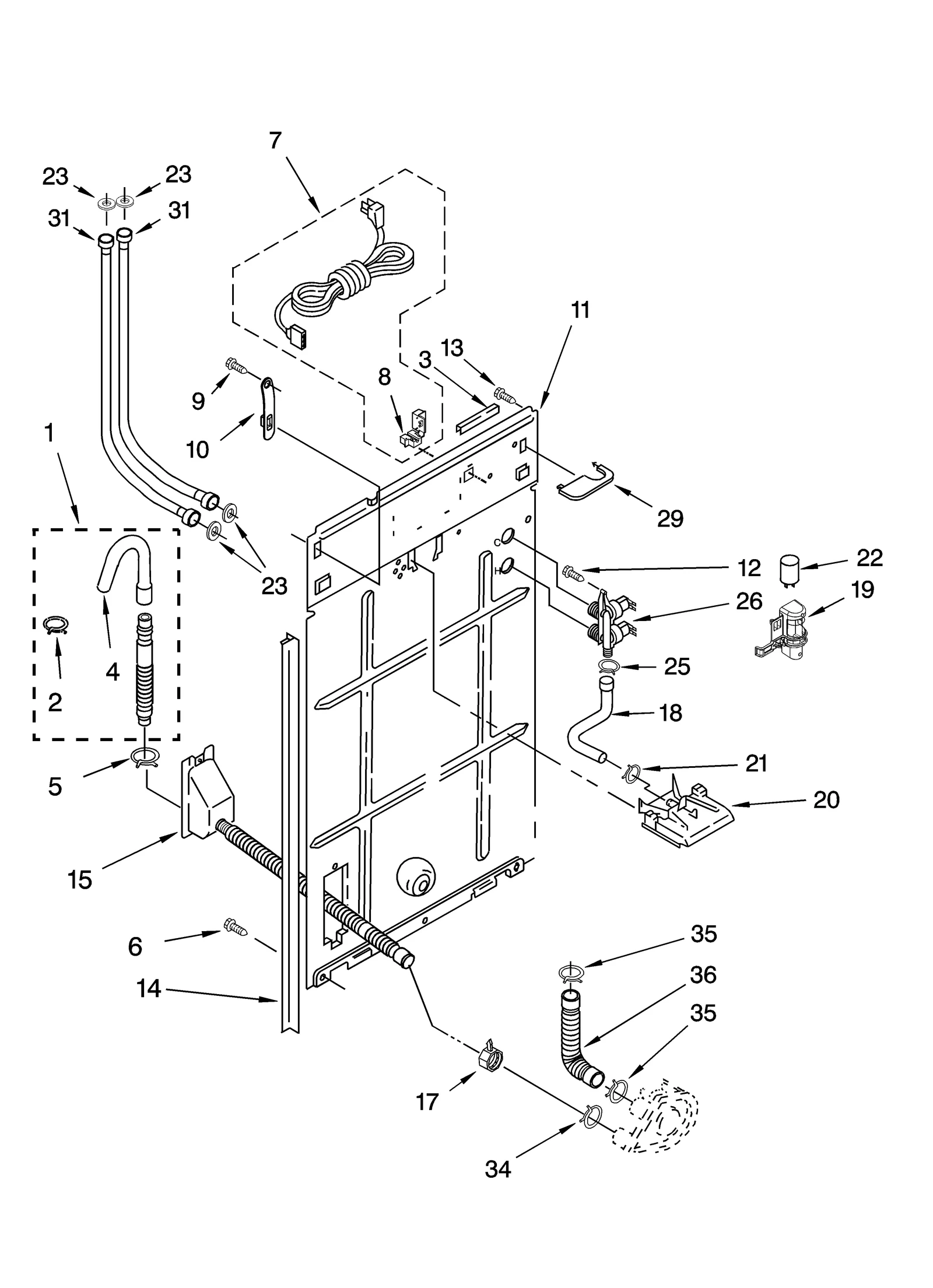

Model Whirlpool 110.16812500 Washer (Kenmore 11016812500) – Common Parts &amp; Diagrams

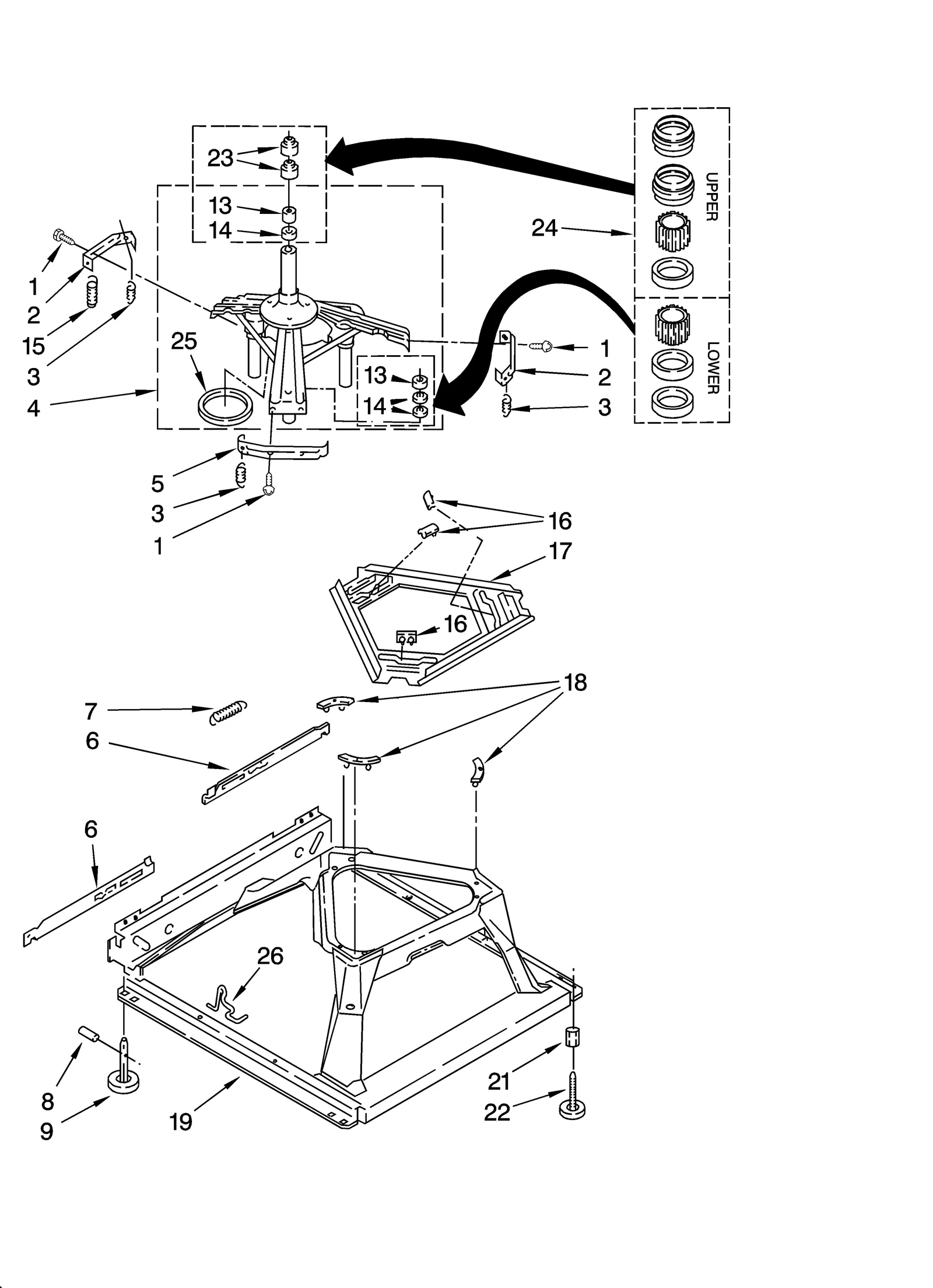

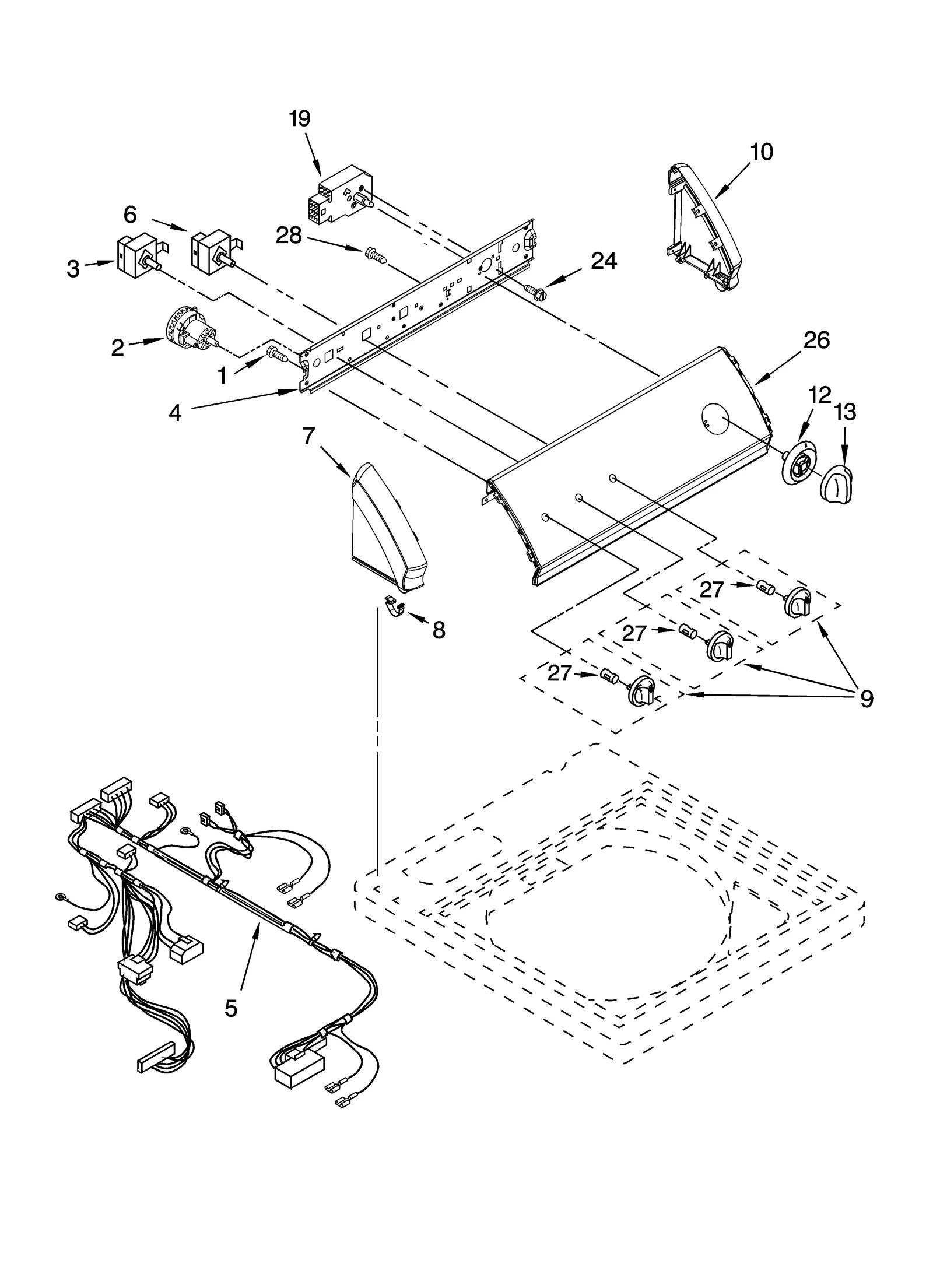

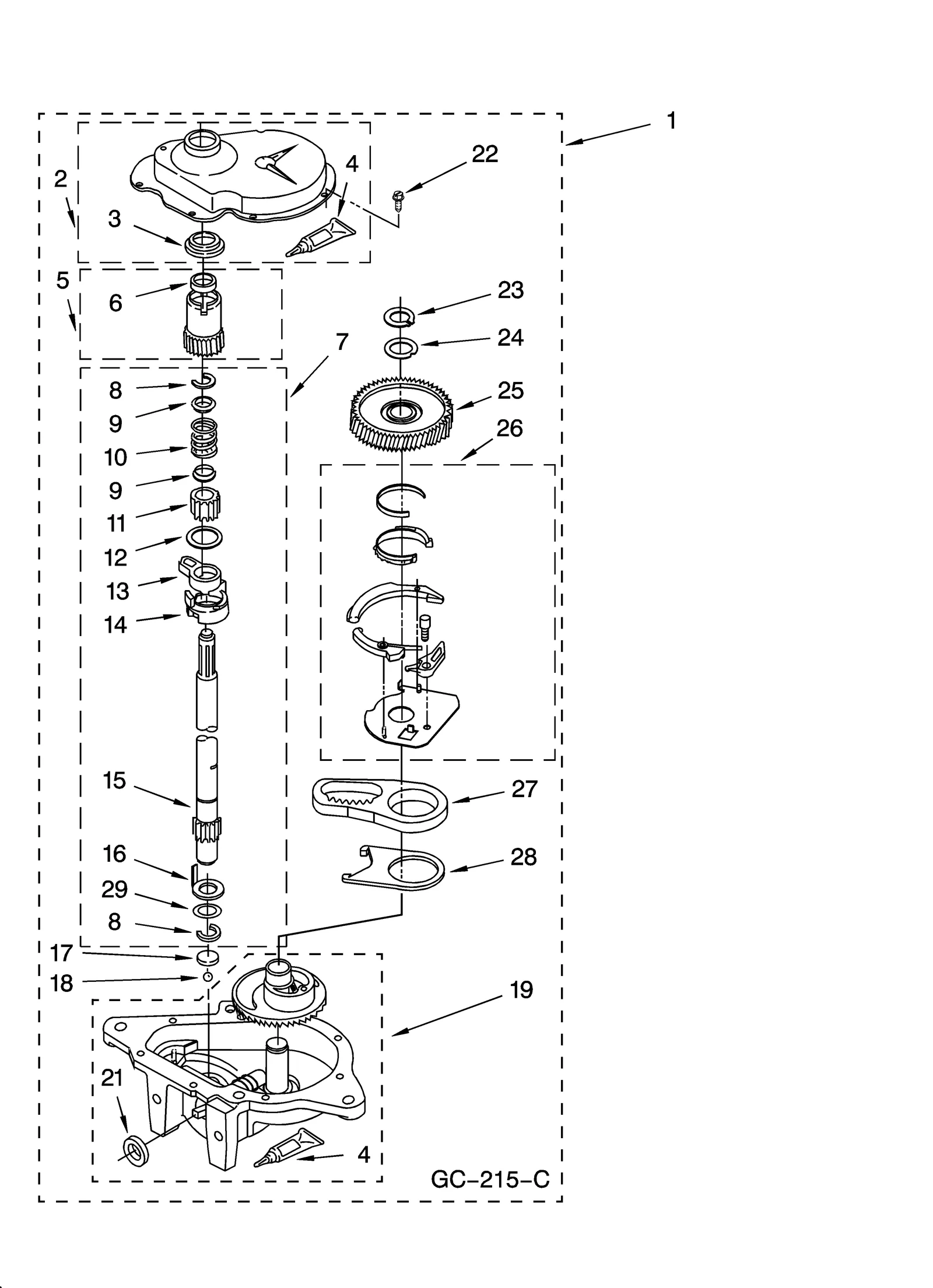

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

WP8533252 Whirlpool Dispenser Assembly Backorder WPL WP8533252 $75.92

1

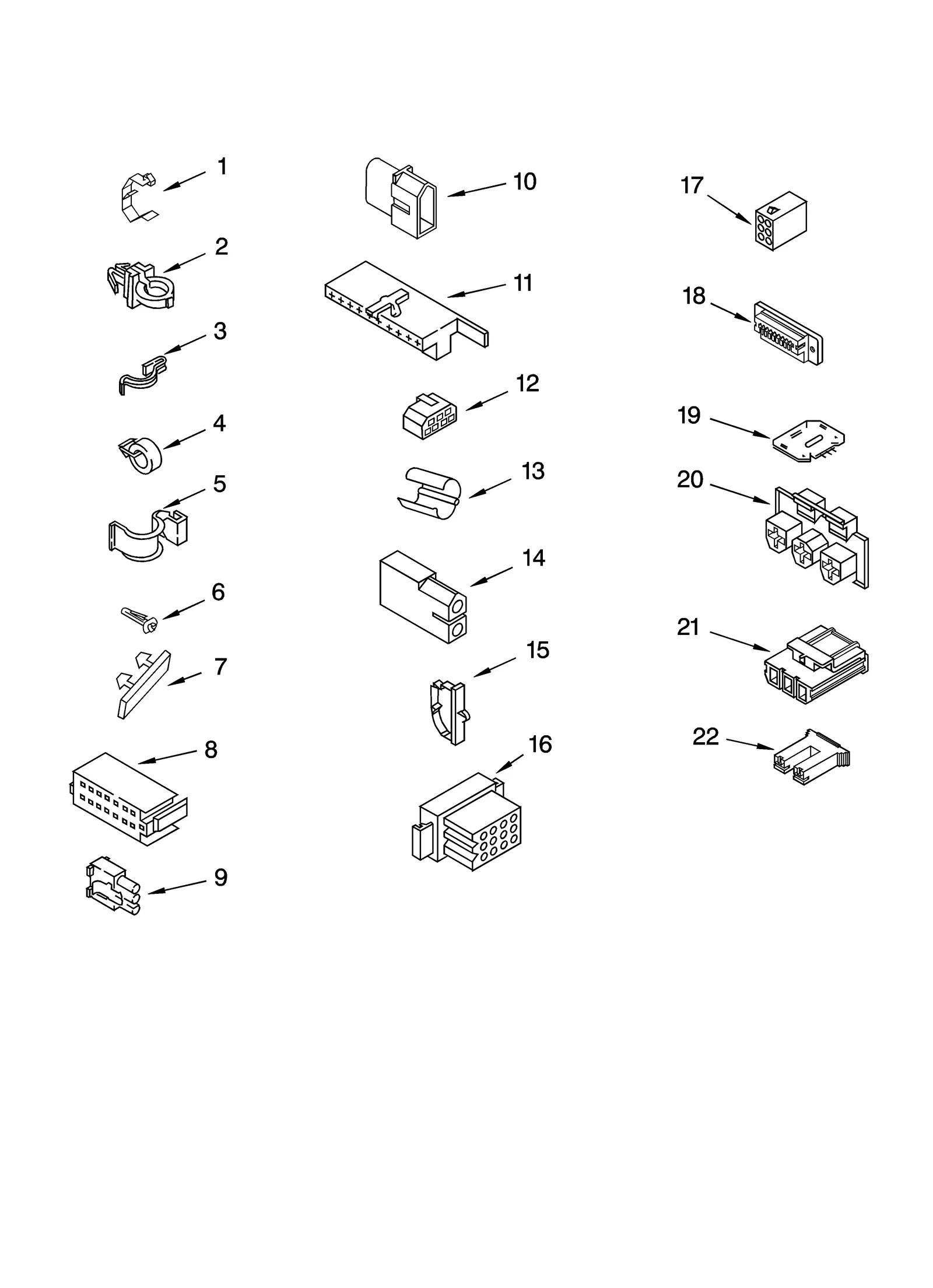

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

1B

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

1C

Energy Guide WPL 8567130 Contact Us For Availability

1D

Laundry Guide WPL 8566914 Contact Us For Availability

1E

REPAIR PARTS LIST (1) WPL 856683 Contact Us For Availability

1F

(338471) (ALT.) WPL N/P Contact Us For Availability

1G

Washer Owner's Manual WPL 4314044 Contact Us For Availability

2

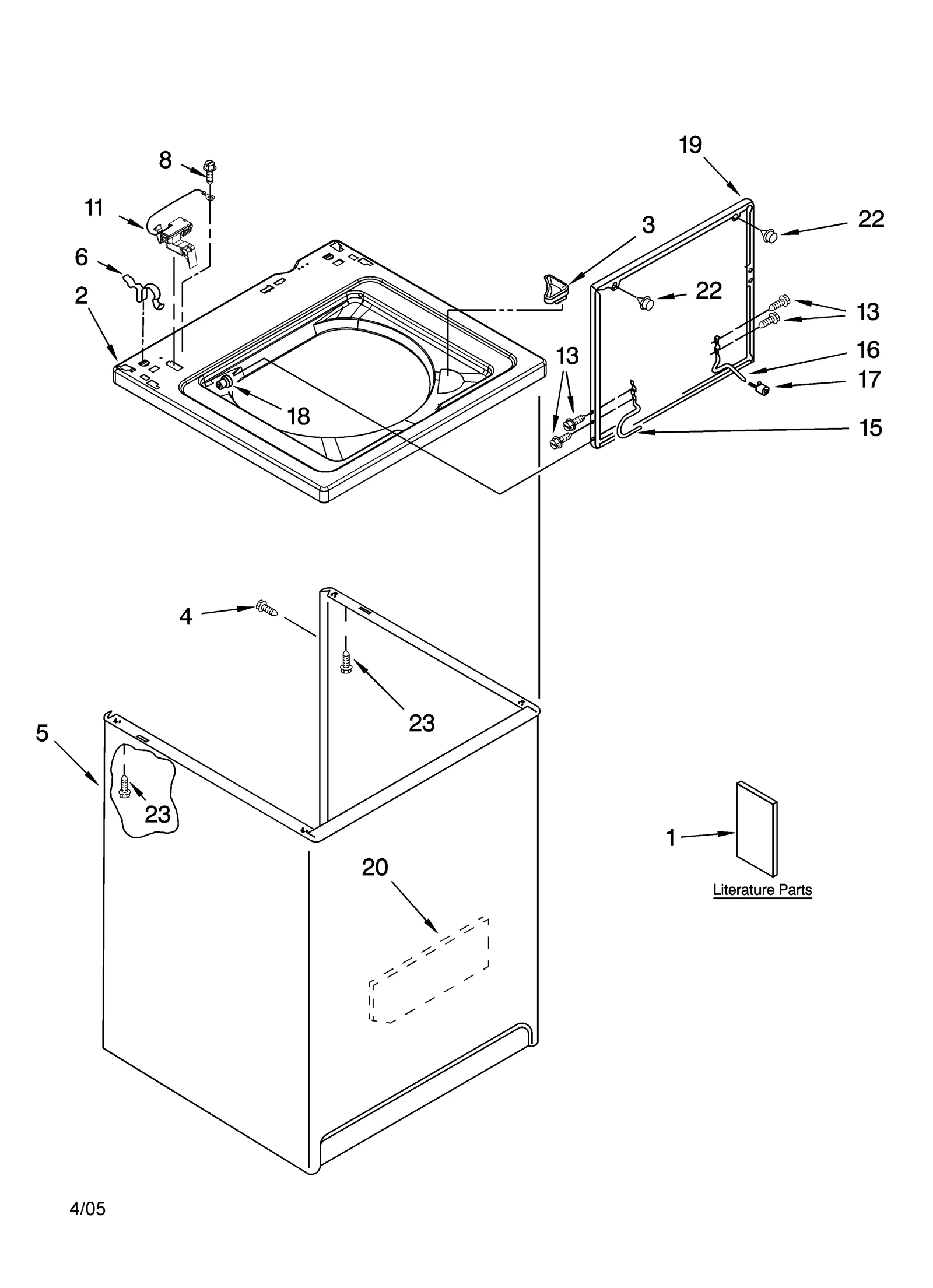

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

W10339326 Whirlpool Washer Water Level Switch In Stock WPL W10339326 $49.77

2

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Top WPL 8559505 Contact Us For Availability

3

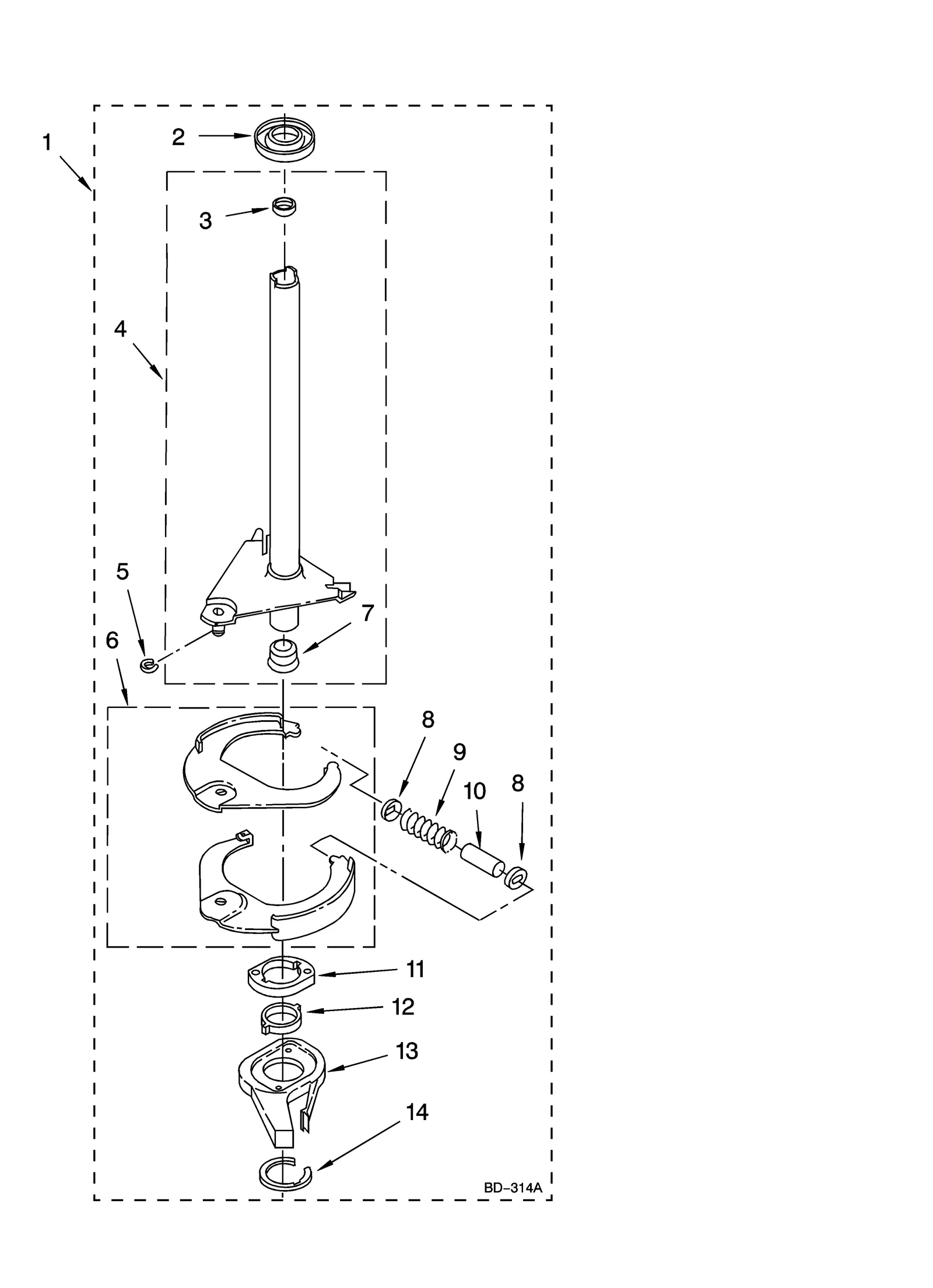

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $5.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WPW10168263 Whirlpool Temperature Switch Backorder WPL WPW10168263 $98.96

3

Protector WPL 303294 Contact Us For Availability

4

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

4

Bracket WPL 8559472 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket WPL 64065 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

5

Wire Harness WPL 3957394 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $98.45

6

Washer Agitator Auger WPL 63901 Contact Us For Availability

6

Washer Leveling Link Assembly WPL 63138 Contact Us For Availability

7

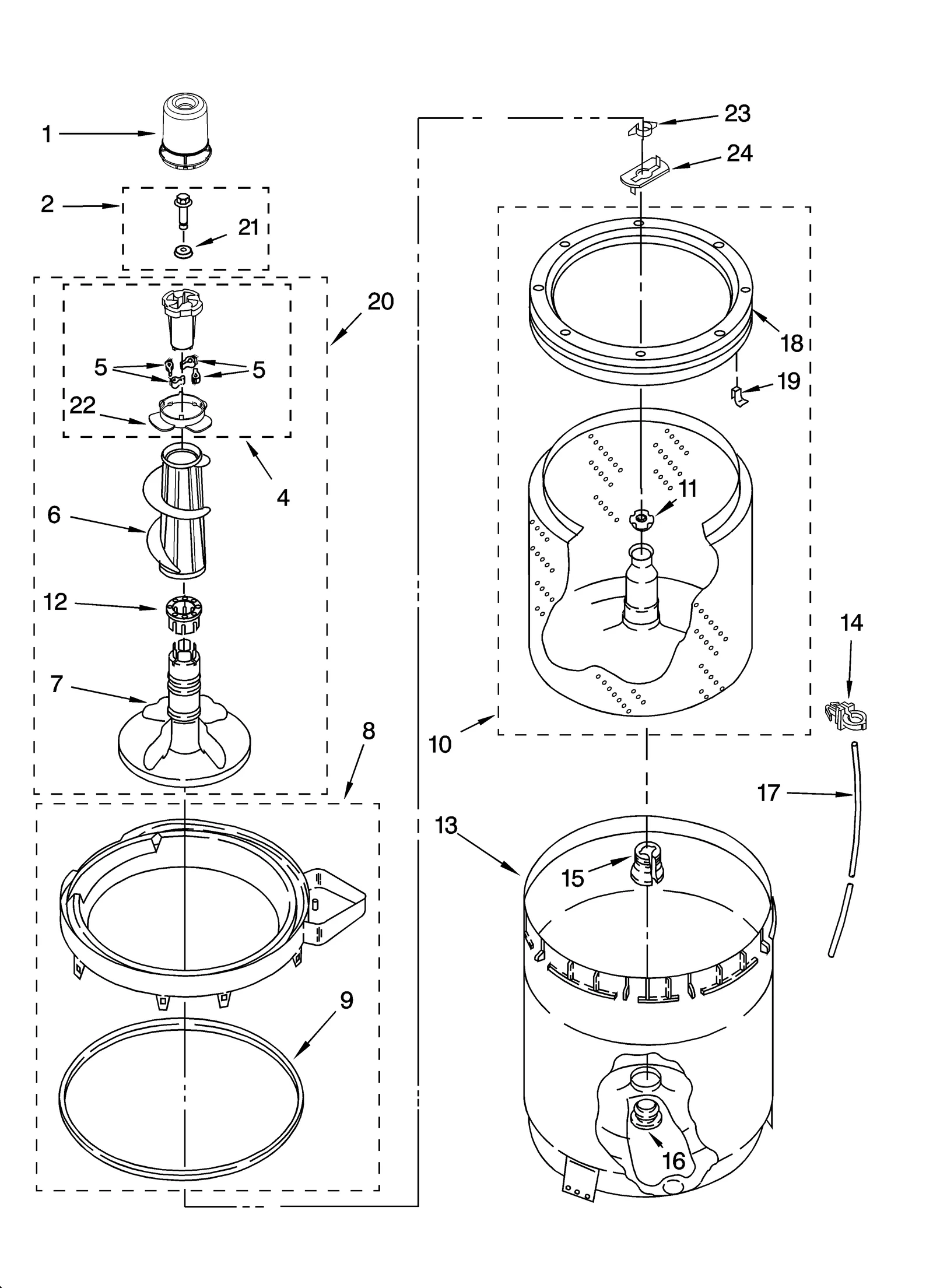

WP3350832 Whirlpool Agitator Backorder WPL WP3350832 $120.00

7

WP8559502 Whirlpool Endcap Assembly Backorder WPL WP8559502 $50.26

7

Power Cord WPL 661661 Contact Us For Availability

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $10.92

8

Washer Tub Ring WPL 3360611 Contact Us For Availability

8

Washer Timer Wire Harness Connector WPL 3948614 Contact Us For Availability

8

Relief Stirrer WPL 3952821 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10816321 Whirlpool Knob Backorder WPL W10816321 $39.65

9

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $63.12

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

WP8559501 Whirlpool Endcap Backorder WPL WP8559501 $50.11

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

Inglis Washer Spin Basket WPL 3956207 Contact Us For Availability

Washer Terminal Connector WPL 353424 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $34.37

Rear Panel WPL 3357976 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

Washer Timer Knob WPL 3956787 Contact Us For Availability

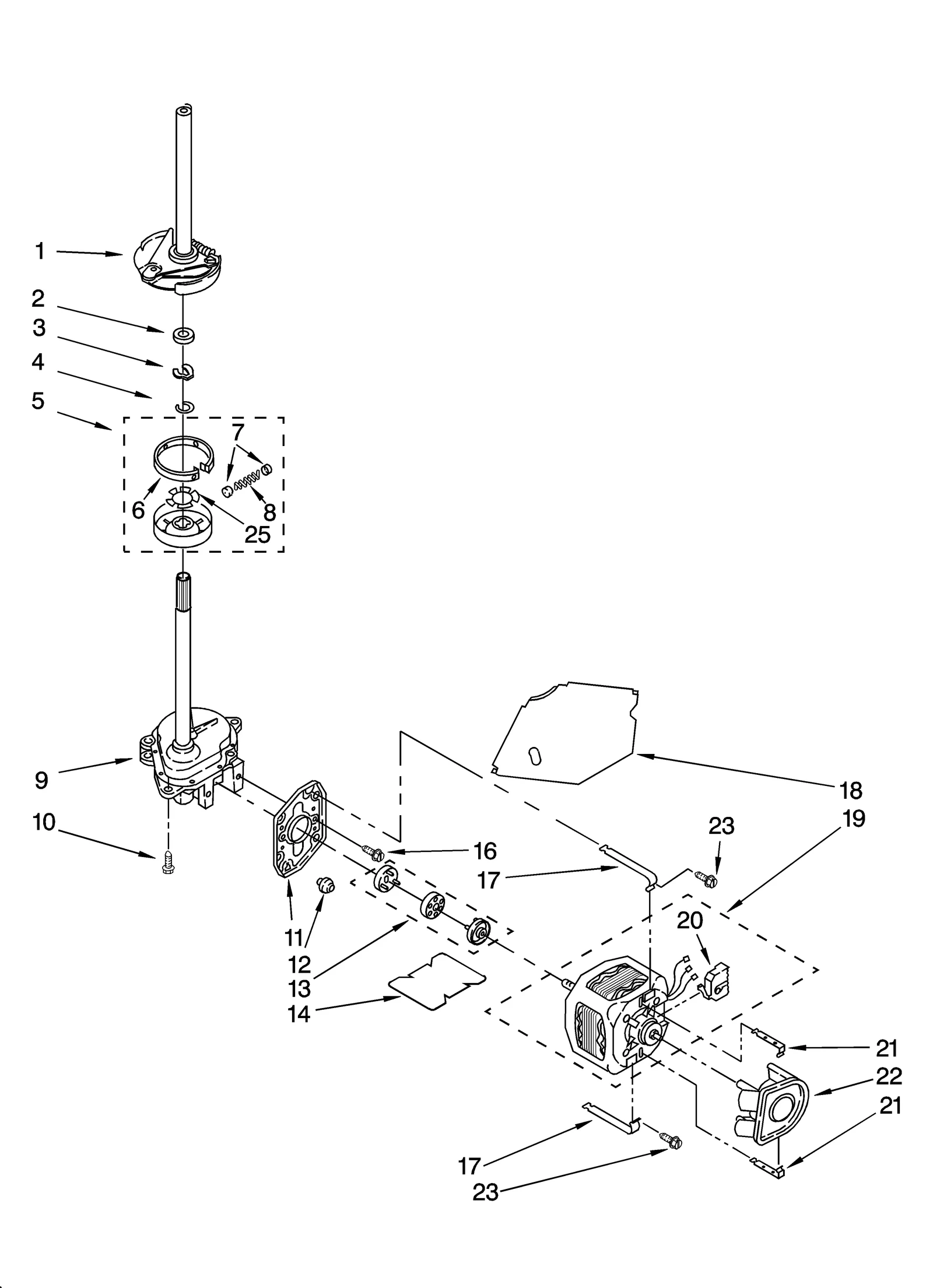

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Washer Outer Tub WPL 63125 Contact Us For Availability

Washer Timer Knob (Gray and White) WPL 3956786 Contact Us For Availability

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

17

Washer Drain Hose Support Clip WPL 3976395 No Longer Available

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

18

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $14.97

18

Washer Basket Balance Ring WPL 3956205 Contact Us For Availability

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $4.02

WPW10193857 Whirlpool Lid Assembly Backorder WPL WPW10193857 $232.94

Washer Capacitor Strap WPL 8318046 Contact Us For Availability

Washer Timer WPL 8542054 Contact Us For Availability

20

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

20

Sound Absorber, Cabinet WPL 3976348 Contact Us For Availability

20

Washer Motor Switch WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

Connector WPL 3360056 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

23

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

25

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

26

Console Panel WPL 8566658 Contact Us For Availability

27

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $5.30

28

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

29

Shield Valve WPL 3352467 Contact Us For Availability

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

31A

3805FF Supco 5' Reinforced Rubber Washer Fill In Stock SEA 3805FF $8.31

34

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

35

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

Paint (White) WPL 799344 Contact Us For Availability
