Model Whirlpool 106.9658221 Sears, Roebuck And Co., U.S.A. Refrigerator 5−95 Litho In U.S.A. Part No. 2177938 106.9658211 (White – Common Parts & Diagrams
COVER

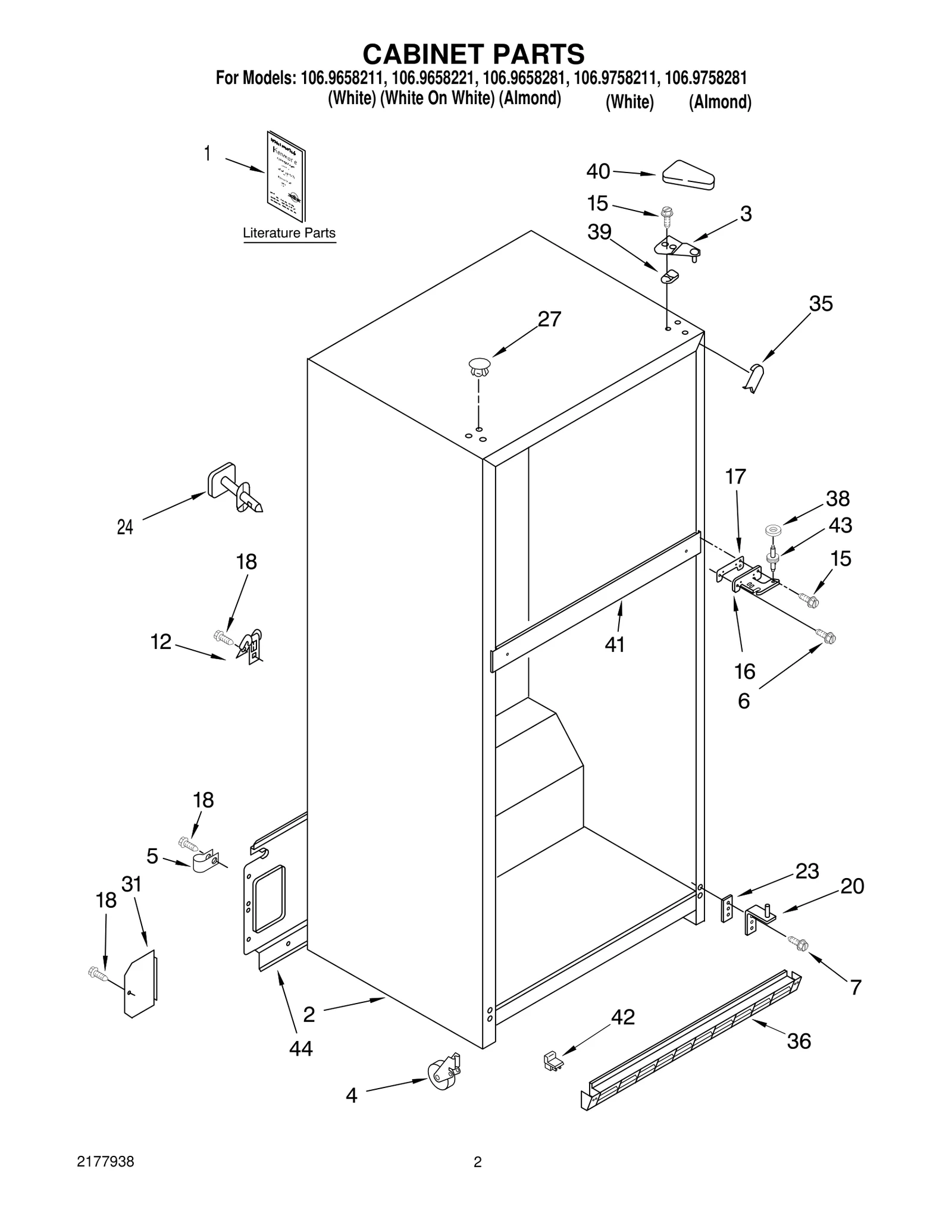

CABINET PARTS

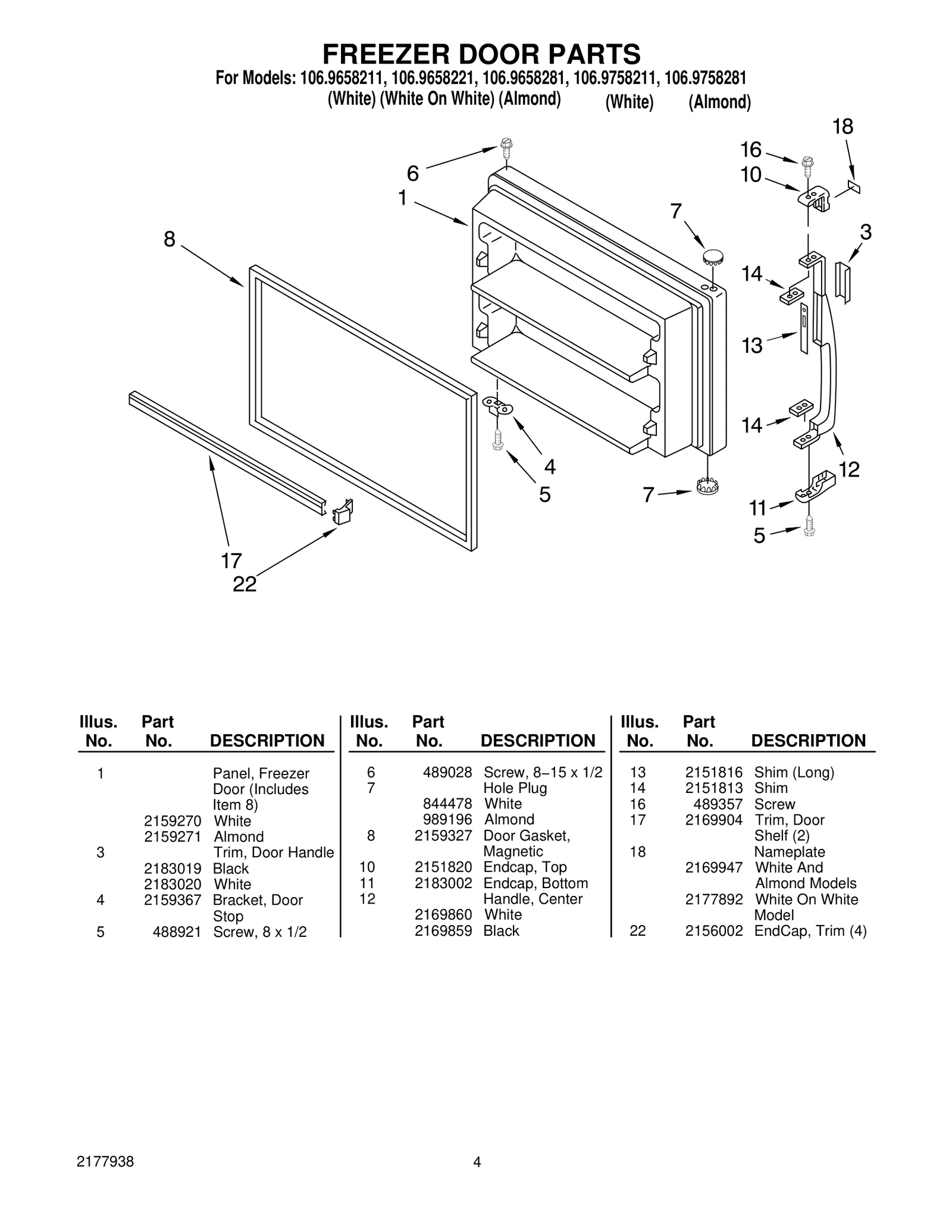

FREEZER DOOR PARTS

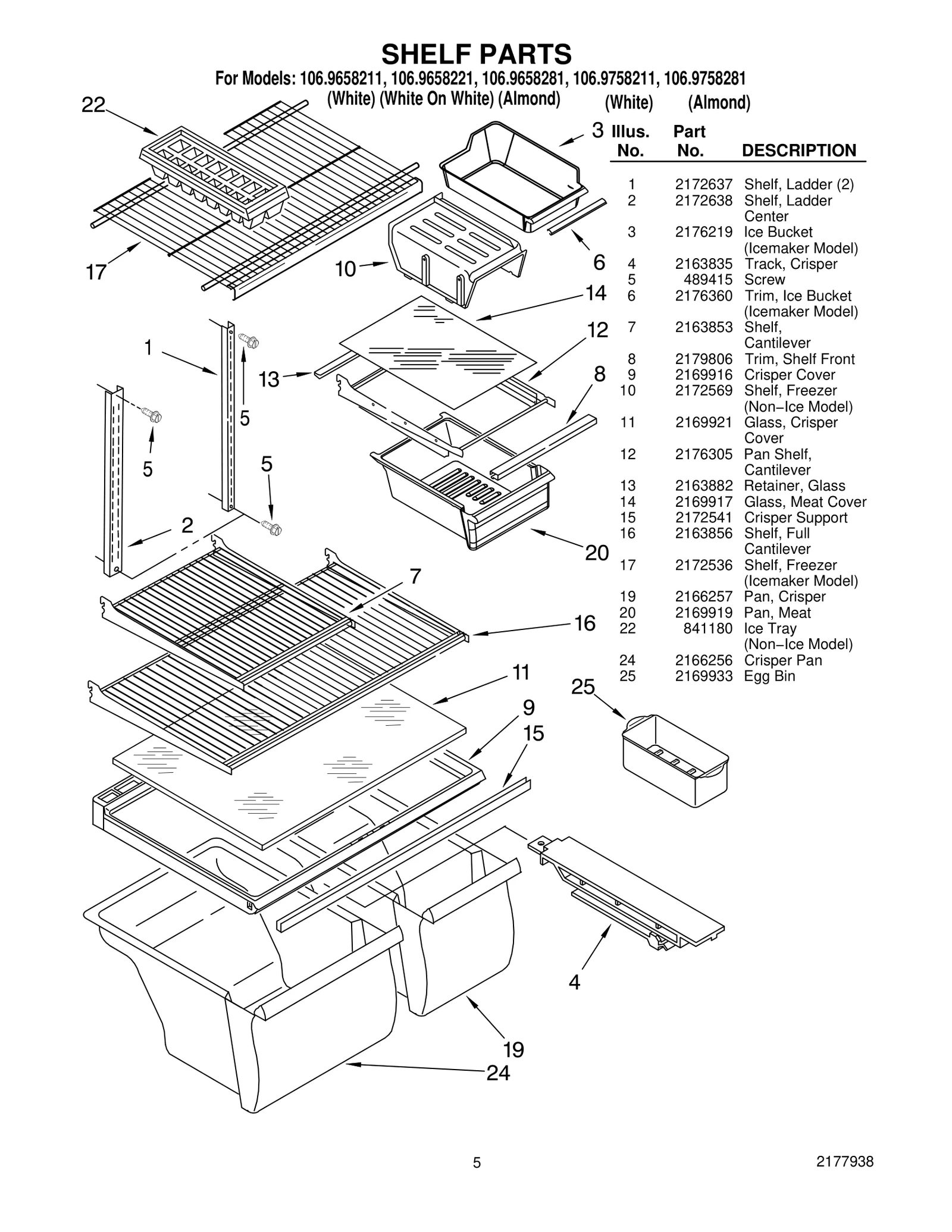

SHELF PARTS

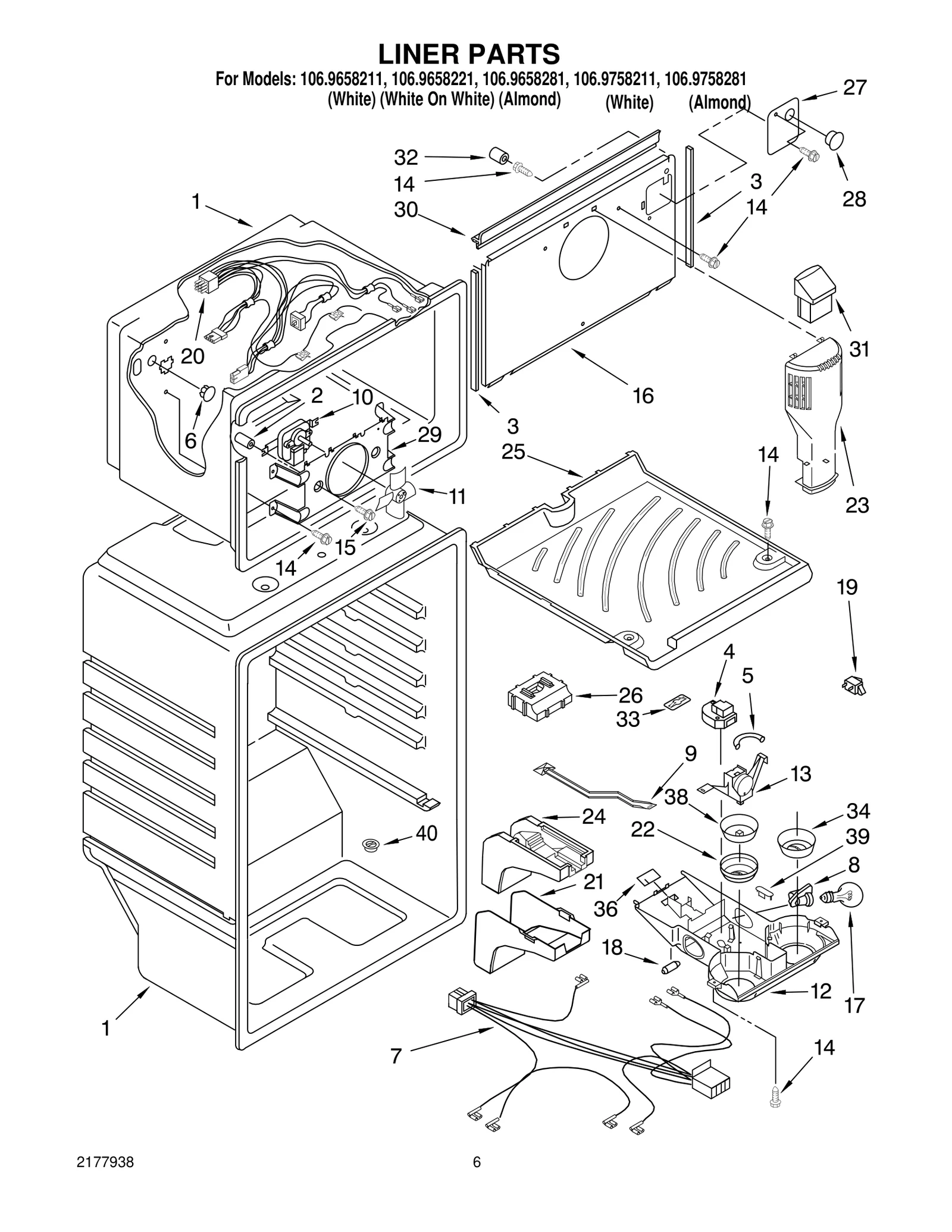

LINER PARTS

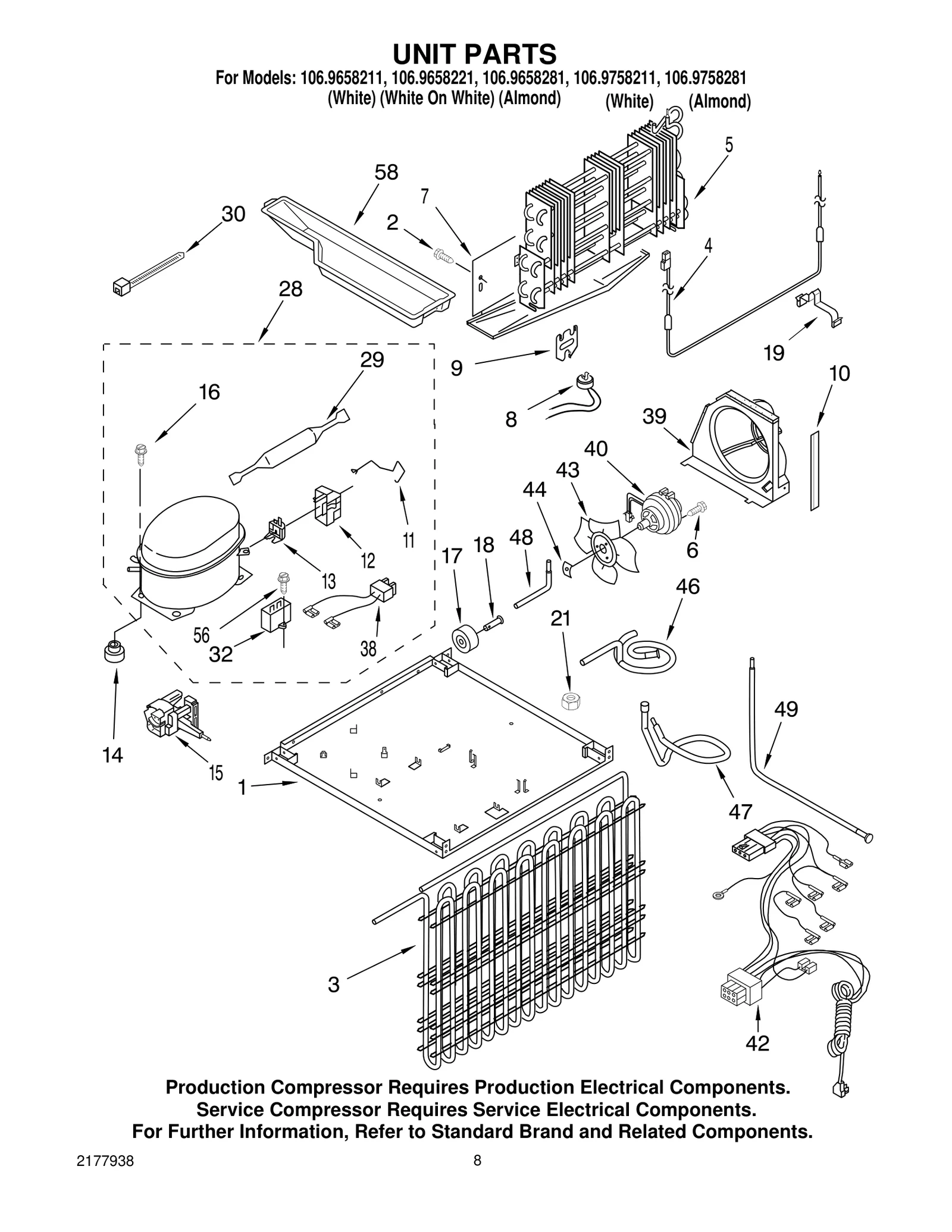

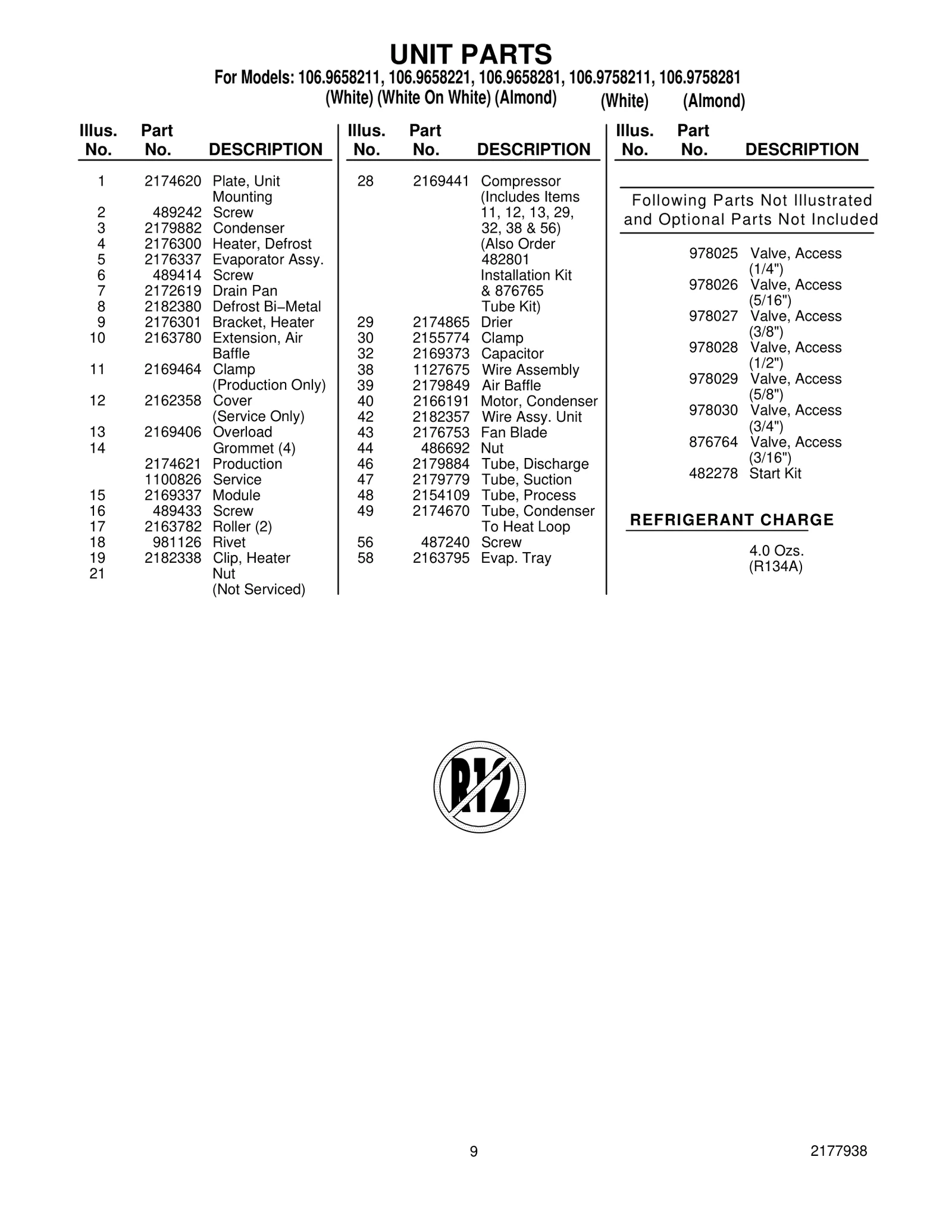

UNIT PARTS
UNIT PARTS

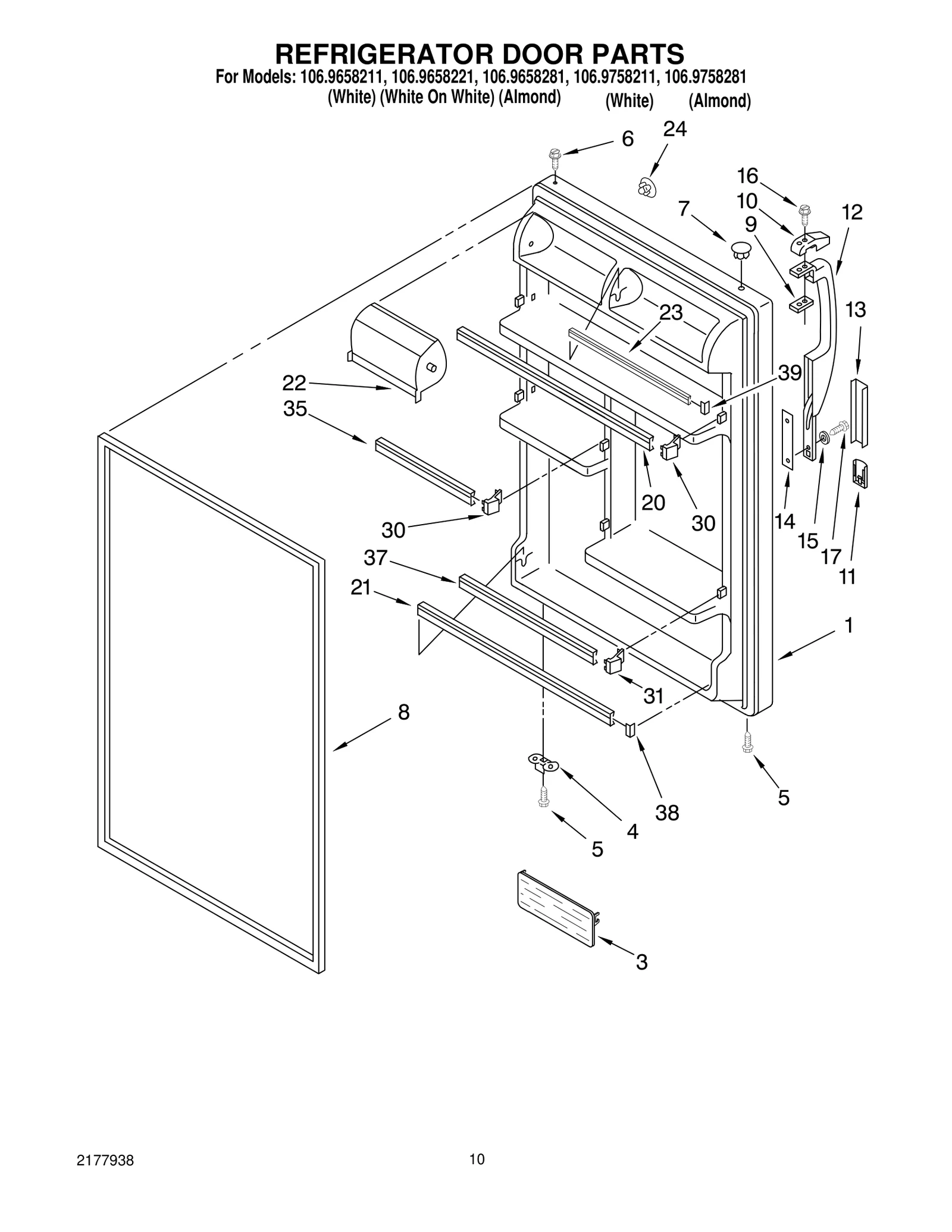

REFRIGERATOR DOOR PARTS

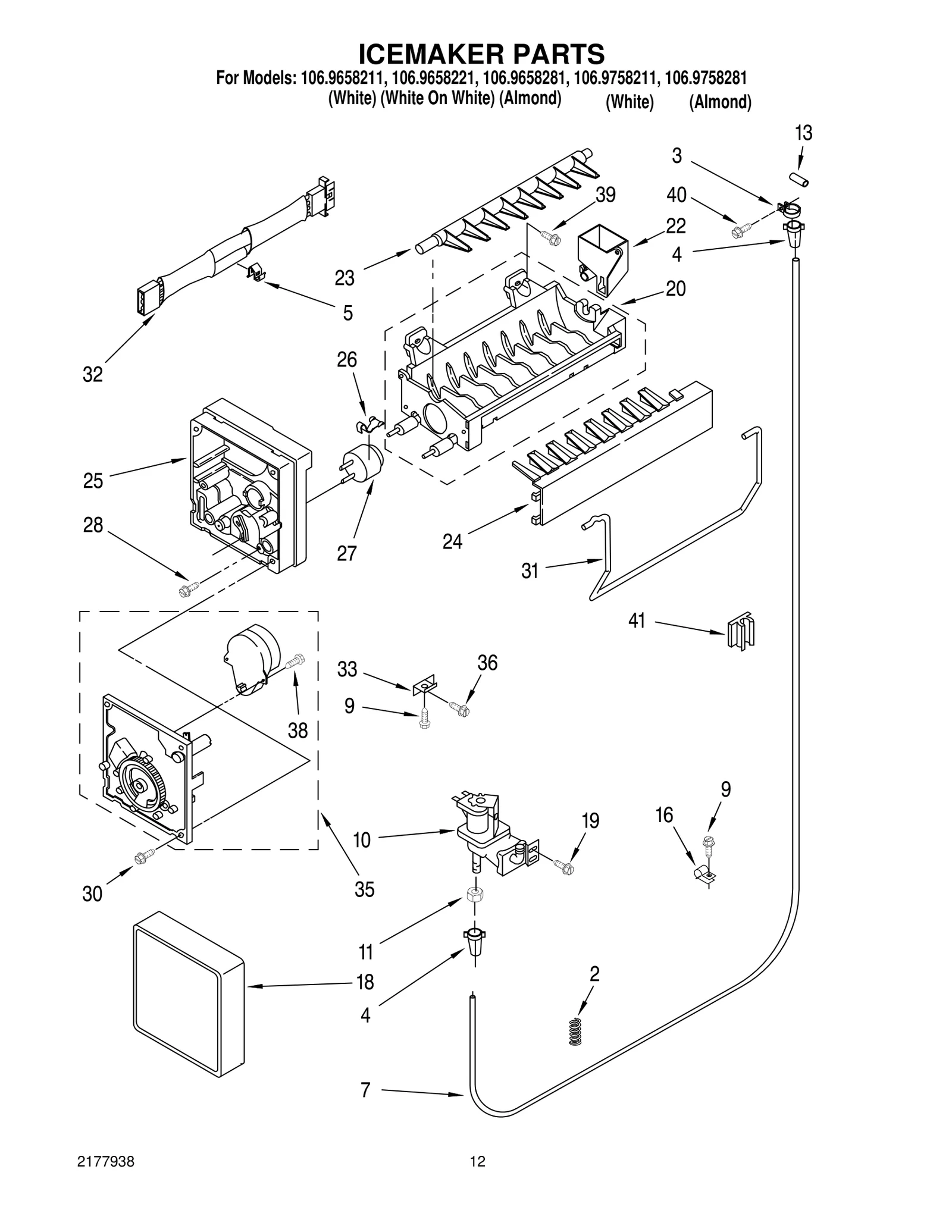

ICEMAKER PARTS
Common parts from model Whirlpool 106.9658221 Sears, Roebuck And Co., U.S.A. Refrigerator 5−95 Litho In U.S.A. Part No. 2177938 106.9658211 (White
1
Shelf, Ladder (2) WPL 2172637 Contact Us For Availability
1
For Field Installable Icemaker Repair Parts L WPL N/S Contact Us For Availability
1
Plate, Unit Mounting WPL 2174620 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) � WPL 2171029 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) � WPL 2171030 Contact Us For Availability
2
Shelf, Ladder Center WPL 2172638 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
106.8560 WPL 2174719 Contact Us For Availability
3
Condenser WPL 2179882 Contact Us For Availability
4
Timer, Defrost WPL 2176340 Contact Us For Availability
4
Bracket, Door Stop — White On White Model WPL 2159368 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
6
Trim, Ice Bucket WPL 2176360 Contact Us For Availability
6
Screw WPL 489414 Contact Us For Availability
7
Shelf, Cantilever WPL 2163853 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
7
Hole Plug — Almond WPL 989196 Contact Us For Availability
8
Trim, Shelf Front WPL 2179806 Contact Us For Availability
9
Shim, Handle End WPL 2151813 Contact Us For Availability
9
Damper, Air WPL 2179853 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Shelf, Freezer WPL 2172569 Contact Us For Availability
10
Fan Motor WPL 2176298 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
10
Handle End, Top WPL 2183002 Contact Us For Availability
11
Clamp WPL 2169464 Contact Us For Availability
11
Handle End, Bottom WPL 2151822 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
12
Control Box WPL 2172520 Contact Us For Availability
12
Handle, Center — White WPL 2169777 Contact Us For Availability
12
Handle, Center — Black WPL 2169778 Contact Us For Availability
13
Nut Compression WPL 2174755 Contact Us For Availability
13
Retainer, Glass WPL 2163882 Contact Us For Availability
13
Overload WPL 2169406 Contact Us For Availability
13
Trim, Door Handle — Black WPL 2183017 Contact Us For Availability
13
Trim, Door Handle — White WPL 2183018 Contact Us For Availability
14
Glass, Meat Cover WPL 2169917 Contact Us For Availability
14
Grommet (4) — Production WPL 2174621 Contact Us For Availability
14
Shim (Long) WPL 2151816 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
15
Module WPL 2169337 Contact Us For Availability
15
Washer WPL 2154300 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163856 Contact Us For Availability
16
Cover−Evaporator WPL 2179897 Contact Us For Availability
16
Screw WPL 489433 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2169904 Contact Us For Availability
17
Roller (2) WPL 2163782 Contact Us For Availability
18
Nameplate — White And Almond Models WPL 2169947 Contact Us For Availability
18
Nameplate — White On White Model WPL 2177892 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Pan, Meat WPL 2169919 Contact Us For Availability
20
Wire Assembly, Freezer Compartment WPL 2174610 Contact Us For Availability
20
Trim, Door Shelf WPL 2169905 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Trim, Door Shelf WPL 2169913 Contact Us For Availability
22
Knob, Thermostat WPL 2174668 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Hole Plug, Handle — Almond WPL 1122654 Contact Us For Availability
25
Freezer Floor WPL 2172679 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit & 876765 Tube Kit) WPL 482801 Contact Us For Availability
28
Hole Plug WPL 1103725 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Endcap, Trim WPL 2156001 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2174669 Contact Us For Availability
35
Trim, Door Shelf WPL 2169906 Contact Us For Availability
37
Trim−Door Shelf WPL 2169912 Contact Us For Availability
39
Hole Plug WPL 2174667 Contact Us For Availability
39
Air Baffle WPL 2179849 Contact Us For Availability
42
Wire Assy. Unit WPL 2182357 Contact Us For Availability
43
Fan Blade WPL 2176753 Contact Us For Availability
46
Tube, Discharge WPL 2179884 Contact Us For Availability
47
Tube, Suction WPL 2179779 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
Valve, Access WPL 978029 Contact Us For Availability
58
Evap. Tray Following Parts Not Illustrated an WPL 2163795 Contact Us For Availability
58
Valve, Access WPL 978028 Contact Us For Availability
58
Start Kit REFRIGERANT CHARGE 4.0 Ozs. WPL 482278 Contact Us For Availability
× ![]()
