Samsung DV409AEW/XAA-00 Dryer

1

DC92-00256B Samsung Assembly Printed Circuit Backorder SMG DC92-00256B $271.90

View on Model

1

DC97-07526B Samsung Duct Outlet Assembly Backorder SMG DC97-07526B $85.26

View on Model

1

DC97-14486A Samsung Dryer Heating Element Duc In Stock SMG DC97-14486A $270.83

View on Model

1

Dryer motor and blower assembly SMG DC93-00101H Contact Us For Availability

View on Model

1

Dryer electronic control board SMG DC92-00257A Contact Us For Availability

View on Model

1-1

6021-001201 Samsung Dryer Left Turn Nut 3/8"- In Stock SMG 6021-001201 $6.18

View on Model

1-2

DC63-10001K Samsung Dryer Absorber Sponge Backorder SMG DC63-10001K $3.79

View on Model

1-2

Dryer heater box, upper SMG DC67-00132A Contact Us For Availability

View on Model

1-3

DC47-00019A Samsung Dryer Heating Element Ass In Stock SMG DC47-00019A $71.05

View on Model

1-4

DC67-00133A Samsung Heater Lower Duct Assembl Backorder SMG DC67-00133A $58.75

View on Model

1-5

DC61-01576A Samsung Support Hinge Assembly Backorder SMG DC61-01576A $11.34

View on Model

1-5

DC61-02348A Samsung Duct Fan Guide Assembly Backorder SMG DC61-02348A $91.11

View on Model

1-5

DC96-00887C Samsung Dryer Thermal Cut-Off Fus In Stock SMG DC96-00887C $49.62

View on Model

1-6

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $1.69

View on Model

1-6

DC47-00015A Samsung Dryer 250V Thermostat In Stock SMG DC47-00015A $38.21

View on Model

1-7

DC47-00016A Samsung Thermostat In Stock SMG DC47-00016A $14.65

View on Model

1-7

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $41.79

View on Model

1-7

DC61-01204A Samsung Dryer Thermostat Bracket Backorder SMG DC61-01204A $2.70

View on Model

1-8

DC32-00007A Samsung Dryer Thermistor Sensor In Stock SMG DC32-00007A $29.00

View on Model

1-8

DC47-00018A Samsung Thermostat In Stock SMG DC47-00018A $29.71

View on Model

1-9

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

View on Model

1-9

DC61-01214A Samsung Spring Plate Assembly Backorder SMG DC61-01214A $4.49

View on Model

1-10

DC31-00055D Samsung Clothes Dryer Induction M In Stock SMG DC31-00055D $291.73

View on Model

1-12

DC66-00395A Samsung Dryer Door Lever Strike L In Stock SMG DC66-00395A $9.27

View on Model

1-13

3405-001077 Samsung Micro Switch Backorder SMG 3405-001077 $22.68

View on Model

1-13

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $1.69

View on Model

1-14

DC63-00919A Samsung Switch Cover Assembly Backorder SMG DC63-00919A $2.70

View on Model

1-15

DC61-01213A Samsung Motor Bracket Assembly In Stock SMG DC61-01213A $120.06

View on Model

1-15

DC62-00262A Samsung Dryer Door Seal Assembly Backorder SMG DC62-00262A $67.23

View on Model

1-16

DC61-01215B Samsung Dryer Idler Tension Sprin In Stock SMG DC61-01215B $5.69

View on Model

1-17

DC93-00634A Samsung Dryer Idler Pulley Assemb In Stock SMG DC93-00634A $49.76

View on Model

1-19

Dryer idler pulley SMG DC97-07509B Contact Us For Availability

View on Model

1-20

Dryer idler pulley SMG DC66-00402A Contact Us For Availability

View on Model

1-22

6009-001342 Samsung Dryer Special Puller Scre In Stock SMG 6009-001342 $1.69

View on Model

2

6602-001655 Samsung Dryer Drive Belt In Stock SMG 6602-001655 $43.28

View on Model

2

DC61-02016A Samsung Die Heater Backorder SMG DC61-02016A $29.69

View on Model

2

Dryer lint screen SMG DC61-01521A Contact Us For Availability

View on Model

2-1

DC63-10001C Samsung EPDM Sponge Backorder SMG DC63-10001C $4.33

View on Model

2-3

6001-001773 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001773 $2.16

View on Model

2-4

DC64-00828A Samsung Dryer Door Switch Assembl Backorder SMG DC64-00828A $34.97

View on Model

2-5

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

2-8

DC97-07510B Samsung Dryer Door Lever Holder C In Stock SMG DC97-07510B $18.35

View on Model

3

DC97-07895A Samsung Dryer Connector Duct Asse Backorder SMG DC97-07895A $56.95

View on Model

3-1

DC47-00021A Samsung Socket Lamp Assembly Backorder SMG DC47-00021A $26.47

View on Model

3-2

4713-001199 Samsung Dryer Drum Incandescent L Backorder SMG 4713-001199 $11.34

View on Model

3-4

Dryer drum light lens SMG DC63-00531A Contact Us For Availability

View on Model

3-11

DC63-00675A Samsung Dryer Filter Cover Backorder SMG DC63-00675A $29.79

View on Model

3-12

DC97-08894A Samsung Dryer Moisture Sensor Gui Backorder SMG DC97-08894A $44.21

View on Model

3-13

DC96-00766A Samsung Dryer Wire Harness Assemb In Stock SMG DC96-00766A $12.96

View on Model

3-14

DC97-08889A Guide Sensor Assembly MDE9700A fo In Stock SMG DC97-08889A $25.38

View on Model

3-15

DC61-01231A Samsung Dryer Wings Plate Sensor Backorder SMG DC61-01231A $7.01

View on Model

3-16

DC61-01235A Samsung Sensor Guide Assembly Backorder SMG DC61-01235A $6.47

View on Model

4

Dryer drum SMG DC97-14849A Contact Us For Availability

View on Model

5

DC61-01522A Samsung Dryer Drying Rack Assembl Backorder SMG DC61-01522A $144.58

View on Model

6

DC97-07519A Samsung Dryer Exhaust Duct Assemb Backorder SMG DC97-07519A $72.37

View on Model

6-8

Dryer heat duct SMG DC97-07521A Contact Us For Availability

View on Model

6-10

DC62-30042A Samsung Dryer Steam Water Valve A Backorder SMG DC62-30042A $153.57

View on Model

6-12

DC61-02063A Samsung Nozzle Guide Assembly Backorder SMG DC61-02063A $4.98

View on Model

7

DC93-00067B Samsung Dryer Main Wire Harness A Backorder SMG DC93-00067B $211.64

View on Model

8-2

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.50

View on Model

10

DC63-00534B Samsung Back Cover Assembly Backorder SMG DC63-00534B $53.52

View on Model

17

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $2.16

View on Model

18

DC61-01428A Samsung Power Holder Assembly Backorder SMG DC61-01428A $1.69

View on Model

NI

DC60-50145A Samsung Hex Nut Backorder SMG DC60-50145A $2.70

View on Model

NI

DC61-01228A Samsung Dryer Drum Support Roller In Stock SMG DC61-01228A $2.16

View on Model

NI

DC97-16782A Samsung Dryer Plastic Roller Whee In Stock SMG DC97-16782A $39.78

View on Model

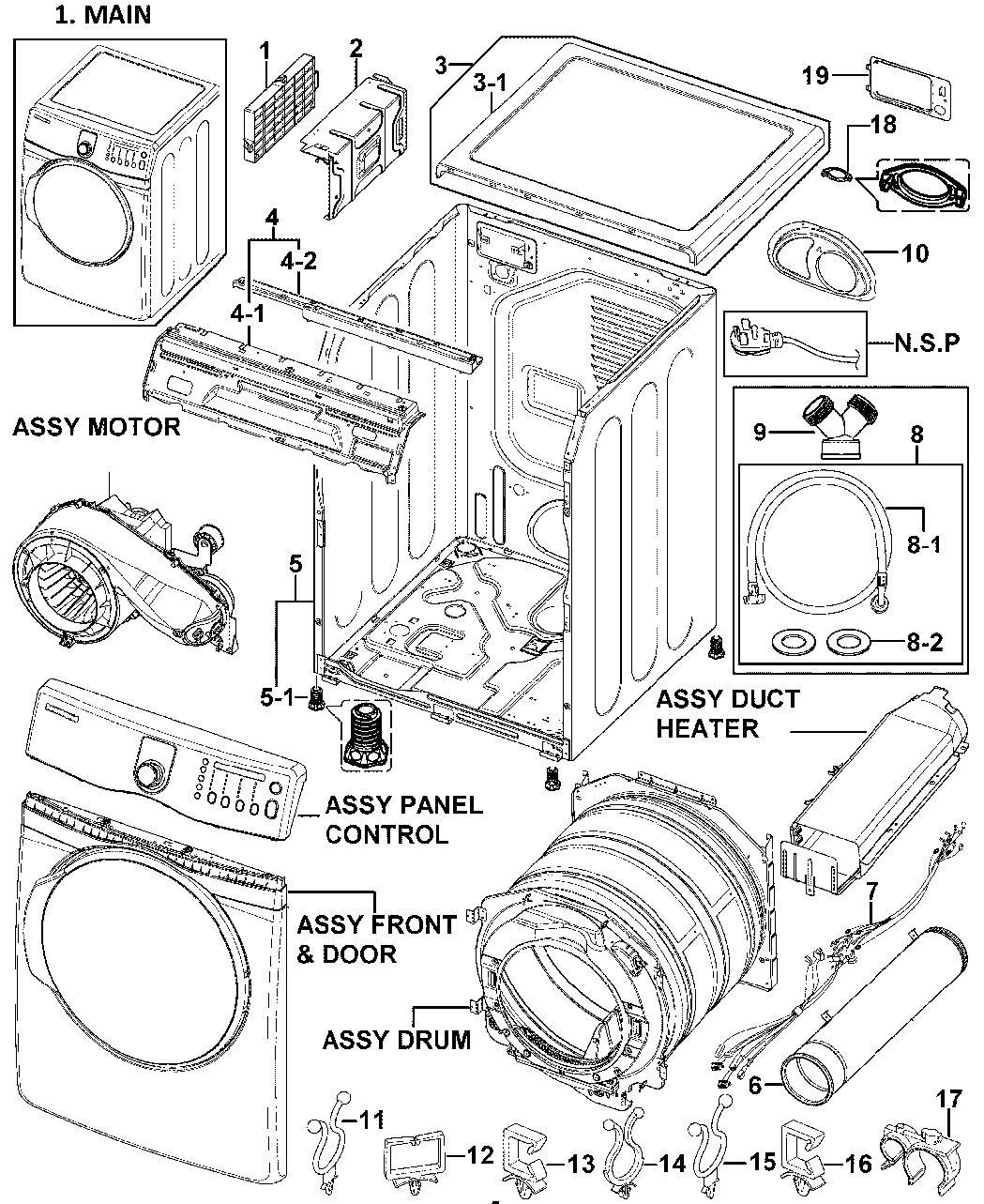

Model Samsung DV409AEW/XAA-00 Dryer – Common Parts & Diagrams

Common parts from model Samsung DV409AEW/XAA-00 Dryer
