Model Maytag YMEDE251YL0 ELECTRIC DRYER – Common Parts & Diagrams

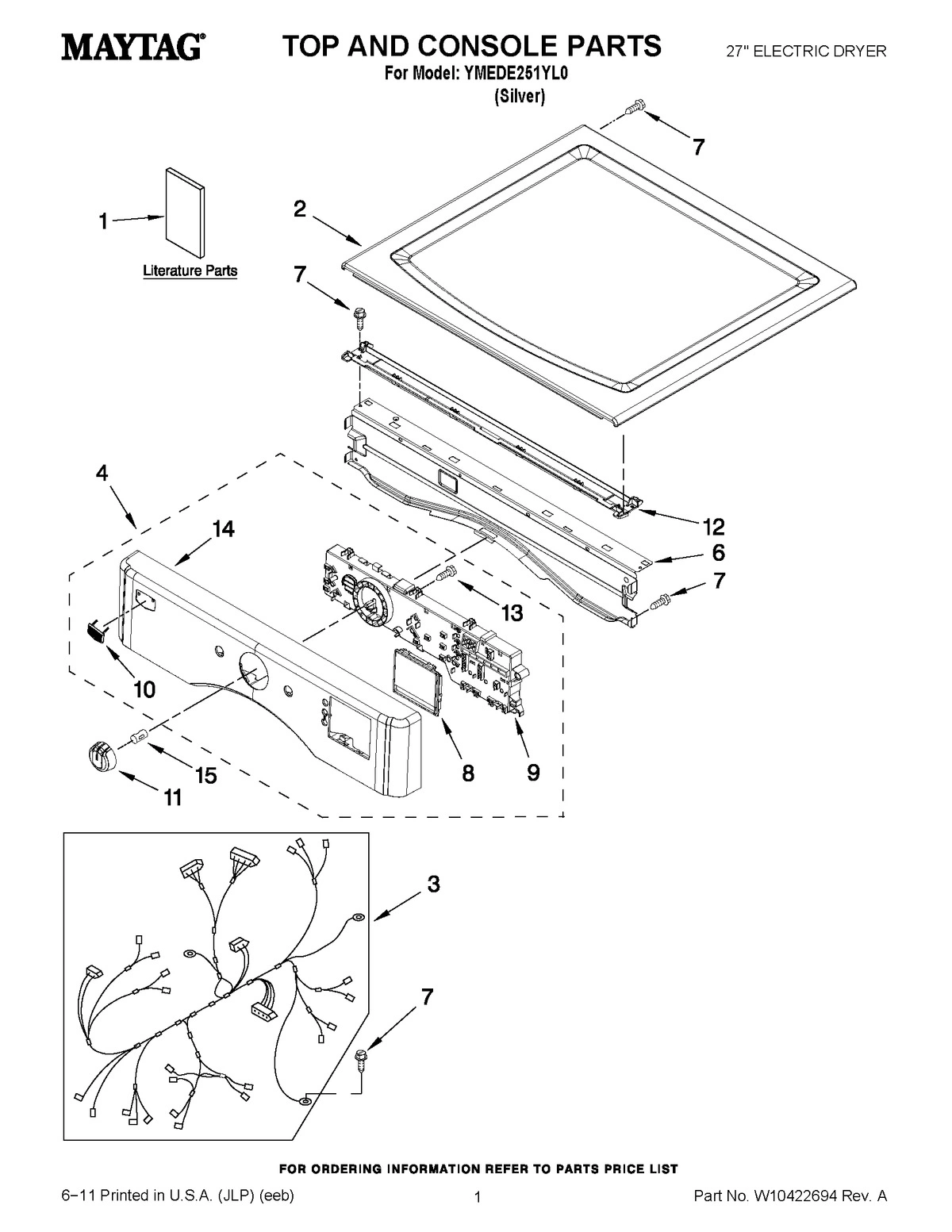

01 - TOP AND CONSOLE PARTS

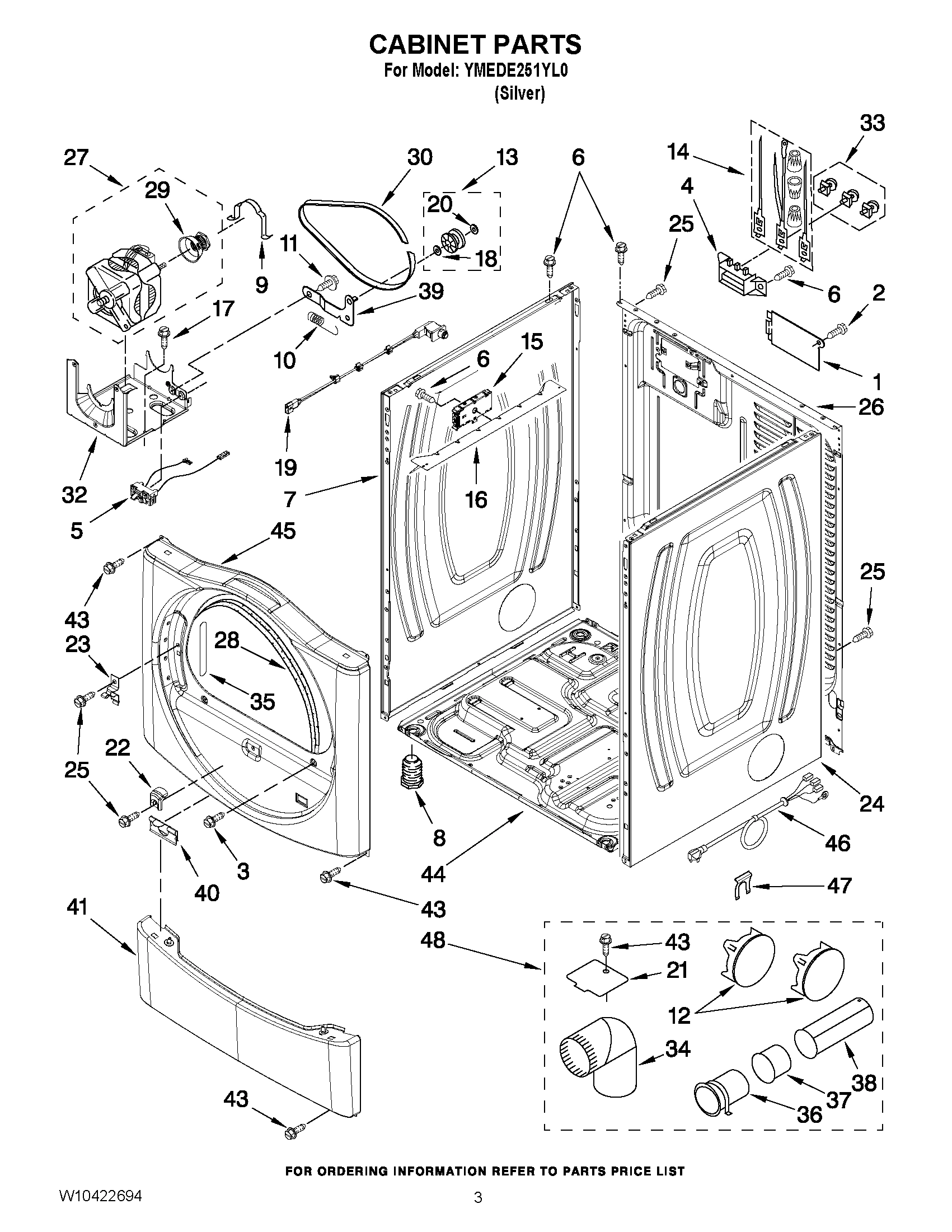

02 - CABINET PARTS

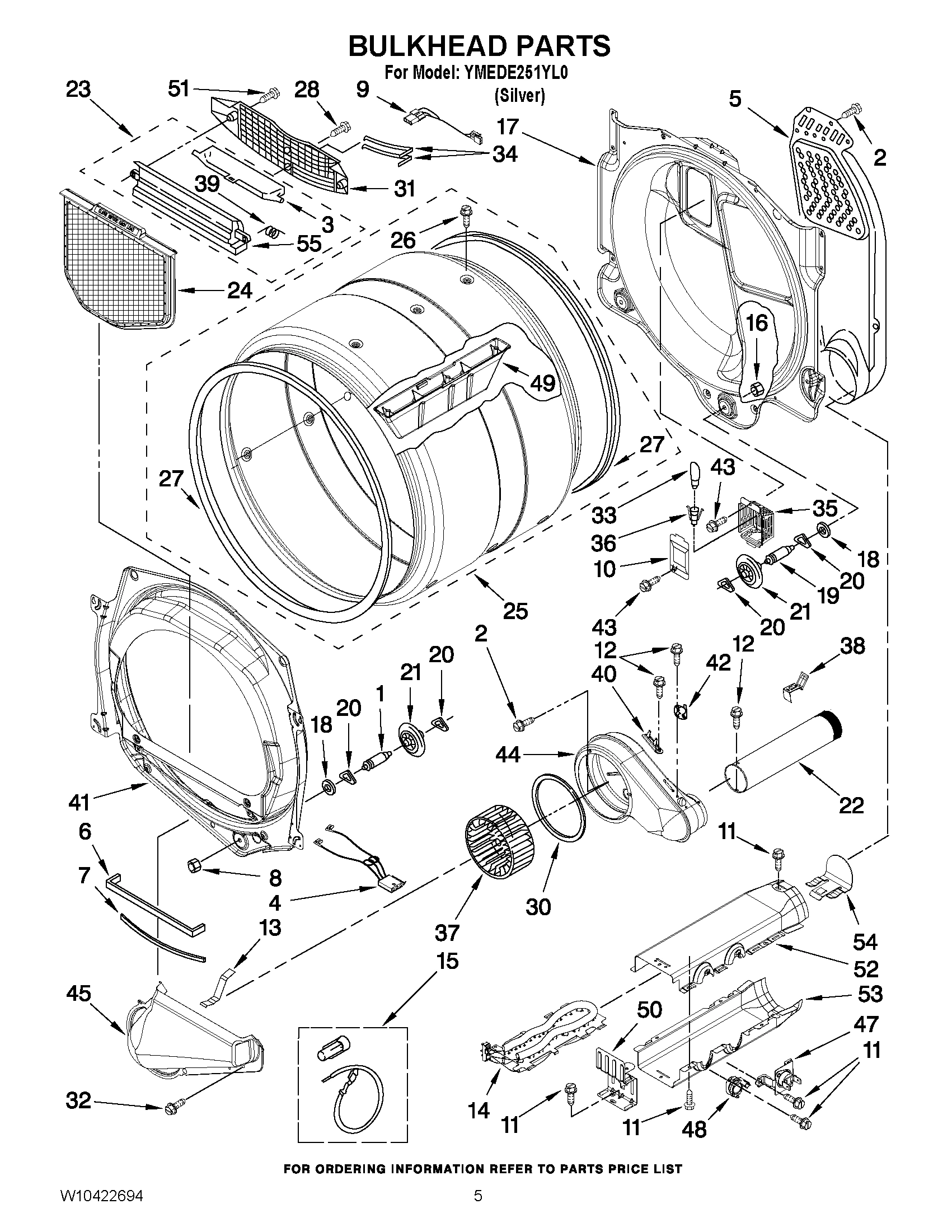

03 - BULKHEAD PARTS

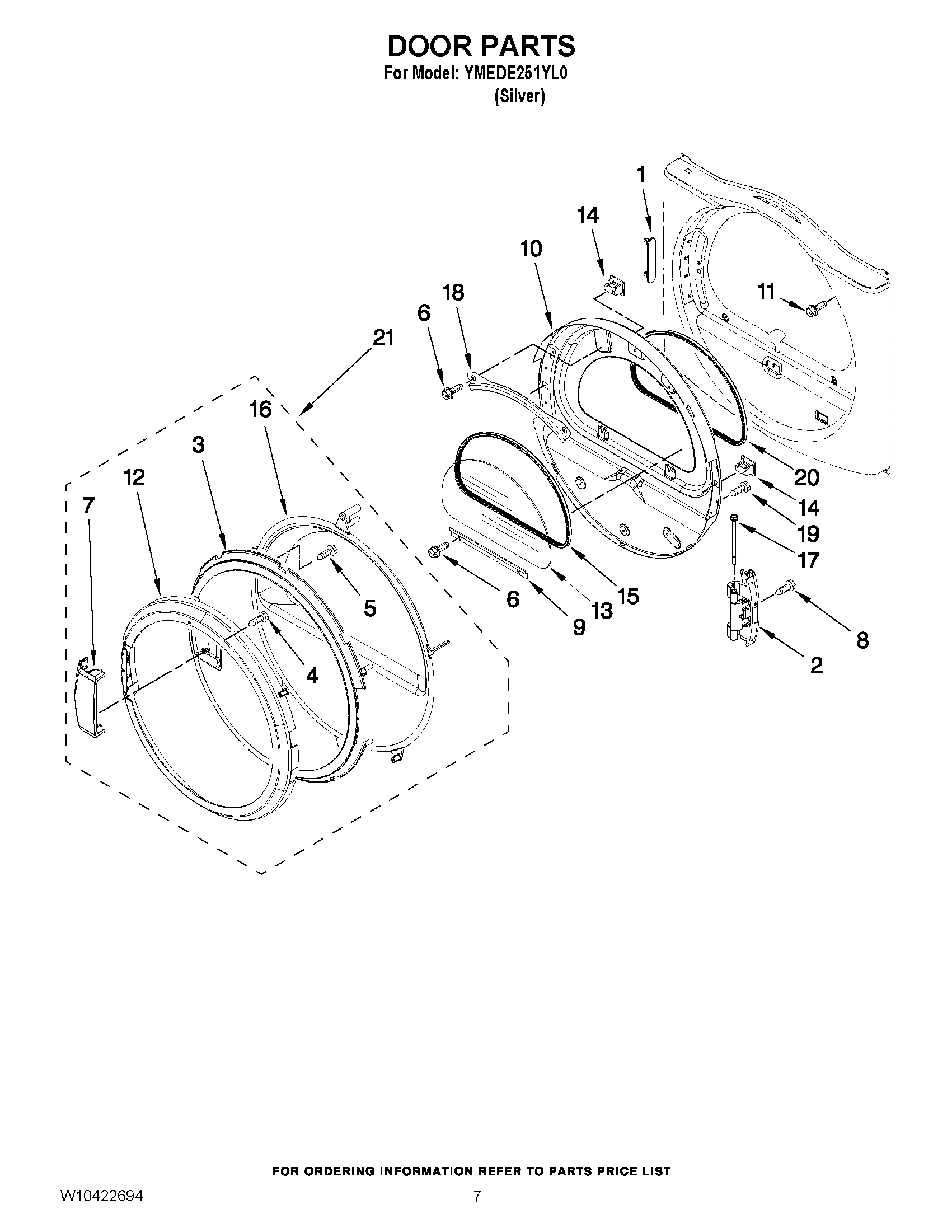

04 - DOOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMEDE251YL0 ELECTRIC DRYER
1
MAY W10385090 MAY W10385090 Contact Us For Availability
1
INSTALLATIION, INSTRUCTION MAY W10385100 Contact Us For Availability
1
MAY W10386307 MAY W10386307 Contact Us For Availability
1
MAY W10119283 MAY W10119283 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
1
LABEL, HINGE HOLE COVER MAY W10256915 Contact Us For Availability
2
TOP MAY W10336091 Contact Us For Availability
2
SCREW GROUND MAY 8533974 Contact Us For Availability
2
MAY W10304672 MAY W10304672 Contact Us For Availability
3
MAY W10251444 MAY W10251444 Contact Us For Availability
3
MAY 3357011 MAY 3357011 Contact Us For Availability
3
MAY W10153413 MAY W10153413 Contact Us For Availability
3
MAY W10405431 MAY W10405431 Contact Us For Availability
4
CONSOLE PANEL, ASSEMBLY MAY W10384999 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3406653 MAY 3406653 Contact Us For Availability
4
Screw, 8-18 x 5/8 MAY 9742177 Contact Us For Availability
5
MAY W10246525 MAY W10246525 Contact Us For Availability
5
MAY 697354 MAY 697354 Contact Us For Availability
5
Screw, 6-19 x 3/8 MAY 3400618 Contact Us For Availability
6
MAY 8565237 MAY 8565237 Contact Us For Availability
6
Screw, 8-18 x 3/8 MAY 3390814 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
6
Screw, 10-16 x 1/2 MAY 3393258 Contact Us For Availability
7
PANEL, SIDE (L.H.) MAY W10251218 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
7
HANDLE, DOOR MAY 8576578 Contact Us For Availability
8
MAY W10215794 MAY W10215794 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
8
SCREW MAY W10159996 Contact Us For Availability
9
USER INTERFACE ASSEMBLY MAY W10387236 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY W10110975 MAY W10110975 Contact Us For Availability
9
MAY 8519354 MAY 8519354 Contact Us For Availability
10
BADGE MAY W10316087 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
10
MAY W10363674 MAY W10363674 Contact Us For Availability
11
KNOB ASSEMBLY MAY W10251384 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
11
MAY 355515 MAY 355515 Contact Us For Availability
12
MAY W10266747 MAY W10266747 Contact Us For Availability
12
PLUG, MULTIVENT MAY W10331132 Contact Us For Availability
12
MAY 8533971 MAY 8533971 Contact Us For Availability
12
MAY 8576577 MAY 8576577 Contact Us For Availability
13
SCREW, M3-12 X 12 MAY W10006580 Contact Us For Availability
13
MAY 3388672 MAY 3388672 Contact Us For Availability
13
CLIP-SPRING MAY 8066208 Contact Us For Availability
13
MAY W10286878 MAY W10286878 Contact Us For Availability
14
CONSOLE PANEL MAY W10384988 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES ILLUS. 33) MAY 279318 Contact Us For Availability
14
Heater Element MAY 8544771 Contact Us For Availability
14
Door Catch Assembly MAY 690081 Contact Us For Availability
15
MAY 8536939 MAY 8536939 Contact Us For Availability
15

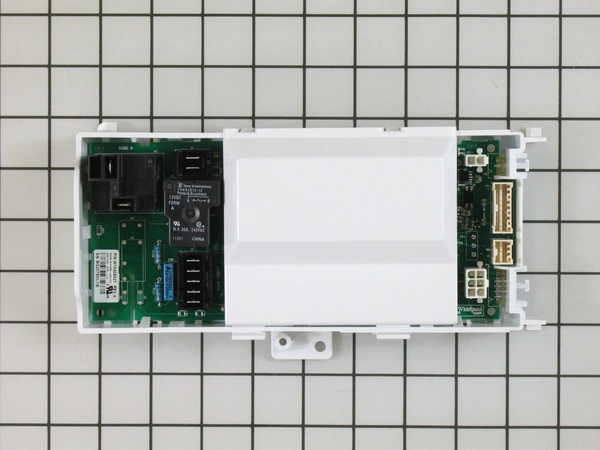

MAY W10405827 MAY W10405827 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
MAY 8579663 MAY 8579663 Contact Us For Availability
16
MAY 8563727 MAY 8563727 Contact Us For Availability
16
NUT,3/8 X 16(L.H.) MAY W10001120 Contact Us For Availability
16
DOOR,INTERMEDIATE MAY 8580059 Contact Us For Availability
17
MAY 343641 MAY 343641 Contact Us For Availability
17
MAY W10080170 MAY W10080170 Contact Us For Availability
17
BOLT, 1/4-28 MAY 8565087 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
18
MAY 8519356 MAY 8519356 Contact Us For Availability
19
ASSEMBLY, DOOR SWITCH MAY W10318609 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
19
SCREW, 8-18 X 2.00 MAY 8534044 Contact Us For Availability
20
Tri-Ring MAY W10121334 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
20
MAY W10163915 MAY W10163915 Contact Us For Availability
21
MAY 8066115 MAY 8066115 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
21
MAY W10371564 MAY W10371564 Contact Us For Availability
22
MAY 8565083 MAY 8565083 Contact Us For Availability
22
MAY 8563728 MAY 8563728 Contact Us For Availability
23
STRIKE, DOOR MAY 8565122 Contact Us For Availability
23
Housing, Outlet Assembly MAY W10153423 Contact Us For Availability
24
PANEL, SIDE (R.H.) MAY W10251219 Contact Us For Availability
24
MAY W10049370 MAY W10049370 Contact Us For Availability
25
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
25
MAY W10153420 MAY W10153420 Contact Us For Availability
26
MAY 8565059 MAY 8565059 Contact Us For Availability
26
Screw, 8-16 X 3/4 MAY W10219342 Contact Us For Availability
27
Motor Assembly 60 HZ. MAY 8538263 Contact Us For Availability
27
MAY W10166807 MAY W10166807 Contact Us For Availability
28
MAY 3387242 MAY 3387242 Contact Us For Availability
28
Screw, 8-18 x 1/2 MAY 695240 Contact Us For Availability
29
Pulley 60 HZ. MAY 8578220 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
MAY 697770 MAY 697770 Contact Us For Availability
31
MAY W10153412 MAY W10153412 Contact Us For Availability
32
BRACKET, MOTOR MAY W10242878 Contact Us For Availability
32
MAY 489463 MAY 489463 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY 49026 MAY 49026 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
LABEL, HINGE HOLE COVER MAY W10085230 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
MAY 8563747 MAY 8563747 Contact Us For Availability
36
SOCKET, ASSEMBLY MAY W10214261 Contact Us For Availability
37
MAY 8563750 MAY 8563750 Contact Us For Availability
37
MAY 697772 MAY 697772 Contact Us For Availability
38
MAY 8563749 MAY 8563749 Contact Us For Availability
38
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
39
Idler Bracket MAY 3388674 Contact Us For Availability
39
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
40
MAY 8519459 MAY 8519459 Contact Us For Availability
40
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
41
TOE PANEL MAY W10251210 Contact Us For Availability
41
MAY 8565061 MAY 8565061 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
44
MAY 8565046 MAY 8565046 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
FRONT PANEL (INCLUDES ITEMS. 28 ) MAY W10325339 Contact Us For Availability
45
Lint Duct Assembly MAY 8066168 Contact Us For Availability
46
MAY 8579325 MAY 8579325 Contact Us For Availability
47
STRAIN-RELIEF CLIP MAY 694415 Contact Us For Availability
47
Thermal Cut-Off (Includes Illus. 48) MAY 8318314 Contact Us For Availability
48
MAY 3391914 MAY 3391914 Contact Us For Availability
49
MAY W10153409 MAY W10153409 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
Screw, 10-16 x 13/16 MAY 3387230 Contact Us For Availability
52
MAY 8544769 MAY 8544769 Contact Us For Availability
53
MAY 8544770 MAY 8544770 Contact Us For Availability
54
MAY 8544776 MAY 8544776 Contact Us For Availability
55
MAY W10153414 MAY W10153414 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
DRYER EXHAUST KIT (FOR SIDE & BOTTOMVENTING) MAY W10186596 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY 8529894 MAY 8529894 Contact Us For Availability
NI
KIT, STACKING MAY 8572546 Contact Us For Availability
× ![]()
