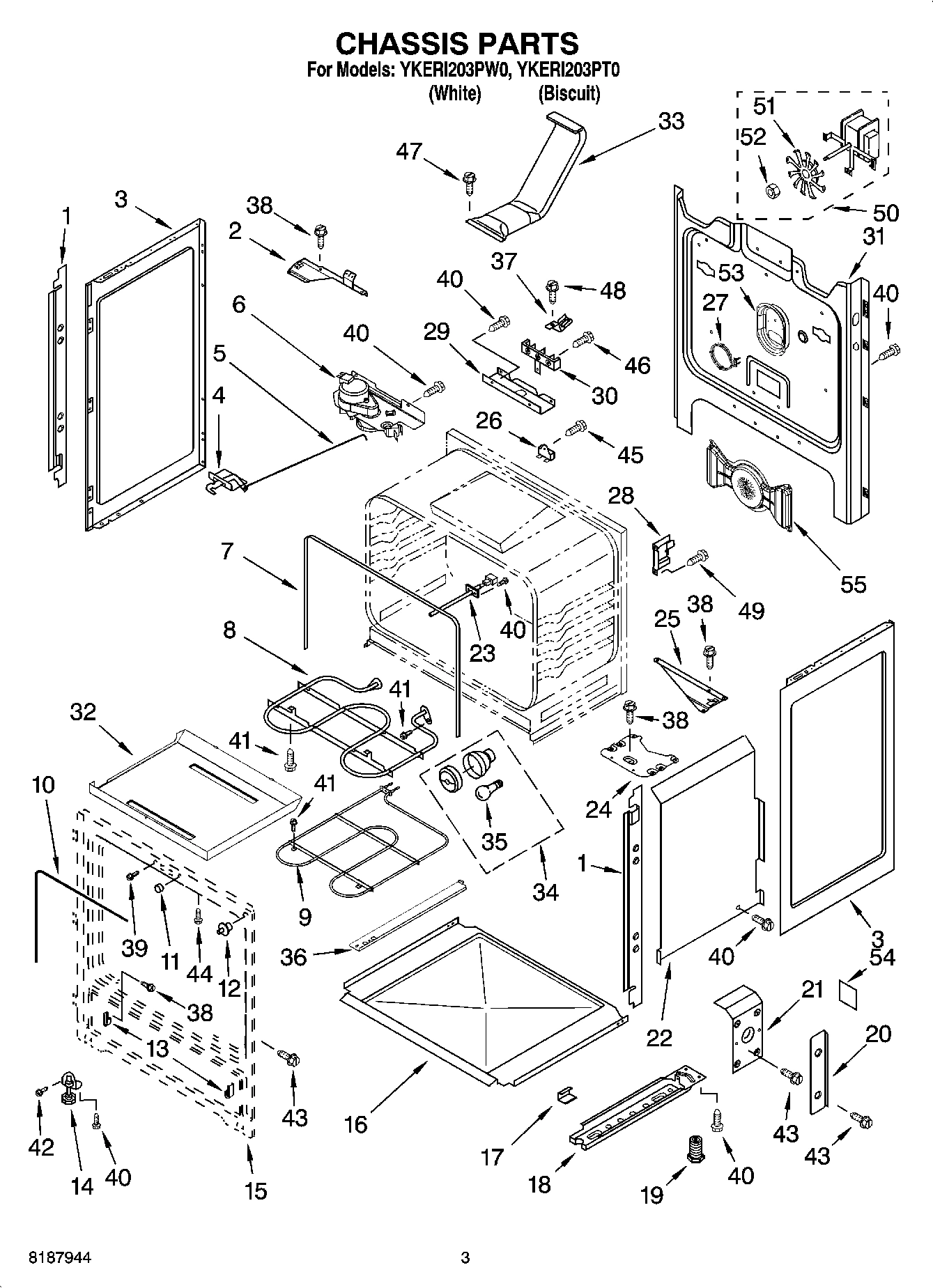

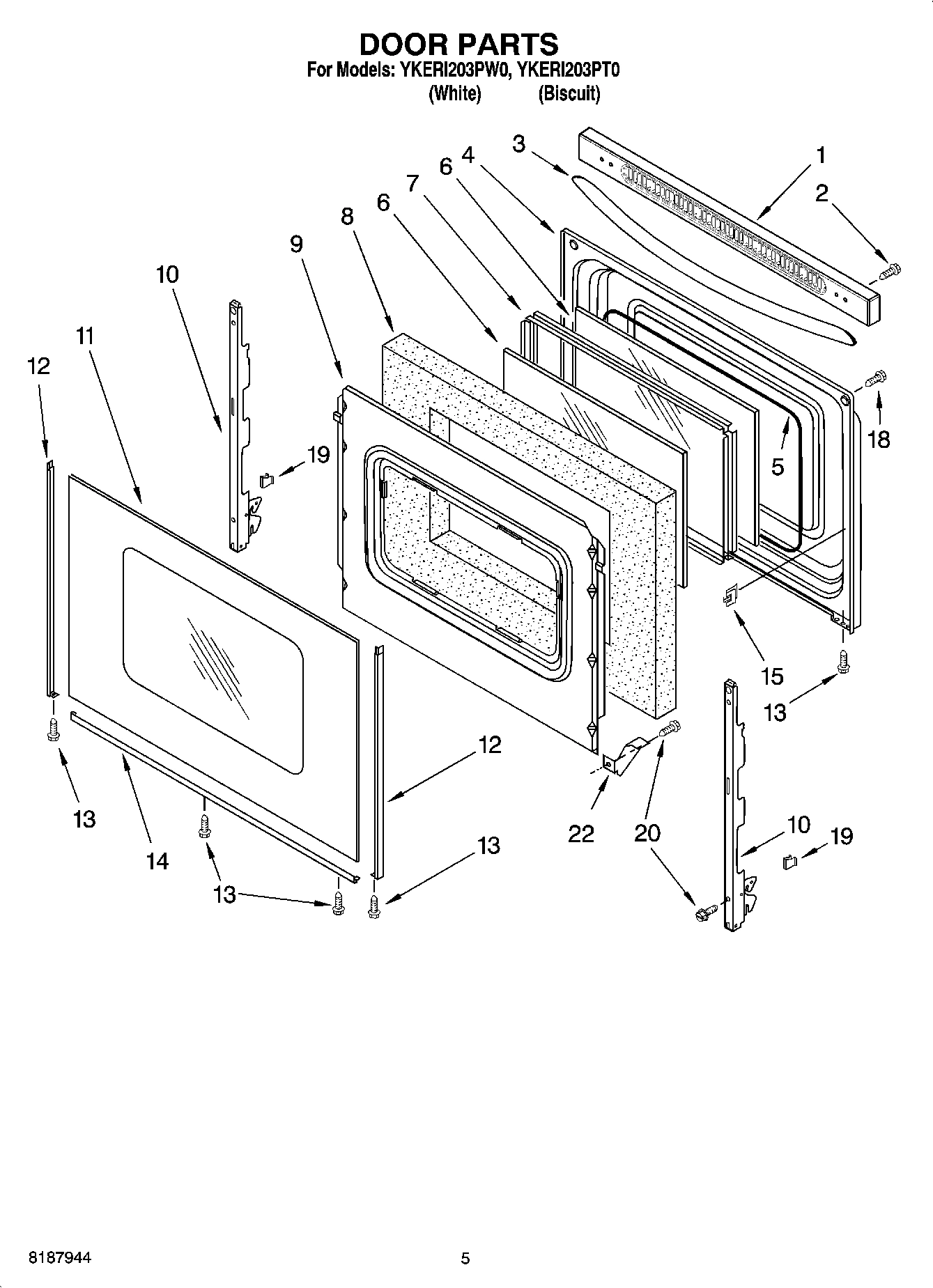

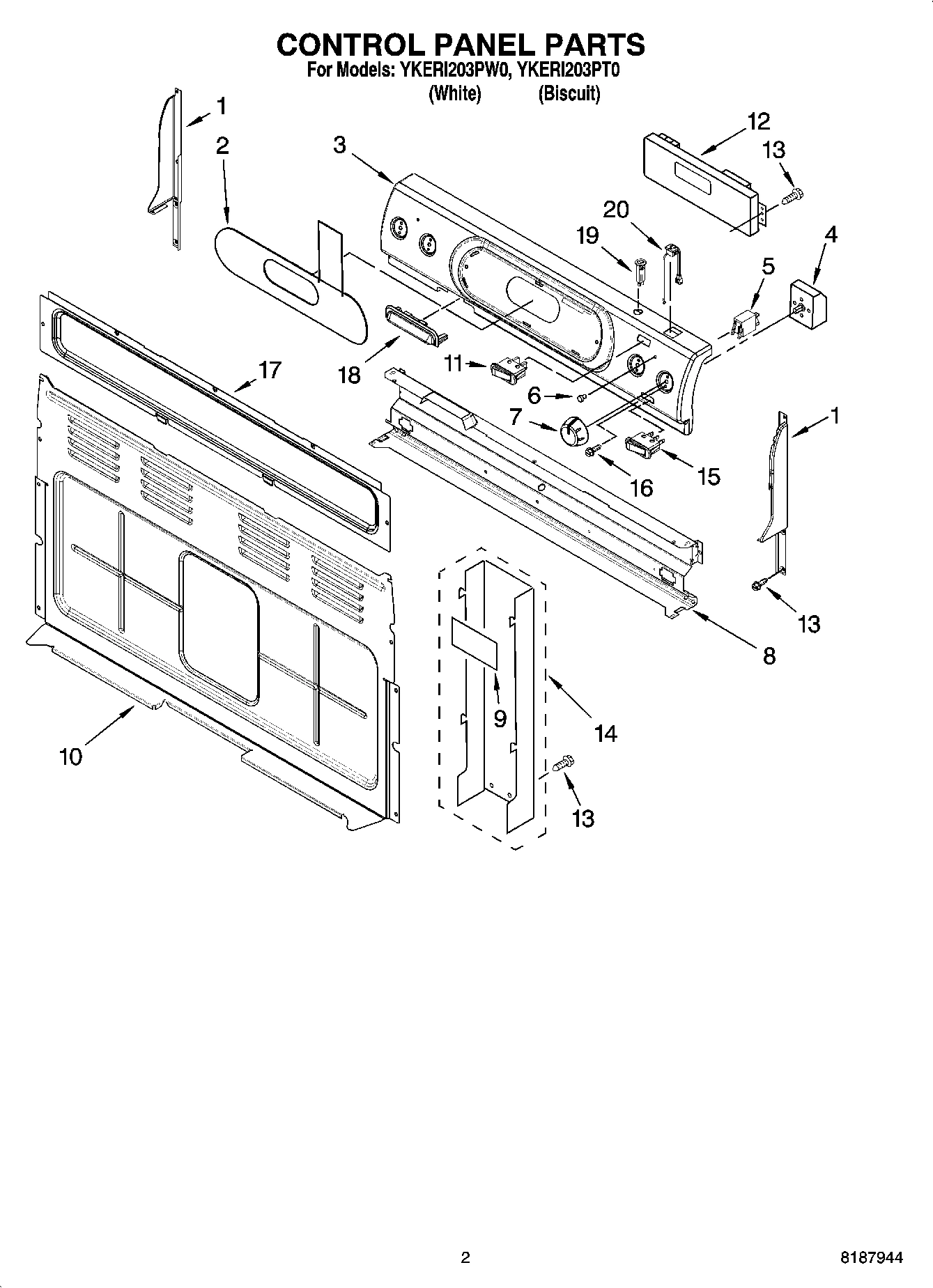

Model Whirlpool YKERI203PW0 30`` ELECTRIC CERAN FREE STANDING RANGE CONVECTION – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

W10465644 Whirlpool Wire Harness Backorder WPL W10465644 $34.16

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

1

Literature Parts (English/French) WPL LIT9756849 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT9758336 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT9758876 Contact Us For Availability

1

Shield, Heat (2) WPL 3196137 Contact Us For Availability

1

Endcap (White Right Hand) WPL 9756958 Contact Us For Availability

1

Endcap (White Left Hand) WPL 9756959 Contact Us For Availability

1

Endcap (Biscuit Right Hand) WPL 9756962 Contact Us For Availability

1

Endcap (Biscuit Left Hand) WPL 9756963 Contact Us For Availability

1

Trim, Door Top (White) WPL 9756965 Contact Us For Availability

1

Trim, Door Top (Biscuit) WPL 9756966 Contact Us For Availability

2

WP3195996 Whirlpool Pan Grid Backorder WPL WP3195996 $58.28

2

WP3196164 Whirlpool Screw In Stock WPL WP3196164 $3.91

2

Spring, Locator WPL 3149191 Contact Us For Availability

2

Support, Corner LR WPL 8273905 Contact Us For Availability

2

Membrane Switch (White) WPL 9756532 Contact Us For Availability

2

Membrane Switch (Biscuit) WPL 9756533 Contact Us For Availability

3

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $130.02

3

WP3196076 Whirlpool Broil Pan Backorder WPL WP3196076 $199.59

3

WP3196170 Whirlpool Screw Backorder WPL WP3196170 $4.82

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $119.76

3

Panel, Backguard (Biscuit) WPL 9756726 Contact Us For Availability

3

Panel, Backguard (White) WPL 9756734 Contact Us For Availability

3

Handle, Door (White) WPL 9758339 Contact Us For Availability

3

Handle, Door (Biscuit) WPL 9758340 Contact Us For Availability

4

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $41.49

4

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $56.64

4

WP9757030 Whirlpool Infinite Switch Backorder WPL WP9757030 $123.56

4

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $168.49

4

Cooktop (White) WPL 9756979 Contact Us For Availability

4

Cooktop (Biscuit) WPL 9756980 Contact Us For Availability

4

Liner, Door WPL 3186292 Contact Us For Availability

5

WP8523266 Whirlpool Indicator Light Backorder WPL WP8523266 $73.22

5

Seal, Window WPL 8522414 Contact Us For Availability

5

Light, Indicator (Hot Surface) WPL 8523739 Contact Us For Availability

5

Rod, Latch WPL 3196961 Contact Us For Availability

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $7.99

6

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $6.64

6

WP8053948 Whirlpool Door Glass In Stock WPL WP8053948 $139.50

6

Bracket, Ind Light WPL 8523741 Contact Us For Availability

6

Latch Ass`y, Rear WPL 9756913 Contact Us For Availability

7

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $183.83

7

WP8273993 Whirlpool Surface Element In Stock WPL WP8273993 $235.85

7

WP8523047 Whirlpool Surface Element Assembly Backorder WPL WP8523047 $223.08

7

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $52.65

7

Knob (4) (White) WPL 9756941 Contact Us For Availability

7

Panel, Drawer Front (White) WPL 9756325 Contact Us For Availability

7

Element, Surface (100 W - CR) WPL 9757028 Contact Us For Availability

7

Element, Surface (1800/800 W - RR) WPL 9757031 Contact Us For Availability

7

Seal, Oven Flange WPL 3195737 Contact Us For Availability

7

Knob (4) (Biscuit) WPL 9756942 Contact Us For Availability

8

WP9757341 Whirlpool Broil Element In Stock WPL WP9757341 $105.69

8

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $63.46

8

Shield, Heat WPL 9756934 Contact Us For Availability

9

W11539580 Whirlpool Retainer Backorder WPL W11539580 $138.53

9

WP9755770 Whirlpool Bake Element In Stock WPL WP9755770 $120.88

9

Bracket, Element ((2)) WPL 8272791 Contact Us For Availability

9

Bracket, Element ((1)) WPL 8273720 Contact Us For Availability

9

Card, Insulation WPL 9757309 Contact Us For Availability

10

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $26.89

10

WP8053807 Whirlpool Range Door Hinge In Stock WPL WP8053807 $77.99

10

Cover, Rear WPL 9756999 Contact Us For Availability

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $35.20

WP8053334 Whirlpool Drawer Glide In Stock WPL WP8053334 $9.86

WPW10163899 Whirlpool Switch Backorder WPL WPW10163899 $61.69

Switch, Simmer (White) WPL 9757407WH Contact Us For Availability

Glass, Outer Door (White) WPL 9757039 Contact Us For Availability

Glass, Outer Door (Biscuit) WPL 9757040 Contact Us For Availability

WP3196262 Whirlpool Light Switch Backorder WPL WP3196262 $105.50

WP8523166 Whirlpool Door Trim In Stock WPL WP8523166 $68.99

WP8523167 Whirlpool Door Trim Assembly Backorder WPL WP8523167 $73.03

WP8523172 Whirlpool Left Door Trim In Stock WPL WP8523172 $68.99

WP8523173 Whirlpool Door Trim Backorder WPL WP8523173 $73.19

Control, Range WPL 9756548 Contact Us For Availability

13

W10491985 Whirlpool Screw Backorder WPL W10491985 $6.99

13

WP3195546 Whirlpool Drawer Glide In Stock WPL WP3195546 $7.99

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $53.98

WP8523175 Whirlpool Door Trim Assembly In Stock WPL WP8523175 $89.99

WP8523178 Whirlpool Door Trim Backorder WPL WP8523178 $103.15

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $85.37

Frame, Front (Non-Serviceable) WPL ARI166812A Contact Us For Availability

Switch, Warming (Biscuit) WPL 9757406BT Contact Us For Availability

Switch, Warming (White) WPL 9757406WH Contact Us For Availability

Clip, Glass (4) WPL 3196025 Contact Us For Availability

16

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $3.91

16

WP8054068 Whirlpool Retainer Backorder WPL WP8054068 $59.08

17

Clip, Panel (6) WPL 3196576 Contact Us For Availability

17

Cover, Rear (Console) WPL 9758319 Contact Us For Availability

WP179051 Whirlpool Screw Backorder WPL WP179051 $4.99

WPW10306546 Whirlpool Base Rail Backorder WPL WPW10306546 $86.92

Cover, Vent (White) WPL 9758352 Contact Us For Availability

Cover, Vent (Biscuit) WPL 9758353 Contact Us For Availability

WP3196925 Whirlpool Clip Assembly Backorder WPL WP3196925 $7.73

WP9757601 Whirlpool Breaker Backorder WPL WP9757601 $49.20

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.98

Breaker, 15Amp (Biscuit) WPL 9757603 Contact Us For Availability

20

Shield, Outer (2) WPL 3196091 Contact Us For Availability

20

Receptacle (White) WPL 9756358 Contact Us For Availability

20

Receptacle (Biscuit) WPL 9756360 Contact Us For Availability

21

Shield, Inner (2) WPL 3196092 Contact Us For Availability

22

Retainer, Side (2) WPL 8523803 Contact Us For Availability

22

Bracket, Window (2) WPL 3196794 Contact Us For Availability

23

WPW10181986 Whirlpool Range Sensor In Stock WPL WPW10181986 $70.79

24

Support, Front (2) WPL 3195736 Contact Us For Availability

25

Support, Corner RR WPL 3195987 Contact Us For Availability

26

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $19.99

27

WP9760769 Whirlpool Element Assembly Backorder WPL WP9760769 $228.85

28

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $11.14

29

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $48.35

30

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

30

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

31

Back, Main WPL 9757029 Contact Us For Availability

32

Tray, Hidden Bake Element WPL 9755769 Contact Us For Availability

33

WPW10134285 Whirlpool Vent Tube Backorder WPL WPW10134285 $167.88

34

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $57.87

35

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

36

Cover, Tray WPL 9755771 Contact Us For Availability

37

Ground Strap WPL 3169573 Contact Us For Availability

38

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

39

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

41

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $4.82

42

Screw WPL 3196179 Contact Us For Availability

43

WP7101P246-60 Whirlpool Screw Backorder WPL WP7101P246-60 $4.82

44

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

45

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $8.89

46

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $4.82

47

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

48

W11244557 Whirlpool Screw Backorder WPL W11244557 $8.89

49

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

50

WP9758925 Whirlpool Convection Fan Backorder WPL WP9758925 $220.14

51

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

52

Nut WPL 4452227 Contact Us For Availability

53

Cover, Convection Fan WPL 9755776 Contact Us For Availability

54

W10646923 Whirlpool Insulator Backorder WPL W10646923 $12.38

8053915 Whirlpool Range Insulation Backorder WPL 8053915 $7.59

Insulation, Back WPL 9755772 Contact Us For Availability

Baffle, Convection WPL 9757088 Contact Us For Availability

Insulation WPL ARI166813A Contact Us For Availability
