WTW4850BW0

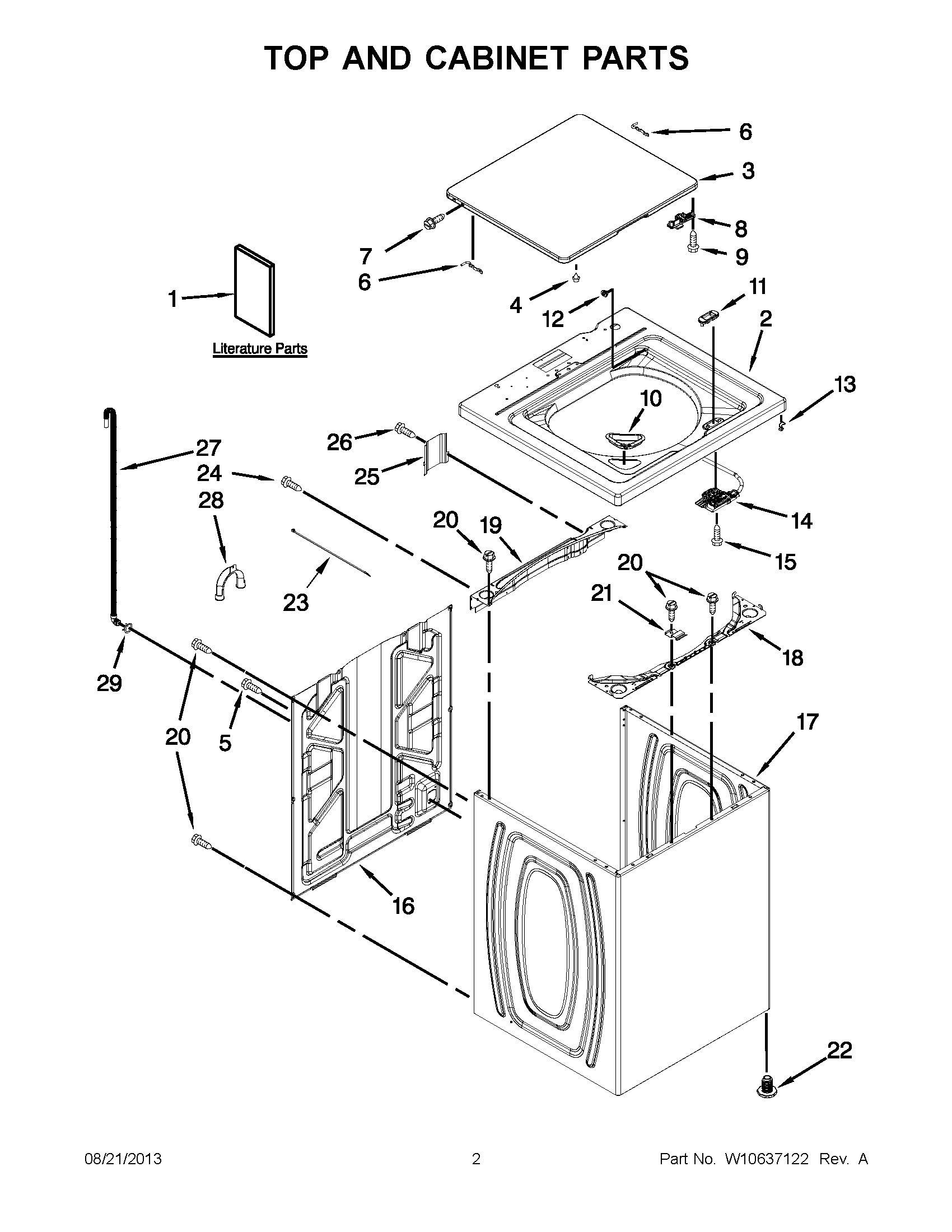

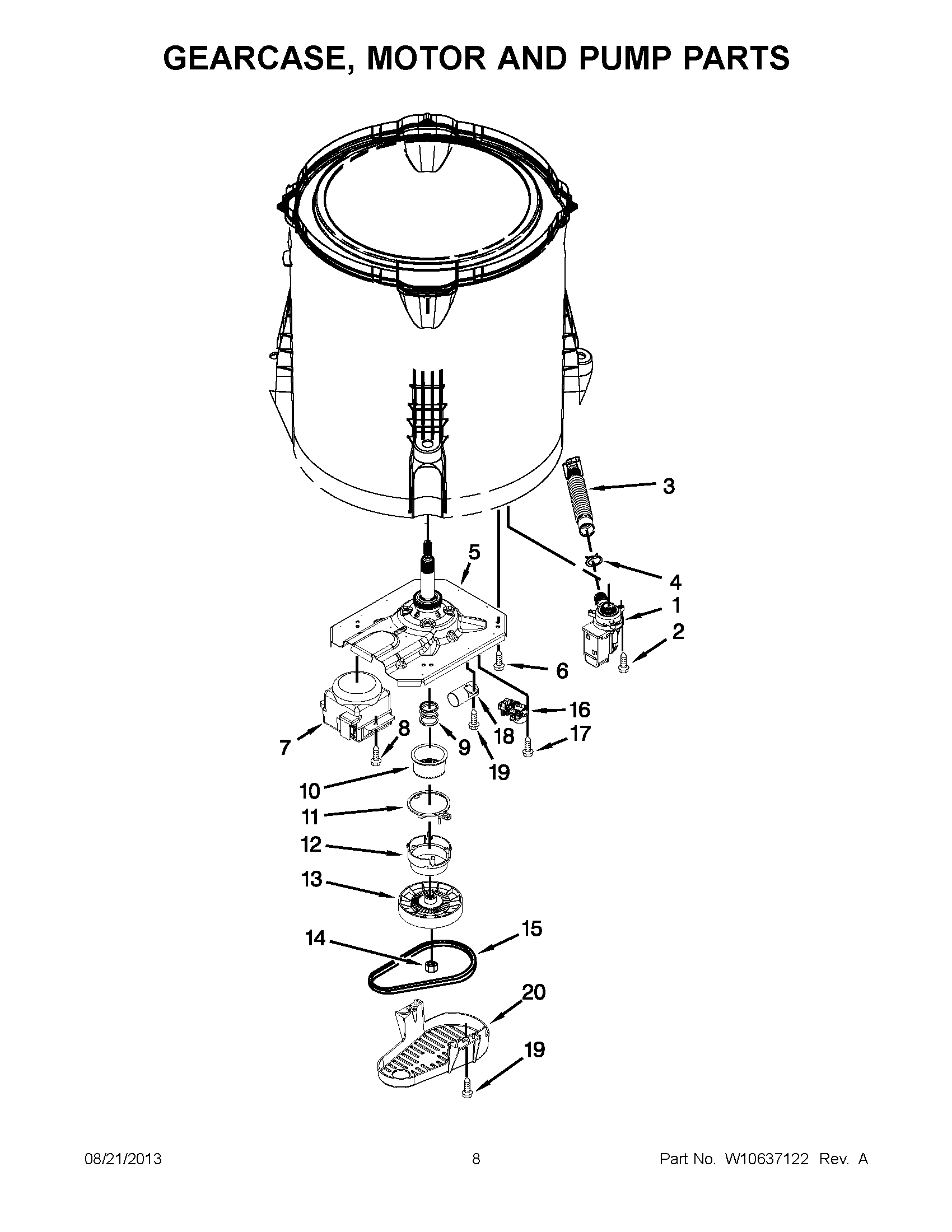

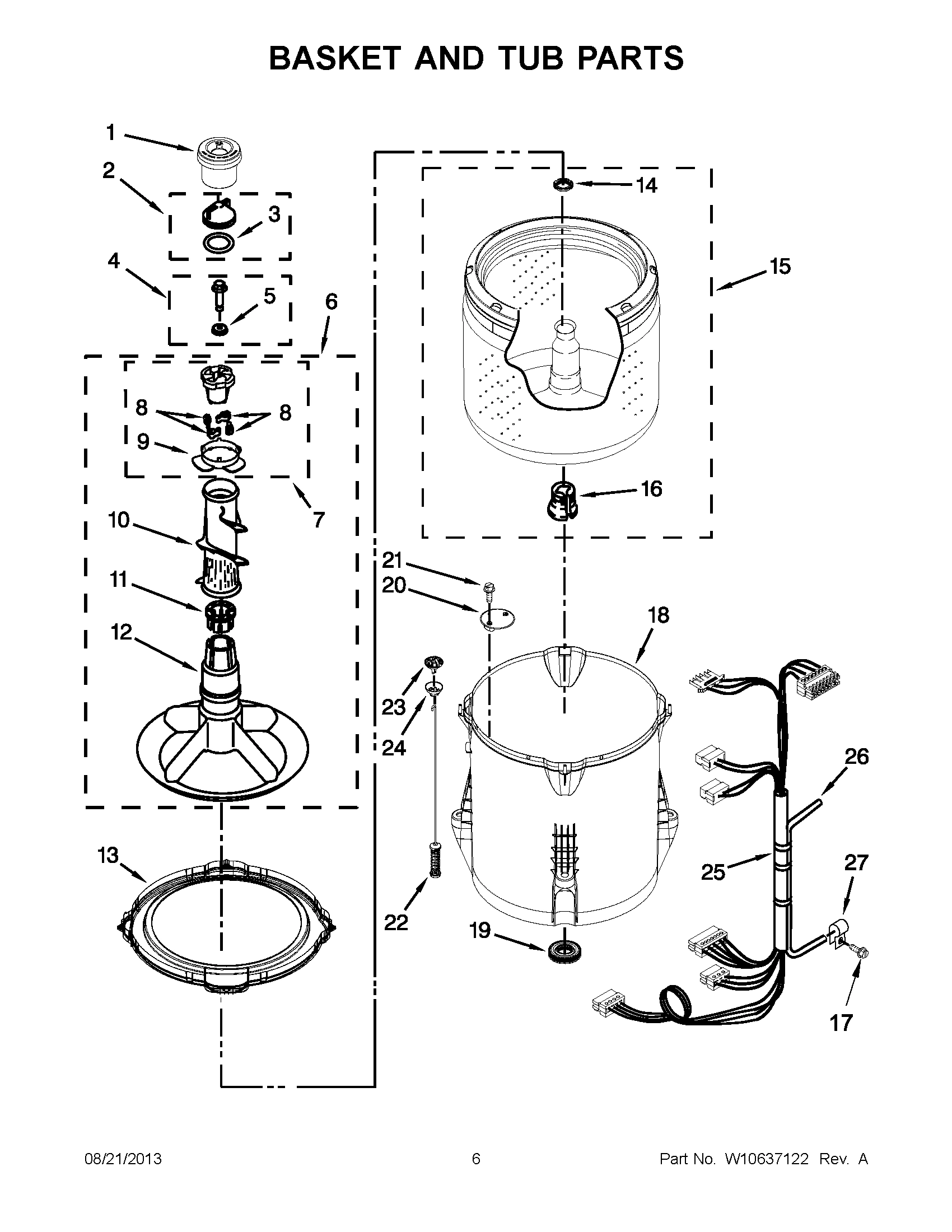

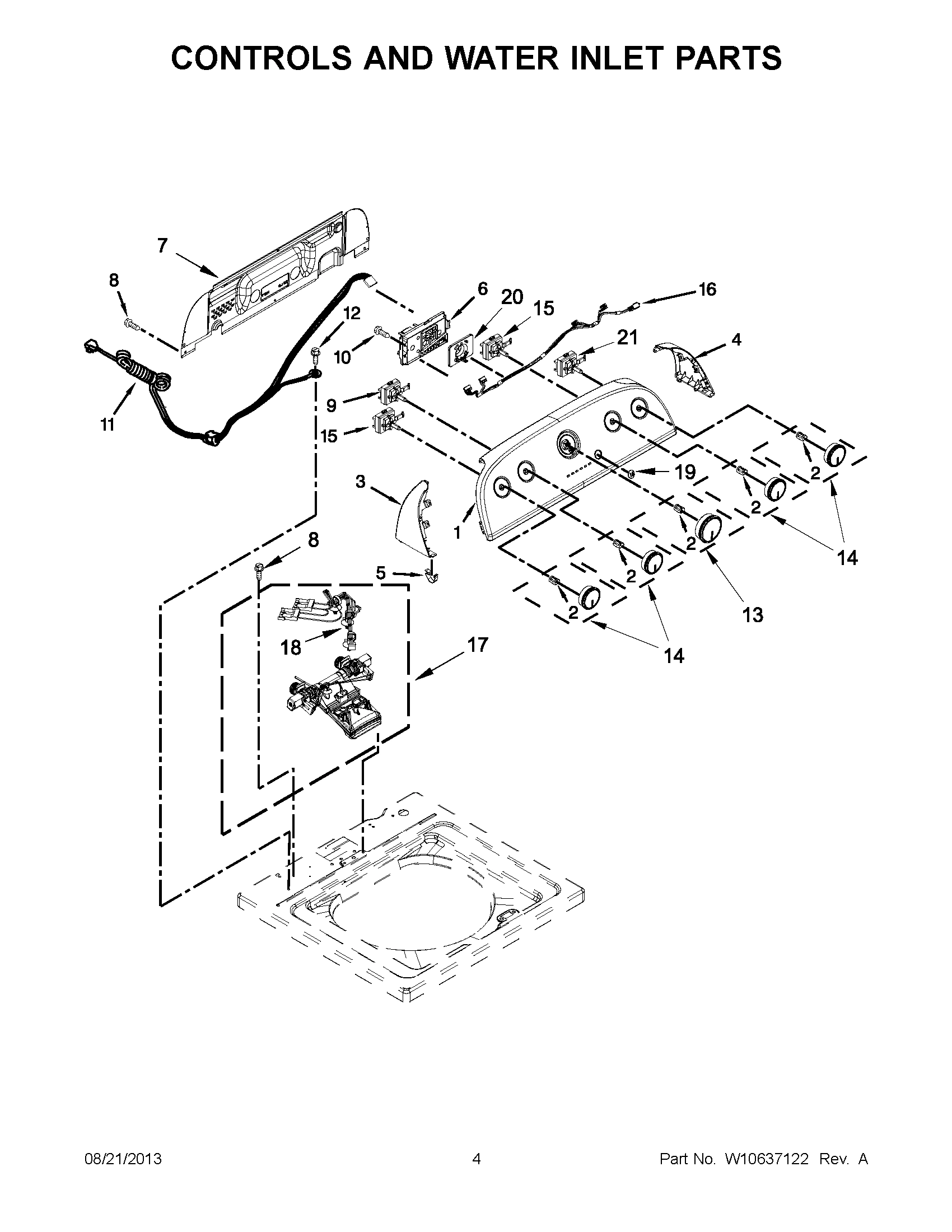

Model WTW4850BW0 – Common Parts & Diagrams

Common parts from model WTW4850BW0

285448A Whirlpool Washer

285448A Whirlpool Washer In Stock WPL 285448A $5.09

285452A Whirlpool Hose Seal and Screen

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $5.71

285834 Whirlpool Siphon Break

285834 Whirlpool Siphon Break In Stock WPL 285834 $65.55

285835 Whirlpool Drain Hose Connector Kit

285835 Whirlpool Drain Hose Connector Kit In Stock WPL 285835 $33.27

285863 Whirlpool Drain Hose 4' Extension

285863 Whirlpool Drain Hose 4' Extension Out of Stock WPL 285863 $23.34

350930 Whirlpool White Spray Paint

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.46

350938 Whirlpool Spray GY

350938 Whirlpool Spray GY Out of Stock WPL 350938 $28.47

72017 Whirlpool Appliance Touch Up Paint Whit

72017 Whirlpool Appliance Touch Up Paint Whit In Stock WPL 72017 $8.52

799344 Whirlpool Refrigerator Paint

799344 Whirlpool Refrigerator Paint Out of Stock WPL 799344 $146.78

8212487RP Whirlpool 5' Industrial Grade Nylon

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $37.95

8212526 Whirlpool Washer Water Leak Floor Pro

8212526 Whirlpool Washer Water Leak Floor Pro In Stock WPL 8212526 $76.95

5' Commercial Grade Washer - Red and Blue Was

5' Commercial Grade Washer - Red and Blue Was In Stock WPL 8212545RP $17.36

8212546RP Whirlpool 4' Washer Black Rubber Fi

8212546RP Whirlpool 4' Washer Black Rubber Fi In Stock WPL 8212546RP $18.19

8212641RP Whirlpool 5' Black Epdm Rubber Wash

8212641RP Whirlpool 5' Black Epdm Rubber Wash In Stock WPL 8212641RP $25.99

8212656RP Whirlpool Fill Hose

8212656RP Whirlpool Fill Hose Out of Stock WPL 8212656RP $30.32

DRNEXT4 Whirlpool 4' Washer Outer Drain Hose

DRNEXT4 Whirlpool 4' Washer Outer Drain Hose In Stock WPL DRNEXT4 $20.44

W10135699 Whirlpool Affresh Cleaner Tablets

W10135699 Whirlpool Affresh Cleaner Tablets In Stock WPL W10135699 $13.68

WP285195 Whirlpool Sealer

WP285195 Whirlpool Sealer Out of Stock WPL WP285195 $62.96

WP384496 Whirlpool Hose Coupling

WP384496 Whirlpool Hose Coupling Out of Stock WPL WP384496 $50.96

WPW10276397 Whirlpool Water Pump

WPW10276397 Whirlpool Water Pump In Stock WPL WPW10276397 $129.36

WPW10468412 Whirlpool Control Panel

WPW10468412 Whirlpool Control Panel Out of Stock WPL WPW10468412 $235.78

WP8536939 Whirlpool Spring Clip

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $5.47

WPW10004910 Whirlpool Screw

WPW10004910 Whirlpool Screw In Stock WPL WPW10004910 $4.50

WPW10251319 Whirlpool Top

WPW10251319 Whirlpool Top In Stock WPL WPW10251319 $251.20

W10899966 Whirlpool Hose

W10899966 Whirlpool Hose In Stock WPL W10899966 $19.09

WPW10072840 Whirlpool Seal

WPW10072840 Whirlpool Seal In Stock WPL WPW10072840 $5.47

WPW10520782 Whirlpool Panel

WPW10520782 Whirlpool Panel In Stock WPL WPW10520782 $46.51

WP9724509 Whirlpool Bumper

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $4.50

WPW10520780 Whirlpool Panel

WPW10520780 Whirlpool Panel Out of Stock WPL WPW10520780 $46.17

W11454741 Whirlpool Gearcase

W11454741 Whirlpool Gearcase In Stock WPL W11454741 $151.86

WP3949550 Whirlpool Gasket

WP3949550 Whirlpool Gasket In Stock WPL WP3949550 $7.01

WP8312709 Whirlpool Endcap Clip

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $12.88

WP9740848 Whirlpool Dishwasher Screw

WP9740848 Whirlpool Dishwasher Screw Out of Stock WPL WP9740848 $4.50

WP3951744 Whirlpool Agitator

WP3951744 Whirlpool Agitator In Stock WPL WP3951744 $170.24

WP91770 Whirlpool Hinge

WP91770 Whirlpool Hinge Out of Stock WPL WP91770 $16.29

WPW10249633 Whirlpool Screw

WPW10249633 Whirlpool Screw In Stock WPL WPW10249633 $4.50

W10552335 Whirlpool Rear Panel

W10552335 Whirlpool Rear Panel Out of Stock WPL W10552335 $281.72

W11497303 Whirlpool Drive Motor

W11497303 Whirlpool Drive Motor In Stock WPL W11497303 $151.96

WPW10240513 Whirlpool Strike

WPW10240513 Whirlpool Strike In Stock WPL WPW10240513 $26.87

WPW10273971 Whirlpool Screw

WPW10273971 Whirlpool Screw In Stock WPL WPW10273971 $4.50

WPW10285518 Whirlpool Cycle Switch

WPW10285518 Whirlpool Cycle Switch In Stock WPL WPW10285518 $89.60

WP3363003 Whirlpool Mover Agitator

WP3363003 Whirlpool Mover Agitator Out of Stock WPL WP3363003 $139.78

WP90767 Whirlpool Screw

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.50

WPW10192089 Whirlpool Washer Bleach Dispenser

WPW10192089 Whirlpool Washer Bleach Dispenser In Stock WPL WPW10192089 $5.47

WP3951608 Whirlpool Washer Agitator Thrust Sp

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $5.47

WPW10392041 Whirlpool Lid Lock Bezel

WPW10392041 Whirlpool Lid Lock Bezel In Stock WPL WPW10392041 $5.47

WPW10525194 Whirlpool Power Cord

WPW10525194 Whirlpool Power Cord In Stock WPL WPW10525194 $83.00

WP21258 Whirlpool Washer Bearing Lid Hinge

WP21258 Whirlpool Washer Bearing Lid Hinge In Stock WPL WP21258 $5.47

WP3951632 Whirlpool Washer Lower Agitator

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $58.56

WP90016 Whirlpool Clip

WP90016 Whirlpool Clip In Stock WPL WP90016 $7.10

WPW10531289 Whirlpool Tub Ring

WPW10531289 Whirlpool Tub Ring In Stock WPL WPW10531289 $108.59

WPW10576635 Whirlpool Knob

WPW10576635 Whirlpool Knob Out of Stock WPL WPW10576635 $43.78

W10759923 Whirlpool Washer Pulley Nut

W10759923 Whirlpool Washer Pulley Nut In Stock WPL W10759923 $4.37

WP21366 Whirlpool Spaner Nut

WP21366 Whirlpool Spaner Nut In Stock WPL WP21366 $5.47

WPW10576637 Whirlpool Knob

WPW10576637 Whirlpool Knob Out of Stock WPL WPW10576637 $43.78

W10554251 Whirlpool Basket

W10554251 Whirlpool Basket Out of Stock WPL W10554251 $318.74

WP8281163 Whirlpool Refrigerator Screw

WP8281163 Whirlpool Refrigerator Screw Out of Stock WPL WP8281163 $6.75

WPW10006384 Whirlpool Washer Drive Belt

WPW10006384 Whirlpool Washer Drive Belt In Stock WPL WPW10006384 $23.19

WPW10285512 Whirlpool Cycle Switch

WPW10285512 Whirlpool Cycle Switch In Stock WPL WPW10285512 $108.14

W10579238 Whirlpool Wire Harness

W10579238 Whirlpool Wire Harness Out of Stock WPL W10579238 $15.74

W11486091 Whirlpool Rear Panel

W11486091 Whirlpool Rear Panel In Stock WPL W11486091 $229.20

WP389140 Whirlpool Drive Block or Bell

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $16.99

WPW10006355 Whirlpool Washer Shift Actuator

WPW10006355 Whirlpool Washer Shift Actuator In Stock WPL WPW10006355 $60.99

W11596033 Whirlpool Microwave Screw

W11596033 Whirlpool Microwave Screw Out of Stock WPL W11596033 $14.22

WPW10683603 Whirlpool Water Inlet Valve

WPW10683603 Whirlpool Water Inlet Valve In Stock WPL WPW10683603 $82.31

W10876654 Whirlpool Wire Harness

W10876654 Whirlpool Wire Harness Out of Stock WPL W10876654 $115.79

W11084340 Whirlpool Push Button

W11084340 Whirlpool Push Button Out of Stock WPL W11084340 $56.54

BRACE COMMERCIAL PART

BRACE COMMERCIAL PART Out of Stock WPL W11712680 $53.56

WPW10215093 Whirlpool Filter

WPW10215093 Whirlpool Filter In Stock WPL WPW10215093 $50.99

WPW10427633 Whirlpool Belt Shield

WPW10427633 Whirlpool Belt Shield In Stock WPL WPW10427633 $27.41

WP8533928 Whirlpool Refrigerator Screw

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $4.50

WPW10248088 Whirlpool Lock

WPW10248088 Whirlpool Lock Out of Stock WPL WPW10248088 $11.63

WPW10285511 Whirlpool Cycle Switch

WPW10285511 Whirlpool Cycle Switch In Stock WPL WPW10285511 $101.69

WPW10687506 Whirlpool Washer Levelling Leg Fe

WPW10687506 Whirlpool Washer Levelling Leg Fe In Stock WPL WPW10687506 $14.65

W10846509 Whirlpool Screw

W10846509 Whirlpool Screw Out of Stock WPL W10846509 $4.50

W11244231 Whirlpool Hose

W11244231 Whirlpool Hose In Stock WPL W11244231 $18.54

WPW10280024 Whirlpool Retainer

WPW10280024 Whirlpool Retainer Out of Stock WPL WPW10280024 $45.81

WP356138 Whirlpool Hose Clamp

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $5.47
