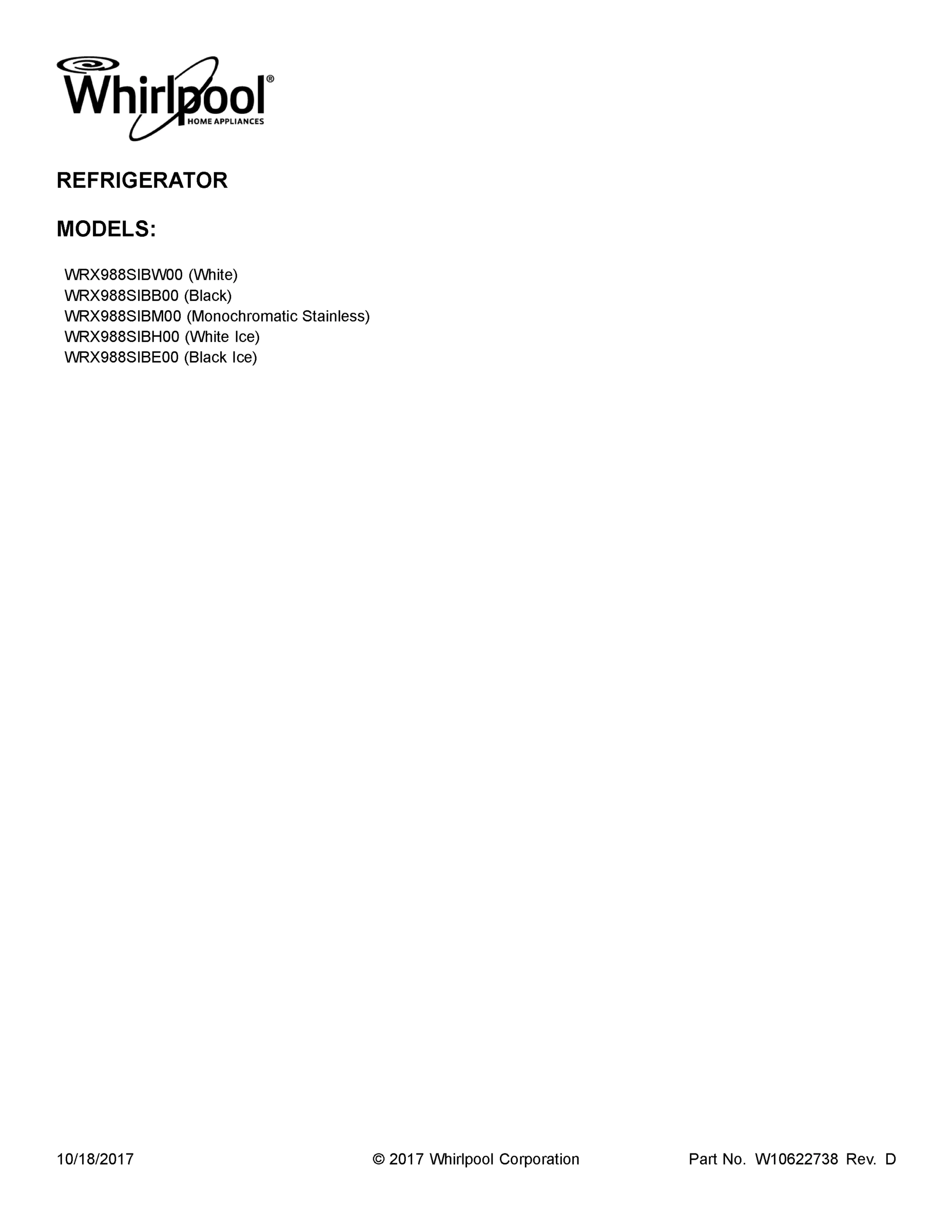

Whirlpool WRX988SIBM00 Parts List

NI

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $55.91

View on Model

NI

285006 Whirlpool Spray In Stock WPL 285006 $24.62

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.46

View on Model

NI

350942 Whirlpool Spray Paint Out of Stock WPL 350942 $28.47

View on Model

NI

4392899 Whirlpool Touch-Up Paint - Biscuit In Stock WPL 4392899 $12.99

View on Model

NI

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.08

View on Model

NI

511873 Whirlpool Refrigerator Paint Out of Stock WPL 511873 $29.93

View on Model

NI

72017 Whirlpool Appliance Touch Up Paint Whit In Stock WPL 72017 $8.52

View on Model

NI

72032 Whirlpool Appliance Touch Up Paint Blac In Stock WPL 72032 $12.99

View on Model

NI

799344 Whirlpool Refrigerator Paint Out of Stock WPL 799344 $146.78

View on Model

NI

8003RP Whirlpool 25' 1/4" Copper Water Supply In Stock WPL 8003RP $34.23

View on Model

NI

833938 Whirlpool Refrigerator Terminal Out of Stock WPL 833938 $5.47

View on Model

NI

876370 Whirlpool Refrigerator Insulation In Stock WPL 876370 $123.91

View on Model

NI

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $54.25

View on Model

NI

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $70.29

View on Model

NI

978027 Whirlpool Refrigerator Primary Valve Out of Stock WPL 978027 $71.70

View on Model

NI

978030 Whirlpool Refrigerator Valve Out of Stock WPL 978030 $75.23

View on Model

NI

F2WC9I1 Whirlpool Refrigerator Ice Maker Wate In Stock WPL F2WC9I1 $46.86

View on Model

NI

W10578603 Whirlpool Refrigerator Wire Harness Out of Stock WPL W10578603 $80.09

View on Model

NI

W10837236 Whirlpool Refrigerator Wire Harness In Stock WPL W10837236 $48.16

View on Model

NI

W10859326 Whirlpool Refrigerator Wire Harness Out of Stock WPL W10859326 $69.56

View on Model

NI

W11238399 Whirlpool Refrigerator Tape Out of Stock WPL W11238399 $73.85

View on Model

NI

WP503695 Whirlpool Refrigerator Sealer Out of Stock WPL WP503695 $65.53

View on Model

NI

WP505587 Whirlpool Refrigerator Sealer Out of Stock WPL WP505587 $97.64

View on Model

NI

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $41.16

View on Model

NI

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $58.69

View on Model

1

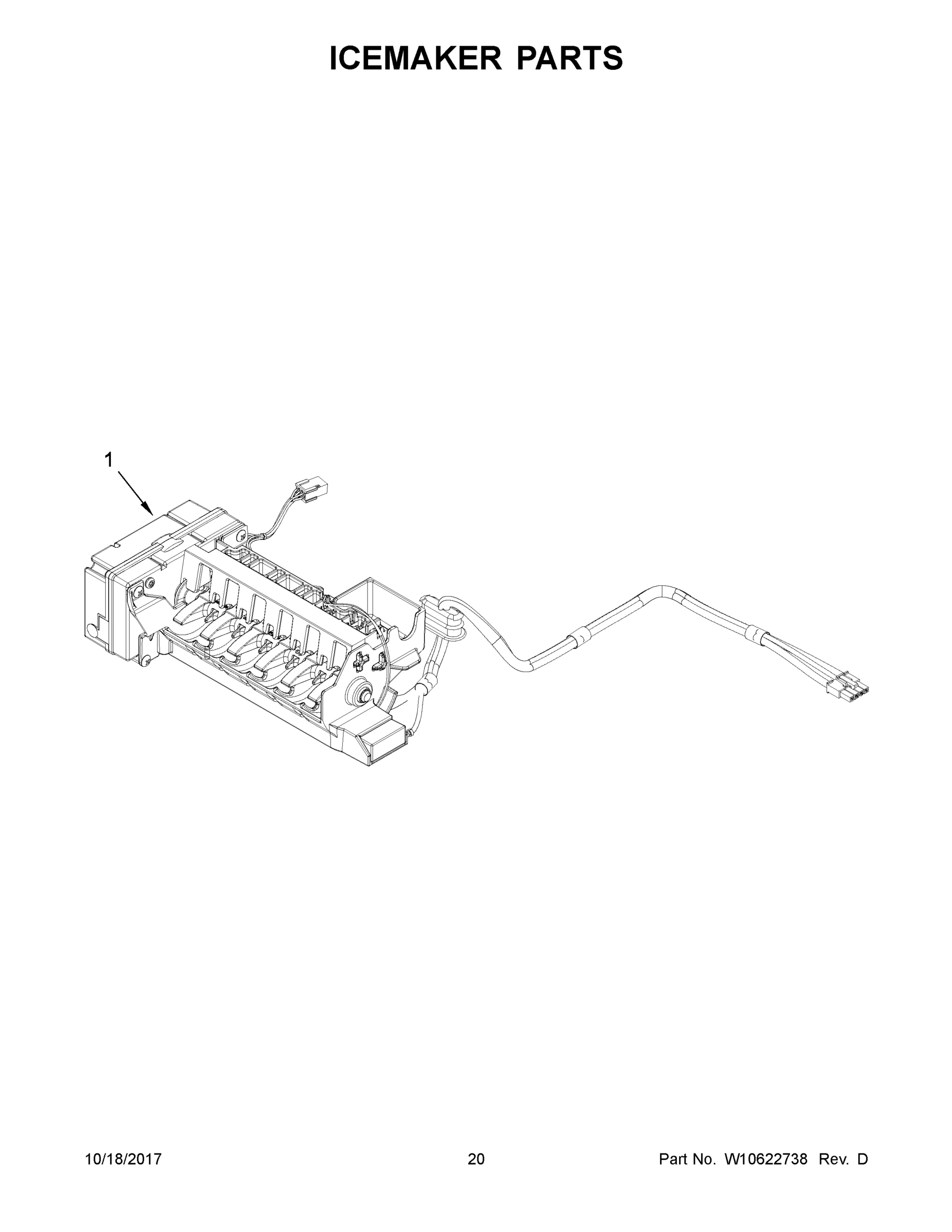

W11577195 Whirlpool Refrigerator Icemaker In Stock WPL W11577195 $141.29

View on Model

1

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $6.75

View on Model

2

W10698206 Whirlpool Refrigerator Rail-MULLN Out of Stock WPL W10698206 $169.12

View on Model

2

W10837274 Whirlpool Refrigerator Plate Out of Stock WPL W10837274 $45.68

View on Model

2

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $53.02

View on Model

2

WPW10453401 Whirlpool Refrigerator Electronic In Stock WPL WPW10453401 $208.68

View on Model

3

W10421495 Whirlpool Refrigerator Screw Out of Stock WPL W10421495 $11.25

View on Model

3

W10570074 Whirlpool Refrigerator Plate Out of Stock WPL W10570074 $81.19

View on Model

3B

W10606648 Whirlpool Refrigerator Shield Out of Stock WPL W10606648 $135.06

View on Model

3A

W10606657 Whirlpool Refrigerator Shield Out of Stock WPL W10606657 $68.74

View on Model

3

WP2198628 Whirlpool Seal In Stock WPL WP2198628 $7.44

View on Model

3

WPW10344432 Whirlpool Pivot Block In Stock WPL WPW10344432 $10.72

View on Model

4

W10505487 Whirlpool Refrigerator Gasket Out of Stock WPL W10505487 $16.12

View on Model

4

W10847834 Whirlpool Clip Out of Stock WPL W10847834 $8.04

View on Model

4B

W10853387 Whirlpool Refrigerator Pad Out of Stock WPL W10853387 $166.64

View on Model

4

W11028219 Whirlpool Refrigerator Pad In Stock WPL W11028219 $49.11

View on Model

4

COVER-EVAP Out of Stock WPL W11690163 $117.03

View on Model

4A

WPW10370592 Whirlpool Refrigerator Pad In Stock WPL WPW10370592 $185.35

View on Model

4

WPW10503522 Whirlpool Refrigerator Shaft Out of Stock WPL WPW10503522 $52.10

View on Model

4

WPW10549589 Whirlpool Refrigerator Ice Door In Stock WPL WPW10549589 $289.62

View on Model

5

W10509275 Whirlpool Refrigerator Crisper Pan Out of Stock WPL W10509275 $144.30

View on Model

5

W10904595 Whirlpool Refrigerator Closer In Stock WPL W10904595 $9.77

View on Model

5A

W11212164 Whirlpool Refrigerator Closer Out of Stock WPL W11212164 $9.48

View on Model

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $16.81

View on Model

5

W11661573 Whirlpool Extension In Stock WPL W11661573 $25.70

View on Model

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $90.17

View on Model

5

WPW10577864 Whirlpool Refrigerator Ice Door In Stock WPL WPW10577864 $94.11

View on Model

6

2215676 Whirlpool Refrigerator Terminal Cover Out of Stock WPL 2215676 $53.58

View on Model

6

W10415341 Whirlpool Refrigerator Gasket Out of Stock WPL W10415341 $21.87

View on Model

6

W10650427 Whirlpool Refrigerator Freezer Bin Out of Stock WPL W10650427 $215.23

View on Model

6

W11194438 Whirlpool Water Filter Housing In Stock WPL W11194438 $126.35

View on Model

6A

W11690637 Whirlpool Rail-Mulln In Stock WPL W11690637 $71.16

View on Model

6

WPW10435760 Whirlpool Refrigerator Guide-Ice In Stock WPL WPW10435760 $14.28

View on Model

7

W10606644 Whirlpool Refrigerator Tray-DRIP Out of Stock WPL W10606644 $24.00

View on Model

7

W10811115 Whirlpool Refrigerator Cover Out of Stock WPL W10811115 $61.09

View on Model

7

WP8281163 Whirlpool Refrigerator Screw Out of Stock WPL WP8281163 $6.75

View on Model

7B

WPW10606639 Whirlpool Refrigerator Drip Tray Out of Stock WPL WPW10606639 $53.16

View on Model

8

W10462438 Whirlpool Refrigerator RING CONT Out of Stock WPL W10462438 $21.92

View on Model

8A

W10462439 Whirlpool Refrigerator Trim Out of Stock WPL W10462439 $21.85

View on Model

8

W11190820 Whirlpool Refrigerator Cover Out of Stock WPL W11190820 $61.09

View on Model

8

W11225840 Whirlpool Refrigerator Evaporator T Out of Stock WPL W11225840 $84.70

View on Model

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $5.47

View on Model

8

WPW10347093 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10347093 $272.57

View on Model

8B

WPW10402180 Whirlpool Refrigerator Trim Out of Stock WPL WPW10402180 $46.63

View on Model

8

WPW10493169 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10493169 $127.42

View on Model

9

W10829281 Whirlpool Refrigerator Screw Out of Stock WPL W10829281 $7.46

View on Model

9

W10852685 Whirlpool Clip Out of Stock WPL W10852685 $6.34

View on Model

9

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $48.47

View on Model

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $65.66

View on Model

10A

W10407187 Whirlpool Refrigerator Bumper-DOR Out of Stock WPL W10407187 $36.99

View on Model

10

W10507444 Whirlpool Refrigerator Divider Out of Stock WPL W10507444 $42.04

View on Model

10A

W11093718 Whirlpool Refrigerator Adapter In Stock WPL W11093718 $134.95

View on Model

10

W11215629 Whirlpool Refrigerator Adapter In Stock WPL W11215629 $145.49

View on Model

10B

W11573367 Whirlpool Refrigerator Bumper Door In Stock WPL W11573367 $15.96

View on Model

10A

W11592404 Whirlpool Refrigerator Door Hinge Out of Stock WPL W11592404 $13.21

View on Model

10

W11592405 Whirlpool Door Hinge Out of Stock WPL W11592405 $15.56

View on Model

10

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $97.23

View on Model

10

WPW10277949 Whirlpool Refrigerator Cover Filt Out of Stock WPL WPW10277949 $56.83

View on Model

10

WPW10363507 Whirlpool Refrigerator Shroud Out of Stock WPL WPW10363507 $45.68

View on Model

11

W10673841 Whirlpool Refrigerator Screw Out of Stock WPL W10673841 $14.22

View on Model

11

SUPPORT Out of Stock WPL W11677723 $83.63

View on Model

11B

WP67006380 Whirlpool Screw In Stock WPL WP67006380 $4.50

View on Model

11

WPW10154805 Whirlpool Refrigerator Inverter B In Stock WPL WPW10154805 $415.59

View on Model

11

WPW10391355 Whirlpool Refrigerator Nameplate Out of Stock WPL WPW10391355 $49.90

View on Model

11A

WPW10393265 Whirlpool Refrigerator Nameplate In Stock WPL WPW10393265 $51.81

View on Model

12

W10248562 Whirlpool Refrigerator Cover Out of Stock WPL W10248562 $13.85

View on Model

12

W10284709 Whirlpool Refrigerator Cover Out of Stock WPL W10284709 $41.28

View on Model

12A

W10294414 Whirlpool Refrigerator Cover Out of Stock WPL W10294414 $47.43

View on Model

12

W11175811 Whirlpool Refrigerator Front-PAN Out of Stock WPL W11175811 $177.21

View on Model

12B

WPW10407158 Whirlpool Refrigerator Cover Out of Stock WPL WPW10407158 $20.83

View on Model

13

W10471615 Whirlpool Refrigerator Cover Out of Stock WPL W10471615 $21.95

View on Model

13A

W10471617 Whirlpool Refrigerator Cover Out of Stock WPL W10471617 $19.75

View on Model

13

W11452196 Whirlpool Refrigerator Evaporator M In Stock WPL W11452196 $80.33

View on Model

13

W11579166 Whirlpool Refrigerator Water Tube In Stock WPL W11579166 $49.56

View on Model

14

W10503218 Whirlpool Refrigerator Funnel Out of Stock WPL W10503218 $12.40

View on Model

14

W10850332 Whirlpool Refrigerator Bracket Out of Stock WPL W10850332 $82.02

View on Model

14A

W10858092 Whirlpool Refrigerator Bracket Out of Stock WPL W10858092 $76.44

View on Model

14

W11087201 Whirlpool Refrigerator Heater In Stock WPL W11087201 $81.14

View on Model

14

W11126052 Whirlpool Screw In Stock WPL W11126052 $14.22

View on Model

14

WPW10674770 Whirlpool Refrigerator Cantilever Out of Stock WPL WPW10674770 $202.09

View on Model

15

W10248433 Whirlpool Refrigerator Door Hinge Out of Stock WPL W10248433 $47.38

View on Model

15A

W10407275 Whirlpool Refrigerator Door Hinge Out of Stock WPL W10407275 $44.32

View on Model

15

W10802341 Whirlpool Refrigerator Shaft Out of Stock WPL W10802341 $51.30

View on Model

15

W10858802 Whirlpool Refrigerator Freezer Bin Out of Stock WPL W10858802 $160.77

View on Model

15B

W11240748 Whirlpool Refrigerator Door Hinge Out of Stock WPL W11240748 $41.38

View on Model

16

W11624997 Whirlpool Refrigerator Gasket Out of Stock WPL W11624997 $50.84

View on Model

16

W11673437 Whirlpool Condenser In Stock WPL W11673437 $116.44

View on Model

16

WPW10372170 Whirlpool Refrigerator Ladder Out of Stock WPL WPW10372170 $18.78

View on Model

16A

WPW10485089 Whirlpool Refrigerator Pan Stop Out of Stock WPL WPW10485089 $47.47

View on Model

16

WPW10485096 Whirlpool Refrigerator Pan Stop In Stock WPL WPW10485096 $47.47

View on Model

16

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $84.14

View on Model

17

COVER Out of Stock WPL W11661208 $15.96

View on Model

17

WP12587703AP Whirlpool Refrigerator Filler Out of Stock WPL WP12587703AP $5.47

View on Model

17

WPW10277361 Whirlpool Refrigerator Collar Out of Stock WPL WPW10277361 $6.71

View on Model

17

WPW10492817 Whirlpool Refrigerator Box-Ice Out of Stock WPL WPW10492817 $288.19

View on Model

18

W10865826 Whirlpool Refrigerator Water Inlet In Stock WPL W10865826 $71.72

View on Model

18

W11435997 Whirlpool Refrigerator Housing Out of Stock WPL W11435997 $127.16

View on Model

18

W11573594 Whirlpool Refrigerator AXLE In Stock WPL W11573594 $10.67

View on Model

18

WPW10530656 Whirlpool Refrigerator Utility Pa Out of Stock WPL WPW10530656 $163.11

View on Model

19

W10258510 Whirlpool Refrigerator Cover Out of Stock WPL W10258510 $47.75

View on Model

19

W11457241 Whirlpool Burner Drip Bowl In Stock WPL W11457241 $77.20

View on Model

19

W11578839 Whirlpool Roller In Stock WPL W11578839 $8.31

View on Model

19

LADDER Out of Stock WPL W11690685 $41.67

View on Model

19A

WPW10515762 Whirlpool Refrigerator Cab Roller In Stock WPL WPW10515762 $65.45

View on Model

19

WPW10515763 Whirlpool Refrigerator Cab Roller In Stock WPL WPW10515763 $66.15

View on Model

20

W10505516 Whirlpool Refrigerator Trim Out of Stock WPL W10505516 $20.75

View on Model

20

WP3400065 Whirlpool Refrigerator Screw In Stock WPL WP3400065 $4.50

View on Model

21

W10236396 Whirlpool Refrigerator STRAP Out of Stock WPL W10236396 $12.84

View on Model

21

W10258502 Whirlpool Refrigerator Cover Out of Stock WPL W10258502 $47.80

View on Model

21

W10423560 Whirlpool Refrigerator Screw Out of Stock WPL W10423560 $14.22

View on Model

21

SCREW Out of Stock WPL W11686675 $12.03

View on Model

22

W10258540 Whirlpool Refrigerator Slide Out of Stock WPL W10258540 $10.03

View on Model

22

W11492867 Whirlpool Evaporator In Stock WPL W11492867 $167.98

View on Model

22

WPW10637668 Whirlpool Refrigerator Front Gril Out of Stock WPL WPW10637668 $76.70

View on Model

22A

WPW10637669 Whirlpool Refrigerator Front Gril Out of Stock WPL WPW10637669 $71.38

View on Model

22B

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $76.71

View on Model

23

W10772797 Whirlpool Refrigerator Divider Out of Stock WPL W10772797 $60.11

View on Model

23

CLIP Out of Stock WPL W11673433 $84.56

View on Model

24

W10248434 Whirlpool Refrigerator Door Hinge Out of Stock WPL W10248434 $47.18

View on Model

24A

W10407279 Whirlpool Refrigerator Door Hinge Out of Stock WPL W10407279 $44.32

View on Model

24

W10782690 Whirlpool Refrigerator Floor Out of Stock WPL W10782690 $211.10

View on Model

24B

W10878115 Whirlpool Refrigerator Door Hinge Out of Stock WPL W10878115 $40.90

View on Model

24

W11189618 Whirlpool Refrigerator Wire Harness Out of Stock WPL W11189618 $80.86

View on Model

24

WPW10400825 Whirlpool Refrigerator Retainer Out of Stock WPL WPW10400825 $17.95

View on Model

25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $21.86

View on Model

25

W11637688 Whirlpool Heater In Stock WPL W11637688 $59.28

View on Model

25

WPW10347087 Whirlpool Refrigerator Ice Chute In Stock WPL WPW10347087 $25.99

View on Model

26

W10537691 Whirlpool Refrigerator Heater Out of Stock WPL W10537691 $67.46

View on Model

27

WPW10258520 Whirlpool Refrigerator Flipper Out of Stock WPL WPW10258520 $43.73

View on Model

27

WPW10306786 Whirlpool Refrigerator Inverter B In Stock WPL WPW10306786 $241.59

View on Model

28

W10754591 Whirlpool Refrigerator Cover Out of Stock WPL W10754591 $62.91

View on Model

28

W11168403 Whirlpool Refrigerator Thermistor In Stock WPL W11168403 $68.67

View on Model

28

WP2198635 Whirlpool Refrigerator Spring Out of Stock WPL WP2198635 $51.92

View on Model

28

WPW10280983 Whirlpool Refrigerator Insulation Out of Stock WPL WPW10280983 $50.40

View on Model

29

W10518378 Whirlpool Refrigerator Cover Out of Stock WPL W10518378 $15.84

View on Model

29

WP2198634 Whirlpool Door Pin Out of Stock WPL WP2198634 $9.92

View on Model

29

WPW10389152 Whirlpool Support In Stock WPL WPW10389152 $13.70

View on Model

29

WPW10406719 Whirlpool Refrigerator Shroud Out of Stock WPL WPW10406719 $42.66

View on Model

30

W10826105 Whirlpool Refrigerator Pro PRSERV Out of Stock WPL W10826105 $86.36

View on Model

30

W11482027 Whirlpool Refrigerator Back Cover Out of Stock WPL W11482027 $61.84

View on Model

30

WPW10635022 Whirlpool Refrigerator Adapter In Stock WPL WPW10635022 $55.74

View on Model

31

W10278140 Whirlpool Refrigerator Cover-UNIT Out of Stock WPL W10278140 $65.95

View on Model

31

W11225849 Whirlpool Refrigerator Retainer In Stock WPL W11225849 $15.96

View on Model

31

WPW10499015 Whirlpool Refrigerator Water Tube Out of Stock WPL WPW10499015 $68.88

View on Model

32

12702901 Whirlpool Refrigerator Pad Out of Stock WPL 12702901 $11.25

View on Model

32

W10815861 Whirlpool Refrigerator Clip Out of Stock WPL W10815861 $10.23

View on Model

32

W11230117 Whirlpool Refrigerator Support Out of Stock WPL W11230117 $152.10

View on Model

32

W11482381 Whirlpool Refrigerator Water Tube Out of Stock WPL W11482381 $54.78

View on Model

33

W10491355 Whirlpool Refrigerator Gasket-AIR Out of Stock WPL W10491355 $15.74

View on Model

33

WPW10248595 Whirlpool Damper Control Assembly In Stock WPL WPW10248595 $120.01

View on Model

33

WPW10505294 Whirlpool Refrigerator Door Closi In Stock WPL WPW10505294 $7.94

View on Model

34

W10212137 Whirlpool Refrigerator Grommet In Stock WPL W10212137 $11.54

View on Model

34

W11238397 Whirlpool Refrigerator Cover Out of Stock WPL W11238397 $15.96

View on Model

34

WPW10626970 Whirlpool Refrigerator Tube In Stock WPL WPW10626970 $98.13

View on Model

35

W10530297 Whirlpool Drawer Support Out of Stock WPL W10530297 $127.51

View on Model

35

W11188493 Whirlpool Refrigerator Cover-Evapor In Stock WPL W11188493 $136.87

View on Model

35

W11580434 Whirlpool Refrigerator Valve In Stock WPL W11580434 $102.00

View on Model

36

W10465948 Whirlpool Refrigerator Gasket Out of Stock WPL W10465948 $41.13

View on Model

36

W10518036 Whirlpool Refrigerator Cover Out of Stock WPL W10518036 $13.40

View on Model

36

W11429989 Whirlpool Refrigerator Solenoid In Stock WPL W11429989 $116.17

View on Model

37A

W10719668 Whirlpool Refrigerator Handle Out of Stock WPL W10719668 $158.63

View on Model

37

W11568592 Whirlpool Refrigerator Gasket Out of Stock WPL W11568592 $7.12

View on Model

38

W10854958 Whirlpool Refrigerator Screw Out of Stock WPL W10854958 $4.48

View on Model

38

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $15.76

View on Model

39

W10277839 Whirlpool Refrigerator Cover Out of Stock WPL W10277839 $42.38

View on Model

39

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $5.47

View on Model

40

W11170612 Whirlpool Refrigerator Wire Harness In Stock WPL W11170612 $80.86

View on Model

40

WPW10392172 Whirlpool Refrigerator Gasket Out of Stock WPL WPW10392172 $15.74

View on Model

41

W10830496 Whirlpool Refrigerator Air Tower Out of Stock WPL W10830496 $102.60

View on Model

42

W10470981 Whirlpool Refrigerator Gasket Out of Stock WPL W10470981 $15.70

View on Model

43

W11683241 Whirlpool Module In Stock WPL W11683241 $185.34

View on Model

Model WRX988SIBM00 – Common Parts & Diagrams

Common parts from model WRX988SIBM00

Search result for :
