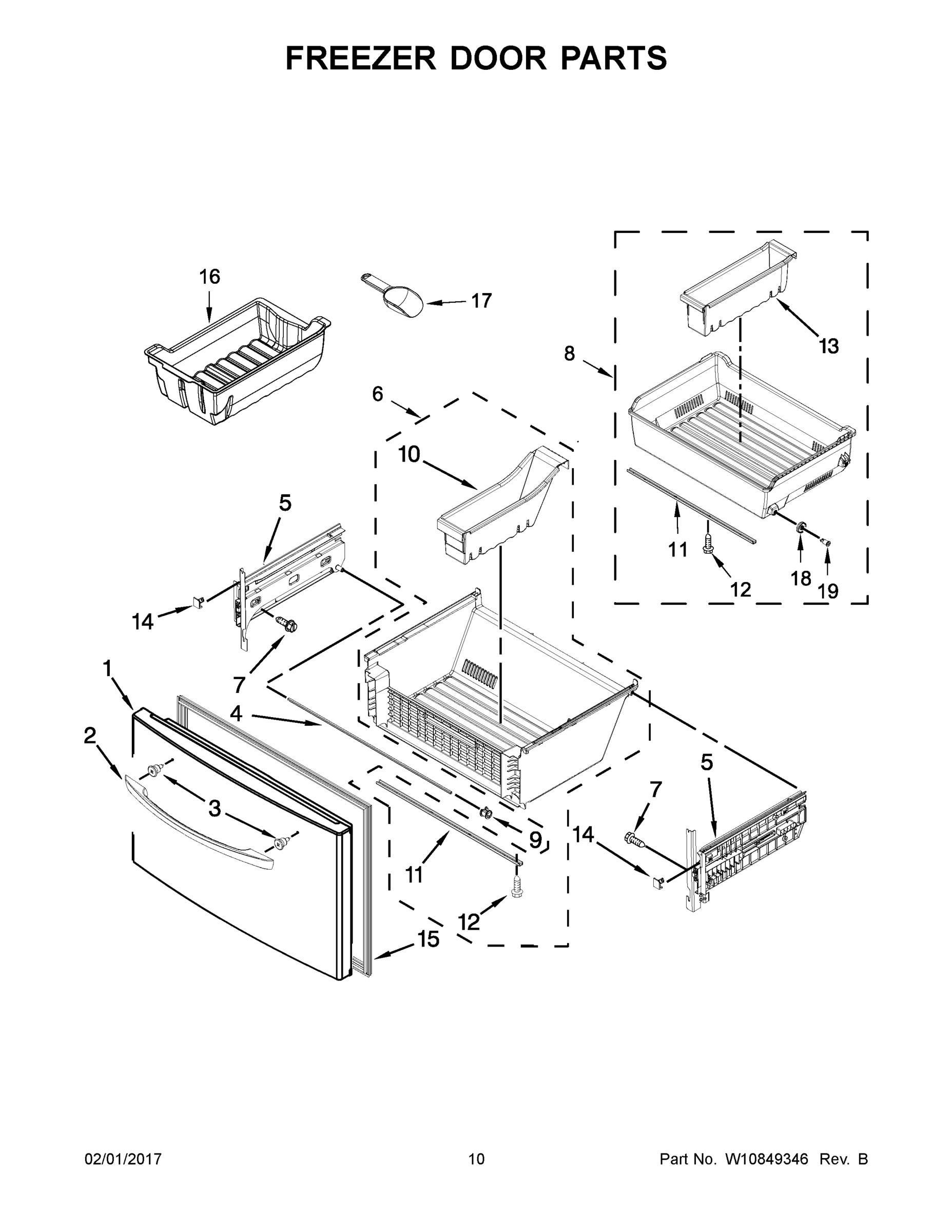

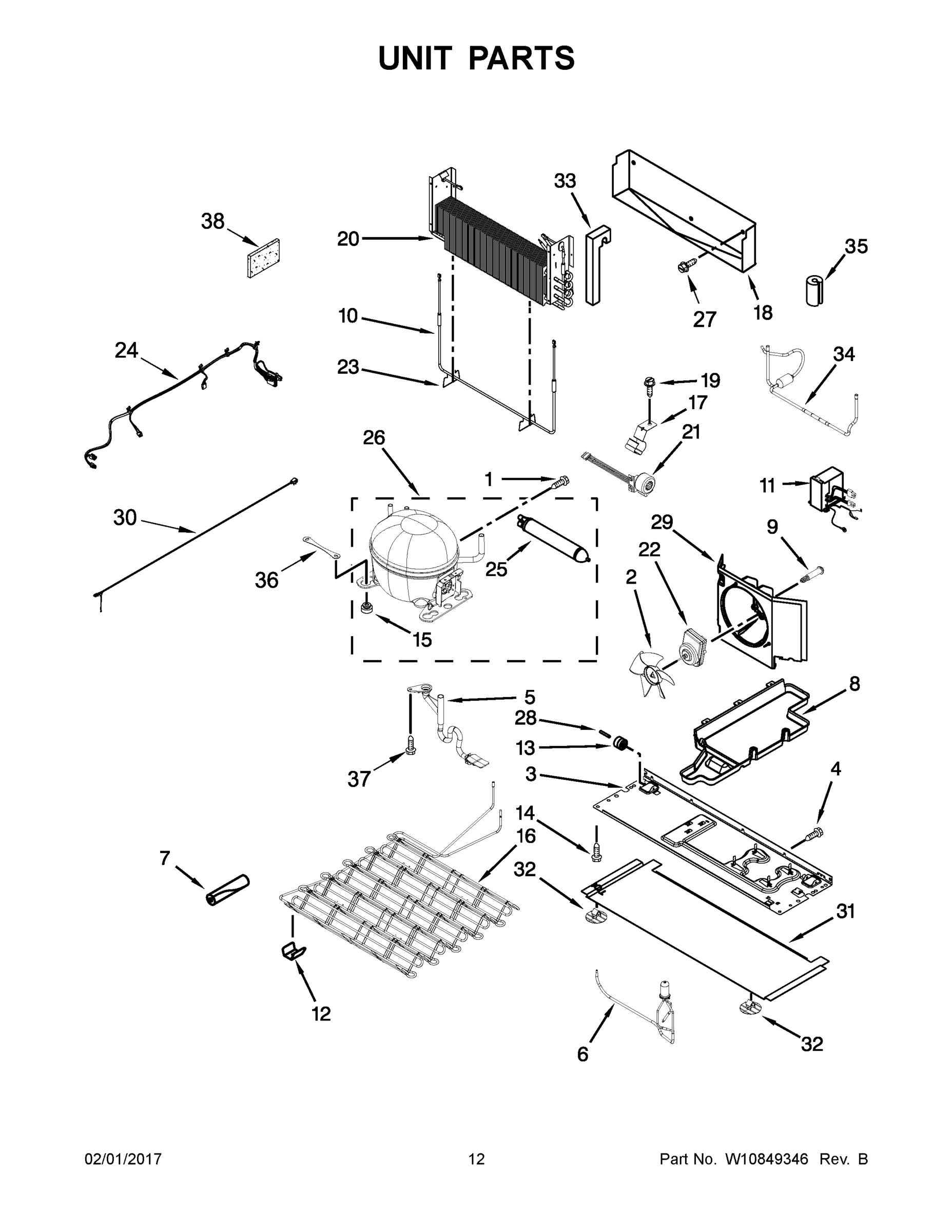

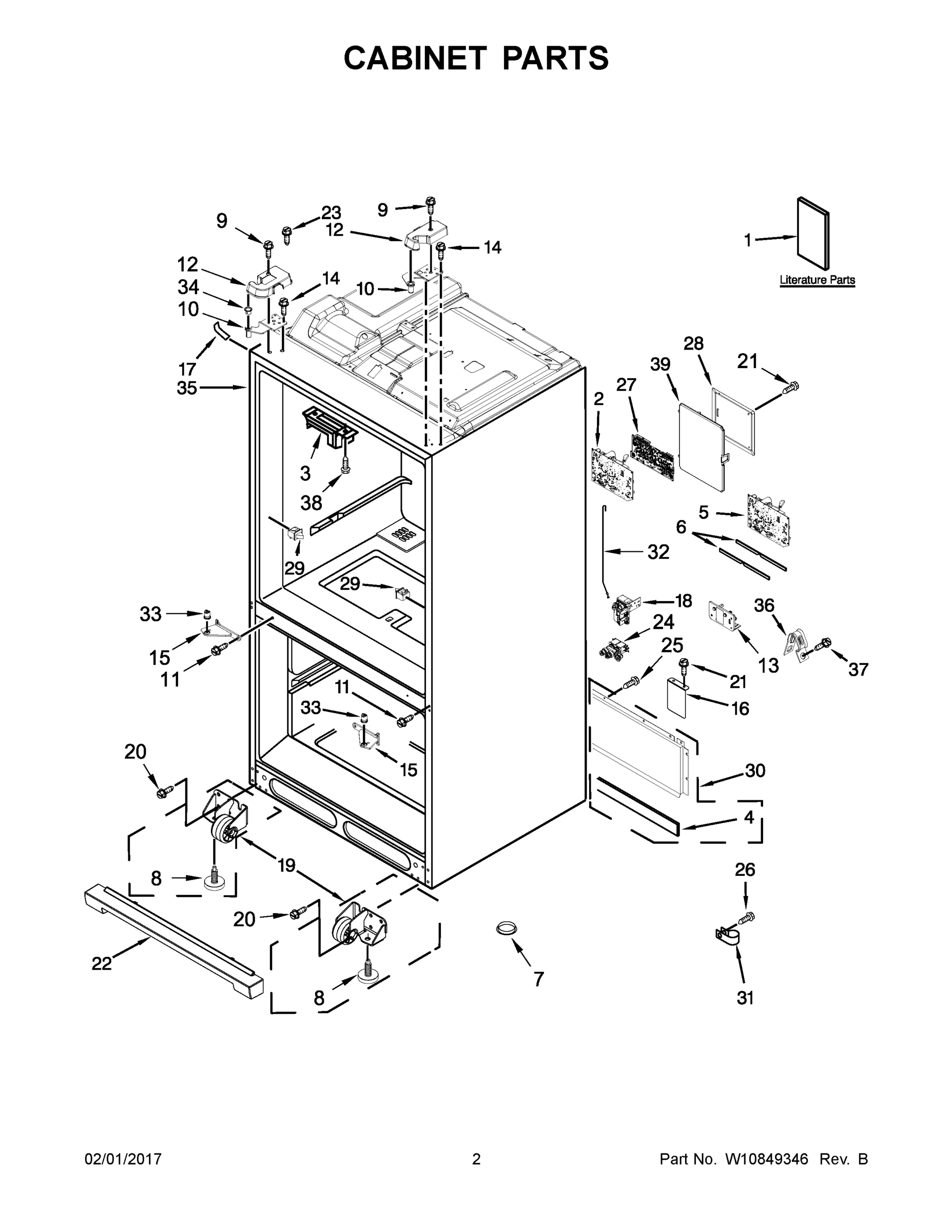

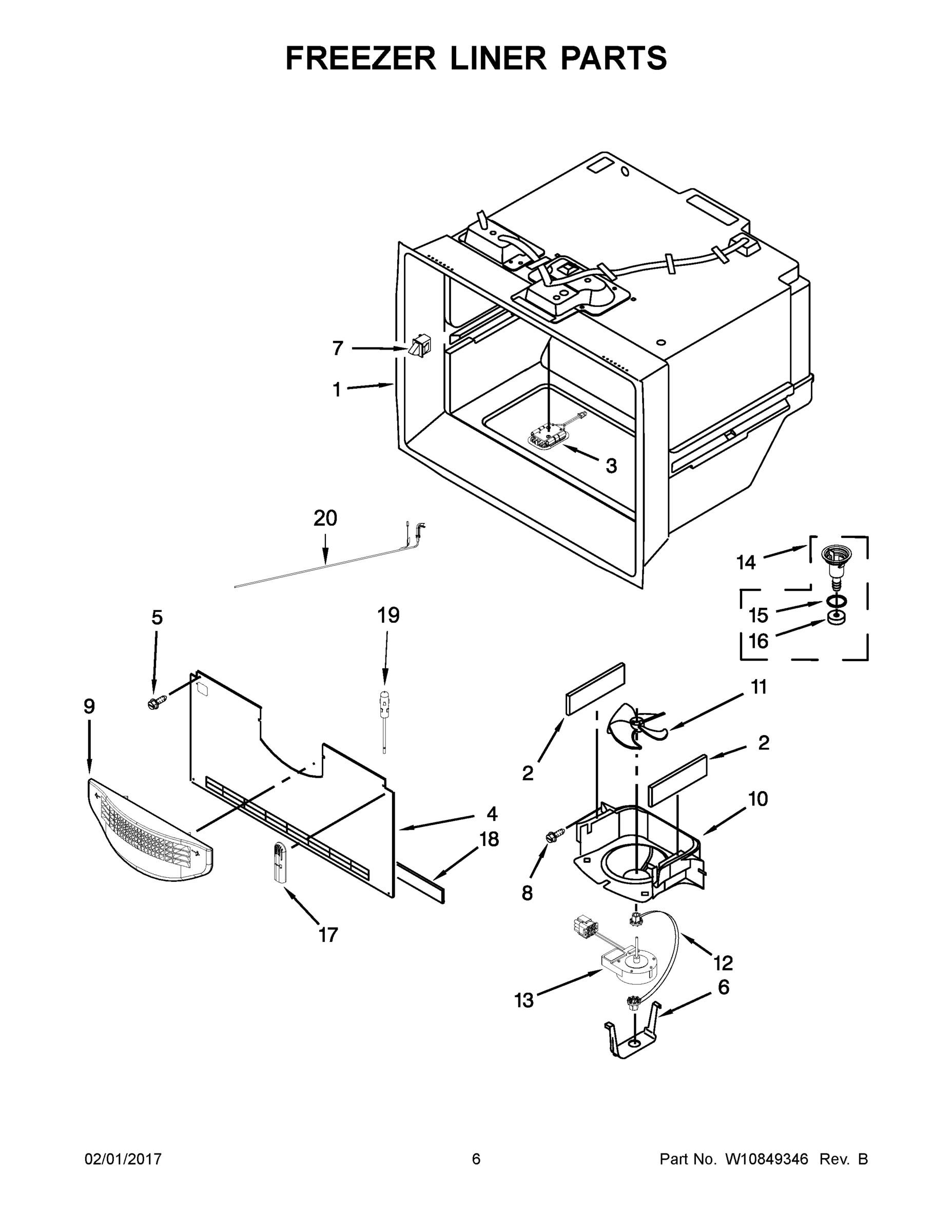

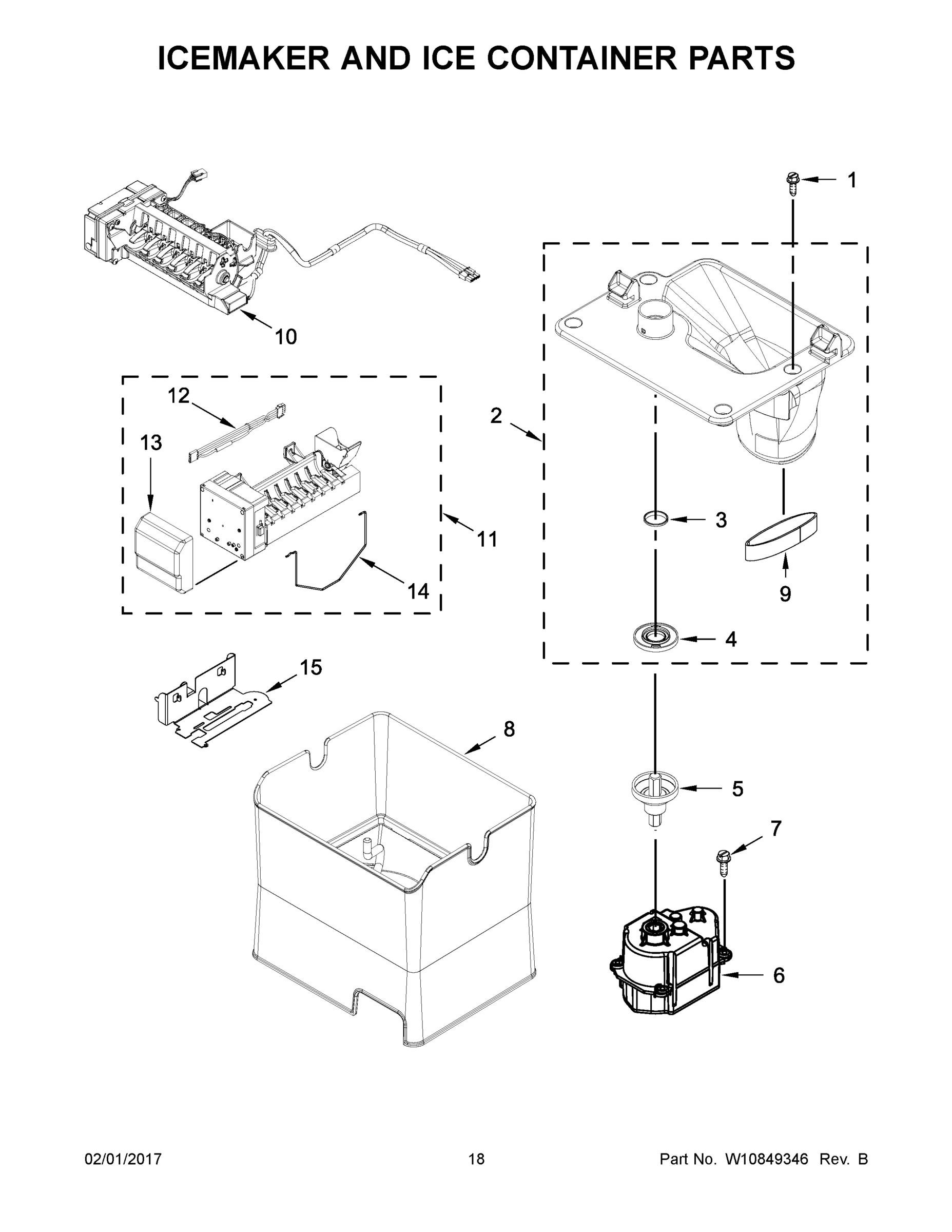

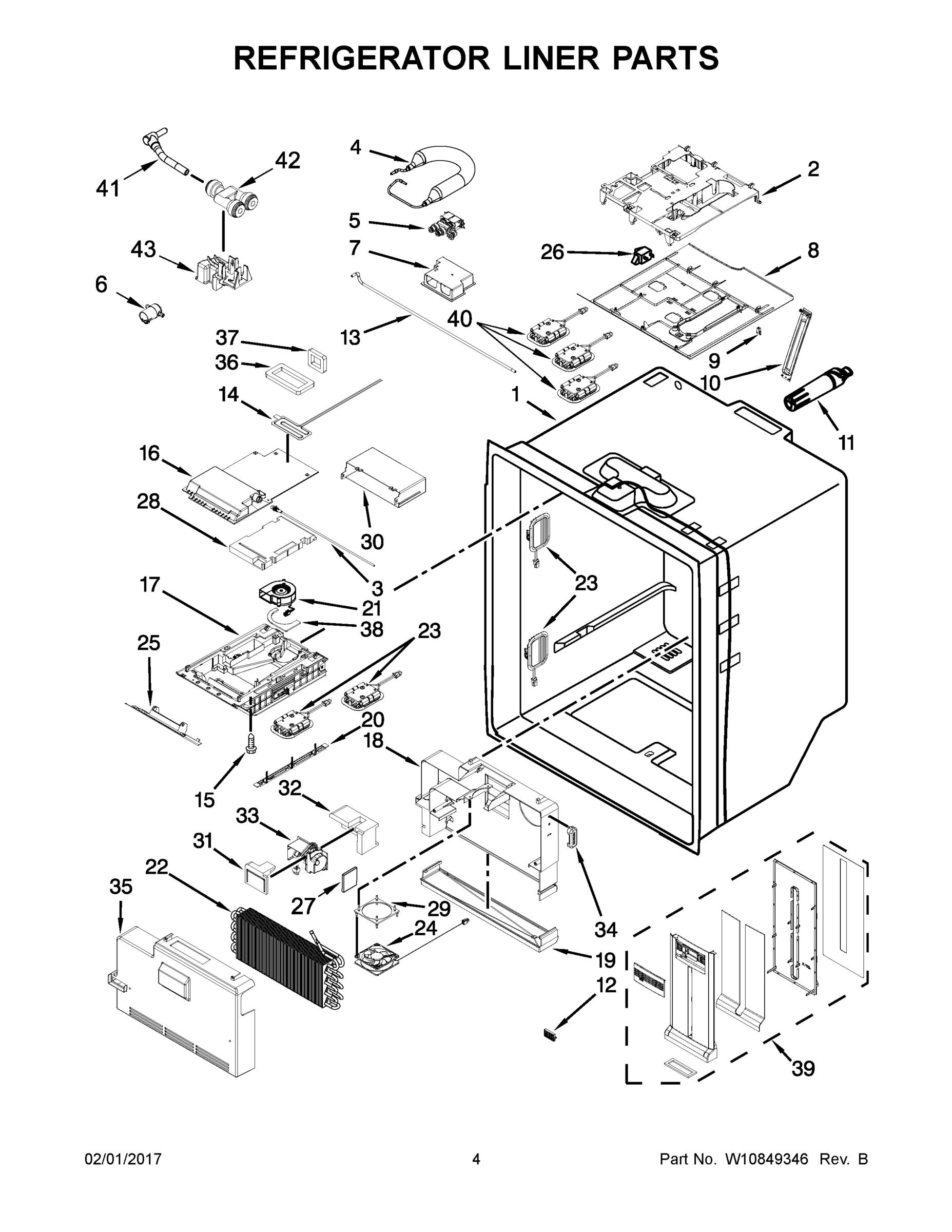

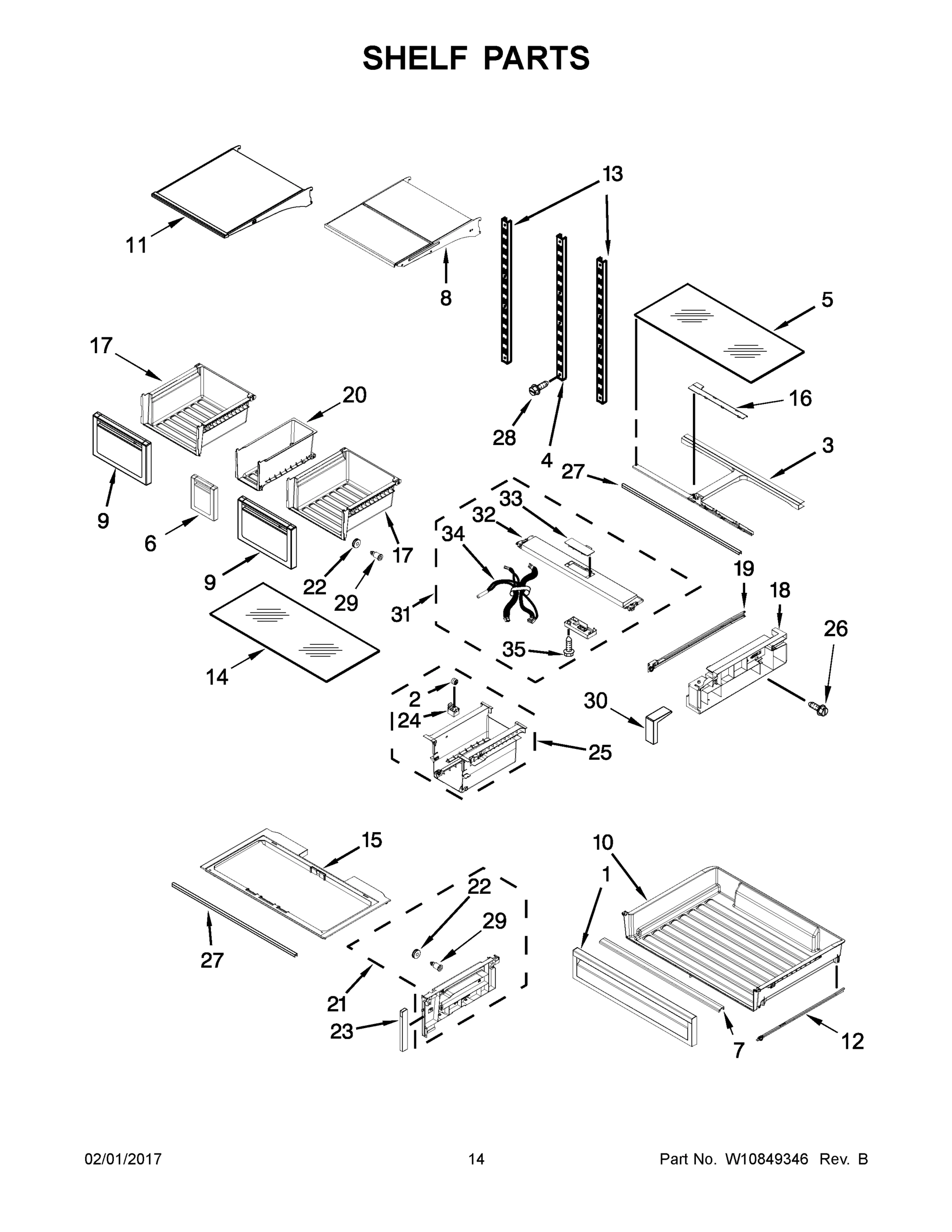

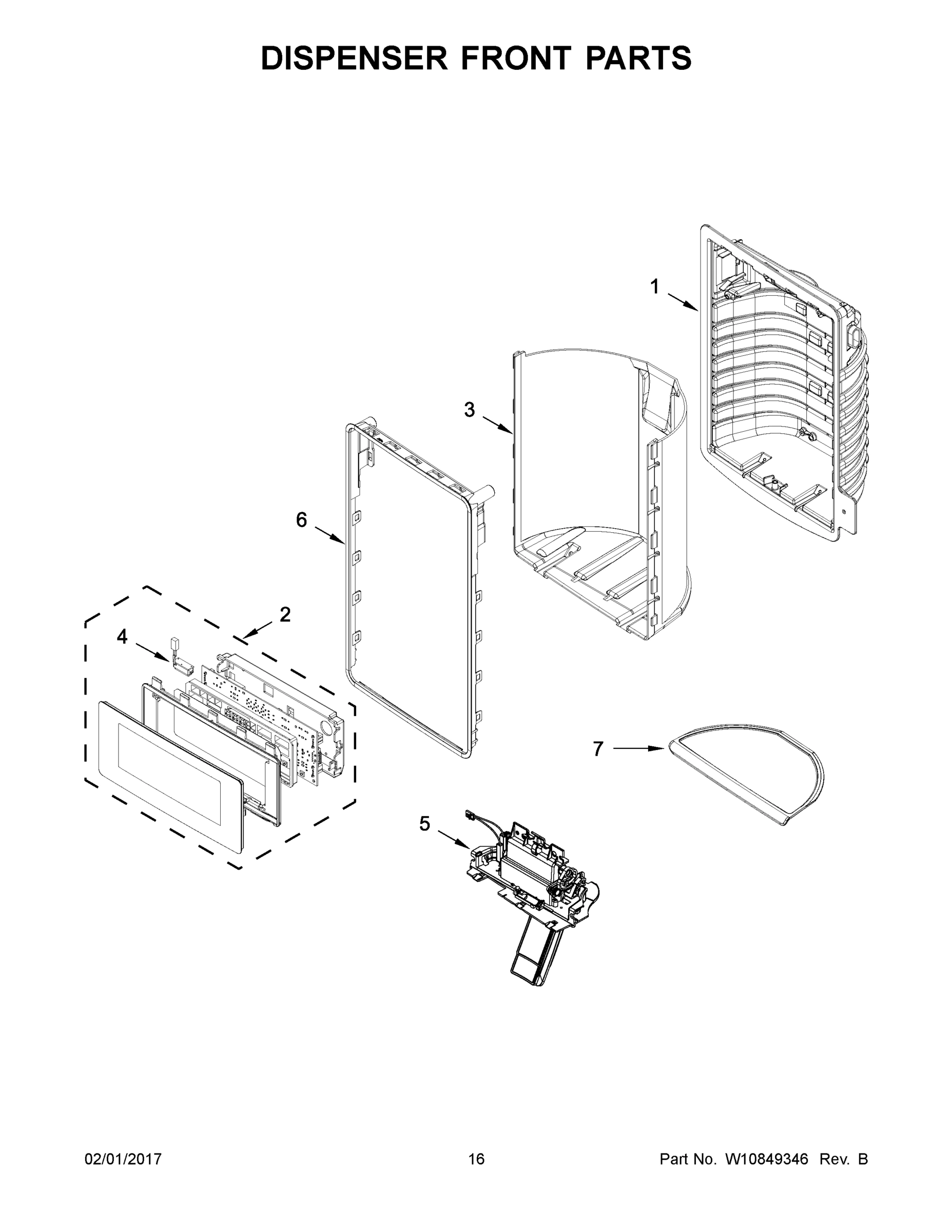

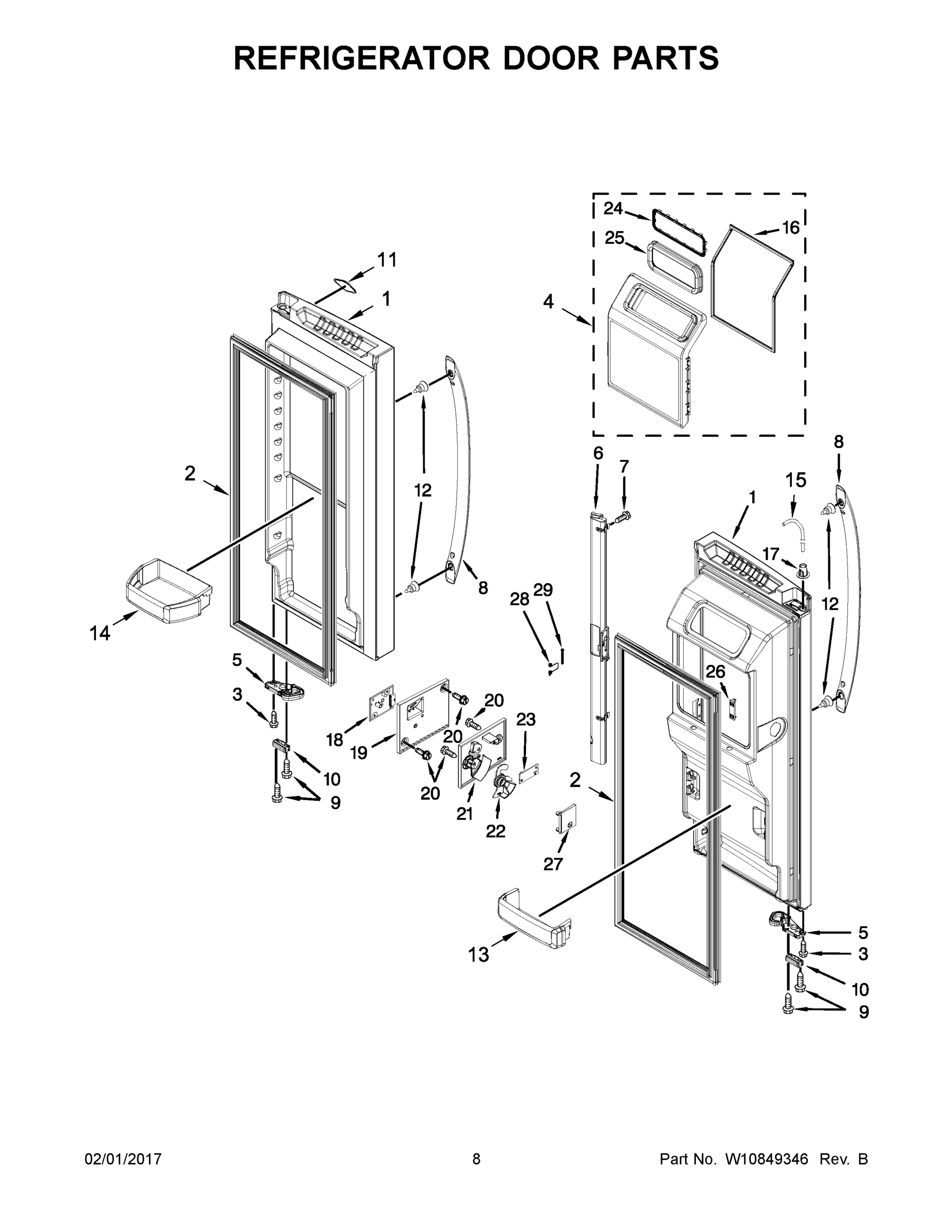

Model Whirlpool WRF767SDEM01 REFRIGERATOR, FRENCH DOOR, W/DISPENSER – Common Parts &amp; Diagrams

1

WPW10510417 Whirlpool Refrigerator Front Pan Backorder WPL WPW10510417 $60.26

2

W10248789 Whirlpool Refrigerator Roller Backorder WPL W10248789 $11.85

2

W10837274 Whirlpool Refrigerator Plate Backorder WPL W10837274 $51.99

2

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $56.99

3

W10570074 Whirlpool Refrigerator Plate In Stock WPL W10570074 $92.97

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

3

WPW10344432 Whirlpool Pivot Block In Stock WPL WPW10344432 $11.48

3

WALL, DISPENSER FALSE (GREY) WPL W10712262 Contact Us For Availability

4

W10505487 Whirlpool Refrigerator Gasket Backorder WPL W10505487 $17.25

4

W10702033 Whirlpool Refrigerator Reservoir Backorder WPL W10702033 $111.18

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $8.89

4

W11171728 Whirlpool Refrigerator Ice Door In Stock WPL W11171728 $143.99

4

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $48.58

4

W11690163 Whirlpool Refrigerator Evaporator C In Stock WPL W11690163 $134.01

4

W11690685 Whirlpool Ladder Backorder WPL W11690685 $31.09

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $59.67

5

W10904595 Whirlpool Refrigerator Closer Backorder WPL W10904595 $10.45

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $21.99

5

W11745092 Whirlpool Dual Evaporator Drain Ext In Stock WPL W11745092 $42.99

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $70.99

5

WPW10616134 Whirlpool Refrigerator Ice Door Backorder WPL WPW10616134 $142.72

5A

W11212164 Whirlpool Refrigerator Door Closer Backorder WPL W11212164 $10.51

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $23.40

6

W10594047 Whirlpool Refrigerator Freezer Bin Backorder WPL W10594047 $192.30

6

W11194438 Whirlpool Water Filter Housing In Stock WPL W11194438 $125.81

6

W11218695 Whirlpool Refrigerator Front Pan Backorder WPL W11218695 $202.91

6

WPW10402180 Whirlpool Refrigerator Trim Backorder WPL WPW10402180 $40.04

7

W10398002 Whirlpool Refrigerator Handle Backorder WPL W10398002 $75.11

7

W10811115 Whirlpool Refrigerator Cover Backorder WPL W10811115 $69.95

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

7

TRAY, DRIP (GREY) WPL W10709233 Contact Us For Availability

8

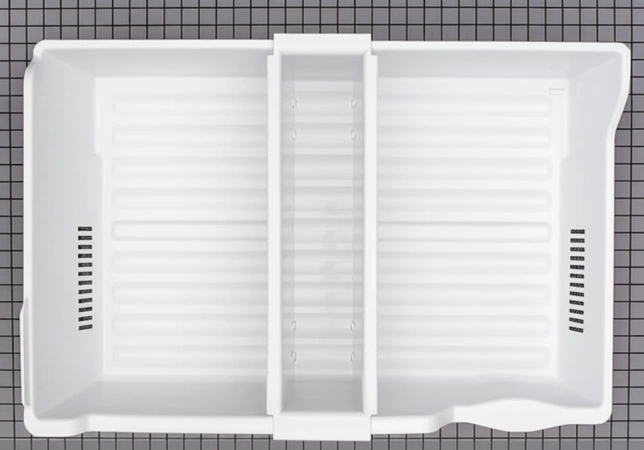

W10724458 Whirlpool Refrigerator Freezer Bin Backorder WPL W10724458 $82.94

8

W11190820 Whirlpool Refrigerator Cover Backorder WPL W11190820 $69.95

8

W11225840 Whirlpool Refrigerator Evaporator T Backorder WPL W11225840 $96.99

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $9.86

8

WPW10347093 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10347093 $281.91

9

W10852685 Whirlpool Clip Assembly Backorder WPL W10852685 $6.79

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $80.99

9

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $13.99

9

WPW10688114 Whirlpool Drawer Front In Stock WPL WPW10688114 $106.74

W10507444 Whirlpool Refrigerator Divider Backorder WPL W10507444 $38.71

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $14.02

W11592405 Whirlpool Door Hinge Backorder WPL W11592405 $16.65

W11658802 Whirlpool Refrigerator Ice Maker In Stock WPL W11658802 $151.99

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $82.99

WPW10277949 Whirlpool Refrigerator Filter Cov Backorder WPL WPW10277949 $65.07

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $52.31

10A

W11592404 Whirlpool Refrigerator Door Hinge Backorder WPL W11592404 $14.13

11

W11087200 Whirlpool Refrigerator Inverter Box In Stock WPL W11087200 $193.99

11

W11677723 Whirlpool Support Backorder WPL W11677723 $95.76

11

WPW10393265 Whirlpool Refrigerator Nameplate In Stock WPL WPW10393265 $53.46

12

W10508330 Whirlpool Refrigerator Slide Backorder WPL W10508330 $78.33

12A

W10508328 Whirlpool Refrigerator Slide Backorder WPL W10508328 $217.82

12A

WPW10407158 Whirlpool Refrigerator Cover Asse Backorder WPL WPW10407158 $14.33

W10153710 Whirlpool Refrigerator Front Cover Backorder WPL W10153710 $10.91

W10730080 Whirlpool Refrigerator Bracket Backorder WPL W10730080 $45.11

W10838874 Whirlpool Refrigerator Trivet In Stock WPL W10838874 $34.99

W11452196 Whirlpool Refrigerator Evaporator M In Stock WPL W11452196 $121.91

W11686800 Whirlpool Water Tube In Stock WPL W11686800 $40.99

W11690684 Whirlpool Ladder Backorder WPL W11690684 $31.09

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $11.21

W11087201 Whirlpool Refrigerator Heater In Stock WPL W11087201 $63.99

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $14.99

W11559683 Whirlpool Ice Level Arm In Stock WPL W11559683 $42.99

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $54.36

14A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $54.36

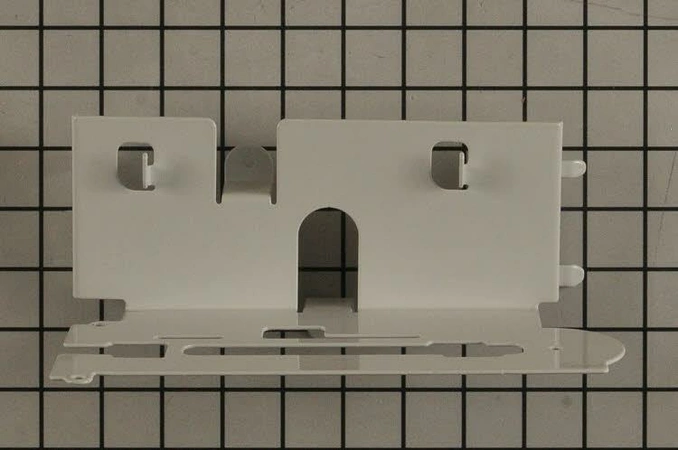

W10420084 Whirlpool Refrigerator Bracket Backorder WPL W10420084 $48.58

W10717569 Whirlpool Refrigerator Frame Backorder WPL W10717569 $137.46

W10878115 Whirlpool Refrigerator Door Hinge Backorder WPL W10878115 $46.84

WPW10499015 Whirlpool Refrigerator Water Tube Backorder WPL WPW10499015 $78.87

15A

W11240748 Whirlpool Refrigerator Door Hinge Backorder WPL W11240748 $47.39

W10490266 Whirlpool Refrigerator Cover Backorder WPL W10490266 $56.77

W10709259 Whirlpool Refrigerator Freezer Bin Backorder WPL W10709259 $82.94

W11624997 Whirlpool Refrigerator Gasket Backorder WPL W11624997 $41.24

CONDENSER In Stock WPL W11760073 $114.83

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $88.99

W10182881 Whirlpool Refrigerator Scoop Backorder WPL W10182881 $13.24

W10850377 Whirlpool Drawer Crisper In Stock WPL W10850377 $102.83

W11242954 Whirlpool Refrigerator Ice Box In Stock WPL W11242954 $194.99

W11661208 Whirlpool Cover Assembly Backorder WPL W11661208 $14.02

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $4.82

W10865826 Whirlpool Refrigerator Water Inlet In Stock WPL W10865826 $55.99

W10898445-includeCORE Whirlpool W10898445 Ref Backorder WPL W10898445-includeCORE $284.09

W11578839 Whirlpool Roller In Stock WPL W11578839 $8.89

WPW10469927 Whirlpool Refrigerator Housing Backorder WPL WPW10469927 $159.21

WPW10498906 Whirlpool Refrigerator Plate Backorder WPL WPW10498906 $79.38

TRAY, DRIP WPL W10342573 Contact Us For Availability

W10508327 Whirlpool Refrigerator Slide Backorder WPL W10508327 $195.91

W11457241 Whirlpool Burner Drip Bowl In Stock WPL W11457241 $76.99

W11573594 Whirlpool Refrigerator Axle Backorder WPL W11573594 $11.42

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $61.97

COVER, RECEIVER WPL W10258510 Contact Us For Availability

19A

W10508326 Whirlpool Refrigerator Slide Backorder WPL W10508326 $195.83

19A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $60.99

20

W10505516 Whirlpool Refrigerator Trim Backorder WPL W10505516 $22.21

20

W11238340 Whirlpool Refrigerator Water Tube In Stock WPL W11238340 $71.83

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $54.74

W11429989 Whirlpool Refrigerator Solenoid In Stock WPL W11429989 $98.99

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.89

SIDEPLATE, CRISPER (LEFT HAND) WPL W10549601 Contact Us For Availability

21A

W10549602 Whirlpool Refrigerator Plate Backorder WPL W10549602 $80.59

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.90

W11127829 Whirlpool Refrigerator Condenser Mo In Stock WPL W11127829 $124.99

W11492867 Whirlpool Evaporator In Stock WPL W11492867 $144.99

WPW10248544 Whirlpool Refrigerator Roller Backorder WPL WPW10248544 $4.82

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $86.99

23

W10467415 Whirlpool Refrigerator Trim Backorder WPL W10467415 $45.53

23

W11673433 Whirlpool Clip Backorder WPL W11673433 $92.88

23

W11683243 Whirlpool Module In Stock WPL W11683243 $160.48

W10530314 Whirlpool Refrigerator Housing Backorder WPL W10530314 $6.83

W10796120 Whirlpool Refrigerator Wire Harness Backorder WPL W10796120 $89.68

W11033168 Whirlpool Refrigerator Evaporator F In Stock WPL W11033168 $65.99

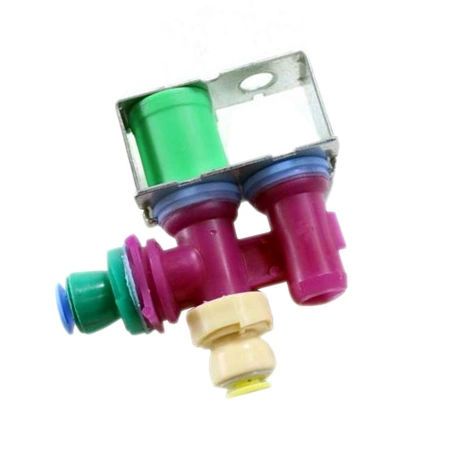

W11129435 Whirlpool Refrigerator Valve In Stock WPL W11129435 $120.56

WPW10400825 Whirlpool Refrigerator Retainer Backorder WPL WPW10400825 $19.48

25

W10662015 Whirlpool Drawer Support Assembly Backorder WPL W10662015 $52.26

25

W11637688 Whirlpool Heater In Stock WPL W11637688 $58.73

25

WPW10347087 Whirlpool Refrigerator Ice Chute In Stock WPL WPW10347087 $24.60

27

W10470981 Whirlpool Refrigerator Gasket Backorder WPL W10470981 $16.81

27

WPW10236512 Whirlpool Refrigerator Support Backorder WPL WPW10236512 $84.86

27

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $50.07

W10423560 Whirlpool Refrigerator Screw Backorder WPL W10423560 $8.89

W10754591 Whirlpool Refrigerator Cover Backorder WPL W10754591 $72.04

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WPW10280983 Whirlpool Refrigerator Insulation Backorder WPL WPW10280983 $57.72

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WPW10257246 Whirlpool Refrigerator Axle Backorder WPL WPW10257246 $22.70

WPW10389152 Whirlpool Support In Stock WPL WPW10389152 $9.99

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $48.85

30

W10467416 Whirlpool Refrigerator Trim Backorder WPL W10467416 $22.94

30

W11482027 Whirlpool Refrigerator Back Cover Backorder WPL W11482027 $70.81

30

WPW10635022 Whirlpool Refrigerator Adapter Backorder WPL WPW10635022 $63.84

31

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $63.98

31

W11225849 Whirlpool Refrigerator Retainer Backorder WPL W11225849 $14.02

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $10.00

W11209890 Whirlpool Refrigerator Water Tube Backorder WPL W11209890 $72.26

W11230117 Whirlpool Refrigerator Support Backorder WPL W11230117 $104.78

COVER, TOP WPL W10398004 Contact Us For Availability

33

W10491355 Whirlpool Refrigerator Air Gasket Backorder WPL W10491355 $15.89

33

WPW10248595 Whirlpool Damper Control Assembly In Stock WPL WPW10248595 $125.89

33

COUPLER, DOOR WPL W10505294 Contact Us For Availability

W10212137 Whirlpool Refrigerator Grommet Backorder WPL W10212137 $8.35

W10668846 Whirlpool Refrigerator Wire Harness Backorder WPL W10668846 $80.03

W11190819 Whirlpool Refrigerator Cover Backorder WPL W11190819 $14.02

WPW10626970 Whirlpool Refrigerator Tube Backorder WPL WPW10626970 $109.71

35

W11715935 Whirlpool Dampener Backorder WPL W11715935 $8.35

35

WPW10501260 Whirlpool Refrigerator Evaporator In Stock WPL WPW10501260 $144.85

36

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $13.74

36

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $7.99

37

W10141518 Whirlpool Refrigerator Screw Backorder WPL W10141518 $5.85

37

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $16.99

38

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $4.80

38

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $16.84

39

W10277839 Whirlpool Refrigerator Cover Backorder WPL W10277839 $47.30

39

ASSEMBLY, AIR TOWER WPL W10749500 Contact Us For Availability

41

W10723352 Whirlpool Refrigerator Water Tube Backorder WPL W10723352 $77.68

42

W11209438 Whirlpool Refrigerator Connector Backorder WPL W11209438 $20.34

43

W10713934 Whirlpool Refrigerator Bracket Backorder WPL W10713934 $45.11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $37.84

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
