Model Whirlpool TT18AKXGN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

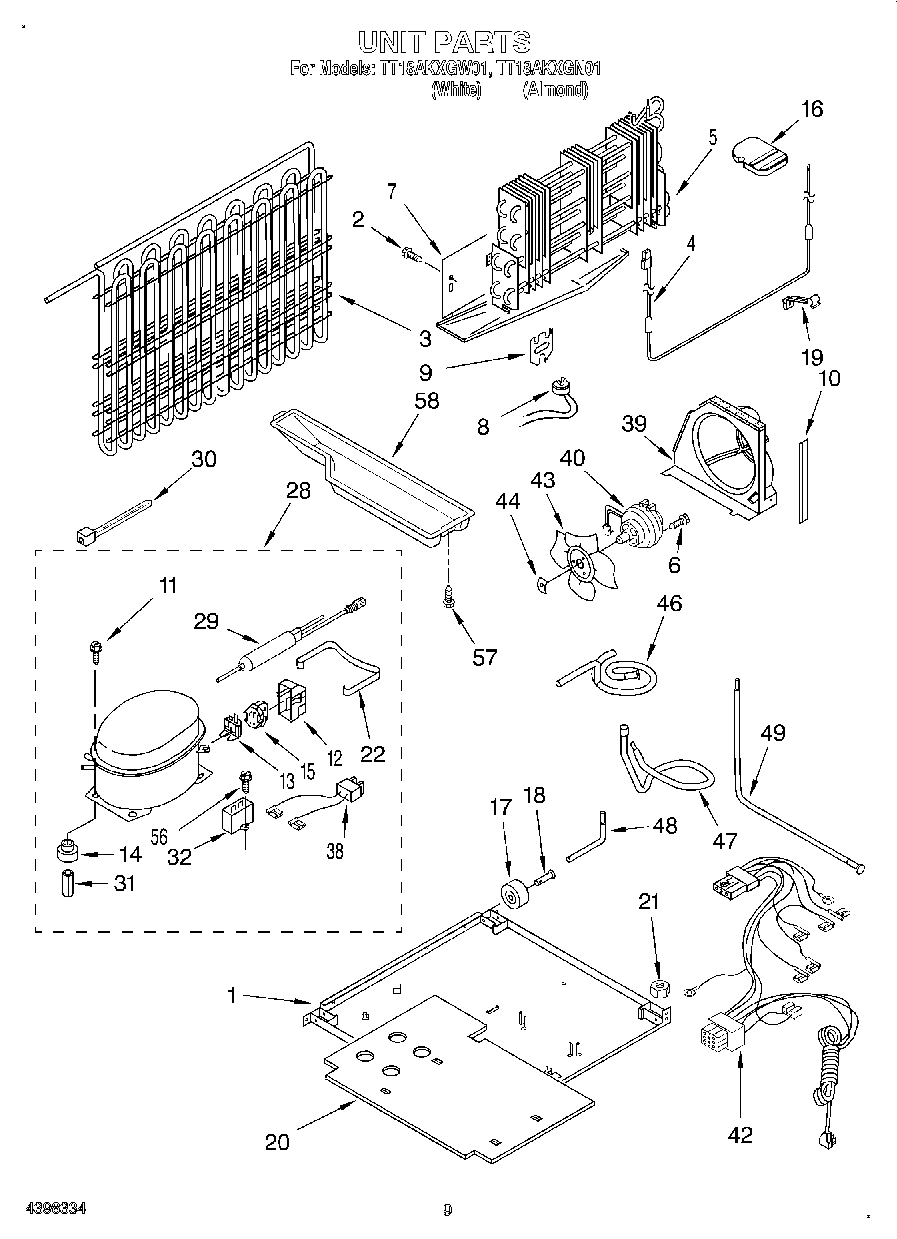

06 - UNIT, OPTIONAL
01 - CABINET, LITERATURE

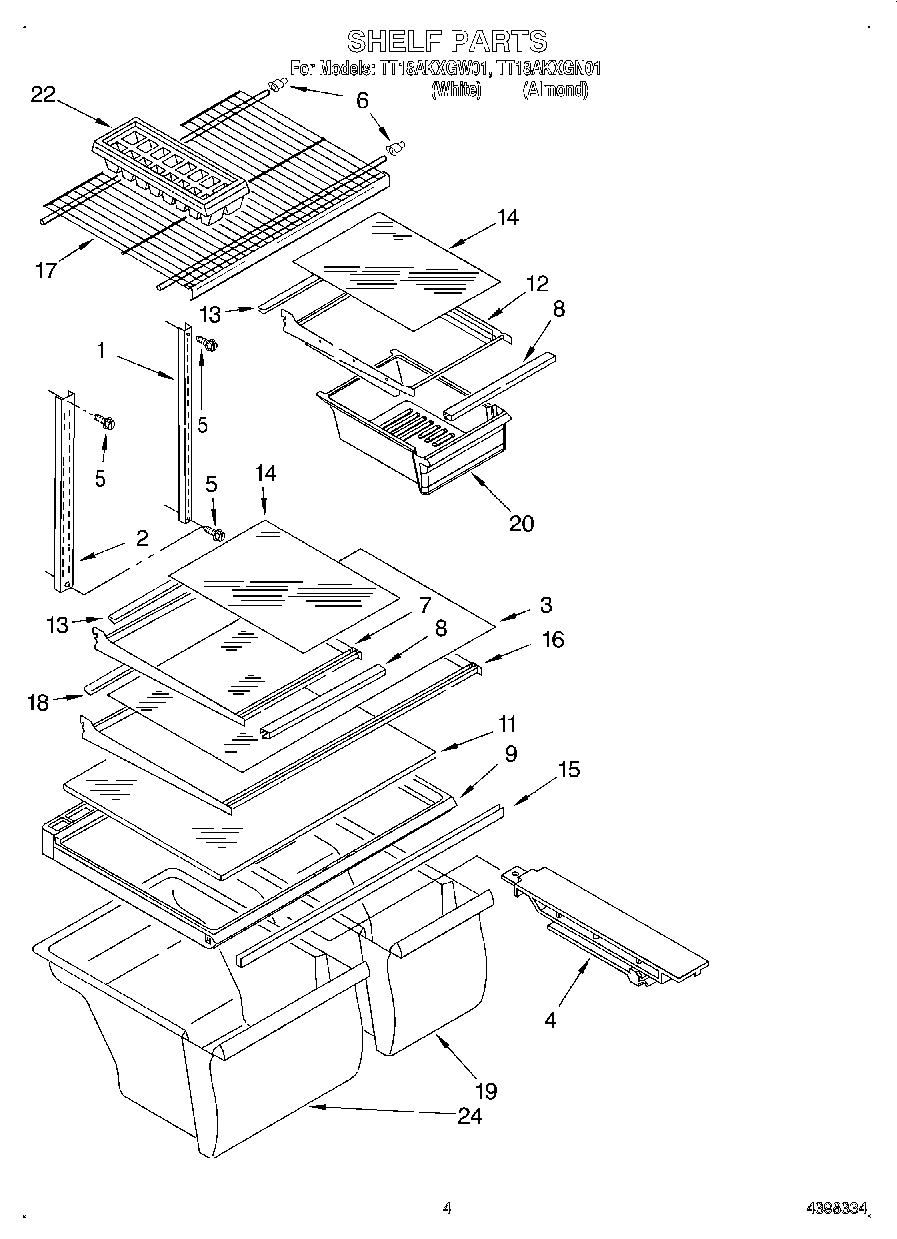

03 - SHELF

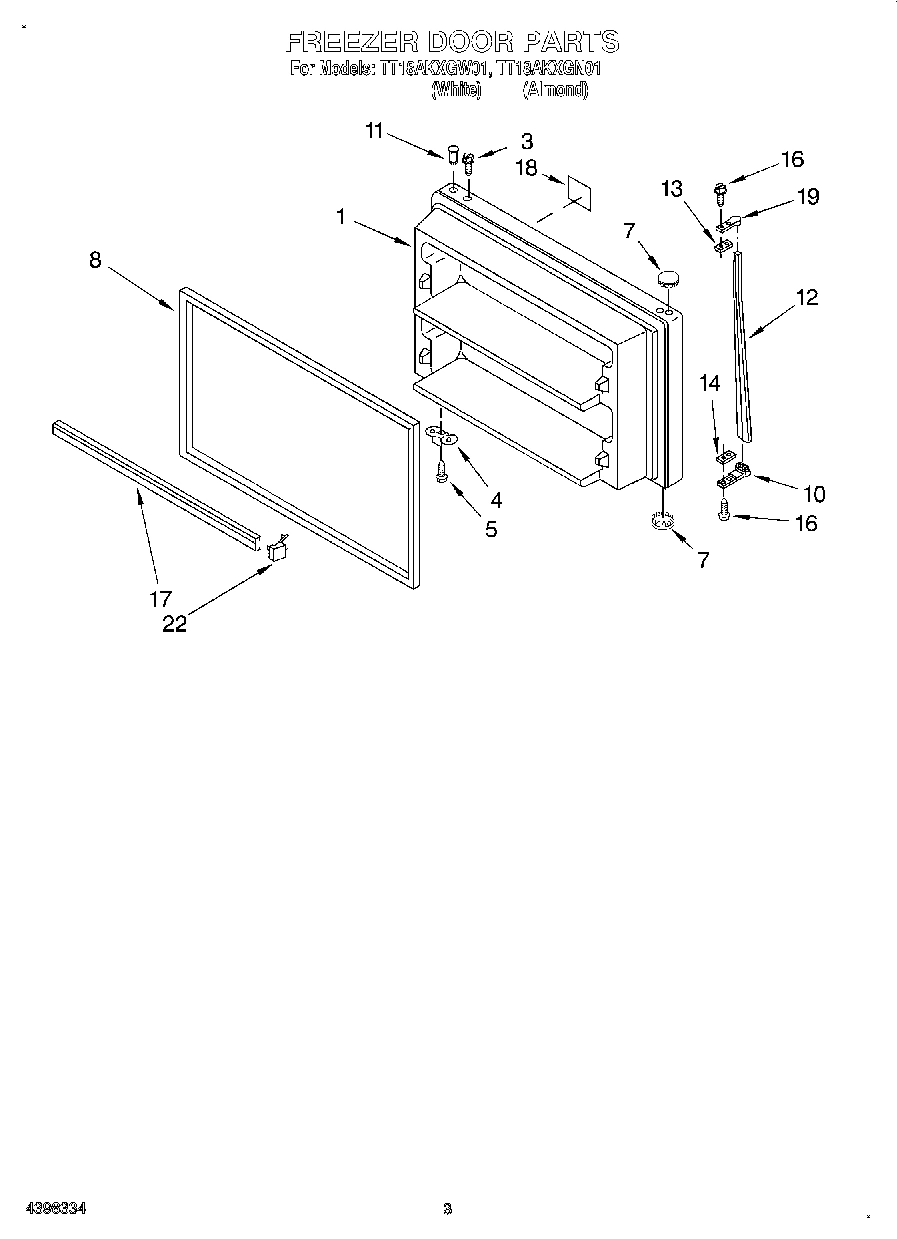

02 - FREEZER DOOR

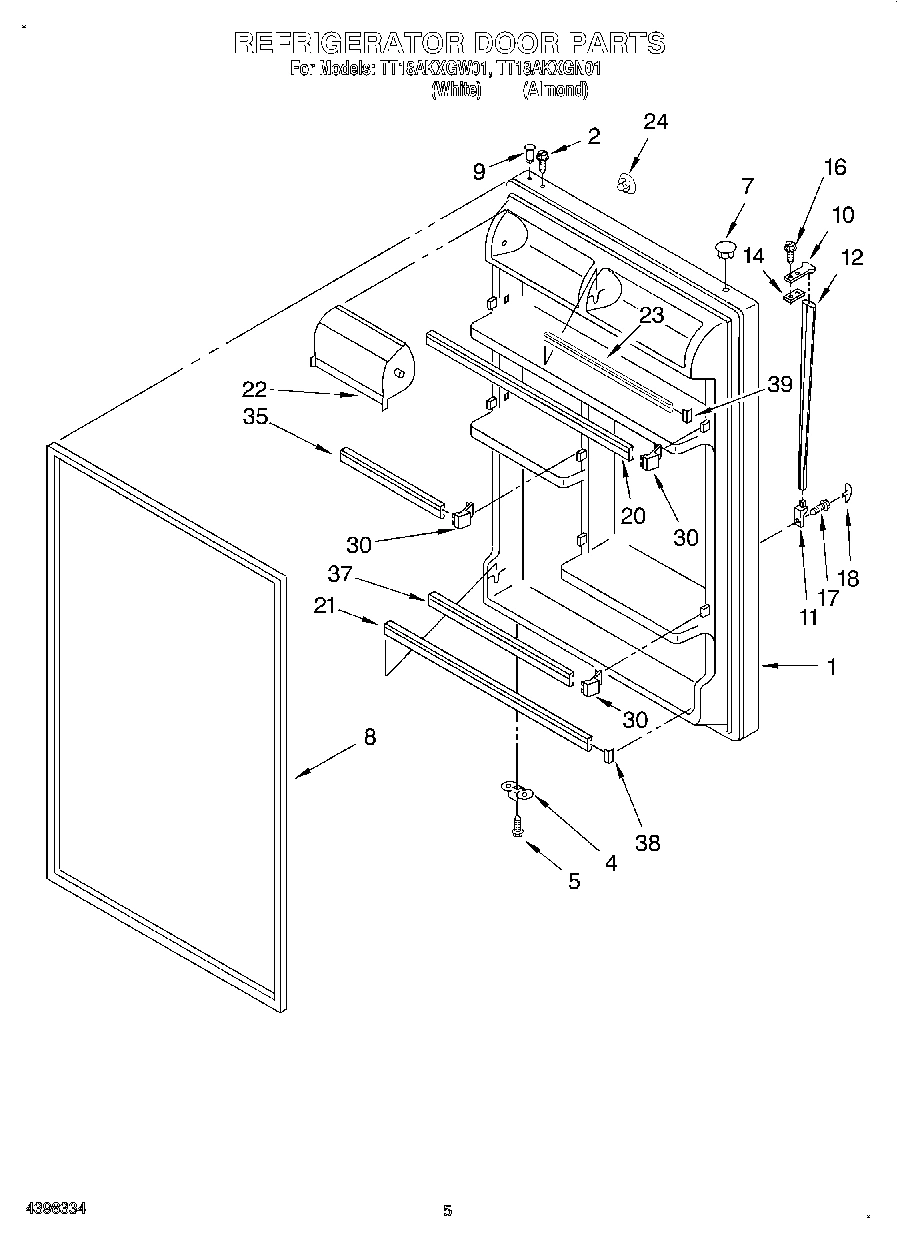

04 - REFRIGERATOR DOOR

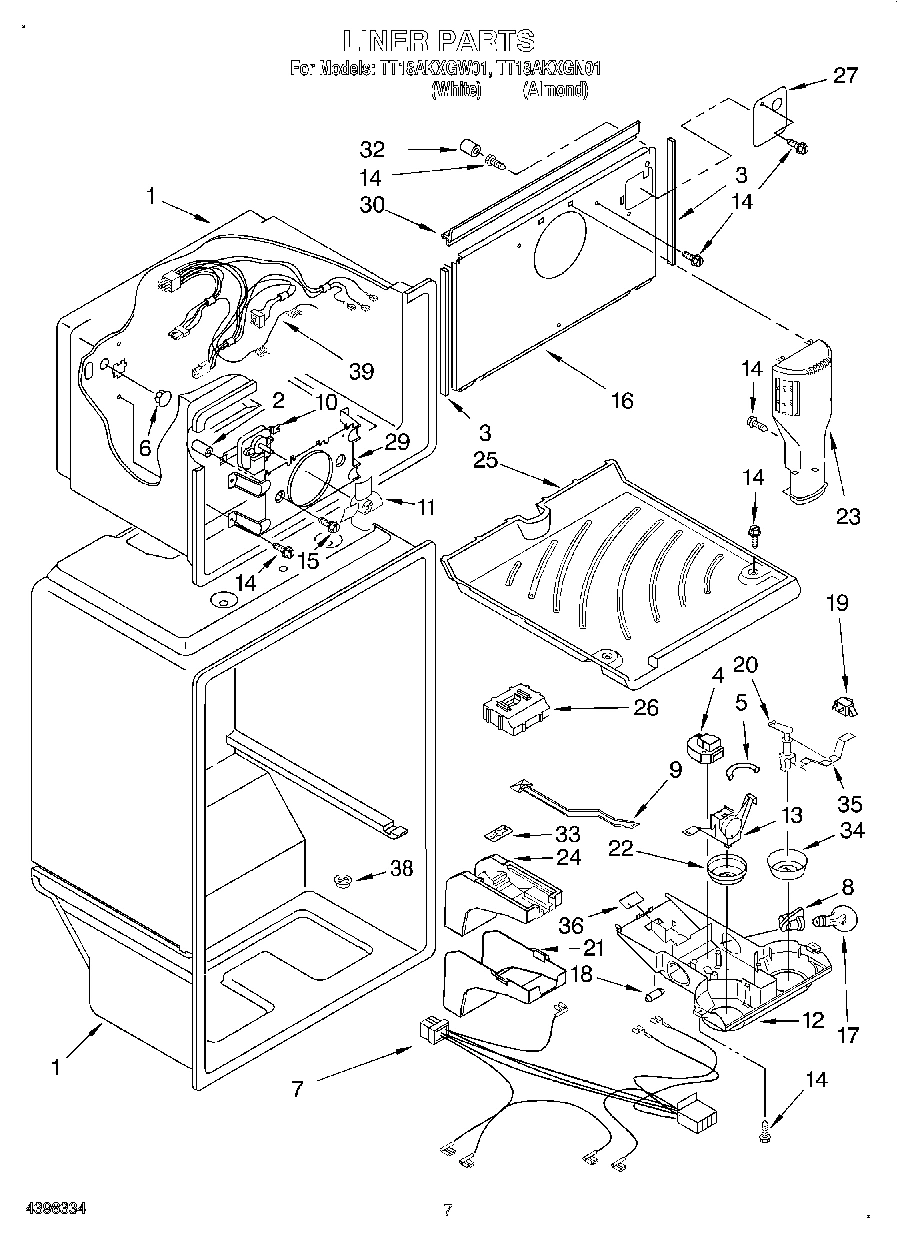

05 - LINER
Common parts from model Whirlpool TT18AKXGN01 TOP MOUNT REFRIGERATOR
1
Freezer Door (Includes No.8 & No.11) (White) WPL 2182487 Contact Us For Availability
1
Freezer Door (Includes No.8 & No.11) (Almond) WPL 2182491 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.9) (Whi WPL 2183948 Contact Us For Availability
1
Refrigerator Door (Includes No.8 & No.9) (Alm WPL 2183949 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI132882A Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Glass, Full Shelf WPL 2177824 Contact Us For Availability
4
Timer, Defrost WPL 2199008 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
12
Handle, Center (Almond) WPL 2171044 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Control Box WPL 2200820 Contact Us For Availability
13
Shim WPL 943187 Contact Us For Availability
13
Trim, Shelf Rear WPL 2193313 Contact Us For Availability
13
Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200830 Contact Us For Availability
14
Spacer, Handle Door Panel WPL 943188 Contact Us For Availability
14
Glass, Shelf WPL 2169917 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163862 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
17
Trim, Door Shelf (2) WPL 2195946 Contact Us For Availability
18
Screw Cover (White) WPL 9791769 Contact Us For Availability
18
Screw Cover (Almond) WPL 9791770 Contact Us For Availability
18
Trim, Shelf Rear WPL 2193394 Contact Us For Availability
18
Nameplate (Almond) WPL 2200750 Contact Us For Availability
18
Weight, Thermal WPL 2200831 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
20
Trim, Door Shelf WPL 2195941 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 2189008 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2200793 Contact Us For Availability
29
Bracket, Fan Motor WPL 2198901 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Trim, Door Shelf WPL 2195942 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Wire Assembly WPL 2200630 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
58
WPL 978029 WPL 978029 Contact Us For Availability
58
WPL 876029 WPL 876029 Contact Us For Availability
58
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
58
WPL 799344 WPL 799344 Contact Us For Availability
58
Torx Key WPL 1117510 Contact Us For Availability
100
FeaturePak (Includes 20, 21, 22, 23, 35, 37, WPL 2199039 Contact Us For Availability
× ![]()
