Model Whirlpool TS22BRXAW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
05 - FREEZER INTERIOR

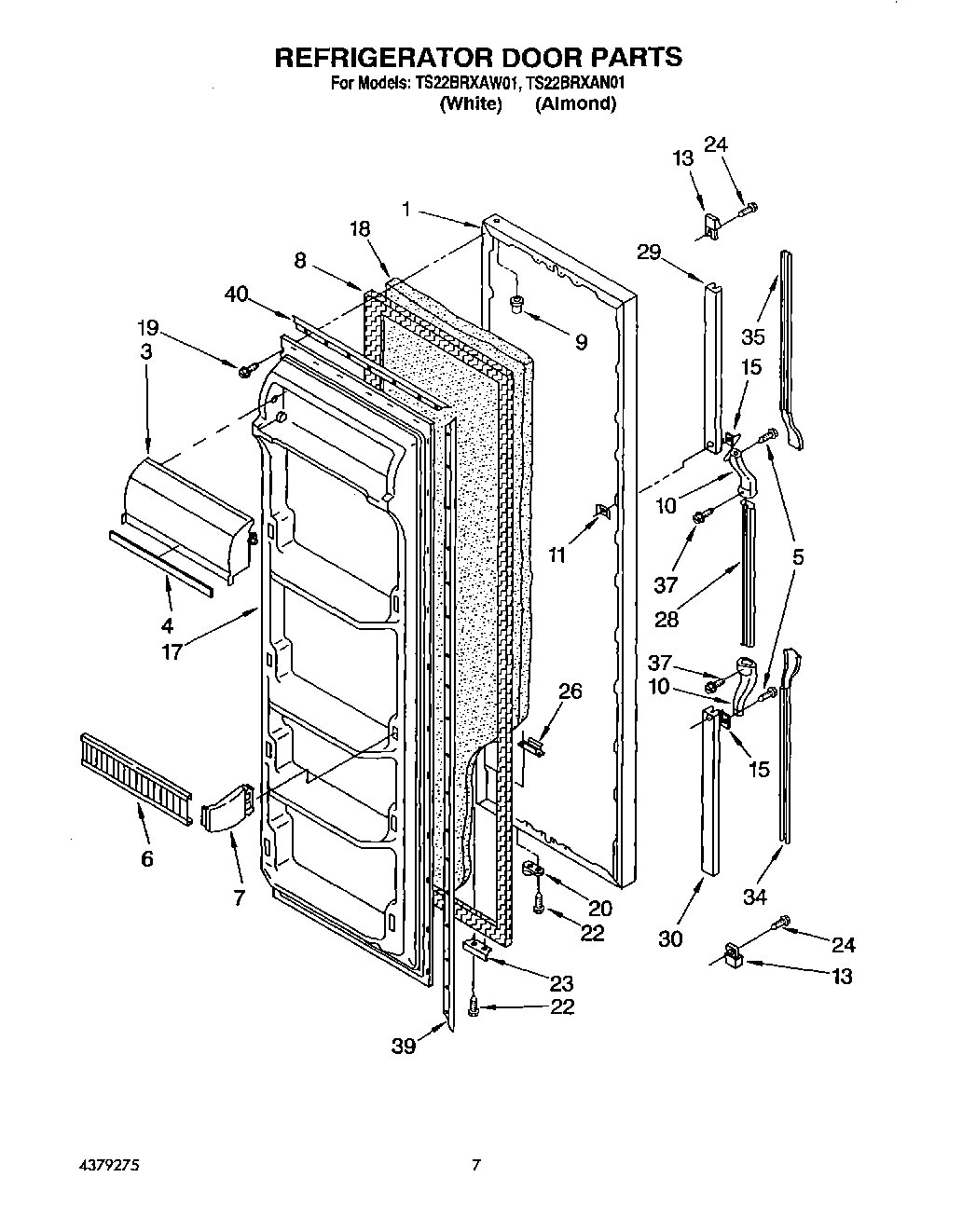

06 - REFRIGERATOR DOOR

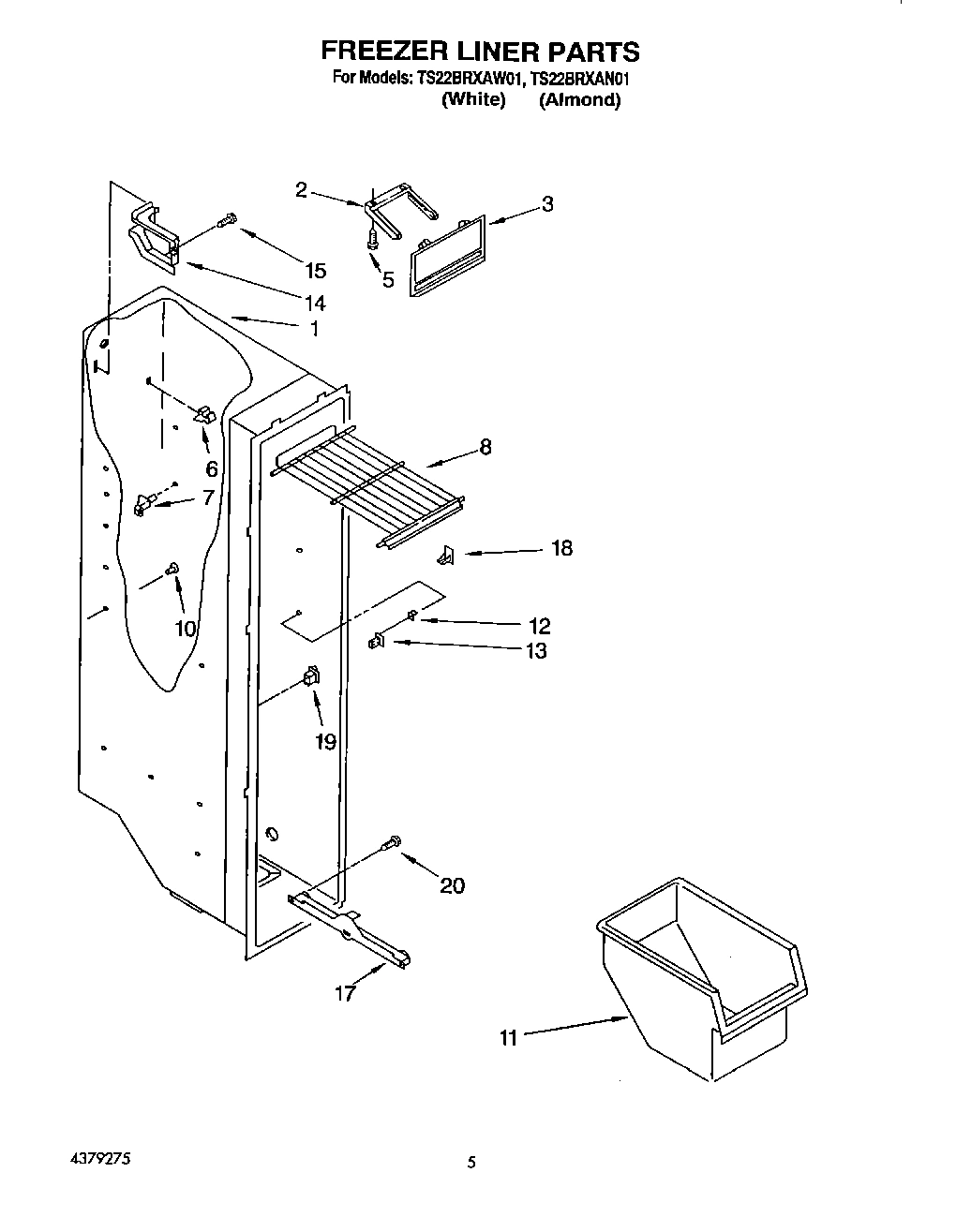

04 - FREEZER LINER

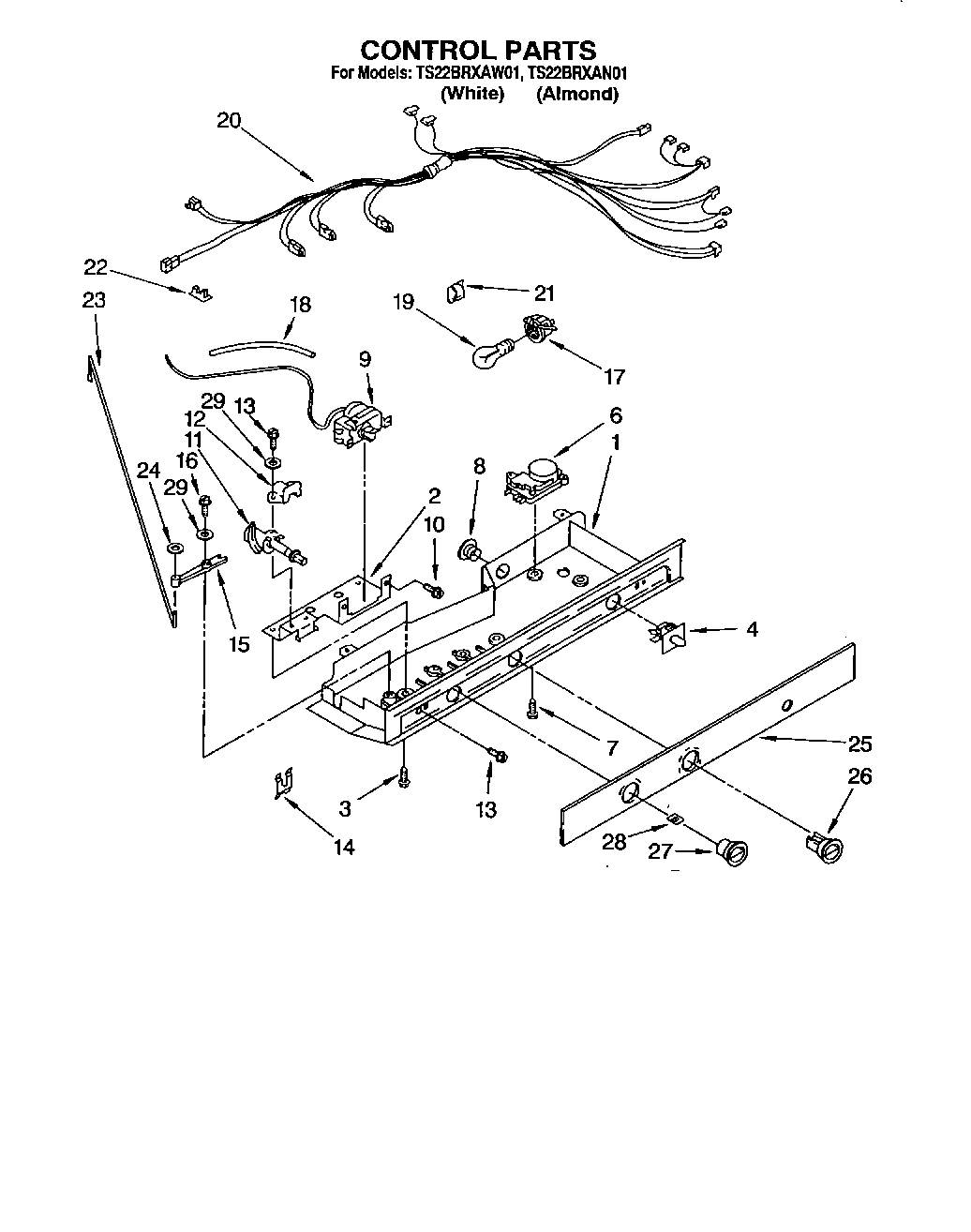

11 - CONTROL

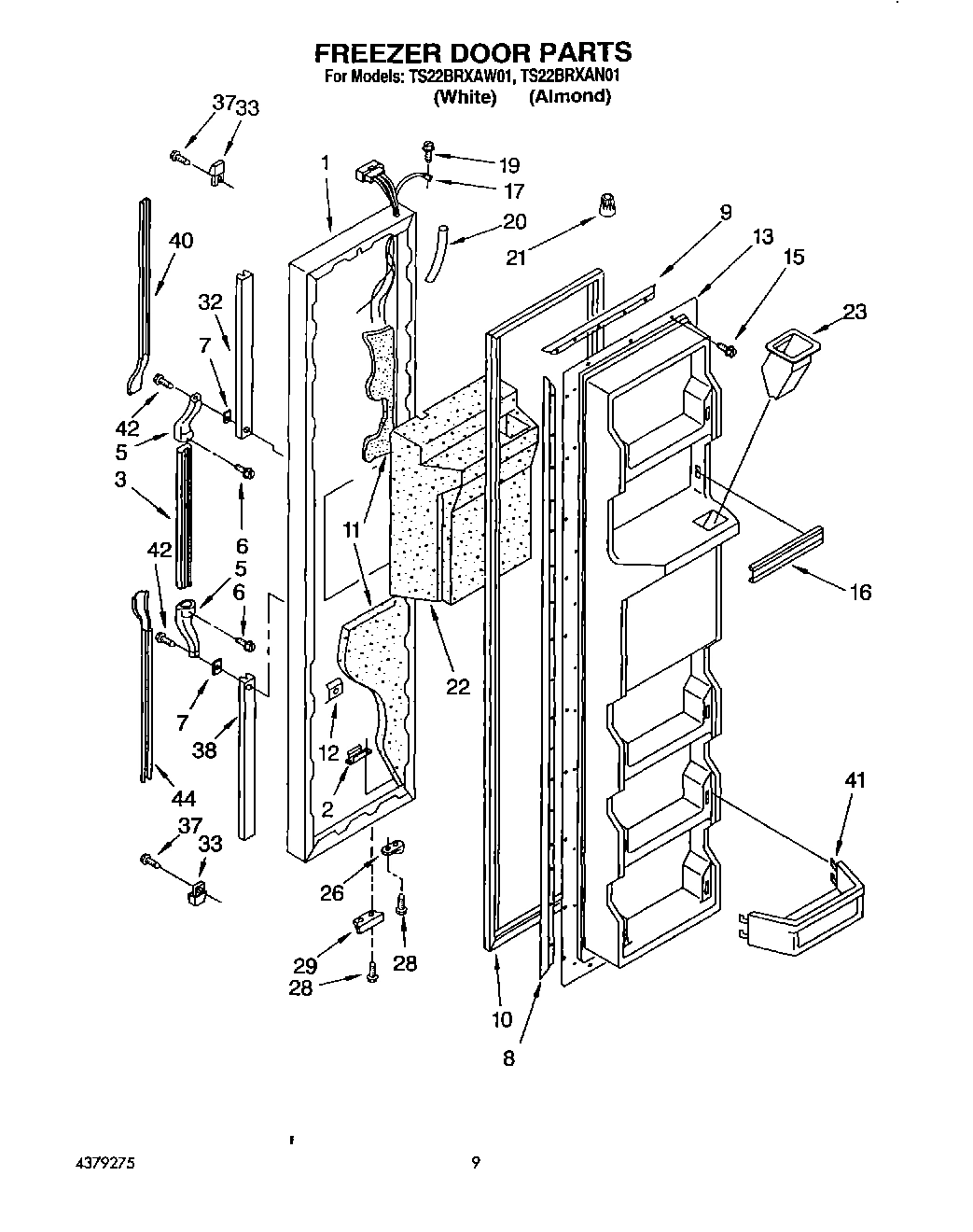

07 - FREEZER DOOR

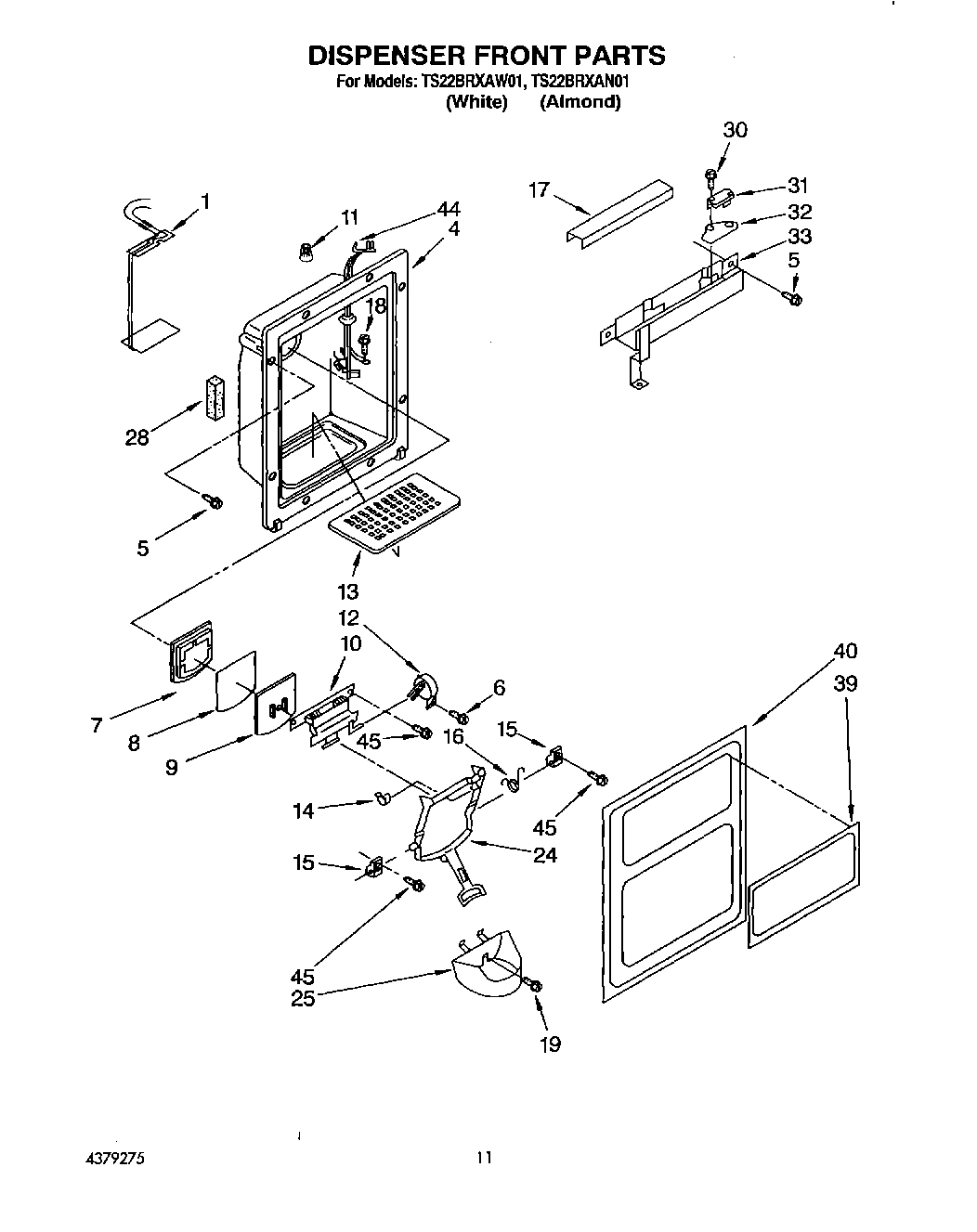

08 - DISPENSER FRONT

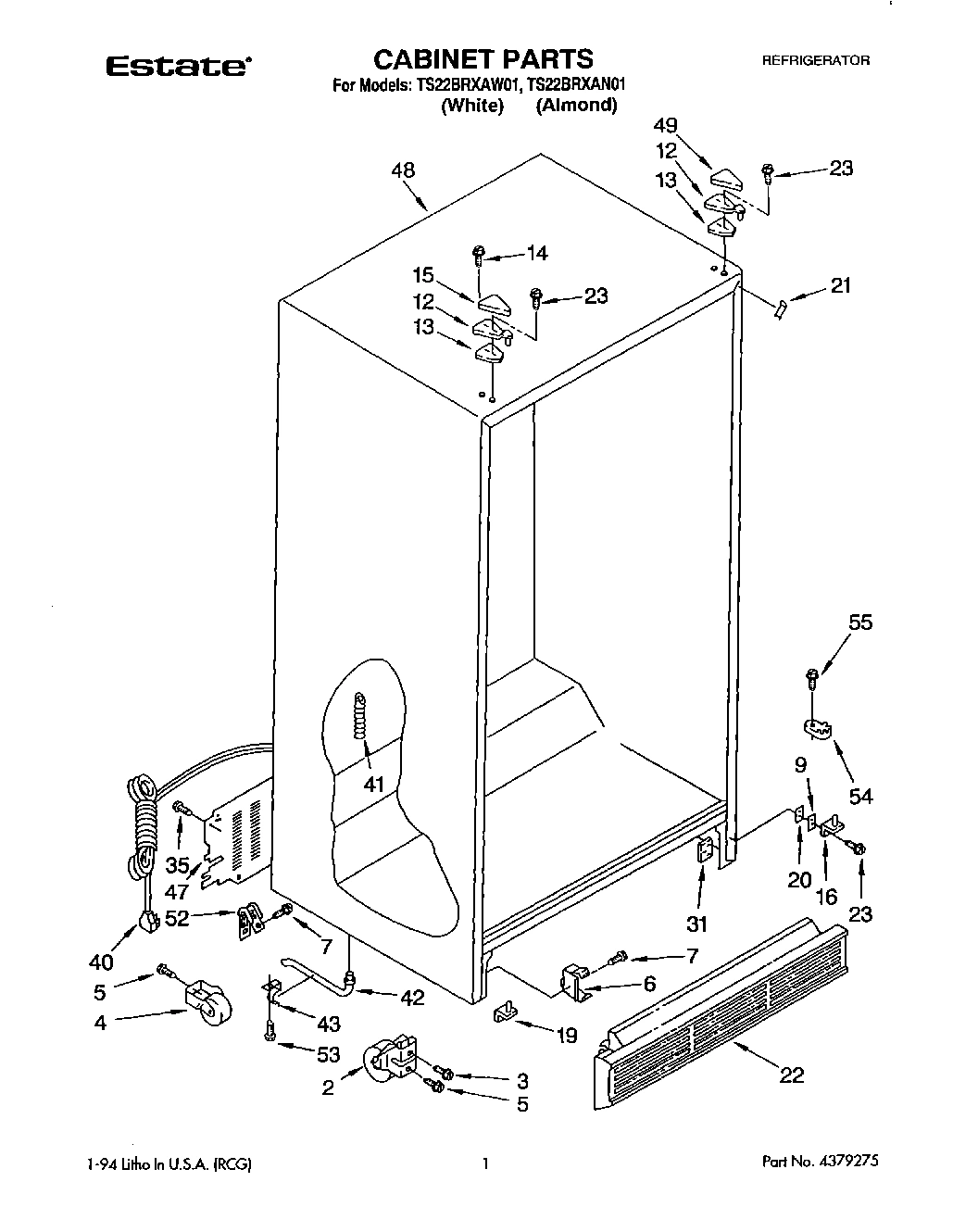

01 - CABINET

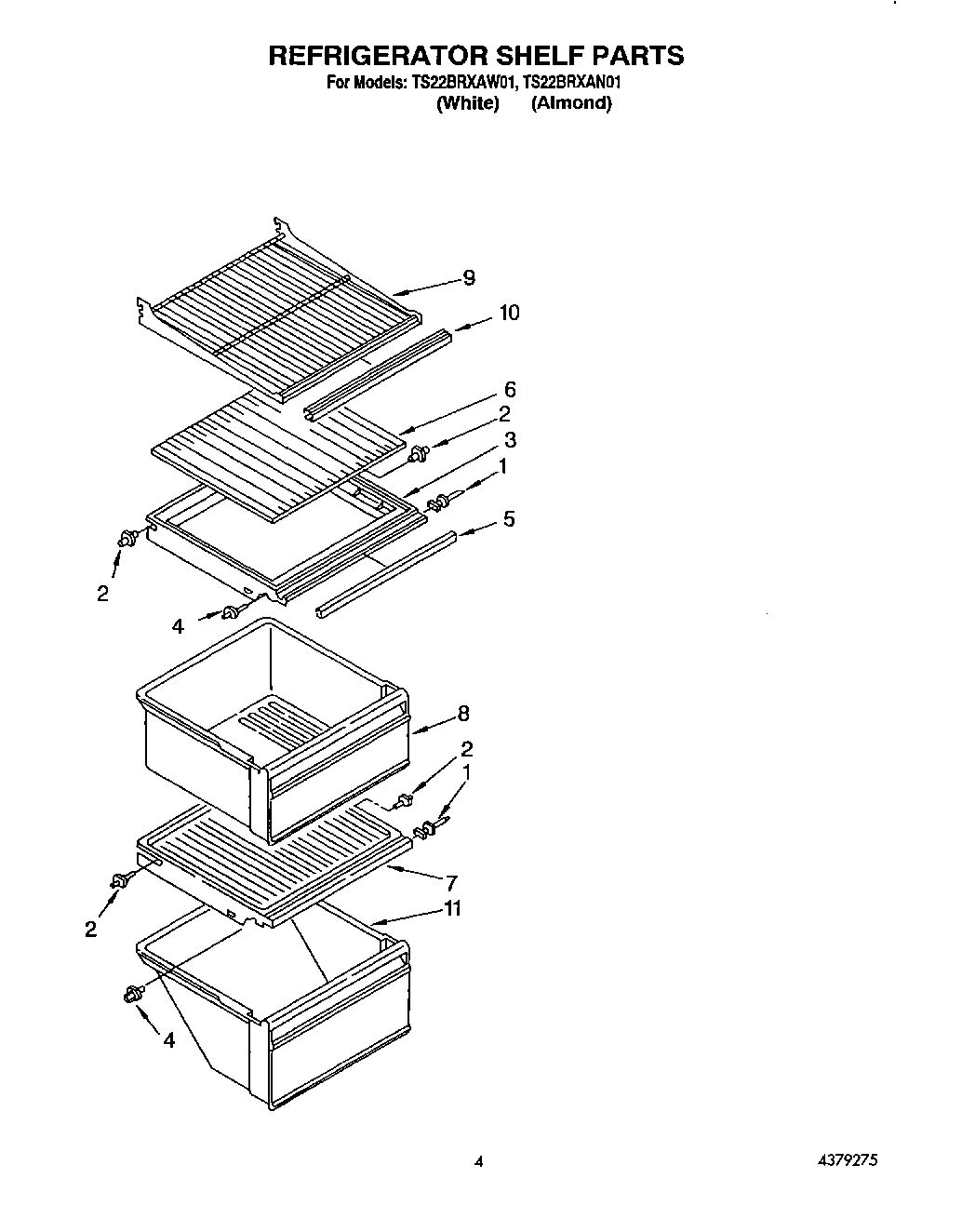

03 - REFRIGERATOR SHELF

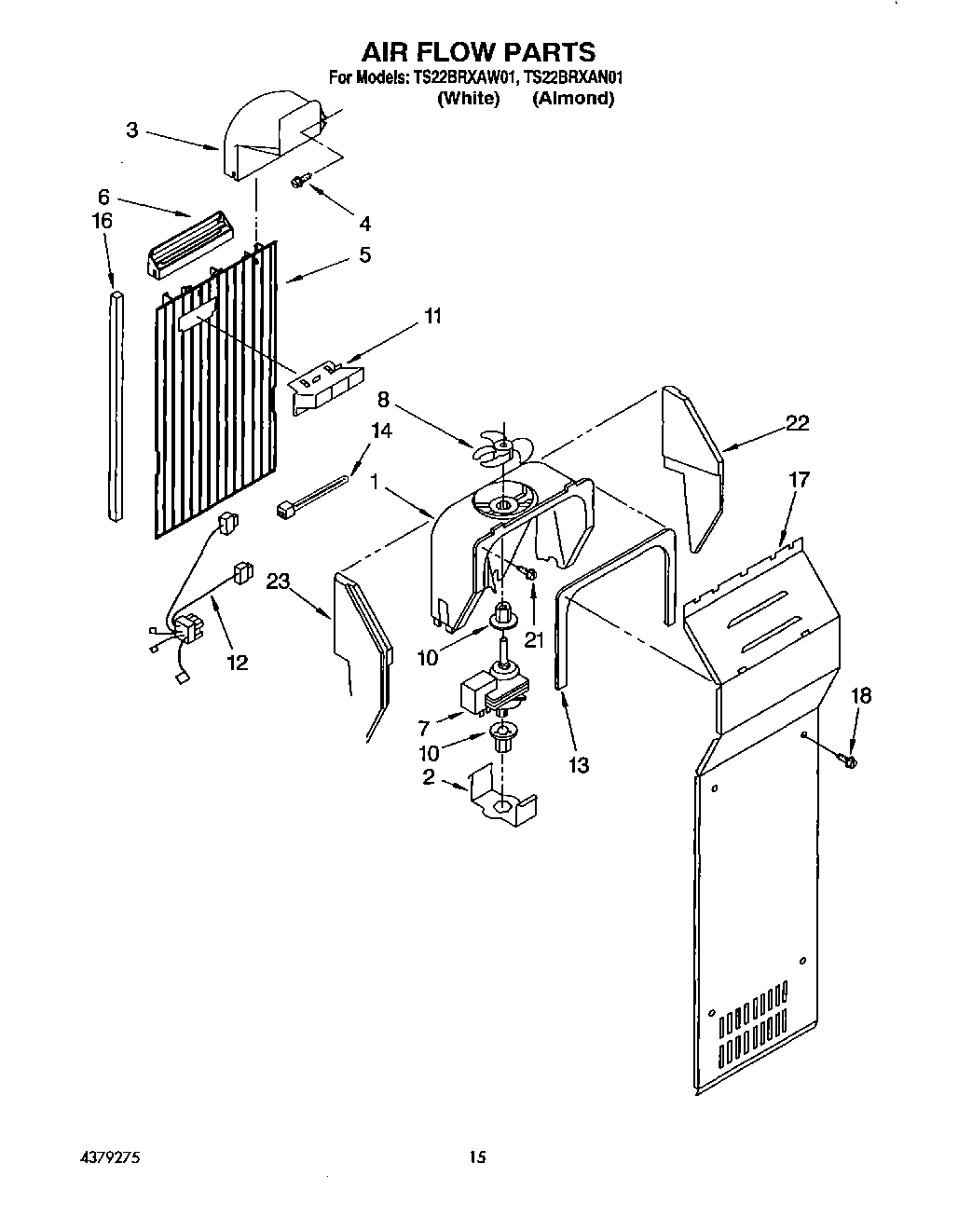

10 - AIR FLOW

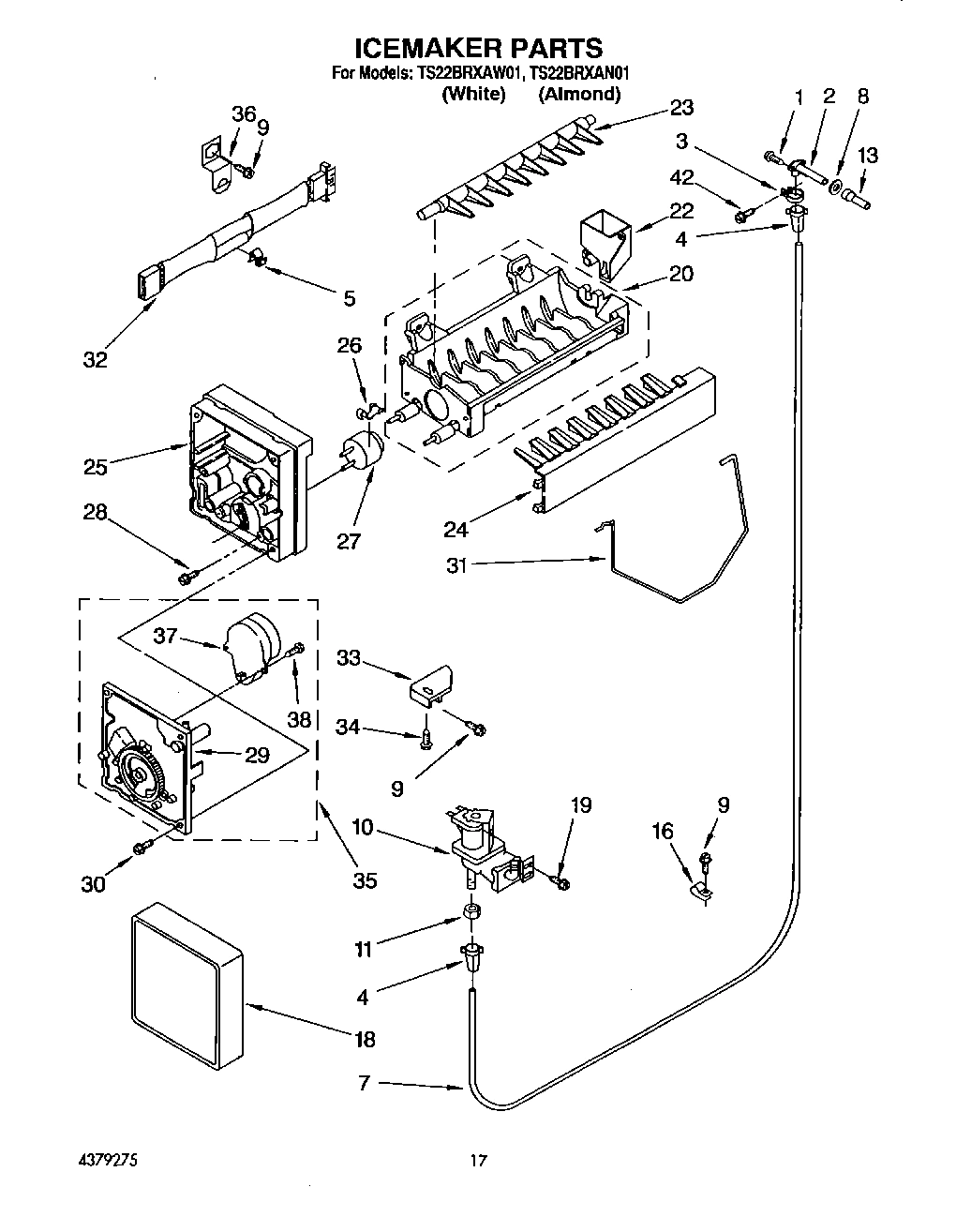

12 - ICEMAKER, LITERATURE/OPTIONAL

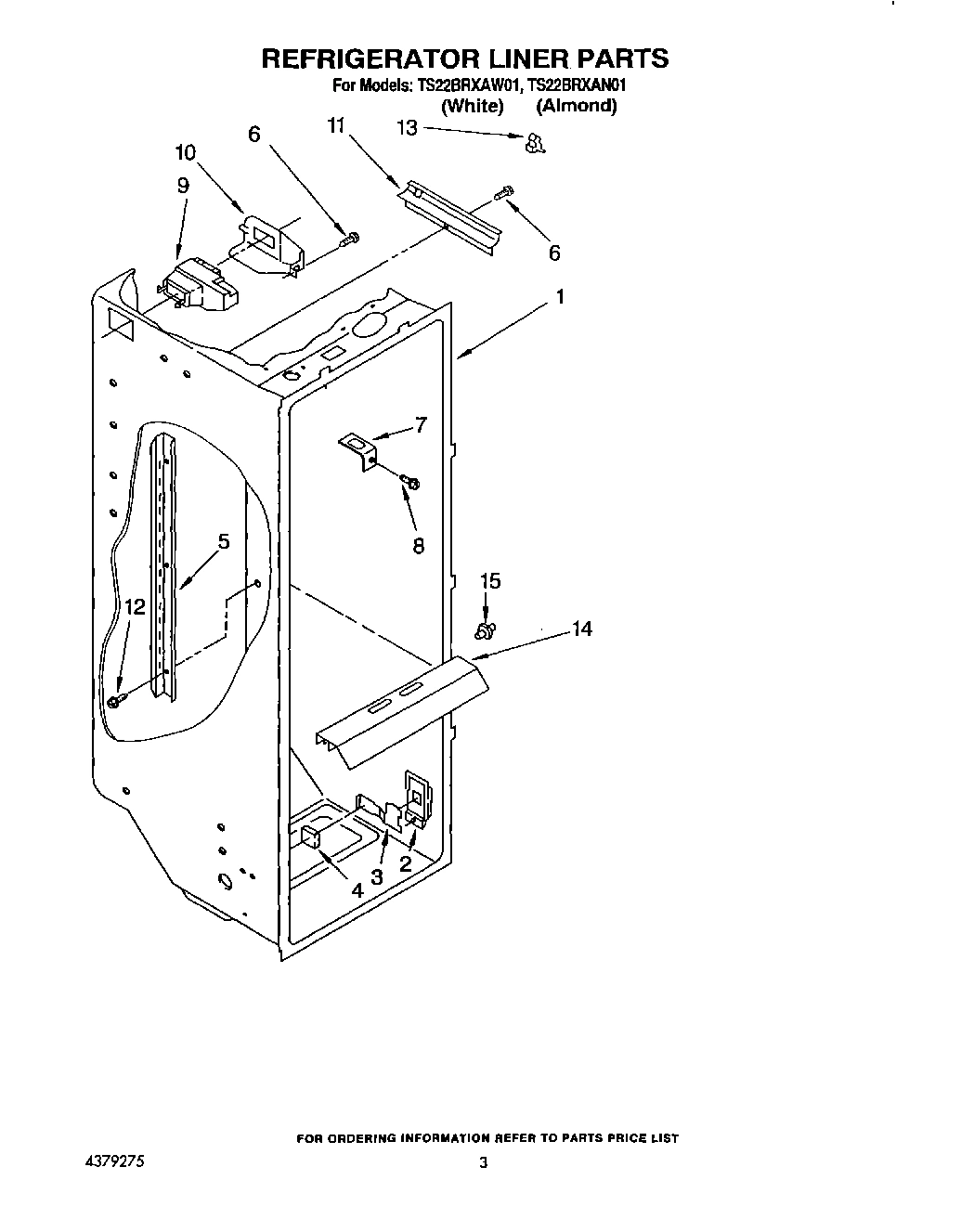

02 - REFRIGERATOR LINER

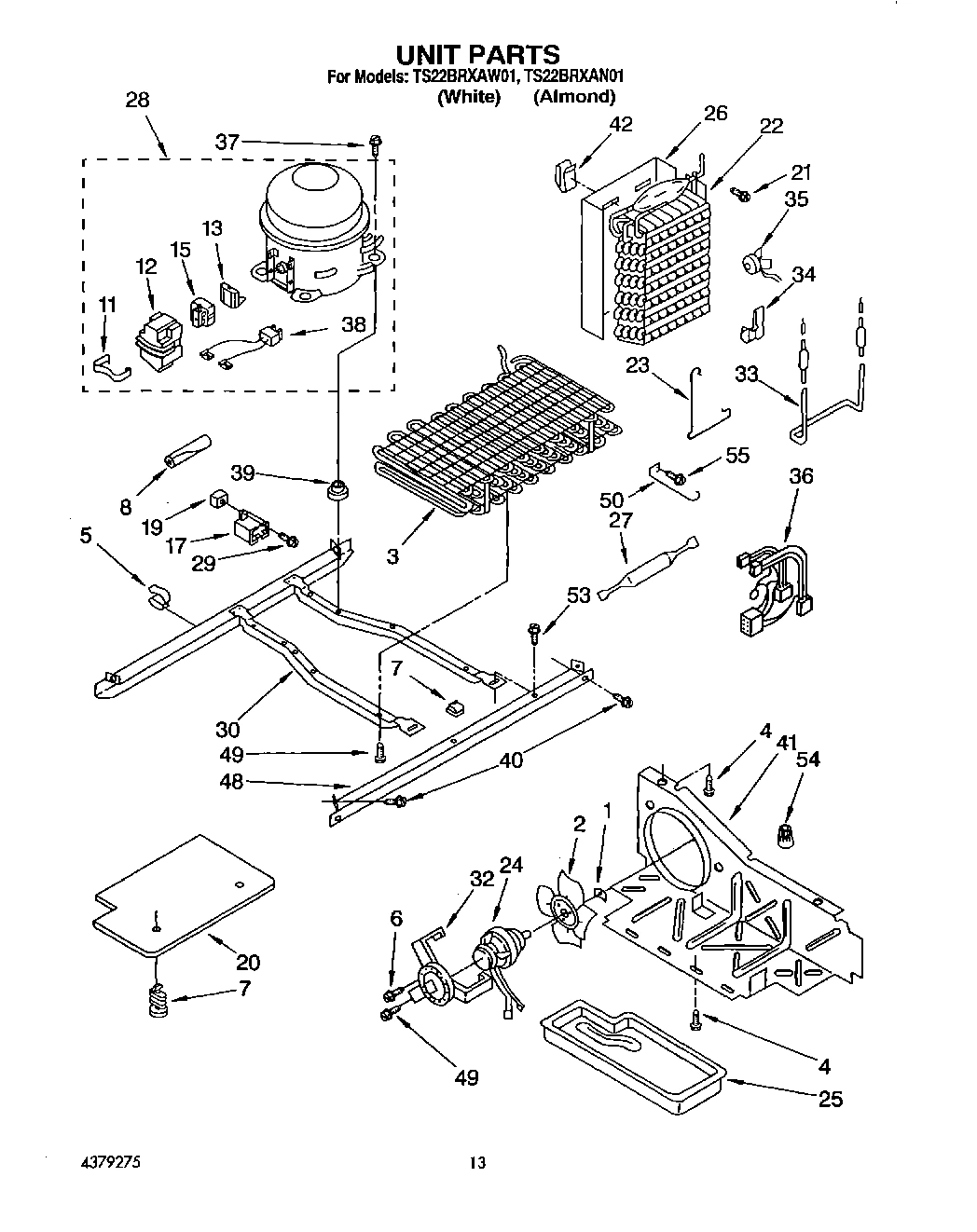

09 - UNIT
Common parts from model Whirlpool TS22BRXAW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2152691 WPL LIT2152691 Contact Us For Availability
WPL LIT2155249 WPL LIT2155249 Contact Us For Availability
WPL LIT2163508 WPL LIT2163508 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer, Door Panel (White) WPL 1115235 Contact Us For Availability
1
freezer, door panel (almond (also order item WPL 1115238 Contact Us For Availability
1
Heater, Dispenser WPL 2154789 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI164728A Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Tap, Plate WPL 2155335 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
3
Handle, Center WPL 1118417 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Housing, Dispenser WPL 1116820 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
End Cap, Center Handle WPL 1119359 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Trim, Crisper Cover WPL 2172714 Contact Us For Availability
5
Ladder, Shelf WPL 1108433 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Screw WPL 489022 Contact Us For Availability
6
Screw WPL 488316 Contact Us For Availability
6
Glass, Crisper Cover WPL 1124419 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
End Cap WPL 1110713 Contact Us For Availability
7
Gasket, Door WPL 983691 Contact Us For Availability
7
Shim WPL 935075 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Retainer, Gasket WPL 1117766 Contact Us For Availability
9
Door, Ice WPL 983690 Contact Us For Availability
9
Retainer, Gasket WPL 1117767 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Shelf, Cantilever WPL 1116890 Contact Us For Availability
10
Door Mechanism Assembly WPL 938669 Contact Us For Availability
10
Trim, Shelf WPL 1124421 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
11
Foam Insullation (Required When Replacing Ext WPL 876029 Contact Us For Availability
11
Pan, Meat WPL 2152636 Contact Us For Availability
11
Strap WPL 938384 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Cover WPL 1108115 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Panel, Interior Door WPL 1125649 Contact Us For Availability
13
Grille, Overflow WPL 2152678 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Lens WPL 1118315 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (2) WPL 983697 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Relay (See Overload) WPL ARI164730A Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Trim, Door Shelf WPL 2152357 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2155320 Contact Us For Availability
17
Harness, Door WPL 1118032 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Capacitor WPL 2154565 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
19
Screw WPL 489197 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2155322 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2149185 Contact Us For Availability
20
Tube, Door Wiring WPL 1119059 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Insulation, Dispenser WPL 1116821 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Chute, Ice WPL 1109488 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser WPL 1127421 Contact Us For Availability
25
Escutcheon, Control Box WPL 2152647 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Heat Shield WPL 2149293 Contact Us For Availability
27
Knob, Air Control WPL 1110562 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
28
Seal WPL 482672 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 15, 17 WPL 2154558 Contact Us For Availability
29
Bracket, Door Stop WPL 2155334 Contact Us For Availability
30
Screw, WPL 489155 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Retainer, Top WPL 1119366 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
33
End Cap WPL 2156220 Contact Us For Availability
33
Bracket, Control WPL 1116811 Contact Us For Availability
34
Screw, WPL 489365 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Unit, Harness WPL 2153994 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
38
Retainer, Bottom WPL 1119360 Contact Us For Availability
39
Plaque, Front Cover WPL 2152693 Contact Us For Availability
40
Insert, Top WPL 1118436 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2152694 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Door, Shelf WPL 2152686 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
44
Insert, Bottom WPL 1118435 Contact Us For Availability
44
Wiring Assembly, Door WPL 1118374 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI164727A Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
55
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
55
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
100
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Toast) WPL 285365 Contact Us For Availability
100
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
100
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
100
Enamel, Platinum (1 Qt. Uncut) WPL 285368 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
Transformer WPL 515393 Contact Us For Availability
100
WPL 542639 WPL 542639 Contact Us For Availability
100
WPL 72112 WPL 72112 Contact Us For Availability
100
WPL 799340 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
