Model Speed Queen SWNSX2SP303UW01 Washer – Common Parts & Diagrams

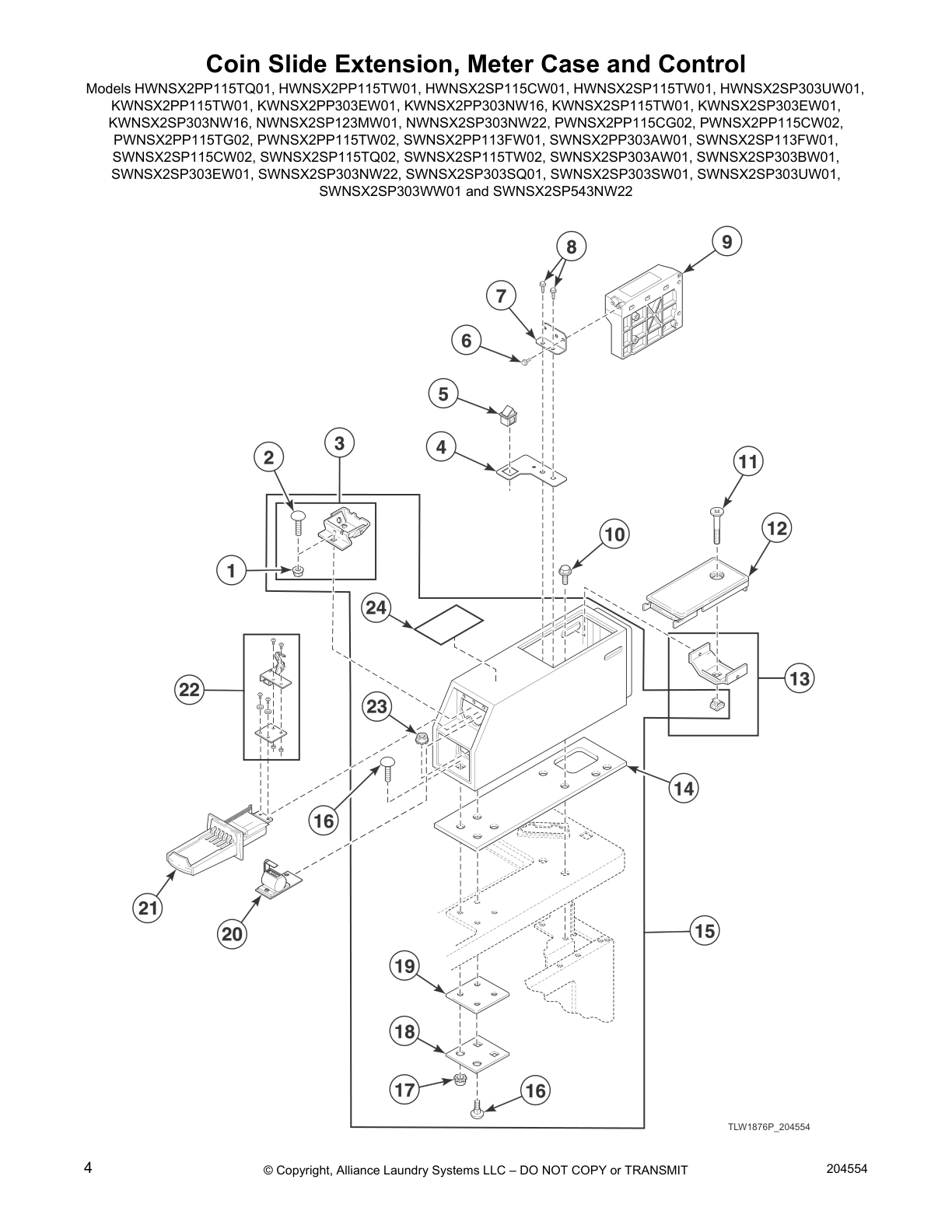

Coin Slide Extension, Meter Case and Control
Meter Case
Control Panel, Control Hood and Controls (Drawing 1 of 9)
Control Panel, Control Hood and Controls (Drawing 2 of 9)
Control Panel, Control Hood and Controls (Drawing 3 of 9)
Control Panel, Control Hood and Controls (Drawing 4 of 9)
Control Panel, Control Hood and Controls (Drawing 5 of 9)
Control Panel, Control Hood and Controls (Drawing 6 of 9)
Control Panel, Control Hood and Controls (Drawing 7 of 9)
Control Panel, Control Hood and Controls (Drawing 8 of 9)
Control Panel, Control Hood and Controls (Drawing 9 of 9)
Lid and Cabinet Top (Drawing 1 of 2)
Lid and Cabinet Top (Drawing 2 of 2)
Lid, Lid Lock and Cabinet Top
Lid Switch
Mixing Valve (Drawing 1 of 2)
Fill Hose
Motor, Belt, Pump and Idler Assembly (Drawing 1 of 2)
Motor, Belt, Pump and Idler Assembly (Drawing 2 of 2)
Idler Lever Kits
Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub
Outer Tub, Cover, Bearing and Seal Housing and Counterweight
Transmission Assembly
Drain Hoses and Siphon Break Kit
Weldment and Bearing Assembly, Brake and Pulley
Front Panel, Base Assembly and Cabinet Kit
Lead-In Cord and Cable Ties
Shipping Materials and Special Tools
Special Tools
Output Board, Wire Harnesses and Wires (Drawing 1 of 3)
Output Board, Wire Harnesses and Wires (Drawing 2 of 3)
Output Board, Wire Harnesses and Wires (Drawing 3 of 3)
Common parts from model Speed Queen SWNSX2SP303UW01 Washer
7
Junction Box SPQ 202792P Contact Us For Availability
19
Meter Case Lockdown Bracket SPQ 201010QP Contact Us For Availability
× ![]()
