Model Whirlpool RT18BMXXW00 – Common Parts & Diagrams

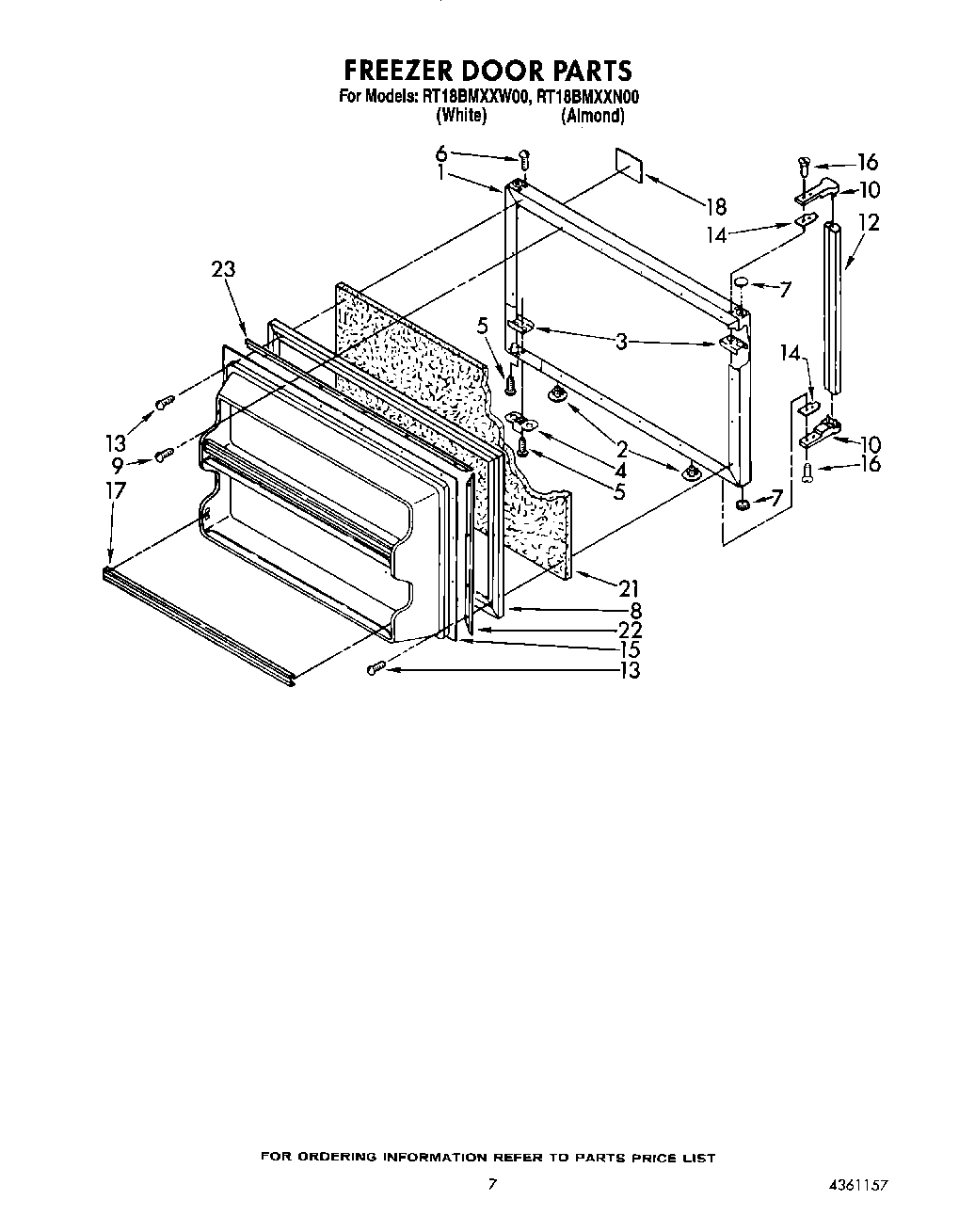

06 - FREEZER DOOR
07 - UNIT
08 - REFRIGERATOR DOOR
03 - LINER
04 - COMPARTMENT SEPARATOR
05 - SHELF
02 - CABINET
09 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool RT18BMXXW00
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2150256 WPL LIT2150256 Contact Us For Availability
WPL LIT2152525 WPL LIT2152525 Contact Us For Availability
WPL LIT2154703 WPL LIT2154703 Contact Us For Availability
WPL LIT4361157 WPL LIT4361157 Contact Us For Availability
WPL LIT628107 WPL LIT628107 Contact Us For Availability
1
Panel, Refrigerator Door (White) WPL 1104632 Contact Us For Availability
1
Panel, Refrigerator Door (Almond) (Also Order WPL 1104636 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI126854A Contact Us For Availability
1
Bottom, Compartment Separator WPL 1111796 Contact Us For Availability
1
Shelf, Ladder (2) WPL 1111807 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI126853A Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Box, Control WPL 1126703 Contact Us For Availability
2
Shelf, Ladder Center WPL 1114465 Contact Us For Availability
2
Roller, Front WPL 2152013 Contact Us For Availability
3
Screw WPL 489333 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
4
Timer, Defrost (8 Hour) WPL 1127571 Contact Us For Availability
4
Screw, 10-32 x 1/2 WPL 488448 Contact Us For Availability
5
Roller, Rear WPL 2152014 Contact Us For Availability
5
Screw, 8-32 x 1-1/4 (3) WPL 489345 Contact Us For Availability
6
Side, Electric Shield WPL 942751 Contact Us For Availability
6
Shelf, Wire Cantilever Full Shelf WPL 1120766 Contact Us For Availability
6
Clip, Center Rail WPL 1129018 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
7
Top, Electric Shield WPL 1129068 Contact Us For Availability
7
Shelf, Cantilever WPL 1111778 Contact Us For Availability
7
Heater, Mullion WPL 1108139 Contact Us For Availability
8
Door Gasket, Magnetic WPL 1122827 Contact Us For Availability
8
Trim, Shelf WPL 1124402 Contact Us For Availability
8
Center Rail, Bracket (2) WPL 1110231 Contact Us For Availability
9
Stud (2) WPL 946356 Contact Us For Availability
9
Crisper Cover WPL 1124326 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Trim, Crisper Cover WPL 1109419 Contact Us For Availability
10
Spacer (2) WPL 2149077 Contact Us For Availability
11
Handle End, Side WPL 935105 Contact Us For Availability
11
Clip, Strap WPL 1123230 Contact Us For Availability
11
Knob, Thermostat WPL 2148148 Contact Us For Availability
11
Glass, Crisper Cover WPL 1124327 Contact Us For Availability
11
Screw, 8-32 x 1/2 (2) WPL 489370 Contact Us For Availability
12
Handle, Center WPL 1109181 Contact Us For Availability
12
support stud (8) WPL 946355 Contact Us For Availability
12
Drain Pan WPL 1108358 Contact Us For Availability
12
Pan Shelf, Cantilever WPL 1111774 Contact Us For Availability
12
Hole Plug (2) (White) WPL 1122929 Contact Us For Availability
12
Hole Plug (2) (Almond) WPL 1126571 Contact Us For Availability
12
Connector Wire WPL 227991 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935076 Contact Us For Availability
13
Cover, Air Duct WPL 1118775 Contact Us For Availability
13
Glass, Shelf WPL 1124406 Contact Us For Availability
13
Center Rail (White) WPL 1110343 Contact Us For Availability
13
Center Rail (Almond) WPL 1110345 Contact Us For Availability
13
Tube, Water Inlet WPL 939027 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 2148149 Contact Us For Availability
14
Trim, Shelf WPL 1124404 Contact Us For Availability
14
Center, Rail Shim (2) WPL 2151428 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Support, Crisper Cover WPL 1103731 Contact Us For Availability
15
Screw WPL 489378 Contact Us For Availability
15
Tube, Inlet Valve WPL 627883 Contact Us For Availability
16
Post, Cripser Cover WPL 836410 Contact Us For Availability
16
Rod, Connecting WPL 1111272 Contact Us For Availability
16
Tap Plate (2) WPL 2147312 Contact Us For Availability
16
Clamp Tube WPL 510716 Contact Us For Availability
17
Air Diffuser Assembly WPL 1118774 Contact Us For Availability
17
Shelf, Freezer WPL 944734 Contact Us For Availability
17
Hinge, Top WPL 1129045 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
18
Screw, Cover WPL 987873 Contact Us For Availability
18
Gasket, Air Diffuser WPL 1114325 Contact Us For Availability
18
Shim, Hinge Top WPL 2151698 Contact Us For Availability
19
Interior Door Panel WPL 1120634 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Pan, Crisper WPL 1124328 Contact Us For Availability
20
Trim, Door (2) WPL 1120775 Contact Us For Availability
20
Pan, Meat WPL 1124336 Contact Us For Availability
20
Screw WPL 489327 Contact Us For Availability
21
Trim, Door WPL 1120776 Contact Us For Availability
21
Screw (2) WPL 489168 Contact Us For Availability
21
Wiring Assembly WPL 937078 Contact Us For Availability
21
Hinge, Center WPL 1129047 Contact Us For Availability
21
Knob WPL 627992 Contact Us For Availability
22
Compartment Door, Utility WPL 1124410 Contact Us For Availability
22
Wiring, Assembly Control Box WPL 2154705 Contact Us For Availability
22
Ice Cube Pan WPL 653503 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Compartment, Butter Door WPL 1124409 Contact Us For Availability
23
Scroll, Fan WPL 1122814 Contact Us For Availability
23
Gasket, Bottom Separator WPL 1123915 Contact Us For Availability
23
Retainer, Glass Shelf WPL 1111810 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
24
Evaporator Cover WPL 2151658 Contact Us For Availability
24
Trim, Ice Pan WPL 539567 Contact Us For Availability
25
Screw, 8 x 1-3/8 WPL 488678 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123882 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1123391 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
28
Pad (2) WPL 946367 Contact Us For Availability
29
Gasket Retainer, Side (2) WPL 1120615 Contact Us For Availability
29
Shim, Bottom WPL 943708 Contact Us For Availability
30
Gasket Retainer, Top & Bottom (2) WPL 1120616 Contact Us For Availability
30
Washer, 7/64 WPL 489201 Contact Us For Availability
31
Foam Insulation (Required When Replacing Exte WPL 876029 Contact Us For Availability
31
Insulation, Center Rail WPL 1111503 Contact Us For Availability
31
Cover, Glider Rail (White) WPL 2151421 Contact Us For Availability
31
Cover, Glider Rail (Almond) WPL 2151422 Contact Us For Availability
32
Cover, Deck Rail (White) WPL 1109364 Contact Us For Availability
32
Cover, Deck Rail (Almond) WPL 1109368 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1119325 Contact Us For Availability
33
Cover, Glider Rail (White) WPL 943552 Contact Us For Availability
33
Cover, Glider Rail (Almond) WPL 944831 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1110684 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1110685 Contact Us For Availability
34
Screw, 8-32 x 7/16 WPL 489365 Contact Us For Availability
35
Cup, Drain WPL 939191 Contact Us For Availability
35
Hole Plug (White) WPL 1119707 Contact Us For Availability
35
Hole Plug (Almond) WPL 1119709 Contact Us For Availability
36
Hole Plug (3) (Almond) WPL 2151654 Contact Us For Availability
39
Cover, Wiring WPL 942845 Contact Us For Availability
39
Clip WPL 652604 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
xEnamel, Golden Harvest (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
40
Enamel, Golden Harvest (1 Qt. Uncut) WPL 261891 Contact Us For Availability
40
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
40
WPL 542639 WPL 542639 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Cover, Terminal WPL 1105015 Contact Us For Availability
45
Clamp WPL 937357 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
46
Fitting, Drain WPL 942813 Contact Us For Availability
47
Capacitor WPL 482996 Contact Us For Availability
47
Seal, Gasket WPL 1106507 Contact Us For Availability
48
Unit Mounting Rail WPL 1118783 Contact Us For Availability
49
Plug Assembly WPL 1106511 Contact Us For Availability
51
Evaporator Tray WPL 1101002 Contact Us For Availability
52
Clamp WPL 519405 Contact Us For Availability
55
Support, Heater WPL 1108172 Contact Us For Availability
56
Nut WPL 489142 Contact Us For Availability
57
Washer WPL 489143 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Overload Spring WPL 1114190 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
62
Seal, Gasket WPL 1106510 Contact Us For Availability
× ![]()
