Model Whirlpool RF360BXDN0 – Common Parts & Diagrams
05 - DOOR AND DRAWER
04 - UNIT, OPTIONAL

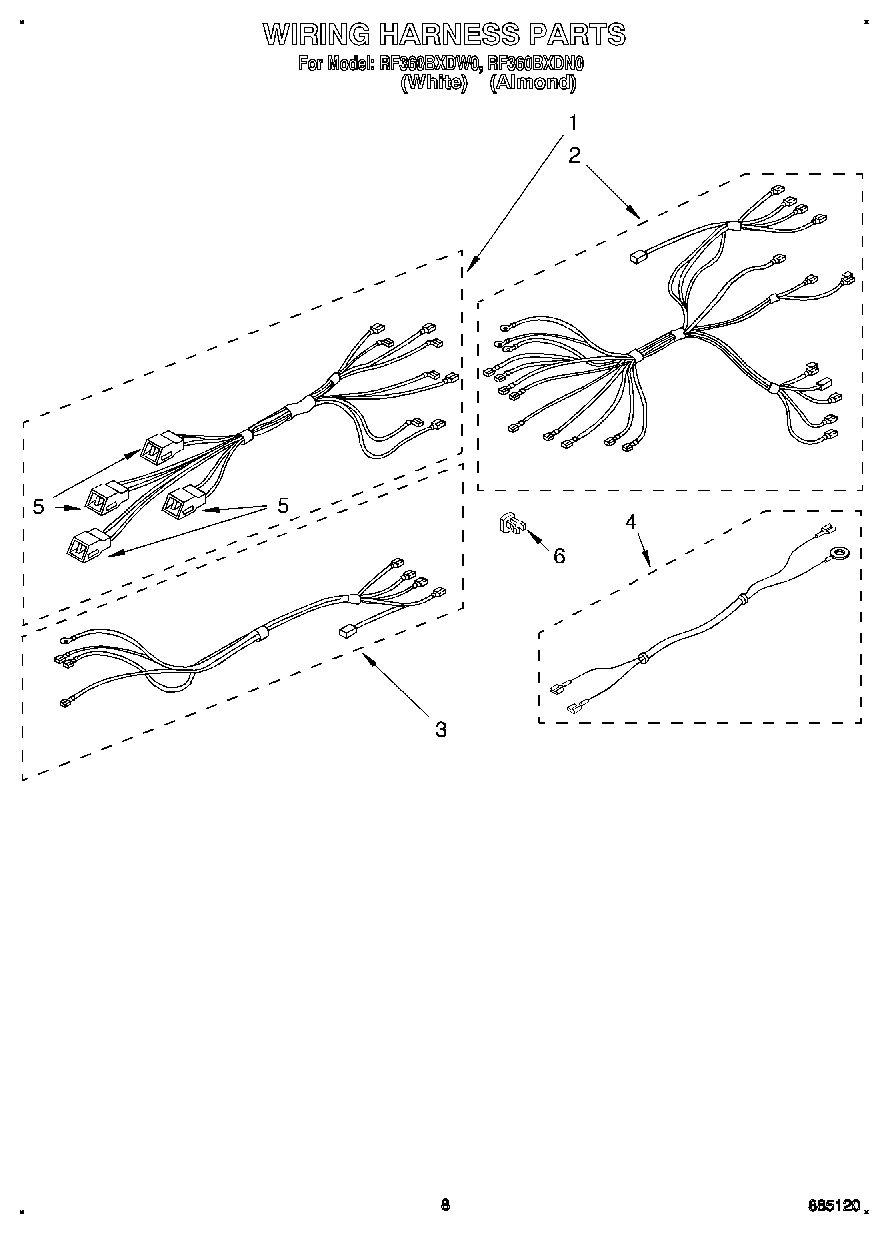

06 - WIRING HARNESS

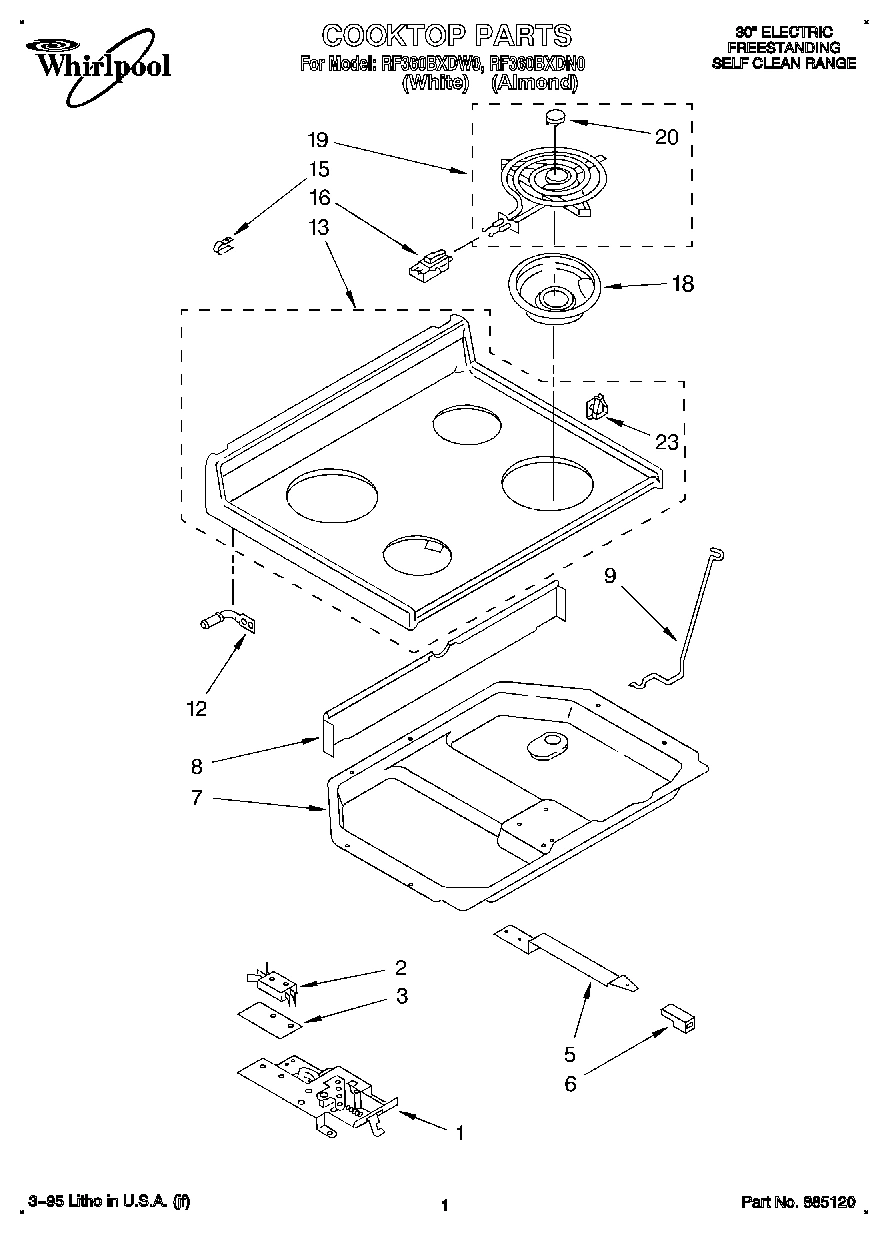

01 - COOKTOP, LITERATURE

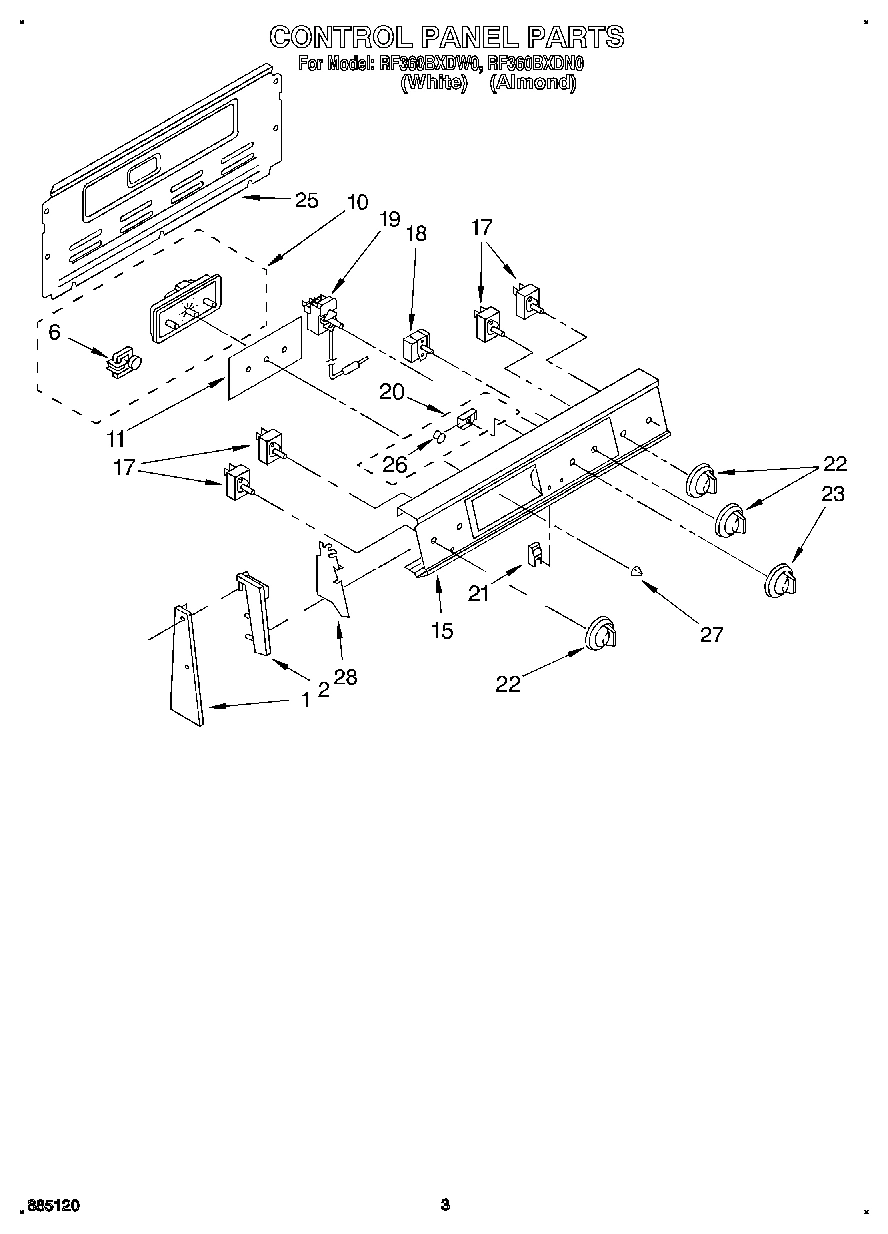

02 - CONTROL PANEL

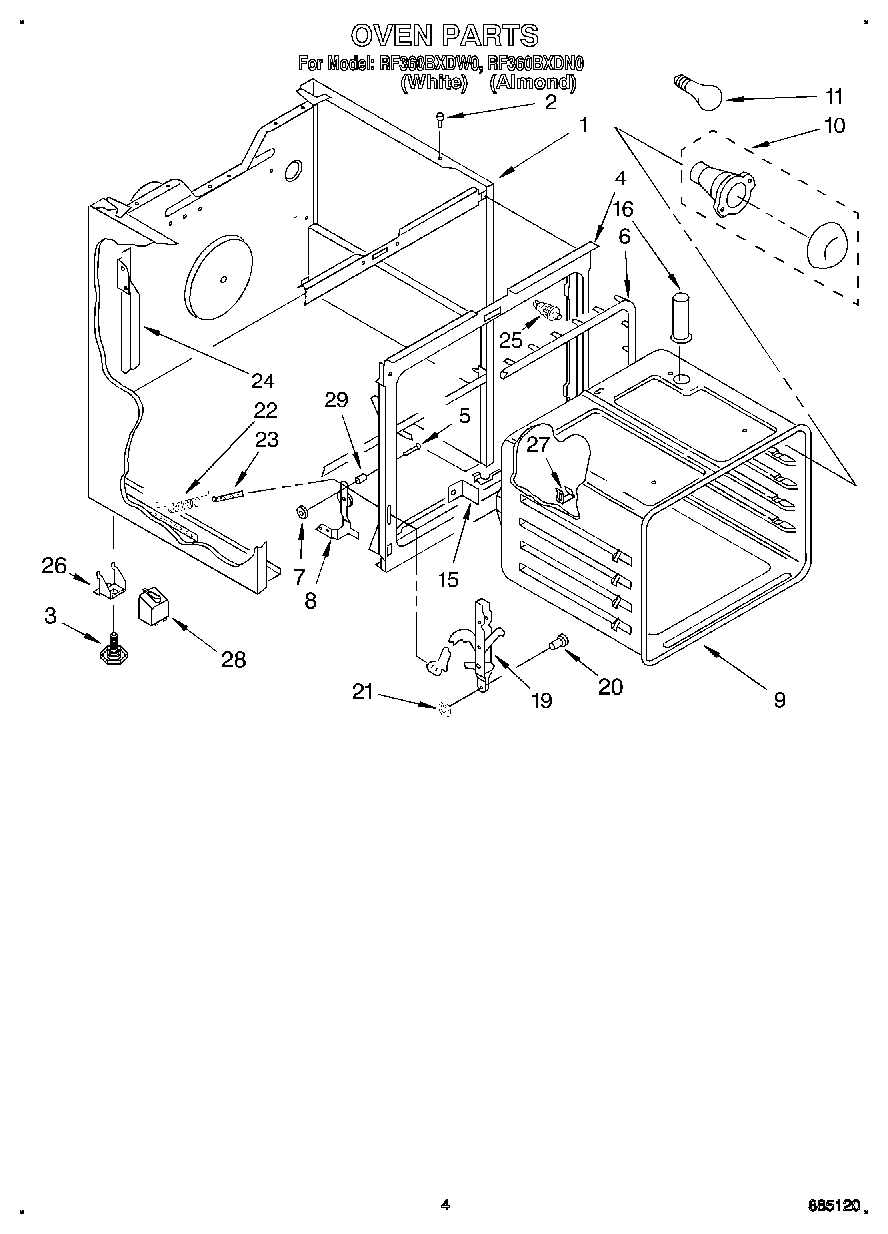

03 - OVEN
Common parts from model Whirlpool RF360BXDN0
Installation Instr (Templet) WPL LIT3150400 Contact Us For Availability
Wiring Diagram WPL LIT3169517 Contact Us For Availability
Instructions, Installation WPL LIT3187321 Contact Us For Availability
Guide, Use & Care WPL LIT3189075 Contact Us For Availability
1
Wiring Harness (Suface Unit) WPL 3149881 Contact Us For Availability
1
Latch Mechanism WPL 3148668 Contact Us For Availability
1
End Trim R.H. WPL 3187671 Contact Us For Availability
1
End Trim L.H. WPL 3187672 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3169507 Contact Us For Availability
2
Screw (2) WPL 312717 Contact Us For Availability
2
Safety Switch WPL 3169497 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 3187791 Contact Us For Availability
2
End Cap L.H. WPL 3187792 Contact Us For Availability
3
Wiring Harness (Lock Switch) WPL 3169450 Contact Us For Availability
3
Insulator, Switch WPL 3169498 Contact Us For Availability
3
Leg Leveling (4) WPL 3169499 Contact Us For Availability
4
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
4
Frame Front WPL 3176718 Contact Us For Availability
5
Handle, Door WPL 3188695 Contact Us For Availability
5
Unit, Broil (208V) WPL 312308 Contact Us For Availability
5
Handle, Latch WPL 3169081 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability
6
Clip, Snap-In WPL 3169449 Contact Us For Availability
6
Motor, Timer WPL 309822 Contact Us For Availability
6
Seal, Door WPL 3169251 Contact Us For Availability
7
Clip, Handle (2) WPL 3148282 Contact Us For Availability
7
Ground Strap WPL 308498 Contact Us For Availability
7
Clip WPL 313660 Contact Us For Availability
7
Box, Burner WPL 3169186 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
8
Screw (3) WPL 3149333 Contact Us For Availability
8
Bracket, Service WPL 3150190 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
8
Hinge, R.H. WPL 3176710 Contact Us For Availability
8
Hinge, L.H. WPL 3176711 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
9
Screw WPL 3150537 Contact Us For Availability
9
Screw (2) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3176611 Contact Us For Availability
10
Cover, Rear WPL 3148975 Contact Us For Availability
10
Timer, Clock (Includes No.6) WPL 661458 Contact Us For Availability
11
Cover, Service WPL 307972 Contact Us For Availability
11
Glass, Timer WPL 313513 Contact Us For Availability
12
Pin, Cooktop (2) WPL 3169384 Contact Us For Availability
13
Cooktop (White) WPL 3170981 Contact Us For Availability
13
Cooktop (Almond) WPL 3170982 Contact Us For Availability
14
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
14
Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability
14
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
14
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
14
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
14
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
14
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
14
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
14
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
14
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
14
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
14
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
14
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
14
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
14
Grease WPL 261582 Contact Us For Availability
14
Coffee WPL 261886 Contact Us For Availability
14
New Avocado WPL 261888 Contact Us For Availability
14
Harvest Gold WPL 261890 Contact Us For Availability
14
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
14
Toast WPL 285365 Contact Us For Availability
14
Paint, Spray WPL 285366 Contact Us For Availability
14
WPL 285367 WPL 285367 Contact Us For Availability
14
WPL 285368 WPL 285368 Contact Us For Availability
14
WPL 308173 WPL 308173 Contact Us For Availability
14
WPL 72108 WPL 72108 Contact Us For Availability
14
WPL 72112 WPL 72112 Contact Us For Availability
14
WPL 799832 WPL 799832 Contact Us For Availability
14
WPL 978883 WPL 978883 Contact Us For Availability
15
Panel, Control WPL 3188678 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
18
Screw, 8-32 x 1/4 (2) WPL 308119 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 3169311 Contact Us For Availability
19
Thermostat, 0ven Pyro WPL 3169526 Contact Us For Availability
19
Channel, Arm (2) WPL 3176709 Contact Us For Availability
20
Light, Indicator (Oven Unit) (Includes Illus. WPL 314031 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
21
Light, Indicator (Surface Unit) (Includes Ill WPL 3169457 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
23
Nut (4) WPL 814102 Contact Us For Availability
23
Knob (Temp) WPL 3188724 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Rear Cover WPL 3187332 Contact Us For Availability
26
Lens, Amber (2) WPL 313101 Contact Us For Availability
26
Support, Foot (2) WPL 3169418 Contact Us For Availability
28
Shield, Glass (2) WPL 313608 Contact Us For Availability
28
Cover, Foot (2) WPL 3169448 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
29
Insulation, Wrap WPL 3169093 Contact Us For Availability
29
Insulation, Oven BAck WPL 3169094 Contact Us For Availability
× ![]()
