Model Whirlpool RF3165XVN0 – Common Parts &amp; Diagrams

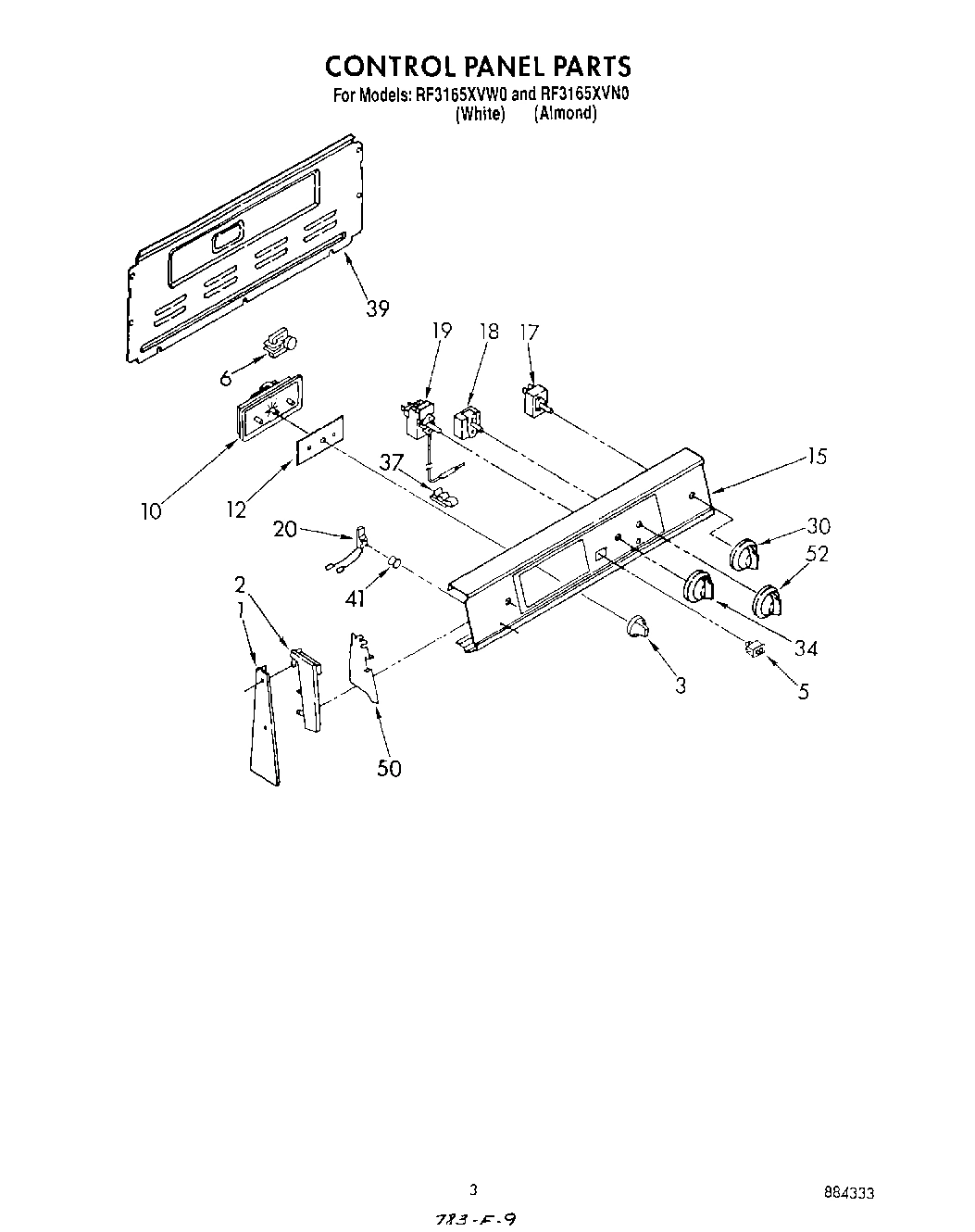

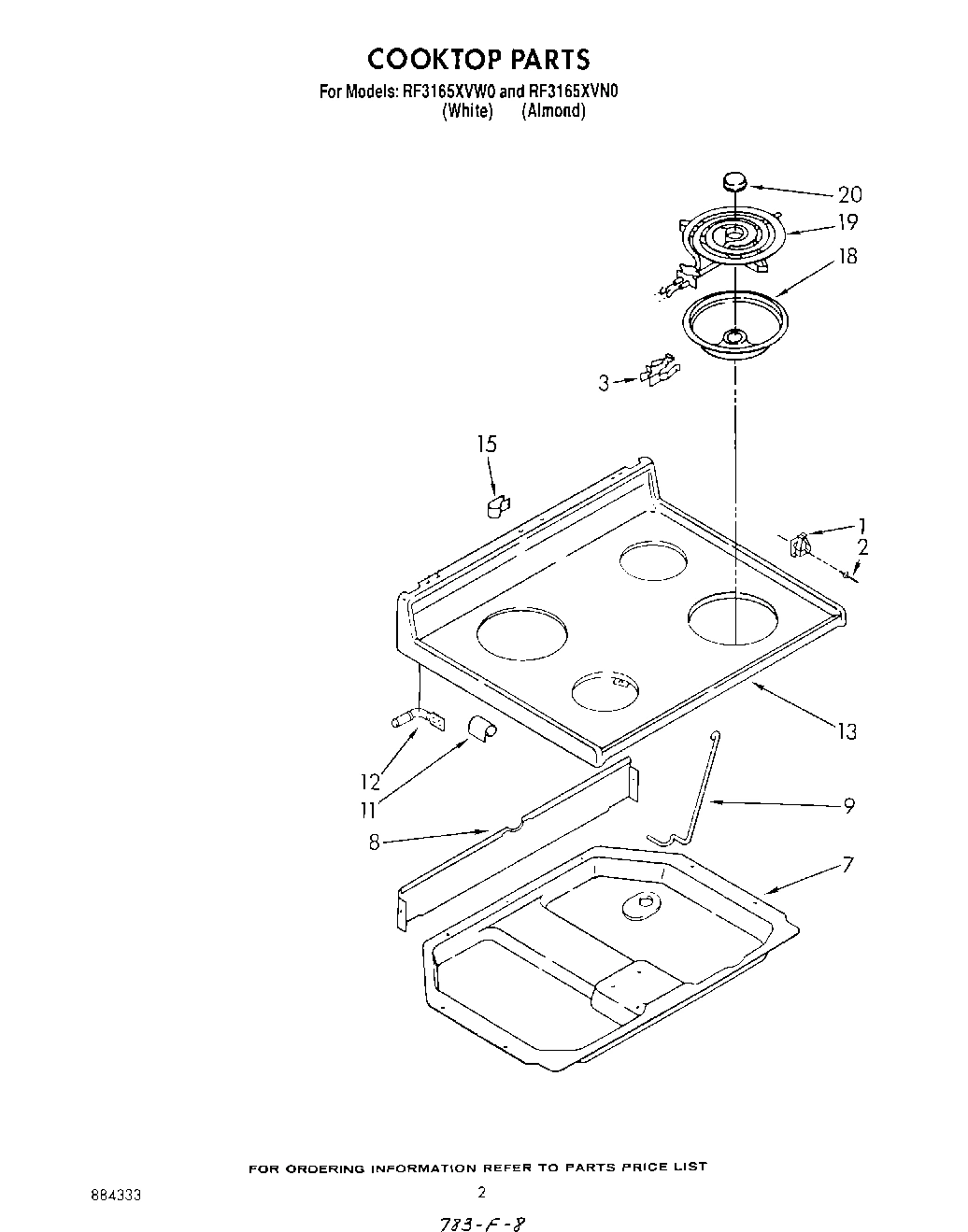

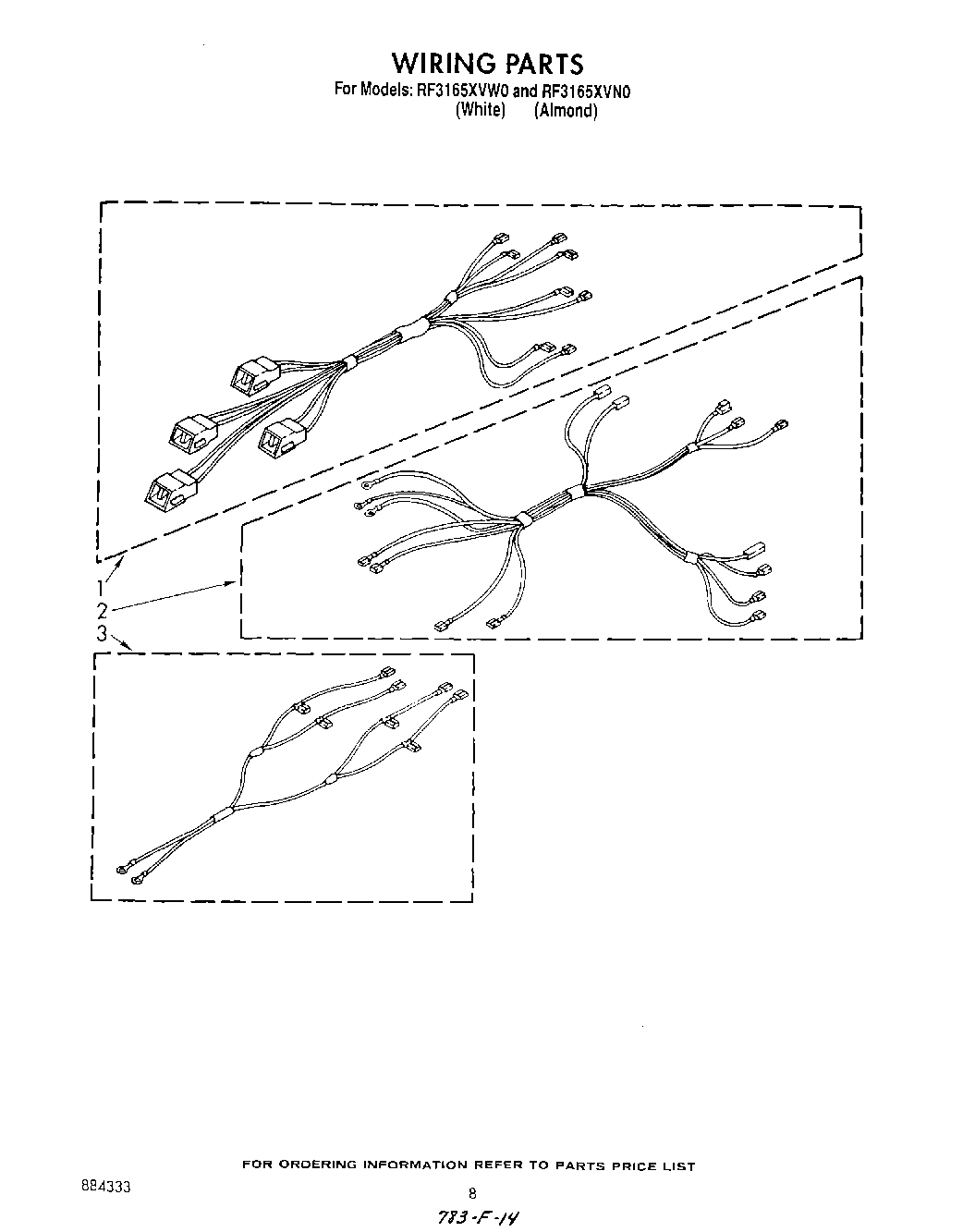

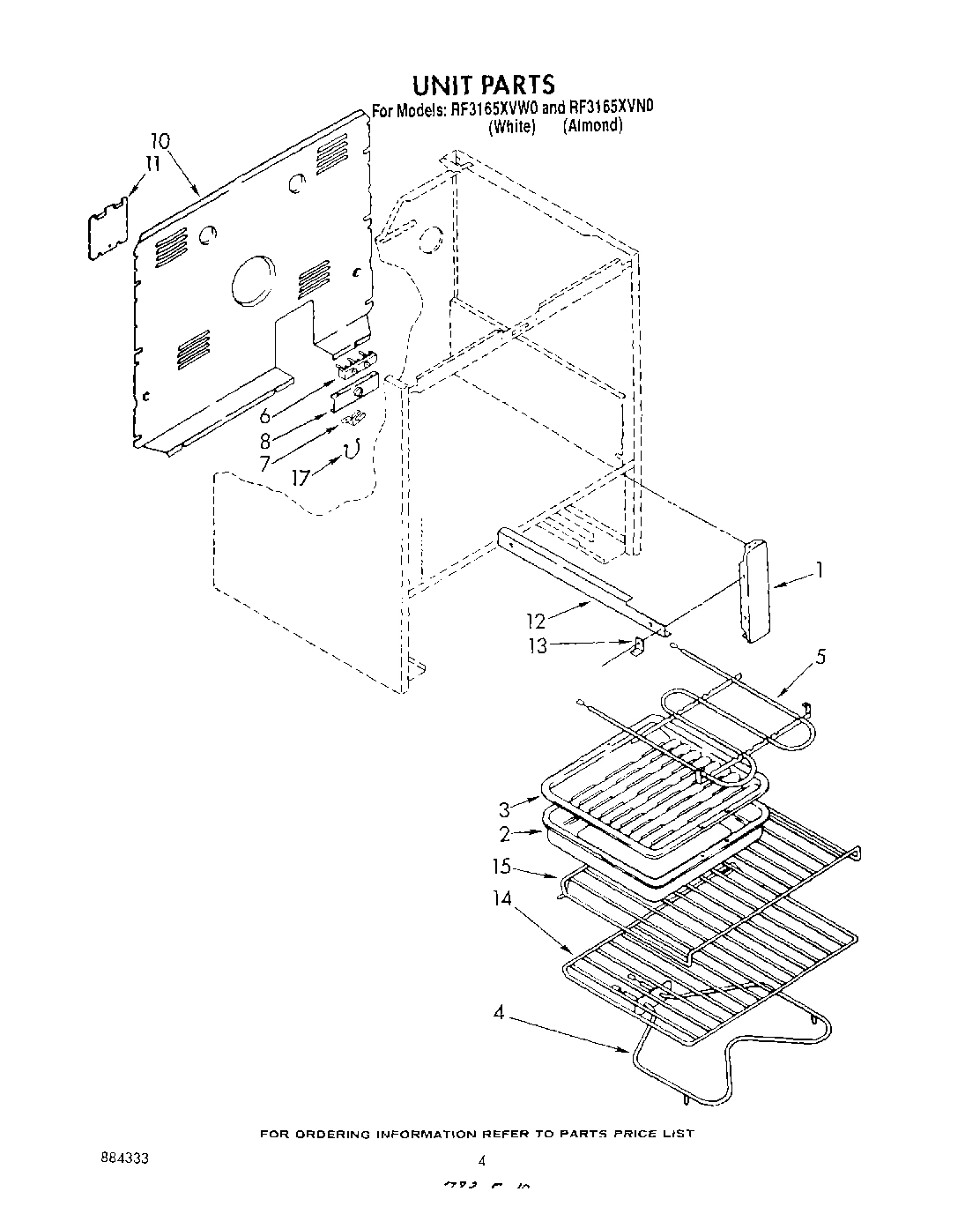

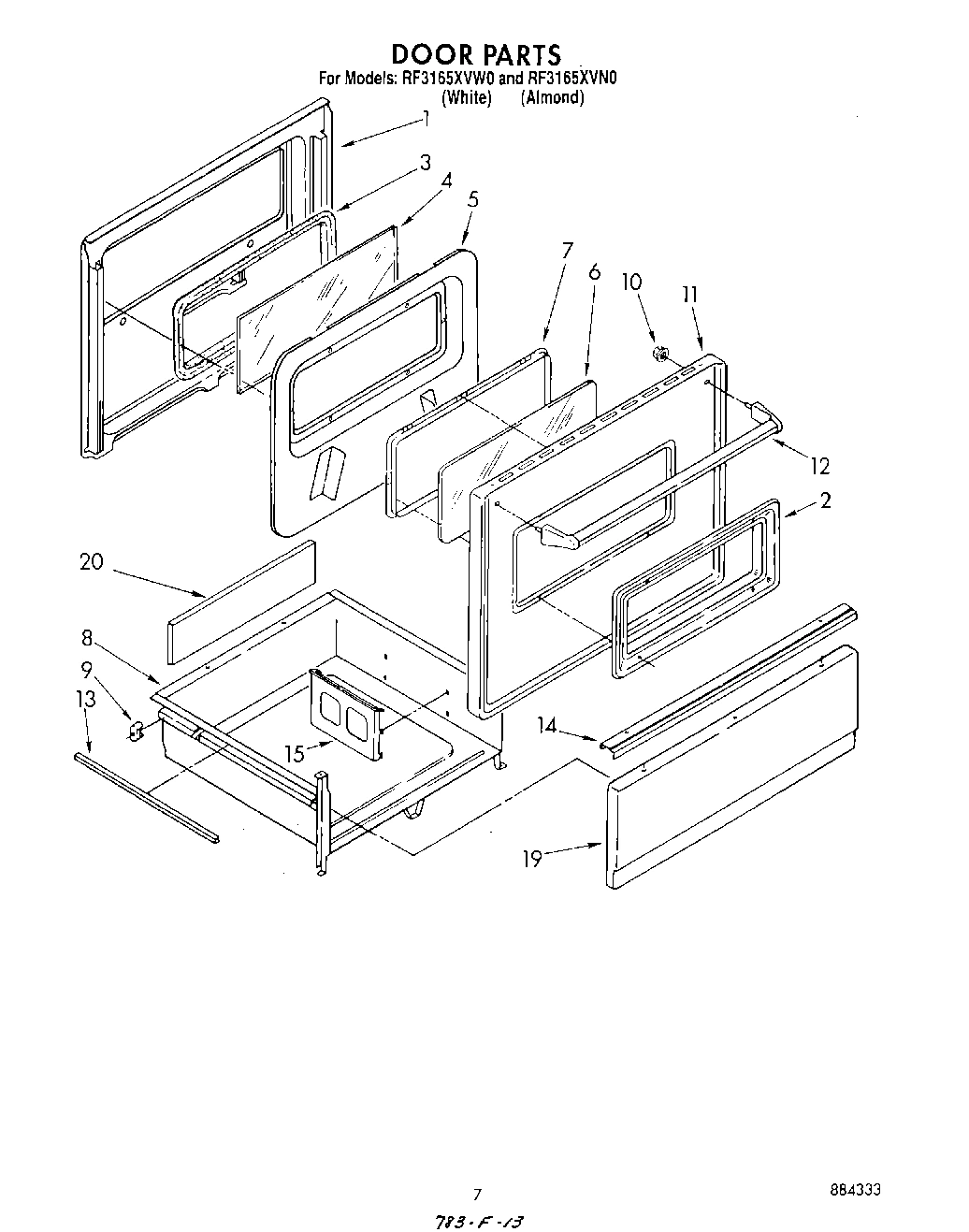

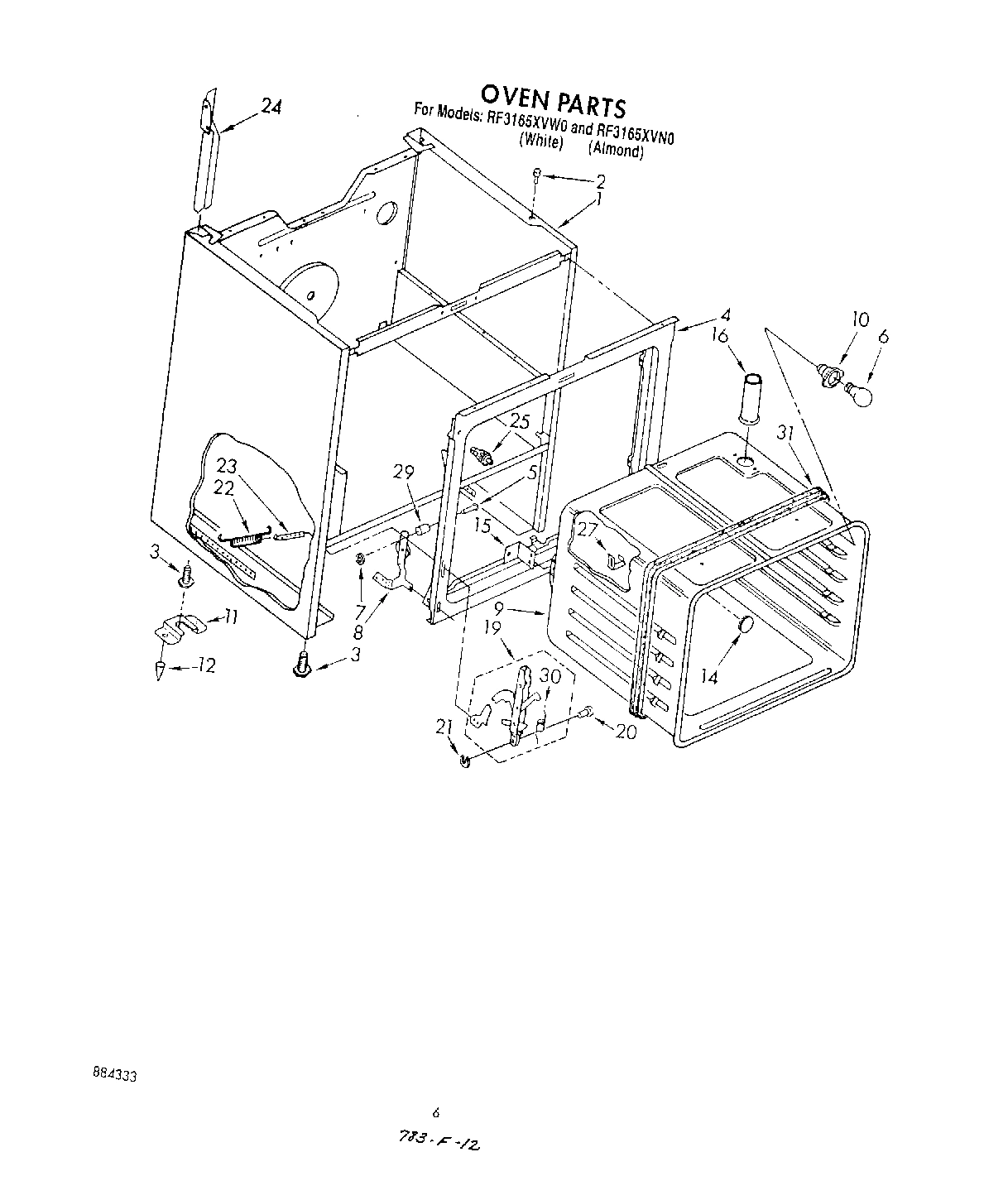

1

End Trim L.H. WPL 313188 Contact Us For Availability

1

End Trim R.H. WPL 313189 Contact Us For Availability

1

Liner, Door WPL 3170708 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Gold) WPL 330089 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

Main Chassis (Toast) WPL 330091 Contact Us For Availability

1

Main Chassis (Platinum) WPL 330092 Contact Us For Availability

1

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

2

814103 Whirlpool Clip In Stock WPL 814103 $5.96

2

Retainer, Frame WPL 307792 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 313230 Contact Us For Availability

2

End Cap L.H. WPL 313231 Contact Us For Availability

2

Harness, Wiring (Oven) WPL 313151 Contact Us For Availability

3

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $11.84

3

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $4.82

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.98

3

Seal, Door WPL 3148183 Contact Us For Availability

3

Spring, Knob (3) WPL 313311 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Harness, Wiring (Oven Light) WPL 313152 Contact Us For Availability

4

Glass, Liner WPL 3148179 Contact Us For Availability

4

Frame, Front WPL 3171800 Contact Us For Availability

5

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $55.41

5

Clip, Frame (2) WPL 307731 Contact Us For Availability

5

Retainer, Insulation WPL 3148287 Contact Us For Availability

5

screw (6) WPL 3148443 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

6

Motor, Timer WPL 309822 Contact Us For Availability

6

Glass, Outer WPL 307732 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

7

Frame, Window WPL 3149277 Contact Us For Availability

7

Box, Burner WPL 3149194 Contact Us For Availability

7

Screw (2) WPL 309133 Contact Us For Availability

7

Screw (8) WPL 313045 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Drawer, Utility WPL 327887 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

Rod, Cooktop (2) WPL 3148659 Contact Us For Availability

9

Glide, Rear (2) WPL 307980 Contact Us For Availability

9

Screw (3) WPL 311056 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329000 Contact Us For Availability

WP308499 Whirlpool Nut Backorder WPL WP308499 $4.82

Timer, Clock (Includes No.6) WPL 3148053 Contact Us For Availability

Screw (2) WPL 308043 Contact Us For Availability

Socket, Oven Light WPL 660556 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $23.74

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

Panel, Door (White) WPL 307888 Contact Us For Availability

Panel, Door (Gold) WPL 307894 Contact Us For Availability

Panel, Door (Almond) WPL 307896 Contact Us For Availability

Panel, Door (Toast) WPL 313175 Contact Us For Availability

Panel, Door (Platinum) WPL 313176 Contact Us For Availability

Screw WPL 3148604 Contact Us For Availability

Glass, Timer WPL 313513 Contact Us For Availability

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

Handle, Oven Door WPL 313455 Contact Us For Availability

Anchor, Plastic WPL 3148605 Contact Us For Availability

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

Cooktop (Toast) WPL 3170983 Contact Us For Availability

Cooktop (Platinum) WPL 3170984 Contact Us For Availability

Cooktop (Gold) WPL 3170985 Contact Us For Availability

Protector (2) WPL 309329 Contact Us For Availability

14

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $9.90

14

Handle, Drawer WPL 313337 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $7.20

Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability

Panel, Control WPL 313239 Contact Us For Availability

Rack, Literature WPL 357645 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

16

Vent, Oven WPL 307960 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP3148952 Whirlpool Range Infinite Switch In Stock WPL WP3148952 $41.49

WP3149400 Whirlpool Range Infinite Switch In Stock WPL WP3149400 $60.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee ( WPL 261887 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261889 WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.99

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $4.99

Switch, Selector (3 Position) WPL 313062 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $45.62

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $54.56

Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability

Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability

Thermostat, Oven WPL 661150 Contact Us For Availability

Panel Drawer (White) WPL 307935 Contact Us For Availability

Panel, Drawer (Gold) WPL 307938 Contact Us For Availability

Panel, Drawer (Almond) WPL 307939 Contact Us For Availability

Panel, Drawer (Toast) WPL 313171 Contact Us For Availability

Panel, Drawer (Platinum) WPL 313172 Contact Us For Availability

Channel, Arm (2) WPL 329712 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

Light, Indicator (Oven Light) WPL 314031 Contact Us For Availability

Light, Indicator (Surface Elements (2)) WPL 313102 Contact Us For Availability

Medallion (4) WPL 309195 Contact Us For Availability

Sound, Pad WPL 302340 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

24

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

24

Support, Channel (L.H.) WPL 313196 Contact Us For Availability

24

Support, Channel (R.H.) WPL 313197 Contact Us For Availability

25

Switch, Door WPL 310345 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $56.92

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Knob, Control (4) (Infinite Switch) WPL 330171 Contact Us For Availability

30

Spring, Door Stop WPL 308207 Contact Us For Availability

31

Seal, Rubber WPL 309107 Contact Us For Availability

34

Screw (2) WPL 310410 Contact Us For Availability

34

Knob, Control (Thremostat) WPL 330170 Contact Us For Availability

37

Tube Clip WPL 313570 Contact Us For Availability

39

Rear Cover Control Panel WPL 313195 Contact Us For Availability

41

Lens, Amber (3) WPL 313101 Contact Us For Availability

50

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

50

Shield, Glass (2) WPL 313608 Contact Us For Availability

52

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

52

Knob, Control (Selector) WPL 330173 Contact Us For Availability
