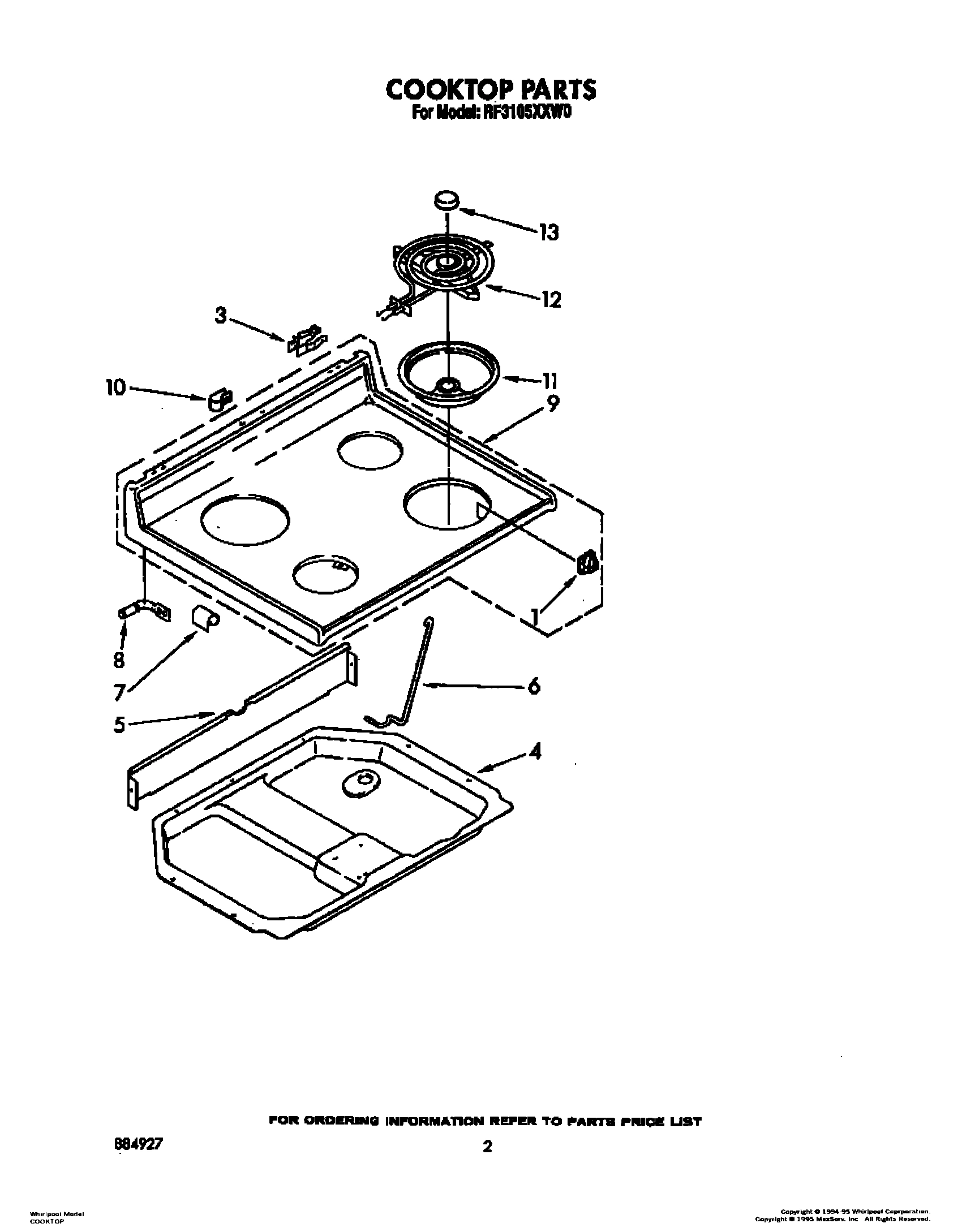

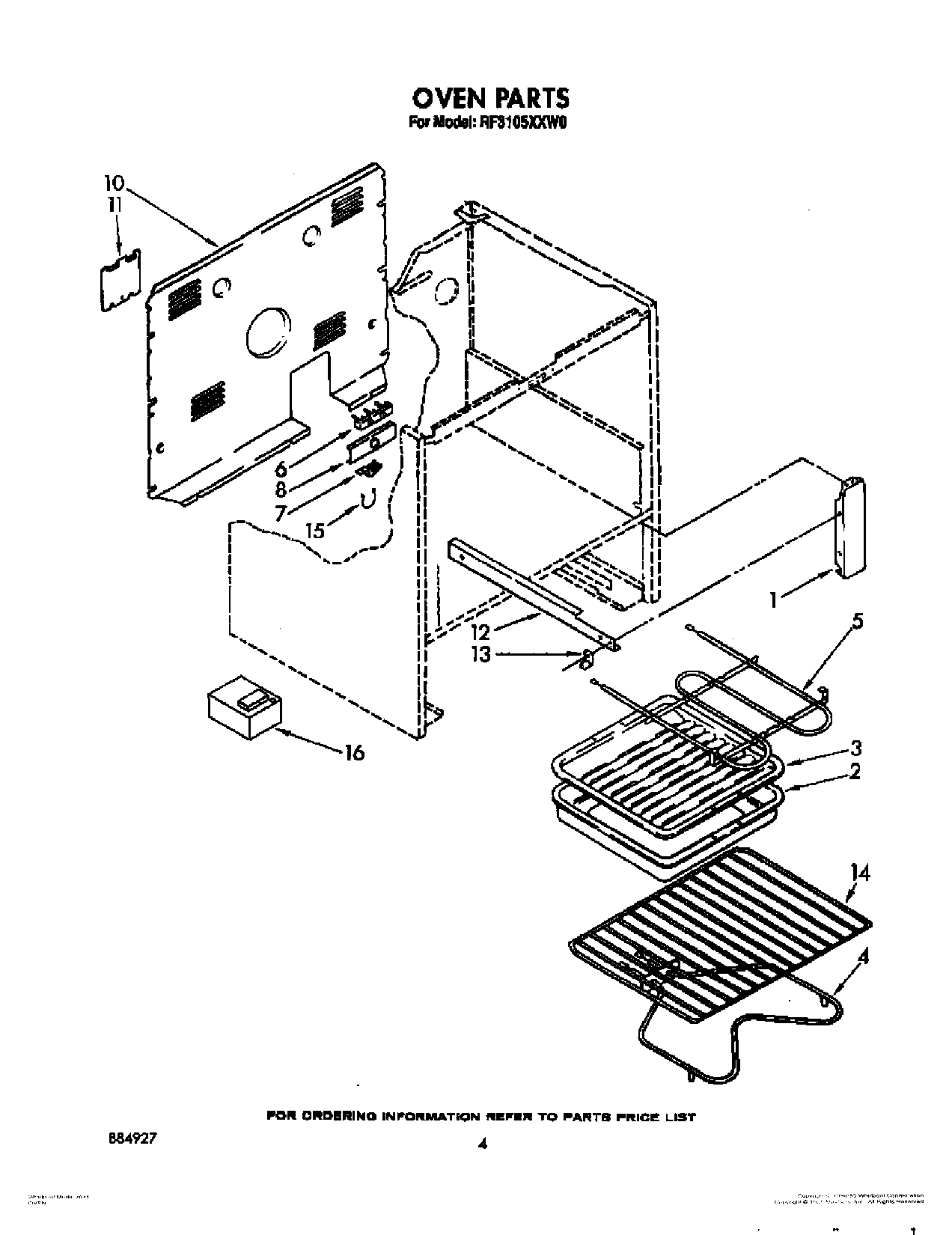

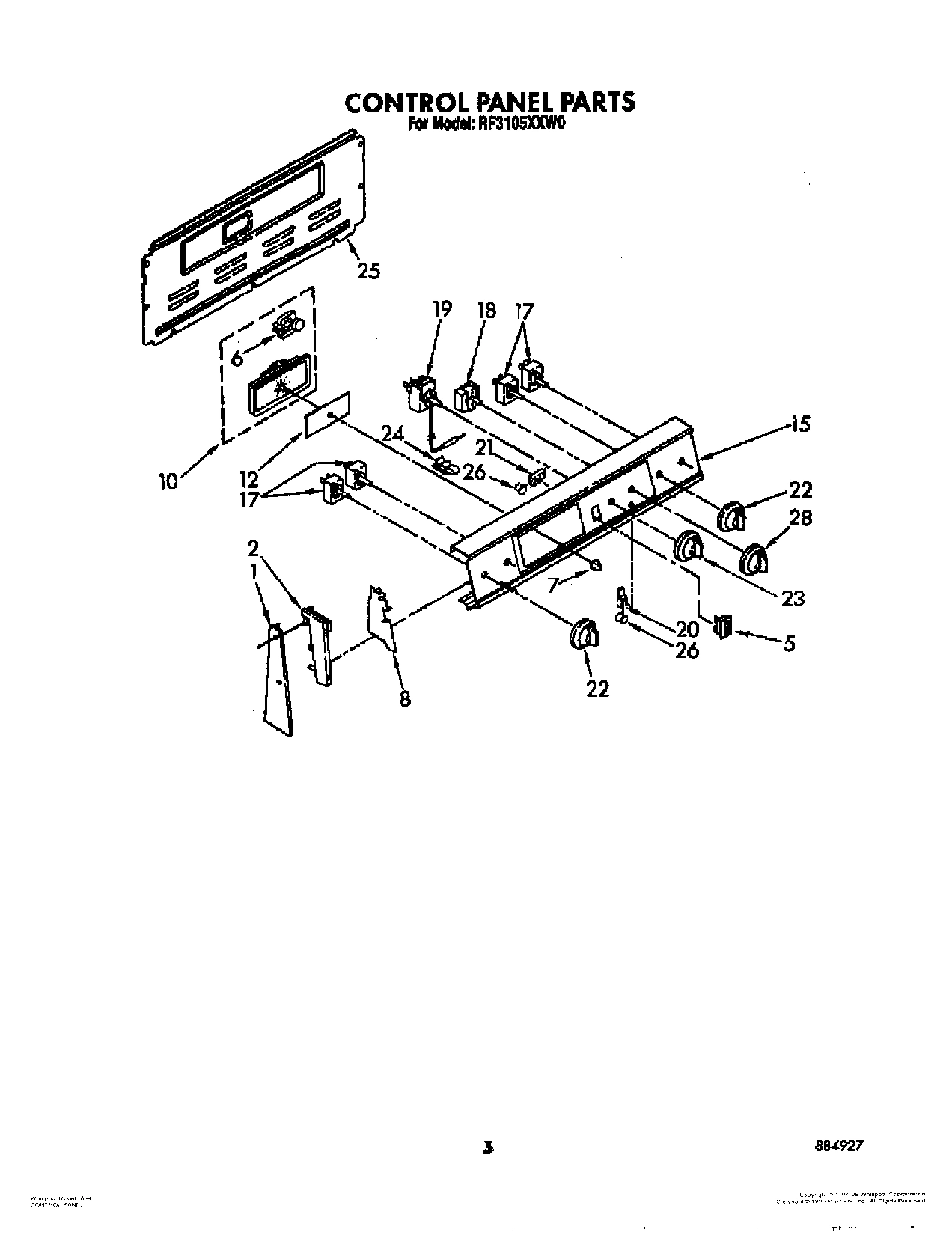

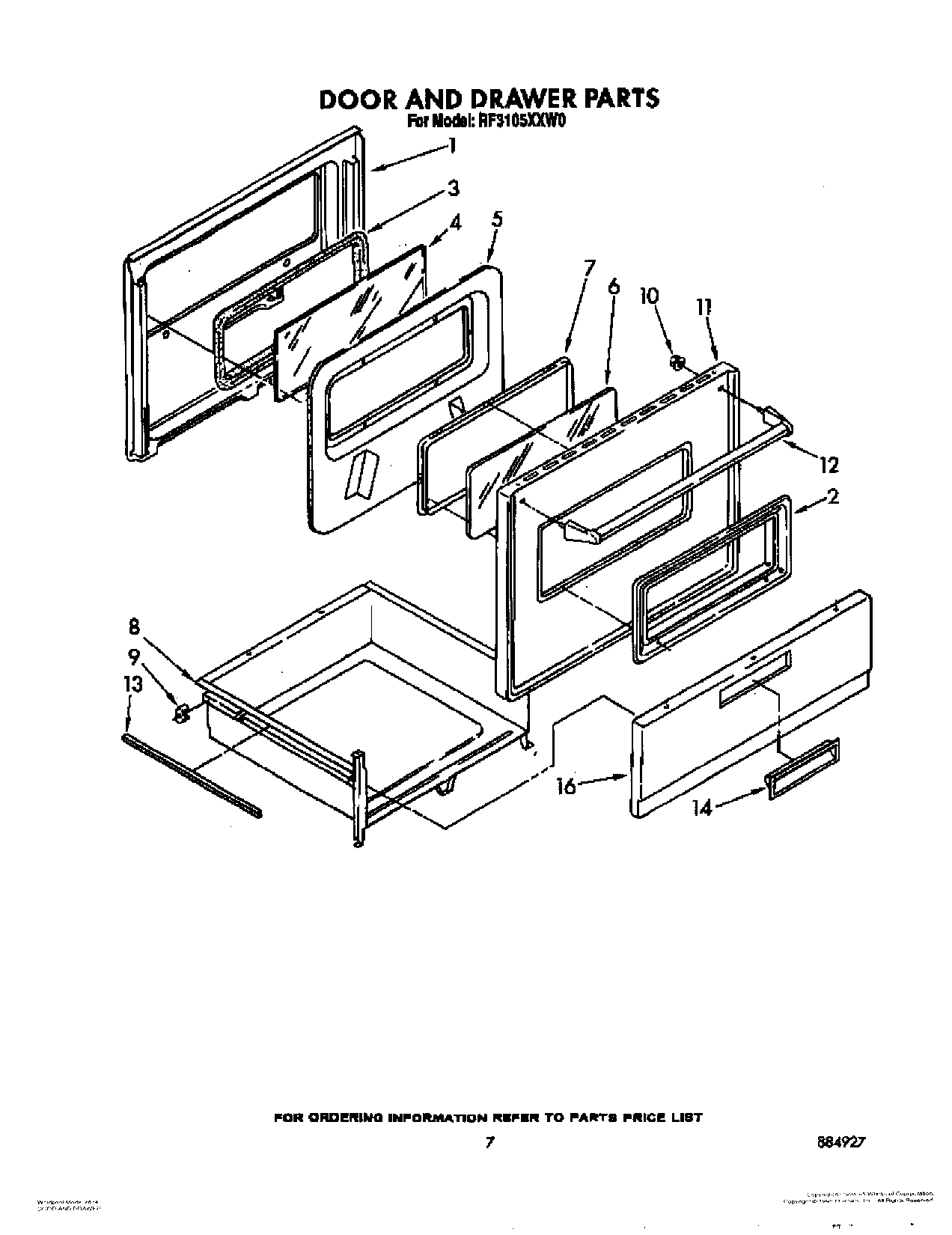

Model Whirlpool RF3105XXN0 – Common Parts &amp; Diagrams

WP313808 Whirlpool Screw Backorder WPL WP313808 $4.82

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $54.56

Instructions, Installation WPL LIT3147389 Contact Us For Availability

Guide, Use & Care WPL LIT3150257 Contact Us For Availability

Installation Templet WPL LIT3150400 Contact Us For Availability

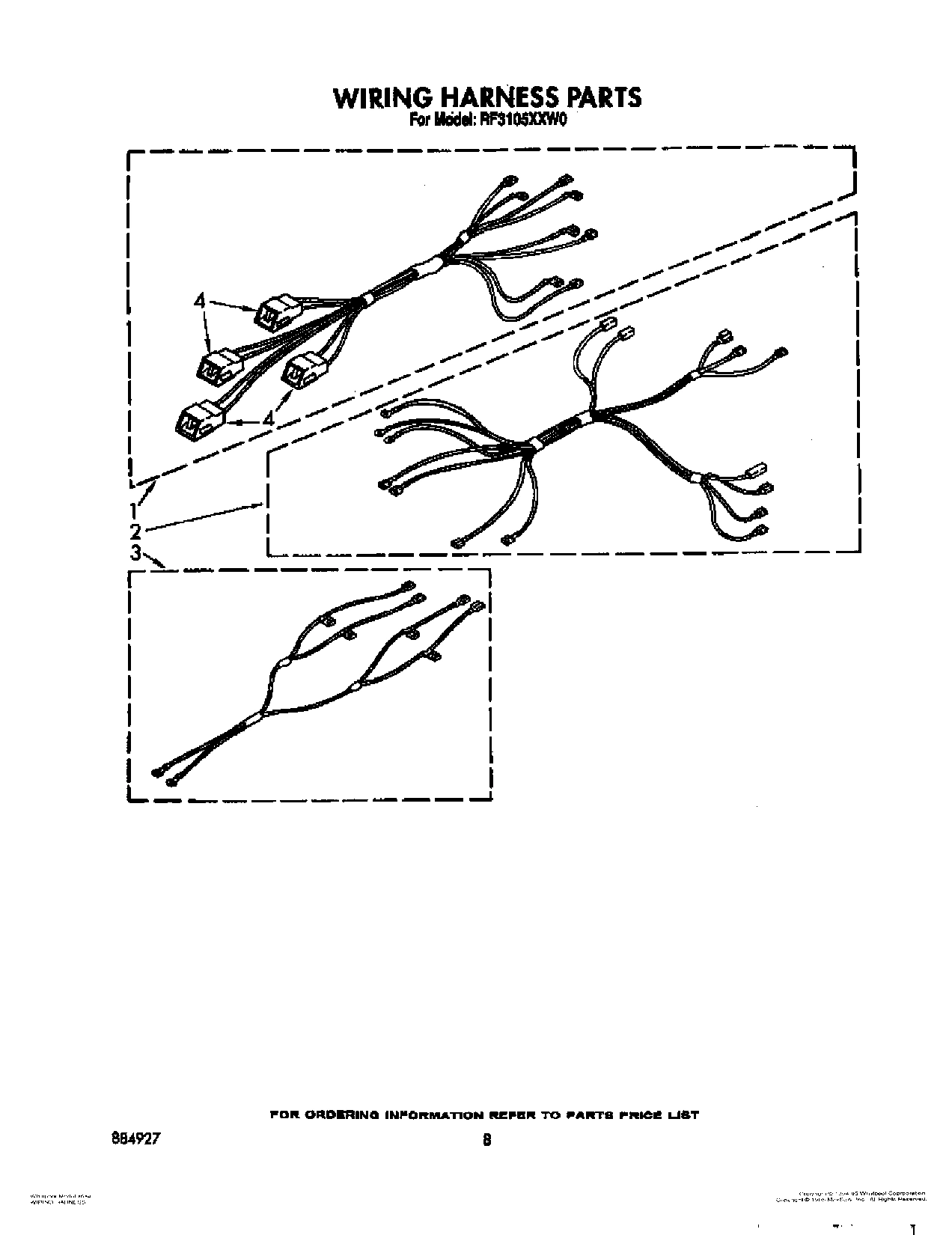

Wiring Diagram WPL LIT3150656 Contact Us For Availability

Repair Parts List WPL LIT884927 Contact Us For Availability

1

814103 Whirlpool Clip In Stock WPL 814103 $5.96

1

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

1

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Liner, Door WPL 3172220 Contact Us For Availability

1

Nut (4) WPL 814102 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

2

Frame, Window WPL 3149277 Contact Us For Availability

2

Screw (2) 8A x 5/8 WPL 309133 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 3181677 Contact Us For Availability

2

End Cap L.H. WPL 3181678 Contact Us For Availability

3

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

3

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $4.82

3

Seal, Door WPL 3148183 Contact Us For Availability

4

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $13.76

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $26.99

4

Glass, Inner WPL 3148179 Contact Us For Availability

4

Box, Burner WPL 3150186 Contact Us For Availability

5

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $55.41

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $110.99

5

Clip, Frame (2) WPL 307731 Contact Us For Availability

5

Retainer, Insulation WPL 3148287 Contact Us For Availability

5

screw (6) WPL 3148443 Contact Us For Availability

5

Shield, Wiring WPL 307973 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Glass, Outer WPL 307732 Contact Us For Availability

6

Rod, Cooktop WPL 3148659 Contact Us For Availability

6

Motor, Timer WPL 313512 Contact Us For Availability

7

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $11.84

7

Retainer, Frame WPL 307792 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Screw (8) 7-19 x 3/8 WPL 313045 Contact Us For Availability

7

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

7

Spring, Knob WPL 313311 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Drawer, Utility WPL 327887 Contact Us For Availability

8

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

8

Shield (2) WPL 313608 Contact Us For Availability

9

Glide, Rear (2) WPL 307980 Contact Us For Availability

9

Cooktop (White) WPL 3170981 Contact Us For Availability

9

Cooktop (Almond) WPL 3170982 Contact Us For Availability

WP308499 Whirlpool Nut Backorder WPL WP308499 $4.82

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $7.20

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

Cover, Rear WPL 3148975 Contact Us For Availability

Timer, Clock WPL 3149835 Contact Us For Availability

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $9.90

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.99

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $4.99

Cover, Service WPL 307972 Contact Us For Availability

Panel, Door (Screw, 10A x 1/2 (3)) WPL 307748 Contact Us For Availability

Panel, Door (White) WPL 307888 Contact Us For Availability

Panel, Door (Almond) WPL 307896 Contact Us For Availability

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $45.62

Handle, Oven Door WPL 311563 Contact Us For Availability

Rail R.H. WPL 3149255 Contact Us For Availability

Rail, L.H. (Incl. Illus. 13) WPL 3149256 Contact Us For Availability

Glass, Timer WPL 308441 Contact Us For Availability

13

Glide, Drawer WPL 3149257 Contact Us For Availability

13

Protector (2) WPL 309329 Contact Us For Availability

13

Medallion (4) WPL 309195 Contact Us For Availability

14

Rack, Oven (2) WPL 308173 Contact Us For Availability

14

Handle, Snap-In (White) WPL 3150612 Contact Us For Availability

14

Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability

15

16515 Whirlpool Clip Backorder WPL 16515 $12.46

15

Panel, Control (White) WPL 3150467 Contact Us For Availability

15

Panel, Control (Almond) WPL 3150468 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $31.65

340184 Whirlpool Screw Backorder WPL 340184 $8.89

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $46.71

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gol WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 309961 WPL 309961 Contact Us For Availability

WPL 312804 WPL 312804 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Panel, Lower (White) WPL 3150676 Contact Us For Availability

Panel, Lower (Almond) WPL 3150677 Contact Us For Availability

17

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $56.64

17

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $59.99

18

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

18

Switch, Selector (3 Position) WPL 3150430 Contact Us For Availability

19

Thermostat, Oven (Alt.) WPL 310864 Contact Us For Availability

19

Thermostat, Oven (Alt.) WPL 311498 Contact Us For Availability

19

Thermostat, Oven WPL 661150 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

20

Light, Indicator (Oven) (Includes Illus. 26) WPL 314031 Contact Us For Availability

21

Light, Indicator (Surface Unit) (Includes Ill WPL 3150662 Contact Us For Availability

22

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $15.56

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

23

Knob, Therm. Control WPL 3149987 Contact Us For Availability

24

Tube Clip WPL 313570 Contact Us For Availability

25

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

25

Rear Cover Control Panel WPL 313195 Contact Us For Availability

26

Lens, Amber (2) WPL 313101 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $56.92

28

Knob, Selector Control WPL 3149984 Contact Us For Availability

31

Seal, Rubber WPL 309107 Contact Us For Availability
