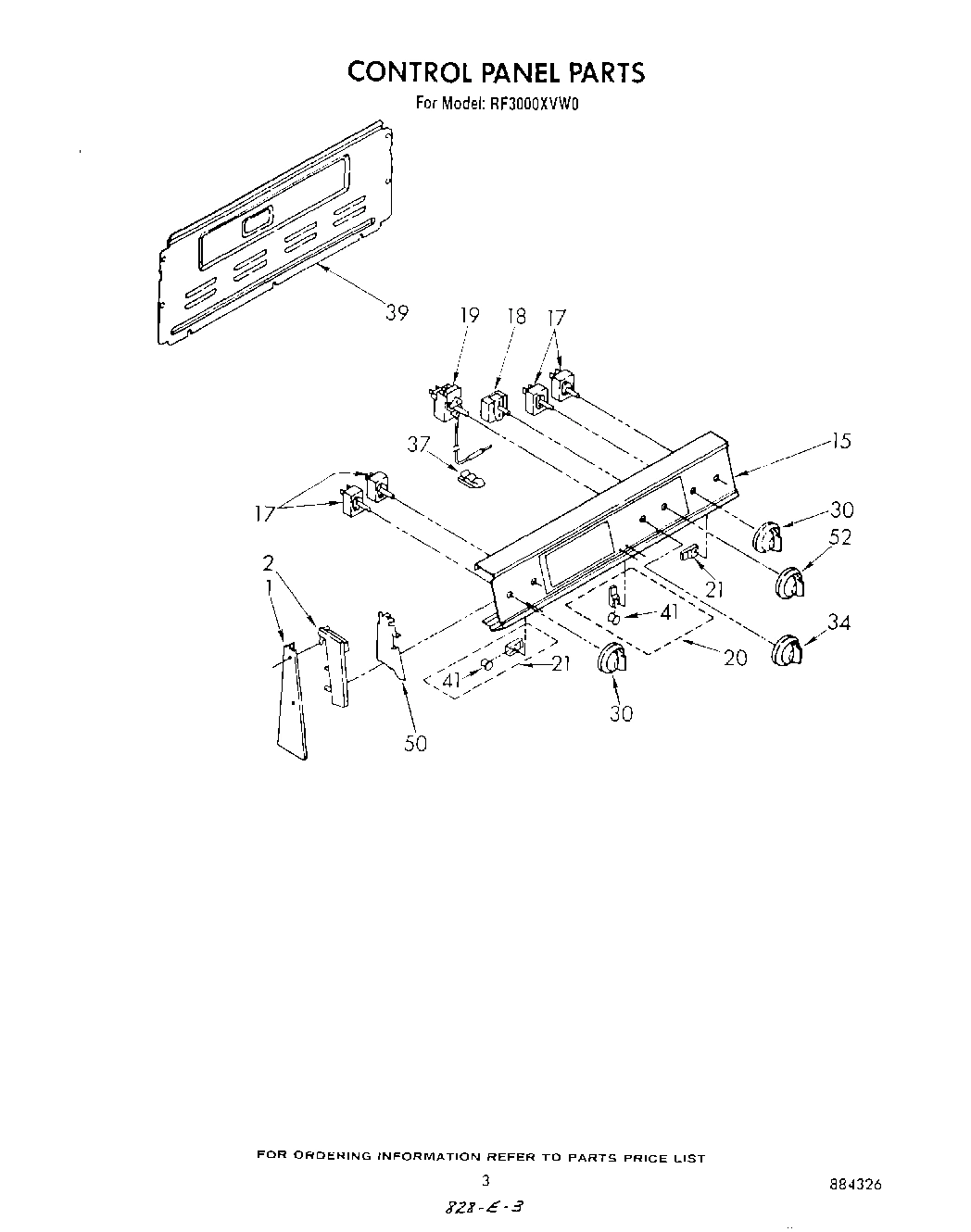

Model Whirlpool RF3000XVN0 – Common Parts &amp; Diagrams

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $21.72

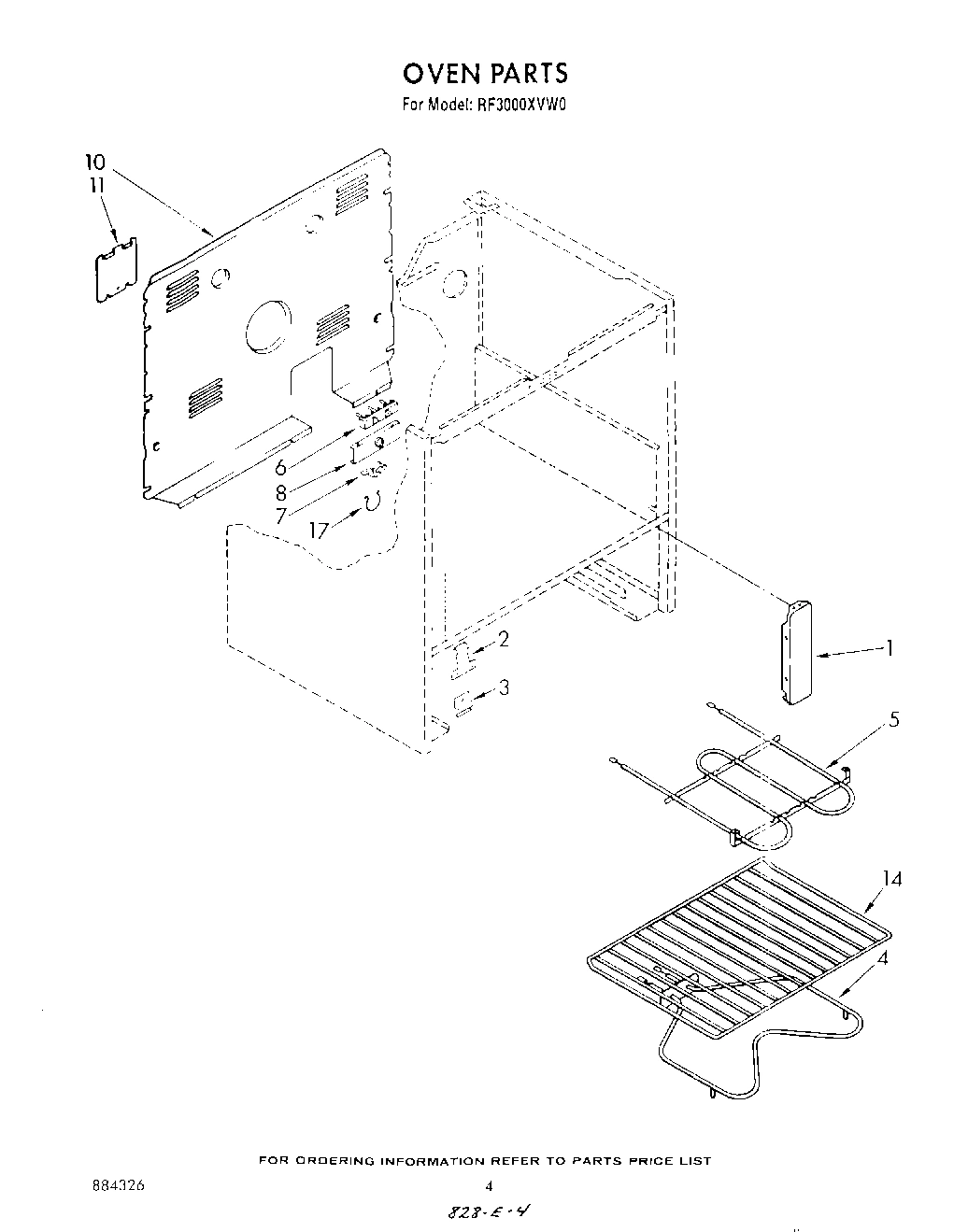

Book, Cooking WPL LIT313358 Contact Us For Availability

Installation Instructions WPL LIT313473 Contact Us For Availability

Guide, Use & Care WPL LIT3148531 Contact Us For Availability

List, Parts WPL LIT884326 Contact Us For Availability

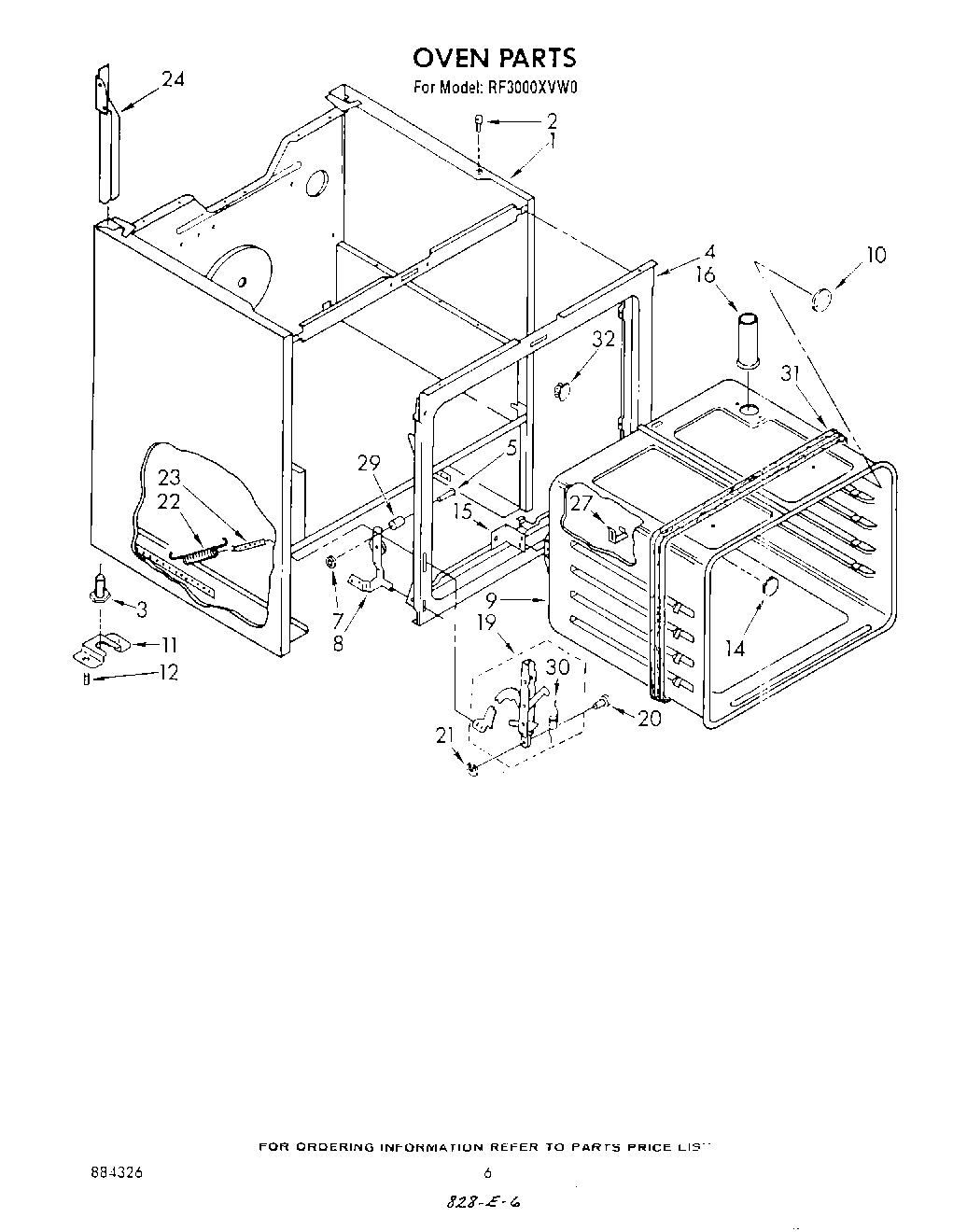

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

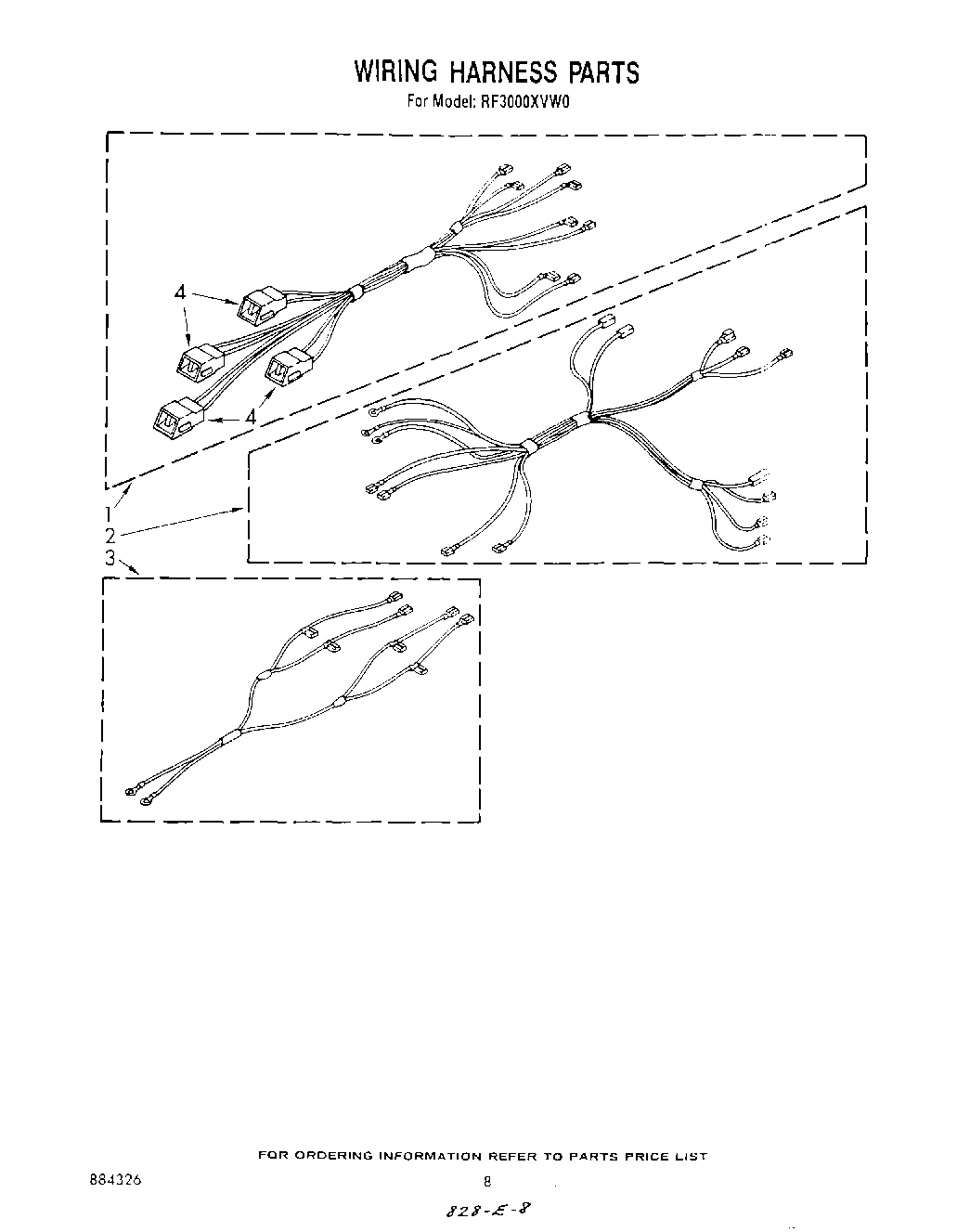

Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

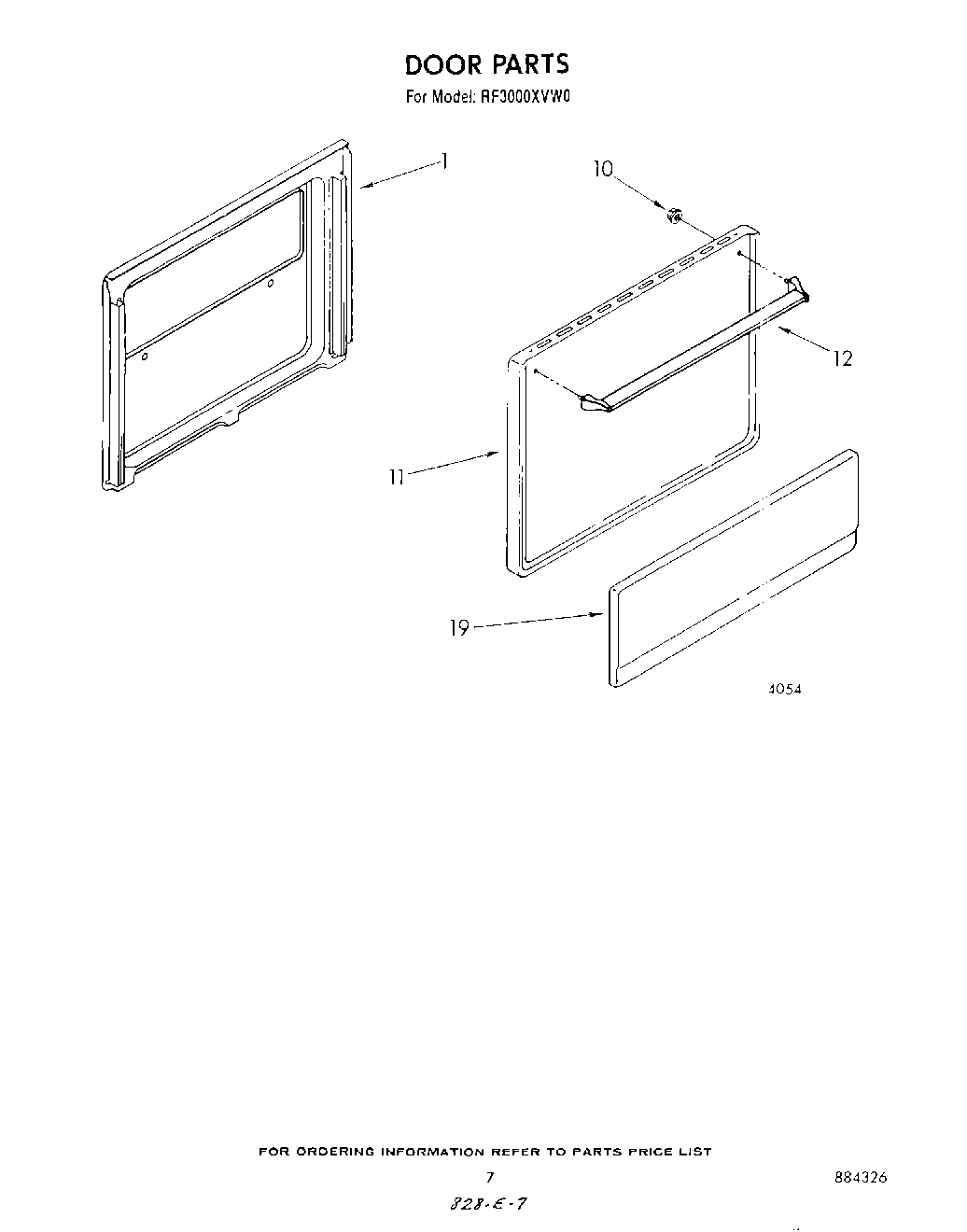

Liner, Door WPL 3170709 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $107.33

2

814103 Whirlpool Clip In Stock WPL 814103 $6.16

2

Harness, Wire (Oven) WPL 313149 Contact Us For Availability

2

Spring, Panel (2) WPL 307958 Contact Us For Availability

3

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $5.76

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.53

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

3

Bracket, Mounting (2) WPL 307957 Contact Us For Availability

4

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $12.51

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $27.60

4

Frame, Front WPL 3171800 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $72.43

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Screw, 10-32 x 5/8 (2) WPL 246127 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $3.46

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.40

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

7

Pushnut WPL 308306 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Box, Burner WPL 3149194 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

8

Bracket, Service WPL 307970 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

9

Oven (30`` Pyro) WPL 329000 Contact Us For Availability

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

WP308499 Whirlpool Nut Backorder WPL WP308499 $5.76

Screw (2) WPL 311056 Contact Us For Availability

Cover, Plate WPL 308543 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $12.67

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.85

screw (2) WPL 3148604 Contact Us For Availability

Panel, Door (Screw, 10A x 1/2 (3)) WPL 307748 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Panel, Door (White) WPL 307889 Contact Us For Availability

Panel, Door (Almond) WPL 307897 Contact Us For Availability

Bracket, Cooktop (2) WPL 307965 Contact Us For Availability

12

Handle, Oven Door WPL 311563 Contact Us For Availability

12

Anchor, Plastic WPL 3148605 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

13

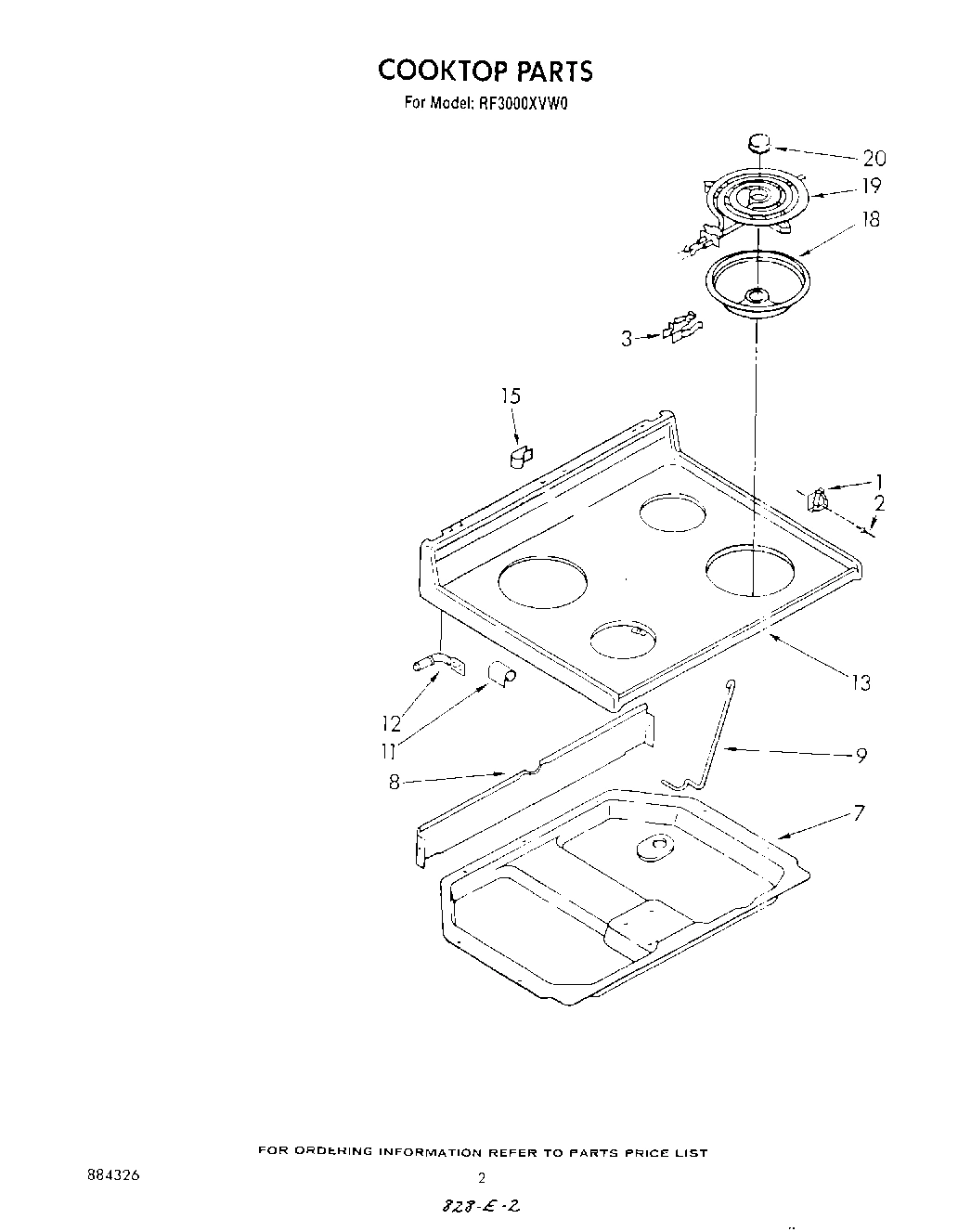

Cooktop (White) WPL 3170989 Contact Us For Availability

13

Cooktop (Almond) WPL 3170990 Contact Us For Availability

14

Plug Button WPL 257314 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

15

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $7.50

15

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

15

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

16

Vent, Oven WPL 307960 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $18.10

242831 Whirlpool Oven Wire Backorder WPL 242831 $423.65

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.68

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $39.00

WP3148953 Whirlpool Oven Infinite Switch In Stock WPL WP3148953 $39.34

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $34.75

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Rotisserie Kit (RCK 79) WPL 261881 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

Coffee (Uncut) WPL 261887 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

New Avocado WPL 261889 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

18

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.99

18

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $4.01

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $16.59

Channel, Arm (2) WPL 329712 Contact Us For Availability

Panel, Lower (White) WPL 307935 Contact Us For Availability

Panel, Lower (Almond) WPL 307939 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $6.70

20

Light, Indicator (1) (Oven) (Includes Illus. WPL 314031 Contact Us For Availability

20

Medallion (4) WPL 309195 Contact Us For Availability

21

Light, Indicator (Surface Unit) (2) (Includes WPL 313102 Contact Us For Availability

21

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $8.24

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $34.75

29

Snubber, Door (2) WPL 309111 Contact Us For Availability

30

Spring, Door Stop WPL 308207 Contact Us For Availability

31

Seal, Rubber WPL 309107 Contact Us For Availability

32

Plug Button WPL 308535 Contact Us For Availability

52

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.53
