Model Whirlpool REL4632BL0 – Common Parts & Diagrams

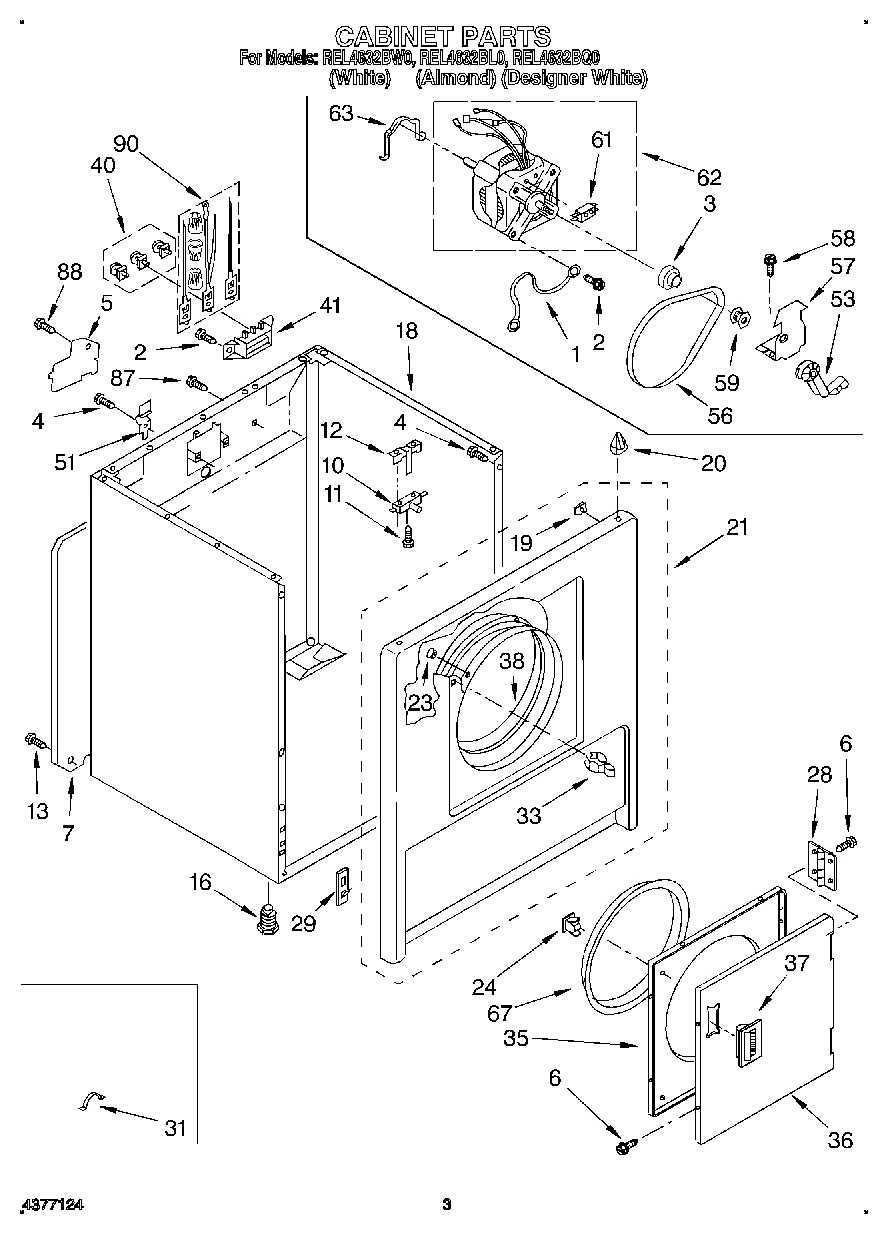

02 - SECTION

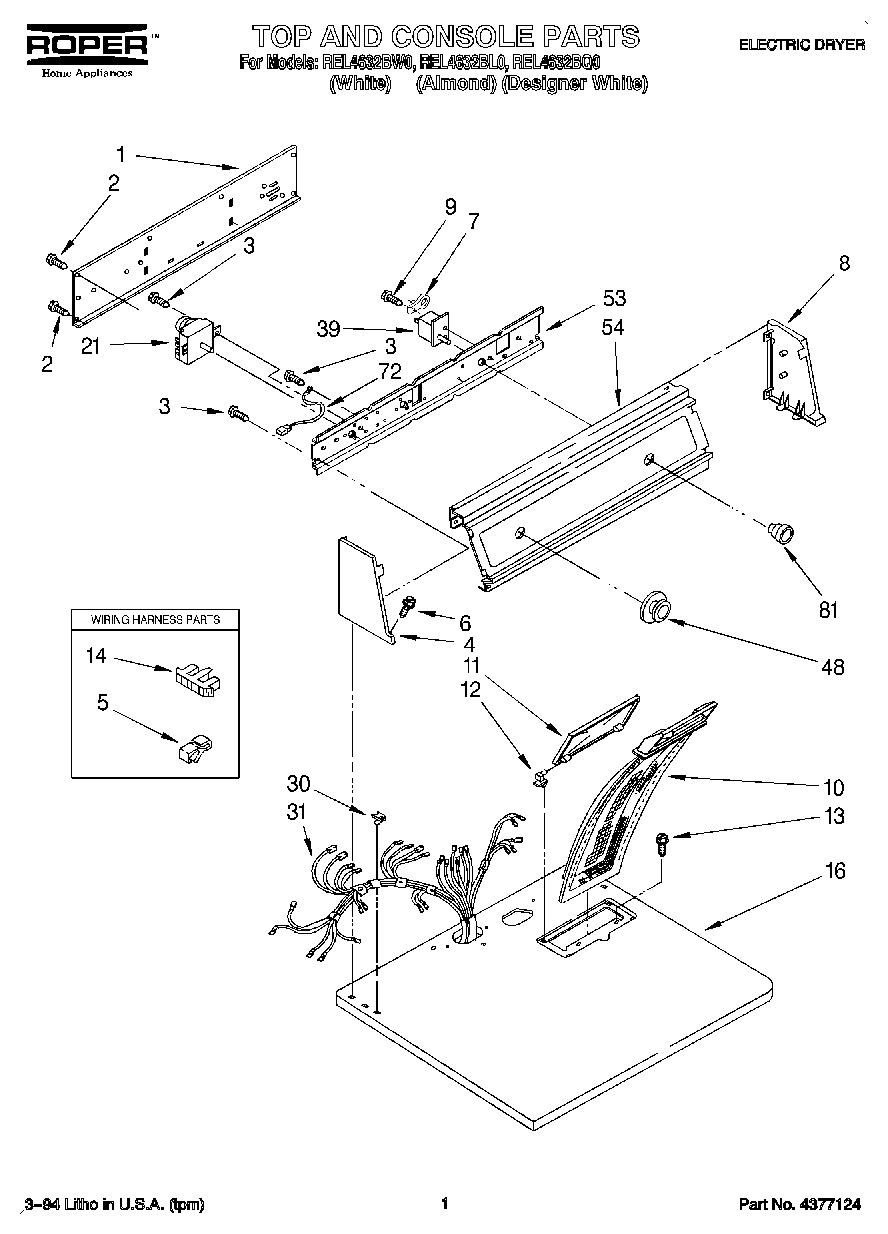

01 - SECTION

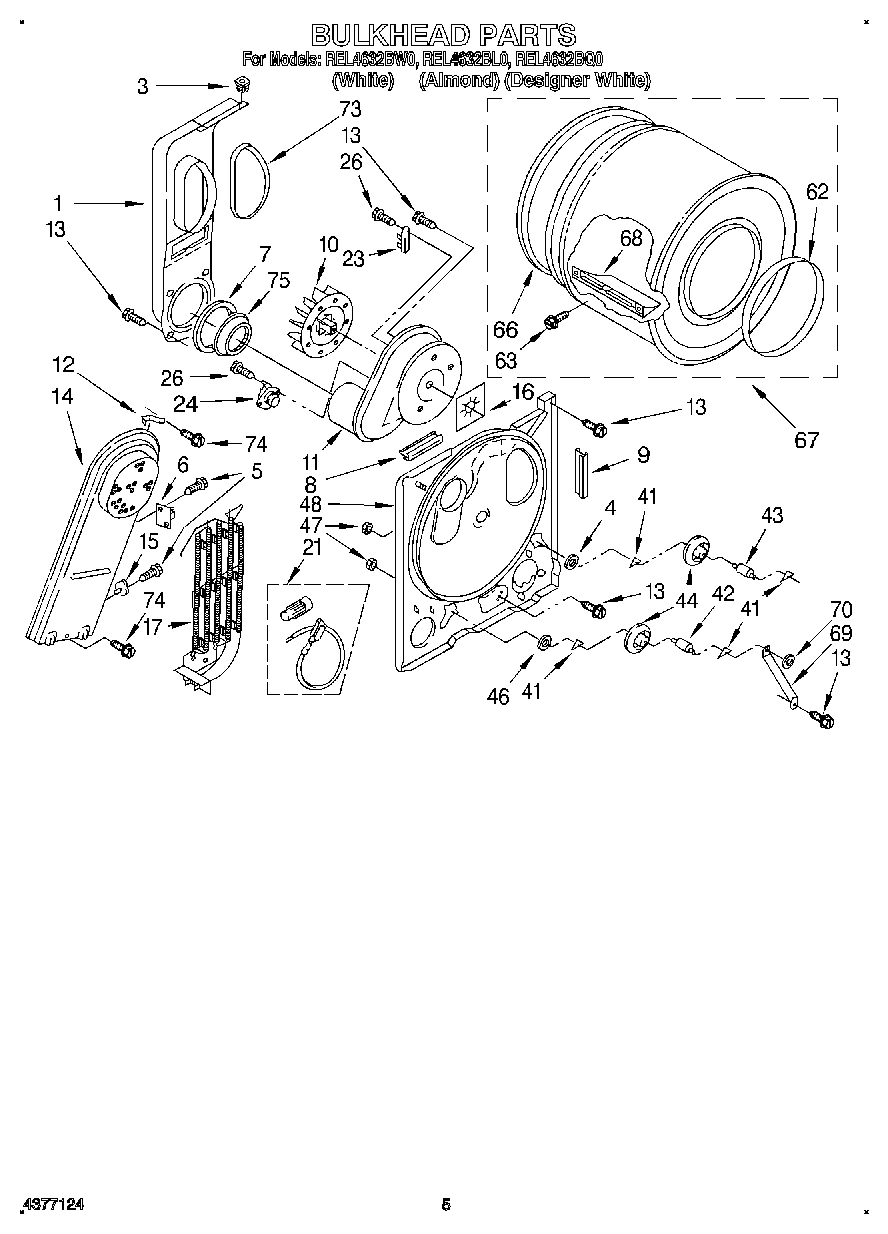

03 - SECTION
Common parts from model Whirlpool REL4632BL0
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
5
Clip, Retainer WPL 689180 Contact Us For Availability
8
Cap, End (R.H.) WPL 3357998 Contact Us For Availability
8
FOR MODEL REL4632BQ0 WPL 3358000 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
14
Connector, Timer WPL 3397269 Contact Us For Availability
14
Box, Heater WPL 695547 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
16
Seal, Blower Shaft WPL 3392123 Contact Us For Availability
21
Timer, 60 Hz. WPL 3398134 Contact Us For Availability
31
Harness, Wiring WPL 3396225 Contact Us For Availability
37
Handle, Door (Almond) WPL 689308 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
48
Timer Knob Assembly WPL 3391823 Contact Us For Availability
48
FOR MODEL REL4632BQ0 WPL 9830068 Contact Us For Availability
48
Bulkhead WPL 685775 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
FOR MODEL REL4632BQ0 WPL 3397321 Contact Us For Availability
54
Panel, Control WPL 3397322 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
81
Knob, Push-To-Start WPL 3391829 Contact Us For Availability
× ![]()
