Model Whirlpool REL4432AW0 – Common Parts & Diagrams

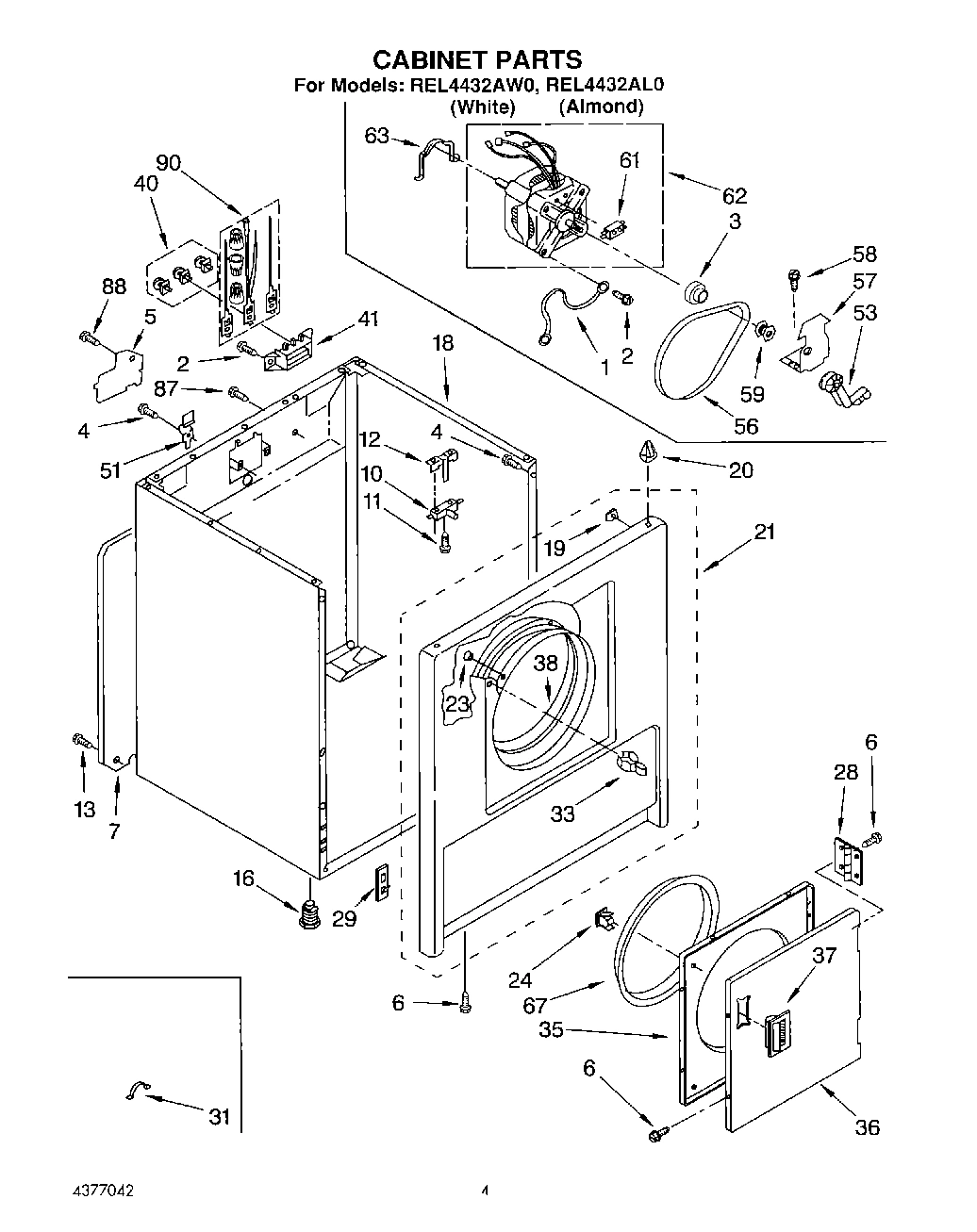

02 - SECTION

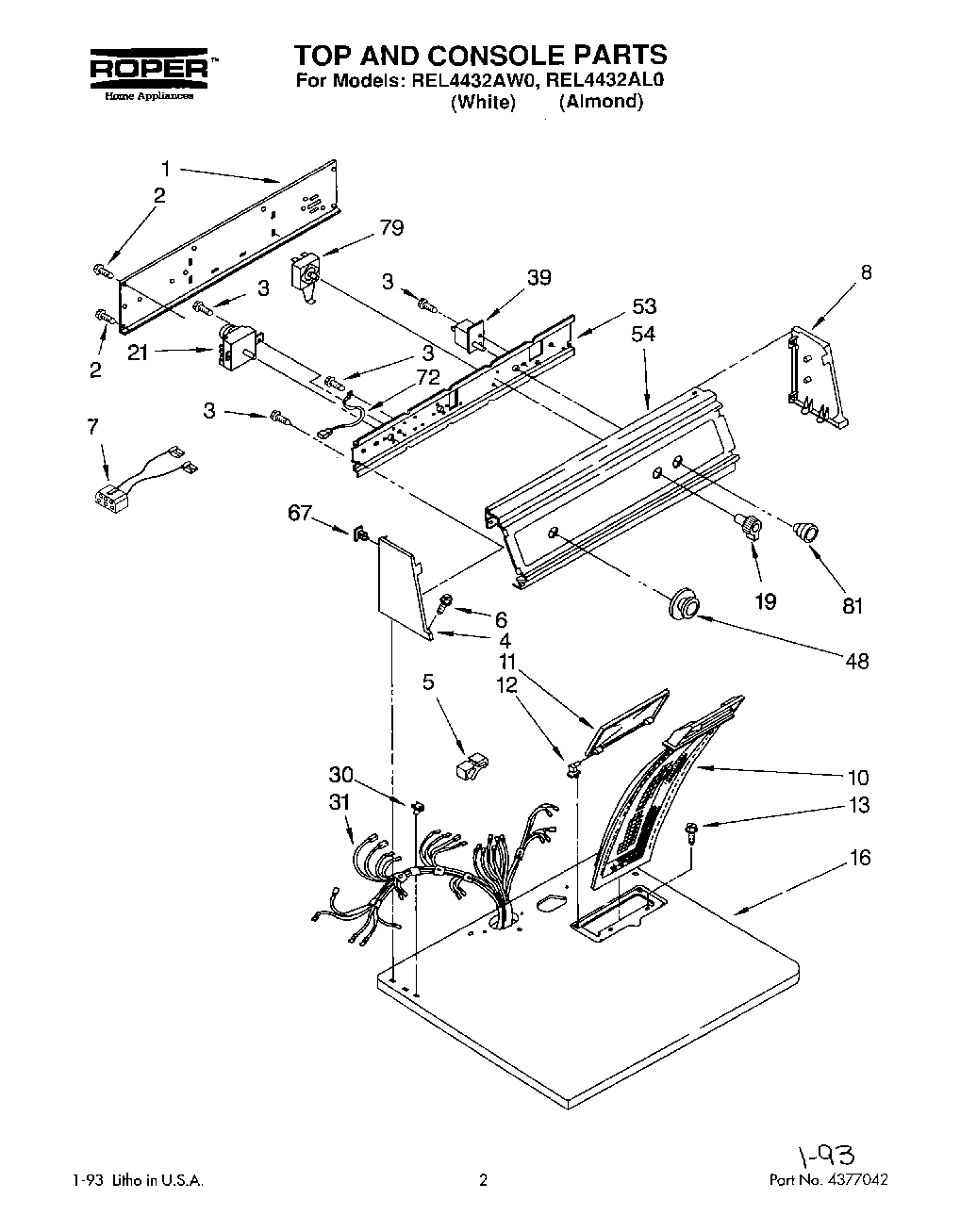

01 - SECTION

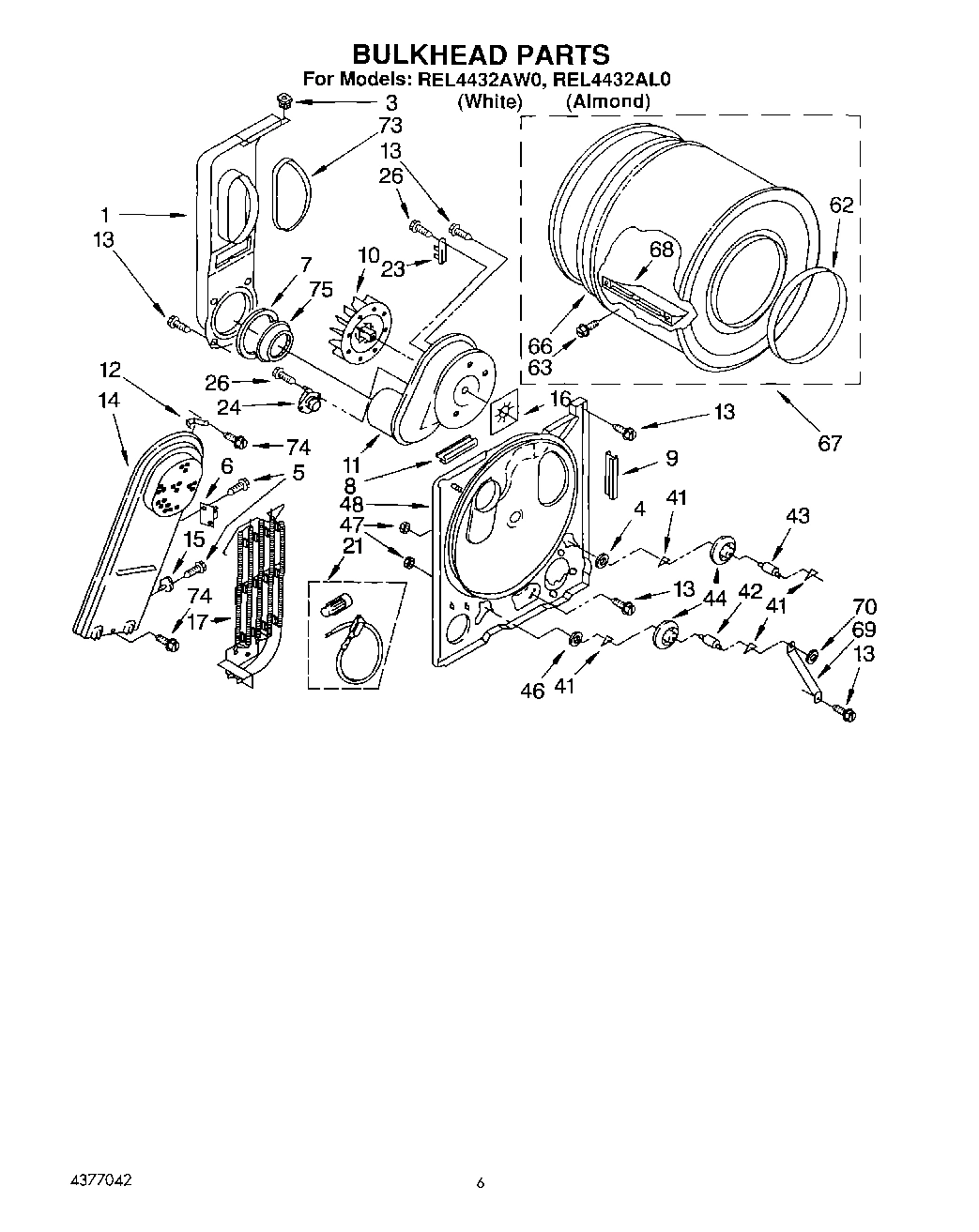

03 - SECTION
Common parts from model Whirlpool REL4432AW0
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
4
Cap, End (L.H.) WPL 3358016 Contact Us For Availability
5
Clip, Retainer WPL 689180 Contact Us For Availability
8
Cap, End (R.H.) WPL 3357998 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
11
Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
14
Box, Heater WPL 695547 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
16
Top (Almond) WPL 3396023 Contact Us For Availability
16
Seal, Blower Shaft WPL 3392123 Contact Us For Availability
19
Knob, Temperature WPL 3352167 Contact Us For Availability
31
Harness, Wiring WPL 3396219 Contact Us For Availability
39
Switch, Push-To-Start WPL 660936 Contact Us For Availability
48
Timer Knob Assembly WPL 3391823 Contact Us For Availability
48
Bulkhead WPL 685775 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
Panel, Control WPL 3397306 Contact Us For Availability
67
Clip, Push-On (4) WPL 689559 Contact Us For Availability
69
Bracket, Support WPL 348945 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
79
Switch, Temperature Selector WPL 3354281 Contact Us For Availability
81
Knob, Push-To-Start WPL 3391829 Contact Us For Availability
× ![]()
