Model Whirlpool RB21CKXAW00 – Common Parts & Diagrams

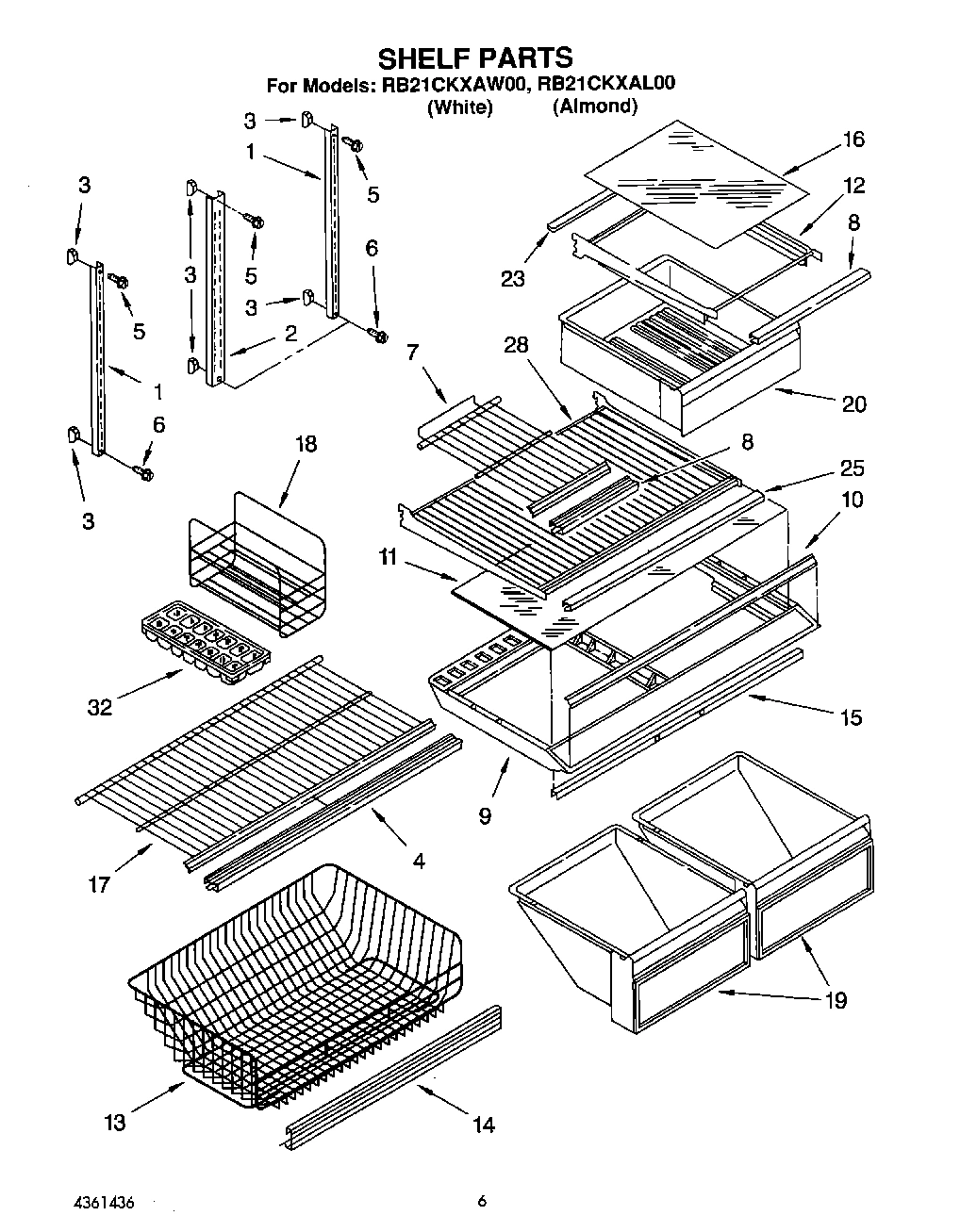

05 - SHELF, LIT/OPTIONAL

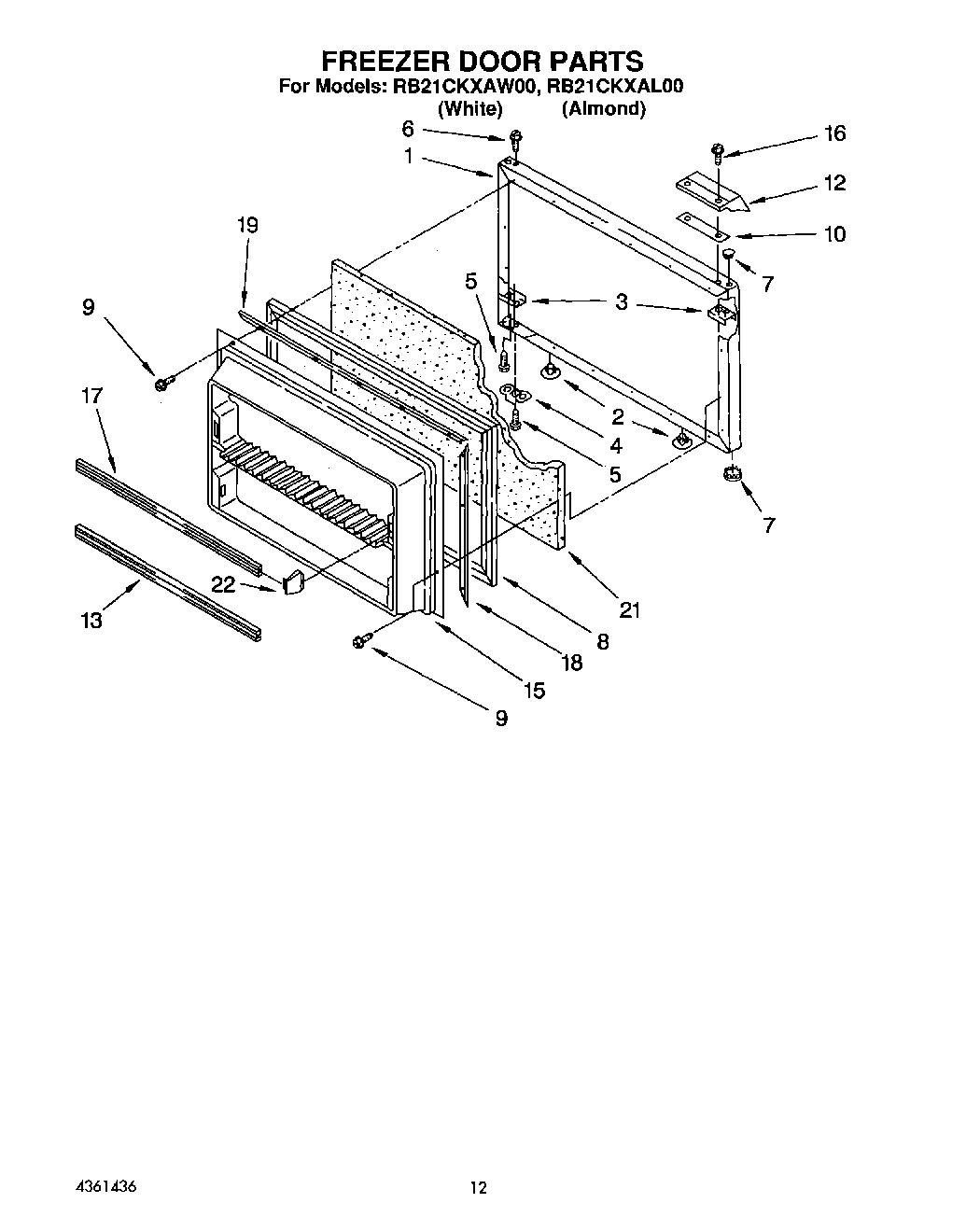

08 - FREEZER DOOR

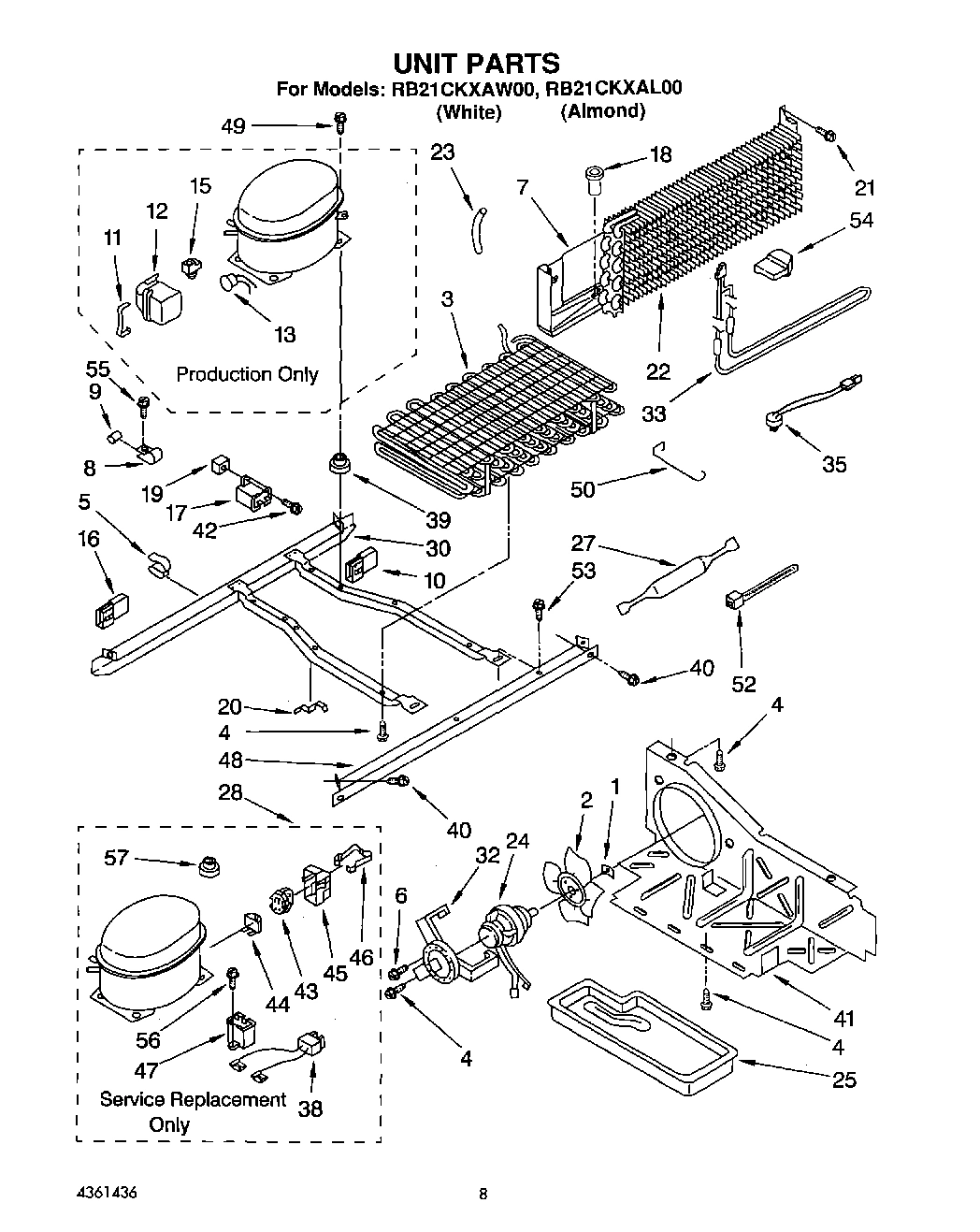

06 - UNIT

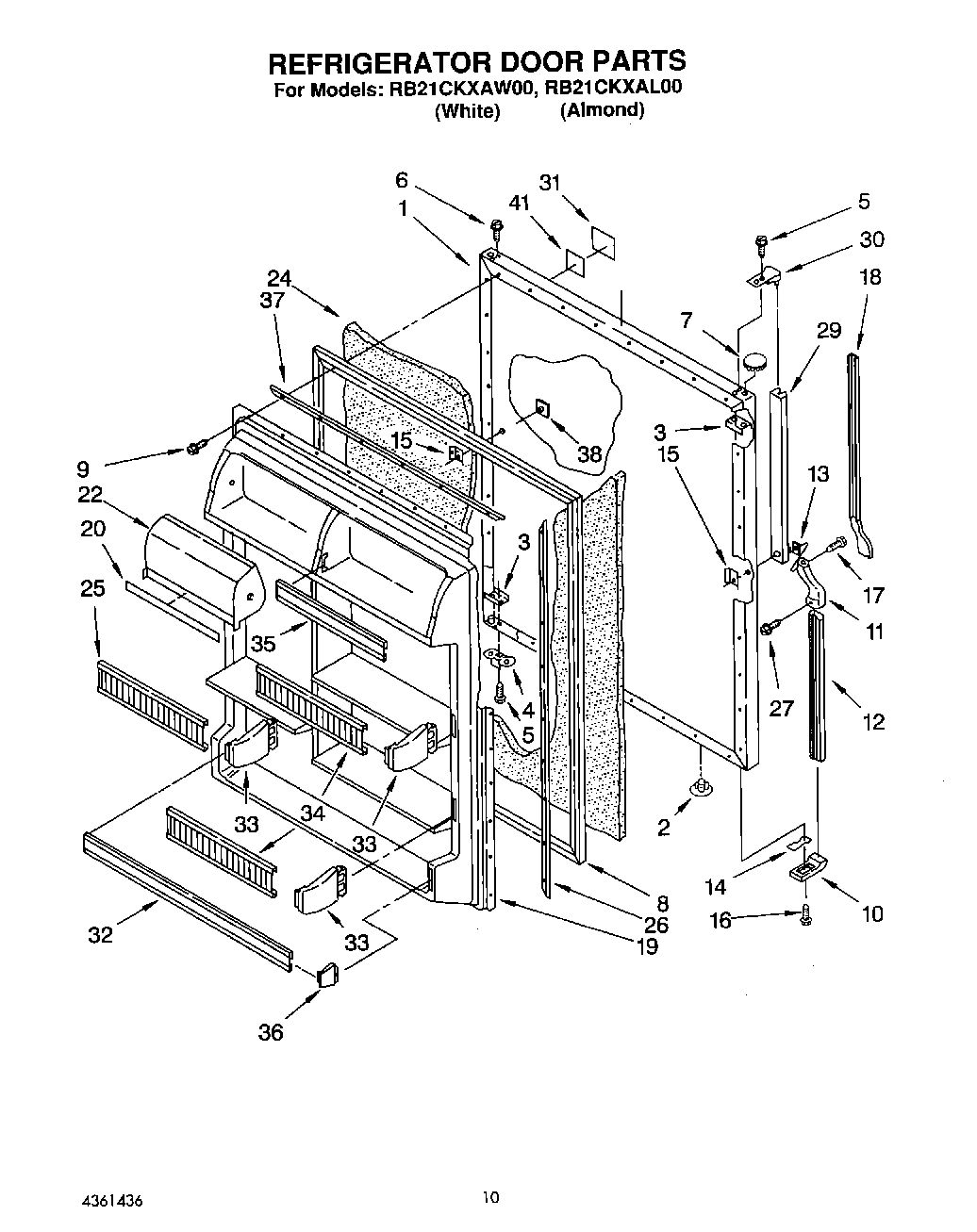

07 - REFRIGERATOR DOOR

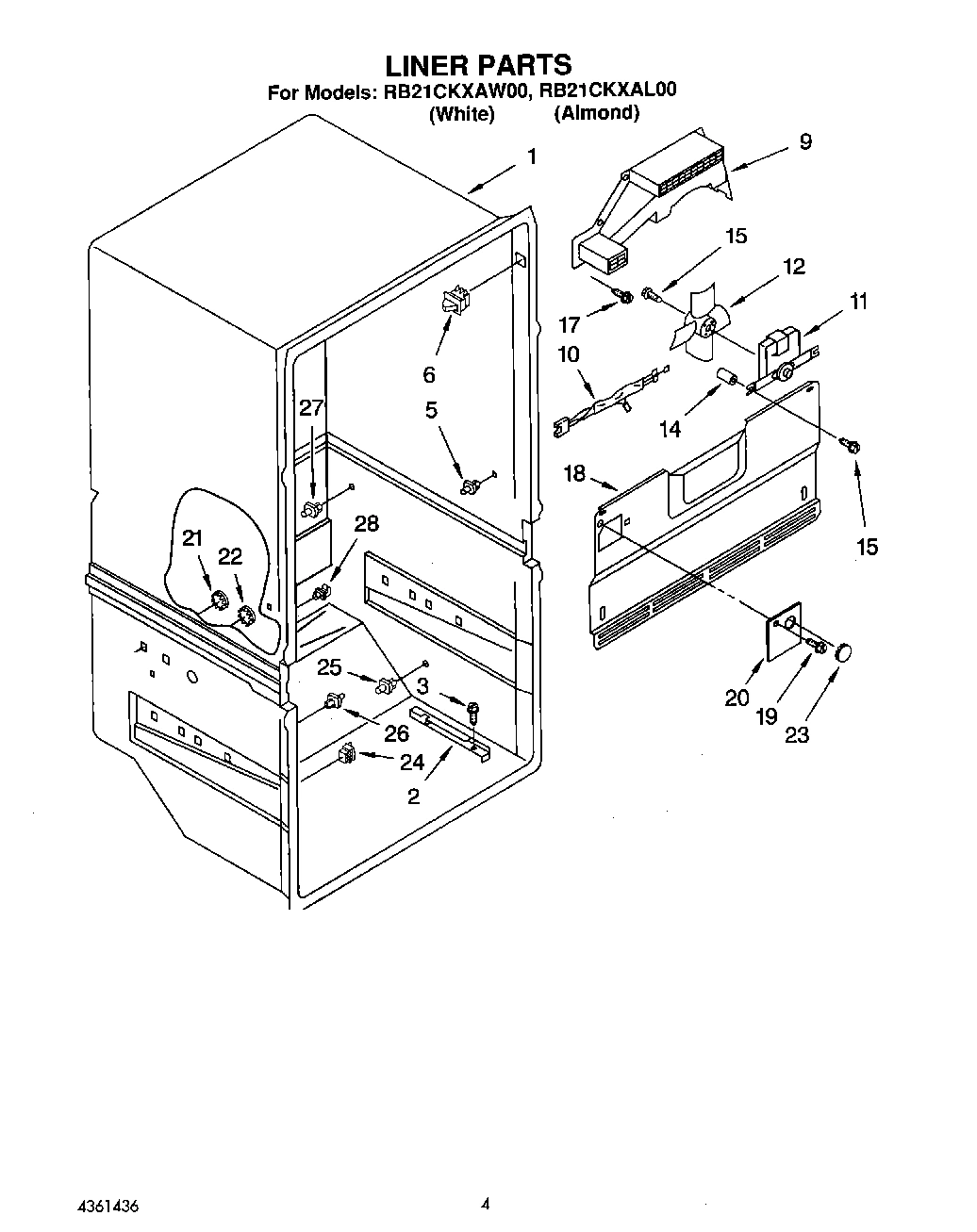

03 - LINER

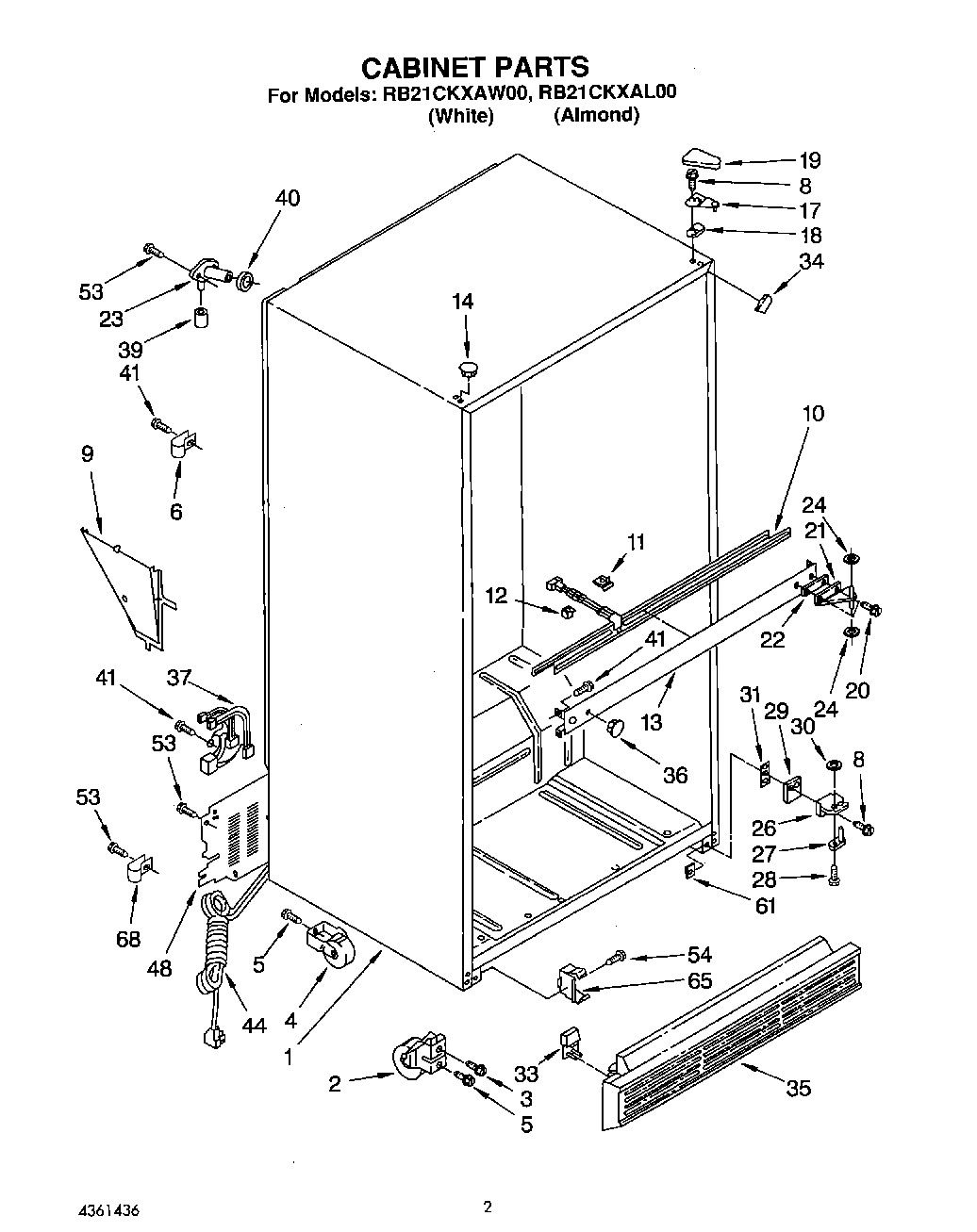

02 - CABINET

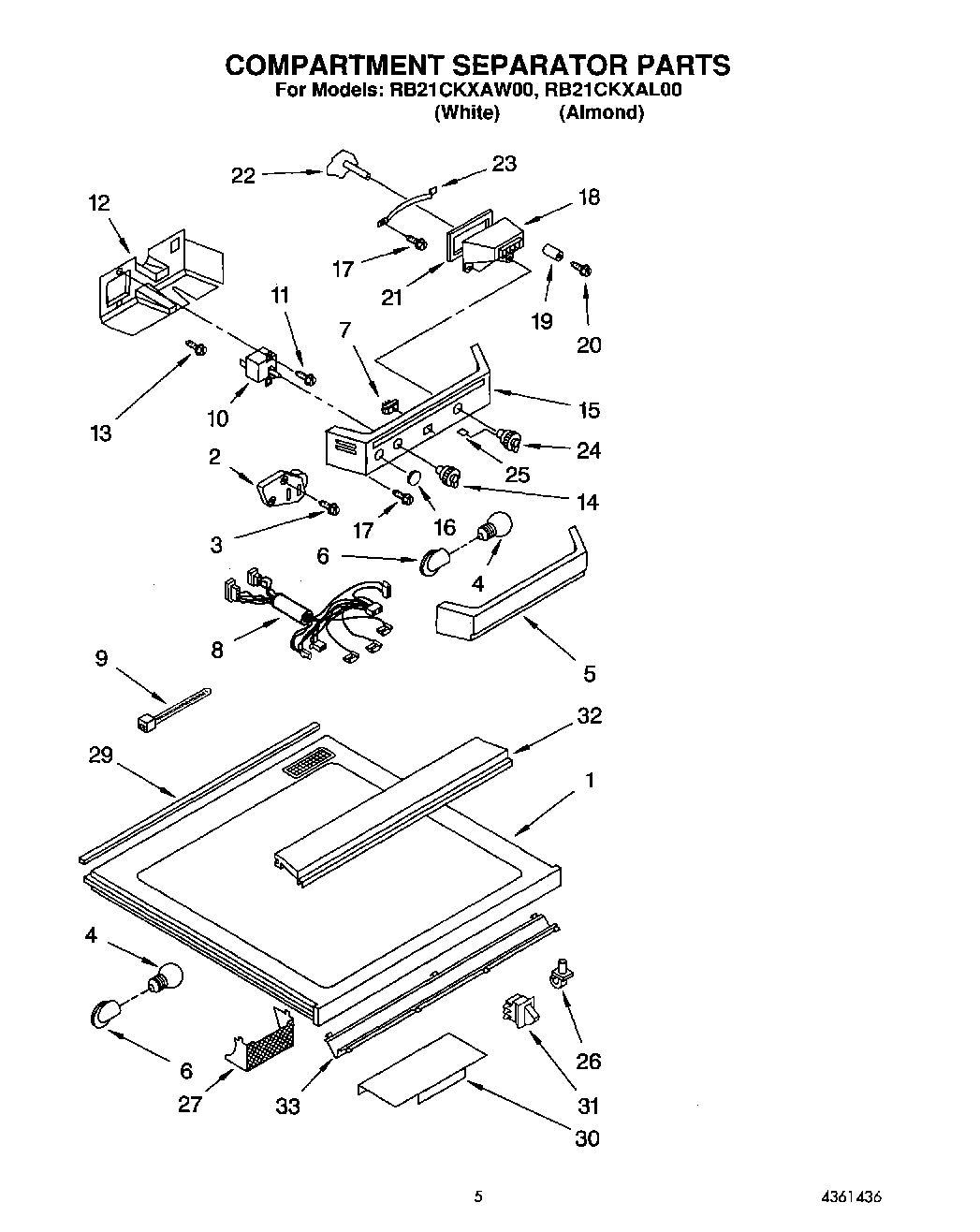

04 - COMPARTMENT SEPARATOR
Common parts from model Whirlpool RB21CKXAW00
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 24) WPL 2152806 Contact Us For Availability
1
Panel, Refrigerator Door (Also Order Item 24) WPL 2160485 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI159866A Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI159865A Contact Us For Availability
1
Compartment Separator Assembly (Includes Cent WPL 2152764 Contact Us For Availability
2
Fan, Blade WPL 851732 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Slide, Basket (Right Side) WPL 986382 Contact Us For Availability
2
Slide, Basket (Left Side) WPL 986383 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Condenser Assembly WPL 2154010 Contact Us For Availability
3
Plate, Tap (4) WPL 1123568 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
3
Screw WPL 489386 Contact Us For Availability
4
Bracket, Door Stop WPL 2157749 Contact Us For Availability
5
Shelf Stud (2) WPL 1106612 Contact Us For Availability
5
Clip, Wire (2) WPL 548745 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 (6) WPL 488454 Contact Us For Availability
5
Light Lens WPL 983910 Contact Us For Availability
7
Heat Shield & Drain Pan WPL 2152771 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Tube Clamp WPL 510716 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2160435 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
8
Wiring Assembly, Control Box WPL 2152787 Contact Us For Availability
9
Scroll, Fan WPL 2152779 Contact Us For Availability
9
Scoop, Air WPL 2160492 Contact Us For Availability
9
Cable Tie WPL 1102000 Contact Us For Availability
10
Handle End WPL 944157 Contact Us For Availability
10
Wiring Assembly, Fan Motor WPL 1127434 Contact Us For Availability
10
Heater, Mullion WPL 2154065 Contact Us For Availability
11
Handle End, Side WPL 1109189 Contact Us For Availability
11
Spring, Relay Case WPL 943322 Contact Us For Availability
11
Fan Motor WPL 2160412 Contact Us For Availability
11
Clip, Center Rail (4) WPL 2149060 Contact Us For Availability
12
Handle WPL 657077 Contact Us For Availability
12
Handle, Center WPL 1109057 Contact Us For Availability
12
Fan Blade WPL 2160471 Contact Us For Availability
12
Spacer (3) WPL 1115105 Contact Us For Availability
12
Bracket, Thermostat WPL 2152896 Contact Us For Availability
13
Trim, Door Shelf WPL 2163393 Contact Us For Availability
13
Shim, Handle End (Side) WPL 935075 Contact Us For Availability
13
Center Rail WPL 2152836 Contact Us For Availability
13
Screw, 8-32 x 3/8 WPL 488974 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Grommet (2) WPL 531933 Contact Us For Availability
14
Hole Plug (Almond) WPL 2151653 Contact Us For Availability
14
Control Knob WPL 2148656 Contact Us For Availability
15
Interior Door Panel WPL 2152814 Contact Us For Availability
15
Relay (See Overload) WPL ARI159867A Contact Us For Availability
15
Screw (2) WPL 489168 Contact Us For Availability
15
Control Panel WPL 2148654 Contact Us For Availability
16
Screw, 8 x 5/8 WPL 488933 Contact Us For Availability
16
Housing Plug WPL 1118850 Contact Us For Availability
16
Hole Plug WPL 2148655 Contact Us For Availability
17
Trim, Door WPL 2163392 Contact Us For Availability
18
Gasket Retainer, Side (2) WPL 986015 Contact Us For Availability
18
Drain Ferrule WPL 2155556 Contact Us For Availability
18
Insert, Handle WPL 2160476 Contact Us For Availability
18
Cover, Evaporator WPL 2152796 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
18
Air Diffuser Assembly WPL 2160470 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Interior Door Panel WPL 2160431 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
20
Clip, Unit Cover (2) WPL 548744 Contact Us For Availability
20
Trim, Door Compartment WPL 1122750 Contact Us For Availability
20
Hole Cover, Evaporator WPL 2163406 Contact Us For Availability
20
Screw, 8 x 1-1/4 (2) WPL 488357 Contact Us For Availability
21
Kit, Foam Slab WPL 876029 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
21
Gasket WPL 2160428 Contact Us For Availability
22
Evaporator WPL 2152776 Contact Us For Availability
22
Compartment Door, WPL 2152474 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
22
Damper, Air WPL 984658 Contact Us For Availability
23
Hole Plug WPL 1103725 Contact Us For Availability
23
Retainer, Air Damper WPL 836493 Contact Us For Availability
24
Knob, Air Diffuser (Includes Item 25) WPL 2148657 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Trim, Door Shelf WPL 2152471 Contact Us For Availability
25
Stud-Support (4) WPL 946355 Contact Us For Availability
25
Knob, Retainer WPL 837444 Contact Us For Availability
26
Stud WPL 2155555 Contact Us For Availability
26
Gasket Retainer, Side (2) WPL 986008 Contact Us For Availability
26
Stud, Front (2) WPL 946356 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Screw, 6-20 x 3/8 (2) WPL 489022 Contact Us For Availability
27
Light Lens WPL 983359 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
29
Retainer, Insert WPL 935873 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
29
Gasket, Comp. Sep. WPL 1116698 Contact Us For Availability
30
Washer, 7/32 WPL 489200 Contact Us For Availability
30
Endcap, Insert Retainer WPL 1105804 Contact Us For Availability
30
Lens-Light WPL 2149068 Contact Us For Availability
31
Nameplate WPL 2160005 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
32
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Trim, Door Shelf WPL 2152490 Contact Us For Availability
32
Seperator Top-Front WPL 1121213 Contact Us For Availability
33
Heater, Defrost WPL 2162083 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
33
Air Deflector WPL 2160402 Contact Us For Availability
34
Trim, Door Shelf WPL 2152472 Contact Us For Availability
34
Filler, Wrap Corner (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrap Corner (Almond) WPL 1118059 Contact Us For Availability
35
Trim, Door Shelf WPL 2152473 Contact Us For Availability
35
Grille WPL 1129001 Contact Us For Availability
36
End Cap, Trim WPL 1115364 Contact Us For Availability
36
Hole Plug (5) (White) WPL 1129062 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 1129063 Contact Us For Availability
37
Gasket Retainer, Top & Bottom WPL 1122552 Contact Us For Availability
37
Wiring Assembly, Intermediate WPL 2153994 Contact Us For Availability
38
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
41
Air Baffle WPL 2155566 Contact Us For Availability
41
Tape Strip WPL 991259 Contact Us For Availability
44
Overload WPL 1108114 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Cover WPL 1105055 Contact Us For Availability
45
For Service Compressor Only WPL 1108115 Contact Us For Availability
46
Strap WPL 938384 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cover, Unit WPL 2160490 Contact Us For Availability
54
Support (2) WPL 1115128 Contact Us For Availability
57
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
57
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
