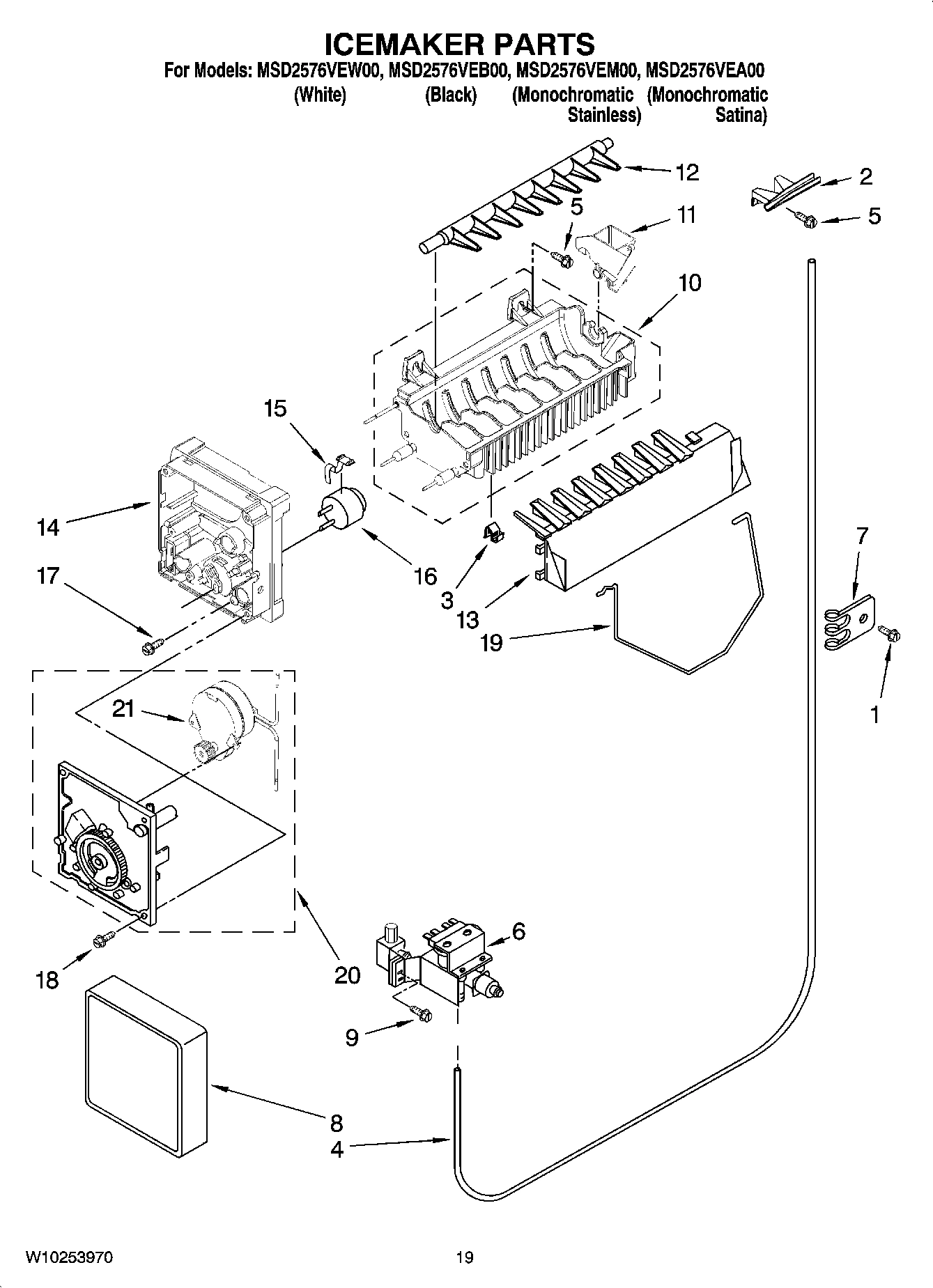

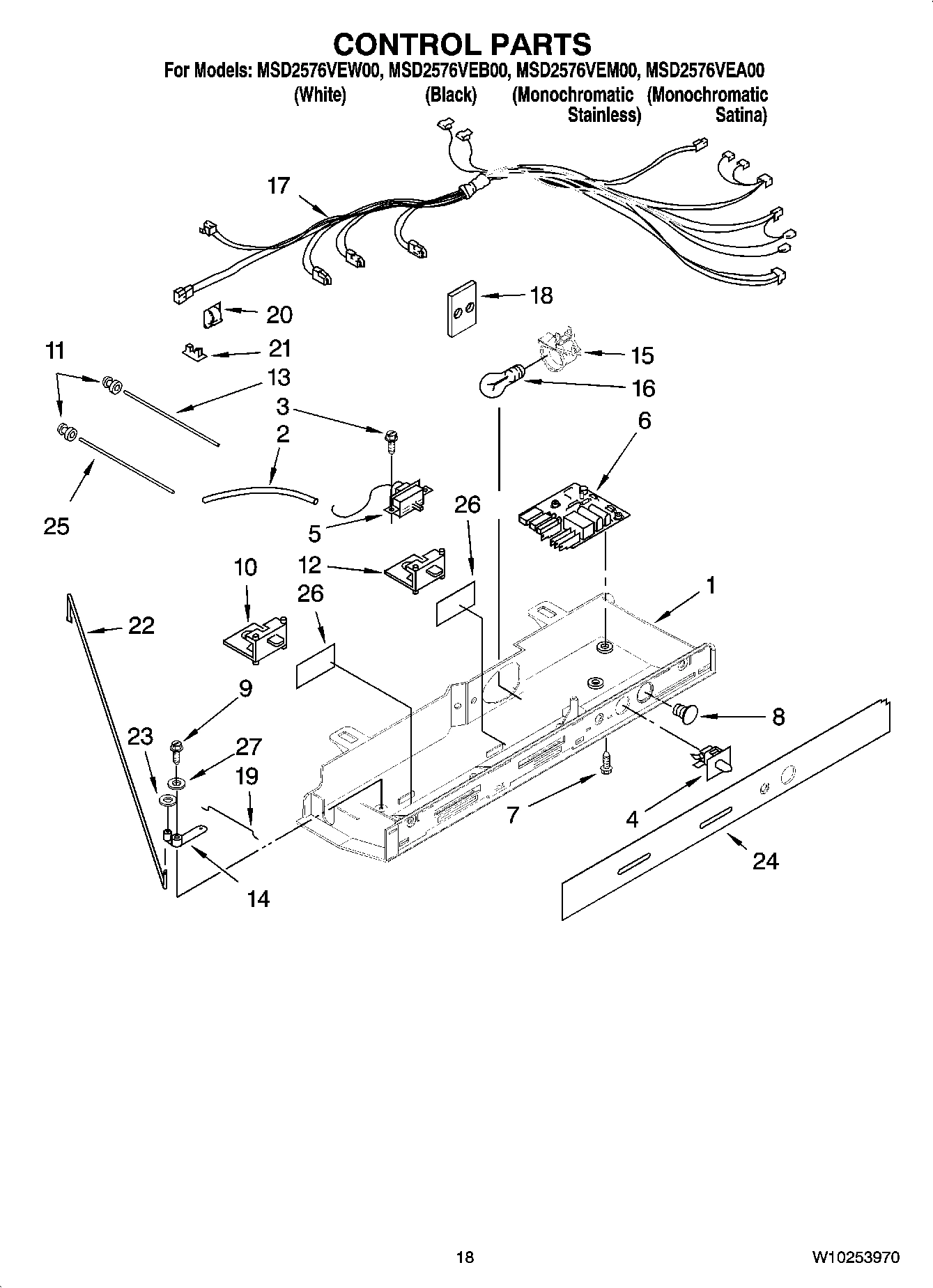

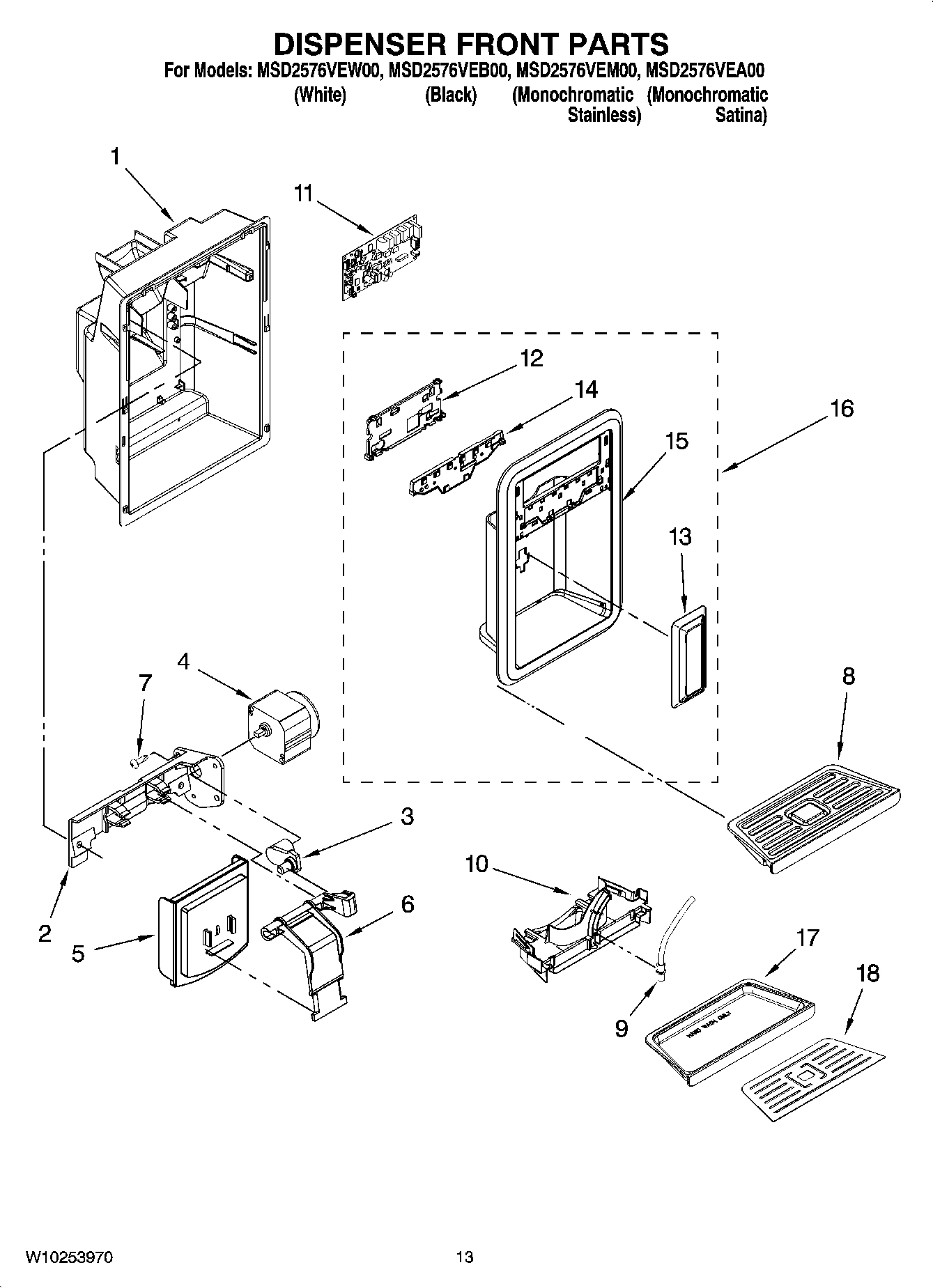

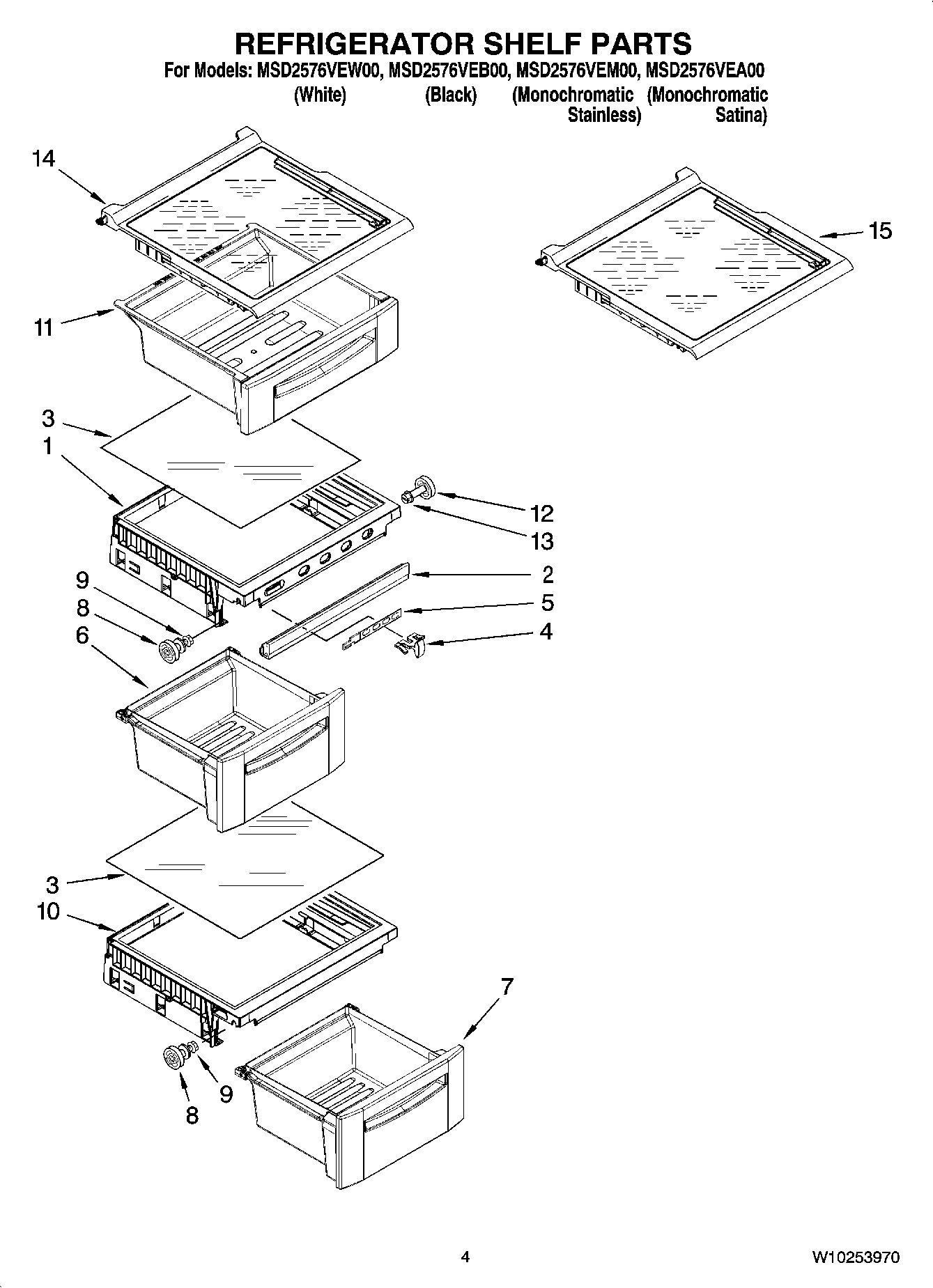

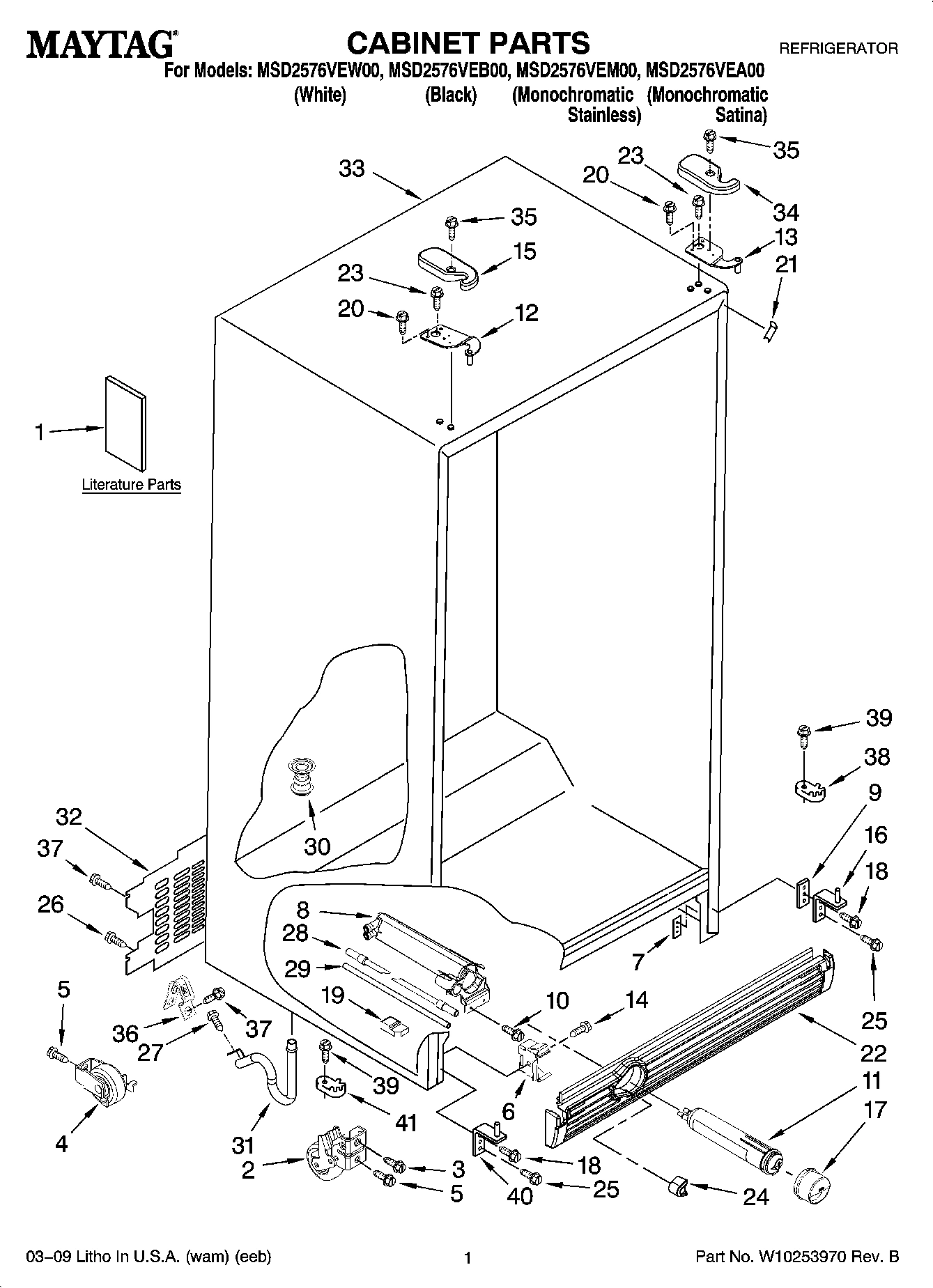

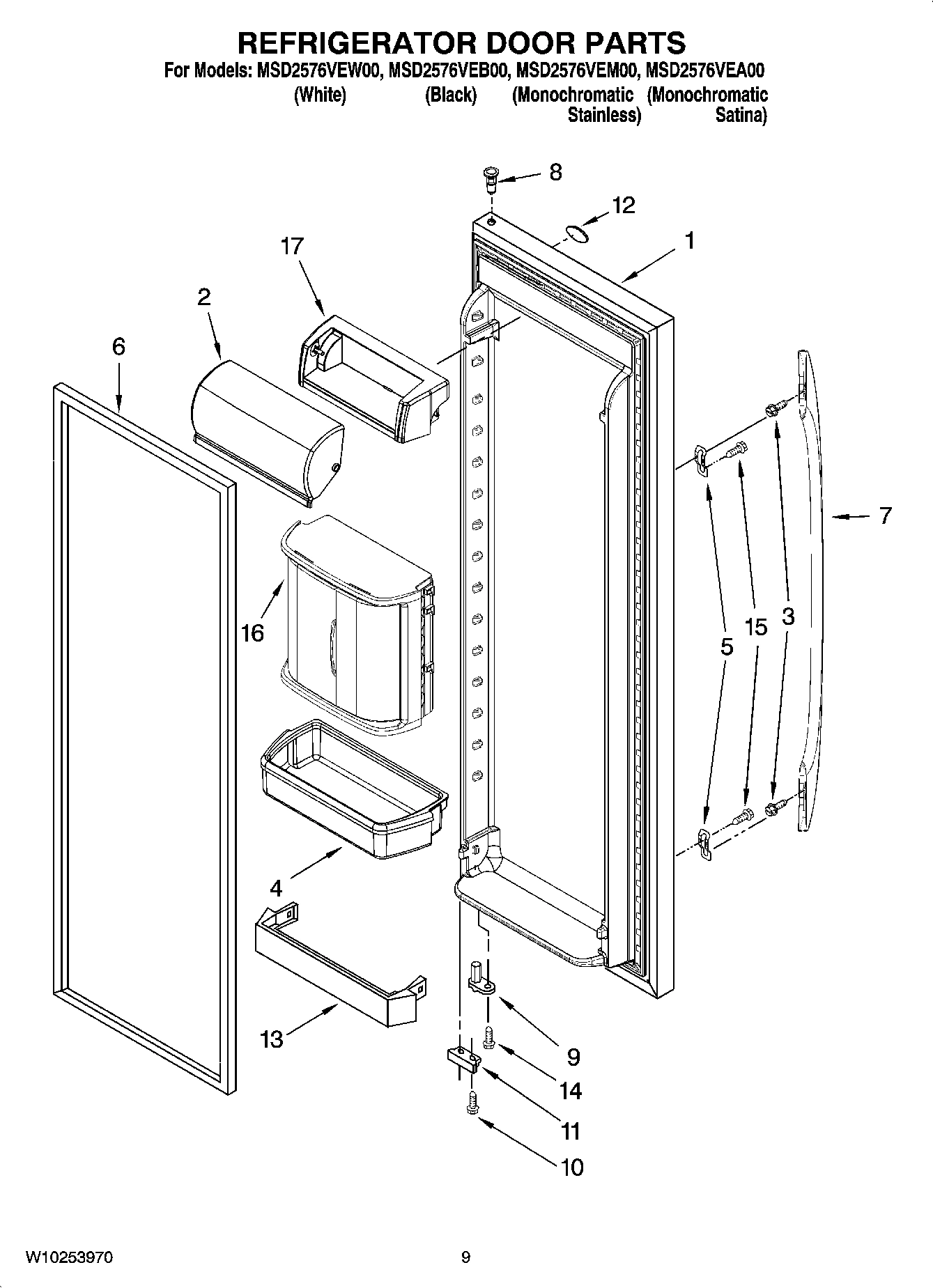

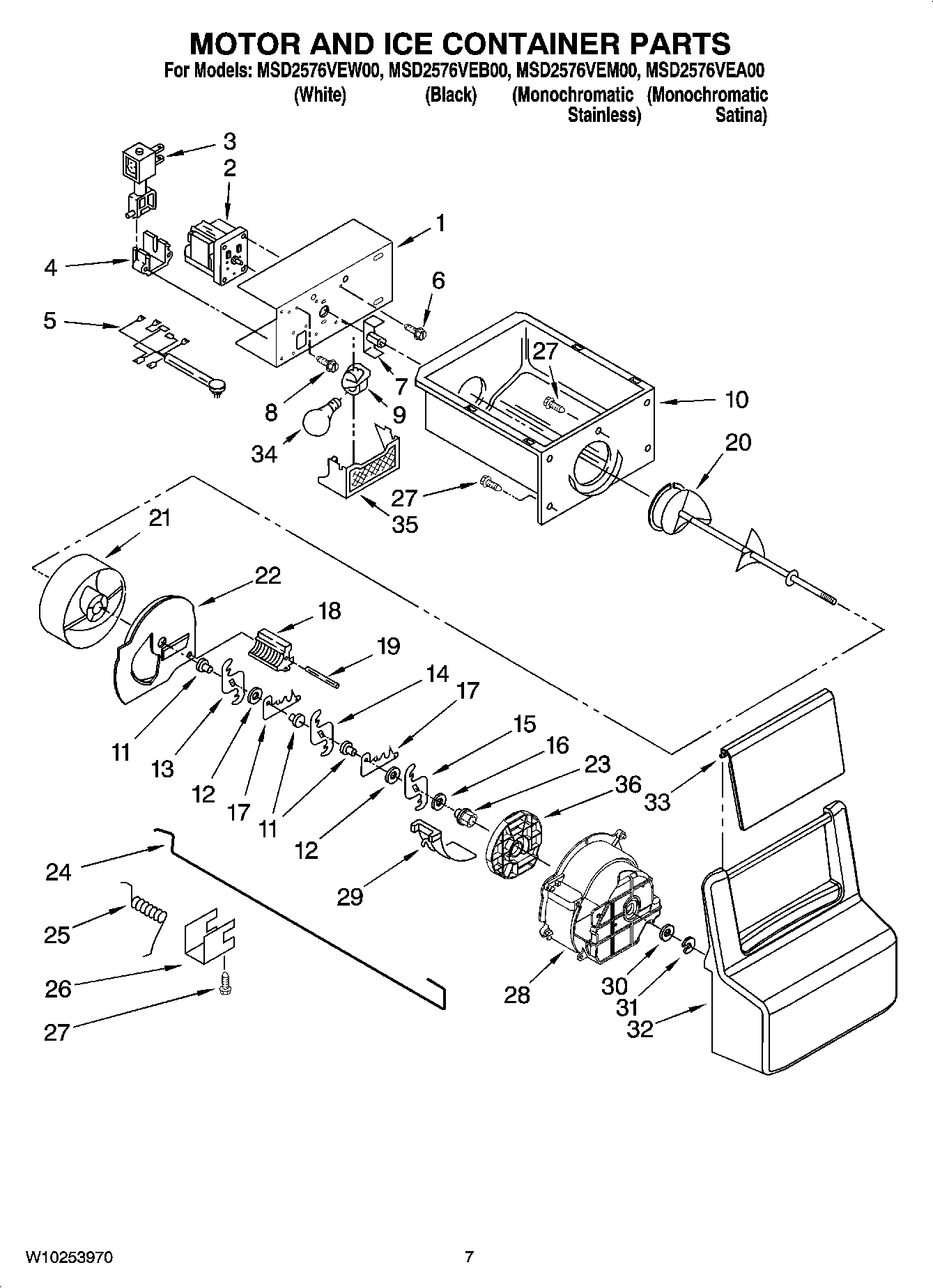

Model Whirlpool MSD2576VEW00 REFRIGERATOR – Common Parts &amp; Diagrams

1

Control Box WPL 2181738 Contact Us For Availability

1

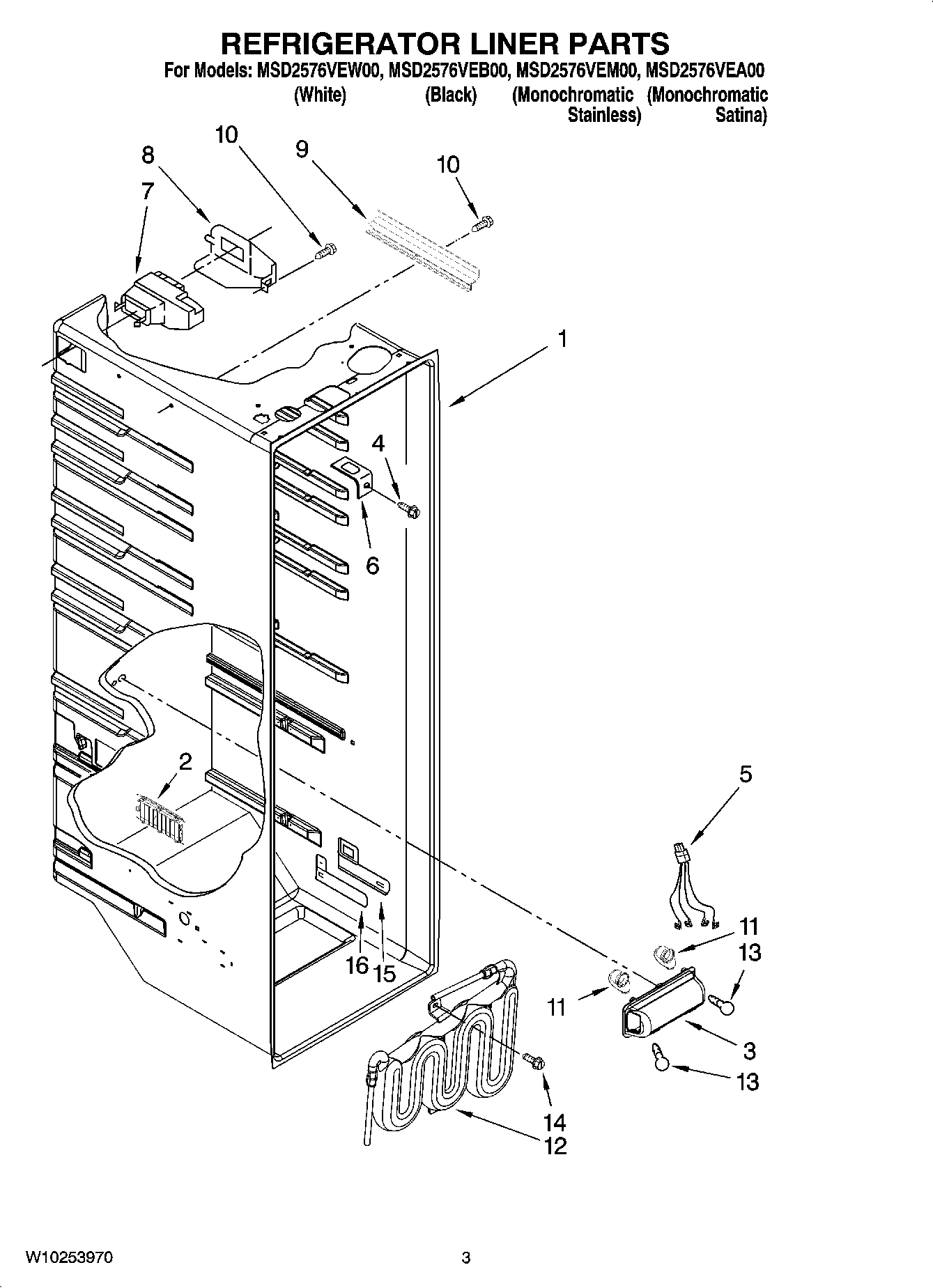

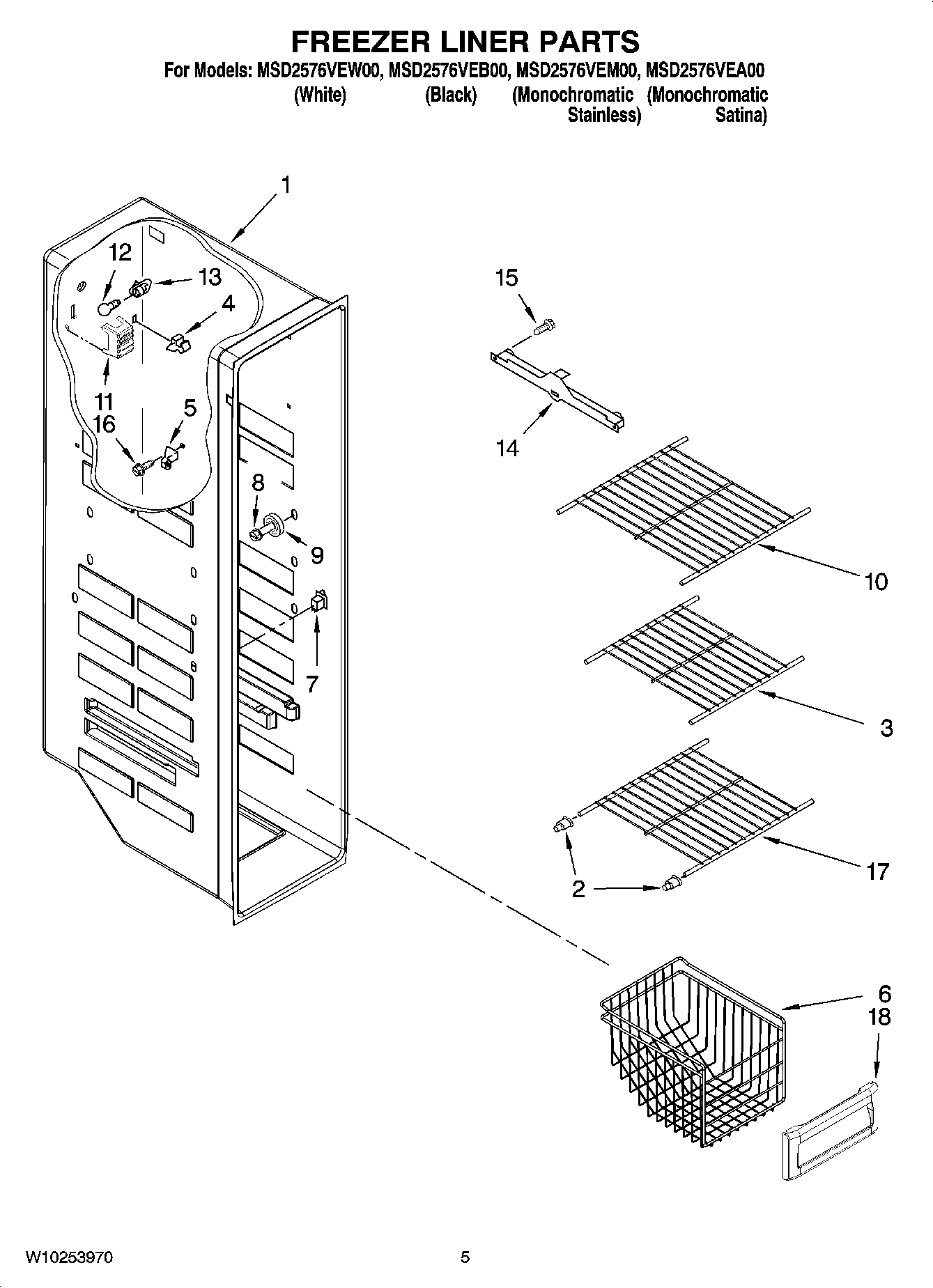

Liner (Not A Serviceable Part) WPL ARI6280A46 Contact Us For Availability

1

Bracket, Motor WPL 2254587 Contact Us For Availability

1

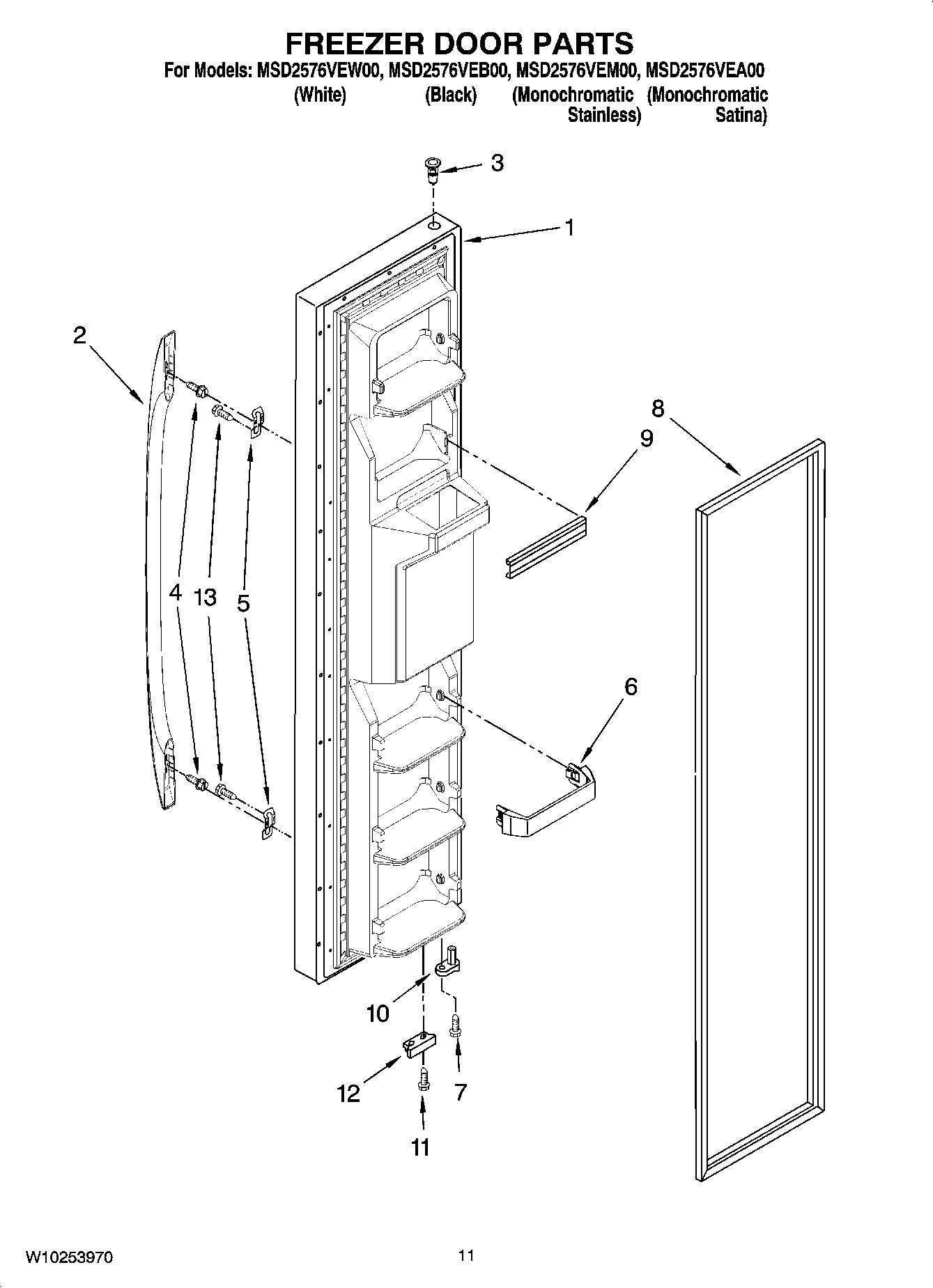

Freezer Door (Includes Item 8 And Dispenser F WPL W10202786 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL W10216875 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL W10216876 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL W10216877 Contact Us For Availability

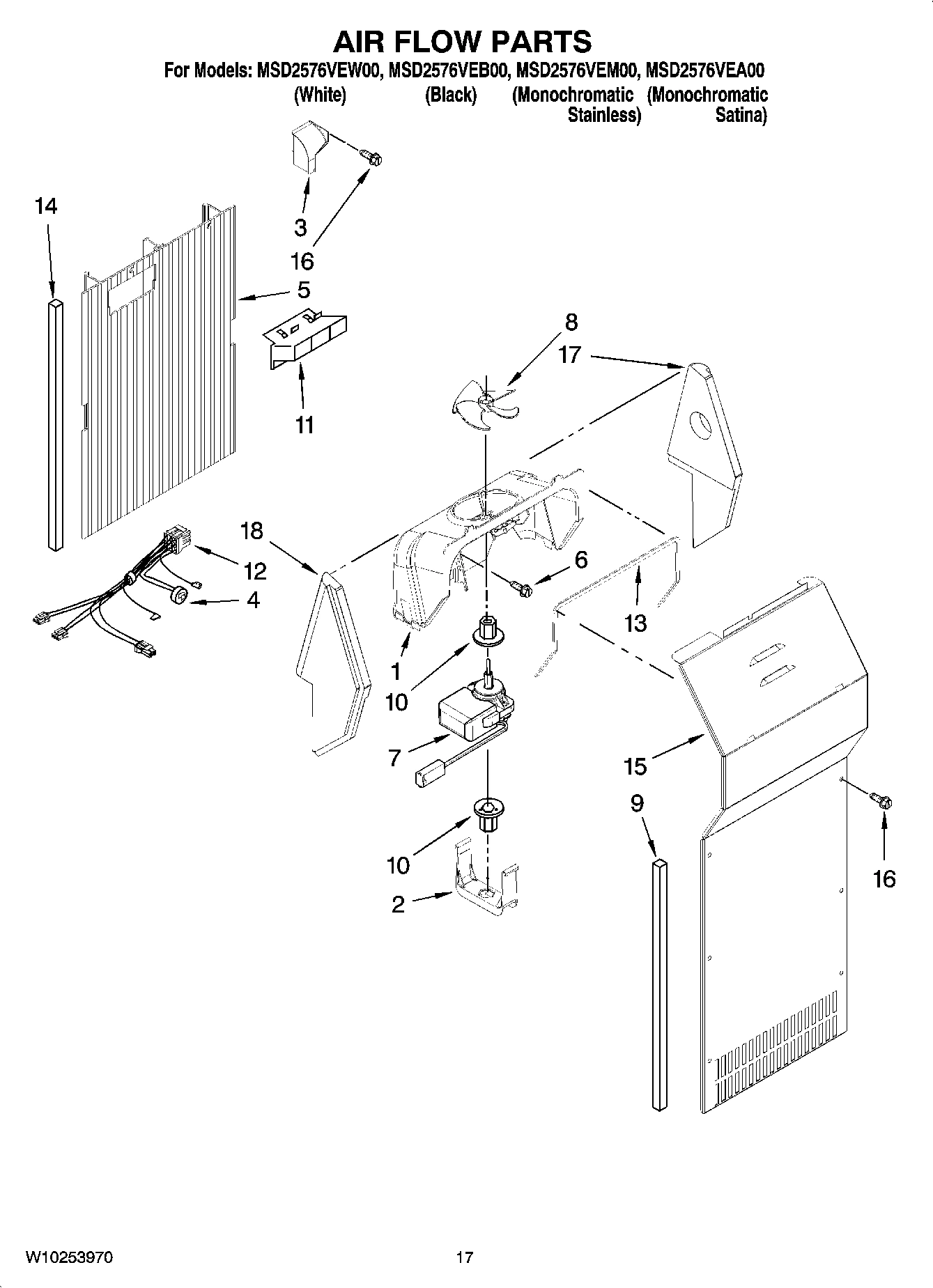

1,2,3,4,5,6,7,7,8,9,10,11,12,13,13,14,14,15,16,17,18

WPL ,WPL W10130299,WPL 2309597,WPL 842534 WPL ,WPL W10130299,WPL 2309597,WPL 842534,WPL 2196206,WPL W10153523,WPL 1115373,SUB 1115373,WPL 8281158,WPL 2196483,WPL 2309596,WPL 2212340,WPL W10194422,WPL 2162085,SUB 2162085,WPL 1119237,WPL 1119293,WPL 489100,WPL 3400893,WPL 2309522,WPL W10153254 Contact Us For Availability

2

W10170752 Whirlpool Handle Backorder WPL W10170752 $158.03

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $14.51

2

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $85.63

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

2

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $66.98

2

WPW10170739 Whirlpool Refrigerator Handle Backorder WPL WPW10170739 $238.38

2

WPW10170749 Whirlpool Refrigerator Handle Backorder WPL WPW10170749 $215.04

2

WPW10170750 Whirlpool Refrigerator Handle Backorder WPL WPW10170750 $211.56

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Louver WPL 2257741 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $62.69

3

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $69.33

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $110.99

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

3

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $52.12

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

Glass, Cover WPL 2301028 Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $6.94

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.66

4

WPW10141645 Whirlpool Screw Backorder WPL WPW10141645 $4.82

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $35.32

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Screw WPL W10184500 Contact Us For Availability

5

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $159.66

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $22.02

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $66.48

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $176.64

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $6.02

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $46.37

6

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

6

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

6

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $73.41

6

Crisper Pan WPL W10128132 Contact Us For Availability

6

Support, Ice Door WPL 2328018 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

W11661170 Whirlpool Clip Backorder WPL W11661170 $7.27

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

7

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

7

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $42.04

7

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $14.90

7

Meat Pan WPL W10128133 Contact Us For Availability

8

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $170.79

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $168.27

8

W10136735 Whirlpool Refrigerator Door Gasket In Stock WPL W10136735 $145.05

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $15.02

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $78.64

8

Tray Assembly (Black) WPL W10192687 Contact Us For Availability

8

Tray Assembly (White) WPL W10192669 Contact Us For Availability

8

Hole Plug WPL 940014 Contact Us For Availability

9

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

9

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

9

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Shim (2) WPL 2209697 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $69.16

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $138.70

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

W10189661 Whirlpool Refrigerator Spacer Backorder WPL W10189661 $37.40

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

Duct, Icemaker WPL 2182146 Contact Us For Availability

Elec. Control WPL 2322547 Contact Us For Availability

Electronic Control (Core) WPL W10144584 Contact Us For Availability

Snack Pan WPL W10170856 Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

W11032808 Whirlpool Refrigerator Spacer Backorder WPL W11032808 $6.74

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $89.38

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $6.50

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

WPW10170766 Whirlpool Nameplate Backorder WPL WPW10170766 $47.02

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $84.71

Bracket, Door Stop (Chrome) WPL 2323534 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2323534B Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $61.31

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $67.28

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $61.30

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $5.85

Pad (White) WPL W10176456 Contact Us For Availability

Pad (Black) WPL W10176455 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

Pad (Stainless) WPL W10144511 Contact Us For Availability

W10210786 Whirlpool Refrigerator Tube Backorder WPL W10210786 $64.55

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $61.38

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

Pivot Arm WPL 2161306 Contact Us For Availability

Screw (2) WPL 488280 Contact Us For Availability

15

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $61.38

15

Escutcheon, Meat Pan Control WPL W10175967 Contact Us For Availability

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $79.39

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $74.56

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

Washer, Plain WPL W10189660 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $15.02

W10181990 Whirlpool Refrigerator Blade Backorder WPL W10181990 $10.71

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $39.49

Control Box Harness WPL 2187868 Contact Us For Availability

18

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $51.65

18

W10138203 Whirlpool Refrigerator Blade Block Backorder WPL W10138203 $43.16

18

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

19

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

19

ARM-SHUT In Stock WPL W11807379 $43.00

19

CONNECTING ROD, SHORT WPL 2161307 Contact Us For Availability

20

W10422851 Whirlpool Ice Maker Bucket Auger In Stock WPL W10422851 $134.16

20

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

20

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $47.33

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $6.02

Clip-Wiring WPL 1115375 Contact Us For Availability

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $126.42

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $264.08

Grille (Black) WPL W10168144 Contact Us For Availability

Grille (Midnight Grey) WPL W10201138 Contact Us For Availability

23

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

23

Clamp WPL 2161324 Contact Us For Availability

23

Fastener, Push-On WPL 489391 Contact Us For Availability

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $17.54

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $20.03

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $88.99

Front Cover, Control Box WPL W10185695 Contact Us For Availability

25

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

25

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

25

LIGHT BAR FC WPL 2179921 Contact Us For Availability

26

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

26

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $97.53

26

Window WPL 2175513 Contact Us For Availability

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $6.02

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

28

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $95.11

29

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

30

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $32.02

31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $23.69

31

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

31

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $7.64

32

W11427433 Whirlpool Cover Backorder WPL W11427433 $73.61

33

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $36.30

34

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.41

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $69.80

35

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

36

W10138206 Whirlpool Refrigerator Spacer Backorder WPL W10138206 $120.88

36

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $68.27

41

DOOR CLOSER LOWER CAM (FC) WPL 2223751 Contact Us For Availability

100

WPW10558423 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10558423 $309.71

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
