Model Whirlpool MHG15PDAXA GAS DRYER – Common Parts & Diagrams
02 - DOOR (LOWER)

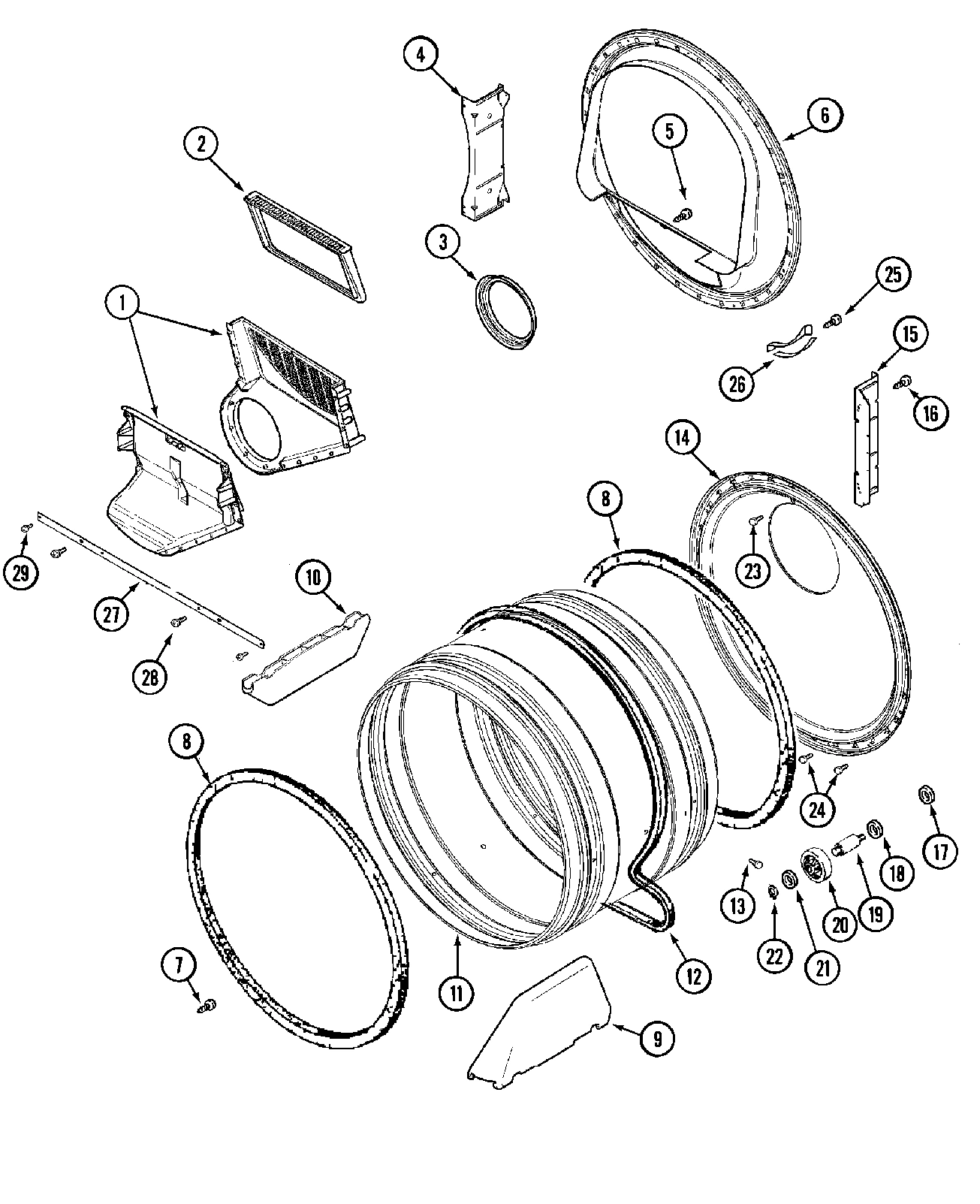

04 - TUMBLER
05 - GAS VALVE

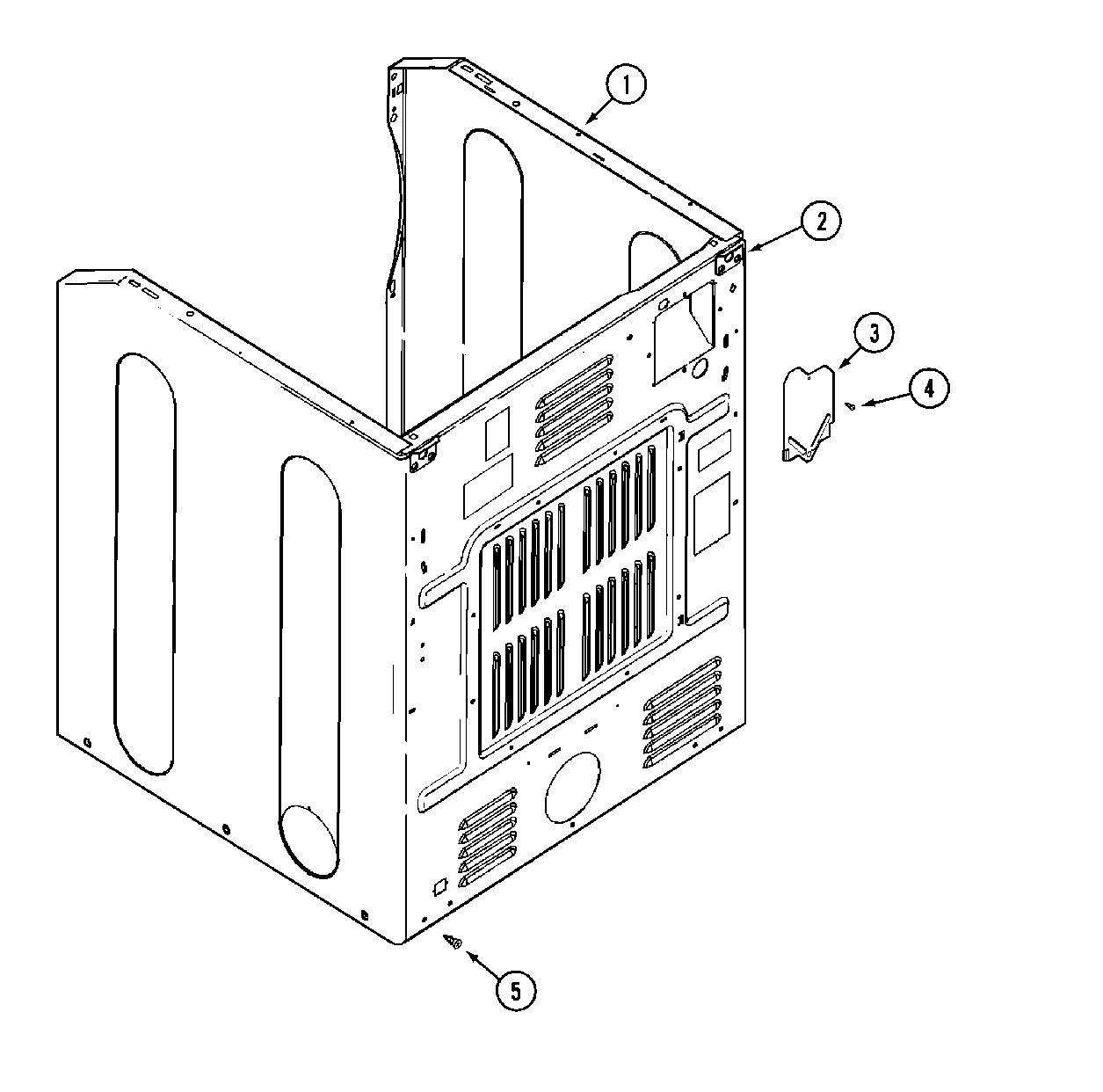

03 - CABINET-REAR

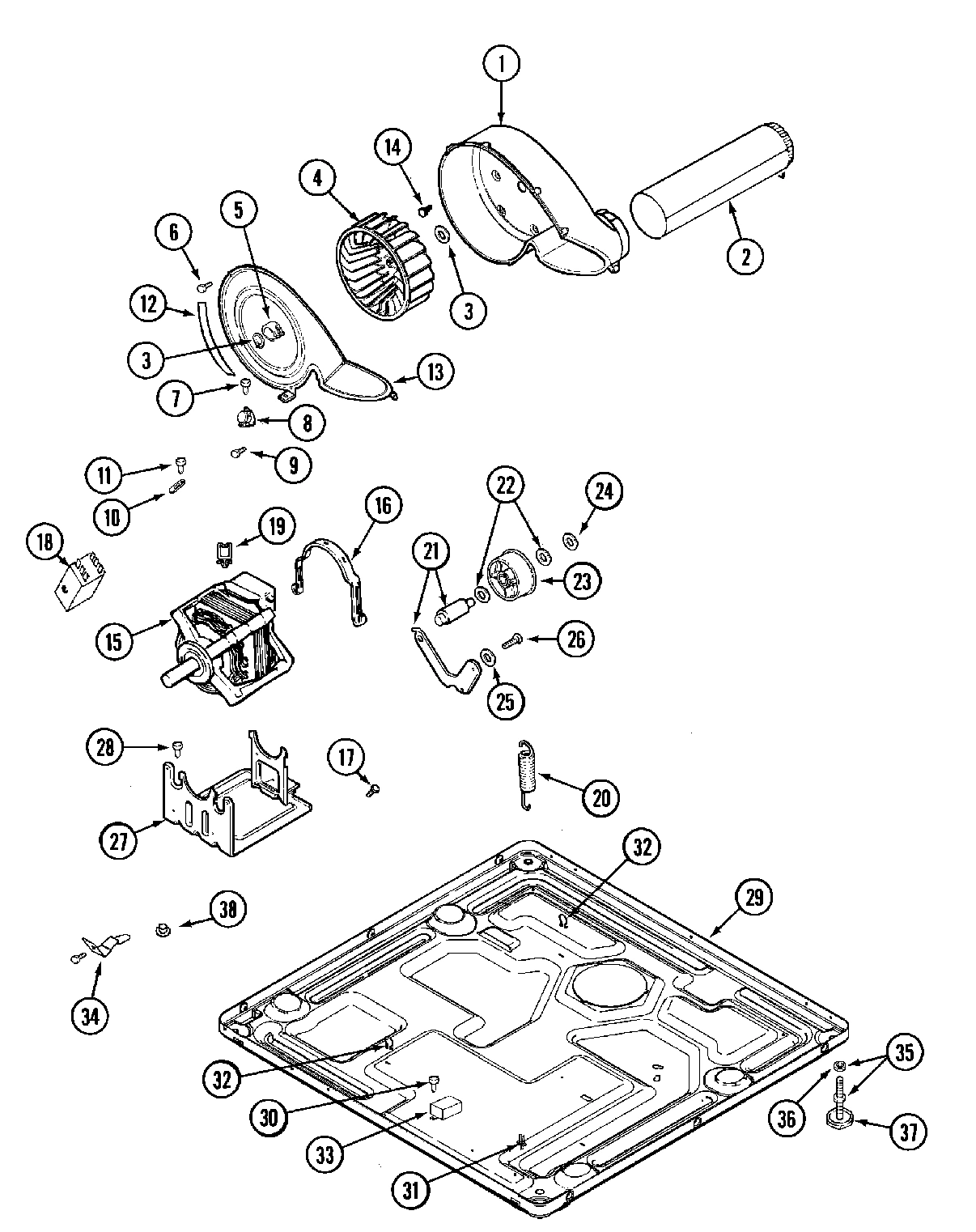

06 - MOTOR DRIVE

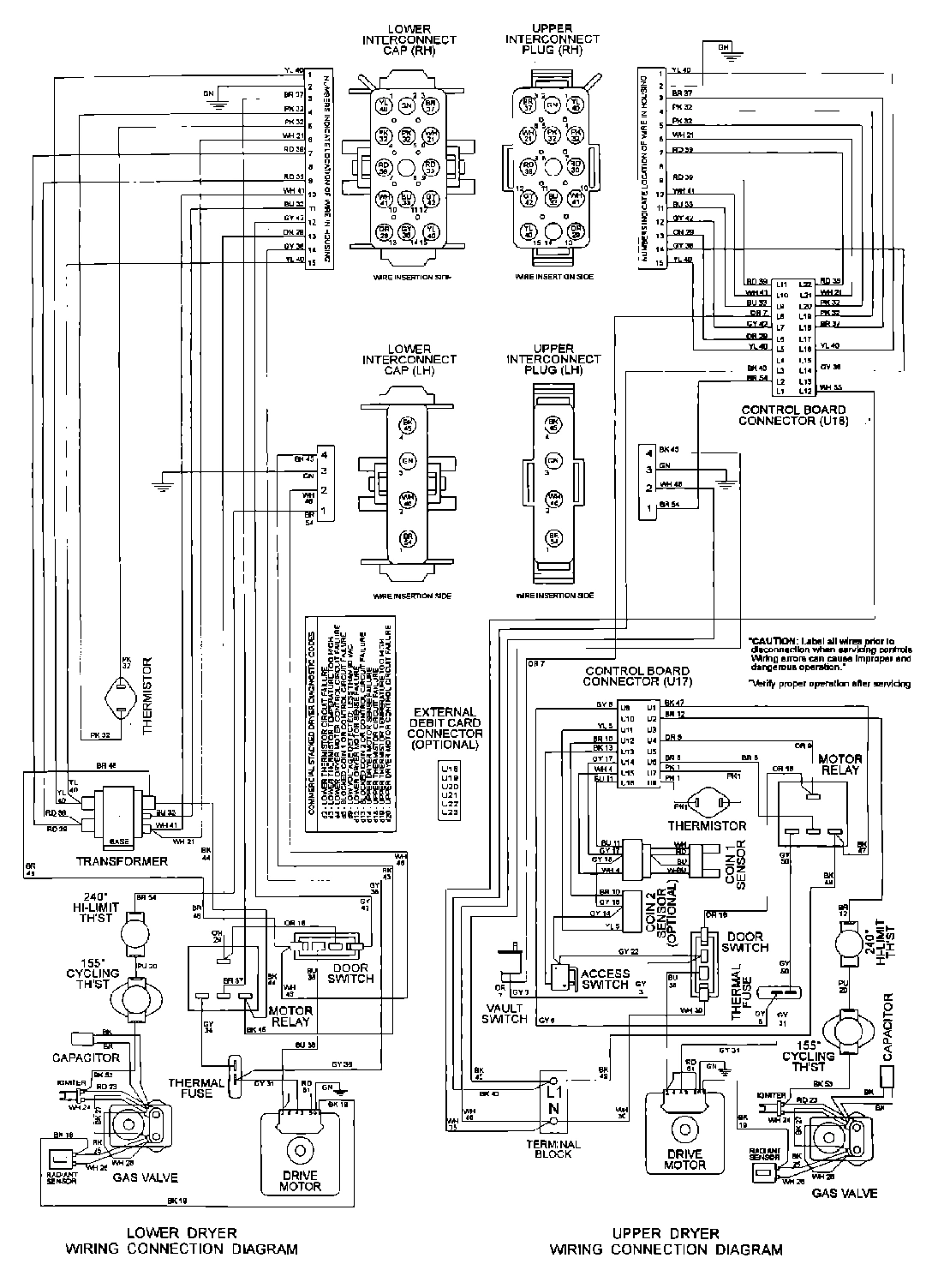

07 - WIRING INFORMATION

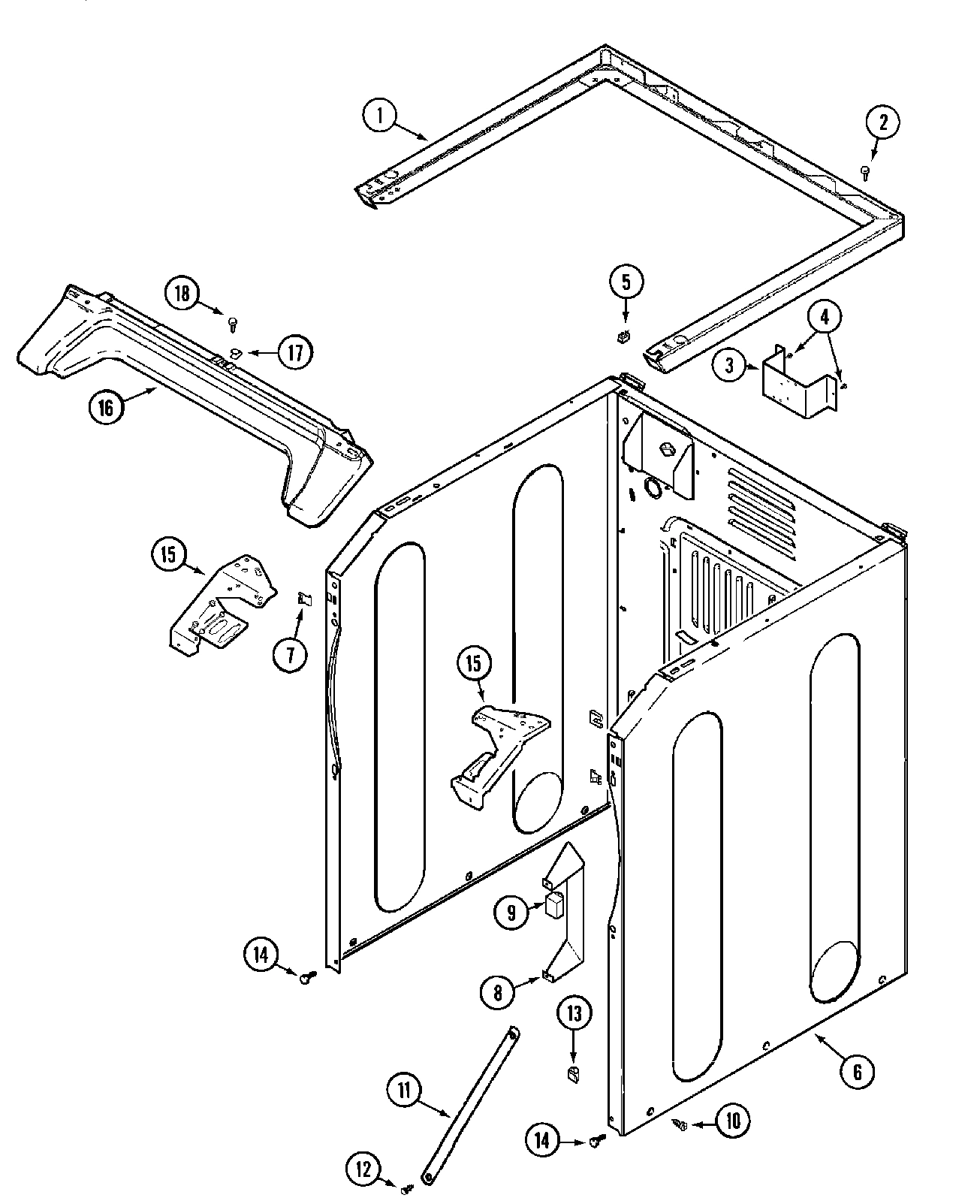

01 - CABINET-FRONT (LOWER)
Common parts from model Whirlpool MHG15PDAXA GAS DRYER
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
SUPPORT (WHT) WPL 33002005 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
002
SCREW, SUPPORT WPL 22001883 Contact Us For Availability
003
SEAL, BLOWER WPL 33001758 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
005
DOOR, OUTER (WHT) WPL 33002028 Contact Us For Availability
006
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
006
CABINET (WHT) WPL NLA Contact Us For Availability
006
PLUG, HOLE WPL 33002056 Contact Us For Availability
008
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
008
SCREW, RELAY BRACKET WPL Y313561 Contact Us For Availability
008
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
008
SCREW, RELAY BRACKET WPL Y310632 Contact Us For Availability
008
BRACKET, RELAY WPL 314627 Contact Us For Availability
009
(ALM) WPL 33002019 Contact Us For Availability
009
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
011
CLIP, INNER DOOR WPL 22002039 Contact Us For Availability
011
TUMBLER WPL 33001794 Contact Us For Availability
011
BRACE, CROSS WPL 22002259 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
013
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
013
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
013
VALVE, ANGLE GAS WPL 306086 Contact Us For Availability
013
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33001796 Contact Us For Availability
014
BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
015
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
015
BRACKET, CORNER (LT) WPL 33002009 Contact Us For Availability
015
(RT) WPL 33002010 Contact Us For Availability
016
INLET DUCT ASSEMBLY WPL 33001810 Contact Us For Availability
016
COVER, ACCESS (WHT) WPL 33002011 Contact Us For Availability
016
(ALM) WPL 33002012 Contact Us For Availability
017
DOOR, INNER (LWR-WHT) WPL 33002030 Contact Us For Availability
017
(LWR-ALM) WPL 33002031 Contact Us For Availability
017
FASTENER, ACCESS COVER WPL 33002013 Contact Us For Availability
018
LENS WPL 33002022 Contact Us For Availability
019
SHROUD (WHT) WPL 33002033 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
019
CLIP, WIRE HARNESS WPL 33002040 Contact Us For Availability
019
WIRE HARNESS, MAIN (LWR) WPL 33002064 Contact Us For Availability
020
SEAL, SHROUD WPL 33001767 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
020
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
020
RETAINER, WIRE HARNESS WPL 33001989 Contact Us For Availability
021
HOOK, ACCESS COVER (LT) WPL 33002035 Contact Us For Availability
021
(RT) WPL 33002036 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
FASTENER, ACCESS COVER HOOK WPL 33002037 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
023
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
023
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
026
SWITCH, DOOR (LWR) WPL 33002038 Contact Us For Availability
027
BRACKET, HINGE WPL 33001760 Contact Us For Availability
027
BRACE, TUMBLER FRONT WPL 33002039 Contact Us For Availability
027
SUPPORT, MOTOR WPL 33001752 Contact Us For Availability
028
SCREW, TUMBLER FRONT BRACE WPL 33001768 Contact Us For Availability
029
BASE (UPR) WPL 33002041 Contact Us For Availability
029
FASTENER, PUSH WPL 33002048 Contact Us For Availability
029
PROTECTOR, HARNESS WPL 33002050 Contact Us For Availability
031
RETAINER, WIRE WPL 315471 Contact Us For Availability
032
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
033
SHIELD, TRANSFORMER WPL 315218 Contact Us For Availability
033
TRANSFORMER WPL 33001205 Contact Us For Availability
034
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
034
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
034
BRACKET (LT) WPL 33002042 Contact Us For Availability
034
(RT) WPL 33002043 Contact Us For Availability
038
WPL 33002044 WPL 33002044 Contact Us For Availability
× ![]()
