Model Maytag MFF2258VEM10 REFRIGERATOR – Common Parts & Diagrams

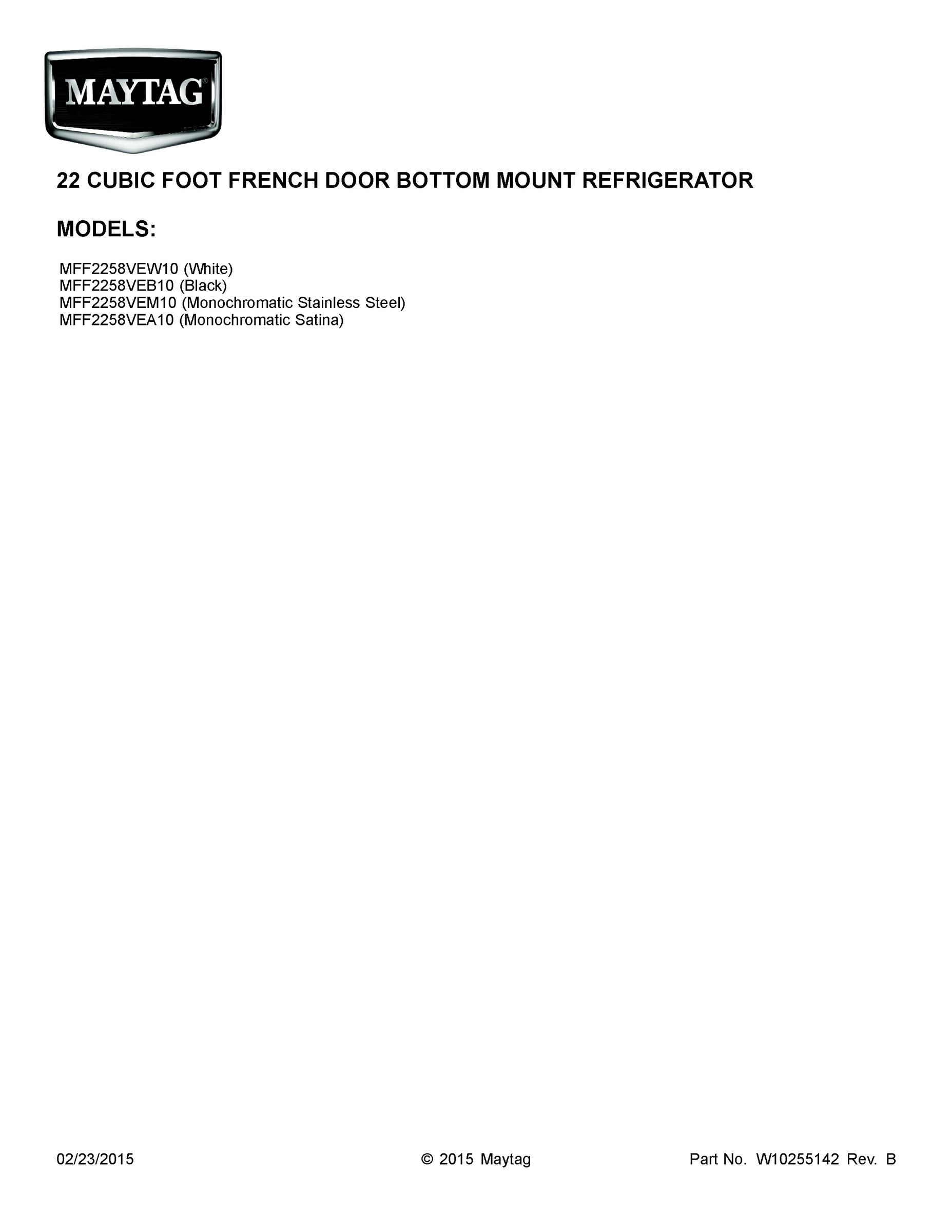

01 - COVER SHEET

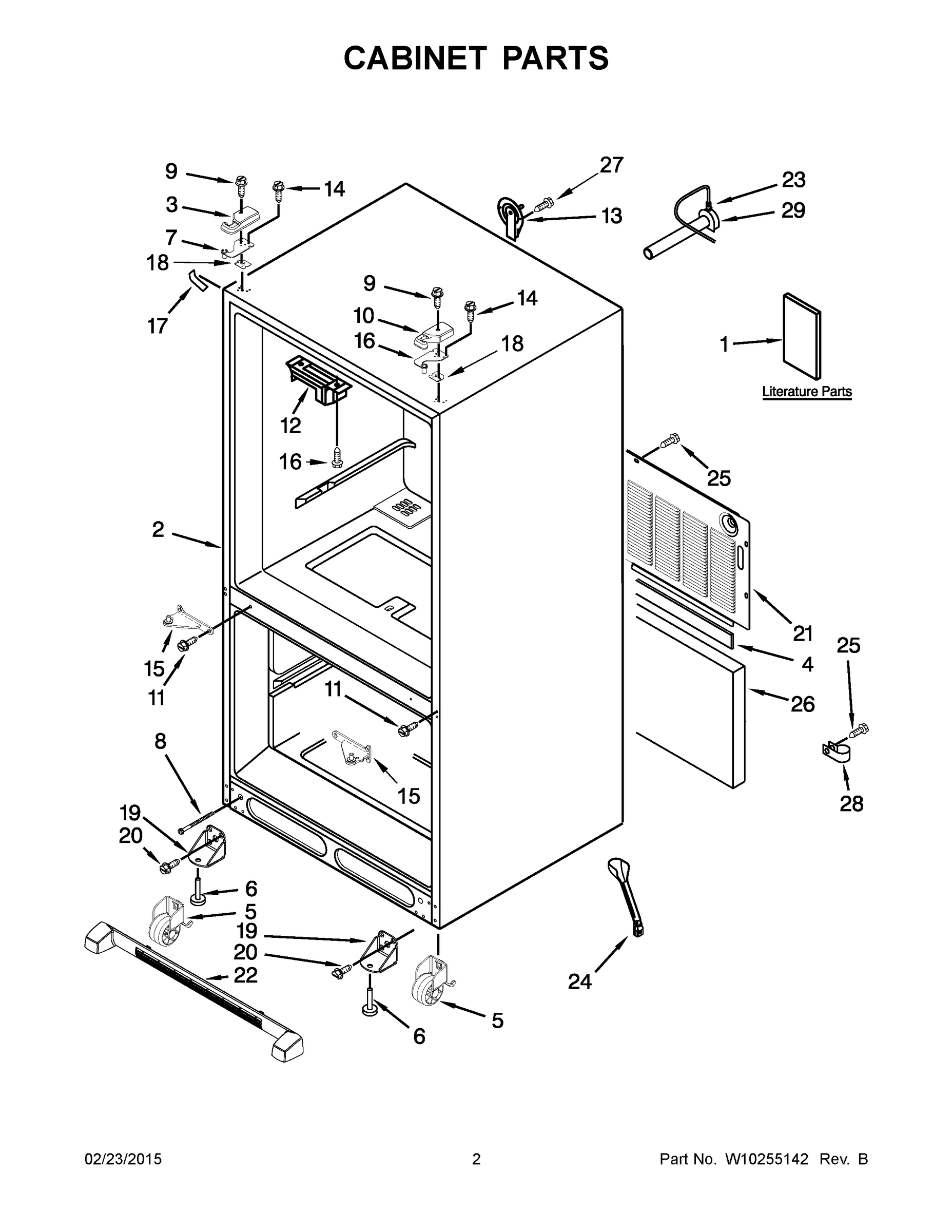

02 - CABINET PARTS

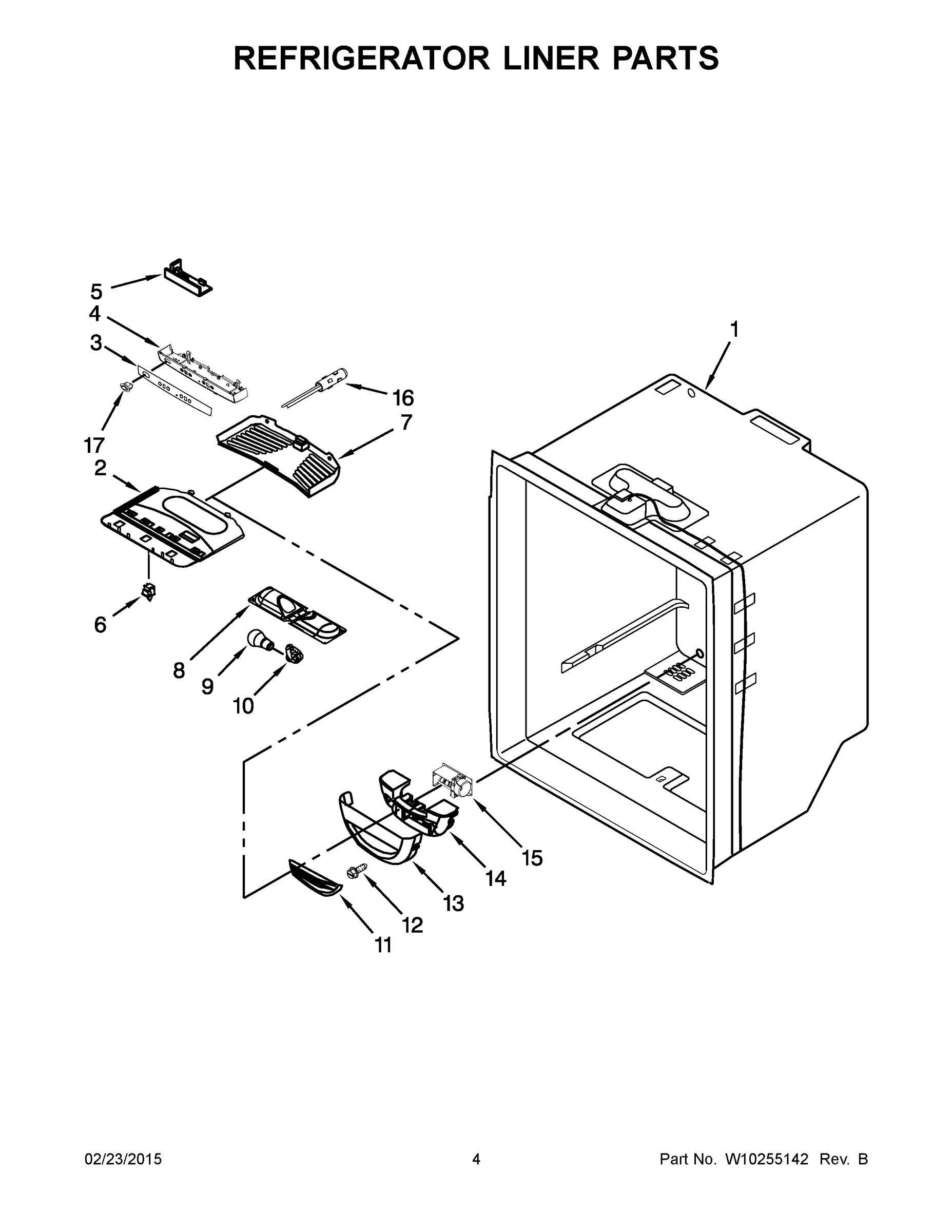

03 - REFRIGERATOR LINER PARTS

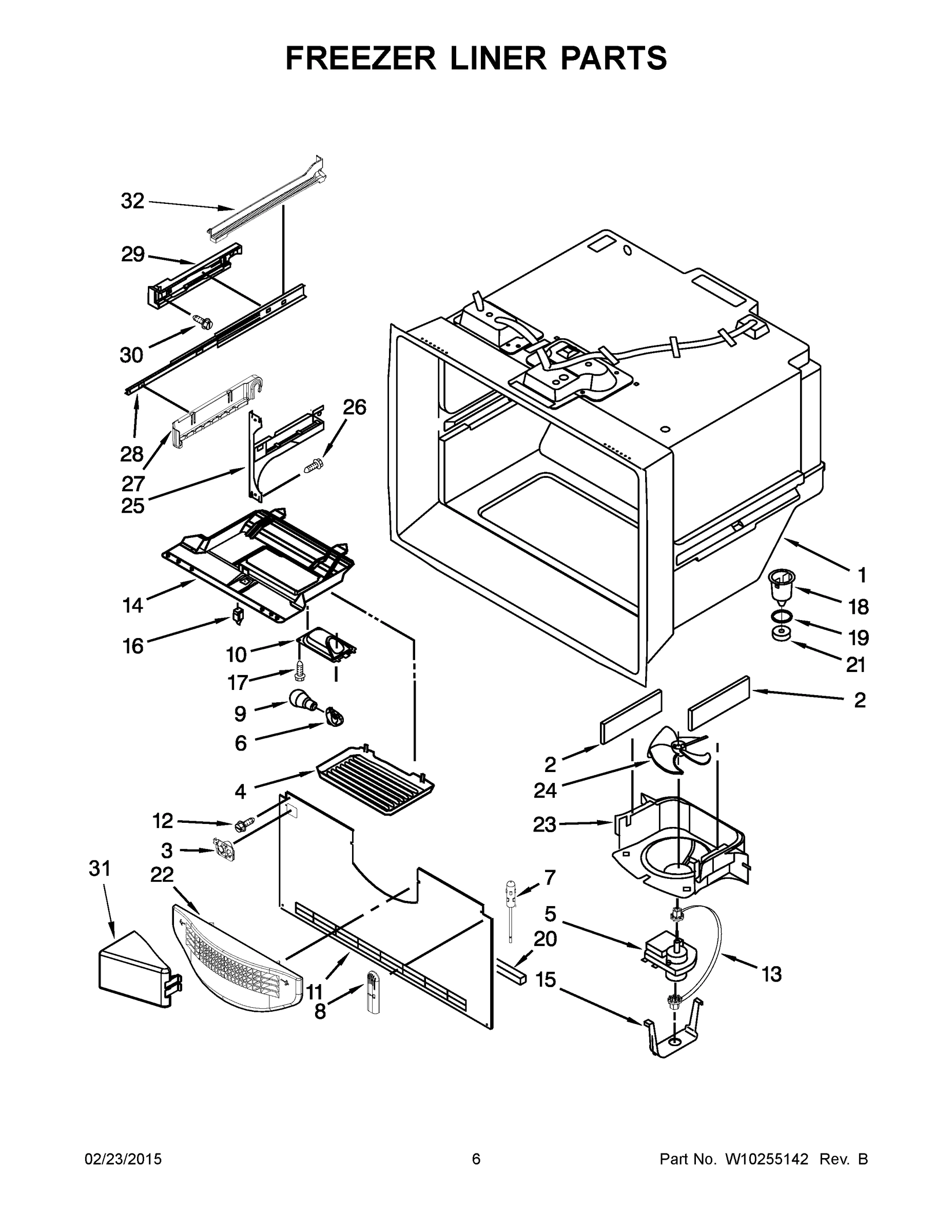

04 - FREEZER LINER PARTS

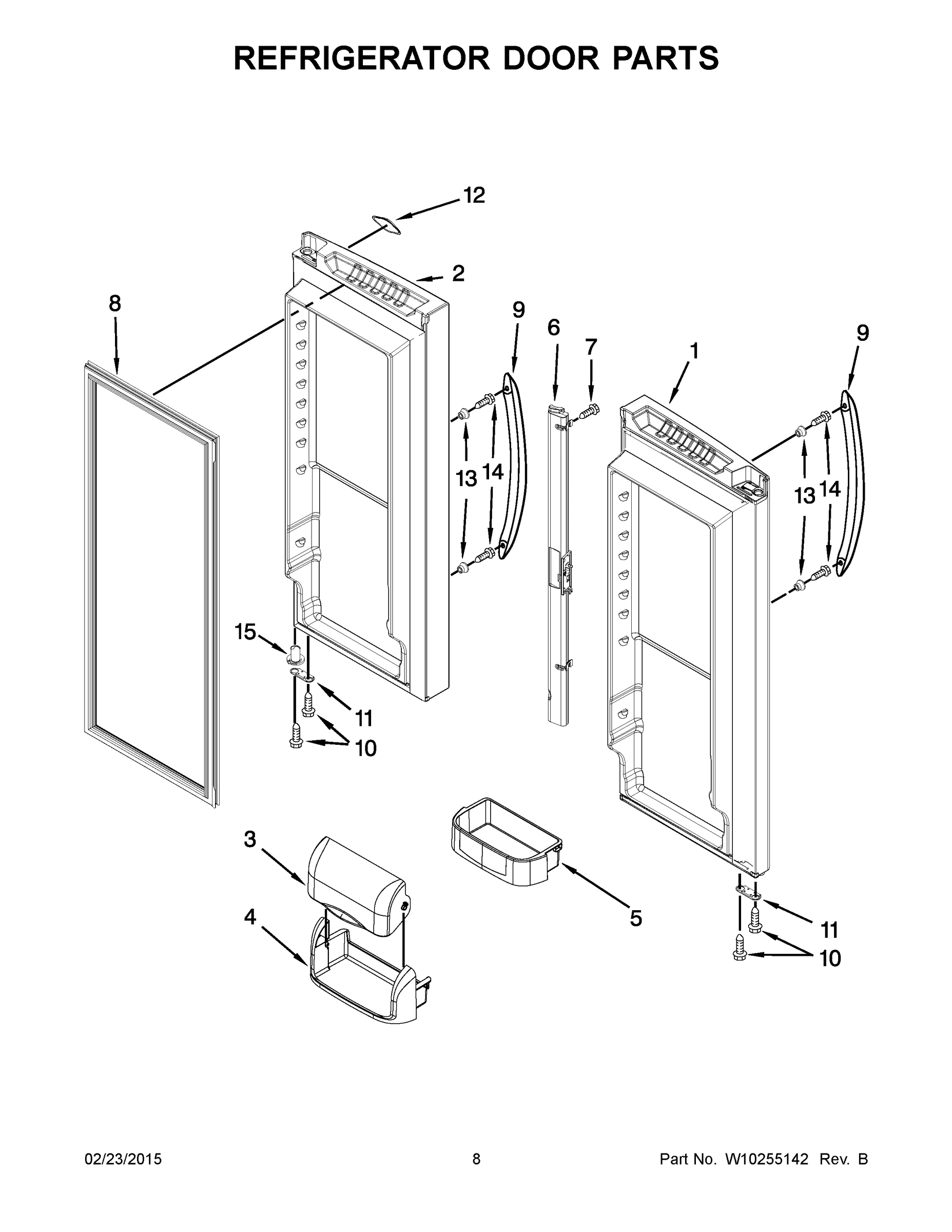

05 - REFRIGERATOR DOOR PARTS

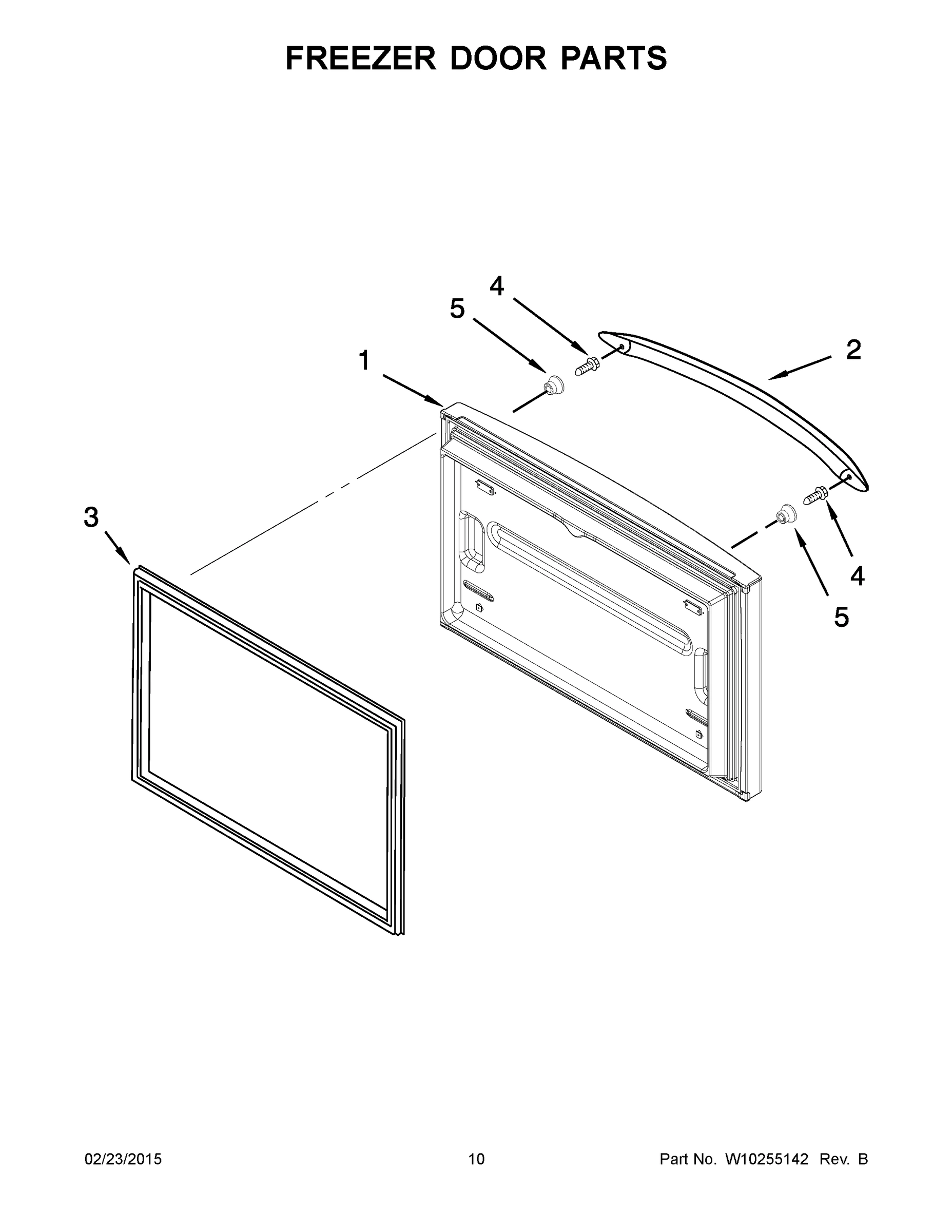

06 - FREEZER DOOR PARTS

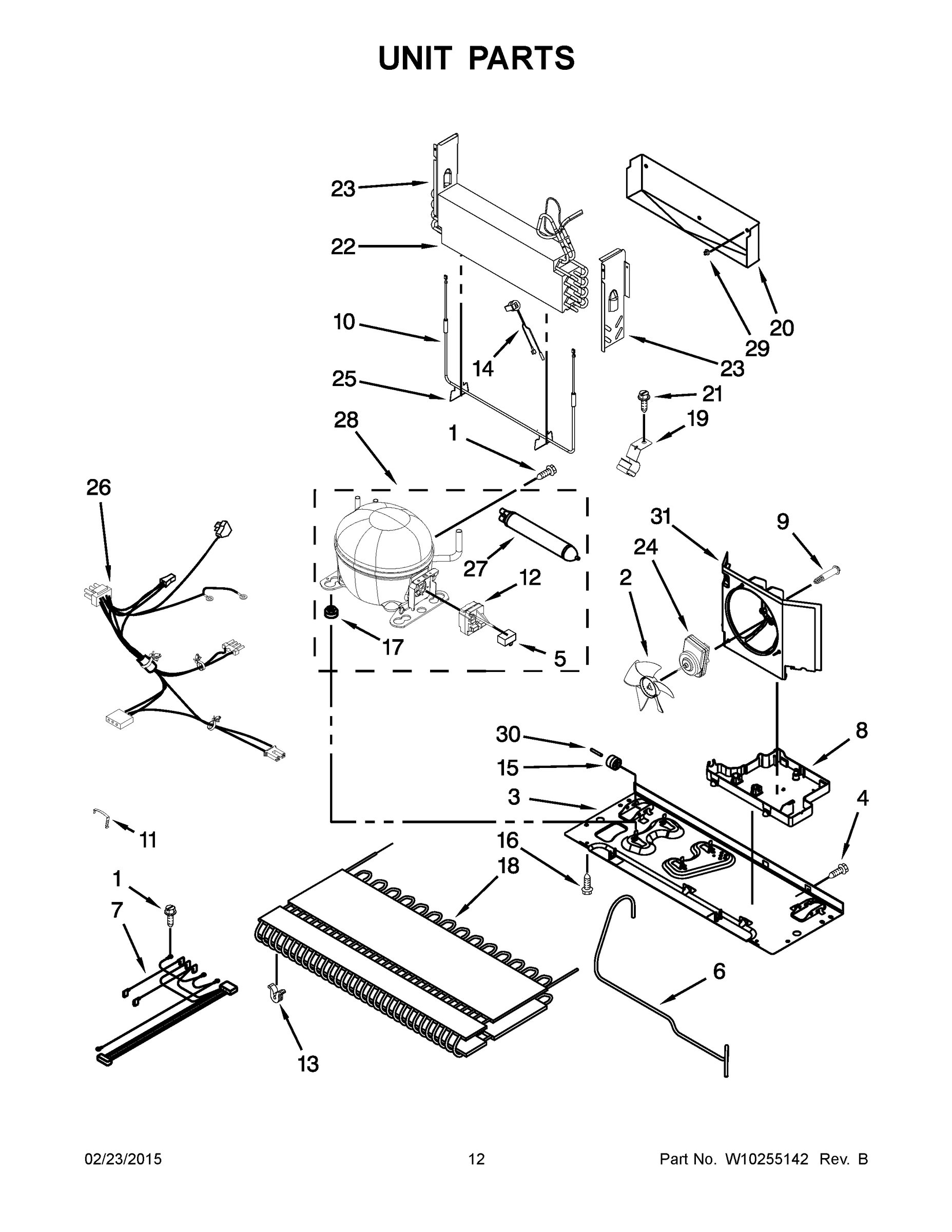

07 - UNIT PARTS

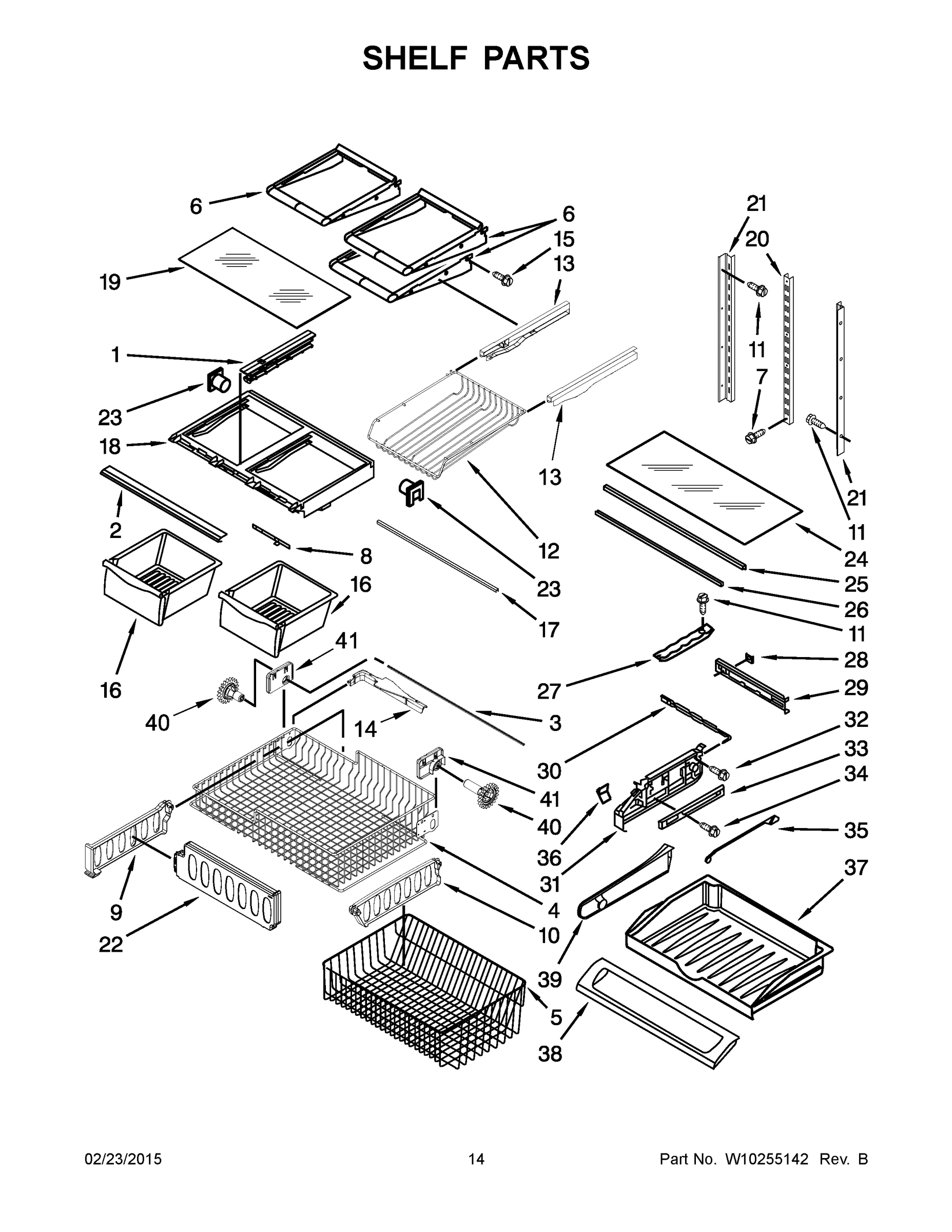

08 - SHELF PARTS

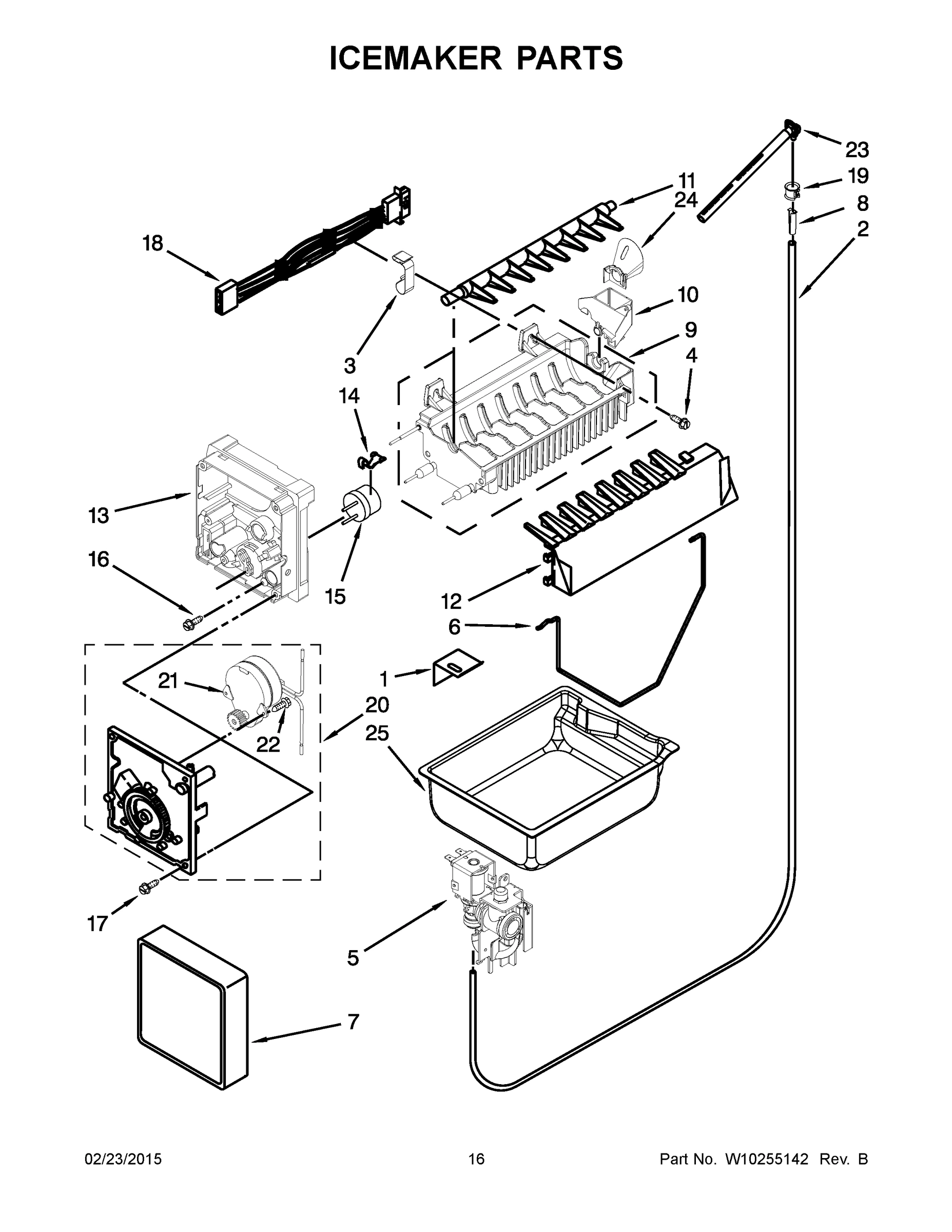

09 - ICEMAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag MFF2258VEM10 REFRIGERATOR
1
MAY W10258326 MAY W10258326 Contact Us For Availability
1
MAY W10258324 MAY W10258324 Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
RAIL, CENTER CRISPER MAY 12530701 Contact Us For Availability
1
MAY 2256086 MAY 2256086 Contact Us For Availability
1A
MAY W10258327 MAY W10258327 Contact Us For Availability
1A
MAY W10258325 MAY W10258325 Contact Us For Availability
1B
MAY 12978046SQ MAY 12978046SQ Contact Us For Availability
1B
MAY 12977822SQ MAY 12977822SQ Contact Us For Availability
1C
MAY 12978046LQ MAY 12978046LQ Contact Us For Availability
1C
MAY 12977822LQ MAY 12977822LQ Contact Us For Availability
2
MAY 12806303 MAY 12806303 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10258328 MAY W10258328 Contact Us For Availability
2
MAY W10123792 MAY W10123792 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY W10231343 MAY W10231343 Contact Us For Availability
2
MAY B5705331 MAY B5705331 Contact Us For Availability
2A
MAY W10258329 MAY W10258329 Contact Us For Availability
2A
MAY W10123794 MAY W10123794 Contact Us For Availability
2B
MAY 12978045SQ MAY 12978045SQ Contact Us For Availability
2B
MAY W10123795 MAY W10123795 Contact Us For Availability
2C
MAY 12978045LQ MAY 12978045LQ Contact Us For Availability
3
MAY W10180453 MAY W10180453 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12804701 MAY 12804701 Contact Us For Availability
3
MAY W10164036 MAY W10164036 Contact Us For Availability
3
MAY W10210983 MAY W10210983 Contact Us For Availability
3
MAY 12812905WD MAY 12812905WD Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
3A
COVER, LEFT HINGE (BLACK) MAY W10217489 Contact Us For Availability
3A
MAY W10164037 MAY W10164037 Contact Us For Availability
3B
COVER, LEFT HINGE (GREY) MAY W10217488 Contact Us For Availability
3B
MAY W10180623 MAY W10180623 Contact Us For Availability
4
GASKET MAY B5759649 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12806407SP MAY 12806407SP Contact Us For Availability
4
COVER, FREEZER LIGHT MAY 12804901 Contact Us For Availability
4
MAY 12369502 MAY 12369502 Contact Us For Availability
4
SCREW MAY 12991703 Contact Us For Availability
4
MAY W10169950 MAY W10169950 Contact Us For Availability
4
MAY 489276 MAY 489276 Contact Us For Availability
5
ASSEMBLY, ROLLER BRACKET MAY 12580304 Contact Us For Availability
5
CONTROL, ELECTRONIC MAY 12868513 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
BUCKET, SMALL MAY 12801901 Contact Us For Availability
5
MAY 13001201 MAY 13001201 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
5
MAY W10150038 MAY W10150038 Contact Us For Availability
5
VALVE, WATER INLET MAY 12638803 Contact Us For Availability
5A
BUCKET, MEDIUM MAY 12801902 Contact Us For Availability
5B
MAY 12840003 MAY 12840003 Contact Us For Availability
6
MAY 10354002 MAY 10354002 Contact Us For Availability
6
MAY 12722803W MAY 12722803W Contact Us For Availability
6
MAY W10183709 MAY W10183709 Contact Us For Availability
6
MAY 12463509 MAY 12463509 Contact Us For Availability
6
ARM, SHUT OFF MAY 12868001 Contact Us For Availability
6A
MAY 12722803B MAY 12722803B Contact Us For Availability
6B
MULLION, DOOR (GREY) MAY 12722803AP Contact Us For Availability
7
HINGE, TOP (LEFT HAND) MAY 12963204ED Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAPORATOR HEATER MAY W10224241 Contact Us For Availability
7
SCREW MAY 12990515 Contact Us For Availability
7
MAY 12582501 MAY 12582501 Contact Us For Availability
7A
HINGE, TOP (RIGHT HAND) MAY 12963205ED Contact Us For Availability
8
BOLT, ROLLER ADJUSTING MAY 12606103 Contact Us For Availability
8
MAY 12806601 MAY 12806601 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY W10218678 MAY W10218678 Contact Us For Availability
8
MAY W10189185 MAY W10189185 Contact Us For Availability
8
SLIDE, HUMIDITY CONTROL MAY 12530805 Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
8A
MAY W10218679 MAY W10218679 Contact Us For Availability
8B
MAY W10218680 MAY W10218680 Contact Us For Availability
8C
MAY W10163894 MAY W10163894 Contact Us For Availability
8D
GASKET, DOOR RIGHT HAND (BLACK) MAY W10163895 Contact Us For Availability
8E
GASKET, DOOR RIGHT HAND (GREY) MAY W10179332 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10194422 MAY W10194422 Contact Us For Availability
9
MAY W10197296 MAY W10197296 Contact Us For Availability
9
SCREW MAY W10216919 Contact Us For Availability
9
MAY W10241046 MAY W10241046 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER MAY W10122527 Contact Us For Availability
9A
MAY W10197298 MAY W10197298 Contact Us For Availability
9B
HANDLE, DOOR (STAINLESS) MAY W10197295 Contact Us For Availability
10
COVER, RIGHT HINGE (WHITE) MAY 12962302W Contact Us For Availability
10
HOUSING, FREEZER LIGHT MAY 12476401 Contact Us For Availability
10
MAY 12729128 MAY 12729128 Contact Us For Availability
10
MAY W10205416 MAY W10205416 Contact Us For Availability
10
CUP, WATER FILL MAY 628515 Contact Us For Availability
10A
COVER, RIGHT HINGE (BLACK) MAY 12962302B Contact Us For Availability
10B
COVER, RIGHT HINGE (GREY) MAY 12962302AP Contact Us For Availability
11
MAY 12990101 MAY 12990101 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY 12226111 MAY 12226111 Contact Us For Availability
11
MAY 12968202W MAY 12968202W Contact Us For Availability
11
MAY W10204187 MAY W10204187 Contact Us For Availability
11
MAY 12990513 MAY 12990513 Contact Us For Availability
11
MAY 627843 MAY 627843 Contact Us For Availability
11A
MAY 12968202B MAY 12968202B Contact Us For Availability
11B
MAY 12968202AP MAY 12968202AP Contact Us For Availability
12
MAY 12698403 MAY 12698403 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY W10170766 MAY W10170766 Contact Us For Availability
12
DEVICE, COMBINATION START (START RELAY AND OV MAY W10194431 Contact Us For Availability
12
MAY 12503803 MAY 12503803 Contact Us For Availability
12
STRIPPER, ICE MAY 2182124 Contact Us For Availability
13
MAY 12726003 MAY 12726003 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
13
GLIDE, DELI/CAN RACK (LEFT HAND) MAY 12656601 Contact Us For Availability
13
MAY 2194712 MAY 2194712 Contact Us For Availability
13A
GLIDE, DELI/CAN RACK (RIGHT HAND) MAY 12656602 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MODULE, FREEZER LIGHT MAY 12805001 Contact Us For Availability
14
THERMOSTAT MAY 12639324SP Contact Us For Availability
14
MAY W10149389 MAY W10149389 Contact Us For Availability
14
MAY 2315522 MAY 2315522 Contact Us For Availability
15
HINGE, CENTER LEFT HAND (WHITE) MAY 13000001WD Contact Us For Availability
15
DAMPER, CONTROL MAY W10196393 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
MAY 12028505W MAY 12028505W Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
MAY 12990302 MAY 12990302 Contact Us For Availability
15
THERMOSTAT MAY 627985 Contact Us For Availability
15A
HINGE, CENTER LEFT HAND (BLACK) MAY 13000001ED Contact Us For Availability
15A
MAY 12028505B MAY 12028505B Contact Us For Availability
15B
HINGE, CENTER LEFT HAND (GREY) MAY 13000001AP Contact Us For Availability
15B
MAY 12028505AP MAY 12028505AP Contact Us For Availability
15C
HINGE, CENTER RIGHT HAND (WHITE) MAY 13000002WD Contact Us For Availability
15D
HINGE, CENTER RIGHT HAND (BLACK) MAY 13000002ED Contact Us For Availability
15E
HINGE, CENTER RIGHT HAND (GREY) MAY 13000002AP Contact Us For Availability
16
MAY 12990303 MAY 12990303 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12530505 MAY 12530505 Contact Us For Availability
16
MAY 8533917 MAY 8533917 Contact Us For Availability
17
COVER, CORNER (WHITE) MAY 12587703W Contact Us For Availability
17
MAY 12861601 MAY 12861601 Contact Us For Availability
17
MAY 12991603 MAY 12991603 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
17
MAY 12227303WD MAY 12227303WD Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
17A
COVER, CORNER (BLACK) MAY 12587703B Contact Us For Availability
17B
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
18
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY W10135027 MAY W10135027 Contact Us For Availability
18
FRAME, CRISPER MAY 12530401 Contact Us For Availability
18
HARNESS, ICEMAKER MAY W10146389 Contact Us For Availability
18A
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
19
MAY 12906303WD MAY 12906303WD Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY 10547003 MAY 10547003 Contact Us For Availability
19
MAY 12204822 MAY 12204822 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
GASKET, FOAM MAY A3189395 Contact Us For Availability
20
MAY 12225402WD MAY 12225402WD Contact Us For Availability
20
MAY 12435807 MAY 12435807 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10223929 Contact Us For Availability
21
MAY W10210979 MAY W10210979 Contact Us For Availability
21
MOTOR, NOT AVAILABLE (ORDER ITEM #20) MAY N/P Contact Us For Availability
21
MAY B8381501 MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12710602 MAY 12710602 Contact Us For Availability
22
GRILLE, TOE (WHITE) MAY W10236195 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
DIVIDER, BASKET (UPPER) MAY W10171570 Contact Us For Availability
22
SCREW MAY 489136 Contact Us For Availability
22A
GRILLE, TOE (BLACK) MAY W10236196 Contact Us For Availability
22B
MAY W10534155 MAY W10534155 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
SUPPORT, CRISPER FRAME (LEFT HAND) MAY 12531001 Contact Us For Availability
23
MAY W10137519 MAY W10137519 Contact Us For Availability
23A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
23A
SUPPORT, CRISPER FRAME (RIGHT HAND) MAY 12531002 Contact Us For Availability
24
MAY W10210988 MAY W10210988 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY 12825101 MAY 12825101 Contact Us For Availability
24
MAY 12204820 MAY 12204820 Contact Us For Availability
24
MAY 12918001 MAY 12918001 Contact Us For Availability
25
BRACKET, DOOR (LEFT HAND) MAY W10122147 Contact Us For Availability
25
MAY 12655903 MAY 12655903 Contact Us For Availability
25
MAY W10171529 MAY W10171529 Contact Us For Availability
25A
BRACKET, DOOR (RIGHT HAND) MAY W10122148 Contact Us For Availability
26
MAY 12820505 MAY 12820505 Contact Us For Availability
26
MAY 12990521 MAY 12990521 Contact Us For Availability
26
HARNESS, UNIT (INCLUDES POWER CORD) MAY W10234024 Contact Us For Availability
26
MAY 12227301WD MAY 12227301WD Contact Us For Availability
27
CRADLE, BASKET (LEFT HAND) MAY 12812303 Contact Us For Availability
27
DRIER MAY W10143759 Contact Us For Availability
27
MAY 12531901 MAY 12531901 Contact Us For Availability
27A
CRADLE, BASKET (RIGHT HAND) MAY 12812304 Contact Us For Availability
28
MAY W10120018 MAY W10120018 Contact Us For Availability
28
COMPRESSOR MAY W10134623 Contact Us For Availability
28
MAY 12656902 MAY 12656902 Contact Us For Availability
29
MAY 10463203SP MAY 10463203SP Contact Us For Availability
29
ADAPTER, SLIDE (LEFT HAND) MAY W10149390 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 13048301 MAY 13048301 Contact Us For Availability
29A
ADAPTER, SLIDE (RIGHT HAND) MAY W10149391 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
30
MAY 13048401 MAY 13048401 Contact Us For Availability
31
MAY W10157765 MAY W10157765 Contact Us For Availability
31
MAY W10189184 MAY W10189184 Contact Us For Availability
31
MAY 13047801 MAY 13047801 Contact Us For Availability
31A
MAY 13047701 MAY 13047701 Contact Us For Availability
32
MAY 12990504 MAY 12990504 Contact Us For Availability
32
RAIL, SIDE (LEFT HAND) MAY W10216619 Contact Us For Availability
32A
RAIL, SIDE (RIGHT HAND) MAY W10216620 Contact Us For Availability
33
GLIDE, PANTRY MAY 13058101 Contact Us For Availability
34
MAY 12990512 MAY 12990512 Contact Us For Availability
35
MAY 13048201 MAY 13048201 Contact Us For Availability
36
MAY 12655204 MAY 12655204 Contact Us For Availability
37
MAY 13048501SP MAY 13048501SP Contact Us For Availability
38
MAY 12656820 MAY 12656820 Contact Us For Availability
39
MAY 13048601SP MAY 13048601SP Contact Us For Availability
40
GEAR, SPUR (LEFT HAND) MAY W10146446 Contact Us For Availability
40A
GEAR, SPUR (RIGHT HAND) MAY W10158749 Contact Us For Availability
41
MOUNT, GEAR (LEFT HAND) MAY W10233898 Contact Us For Availability
41A
MOUNT, GEAR (RIGHT HAND) MAY W10233899 Contact Us For Availability
100
ICEMAKER ASSEMBLY (COMPLETE) MAY W10190978 Contact Us For Availability
NI
MAY W10216622 MAY W10216622 Contact Us For Availability
NI
MAY 13014801 MAY 13014801 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY 31462 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
