Model Maytag MEDX600XW1 ELECTRIC DRYER – Common Parts & Diagrams

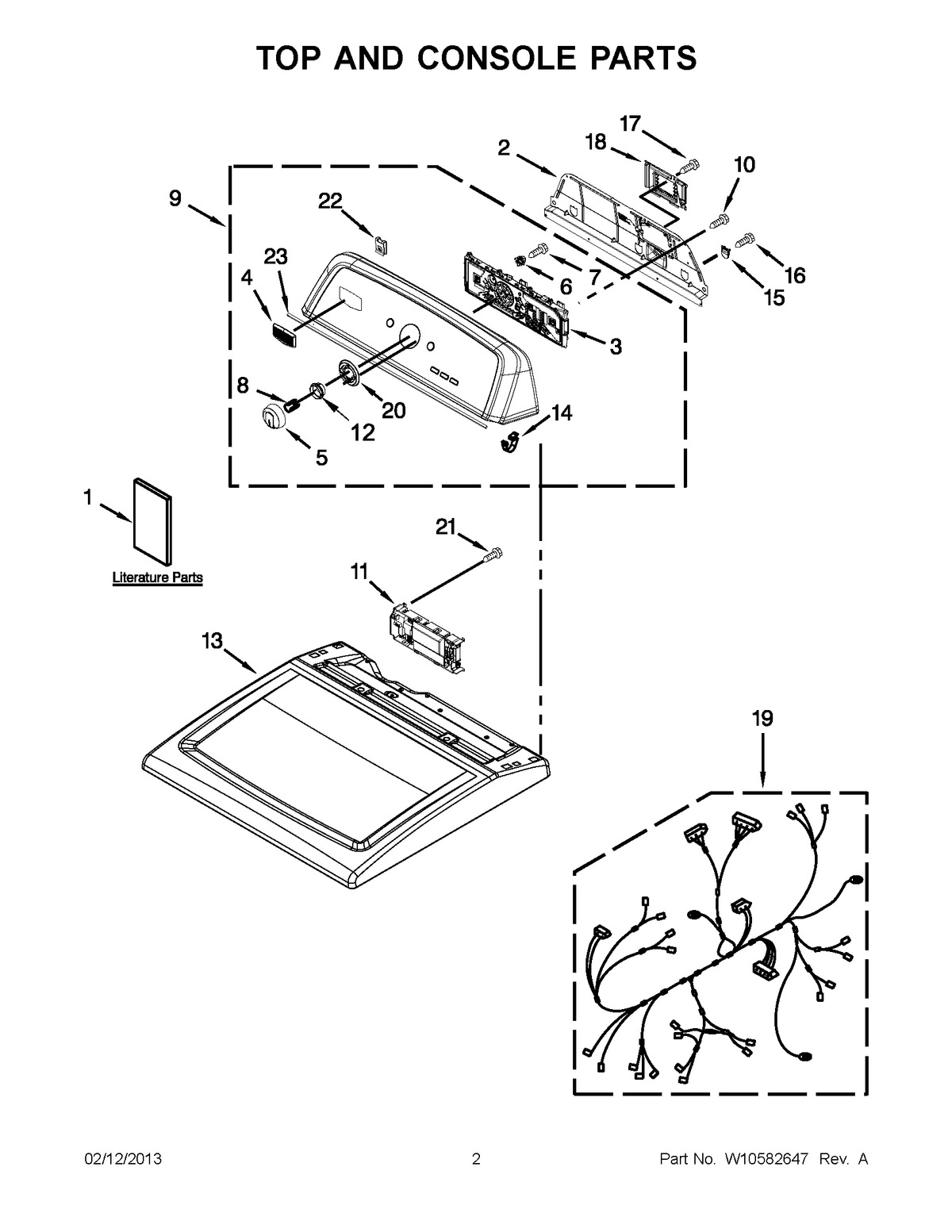

01 - TOP AND CONSOLE PARTS

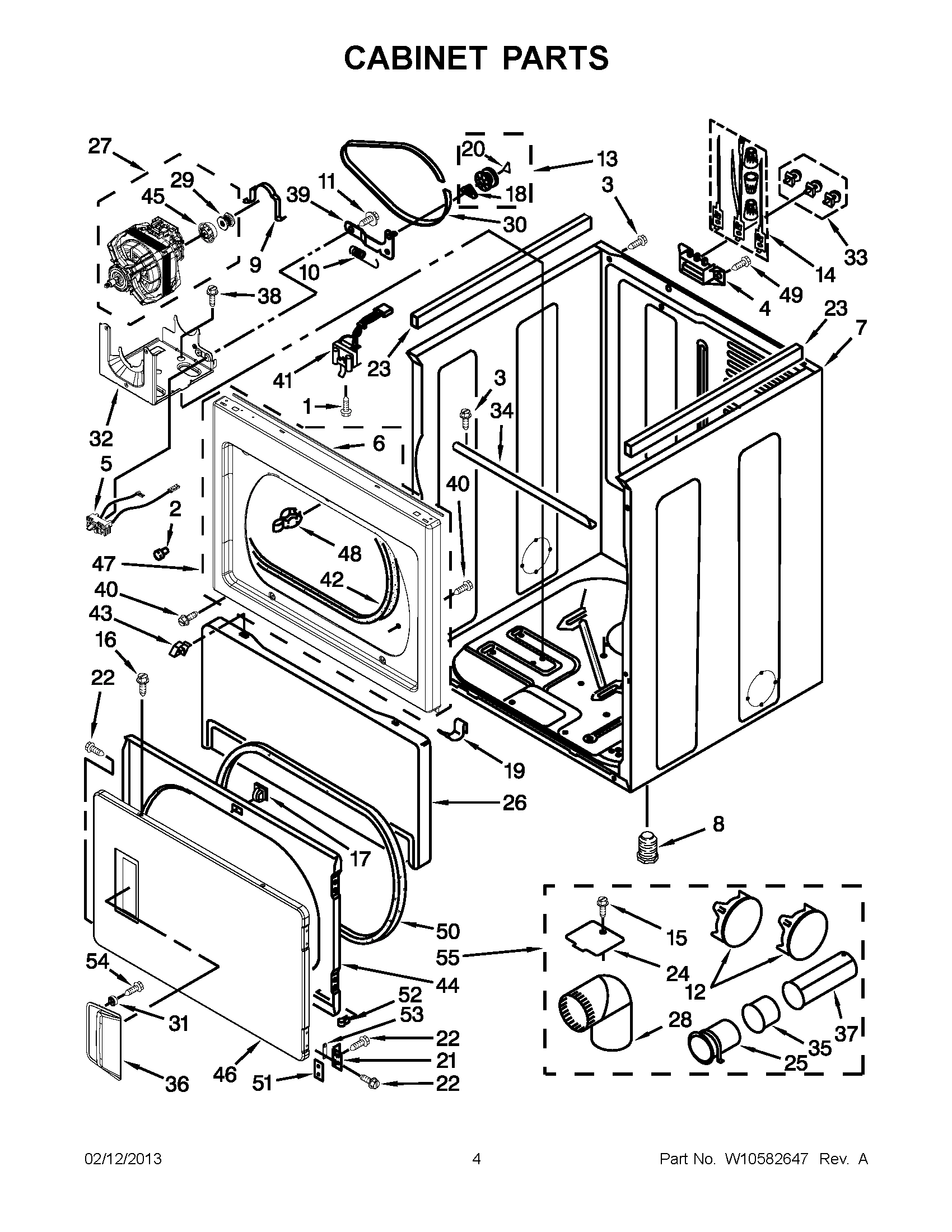

02 - CABINET PARTS

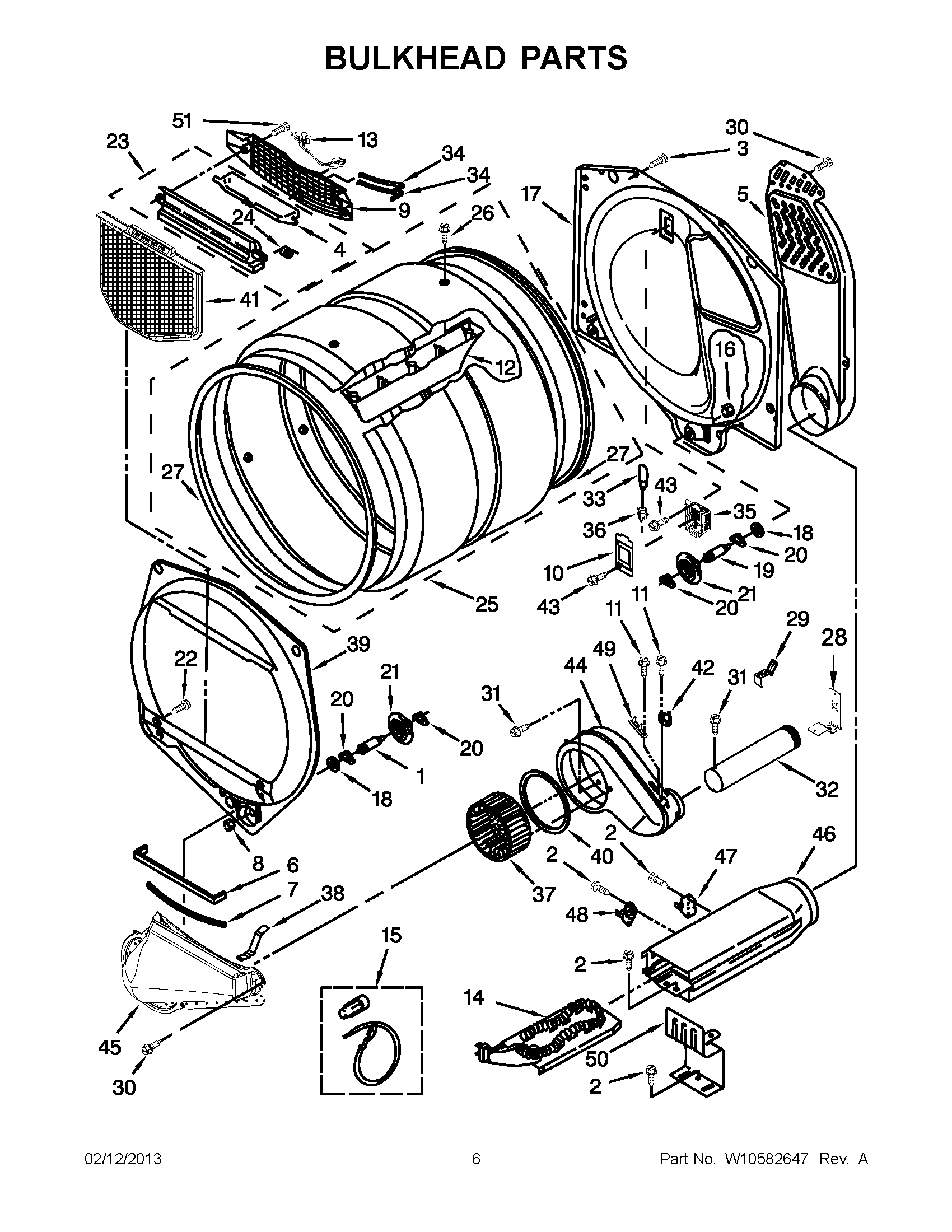

03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag MEDX600XW1 ELECTRIC DRYER
1
MAY W10096989 MAY W10096989 Contact Us For Availability
1
MAY W10259284 MAY W10259284 Contact Us For Availability
1
MAY W10417013 MAY W10417013 Contact Us For Availability
1
MAY W10563341 MAY W10563341 Contact Us For Availability
1
SCREW MAY 697773 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
2
MAY W10543896 MAY W10543896 Contact Us For Availability
2
MAY 693152 MAY 693152 Contact Us For Availability
2
SCREW MAY 90767 Contact Us For Availability
3
USER INTERFACE ASSEMBLY MAY W10272643 Contact Us For Availability
3
SCREW MAY 3390647 Contact Us For Availability
4
MAY W10492808 MAY W10492808 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10153413 MAY W10153413 Contact Us For Availability
5
KNOB, CONTROL (CHROME) MAY W10251381 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
6
TENSIONER, FASCIA MAY W10274524 Contact Us For Availability
6
SEAL, SPILL GUARD MAY W10312811 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
MAY W10547697 MAY W10547697 Contact Us For Availability
7
MAY 697814 MAY 697814 Contact Us For Availability
8
CLIP, SPRING MAY 8536939 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
9
CONSOLE ASSEMBLY (COMPLETE) MAY W10293247 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
MAY W10153412 MAY W10153412 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
11
MAY W10317638 MAY W10317638 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
12
MAY W10326923 MAY W10326923 Contact Us For Availability
12
MAY W10404617 MAY W10404617 Contact Us For Availability
12
Baffle, Drum MAY 697693 Contact Us For Availability
13
TOP MAY W10268730 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
MAY W10298258 MAY W10298258 Contact Us For Availability
14
MAY 8312709 MAY 8312709 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES TERMINAL B MAY 279318 Contact Us For Availability
14
MAY 3387747 MAY 3387747 Contact Us For Availability
15
PLUG, UPPER REAR PANEL MAY W10279552 Contact Us For Availability
15
Screw MAY 8533971 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
MAY 8533974 MAY 8533974 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
SCREW MAY 3390814 Contact Us For Availability
17
Door Catch Assembly MAY 3392538 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
MAY W10286180 MAY W10286180 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10253981 MAY W10253981 Contact Us For Availability
19
MAY W10291934 MAY W10291934 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY W10305134 MAY W10305134 Contact Us For Availability
20
WASHER, TRI RING MAY 690997 Contact Us For Availability
20
MAY W10121334 MAY W10121334 Contact Us For Availability
21
MAY 3348629 MAY 3348629 Contact Us For Availability
21
Hinge & Pin Assembly MAY 3389247 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
NUT, ``U`` MAY W10298336 Contact Us For Availability
22
MAY 342055 MAY 342055 Contact Us For Availability
22
SCREW MAY 3387230 Contact Us For Availability
23
MAY W10280079 MAY W10280079 Contact Us For Availability
23
SEAL, FOAM MAY W10336128 Contact Us For Availability
23
Housing, Outlet MAY W10153423 Contact Us For Availability
24
MAY W10354249 MAY W10354249 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
25
DRUM ASSEMBLY MAY W10545923 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
26
MAY 697215 MAY 697215 Contact Us For Availability
27
MAY W10396038 MAY W10396038 Contact Us For Availability
27
SEAL, DRUM (FRONT) MAY W10521118 Contact Us For Availability
28
ELBOW MAY 49026 Contact Us For Availability
28
MAY W10128629 MAY W10128629 Contact Us For Availability
29
MAY 3389729 MAY 3389729 Contact Us For Availability
29
CLIP, EXHAUST MAY 8572105 Contact Us For Availability
30
Screw MAY 693995 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
31
MAY W10192860 MAY W10192860 Contact Us For Availability
31
Screw MAY 489463 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
MAY 8066224 MAY 8066224 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY W10236068 MAY W10236068 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
MAY 8563748 MAY 8563748 Contact Us For Availability
35
MAY 8578825 MAY 8578825 Contact Us For Availability
36
HANDLE, DOOR MAY W10284182 Contact Us For Availability
36
MAY W10214261 MAY W10214261 Contact Us For Availability
37
MAY 8563749 MAY 8563749 Contact Us For Availability
37
MAY W10349492 MAY W10349492 Contact Us For Availability
38
SCREW MAY 343641 Contact Us For Availability
38
MAY W10345456 MAY W10345456 Contact Us For Availability
39
MAY 3388674 MAY 3388674 Contact Us For Availability
39
MAY 697557 MAY 697557 Contact Us For Availability
40
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
41
Switch, Door MAY 3406107 Contact Us For Availability
41
Screen, Lint MAY W10049370 Contact Us For Availability
42
MAY 3387242 MAY 3387242 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
Retainer MAY 3388229 Contact Us For Availability
43
SCREW MAY 695240 Contact Us For Availability
44
MAY W10323061 MAY W10323061 Contact Us For Availability
44
MAY 8544362 MAY 8544362 Contact Us For Availability
45
MAY 3393657 MAY 3393657 Contact Us For Availability
45
MAY 8066168 MAY 8066168 Contact Us For Availability
46
DOOR, OUTER MAY W10322551 Contact Us For Availability
46
ASSEMBLY, WELD HEATER BOX MAY 3392537 Contact Us For Availability
47
MAY W10193554 MAY W10193554 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
48
MAY 696144 MAY 696144 Contact Us For Availability
48
THERMOSTAT HL-295/215 MAY 3391914 Contact Us For Availability
49
MAY 3393008 MAY 3393008 Contact Us For Availability
49
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
50
MAY 3390735 MAY 3390735 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
SCREW MAY 3357011 Contact Us For Availability
51
Clip, Door Hinge MAY 3390902 Contact Us For Availability
52
NUT, ``U`` MAY 3389249 Contact Us For Availability
53
Plug-Hinge MAY W10191265 Contact Us For Availability
54
MAY W10294344 MAY W10294344 Contact Us For Availability
55
MAY 279818 MAY 279818 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
MAY 3406911 MAY 3406911 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT220L Contact Us For Availability
NI
POWER CORD, 4`, 30 AMP, 4 WIRE, DRYER CORD MAY PT400L Contact Us For Availability
NI
POWER CORD, 6`, 30 AMP, 4 WIRE, DRYER CORD MAY PT600L Contact Us For Availability
× ![]()
