Model Whirlpool MDG9800AWQ GAS DRYER – Common Parts & Diagrams

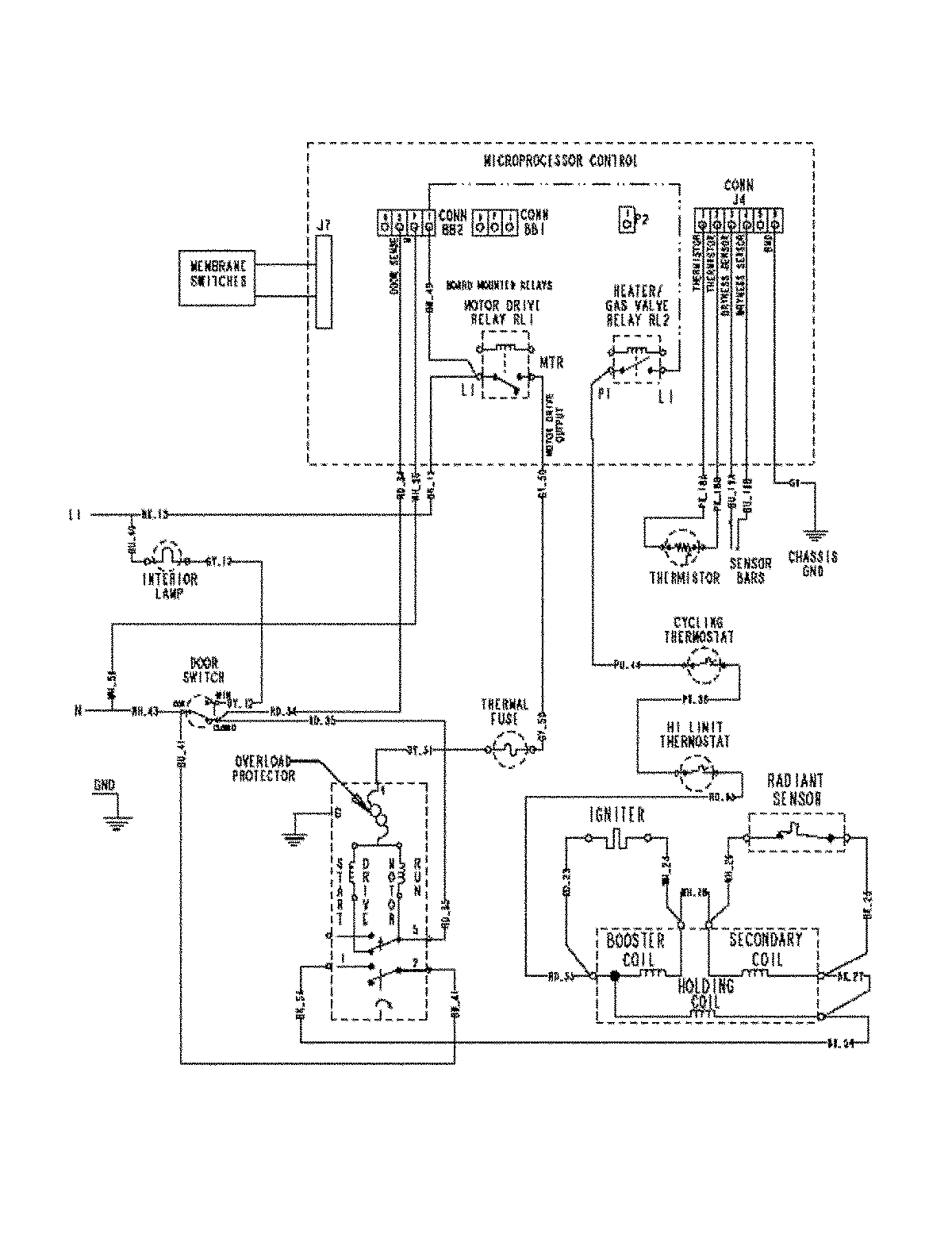

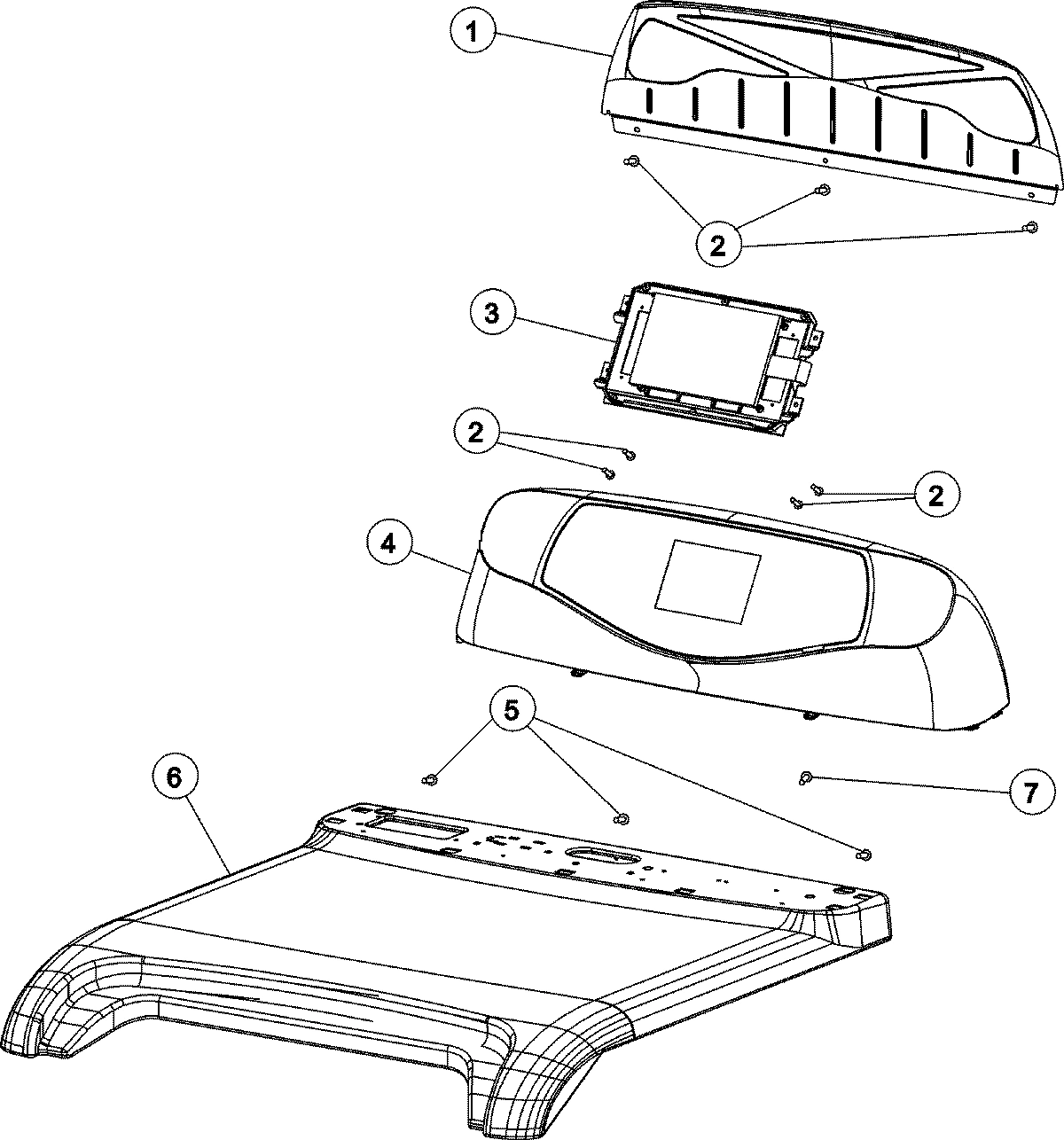

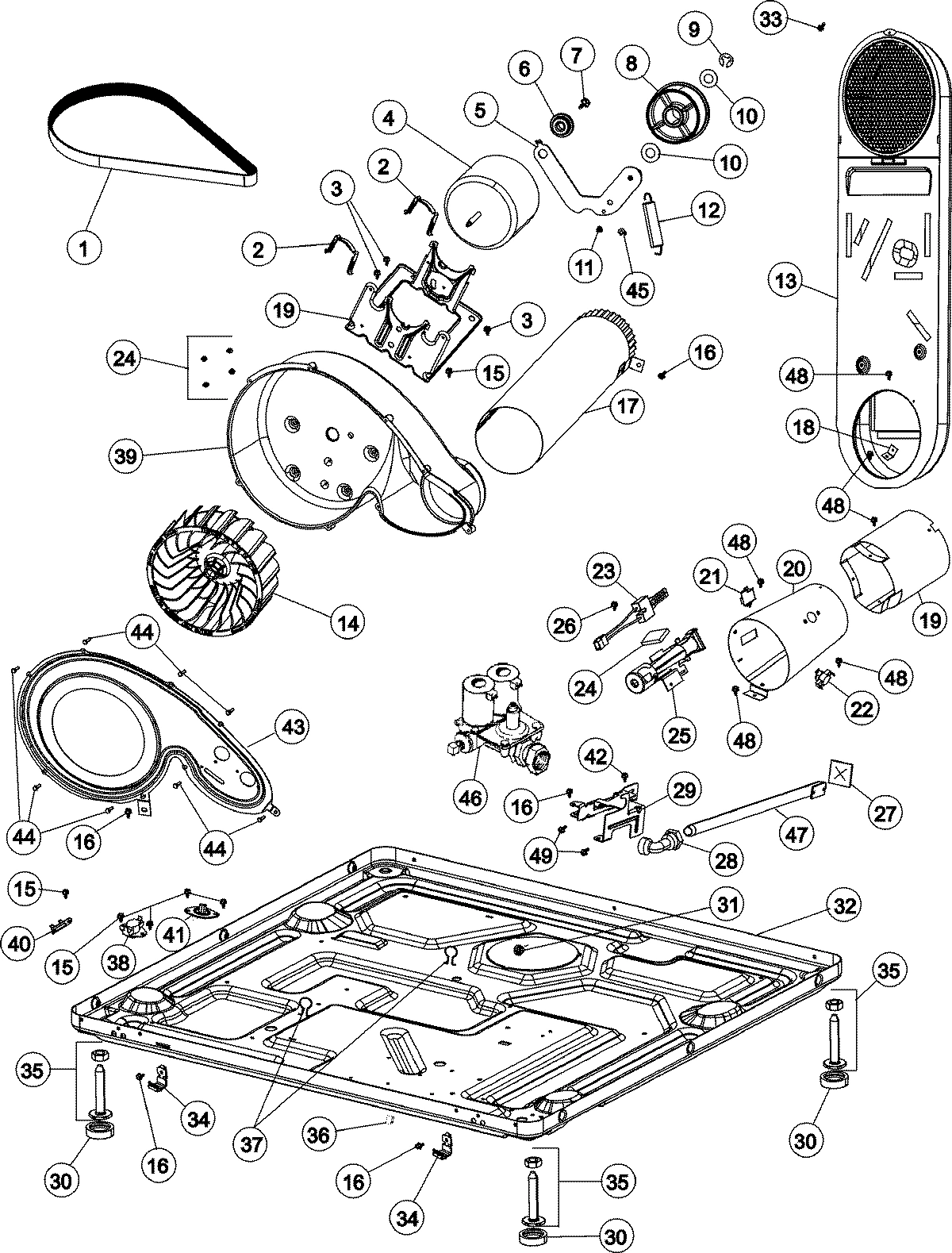

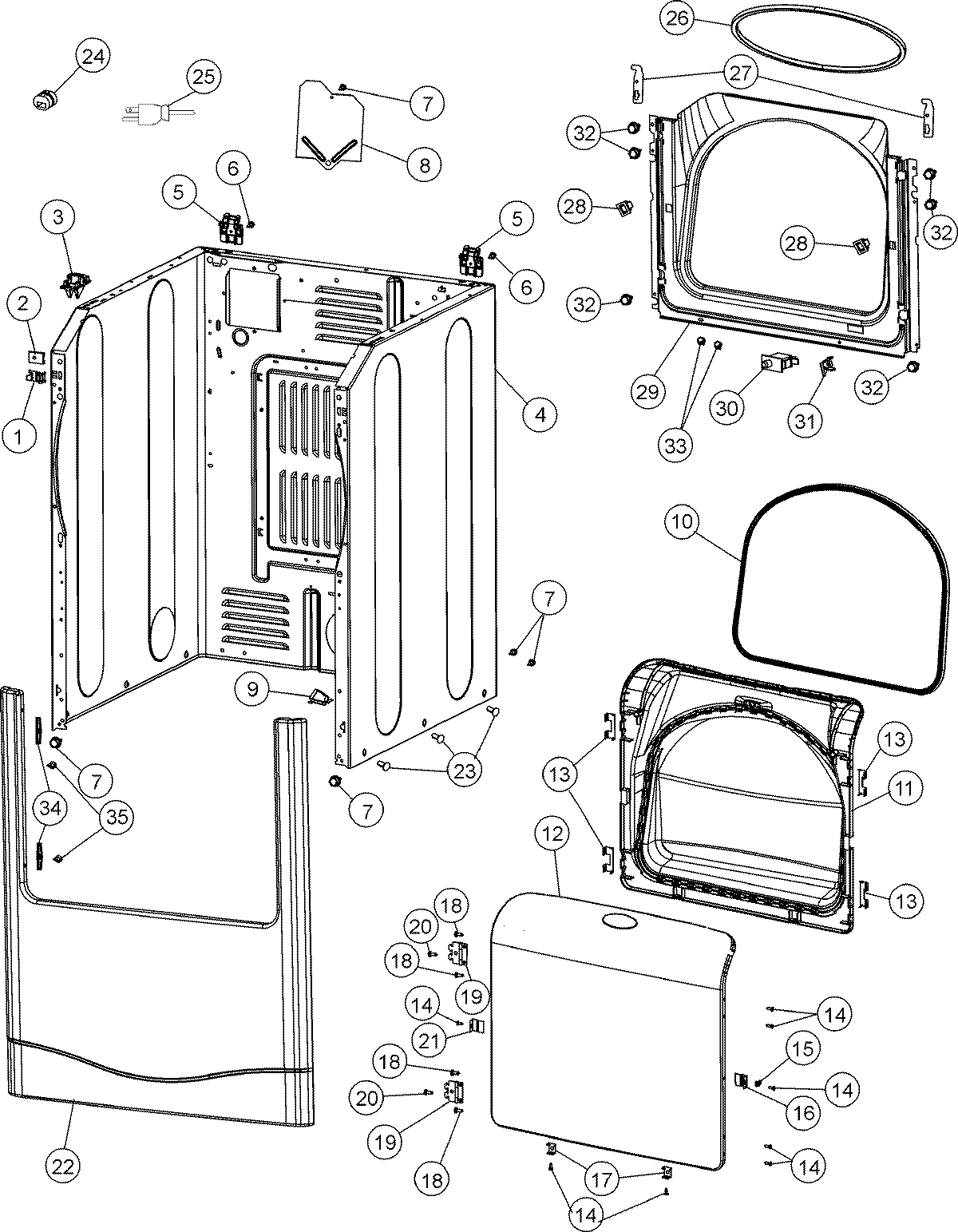

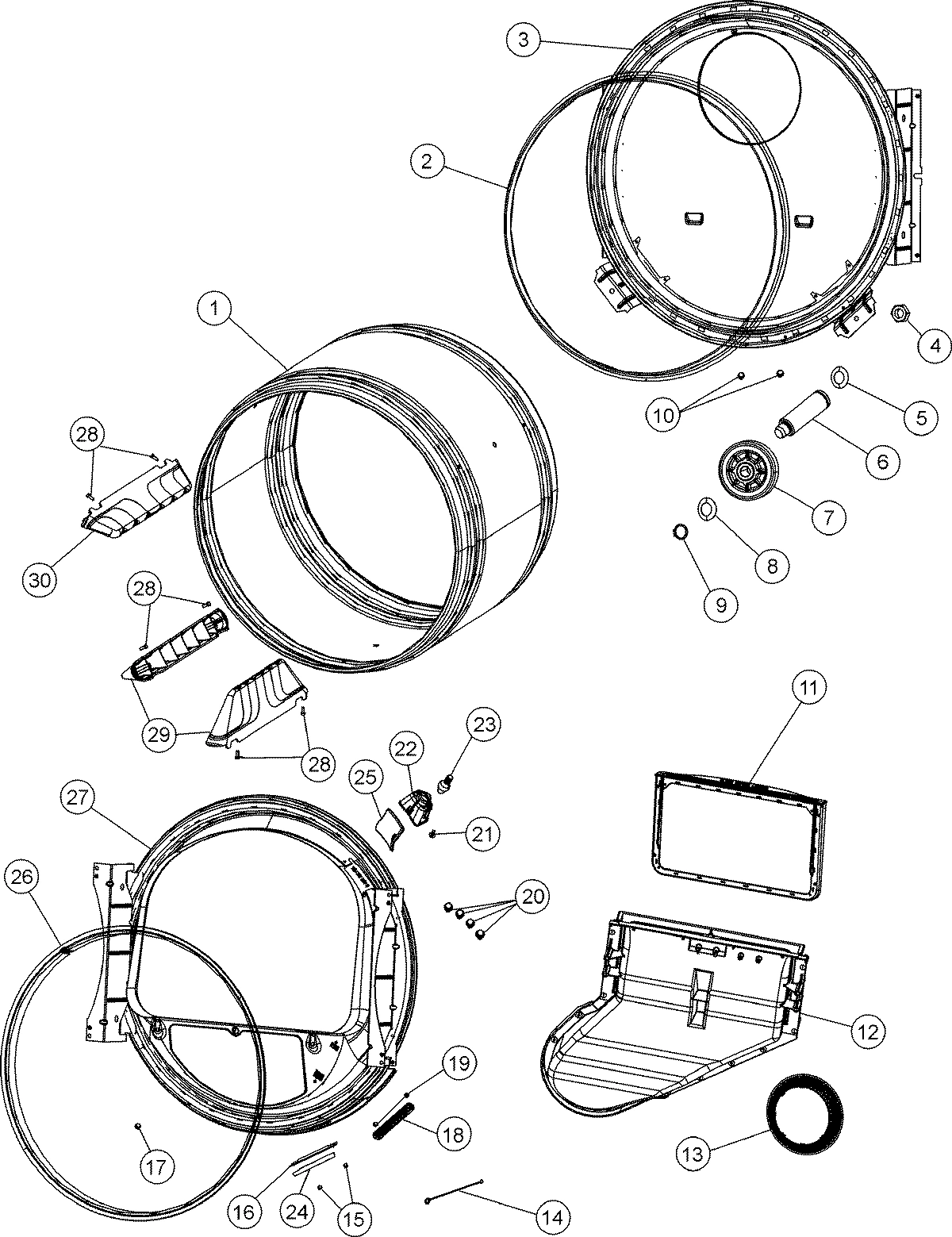

1
TUMBLER
TUMBLER WPL 33001889 Contact Us For Availability
View on Model
1
WIRE HARNESS-LCD-GAS
WIRE HARNESS-LCD-GAS WPL 33002933 Contact Us For Availability
View on Model
2
FRONT PANEL BRACKET/FASTENER
FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability
View on Model
3
GUIDE, USE AND CARE
GUIDE, USE AND CARE WPL 63901330 Contact Us For Availability
View on Model
3
MANUAL, USE & CARE
MANUAL, USE & CARE WPL Y2201988 Contact Us For Availability
View on Model
3
SCREW----NA
SCREW----NA WPL Y313561 Contact Us For Availability
View on Model
3
PIN, LOCATOR
PIN, LOCATOR WPL 33002891 Contact Us For Availability
View on Model
3
TUMBLER BACK & SEAL AS-PACK
TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability
View on Model
4
CABINET ASSY. (BISQUE AS PK)
CABINET ASSY. (BISQUE AS PK) WPL 22003640 Contact Us For Availability
View on Model
5
HINGE, PLASTIC
HINGE, PLASTIC WPL 22004095 Contact Us For Availability
View on Model
6
DRYING RACK TOP
DRYING RACK TOP WPL 33002737 Contact Us For Availability
View on Model
7
DRYING RACK HANGER
DRYING RACK HANGER WPL 33002745 Contact Us For Availability
View on Model
7
SCREW (No.10-3/8``)
SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability
View on Model
8
MANUAL, SLOPED-FRONT DRYER
MANUAL, SLOPED-FRONT DRYER WPL 16009968 Contact Us For Availability
View on Model
8
BEARING, IDLER ASSEMBLY
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
View on Model
8
COVER, TERMINAL BLOCK
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
View on Model
9
CLIP, WIRE HARNESS
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
View on Model
11
GROMMET, IDLER ARM
GROMMET, IDLER ARM WPL 33002218 Contact Us For Availability
View on Model
11
DOOR, INNER W/SEAL (BSQ) T
DOOR, INNER W/SEAL (BSQ) T WPL 33002890 Contact Us For Availability
View on Model
12
DOOR, OUTER W/MED. AS PK BSQ T
DOOR, OUTER W/MED. AS PK BSQ T WPL 33002888 Contact Us For Availability
View on Model
12
OUTLET DUCT ASSEMBLY
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
View on Model
13
INLET DUCT ASSEMBLY (GAS)
INLET DUCT ASSEMBLY (GAS) WPL 33002765 Contact Us For Availability
View on Model
13
CLIP, DOOR (DOUBLE)
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
View on Model
13
SEAL, BLOWER
SEAL, BLOWER WPL 33002560 Contact Us For Availability
View on Model
14
SCREW No.8-18AB WAFER HD
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
View on Model
14
SENSOR GROUND WIRE
SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability
View on Model
15
STRIKE, DOOR (MALE)
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
View on Model
17
DUCT ASSY., EXHAUST
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
View on Model
17
CLIP, DOOR (SINGLE)
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
View on Model
17
SCREW----NA
SCREW----NA WPL 312311 Contact Us For Availability
View on Model
18
RETAINER, HEATER CHAMBER
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
View on Model
18
SENSOR BAR ASSY.
SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability
View on Model
19
CONE, EXTENSION (COMBUSTION)
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
View on Model
19
PANEL, CONTROL (BLK)
PANEL, CONTROL (BLK) WPL 33001078 Contact Us For Availability
View on Model
20
CONE ASSY., COMBUSTION
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
View on Model
21
PLUG, INNER DOOR
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
View on Model
21
SCREW
SCREW WPL 33001871 Contact Us For Availability
View on Model
22
PANEL, FRONT AS PACK (BSQ) T
PANEL, FRONT AS PACK (BSQ) T WPL 33002883 Contact Us For Availability
View on Model
22
HOLDER, LAMP (W/HOUSING)
HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability
View on Model
24
IGNITOR SHOCK PAD
IGNITOR SHOCK PAD WPL 33002932 Contact Us For Availability
View on Model
24
GROMMET, CORD
GROMMET, CORD WPL 211881 Contact Us For Availability
View on Model
24
BEARING PAD F/TUMBLER FRONT
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
View on Model
25
LENS, DRUM LIGHT
LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability
View on Model
26
SCREW
SCREW WPL 304971 Contact Us For Availability
View on Model
26
SEAL, SHROUD
SEAL, SHROUD WPL 33001767 Contact Us For Availability
View on Model
27
HOOK, SECURITY
HOOK, SECURITY WPL 33002597 Contact Us For Availability
View on Model
27
FLAP, PIPE
FLAP, PIPE WPL 33001702 Contact Us For Availability
View on Model
27
FRONT, TUMBLER FRONT W/SENSOR
FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability
View on Model
28
SCREW, BAFFLE
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
View on Model
29
BRACKET, GAS VALVE----NA
BRACKET, GAS VALVE----NA WPL 33001834 Contact Us For Availability
View on Model
29
SHROUD (WHT)
SHROUD (WHT) WPL 33002033 Contact Us For Availability
View on Model
29
SHROUD (BSQ)
SHROUD (BSQ) WPL 33002379 Contact Us For Availability
View on Model
31
GROMMET
GROMMET WPL 33002157 Contact Us For Availability
View on Model
31
BRACKET, HINGE
BRACKET, HINGE WPL 33001760 Contact Us For Availability
View on Model
32
BASE, (LWR)----NA
BASE, (LWR)----NA WPL 33002465 Contact Us For Availability
View on Model
33
SCREW, No.8 X 9/16 CTSK
SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability
View on Model
33
SCREW, SHROUD
SCREW, SHROUD WPL 33001768 Contact Us For Availability
View on Model
34
CLIP, LOWER FRONT PANEL
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
View on Model
34
COVER, HINGE HOLE (ALM)
COVER, HINGE HOLE (ALM) WPL 33001765 Contact Us For Availability
View on Model
35
ADJUSTABLE LEG & NUT
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
View on Model
36
CLIP, GROUNDING
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
View on Model
37
SPRING, WIRE HARNESS
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
View on Model
41
THERMISTOR, TEMP. CONTROL
THERMISTOR, TEMP. CONTROL WPL 307208 Contact Us For Availability
View on Model
42
SCREW
SCREW WPL Y310632 Contact Us For Availability
View on Model
43
COVER, BLOWER HOUSING
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
View on Model
45
PLUG FOR SPRING
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
View on Model
47
PIPE & BRACKET ASSY.
PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability
View on Model
