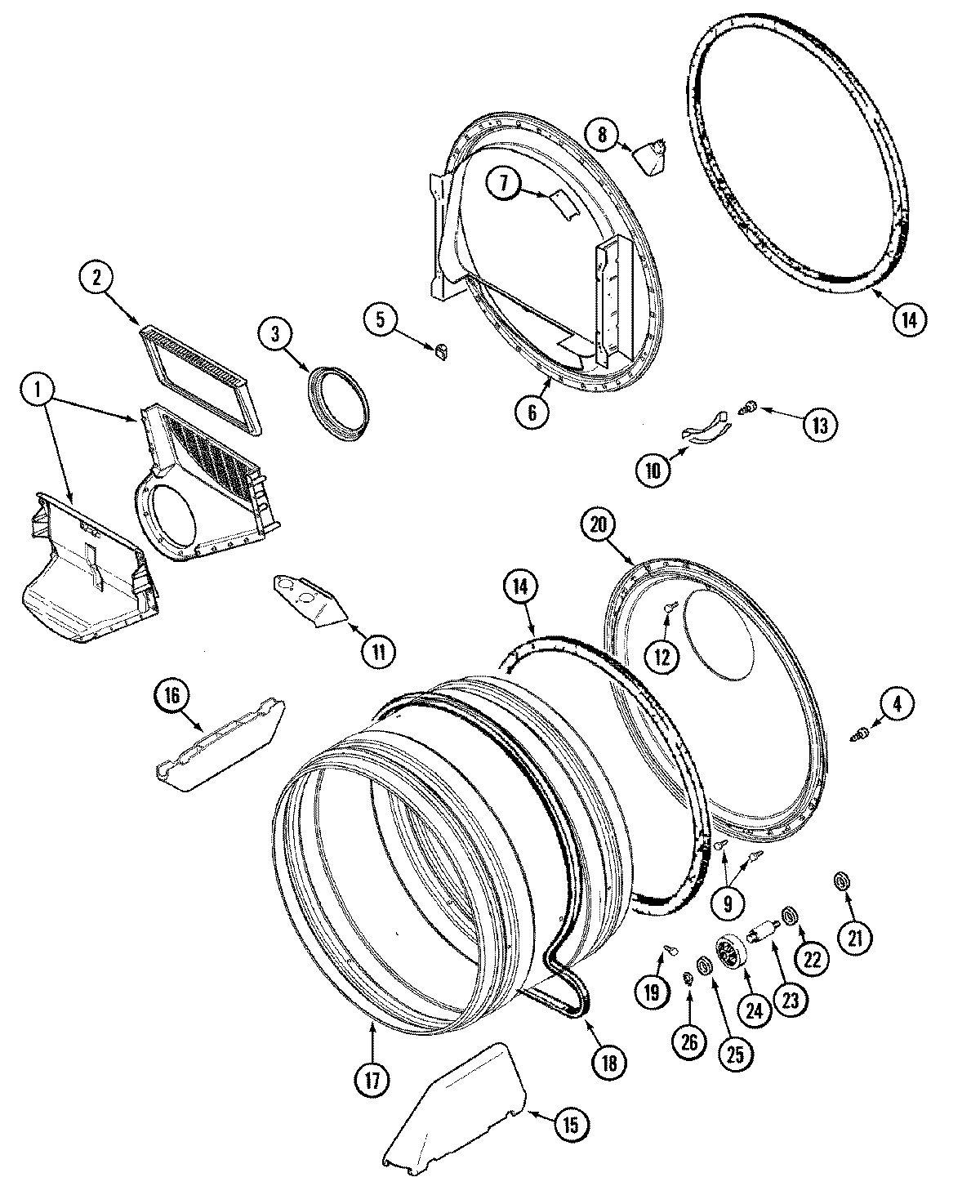

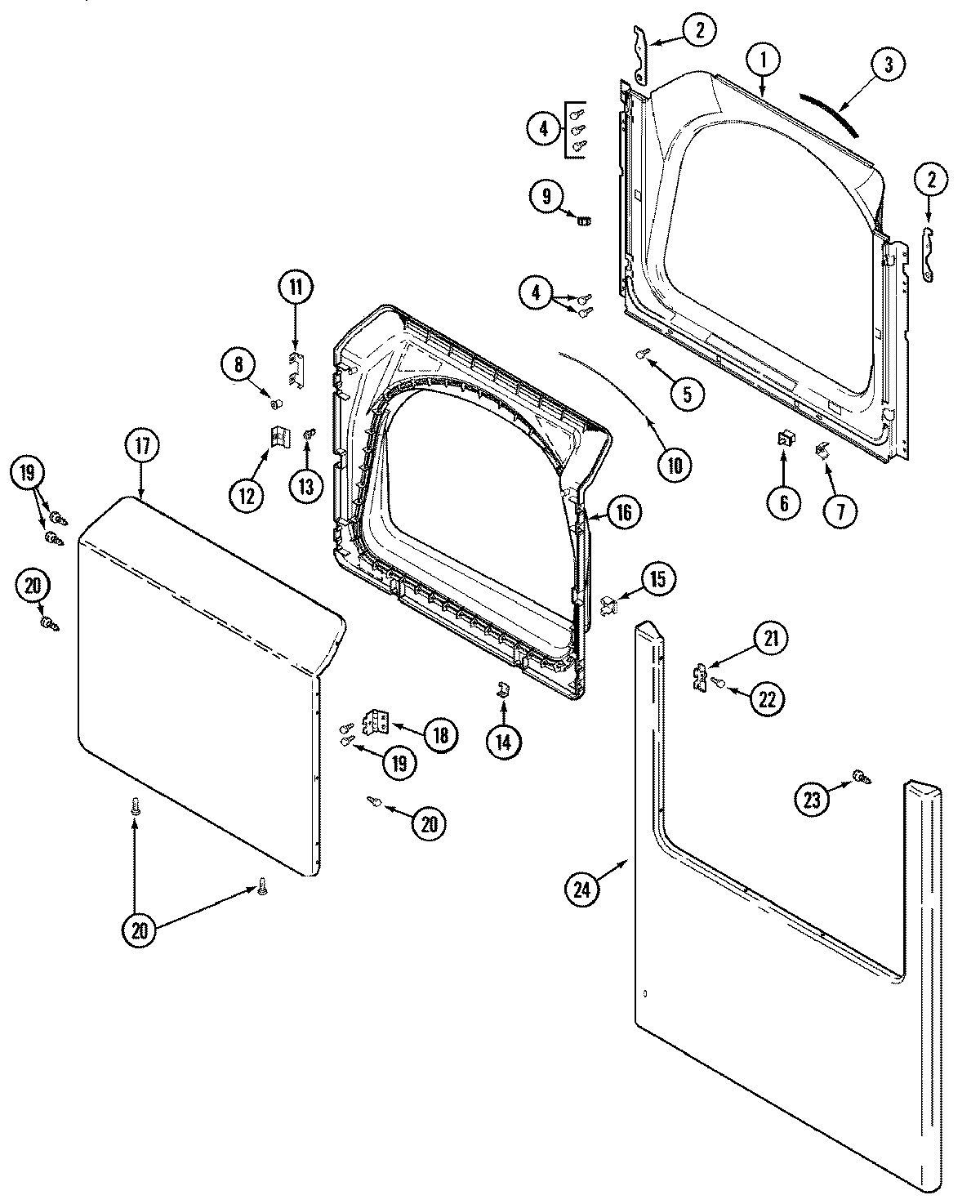

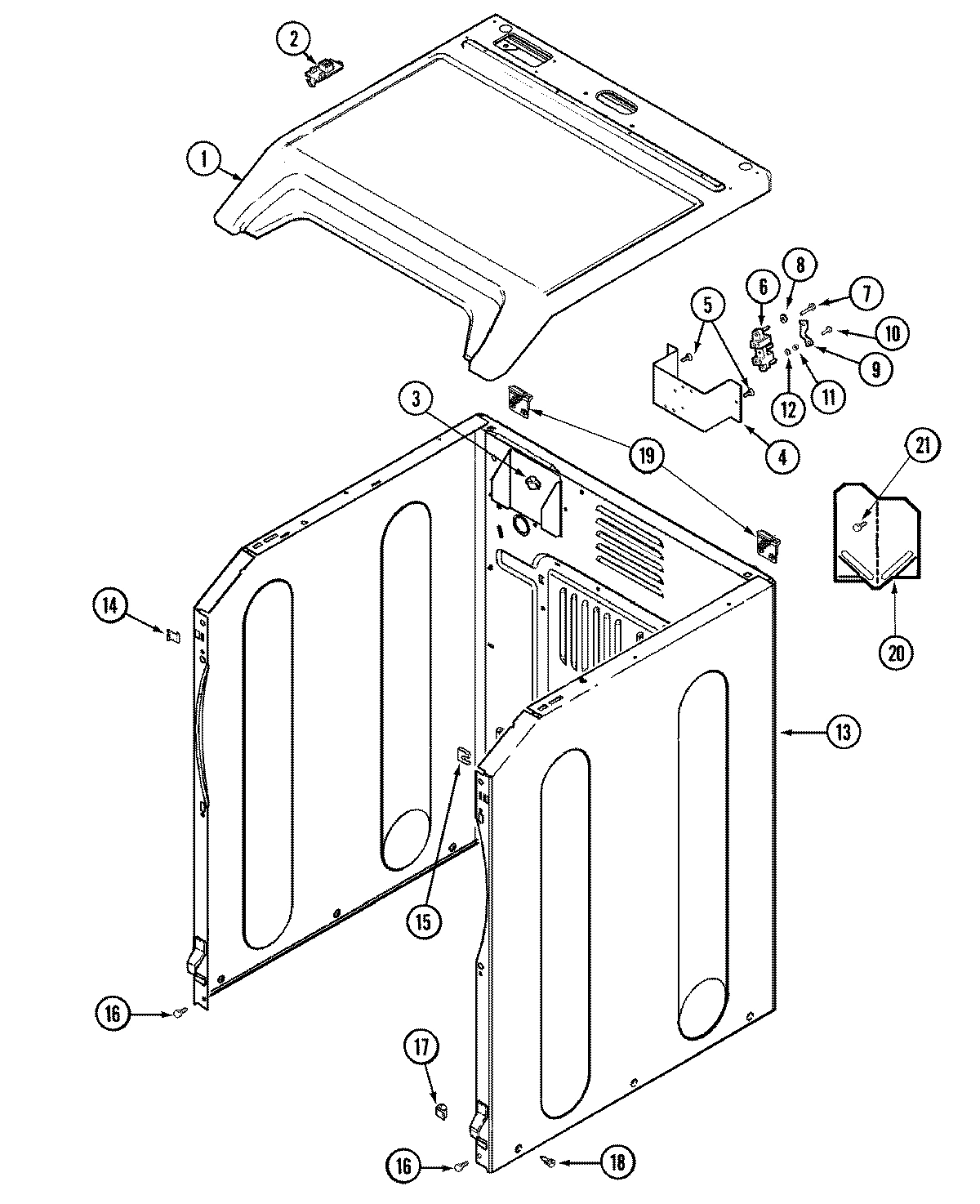

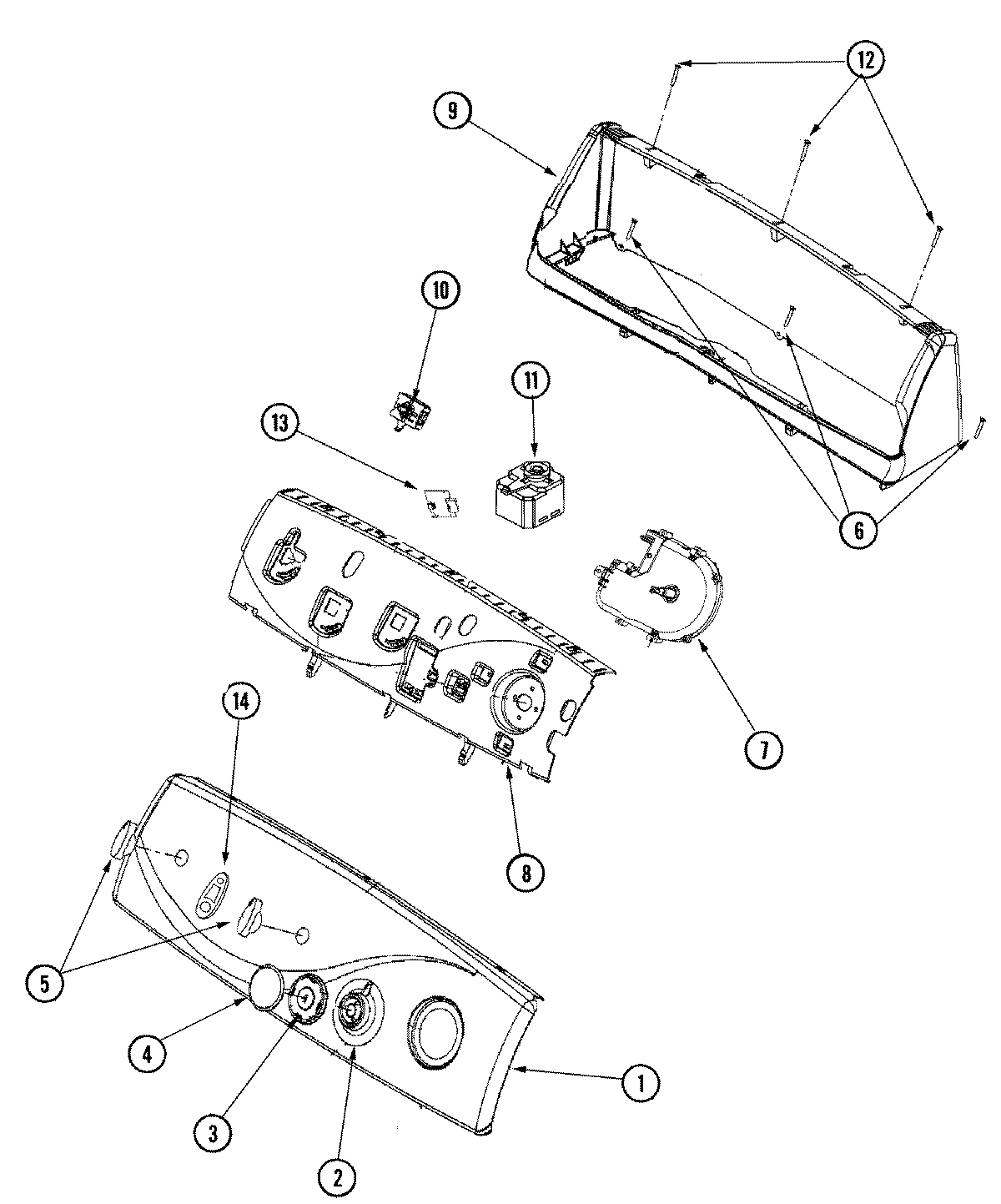

Model Whirlpool MDG7658BWW GAS DRYER – Common Parts &amp; Diagrams

1

WP33001789 Whirlpool Blower Housing Assembly In Stock WPL WP33001789 $85.59

1

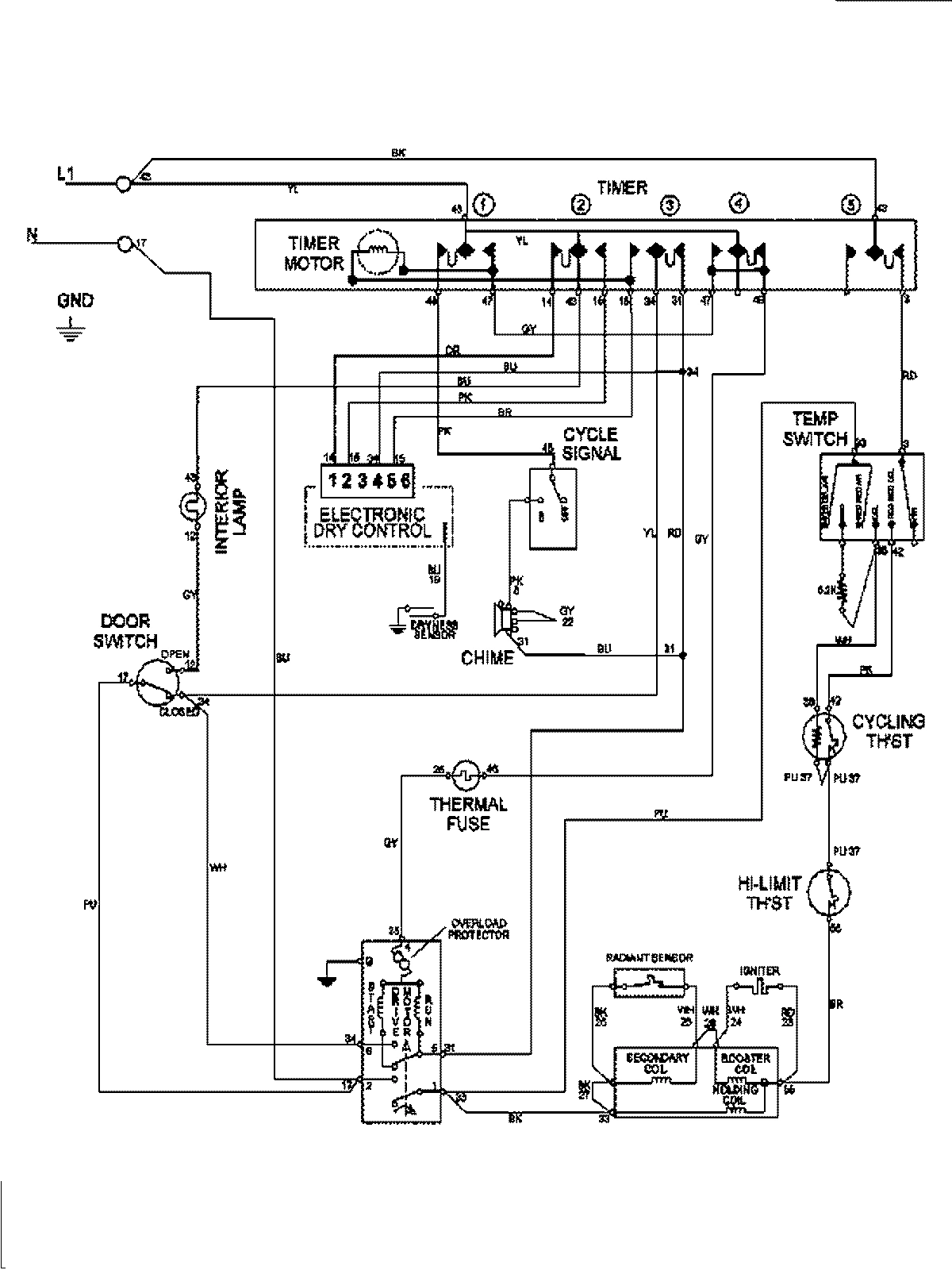

WIRING INFORMATION (GAS) WPL 15003278 Contact Us For Availability

1

SHROUD (WHT) WPL 33001778 Contact Us For Availability

1

COVER, TOP (WHT-AS PK) WPL 33002627 Contact Us For Availability

1

CHIME / BUZZER WPL 33002732 Contact Us For Availability

1

FACIA, CONTROL (WHT) WPL 33002856 Contact Us For Availability

1

SENSOR ASSY (CHIME & DRYNESS) WPL 33002905 Contact Us For Availability

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $39.64

2

WP33002924 Whirlpool LP Conversion Gas In Stock WPL WP33002924 $57.79

2

HOOK, SECURITY WPL 33002597 Contact Us For Availability

2

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

2

PIN, LOCATOR WPL 33002599 Contact Us For Availability

2

TIMER DIAL SKIRT (WHT) WPL 22004165 Contact Us For Availability

3

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

3

SEAL, BLOWER WPL 33002560 Contact Us For Availability

3

RETAINER, WIRE WPL 22003298 Contact Us For Availability

3

SCREW WPL 304971 Contact Us For Availability

3

KNOB, TIMER (CMPG) WPL 22003952 Contact Us For Availability

4

WP22003989 Whirlpool Insert Assembly Backorder WPL WP22003989 $34.34

4

WP33002789 Whirlpool Igniter In Stock WPL WP33002789 $65.16

4

WP33002797 Whirlpool Wheel In Stock WPL WP33002797 $81.99

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

4

BRACKET, TERMINAL BLOCK----NA WPL 33001826 Contact Us For Availability

5

WP22003987 Whirlpool Knob Control In Stock WPL WP22003987 $43.03

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

5

WP33002793 Whirlpool Burner Assembly Backorder WPL WP33002793 $132.39

5

SCREW, SHROUD WPL 33001768 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

6

W11705611 Whirlpool Block Ter In Stock WPL W11705611 $57.43

6

WP306176 Whirlpool Gas Valve In Stock WPL WP306176 $233.35

6

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

6

FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability

7

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.67

7

DRYING RACK HANGER WPL 33002745 Contact Us For Availability

7

LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

7

TIMER WPL 33002803 Contact Us For Availability

8

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

8

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.39

8

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $24.56

8

HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability

8

BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability

8

DRYER SWITCH SUPPORT WPL 33002738 Contact Us For Availability

9

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

9

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

9

STRAP, GROUND WPL Y312184 Contact Us For Availability

9

CONSOLE HOUSING (WHT) WPL 22003960 Contact Us For Availability

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $39.97

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $90.86

BRACKET, GAS VALVE----NA WPL 33001834 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

ON.OFF SWITCH WPL 33002736 Contact Us For Availability

COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $4.82

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $4.82

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

3406051 Whirlpool Elbow Backorder WPL 3406051 $68.74

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

SCREW WPL 22003556 Contact Us For Availability

SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability

3 LIGHT DRYNESS DISPLAY WPL 33002734 Contact Us For Availability

COVER, BLOWER HOUSING----NA WPL 33001873 Contact Us For Availability

14

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $12.54

14

PIPE & BRACKET ASSY. WPL 33001735 Contact Us For Availability

14

LENS CARRIER ASSEMBLY (WHT) WPL 33002746 Contact Us For Availability

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $21.91

WP33002795 Whirlpool Drive Motor In Stock WPL WP33002795 $243.32

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $26.50

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability

DOOR, INNER/ W SEAL (WHT) WPL 33001750 Contact Us For Availability

SCREW (No.8-18 OUTER DOOR (BSQ) WPL 33002351 Contact Us For Availability

INLET DUCT ASSEMBLY (GAS) WPL 33002765 Contact Us For Availability

WP303395 Whirlpool Thermostat In Stock WPL WP303395 $33.27

TUMBLER WPL 33001889 Contact Us For Availability

OUTER DOOR AS-PACK (WHT) WPL 33002786 Contact Us For Availability

SCREW WPL Y310632 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $4.82

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $56.66

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $24.91

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $29.61

GROMMET WPL 33002157 Contact Us For Availability

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $53.48

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

HINGE, PLASTIC WPL 22004095 Contact Us For Availability

TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability

SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability

CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability

COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability

21

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

21

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

21

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

WP33001787 Whirlpool Screw Backorder WPL WP33001787 $7.38

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

CAP, GAS PIPE WPL 33001693 Contact Us For Availability

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

23

WP315772 Whirlpool Sleeve Backorder WPL WP315772 $7.92

24

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

24

PANEL, FRONT (BSQ) WPL 22002663 Contact Us For Availability

25

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

25

MOTOR SUPPORT, OFFSET WPL 33002817 Contact Us For Availability

26

SCREW----NA WPL Y313561 Contact Us For Availability

27

BASE, (LWR)----NA WPL 33002465 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

33

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

NI

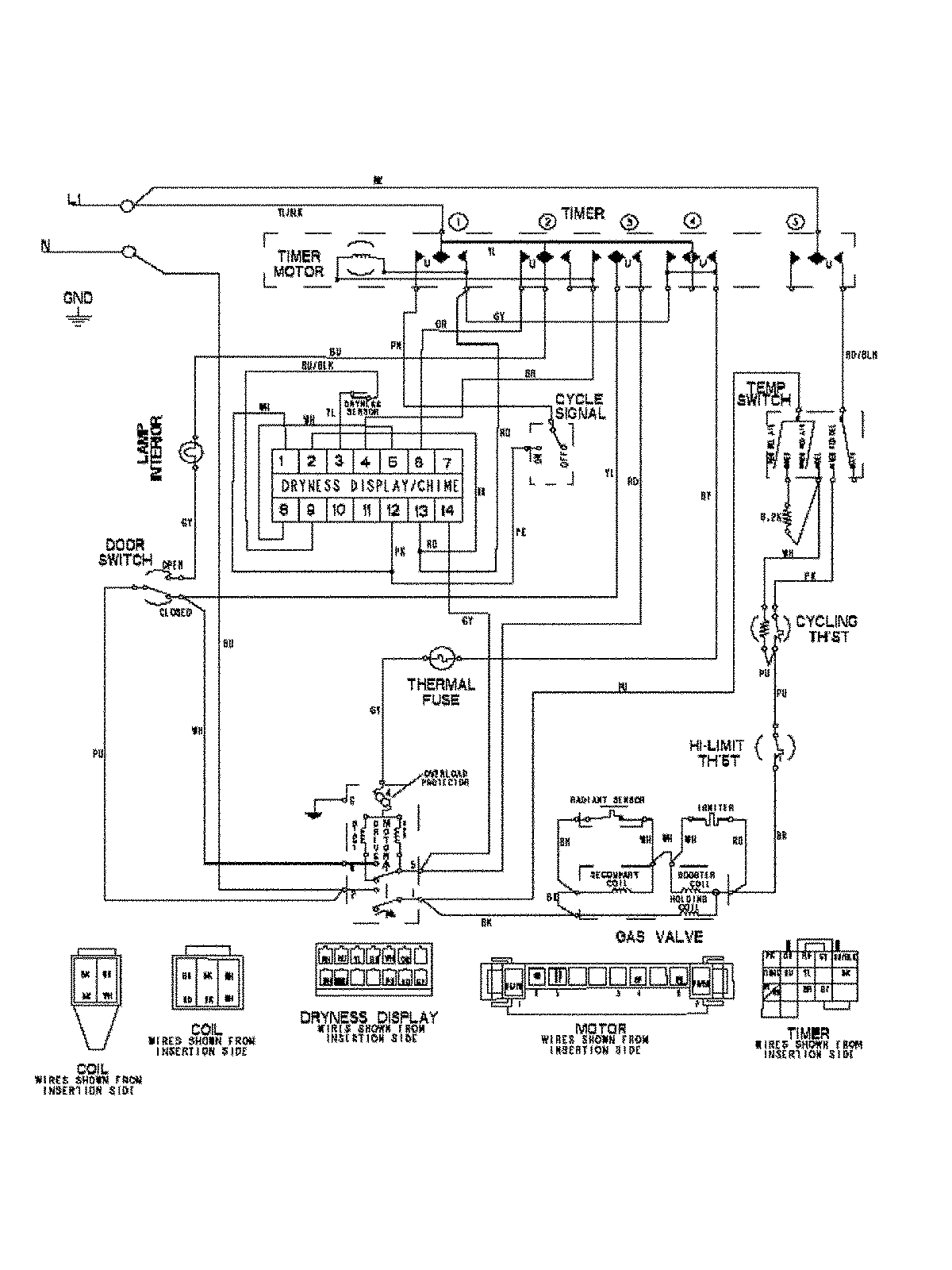

WIRING INFORMATION WPL 15003476 Contact Us For Availability
