Model Whirlpool MDG16PDDXW GAS DRYER – Common Parts & Diagrams
03 - CABINET-FRONT

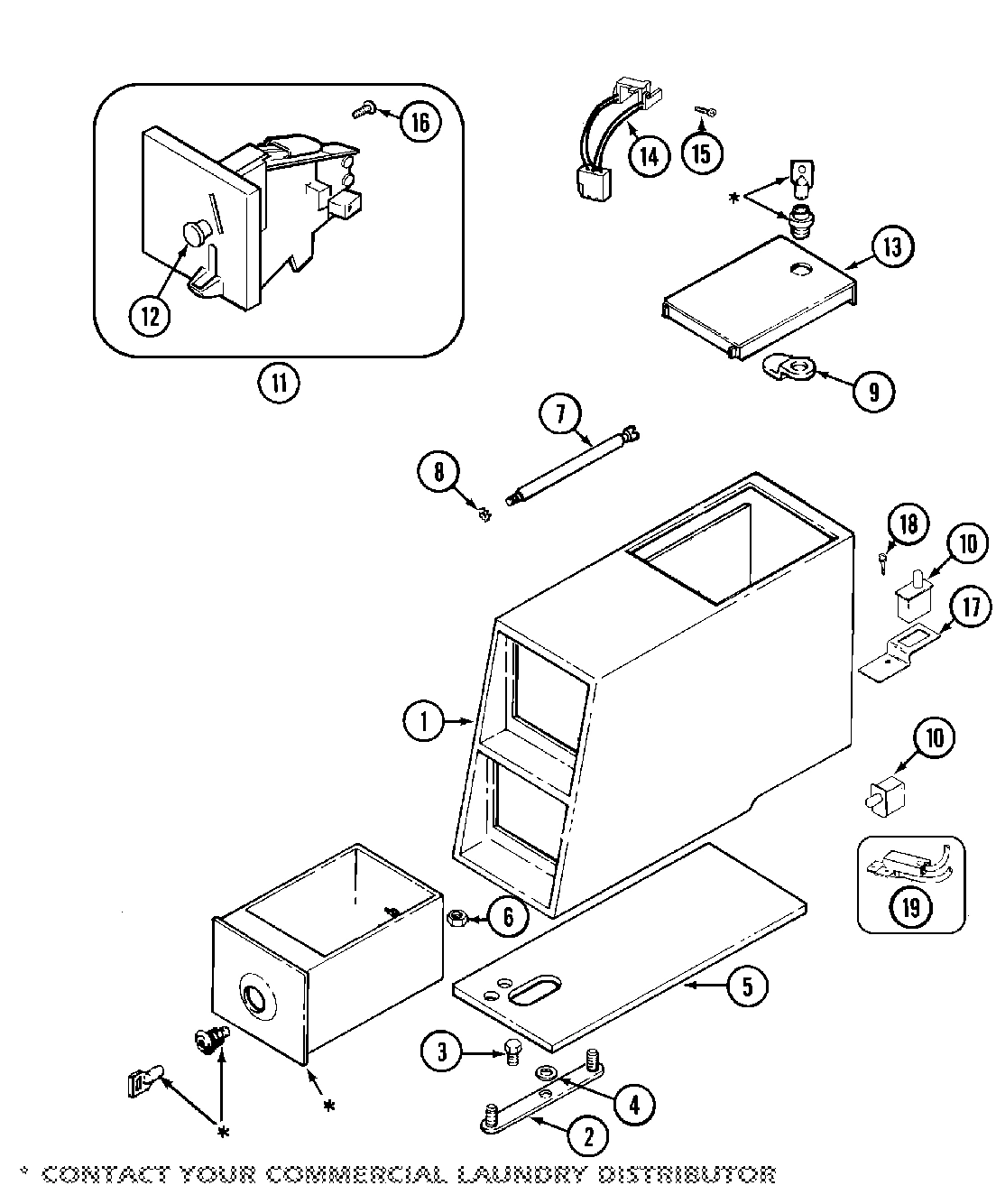

02 - CONTROL CENTER

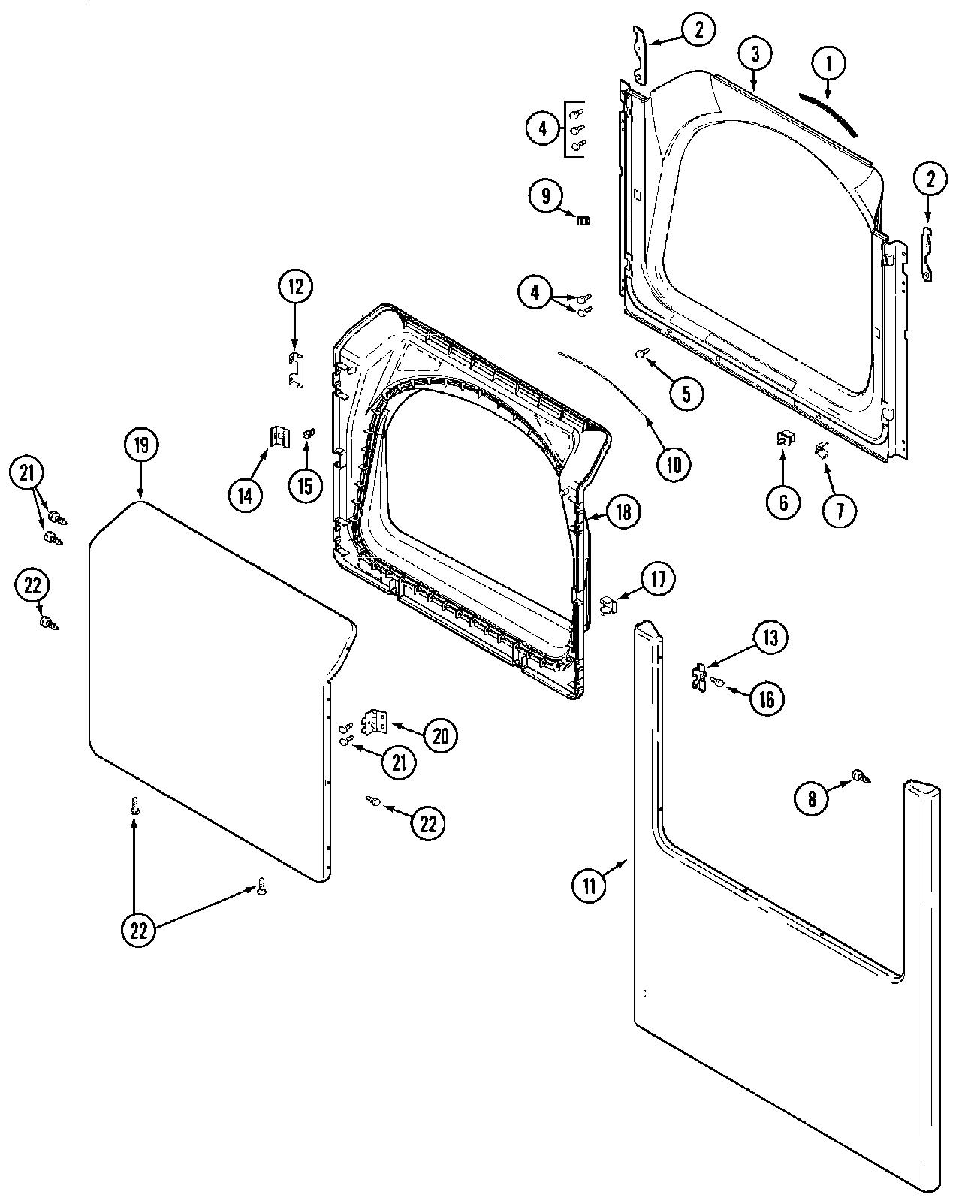

04 - DOOR
06 - GAS VALVE

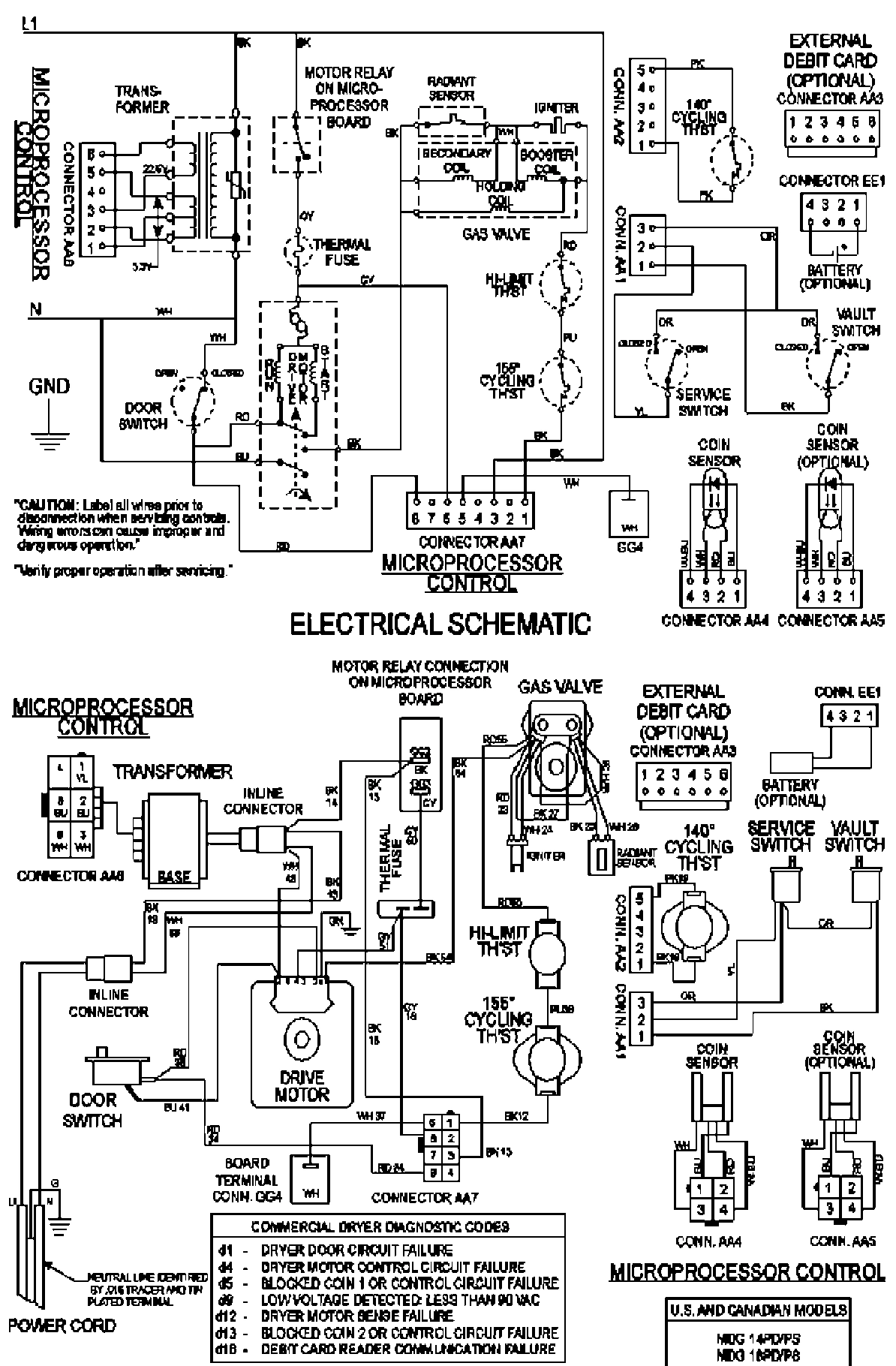

08 - WIRING INFORMATION

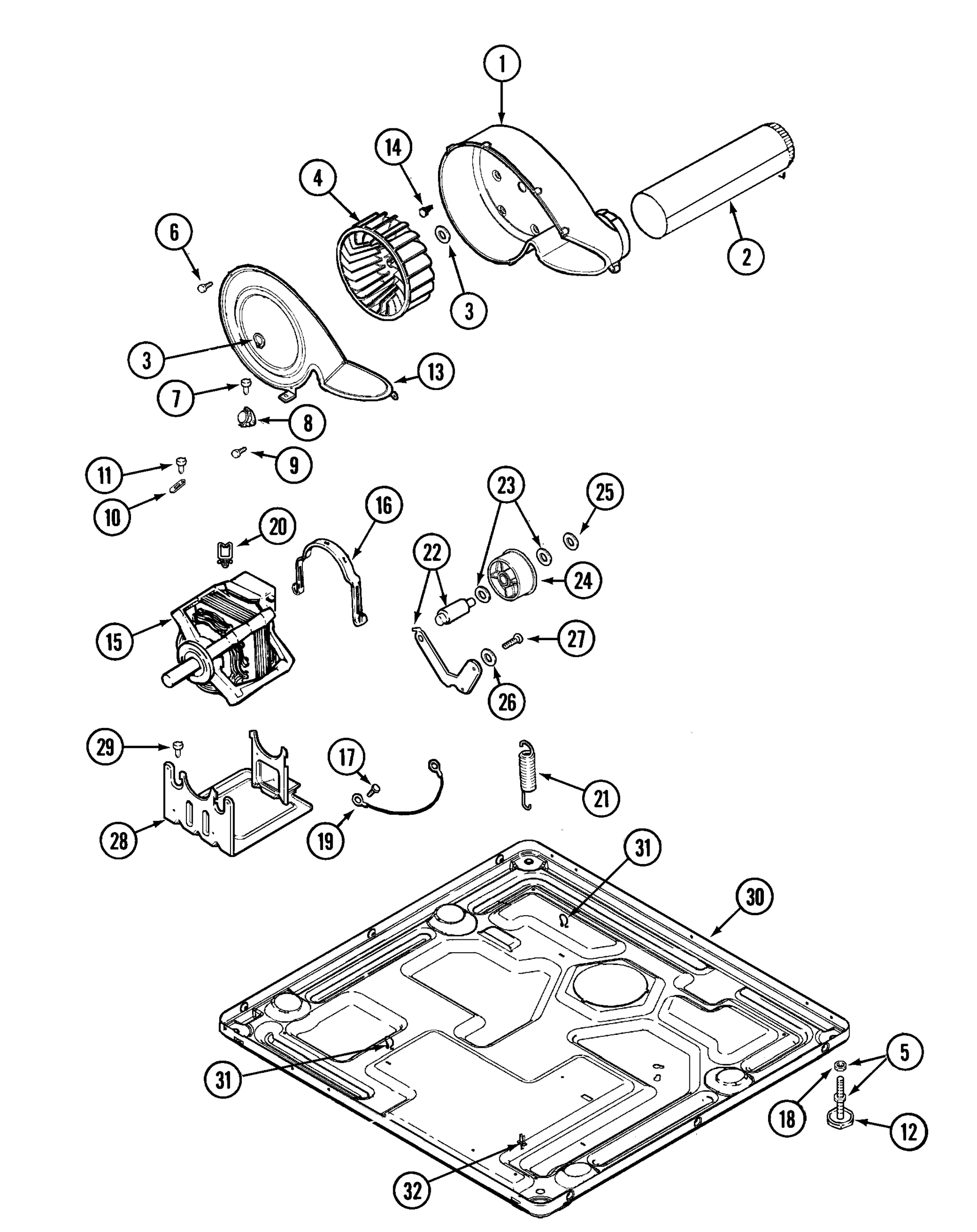

07 - MOTOR DRIVE

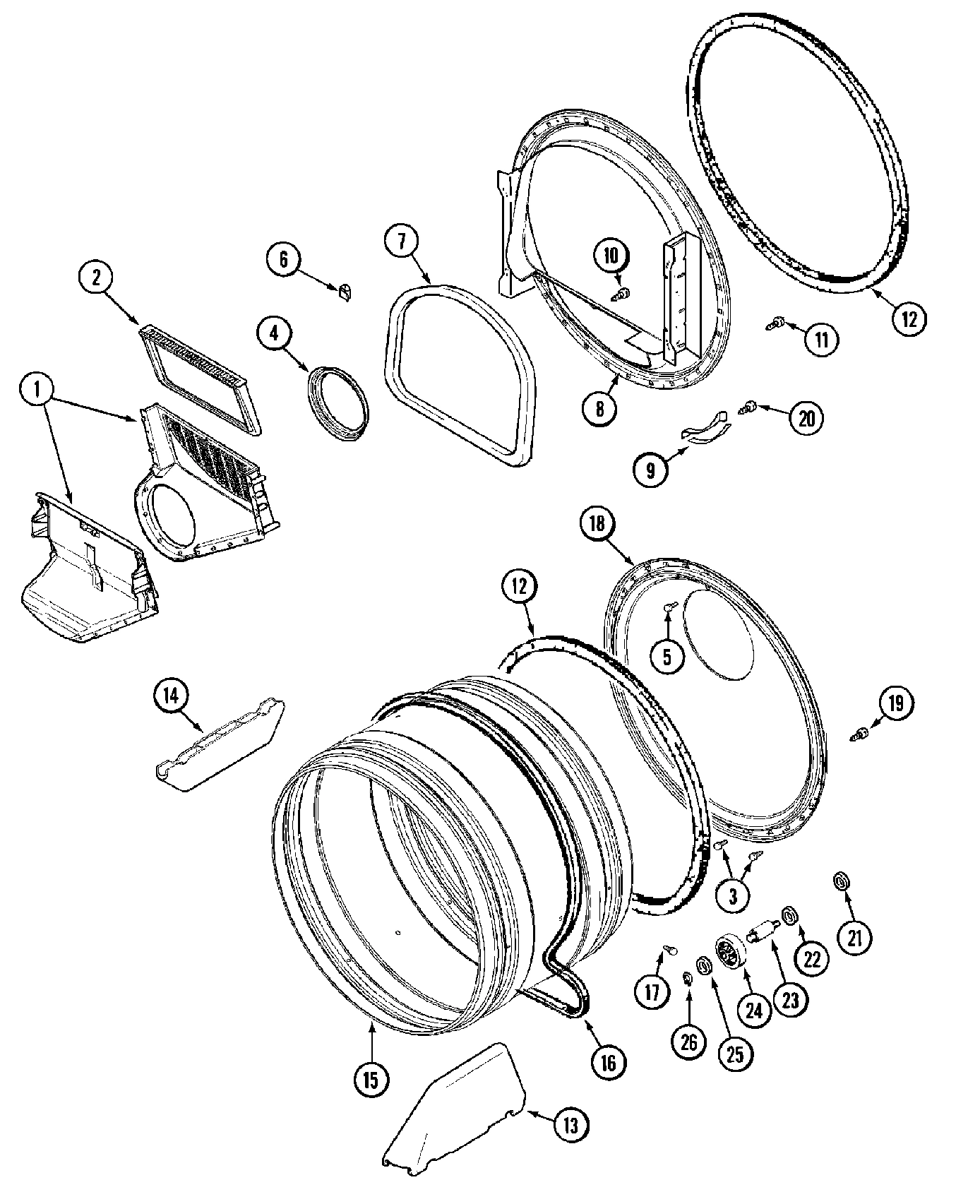

09 - TUMBLER

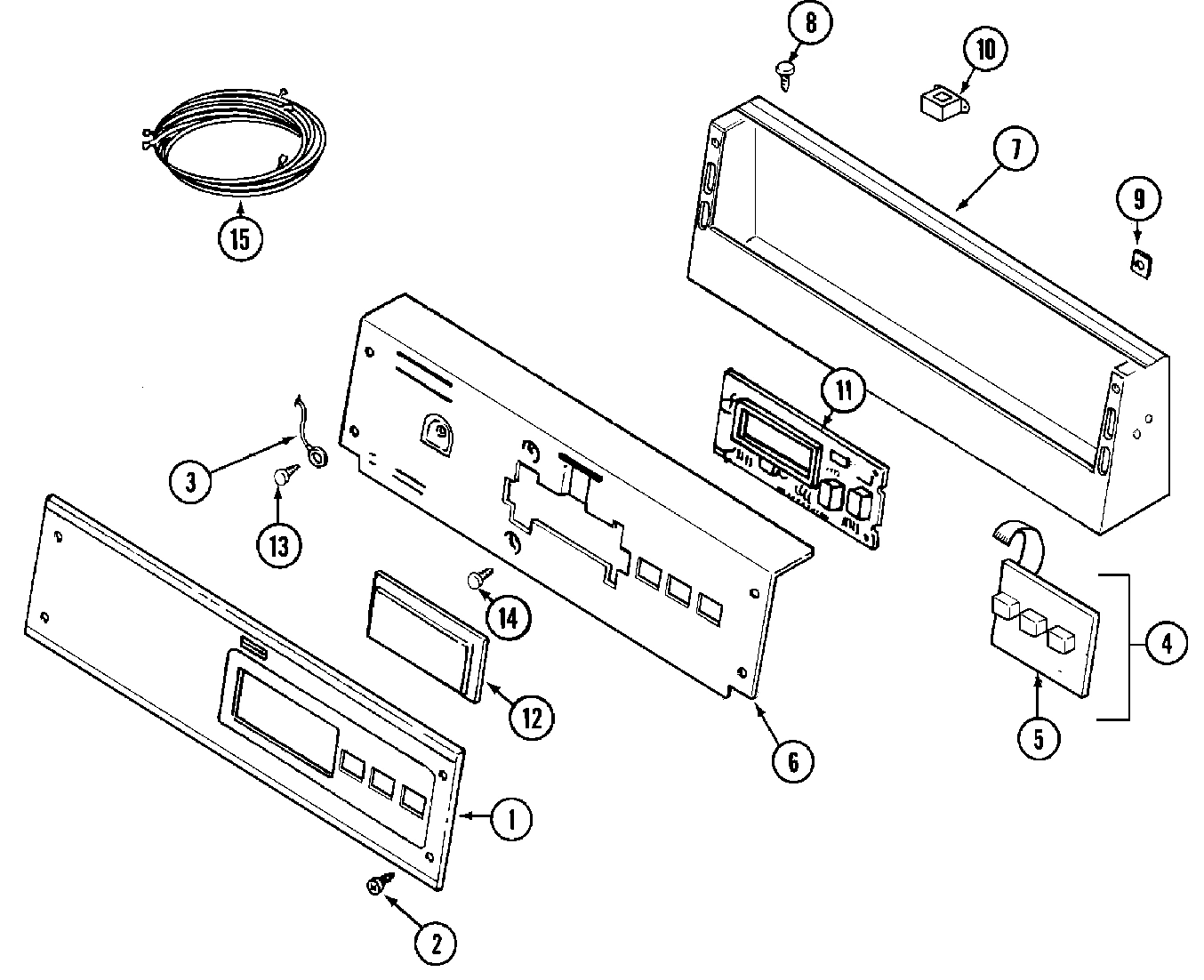

01 - CONTROL PANEL

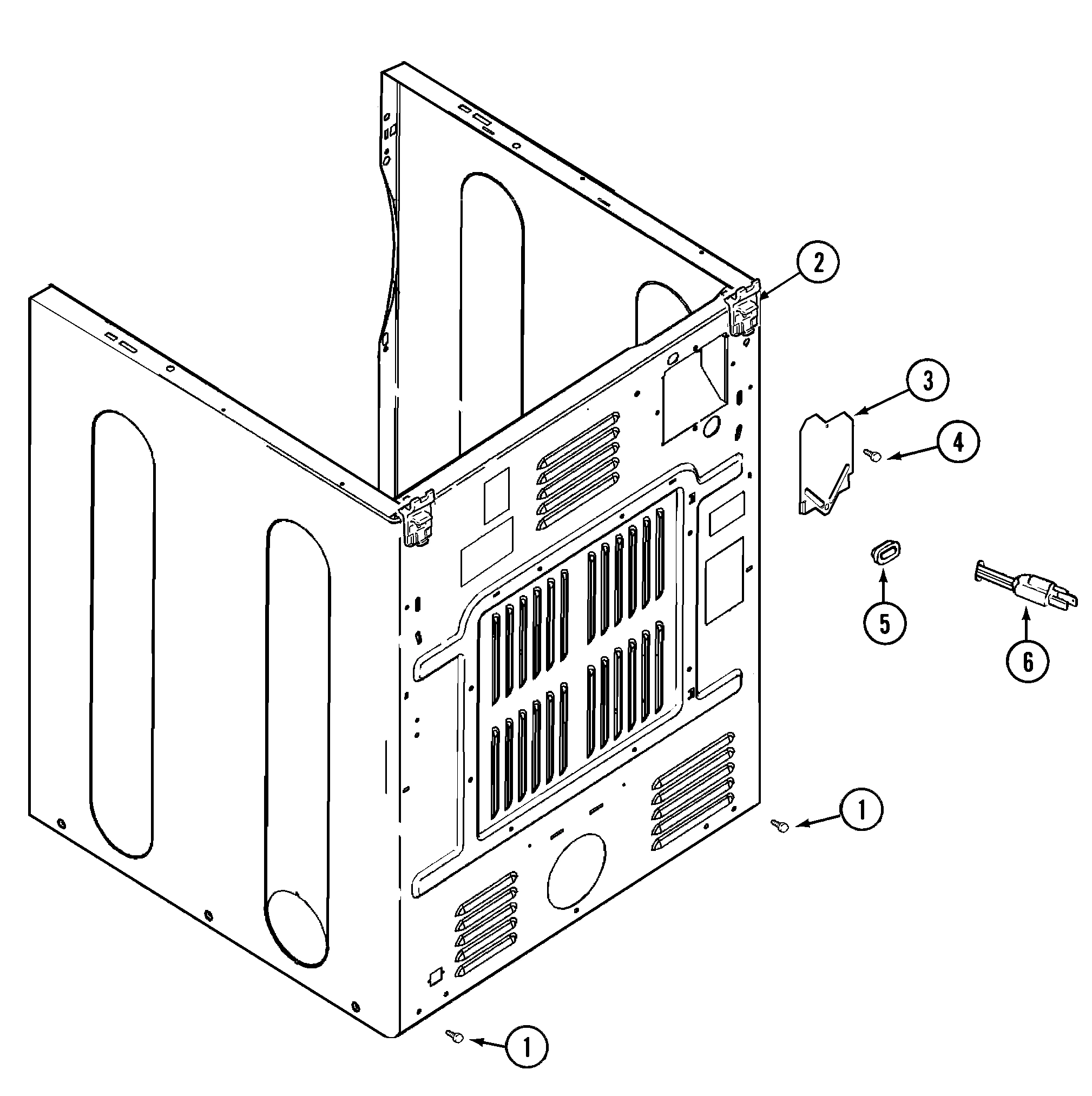

05 - CABINET-REAR
Common parts from model Whirlpool MDG16PDDXW GAS DRYER
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability
001
Facia - PD/PS (CONTROL PANEL) WPL 33002941 Contact Us For Availability
002
STRAP, MOUNTING WPL 22001810 Contact Us For Availability
002
HOOK, SECURITY WPL 22002247 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability
002
HINGE, PLASTIC WPL 22004095 Contact Us For Availability
003
SHROUD (WHT) WPL 33001900 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
SCREW, INLET DUCT WPL 210932 Contact Us For Availability
003
WIRE, GROUND WPL 22001959 Contact Us For Availability
003
COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability
004
WASHER, STRAP SCREW WPL 910309 Contact Us For Availability
004
SEAL, BLOWER WPL 33002560 Contact Us For Availability
004
BACKUP PLATE WITH SWITCH WPL 306694 Contact Us For Availability
005
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
005
FASTENER WPL 310933 Contact Us For Availability
005
GASKET, CONTROL CENTER (WHT) WPL 22002072 Contact Us For Availability
005
SCREW, SHROUD & OUTLET DUCT WPL 33001768 Contact Us For Availability
005
GROMMET, CORD WPL 211881 Contact Us For Availability
006
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
006
CONTROL, GAS ASSEMBLY WPL 33003031 Contact Us For Availability
006
DEFLECTOR, WATER (W/ADHESIVE) WPL 22002954 Contact Us For Availability
006
BRACKET, BACK (WHT) WPL 33002519 Contact Us For Availability
007
BOLT, LOCKING WPL 213035 Contact Us For Availability
007
SEAL, SHROUD WPL 33001767 Contact Us For Availability
007
BRACKET, HINGE WPL 33001760 Contact Us For Availability
007
CONSOLE (WHT) WPL 22003089 Contact Us For Availability
008
FRONT, TUMBLER (W/SEAL) WPL 33001802 Contact Us For Availability
008
LOCKWASHER, LOCKING BOLT WPL 910181 Contact Us For Availability
008
CLIP, GROUNDING WPL 22002244 Contact Us For Availability
009
CAM, LOCKING WPL 22003348 Contact Us For Availability
009
CLIP, SCREW WPL 215003 Contact Us For Availability
010
BRACKET, GAS CONTROL WPL 33002710 Contact Us For Availability
010
SCREW, OUTLET DUCT (PHILLIPS) WPL NLA Contact Us For Availability
011
FASTENER, FRONT PANEL WPL 213280 Contact Us For Availability
011
CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability
011
COIN DROP GREENWALD (CAN).25 WPL 22004114 Contact Us For Availability
011
DUAL FACEPLATE ASSEMBLY WPL 33002644 Contact Us For Availability
011
COIN DROP-CANADA (1.00) WPL 33002646 Contact Us For Availability
011
SINGLE FACEPLATE ASSEMBLY WPL 33002647 Contact Us For Availability
011
PANEL, FRONT (WHT) WPL 33001901 Contact Us For Availability
011
STANDOFF, CIRCUIT BOARD WPL 33001204 Contact Us For Availability
012
BUTTON, RETURN WPL 216200 Contact Us For Availability
012
CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability
013
STRAP, TOP COVER SUPPORT WPL 33001836 Contact Us For Availability
013
TIMER ACCESS DOOR ASSY (WHITE) WPL 22003679 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 33002711 Contact Us For Availability
014
PIPE & BRACKET ASSY. SERIES 18 NOT NEEDED USE WPL 33001735 Contact Us For Availability
014
SCREW, BLOWER HOUSING WPL 314818 Contact Us For Availability
014
SCREW, CONTROL BOARD WPL 215526 Contact Us For Availability
015
STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability
015
TUMBLER WPL 33001794 Contact Us For Availability
015
WIRE HARNESS WPL 22003818 Contact Us For Availability
016
SCREW, COIN DROP WPL 216068 Contact Us For Availability
016
DUCT ASSY., INLET (GAS) WPL 33001810 Contact Us For Availability
016
ASSY,INLET DUCT-GAS WPL 33003039 Contact Us For Availability
016
USE & CARE MANUAL WPL 33002671 Contact Us For Availability
017
BRACKET, SWITCH WPL 22001404 Contact Us For Availability
017
PLUG, INNER DOOR WPL 33001763 Contact Us For Availability
017
SCREW, BAFFLE WPL 33001788 Contact Us For Availability
018
DOOR, INNER (WHT) WPL 33001899 Contact Us For Availability
018
CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability
018
TUMBLER BACK & SEAL AS-PACK WPL 33002779 Contact Us For Availability
018
TUMBLER BACK & SEAL WPL 33003037 Contact Us For Availability
019
HARNESS, SENSOR SWITCH WPL 22001966 Contact Us For Availability
019
DOOR, OUTER (WHT) WPL 33001904 Contact Us For Availability
019
CONE ASSY., COMBUSTION WPL 33001835 Contact Us For Availability
019
WIRE, GROUND WPL 901220 Contact Us For Availability
020
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
PLUG FOR SPRING WPL 33002461 Contact Us For Availability
022
SCREW No.8-18AB WAFER HD WPL 22002063 Contact Us For Availability
022
CAP, GAS PIPE WPL 33001693 Contact Us For Availability
024
BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability
026
GROMMET, IDLER ARM WPL 33002218 Contact Us For Availability
028
MOTOR SUPPORT, OFFSET WPL 33002817 Contact Us For Availability
029
SCREW, MOTOR & BLOWER WPL Y313561 Contact Us For Availability
031
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
032
RETAINER, WIRE WPL 315471 Contact Us For Availability
× ![]()
