Model Maytag MDG11PDABW WASHER – Common Parts & Diagrams

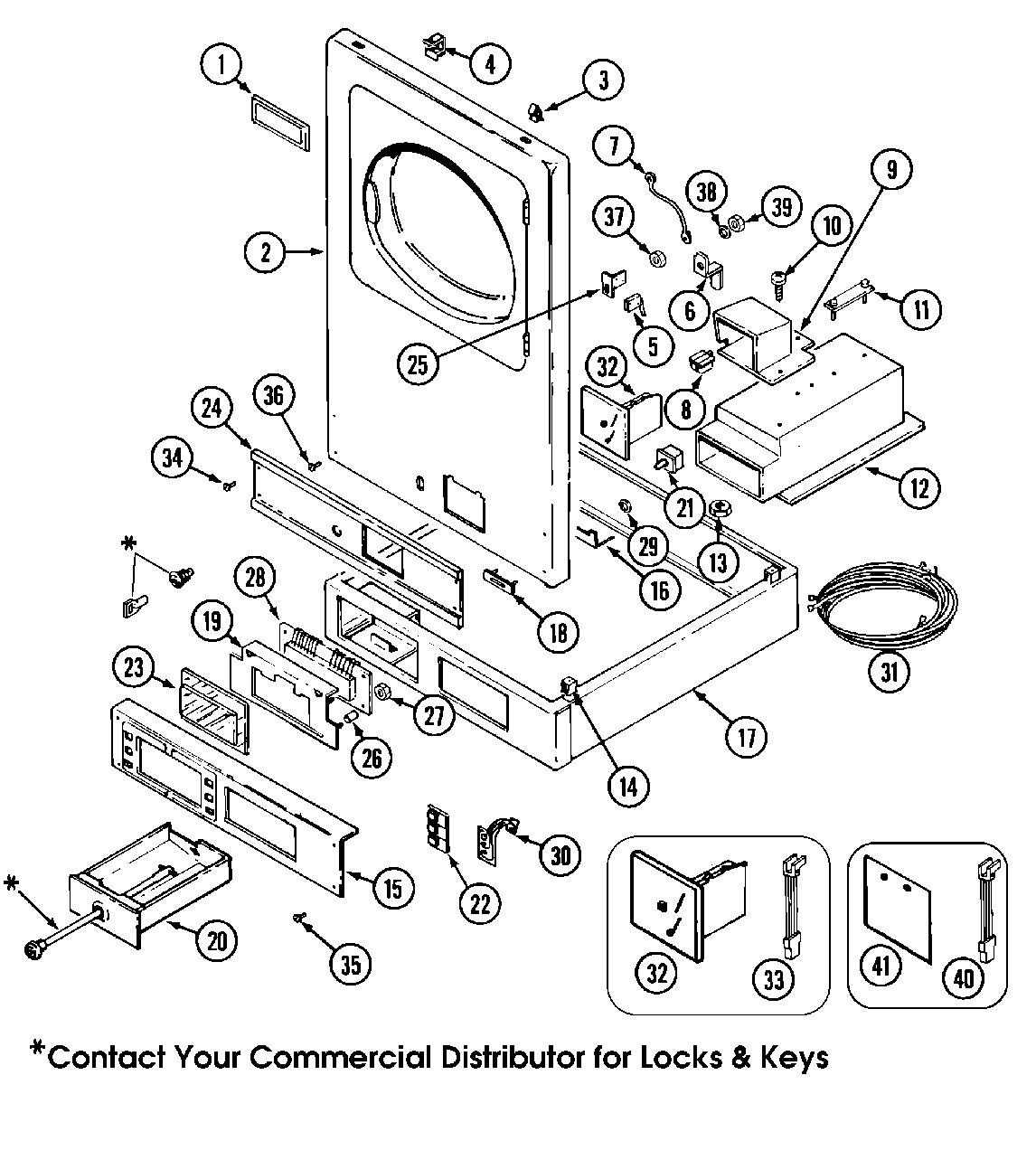

01 - CONTROLS & UPPER PANEL
02 - FRONT

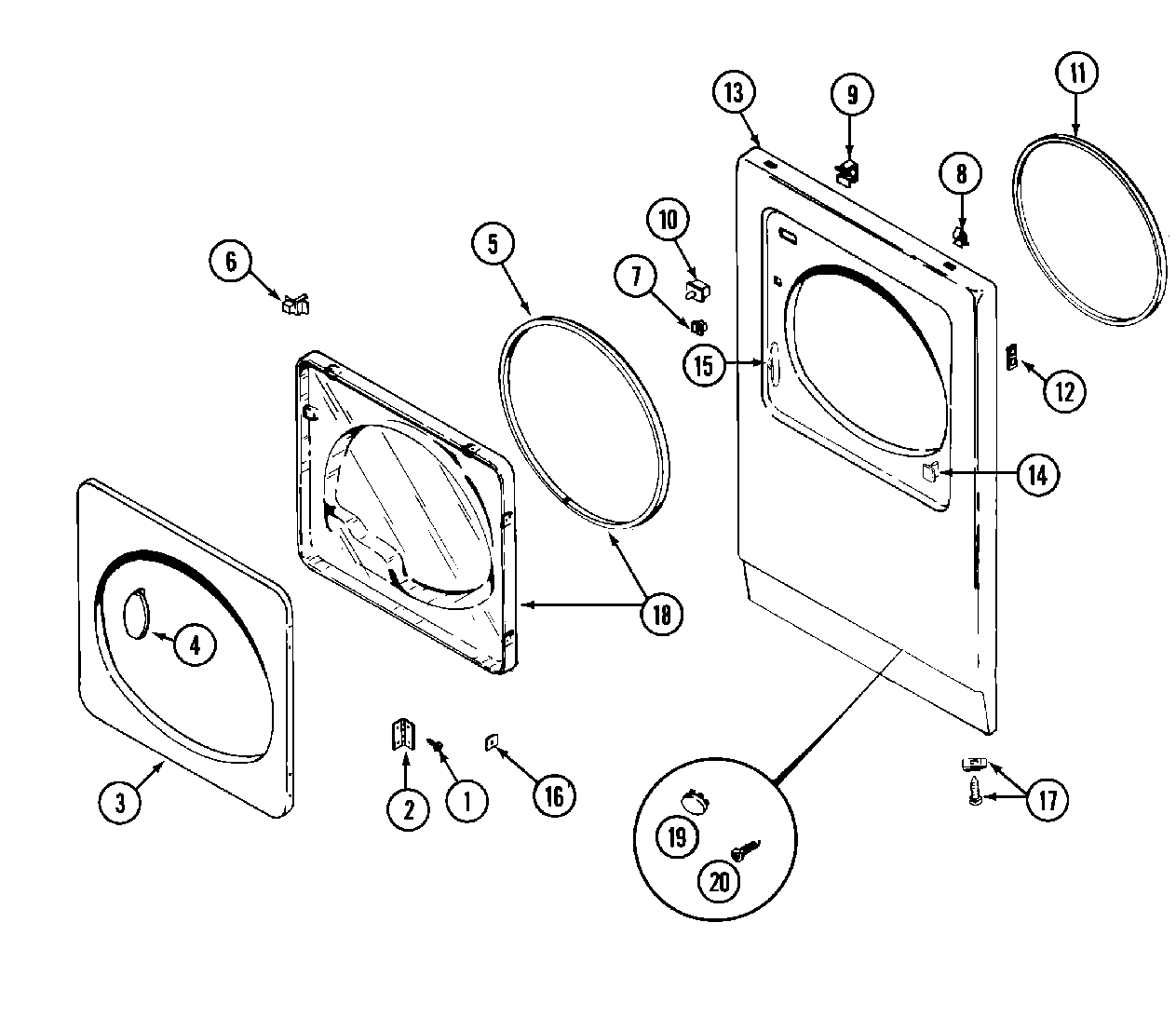

03 - DOOR

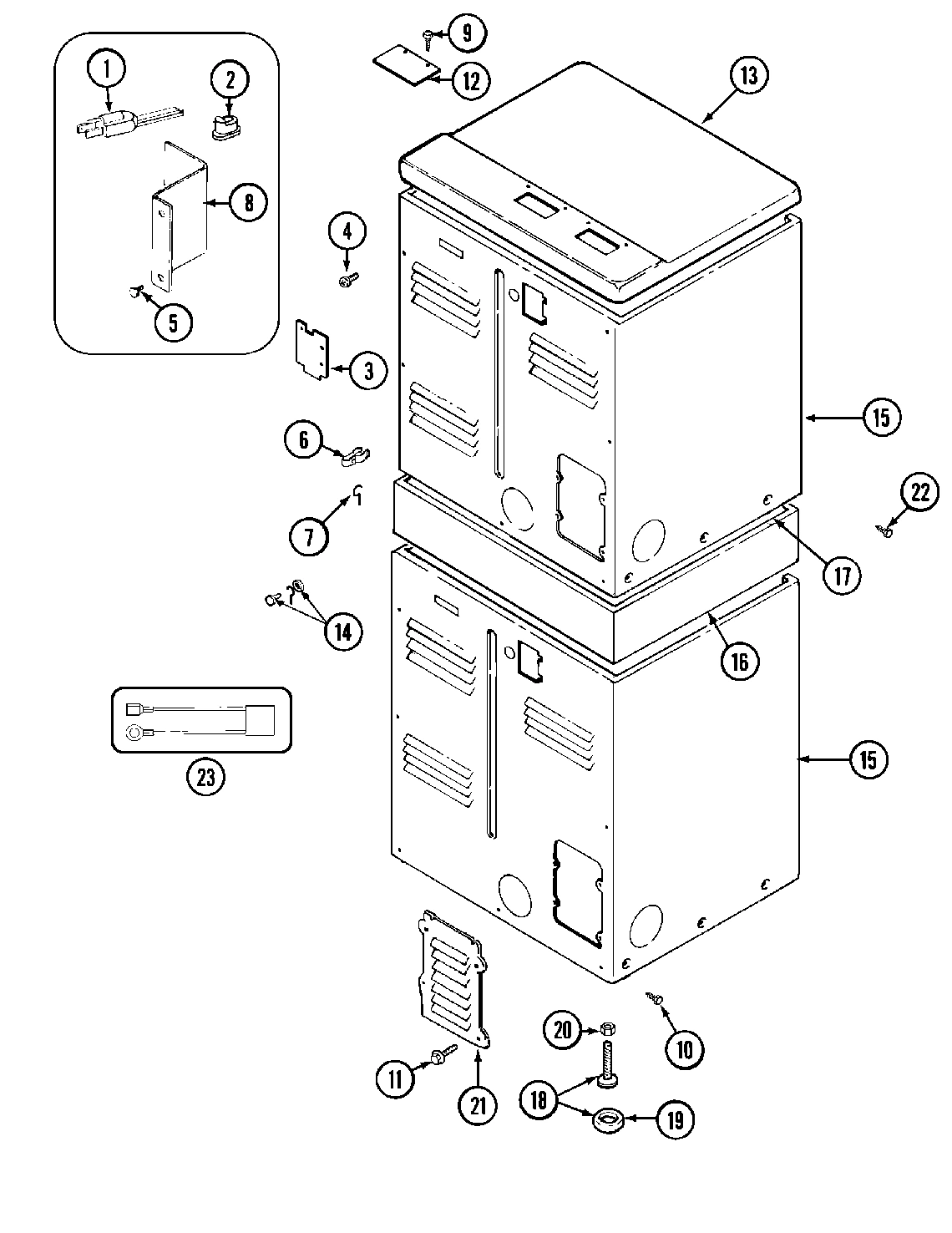

04 - REAR
05 - TUMBLER
06 - GAS VALVE

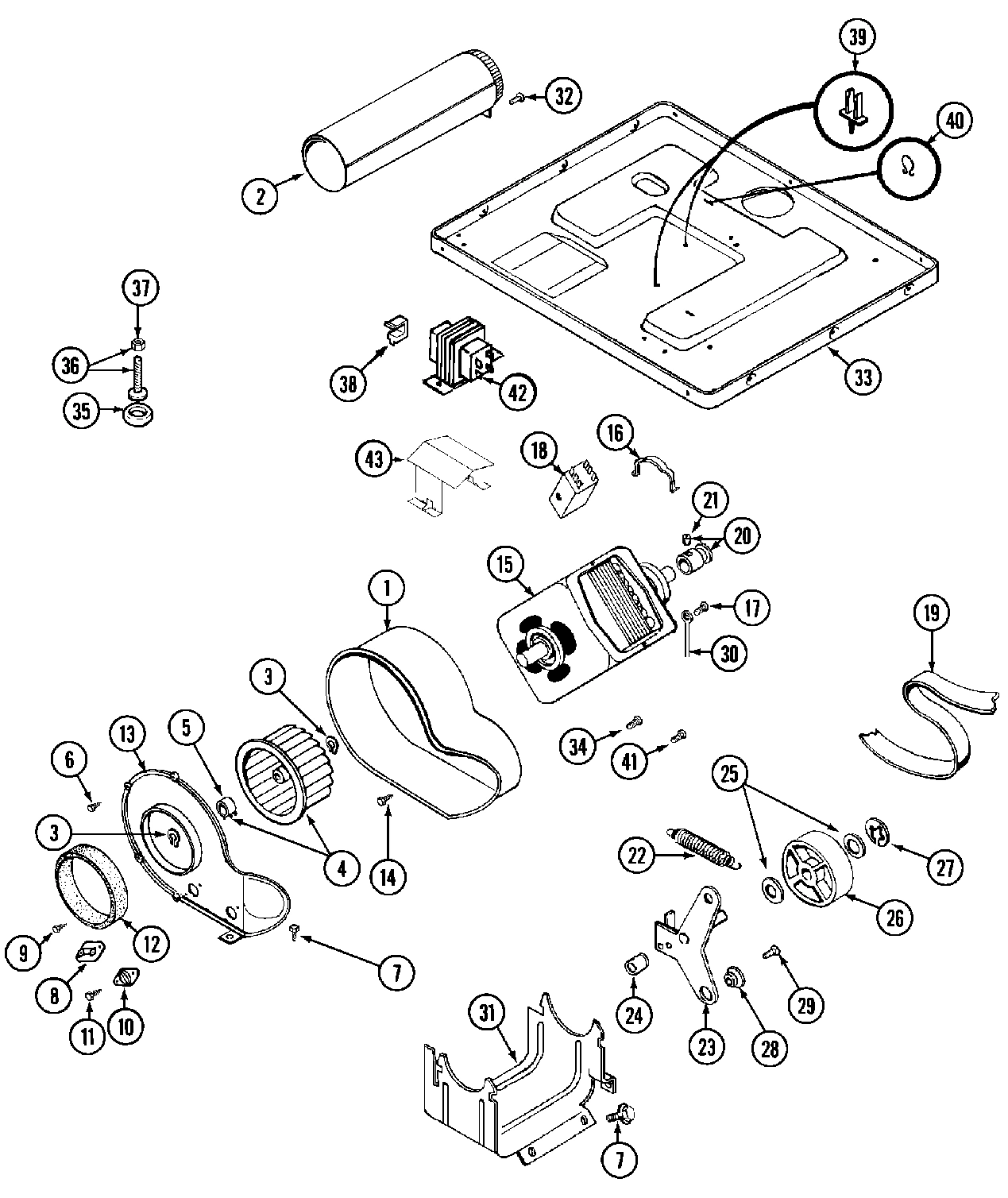

07 - MOTOR DRIVE

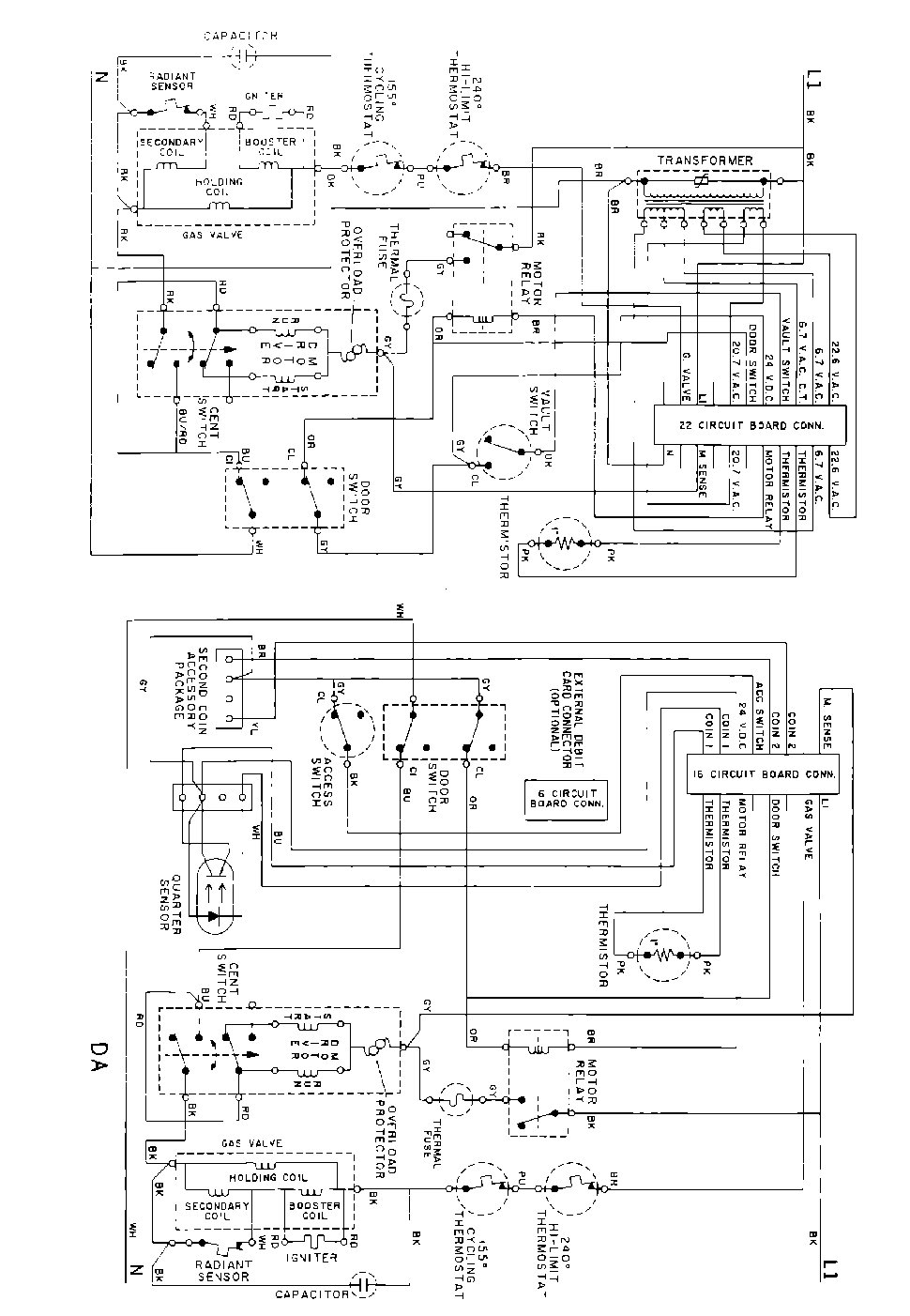

08 - WIRING INFORMATION
Common parts from model Maytag MDG11PDABW WASHER
001
OUTLET DUCT ASSEMBLY MAY 33001016 Contact Us For Availability
001
WIRING INFORMATION MAY NLA Contact Us For Availability
001
MAY 33001246 MAY 33001246 Contact Us For Availability
001
WASHER, TERMINAL CONNECTION MAY Y311270 Contact Us For Availability
001
CONVERSION KIT (NAT TO LP) MAY Y308378 Contact Us For Availability
001
MAY Y312893 MAY Y312893 Contact Us For Availability
002
MAY 33001230 MAY 33001230 Contact Us For Availability
002
GROMMET, POWER CORD MAY 211881 Contact Us For Availability
002
MAY 33001170 MAY 33001170 Contact Us For Availability
002
CONVERSION KIT (LP TO NAT.) MAY Y308377 Contact Us For Availability
002
EXHAUST DUCT ASSEMBLY MAY Y303442 Contact Us For Availability
003
PANEL, OUTER DOOR (WHT) MAY 314967 Contact Us For Availability
003
MAY Y312905 MAY Y312905 Contact Us For Availability
003
SCREW, IGNITER MAY 304971 Contact Us For Availability
004
HANDLE, DOOR (WHT) MAY 314939 Contact Us For Availability
004
(ALM) MAY 314974 Contact Us For Availability
005
MAY 33001179 MAY 33001179 Contact Us For Availability
005
STOP, CABLE MAY 910768 Contact Us For Availability
005
MAY 33001192 MAY 33001192 Contact Us For Availability
005
SCREW, TERMINAL BRACKET MAY Y312209 Contact Us For Availability
006
SCREW, SUPPORT MAY 314663 Contact Us For Availability
006
SCREW, SUPPORT MAY 911050 Contact Us For Availability
006
MAY 301548 MAY 301548 Contact Us For Availability
006
SCREW, CLAMP MAY 313122 Contact Us For Availability
007
CATCH, DOOR MAY Y304578 Contact Us For Availability
007
SCREW, HOUSING COVER BRKT MAY Y313561 Contact Us For Availability
007
WIRE, GROUND MAY 311155 Contact Us For Availability
008
MAY 307208 MAY 307208 Contact Us For Availability
008
CAPACITOR, THERMOSTAT MAY 902577 Contact Us For Availability
008
FASTENER, SPRING MAY 212982 Contact Us For Availability
008
BRACKET, TERMINAL MAY Y312904 Contact Us For Availability
010
MAY 33001420 MAY 33001420 Contact Us For Availability
010
MAY 314566 MAY 314566 Contact Us For Availability
011
MAY 33001012 MAY 33001012 Contact Us For Availability
011
MAY 314937 MAY 314937 Contact Us For Availability
011
EXTRUSION, CONTROL (LWR) MAY 33001023 Contact Us For Availability
011
SCREW, GAS VALVE ASSEMBLY MAY Y313559 Contact Us For Availability
012
WASHER, BAFFLE SCREW MAY 314158 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314082 Contact Us For Availability
012
SCREW, GAS VALVE MAY 314568 Contact Us For Availability
013
TOP COVER ASSEMBLY (WHT) MAY 33001165 Contact Us For Availability
013
MAY 33001447 MAY 33001447 Contact Us For Availability
013
MAY 33001108 MAY 33001108 Contact Us For Availability
013
MAY Y303349 MAY Y303349 Contact Us For Availability
013
COVER, BLOWER HOUSING MAY 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE MAY Y310759 Contact Us For Availability
014
PIPE & BRACKET ASSEMBLY MAY Y303383 Contact Us For Availability
014
SCREW, BLOWER HOUSING MAY 314818 Contact Us For Availability
015
MAY 33001178 MAY 33001178 Contact Us For Availability
015
MAY 33001175 MAY 33001175 Contact Us For Availability
015
(ALM) MAY 33001176 Contact Us For Availability
016
CLIP, INNER DOOR SCREW MAY Y313910 Contact Us For Availability
016
INLET DUCT ASSEMBLY MAY Y308504 Contact Us For Availability
017
SCREW & FASTNER ASSEMBLY MAY 204439 Contact Us For Availability
017
SCREW, PANEL (UPR) MAY 314666 Contact Us For Availability
017
FASTENER, SPACER ASSEMBLY MAY 310933 Contact Us For Availability
017
MAY 910343 MAY 910343 Contact Us For Availability
018
MAY 33001203 MAY 33001203 Contact Us For Availability
018
MAY 312538 MAY 312538 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) MAY 306207 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303877 Contact Us For Availability
018
SWITCH, MOTOR EXTERNAL START (PROD. No. 30335 MAY Y303879 Contact Us For Availability
019
MAY 33001132 MAY 33001132 Contact Us For Availability
019
(ALM) MAY 33001168 Contact Us For Availability
019
COMBUSTION CONE ASSEMBLY MAY Y308548 Contact Us For Availability
020
SHAFT, TUMBLER ROLLER----C WPL WP6-3129480 No Longer Available
020
SCREW, SIGHT HOLE MAY 315489 Contact Us For Availability
020
EXTENSION, CONE (W/SCREWS) MAY Y303841 Contact Us For Availability
020
MAY Y305185 MAY Y305185 Contact Us For Availability
021
MAY Y312951 MAY Y312951 Contact Us For Availability
021
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
021
MAY Y312890 MAY Y312890 Contact Us For Availability
021
SCREW, SET MAY Y053241 Contact Us For Availability
022
MAY Y303945 MAY Y303945 Contact Us For Availability
025
BRACKET, RELAY MAY 314627 Contact Us For Availability
025
MAY Y312527 MAY Y312527 Contact Us For Availability
026
RELAY, MOTOR MAY 206421 Contact Us For Availability
026
RELAY, MOTOR MAY 206824 Contact Us For Availability
026
SCREW, OUTLET DUCT MAY Y314110 Contact Us For Availability
028
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
030
GROUND WIRE MAY 901220 Contact Us For Availability
031
MAY 33001404 MAY 33001404 Contact Us For Availability
031
MAY 33001405 MAY 33001405 Contact Us For Availability
031
MAY 33001407 MAY 33001407 Contact Us For Availability
032
MAY 308121 MAY 308121 Contact Us For Availability
032
(CAN-25 CENTS) MAY Y308123 Contact Us For Availability
032
SCREW, EXHAUST DUCT MAY Y310632 Contact Us For Availability
033
MAY 315427 MAY 315427 Contact Us For Availability
033
BASE ASSEMBLY (UPR) MAY 306261 Contact Us For Availability
033
(LWR) MAY 306530 Contact Us For Availability
036
LEG, ADJUSTABLE (W/NUT)---S MAY Y302699 Contact Us For Availability
038
MAY 22001354 MAY 22001354 Contact Us For Availability
038
CLIP, CABLE MAY Y310376 Contact Us For Availability
039
NUT, LOCK MAY 22001355 Contact Us For Availability
039
RETAINER, WIRE HARNESS MAY 315471 Contact Us For Availability
040
OPTIC SWITCH ASSEMBLY (PART NOT USED) MAY 33001025 Contact Us For Availability
040
MAY 410490 MAY 410490 Contact Us For Availability
041
PLATE, COIN DROP COVER (PART NOT USED) MAY 33001157 Contact Us For Availability
042
MAY 33001205 MAY 33001205 Contact Us For Availability
043
SHIELD, TRANSFORMER MAY 315218 Contact Us For Availability
× ![]()
