Model Whirlpool MDG10CSAGL GAS DRYER – Common Parts & Diagrams
01 - CONTROL PANEL

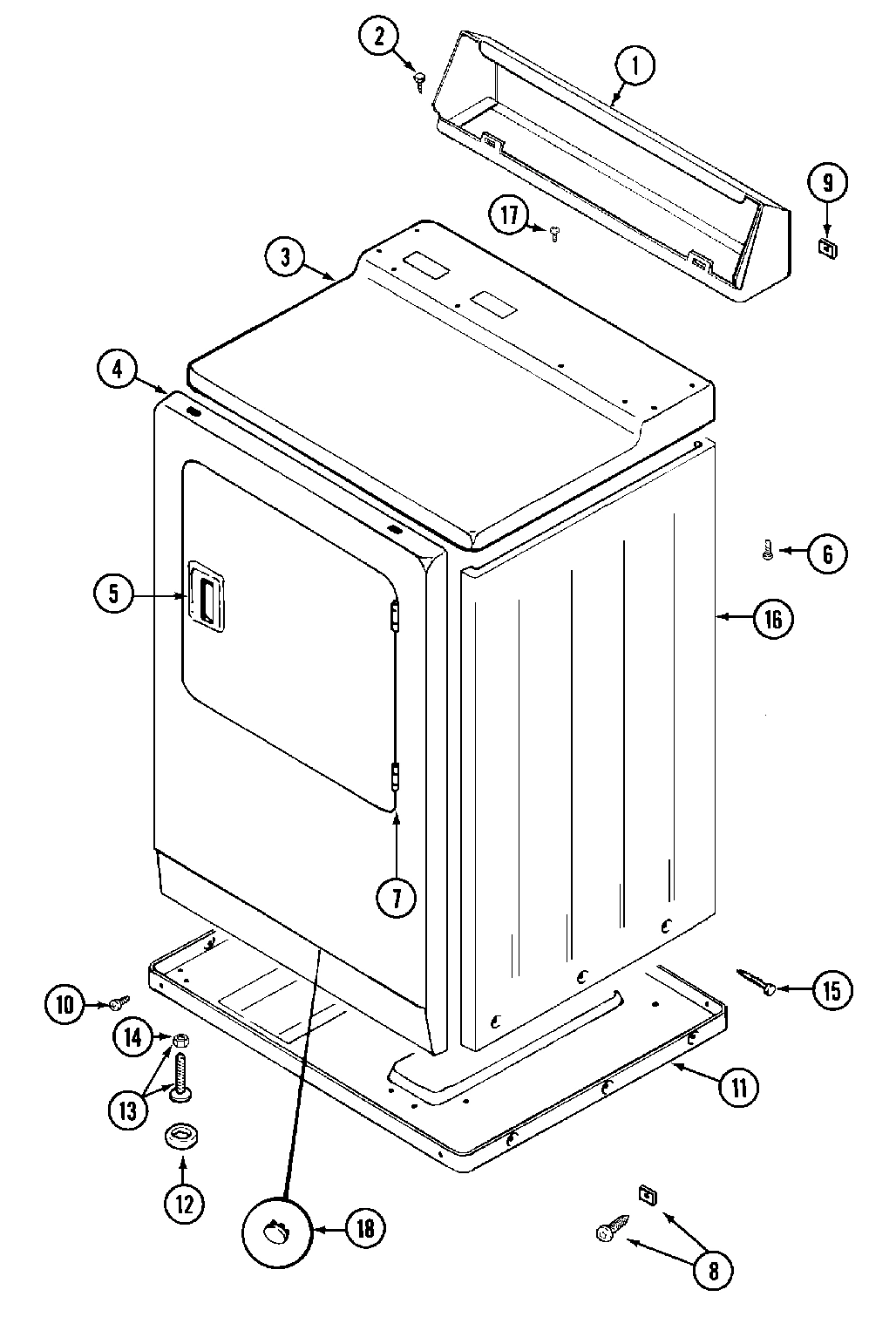

03 - CABINET (FRONT)

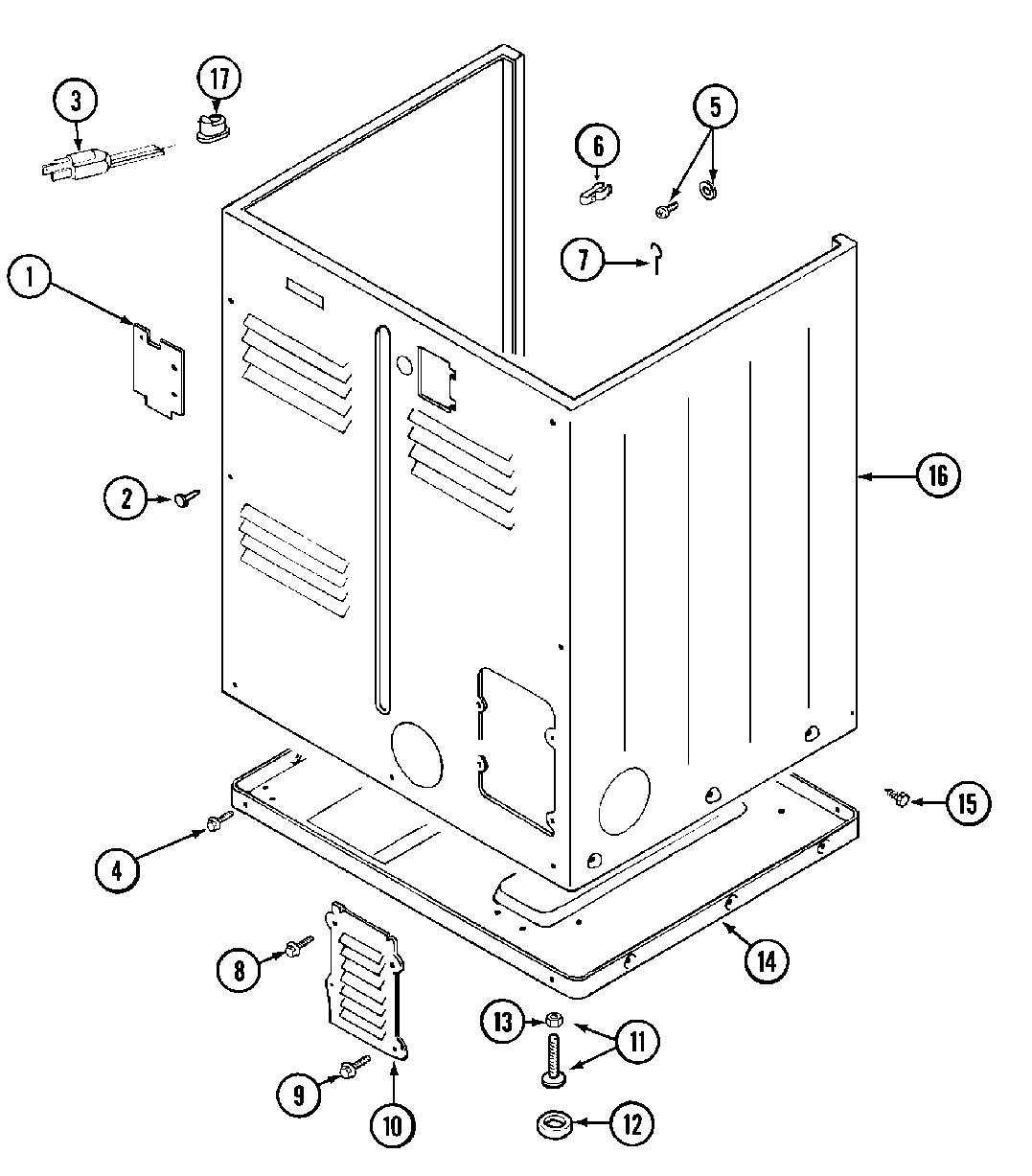

05 - CABINET (REAR)
07 - GAS VALVE

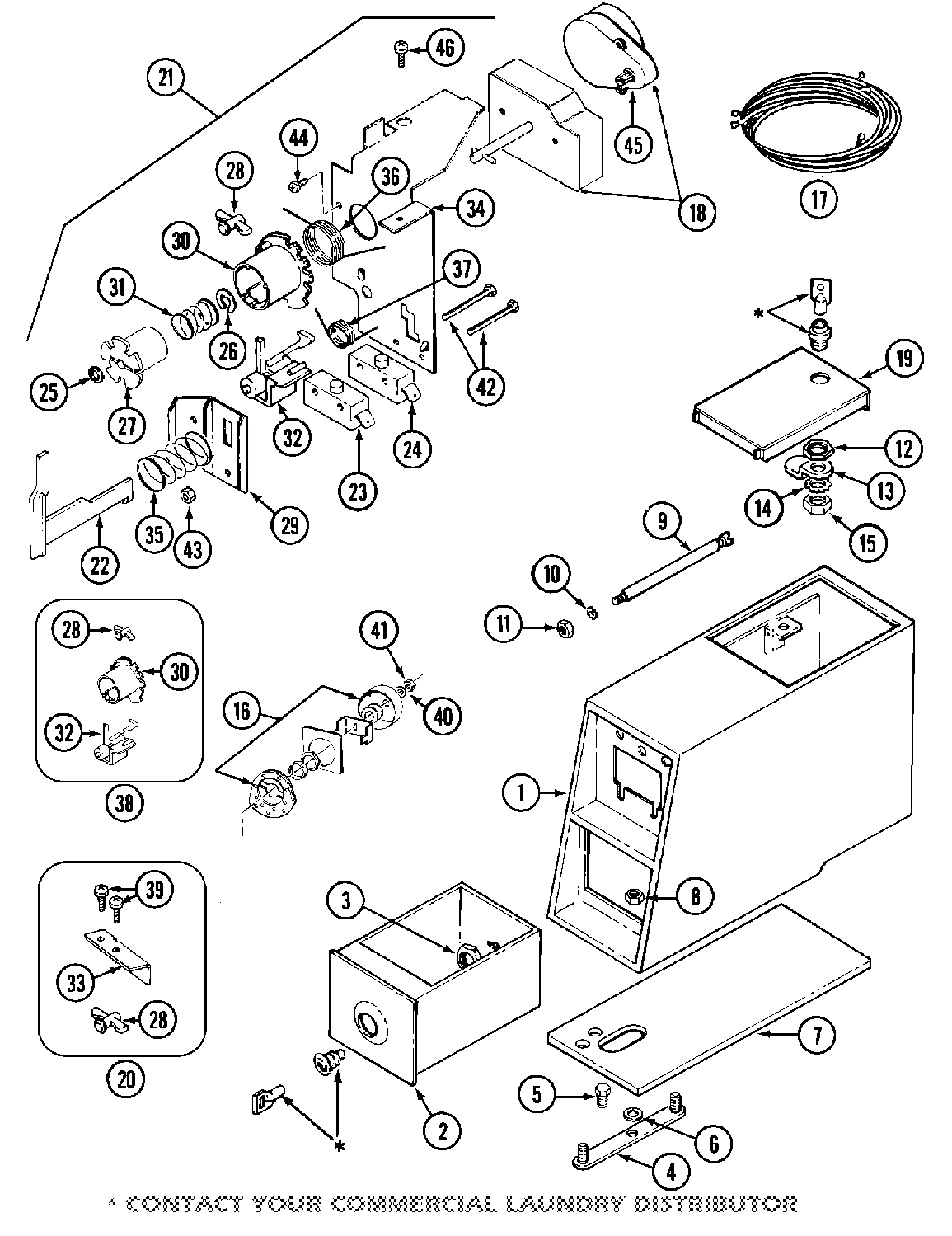

02 - CONTROL CENTER
06 - TUMBLER

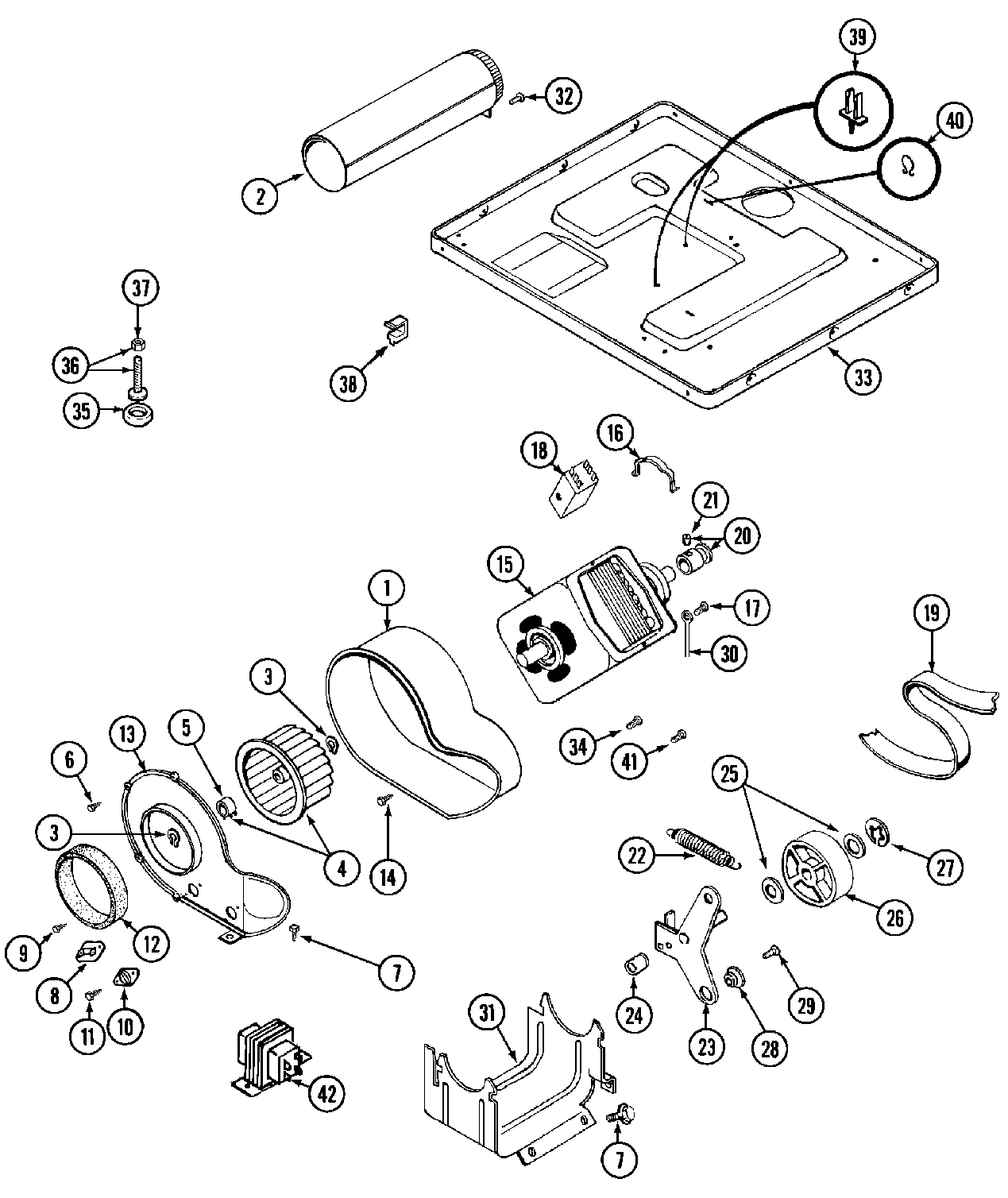

08 - MOTOR DRIVE
04 - DOOR
Common parts from model Whirlpool MDG10CSAGL GAS DRYER
001
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
CONV KIT (NATURAL TO LP) ----S WPL Y308378 Contact Us For Availability
001
COIN METER CASE (WHT) WPL 206952 Contact Us For Availability
001
(ALM) WPL 206952L Contact Us For Availability
001
DUCT ASSY., OUTLET WPL 33001016 Contact Us For Availability
001
SCREW,HINGE,DOOR,& PANEL WPL Y314062 Contact Us For Availability
002
HINGE, DOOR WPL 33001230 Contact Us For Availability
002
CONVERSION KIT (LP TO NATURAL) WPL Y308377 Contact Us For Availability
002
VAULT, COIN (WHT) WPL 207913 Contact Us For Availability
002
FILTER, LINT WPL 33001170 Contact Us For Availability
002
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
003
COVER, TOP (WHT) WPL 33001163 Contact Us For Availability
003
(ALM) WPL 33001164 Contact Us For Availability
003
CORD, POWER (EXPORT) WPL 308966 Contact Us For Availability
003
CORD, POWER WPL 33001285 Contact Us For Availability
003
SCREW, IGNITER WPL 304971 Contact Us For Availability
003
DOOR (WHT) WPL 33001240 Contact Us For Availability
003
(ALM) WPL 33001257 Contact Us For Availability
004
(ALM) WPL 33001254 Contact Us For Availability
005
HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability
005
FRONT, TUMBLER (W/SEAL) WPL 33001179 Contact Us For Availability
005
SEAL, DOOR WPL 33001131 Contact Us For Availability
006
SCREW, TOP COVER WPL 214354 Contact Us For Availability
006
PLUG, SIGHT HOLE (WHT) WPL 33001132 Contact Us For Availability
006
(ALM) WPL 33001168 Contact Us For Availability
006
GROUND CLAMP & SCREW WPL 301548 Contact Us For Availability
006
VLAVE, GAS WPL 307927 Contact Us For Availability
006
WASHER WPL 910309 Contact Us For Availability
007
SCREW, HOUSING COVER WPL Y313561 Contact Us For Availability
007
WIRE, GROUND WPL 204807 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
008
THERMOSTAT, CYCLING (155 DEG.) WPL 306966 Contact Us For Availability
009
FASTENER, CONSOLE WPL 215075 Contact Us For Availability
009
BOLT, LOCKING WPL 215559 Contact Us For Availability
009
CLIP, CABLE WPL Y310376 Contact Us For Availability
010
COVER, ACCESS WPL Y312951 Contact Us For Availability
010
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
010
LOCK WASHER WPL 910387 Contact Us For Availability
011
BAFFLE (SHORT) WPL 33001012 Contact Us For Availability
011
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001029 Contact Us For Availability
012
WIRE HARNESS, MAIN WPL 33001531 Contact Us For Availability
012
WASHER, BAFFLE WPL 314158 Contact Us For Availability
013
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
013
DRYER TUMBLER, W/O BAFFLES WPL 33001108 Contact Us For Availability
013
COVER, BLOWER HOUSING WPL 314778 Contact Us For Availability
014
SCREW, TUMBLER BAFFLE WPL Y310759 Contact Us For Availability
014
NUT, SWITCH WPL Y312706 Contact Us For Availability
014
BASE ASSY. WPL Y303361 Contact Us For Availability
014
PLUG, DOOR CATCH WPL NLA Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
015
BACK, TUMBLER (W/SEAL) WPL 33001178 Contact Us For Availability
015
MOTOR (240V 50HZ) WPL Y304656 Contact Us For Availability
015
COVER, HINGE HOLE (WHT) WPL 33001175 Contact Us For Availability
015
(ALM) WPL 33001176 Contact Us For Availability
016
NUT, KNURLED WPL Y312702 Contact Us For Availability
016
INLET DUCT ASSY. WPL Y308504 Contact Us For Availability
016
LOCKWASHER WPL 216203 Contact Us For Availability
016
FASTENER, INNER DOOR WPL Y313910 Contact Us For Availability
017
SCREW & FASTENER ASSEMBLY WPL 204439 Contact Us For Availability
017
WIRE HARNESS, TIMER WPL 33001195 Contact Us For Availability
018
TIMER (240V-50HZ) WPL 33001274 Contact Us For Availability
018
(PROD. No. 303358-8 & 303358-9) WPL 306207 Contact Us For Availability
018
SWITCH, MOTOR START (PROD. No. 303358-2, 3033 WPL Y303877 Contact Us For Availability
018
SWITCH, MOTOR START (PROD. No. 303358 & 30335 WPL Y303879 Contact Us For Availability
018
DOOR, INNER (W/SEAL) WPL 33001243 Contact Us For Availability
019
CONE, COMBUSTION ASSY. WPL Y308548 Contact Us For Availability
019
DOOR, ACCESS (WHT) WPL 204216 Contact Us For Availability
019
(ALM) WPL 204216L Contact Us For Availability
020
EXTENSION, CONE (W/SCREWS) WPL Y303841 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL 305186 Contact Us For Availability
021
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
021
TORSION TIMER ASSY.(240V-50HZ) WPL 33001276 Contact Us For Availability
021
SCREW, SET WPL Y053241 Contact Us For Availability
022
IDLER SPRING ASSY. WPL Y303945 Contact Us For Availability
023
SWITCH, BY-PASS (MOTOR) WPL 305798 Contact Us For Availability
024
SWITCH, BY-PASS (HEATER) WPL Y305799 Contact Us For Availability
025
RETAINER, SPRING WPL 211790 Contact Us For Availability
026
CLIP, SPRING RETAINER WPL Y312270 Contact Us For Availability
027
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
028
PEG, TINE ADJUSTMENT WPL 314335 Contact Us For Availability
029
BRACKET, SWITCH & SLIDER WPL 314339 Contact Us For Availability
030
WHEEL, INDEX WPL 314546 Contact Us For Availability
030
WIRE, GROUND WPL 901220 Contact Us For Availability
032
SCREW, EXHAUST DUCT WPL Y310632 Contact Us For Availability
032
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
033
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
033
BASE ASSY. WPL Y305084 Contact Us For Availability
034
BRACKET, TIMER WPL 33001207 Contact Us For Availability
036
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
036
SPRING, TORSION RETURN WPL 314331 Contact Us For Availability
037
SPRING, ACTUATOR WPL 314332 Contact Us For Availability
038
ACTUATOR KIT WPL 306104 Contact Us For Availability
039
RETAINER, WIRE WPL 315471 Contact Us For Availability
040
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
041
NUT, CAM LOCK WPL 22001355 Contact Us For Availability
042
SCREW, BY-PASS SWITCHES WPL 315277 Contact Us For Availability
042
TRANSFORMER WPL 307928 Contact Us For Availability
045
MOTOR, TIMER (240V 50HZ) WPL 306527 Contact Us For Availability
× ![]()
