Model Whirlpool MDE9606AYA ELECTRIC DRYER – Common Parts &amp; Diagrams

1

OUTLET DUCT ASSEMBLY WPL 33001799 Contact Us For Availability

1

SEAL, SHROUD WPL 33001767 Contact Us For Availability

1

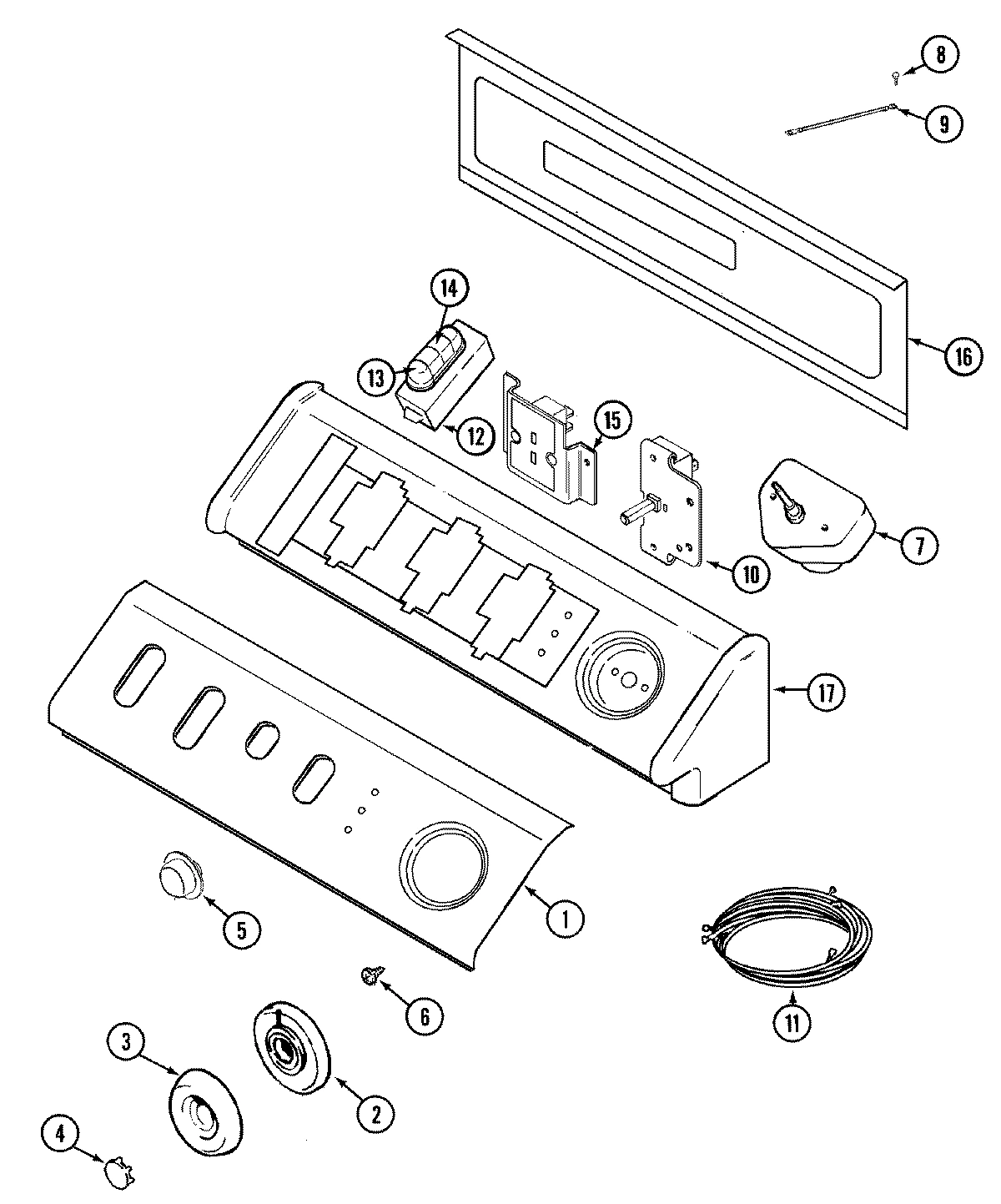

PANEL, CONTROL (ALM) WPL 33001931 Contact Us For Availability

1

COVER, TOP (ALM)----NA WPL 33001906 Contact Us For Availability

2

WP33001808 Whirlpool Lint Filter In Stock WPL WP33001808 $39.64

2

WP33002346 Whirlpool Dial Knob Backorder WPL WP33002346 $31.79

2

BRACKET, CABINET HINGE WPL 33001827 Contact Us For Availability

2

HOOK, SECURITY WPL 22002247 Contact Us For Availability

2

WIRE, GROUND WPL 33001859 Contact Us For Availability

2

DUCT ASSY., EXHAUST WPL 33001800 Contact Us For Availability

3

WP22001659 Whirlpool Timer Knob In Stock WPL WP22001659 $18.86

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

3

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.43

3

SEAL, BLOWER WPL 33001758 Contact Us For Availability

3

COVER, TERMINAL BLOCK WPL 33001795 Contact Us For Availability

3

SHROUD (ALM)----NA WPL 33001907 Contact Us For Availability

4

33001790 Whirlpool Blower Wheel In Stock WPL 33001790 $21.72

4

SCREW (No.10-3/8``) WPL 33002190 Contact Us For Availability

4

INSERT, TIMER KNOB (ALM) WPL 22001665 Contact Us For Availability

4

BRACKET, TERMINAL BLOCK----NA WPL 33001826 Contact Us For Availability

5

WP312967 Whirlpool Clamp In Stock WPL WP312967 $7.29

5

WPY308612 Whirlpool Heating Element In Stock WPL WPY308612 $233.86

5

SCREW, SHROUD WPL 33001768 Contact Us For Availability

5

BUTTON, PUSH TO START (ALM) WPL 33001620 Contact Us For Availability

6

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $21.70

6

W11705611 Whirlpool Block Ter In Stock WPL W11705611 $57.43

6

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

6

SHIELD, RADIANT WPL 314999 Contact Us For Availability

6

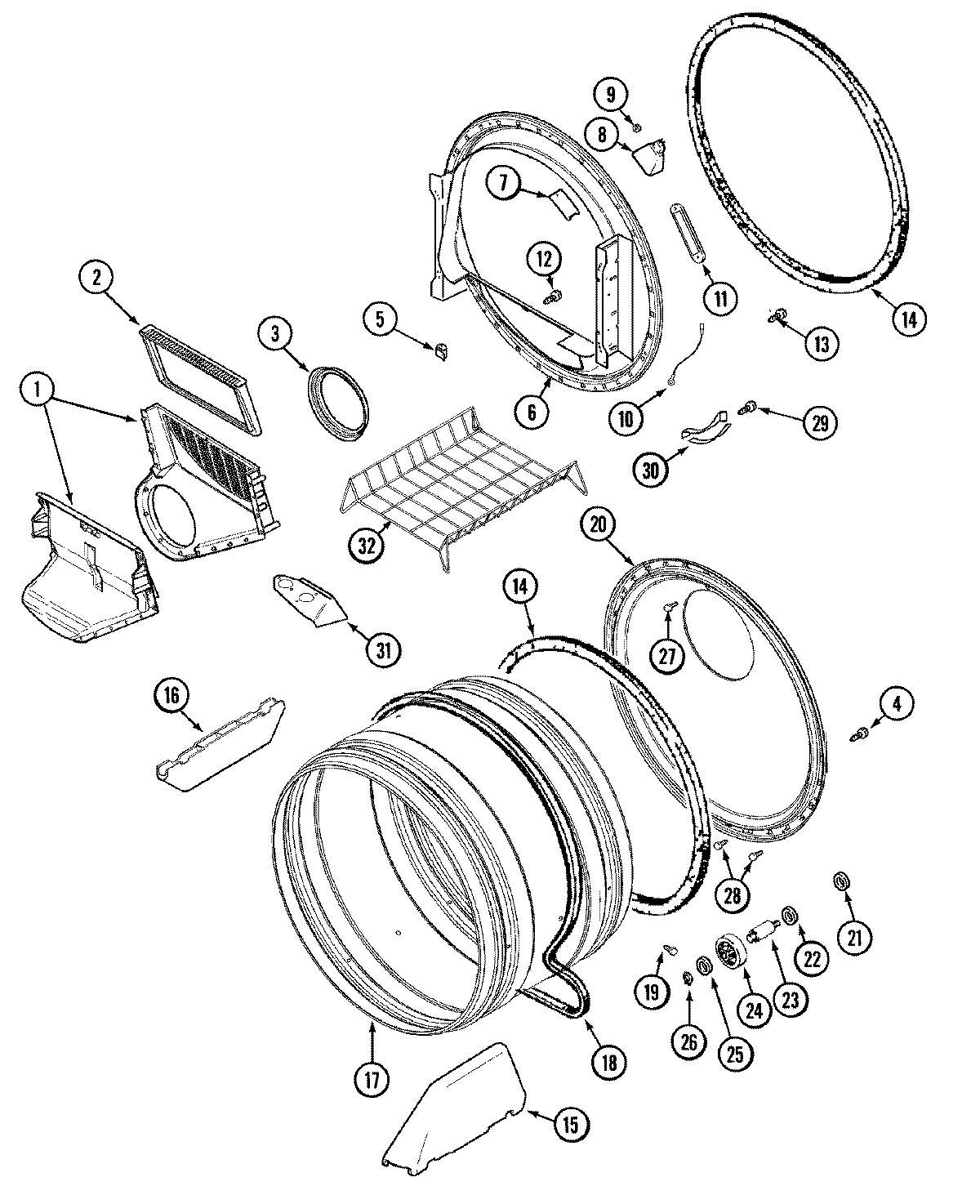

FRONT, TUMBLER FRONT W/SENSOR WPL 33001868 Contact Us For Availability

7

W11164114 Whirlpool Screw Backorder WPL W11164114 $2.67

7

WP33001932 Whirlpool Timer Assembly Backorder WPL WP33001932 $302.19

7

SCREW WPL 314554 Contact Us For Availability

7

LENS, DRUM LIGHT WPL 33001869 Contact Us For Availability

7

SCREW WPL 33001871 Contact Us For Availability

7

BRACKET, HINGE WPL 33001760 Contact Us For Availability

8

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $13.15

8

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.39

8

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $32.51

8

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $60.92

8

HOLDER, LAMP (W/HOUSING) WPL 33001870 Contact Us For Availability

9

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.54

9

WP307178 Whirlpool Element In Stock WPL WP307178 $261.68

9

PALNUT, END CAP WPL 214872 Contact Us For Availability

9

STRAP, GROUND WPL Y312184 Contact Us For Availability

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

WP33001762 Whirlpool Dryer Thermal Fuse In Stock WPL WP33001762 $39.97

WP33002094 Whirlpool Door Seal Backorder WPL WP33002094 $90.86

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

WPY307173 Whirlpool Wire Jumper Backorder WPL WPY307173 $4.82

SENSOR GROUND WIRE WPL Y303711 Contact Us For Availability

SWITCH, PUSH TO START (ALM) WPL 33001862 Contact Us For Availability

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP307473 Whirlpool Thermal Fuse In Stock WPL WP307473 $47.97

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

SENSOR BAR ASSY. WPL 33001809 Contact Us For Availability

CLIP, DOOR (DOUBLE) WPL 22002038 Contact Us For Availability

WIRE HARNESS, MAIN WPL 33001933 Contact Us For Availability

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $4.82

WP33001793 Whirlpool Bracket Spring Backorder WPL WP33001793 $4.82

SCREW----NA WPL 312311 Contact Us For Availability

SWITCH, TEMPERATURE (ELC.) WPL 33001654 Contact Us For Availability

SEAL, BLOWER COVER WPL 33001772 Contact Us For Availability

BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability

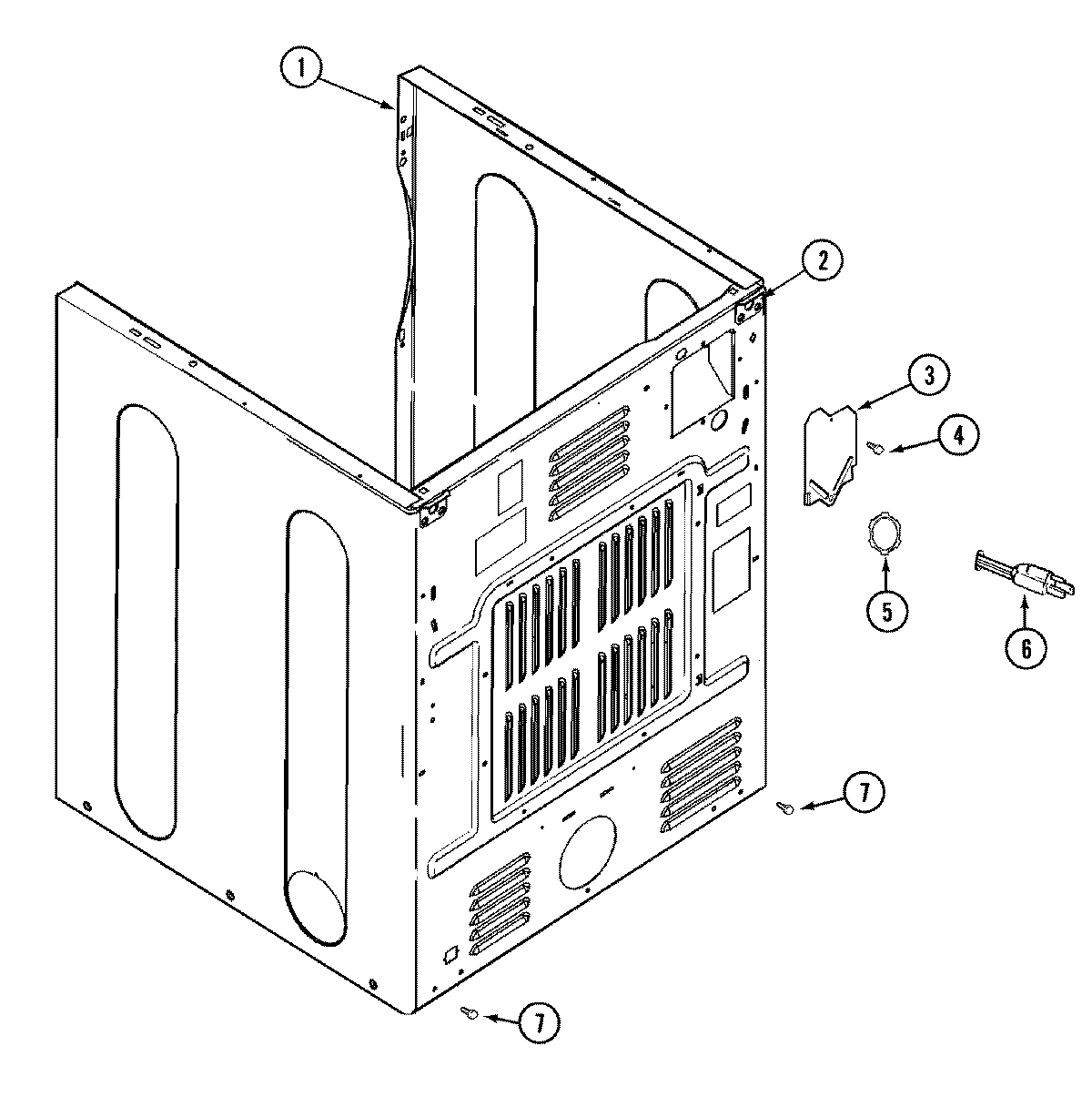

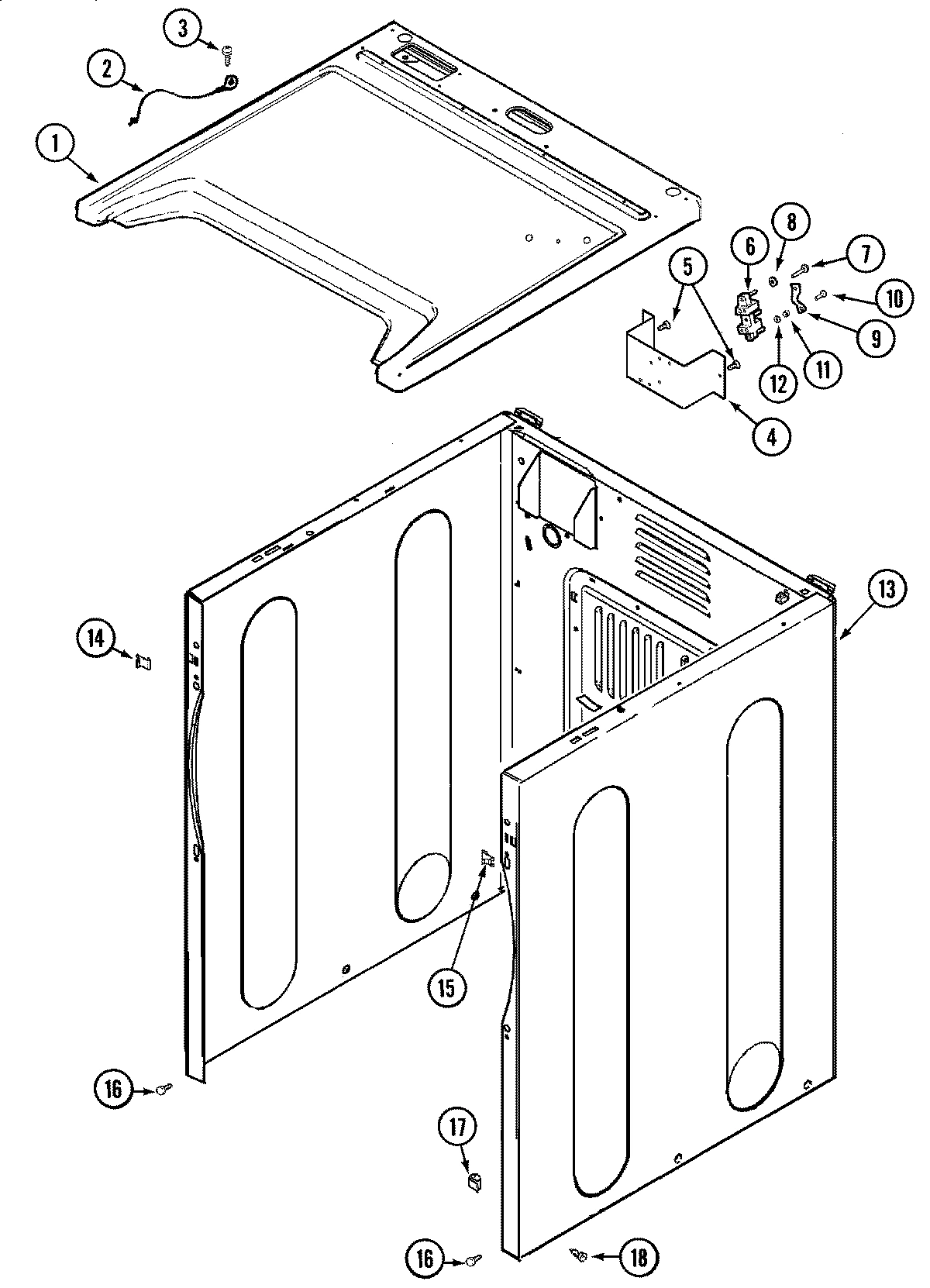

CABINET (ALM)----NA WPL 33001898 Contact Us For Availability

STRIKE, DOOR (MALE) WPL 33001761 Contact Us For Availability

BUTTON (ALM-END) WPL 22001790 Contact Us For Availability

COVER, BLOWER HOUSING----NA WPL 33001873 Contact Us For Availability

WP33001807 Whirlpool Felt Seal In Stock WPL WP33001807 $12.54

CONVERSION KIT (240V TO 208V) WPL Y308590 Contact Us For Availability

CLIP, DOOR (SINGLE) WPL 22002039 Contact Us For Availability

BUTTON (ALM-MDL) WPL 22001791 Contact Us For Availability

SCREW WPL 314818 Contact Us For Availability

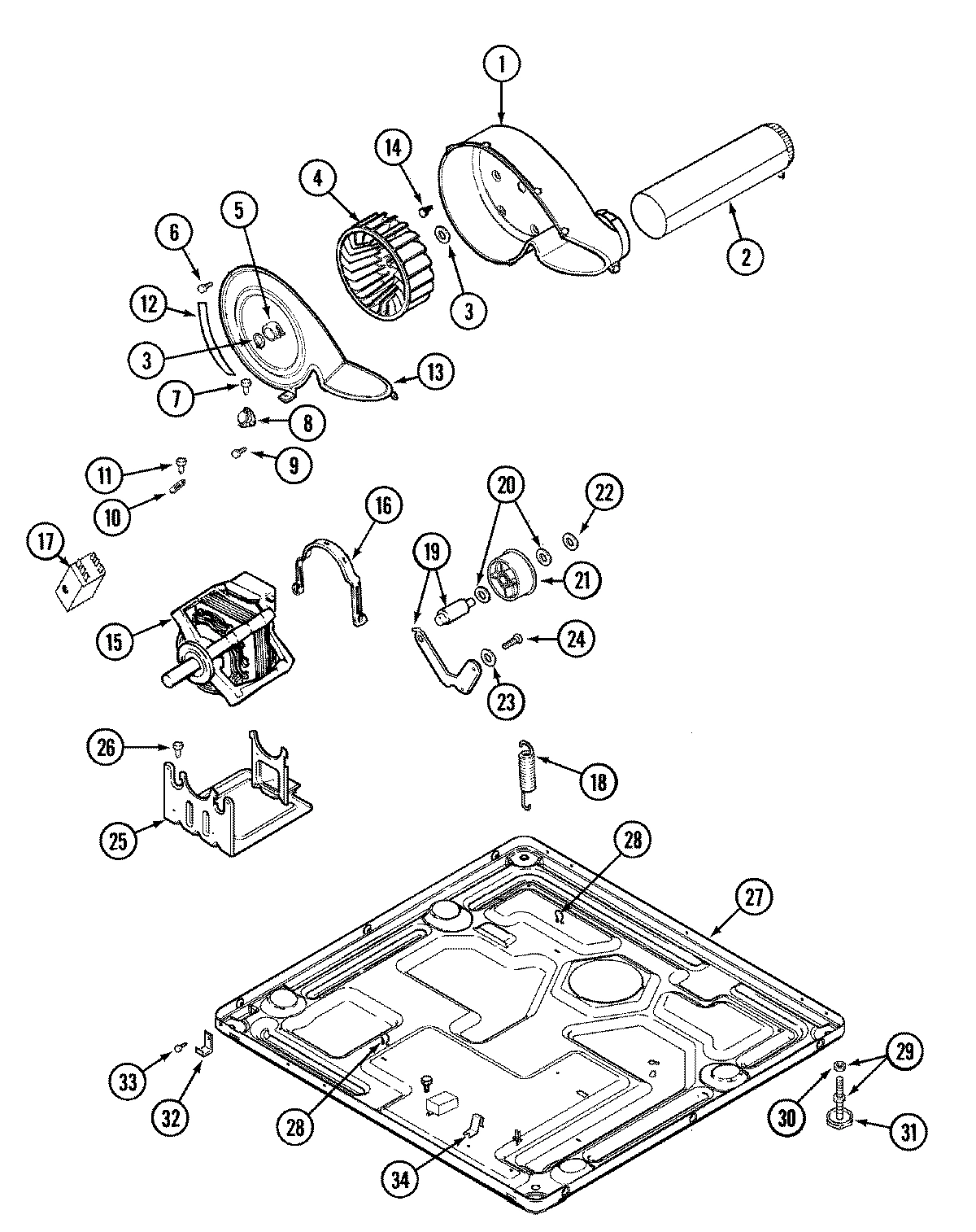

W10410997 Whirlpool Drive Motor In Stock WPL W10410997 $123.19

WP33002032 Whirlpool Drum Baffle In Stock WPL WP33002032 $21.91

PLUG, INNER DOOR WPL 33001763 Contact Us For Availability

DISPLAY, DRYNESS (ALM) WPL 33001662 Contact Us For Availability

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

WP33001755 Whirlpool Drum Baffle In Stock WPL WP33001755 $26.50

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $13.87

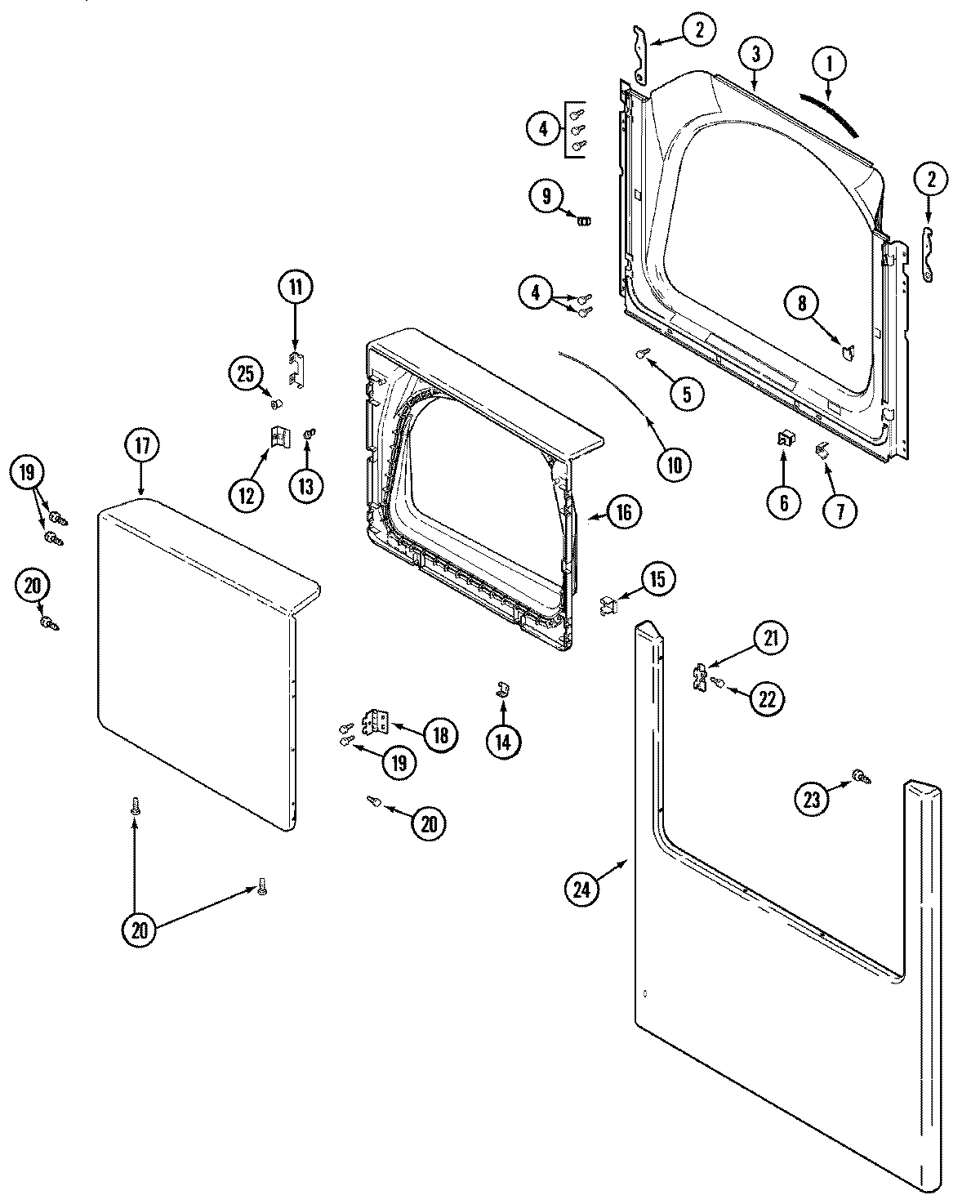

DOOR, INNER (ALM) WPL 33001908 Contact Us For Availability

BACK, CONSOLE PANEL WPL 33001806 Contact Us For Availability

TUMBLER WPL 33001889 Contact Us For Availability

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

DOOR, OUTER (ALM)----NA WPL 33001909 Contact Us For Availability

CONSOLE (ALM) WPL 22002286 Contact Us For Availability

213007 Whirlpool Screw #12 Backorder WPL 213007 $7.90

33002459 Whirlpool Idler Spring Backorder WPL 33002459 $4.82

WP33001759 Whirlpool Door Hinge Backorder WPL WP33001759 $56.66

WP33002535 Whirlpool Dryer Drive Belt In Stock WPL WP33002535 $24.91

MANUAL, USE & CARE WPL 33001934 Contact Us For Availability

19

WP6-3705180 Whirlpool Idler Pulley Lever In Stock WPL WP6-3705180 $53.48

19

WP98006631 Whirlpool Screw Backorder WPL WP98006631 $4.82

19

SCREW, BAFFLE WPL 33001788 Contact Us For Availability

20

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

20

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $6.84

20

BACK, TUMBLER (W/SEAL) WPL 33001801 Contact Us For Availability

21

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $4.82

21

COVER, HINGE HOLE (ALM) WPL 33001765 Contact Us For Availability

21

BEARING, IDLER ASSEMBLY WPL 33001783 Contact Us For Availability

22

WP33001787 Whirlpool Screw Backorder WPL WP33001787 $7.38

22

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.38

23

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $7.92

24

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $11.73

24

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $4.82

24

PANEL, FRONT (ALM)----NA WPL 33001910 Contact Us For Availability

25

WP312535 Whirlpool Washer Backorder WPL WP312535 $7.09

25

BUSHING, INNER DOOR WPL 33001771 Contact Us For Availability

25

SUPPORT, MOTOR WPL 33001752 Contact Us For Availability

26

SCREW----NA WPL Y313561 Contact Us For Availability

27

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

27

BASE WPL 33001845 Contact Us For Availability

28

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

29

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

29

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

30

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $6.28

30

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

31

COVER, THERMOSTAT (ELEC ONLY) WPL 33001837 Contact Us For Availability

32

RACK, DRYING WPL 33001917 Contact Us For Availability

32

CLIP, LOWER FRONT PANEL WPL 22002239 Contact Us For Availability

33

SCREW WPL Y310632 Contact Us For Availability

34

CLIP, GROUNDING WPL 22002244 Contact Us For Availability

NI

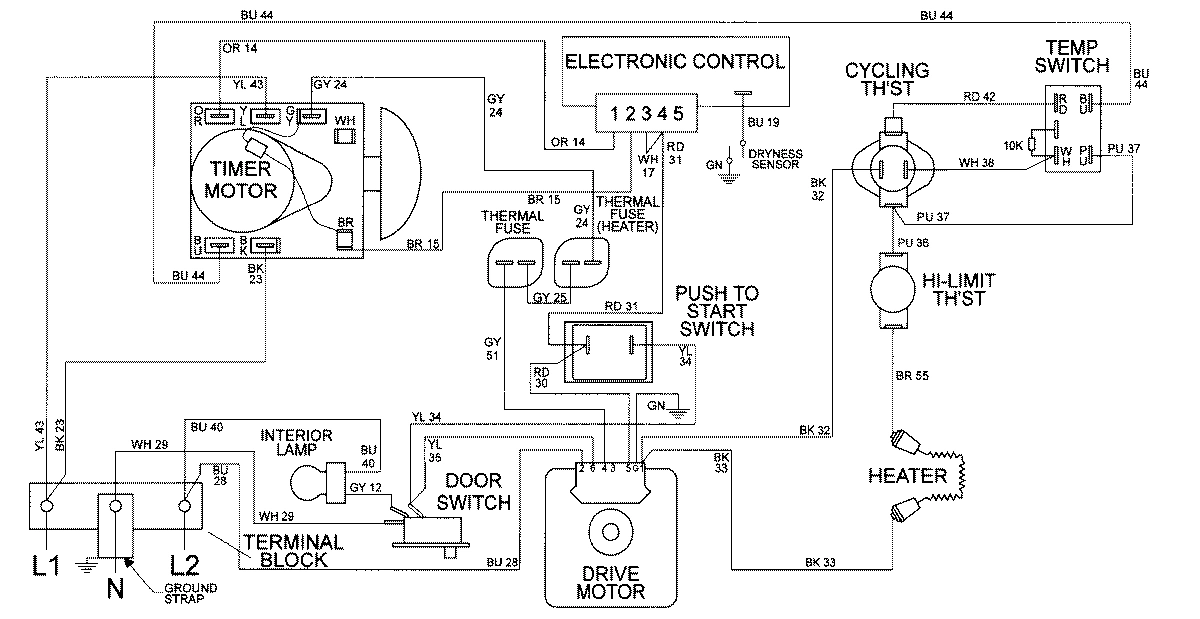

WIRING INFORMATION WPL 15002677 Contact Us For Availability
