Model Maytag MDE27CSACL ELECTRIC DRYER – Common Parts & Diagrams

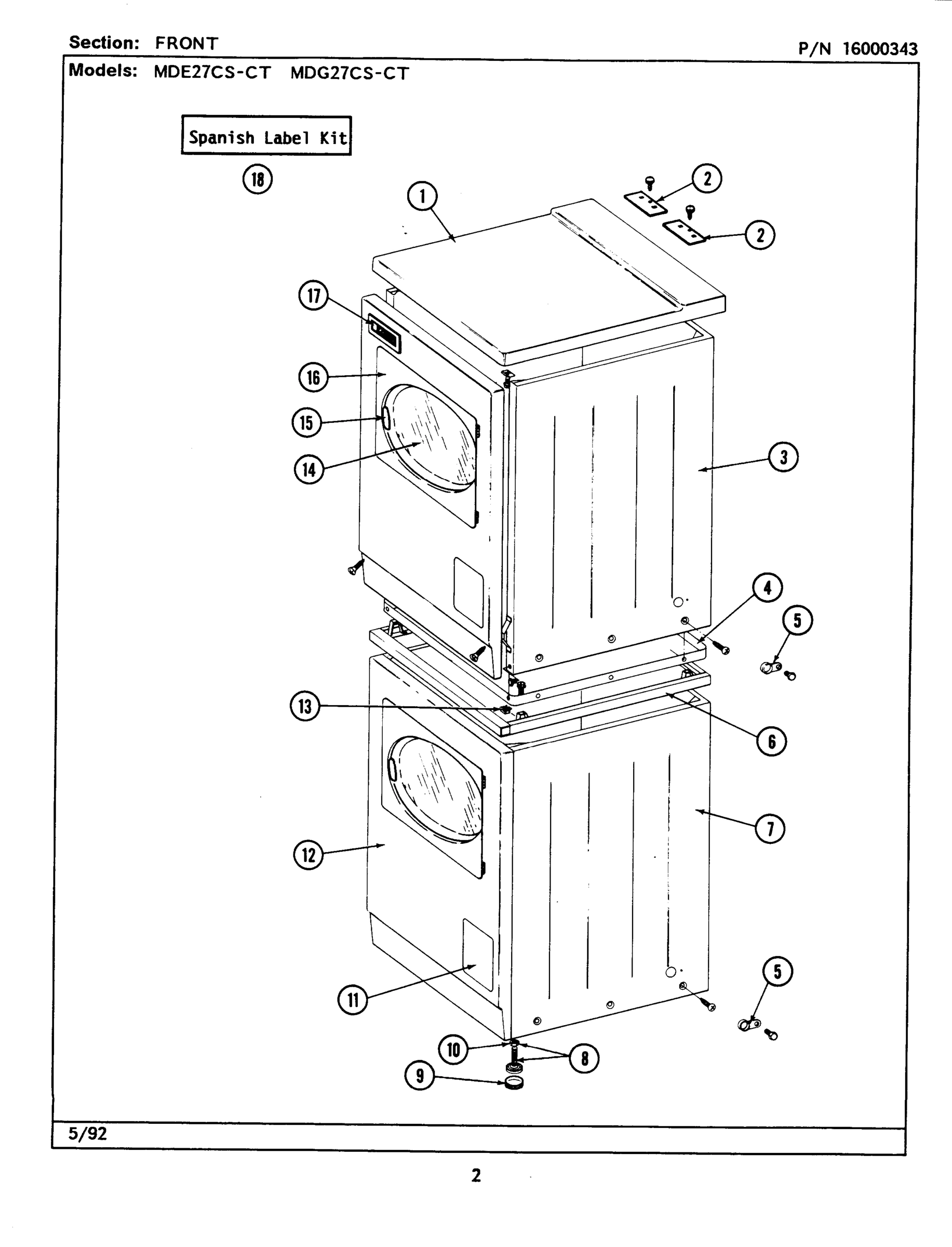

01 - FRONT

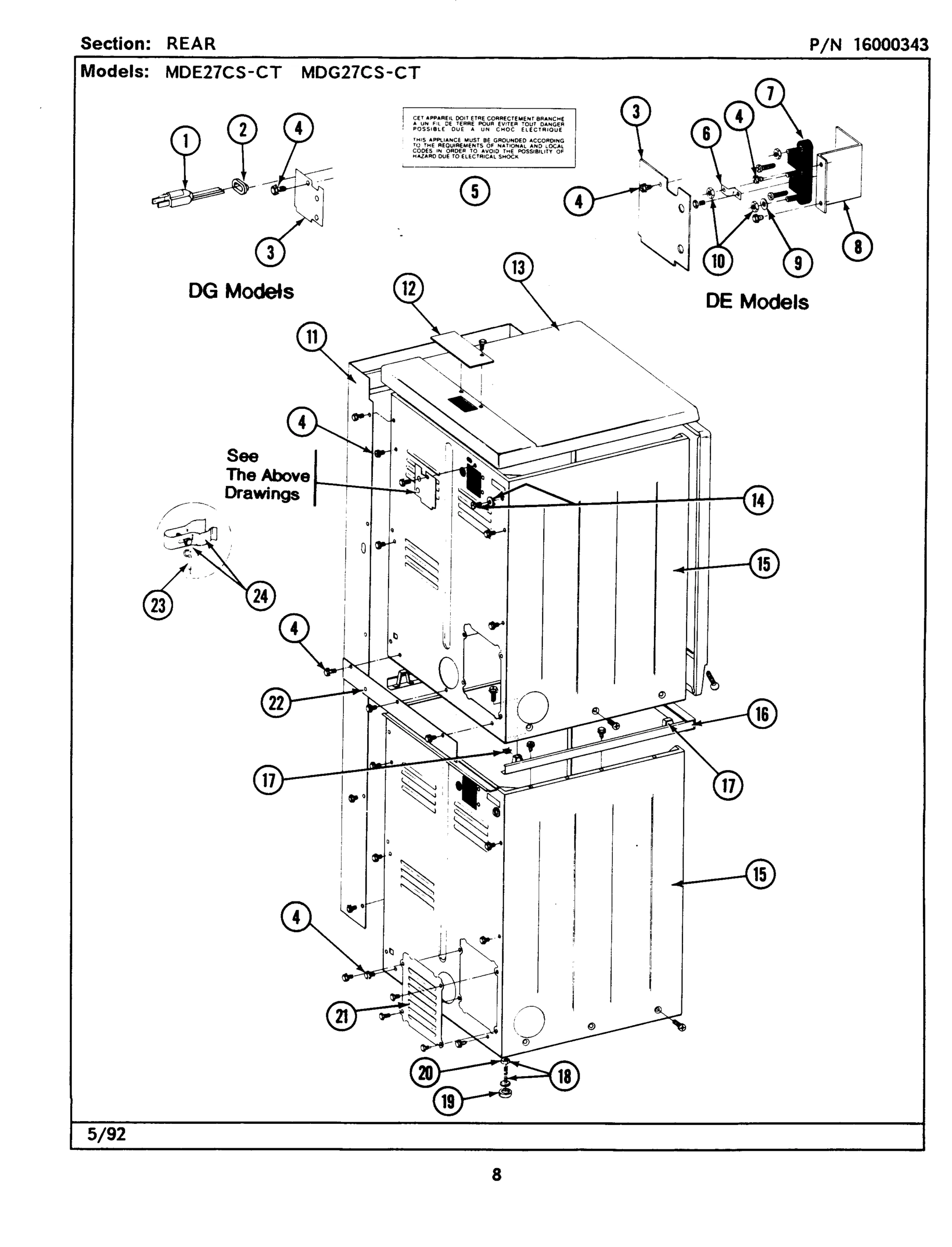

02 - REAR
03 - CONTROL CENTER SHROUD

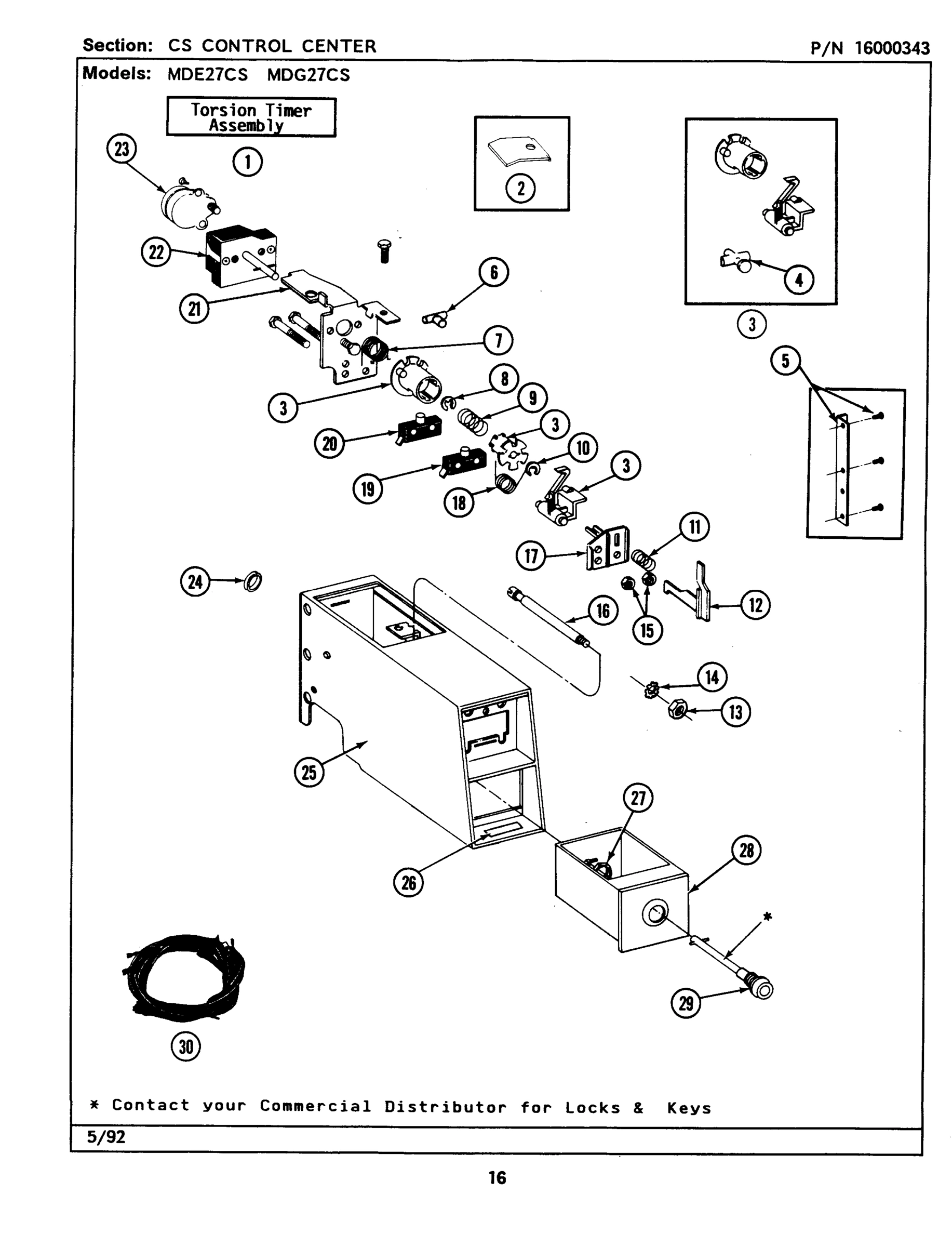

04 - CONTROL CENTER

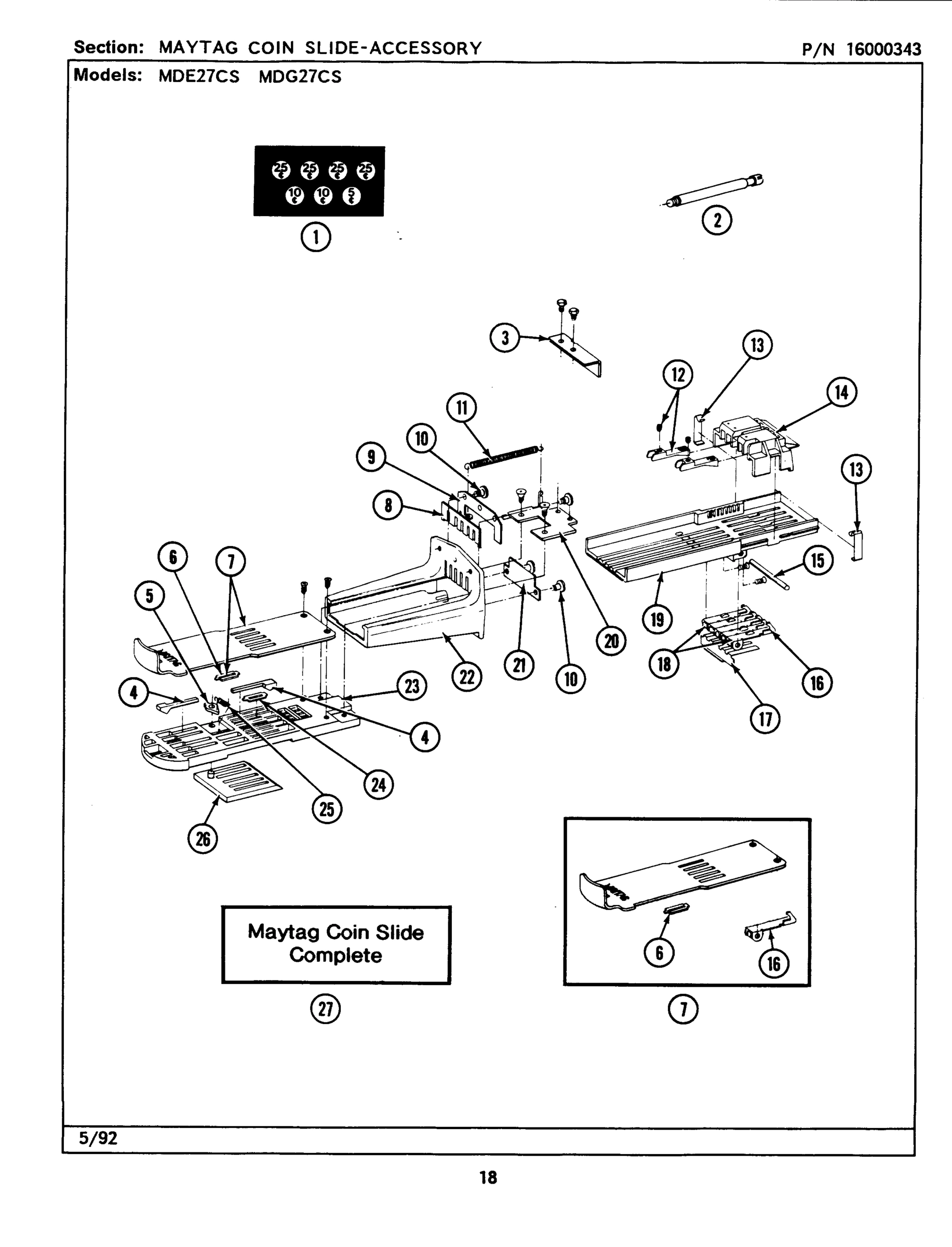

05 - MAYTAG COIN SLIDE-ACCESSORY

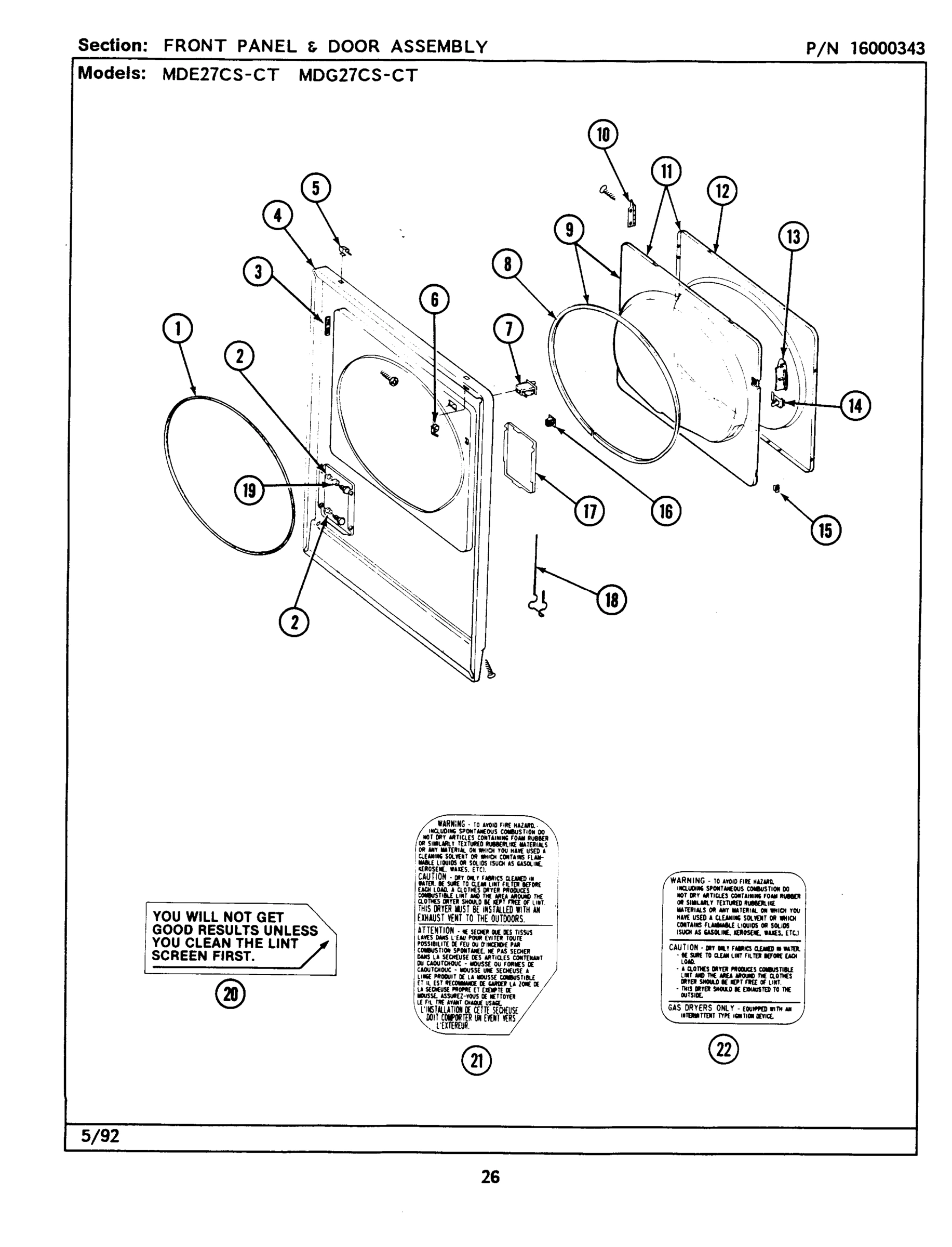

06 - FRONT PANEL & DOOR ASSEMBLY

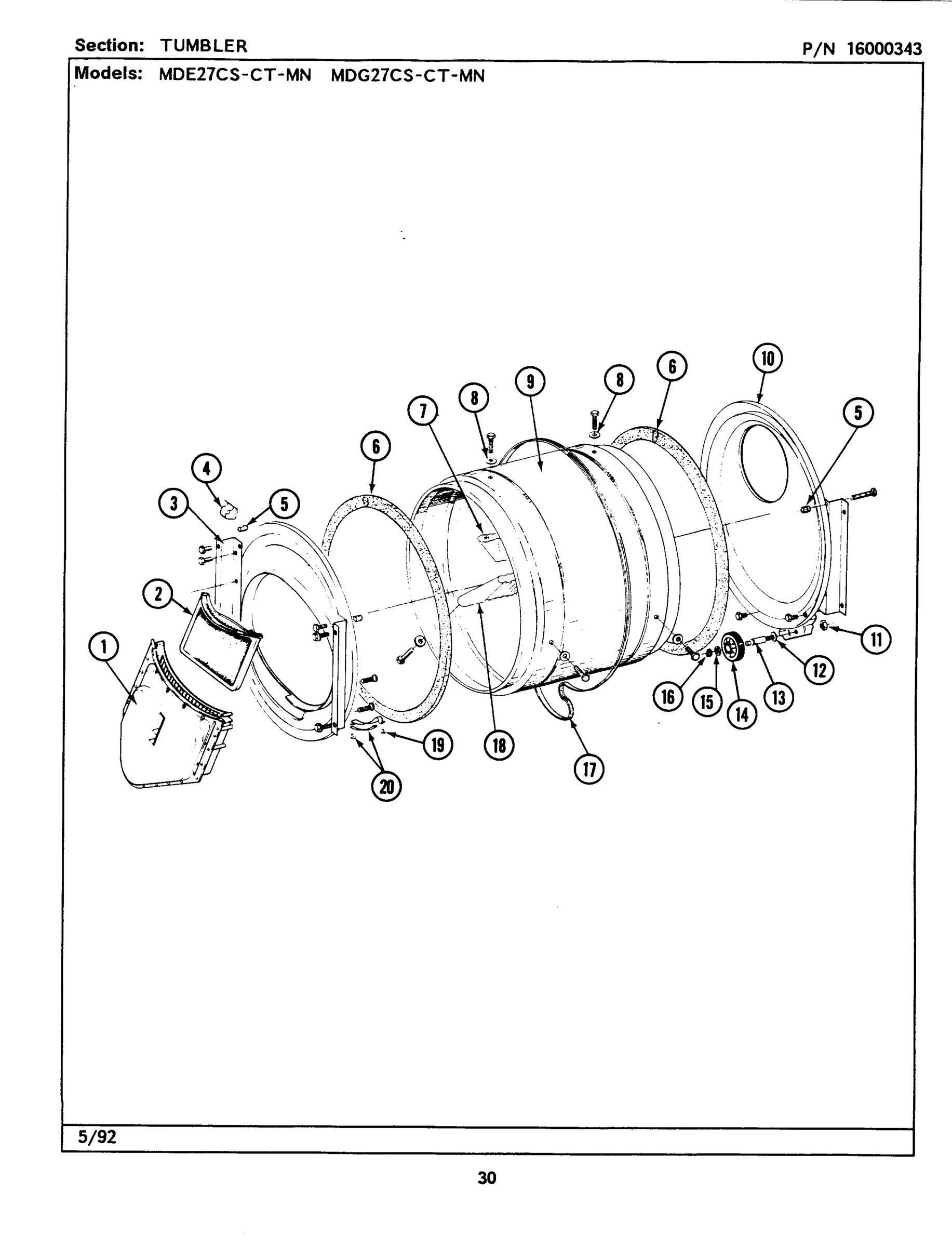

07 - TUMBLER

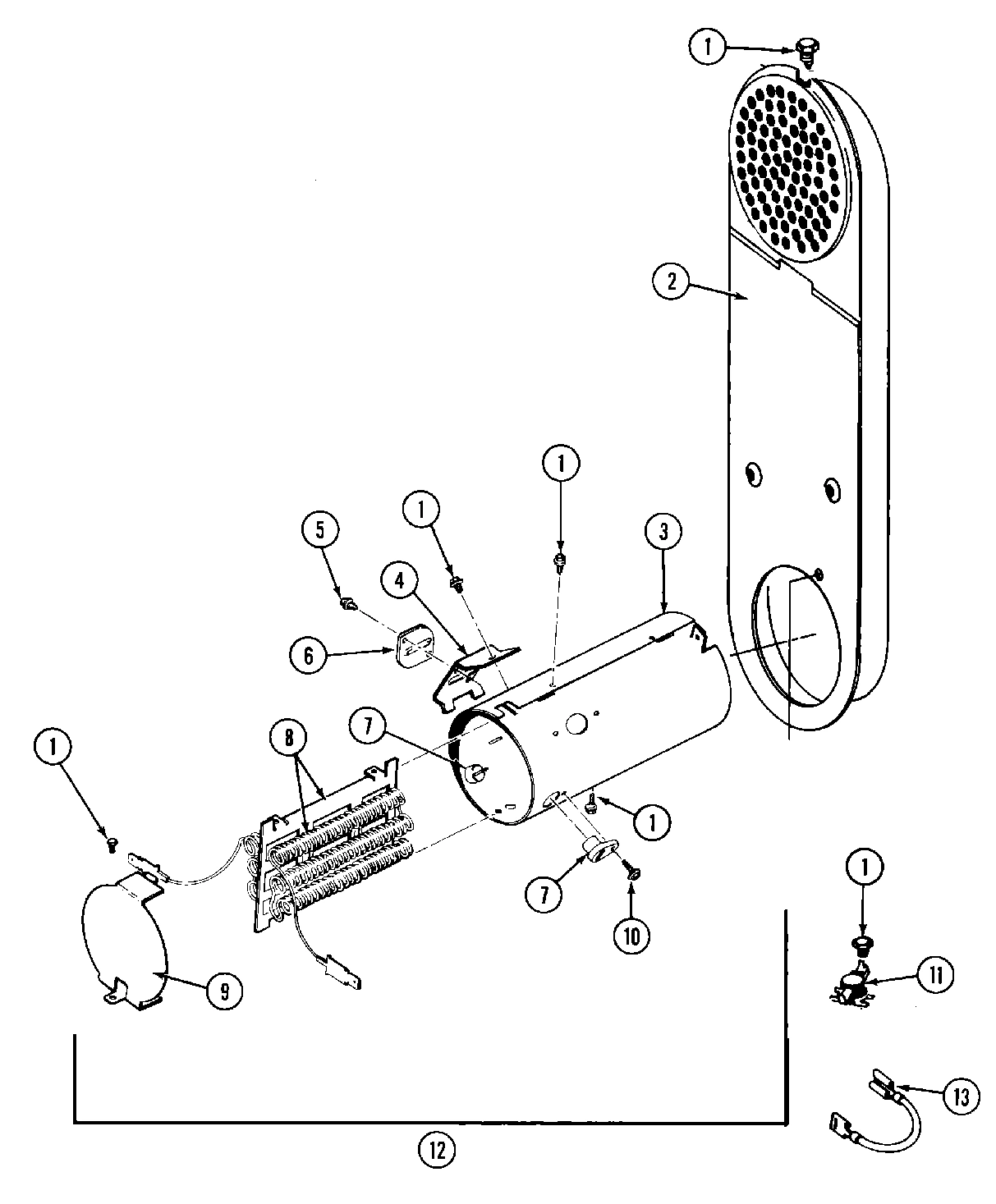

08 - HEATER (A3 SERIES OR LATER)

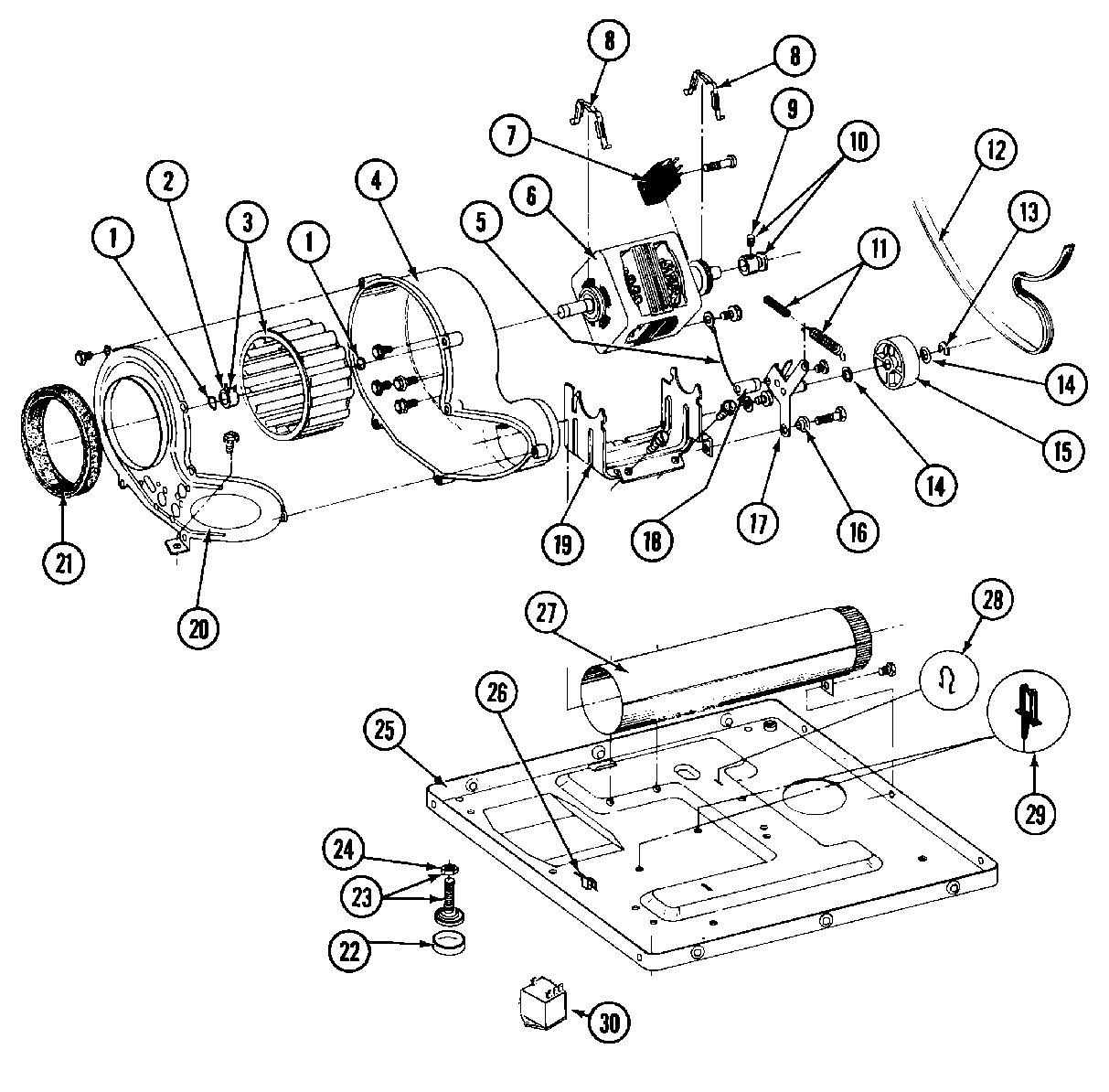

09 - MOTOR, BLOWER & BASE FRAME

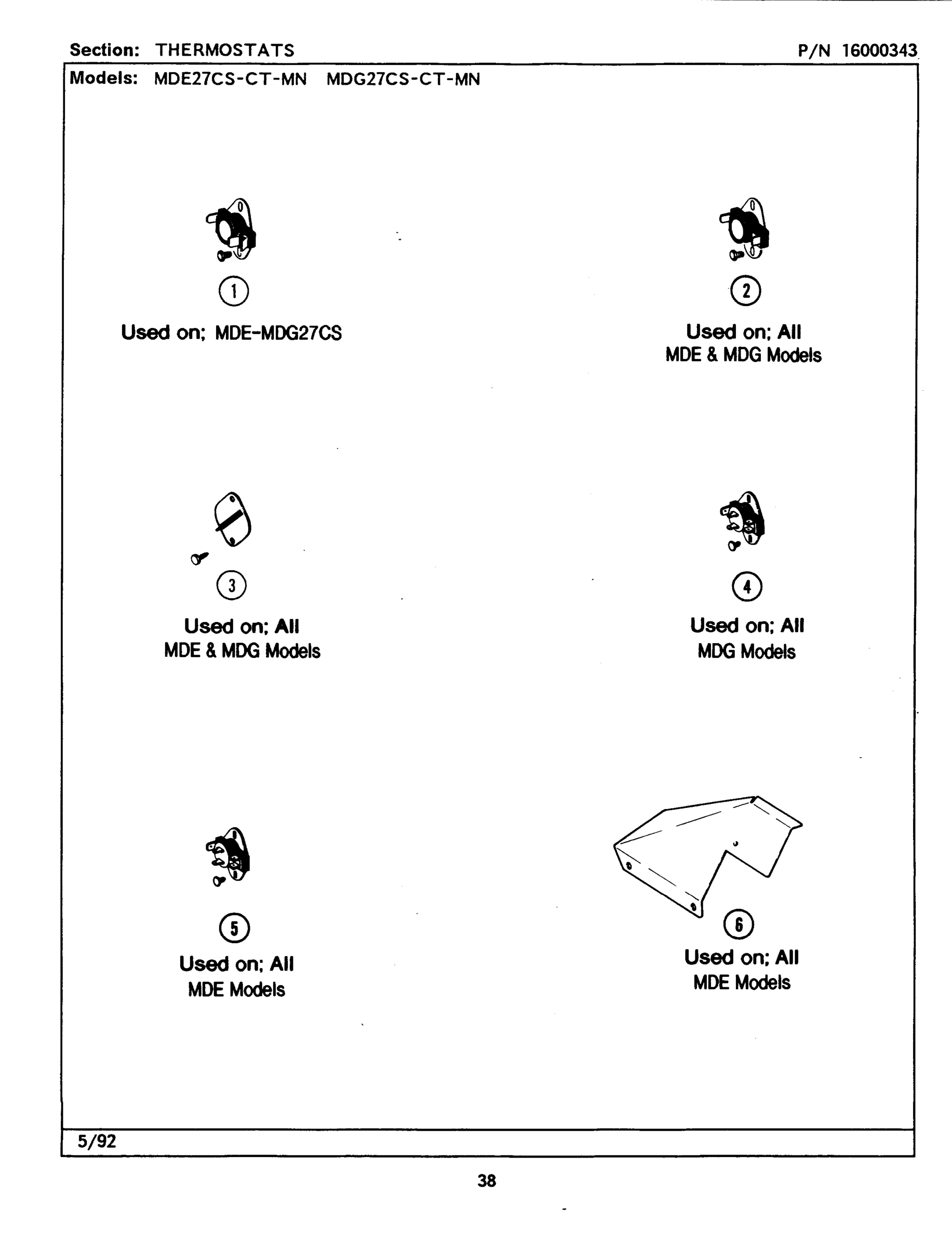

10 - THERMOSTATS

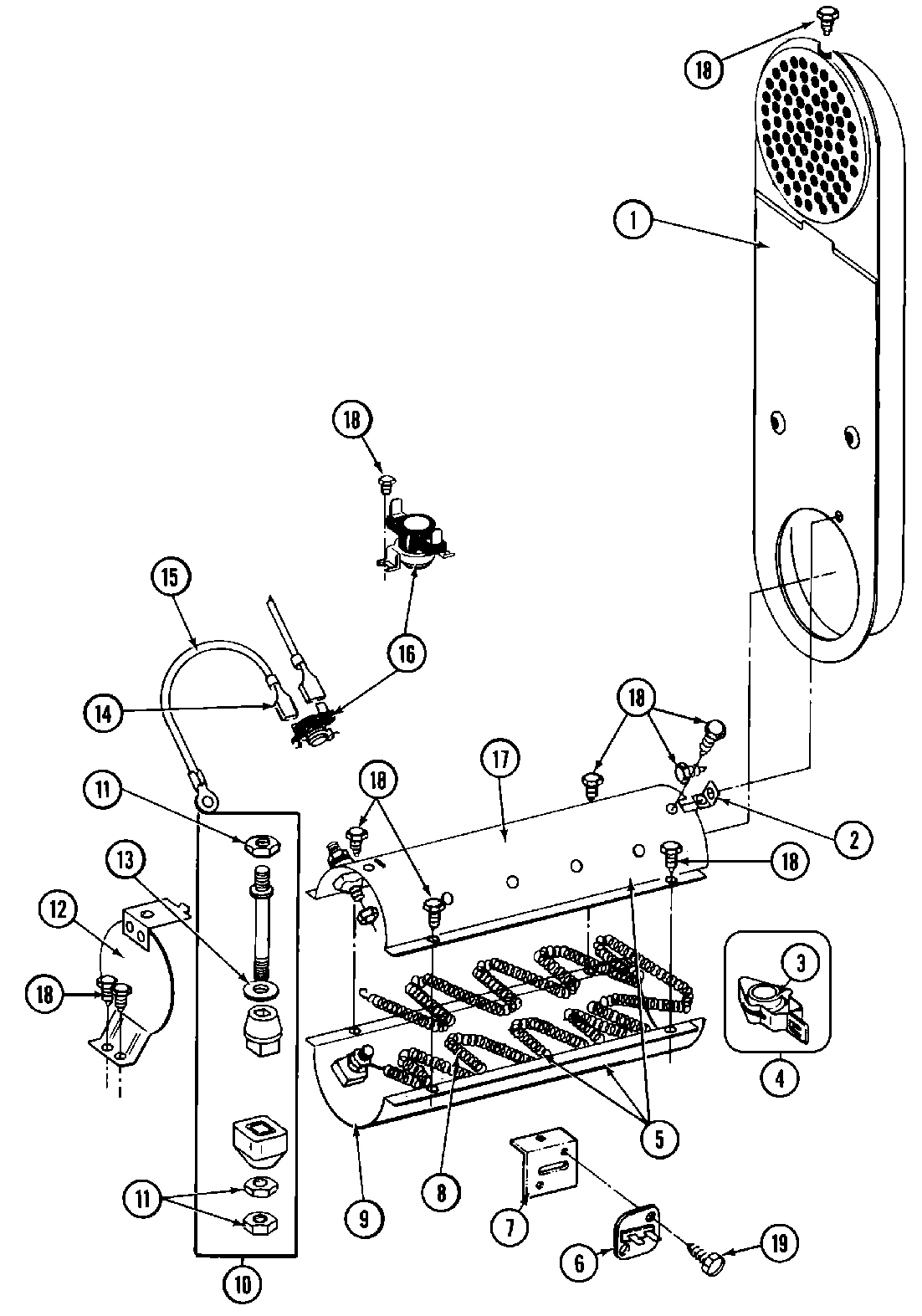

11 - HEATER (A0 SERIES)
Common parts from model Maytag MDE27CSACL ELECTRIC DRYER
001
THERMOSTAT, PERM. PRESS MAY Y303225 Contact Us For Availability
001
SEAL MAY 314937 Contact Us For Availability
001
TORSION TIMER ASSY. MAY 305797 Contact Us For Availability
001
MAY 214648 MAY 214648 Contact Us For Availability
001
MAY Y307112 MAY Y307112 Contact Us For Availability
001
SCREW MAY Y314110 Contact Us For Availability
002
LINT SCREEN MAY 307108 Contact Us For Availability
002
MAY 308503 MAY 308503 Contact Us For Availability
002
MAY Y312890 MAY Y312890 Contact Us For Availability
003
CHAMBER, HEATER MAY 314995 Contact Us For Availability
003
MAY Y313270 MAY Y313270 Contact Us For Availability
003
MAY Y310632 MAY Y310632 Contact Us For Availability
003
MAY 306104 MAY 306104 Contact Us For Availability
003
BRACKET MAY 314334 Contact Us For Availability
003
FASTENER MAY Y313907 Contact Us For Availability
003
TUMBLER FRONT W/SEAL MAY 307109 Contact Us For Availability
004
SCREW & FASTENER ASSY. MAY 204439 Contact Us For Availability
004
PART NOT USED MAY 306966 Contact Us For Availability
004
ADJUSTMENT RETURN MAY 314547 Contact Us For Availability
004
MAY 315346 MAY 315346 Contact Us For Availability
004
BLOWER HOUSING MAY Y312893 Contact Us For Availability
005
MAY 306967 MAY 306967 Contact Us For Availability
005
SWITCH & RELAY BRACKET MAY Y314261 Contact Us For Availability
005
SCREW MAY Y014872 Contact Us For Availability
005
MAY 214572 MAY 214572 Contact Us For Availability
005
SPRING, FASTENER MAY 212982 Contact Us For Availability
005
HEATER ASSY. COMPLETE (240V) MAY 307470 Contact Us For Availability
005
GROUND WIRE MAY 901220 Contact Us For Availability
005
SCREW MAY 910343 Contact Us For Availability
006
TIME ADJUSTMENT PEG MAY 314335 Contact Us For Availability
006
SCREW MAY Y313561 Contact Us For Availability
006
COVER, THERMOSTATS MAY 315122 Contact Us For Availability
007
TERMINAL BLOCK MAY 400008 Contact Us For Availability
007
HEX NUT MAY Y312706 Contact Us For Availability
007
MAY 314803 MAY 314803 Contact Us For Availability
007
MAY 314998 MAY 314998 Contact Us For Availability
007
No.3-3358-8 & 3-3358-9 MAY 306207 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358-2, 3-3358 MAY Y303877 Contact Us For Availability
007
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- MAY Y303879 Contact Us For Availability
007
MAY 315046 MAY 315046 Contact Us For Availability
008
MAY 314158 MAY 314158 Contact Us For Availability
008
MAY Y312702 MAY Y312702 Contact Us For Availability
008
MAY Y312270 MAY Y312270 Contact Us For Availability
008
GATE MAY 214578 Contact Us For Availability
008
SEAL, DOOR MAY 314935 Contact Us For Availability
008
HEATER, SUB ASSY. (240V-60) MAY 307185 Contact Us For Availability
008
MAY Y313537 MAY Y313537 Contact Us For Availability
009
SPRING MAY 211065 Contact Us For Availability
009
INDICATOR LIGHT MAY 303963 Contact Us For Availability
009
INNER DOOR W/GASKET MAY 308069 Contact Us For Availability
009
MAY 306663 MAY 306663 Contact Us For Availability
009
TUMBLER LESS BAFFLES MAY 314802 Contact Us For Availability
009
MAY 314999 MAY 314999 Contact Us For Availability
009
SET SCREW, MOTOR PULLEY MAY Y053241 Contact Us For Availability
009
MAY Y313576 MAY Y313576 Contact Us For Availability
010
MAY 307099 MAY 307099 Contact Us For Availability
010
TUMBLER BACK W/SEAL MAY Y307114 Contact Us For Availability
010
MAY Y308544 MAY Y308544 Contact Us For Availability
010
MOTOR PULLEY W/SET SCREW MAY Y305185 Contact Us For Availability
011
MAY 315037 MAY 315037 Contact Us For Availability
011
MAY Y313424 MAY Y313424 Contact Us For Availability
011
MAY 214581 MAY 214581 Contact Us For Availability
011
NUT MAY 312538 Contact Us For Availability
011
IDLER SPRING ASSY. W/PLUG MAY Y303945 Contact Us For Availability
012
PANEL, OUTER DOOR (WHT) MAY 314967 Contact Us For Availability
012
MAY 304124 MAY 304124 Contact Us For Availability
013
HANDLE (WHT) MAY 314939 Contact Us For Availability
013
MAY 214589 MAY 214589 Contact Us For Availability
013
(ALM) MAY 314974 Contact Us For Availability
014
VAULT ASSY. MAY 305534 Contact Us For Availability
014
MAY Y313559 MAY Y313559 Contact Us For Availability
014
MAY 910387 MAY 910387 Contact Us For Availability
014
MAY 314936 MAY 314936 Contact Us For Availability
014
STRIKE BRACKET MAY 314944 Contact Us For Availability
014
ROLLER (W/BEARING) MAY Y303373 Contact Us For Availability
014
WASHER, IDLER PULLEY MAY Y312527 Contact Us For Availability
014
MAY 210745 MAY 210745 Contact Us For Availability
015
HEX NUT MAY Y052634 Contact Us For Availability
015
CLIP MAY Y313910 Contact Us For Availability
016
MAY 215559 MAY 215559 Contact Us For Availability
016
CABLE STRAP MAY 910768 Contact Us For Availability
016
MAY Y312894 MAY Y312894 Contact Us For Availability
017
MAY 212276 MAY 212276 Contact Us For Availability
017
SWITCH & SLIDER BRACKET MAY 314339 Contact Us For Availability
017
SPRING MAY 214596 Contact Us For Availability
017
MAY Y313575 MAY Y313575 Contact Us For Availability
018
MAY 314332 MAY 314332 Contact Us For Availability
018
LOWER GAGE ARM ASSY. MAY 205343 Contact Us For Availability
018
PART NOT USED MAY Y314025 Contact Us For Availability
018
MAY Y310759 MAY Y310759 Contact Us For Availability
019
SCREW MAY NLA Contact Us For Availability
019
BYPASS SWITCH, MOTOR MAY 305798 Contact Us For Availability
019
BASE INSERT MAY 214594 Contact Us For Availability
019
PART NOT USED MAY 312369 Contact Us For Availability
020
BYPASS SWITCH, HEATER MAY Y305799 Contact Us For Availability
020
MAY 214597 MAY 214597 Contact Us For Availability
020
INSTRUCTION DECAL MAY Y313340 Contact Us For Availability
020
COVER, BLOWER MAY 314847 Contact Us For Availability
021
PLATE, LATCH MAY 313428 Contact Us For Availability
021
TIMER MOUNTING BRACKET MAY 314333 Contact Us For Availability
021
SCREW (HEX HD No.6-32 X 1 5/8``) MAY 315277 Contact Us For Availability
021
SCREW (HEX HD MACHINE) MAY 910708 Contact Us For Availability
021
INSTRUCTION DECAL MAY 314941 Contact Us For Availability
022
MAY 305796 MAY 305796 Contact Us For Availability
022
WIRE HARNESS, TIMER MAY 305800 Contact Us For Availability
022
HOUSING MAY 214584 Contact Us For Availability
023
GROUND WIRE MAY Y303981 Contact Us For Availability
023
TIMER MOTOR (305796 TIMER) MAY 305870 Contact Us For Availability
023
ADJUSTABLE LEG & NUT MAY Y302699 Contact Us For Availability
024
GROMMET MAY Y313671 Contact Us For Availability
024
LATCH MAY Y313427 Contact Us For Availability
025
OUTER CASE (WHT) MAY Y307081 Contact Us For Availability
025
SPRING MAY 214582 Contact Us For Availability
025
BASE ASSY. (UPPER & LOWER) MAY Y303361 Contact Us For Availability
026
MAY Y313439 MAY Y313439 Contact Us For Availability
026
FASTENER CLIP ON BASE MAY Y310376 Contact Us For Availability
027
EXHAUST DUCT PIPE MAY Y303442 Contact Us For Availability
028
MAY 205423 MAY 205423 Contact Us For Availability
028
MAY 205423L MAY 205423L Contact Us For Availability
028
HARNESS SPRING MAY 410490 Contact Us For Availability
029
WIRE RETAINER MAY Y313262 Contact Us For Availability
× ![]()
