Model Whirlpool MDE26CTADW ELECTRIC DRYER – Common Parts & Diagrams

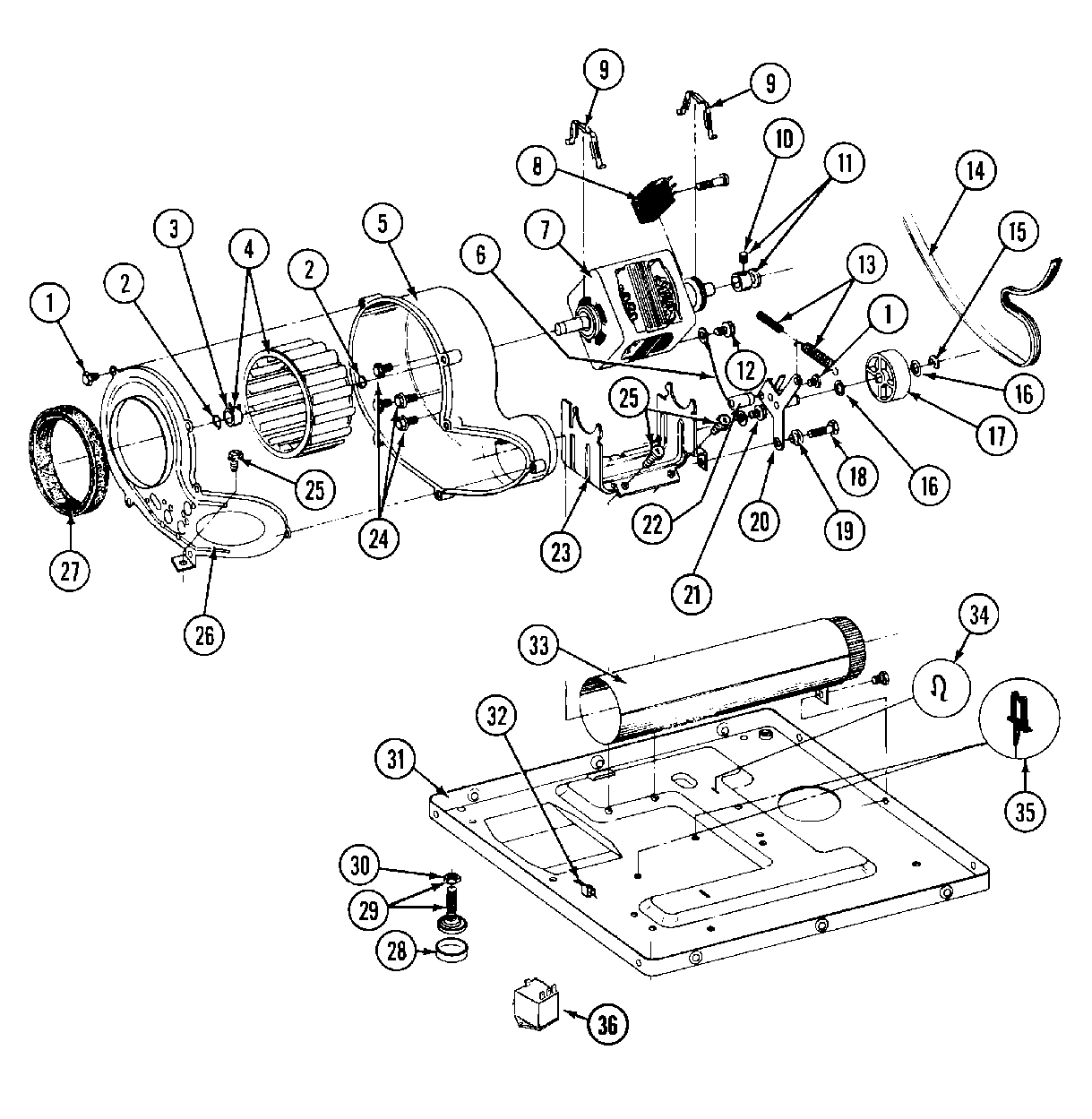

09 - MOTOR DRIVE, BLOWER & BASE FRAME

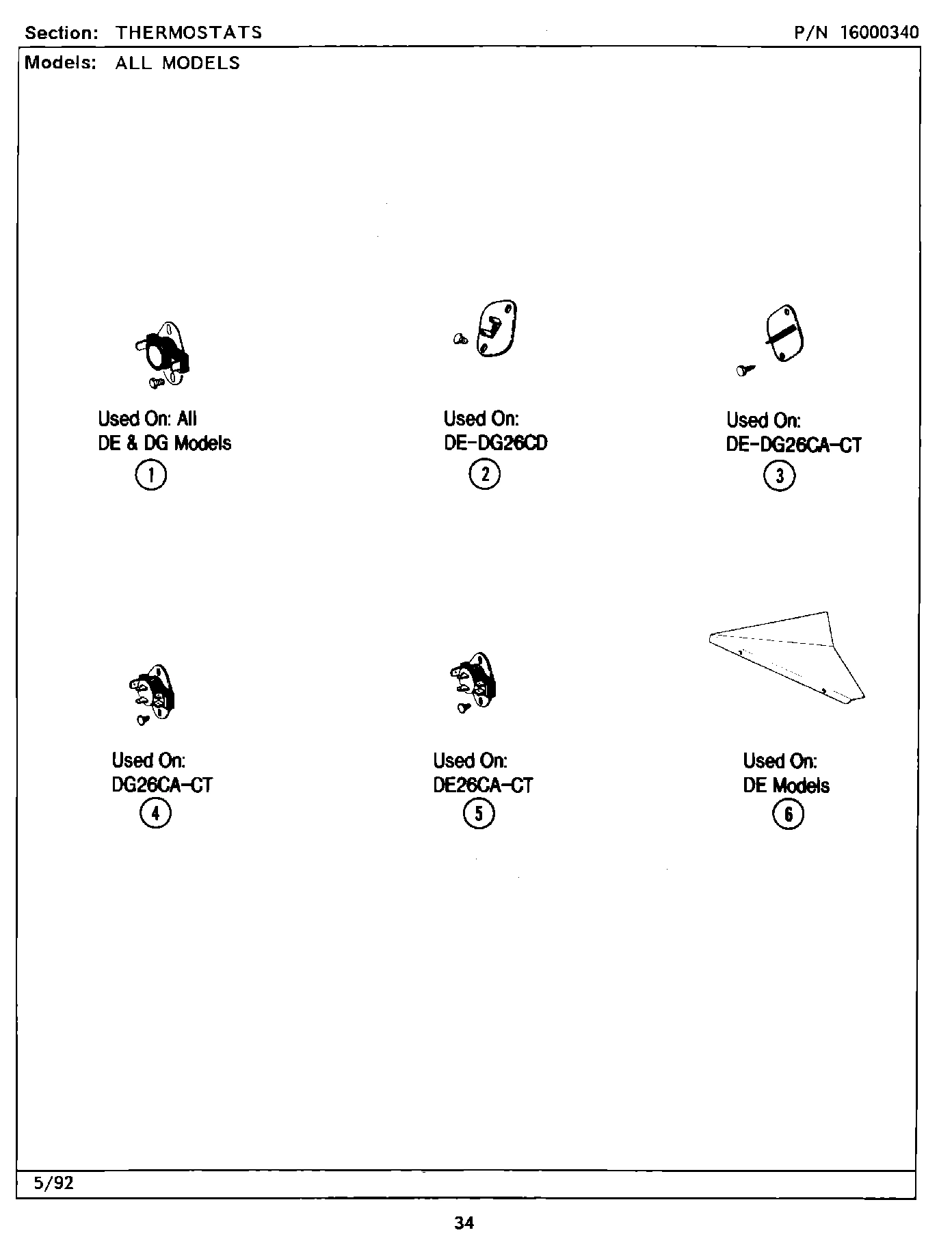

10 - THERMOSTATS

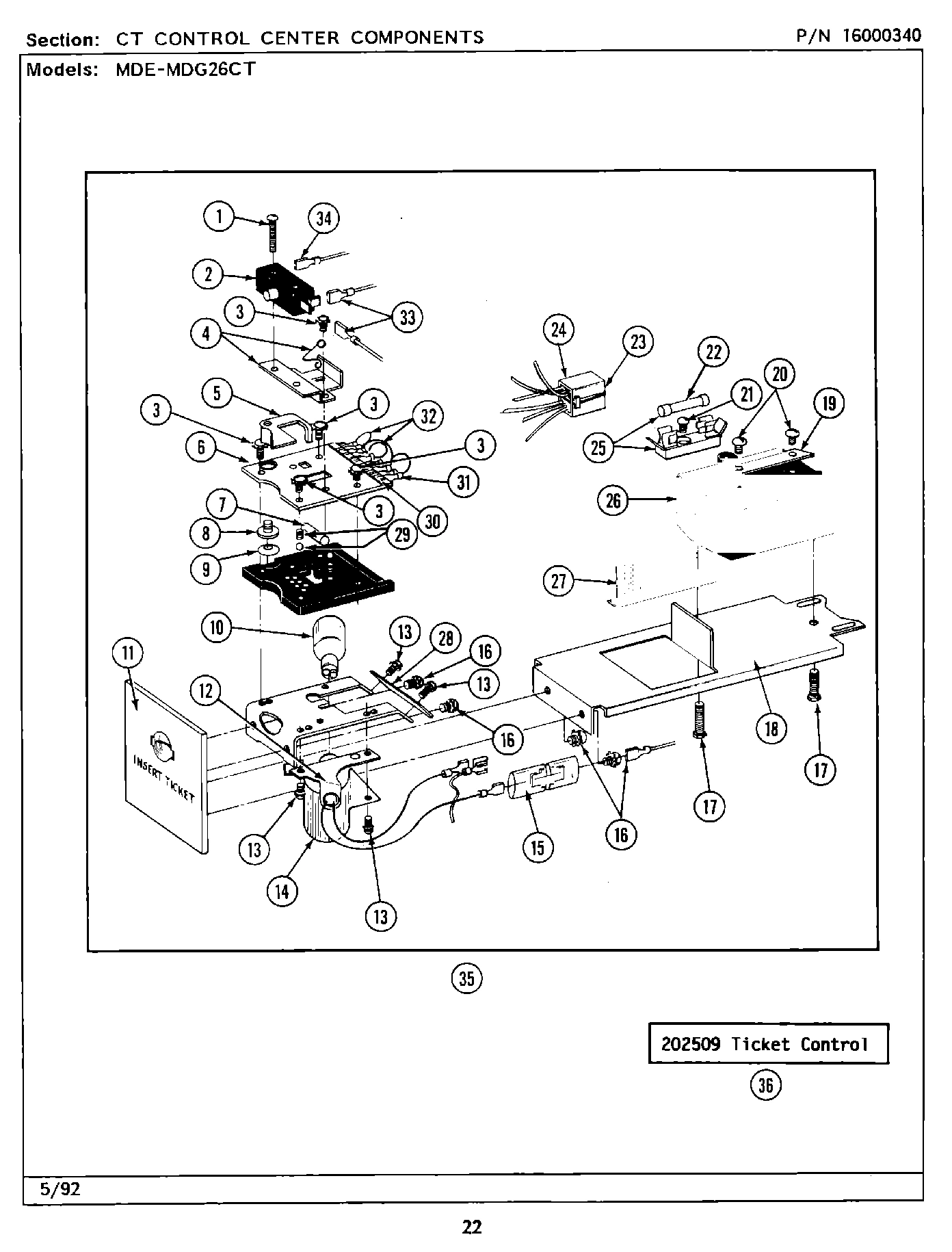

05 - CT CONTROL CENTER COMPONENTS

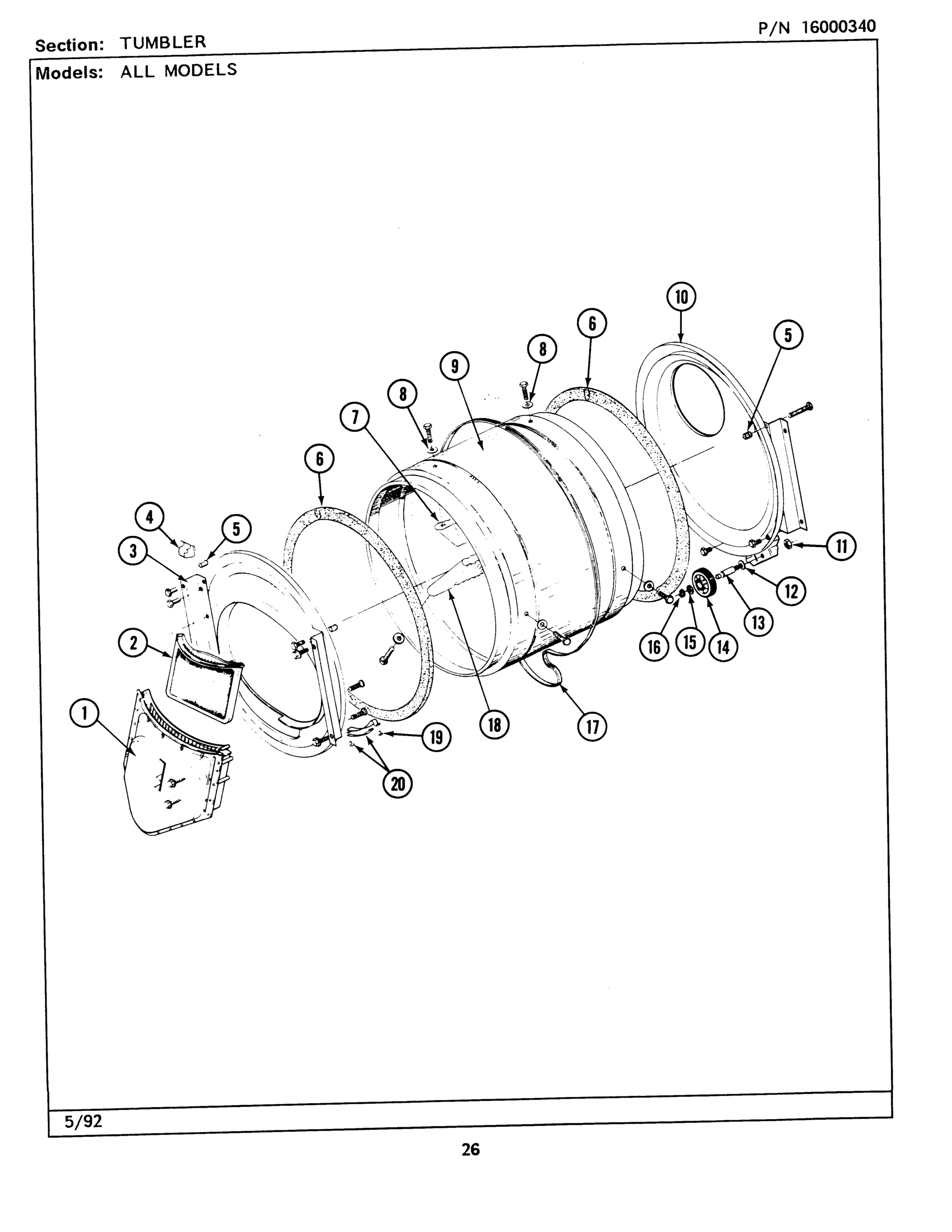

07 - TUMBLER

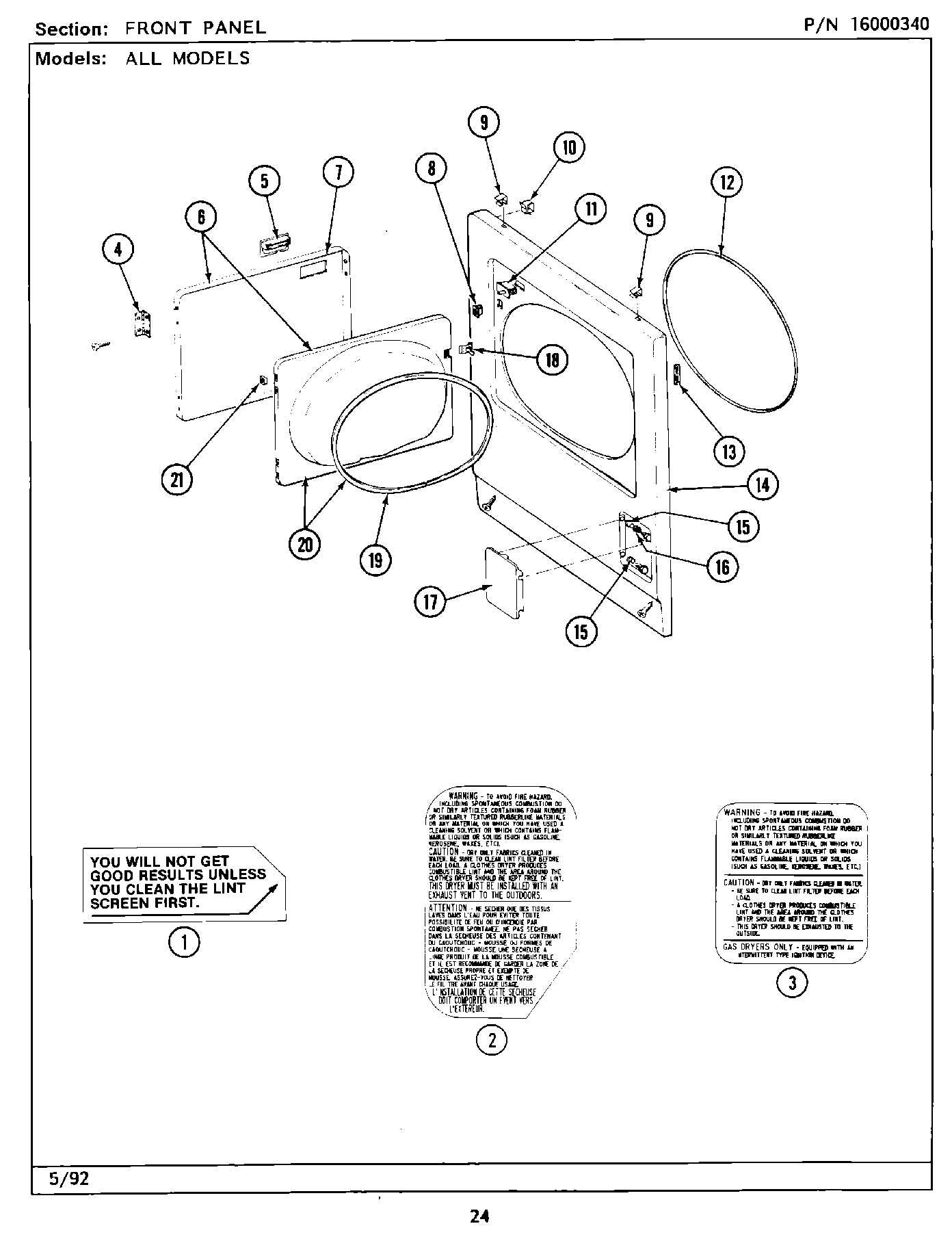

06 - FRONT PANEL

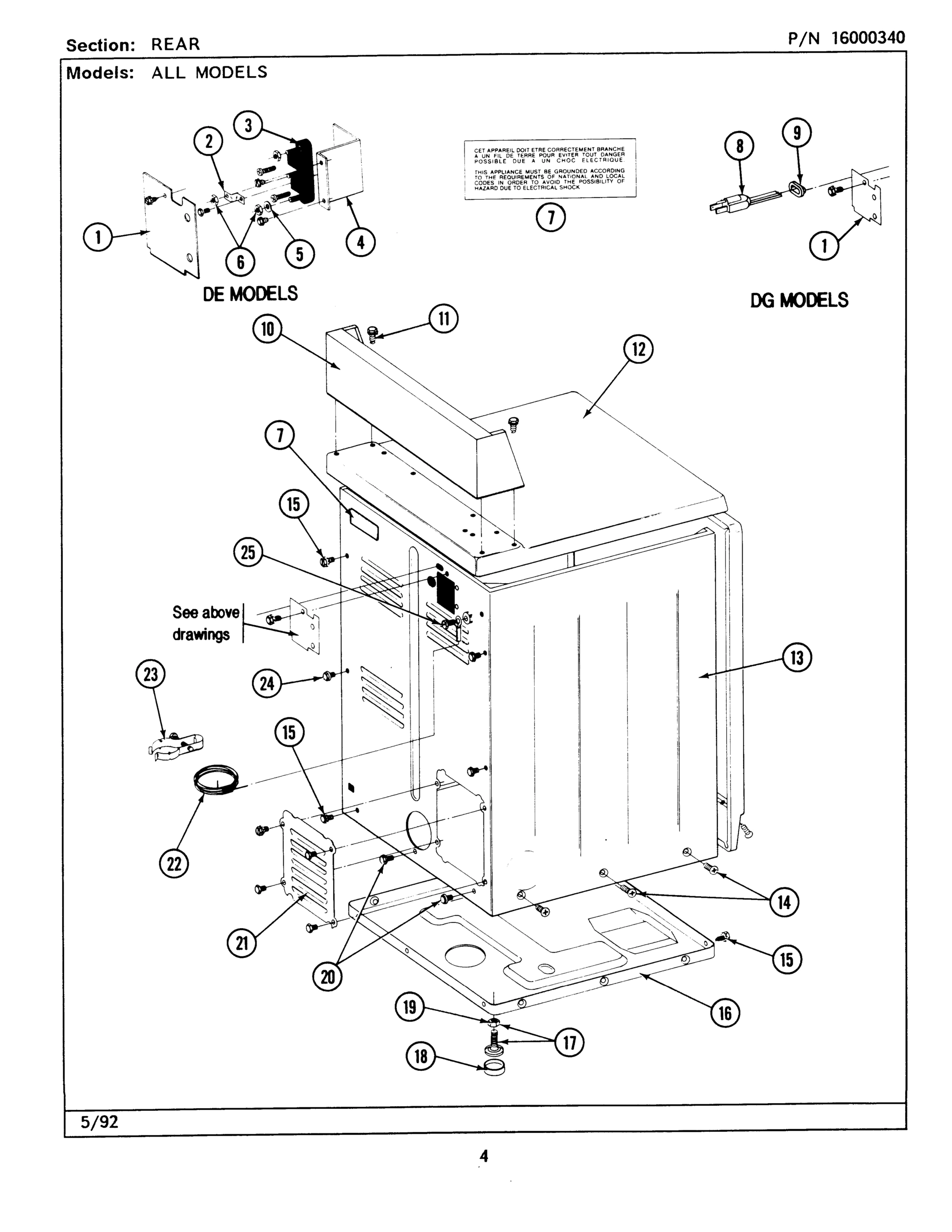

02 - REAR

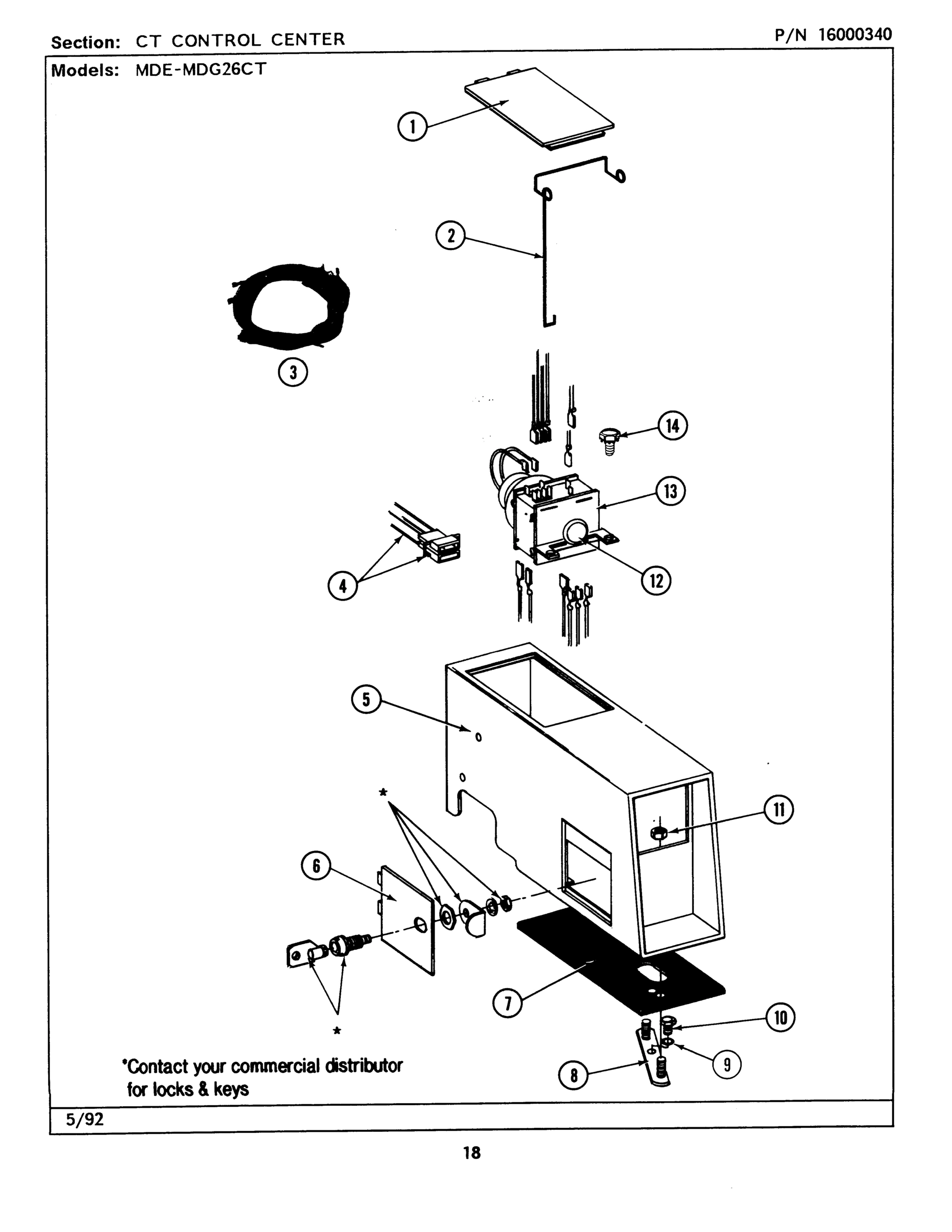

04 - CT CONTROL CENTER

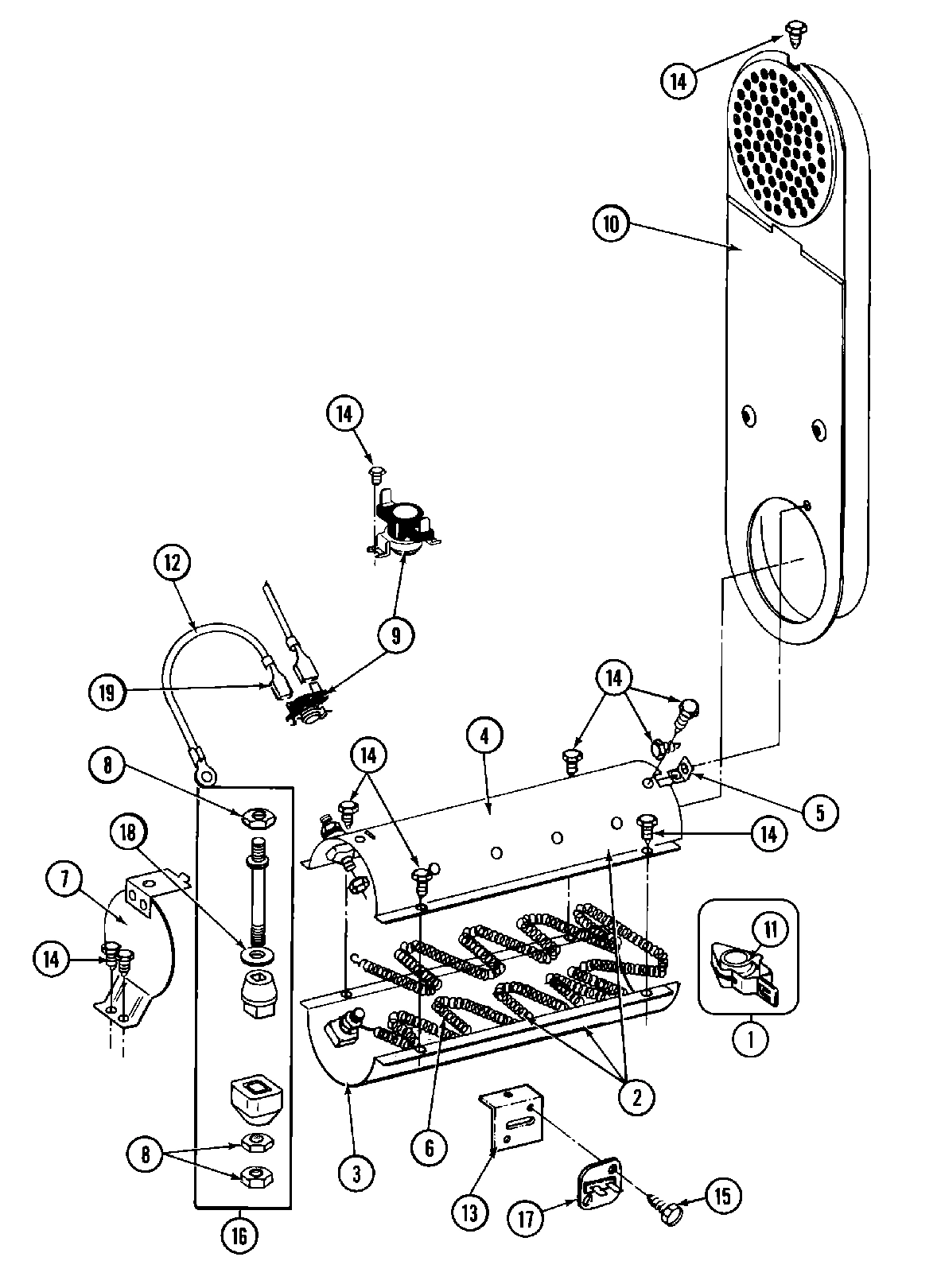

11 - HEATER (A0 SERIES)

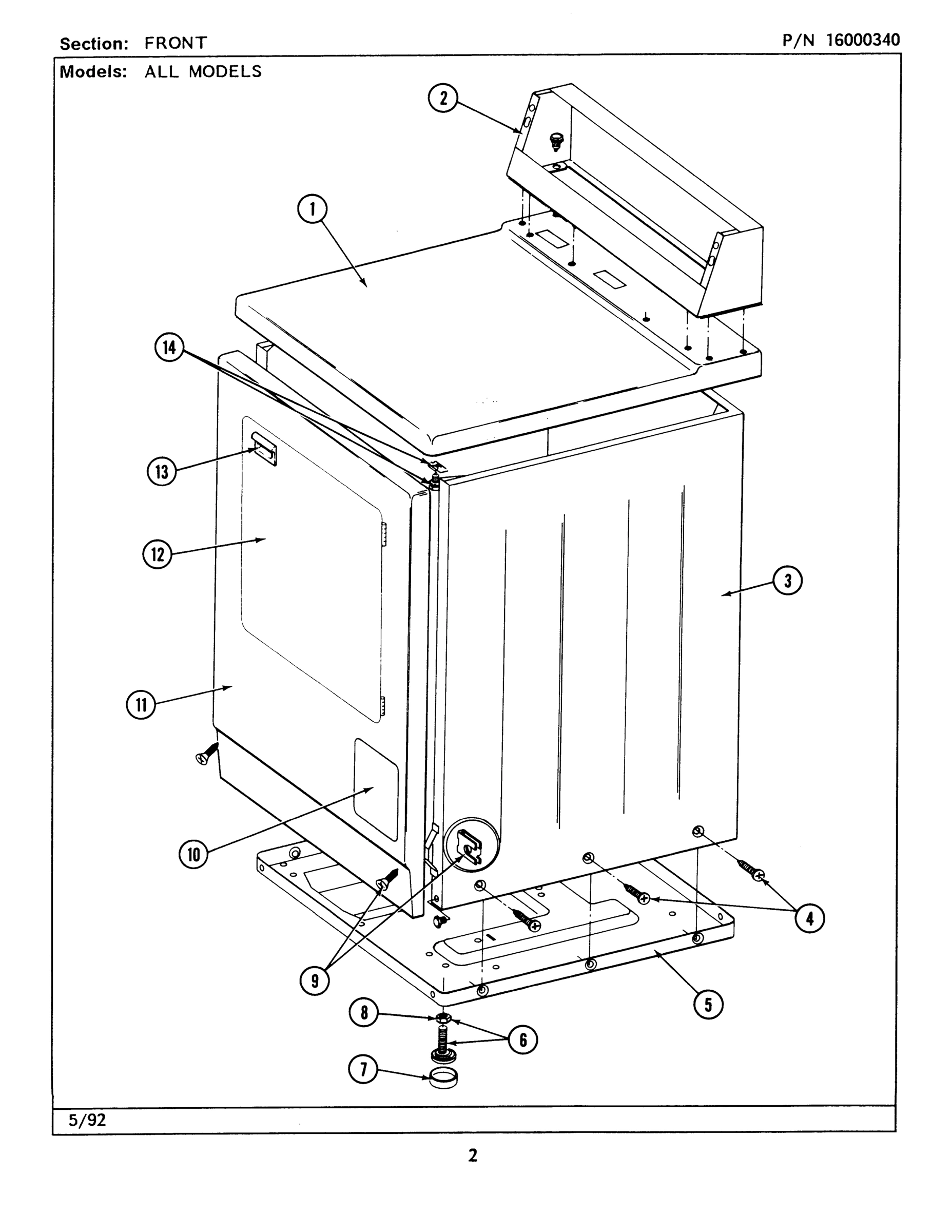

01 - FRONT

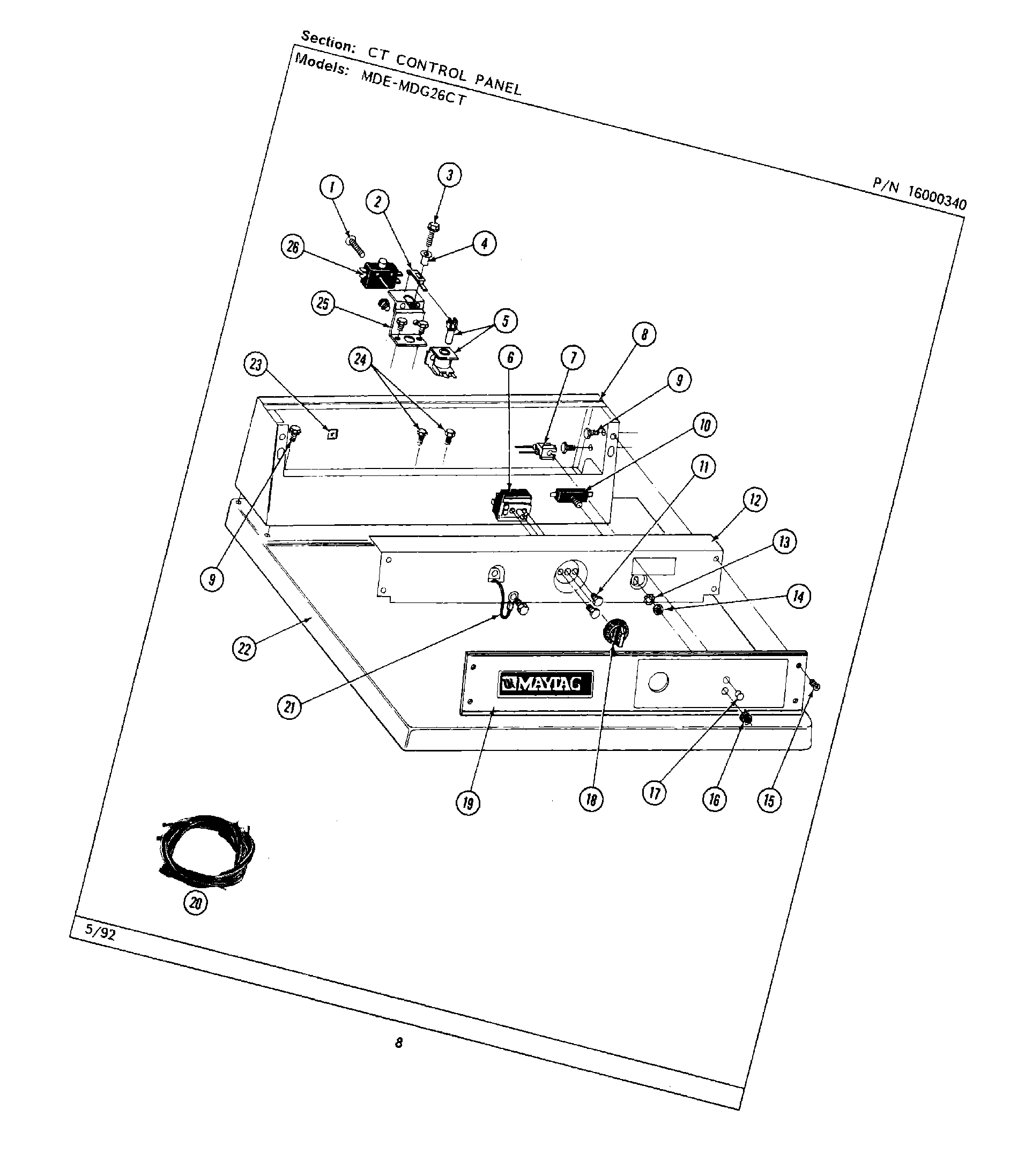

03 - CT CONTROL PANEL
08 - HEATER (A0 SERIES)
Common parts from model Whirlpool MDE26CTADW ELECTRIC DRYER
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
TOP COVER ASSY. (WHT) WPL 307104 Contact Us For Availability
001
SCREW, RELAY SWITCH (BRKT) WPL 212950 Contact Us For Availability
002
THERMISTOR TEMP. CONTROL PART NOT USED. MDE/G WPL 306056 Contact Us For Availability
002
SWITCH, TICKET CONTROL WPL 204882 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
002
STRAP, GROUND WPL Y312184 Contact Us For Availability
002
LATCH, ACCESS DOOR WPL 214878 Contact Us For Availability
002
PART NOT AVAILABLE WPL 307470 Contact Us For Availability
003
SCREW WPL Y310632 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
PART NOT USED WPL 314942 Contact Us For Availability
003
SCREW WPL 212949 Contact Us For Availability
003
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
003
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
003
HEATER ENCLOSURE WPL 314995 Contact Us For Availability
004
THERMOSTAT, MULTI-TEMP PART NOT USED. MDG26CT WPL 306966 Contact Us For Availability
004
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
004
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
004
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
004
BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability
005
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
005
BASE ASSY. WPL Y303361 Contact Us For Availability
005
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
005
SWITCH LEVER WPL 214218 Contact Us For Availability
005
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
005
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
005
SOLENOID, RELAY ASSEMBLY WPL 305393 Contact Us For Availability
006
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
006
COVER, THERMOSTAT WPL 315122 Contact Us For Availability
006
CIRCUIT BOARD WPL 212452 Contact Us For Availability
006
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
007
ROLLER, CAM WPL 214275 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
007
LABEL, ELECTRICAL INSTR. PART NOT USED-GAS MO WPL 214519 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
007
HEATER SHIELD WPL 304124 Contact Us For Availability
007
INSULATOR, TERMINAL WPL 314998 Contact Us For Availability
008
SWITCH, MOTOR START PROD. No.3-3358 & 3-3358- WPL Y303879 Contact Us For Availability
008
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
POWER CORD PART NOT USED-GAS MODELS ONLY WPL 302521 Contact Us For Availability
008
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
009
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
009
GROMMET, CORD PART NOT USED-GAS MODELS ONLY WPL 211881 Contact Us For Availability
009
WASHER WPL 910309 Contact Us For Availability
009
SHIELD, RADIANT WPL 314999 Contact Us For Availability
010
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
010
SCREW WPL NLA Contact Us For Availability
010
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
010
LAMP, TICKET CONTROL WPL 202479 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
(PART NOT USED-GAS ONLY) WPL 302542 Contact Us For Availability
010
(PART NOT USED-GAS ONLY) WPL 302542L Contact Us For Availability
010
(PART NOT USED-GAS ONLY) WPL 302542M Contact Us For Availability
011
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
011
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
011
THERMOSTAT, HI-LIMIT (CAN.) WPL 308217 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
012
KNOB, TIMER WPL 213089 Contact Us For Availability
012
GROOV-PIN WPL Y312300 Contact Us For Availability
012
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
012
BACK-UP PLATE (WHT) WPL 314912 Contact Us For Availability
013
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
013
HANDLE (WHT) WPL 314946 Contact Us For Availability
013
(ALM) WPL 314972 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
013
(45 MINS. FOR 303799 & 307142 WPL 305867 Contact Us For Availability
013
(37.5 MINS. FOR 303799 & 30714 WPL 305868 Contact Us For Availability
013
TIMER W/KNOB & PIN WPL 307142 Contact Us For Availability
013
MOUNTING BRACKET WPL 315046 Contact Us For Availability
014
SHIELD, HEAT LAMP WPL 212533 Contact Us For Availability
014
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
014
HEX NUT, SWITCH WPL Y312706 Contact Us For Availability
015
SCREW----NA WPL Y313561 Contact Us For Availability
015
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
015
PART NOT USED WPL 312301 Contact Us For Availability
016
SLEEVE, ACCESS PANEL STUD PART NOT USED WPL 312369 Contact Us For Availability
016
KNURLED NUT WPL Y312702 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
019
COVER, CIRCUIT BOARD WPL 311612 Contact Us For Availability
019
DOOR SEAL WPL 314935 Contact Us For Availability
019
WIRE TERMINAL WPL 210745 Contact Us For Availability
020
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
020
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
021
CLIP, DOOR LINER (OUTER PNL) WPL Y313910 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
WIRE, GROUND WPL 205810 Contact Us For Availability
022
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
023
PIN RECEPTACLE, PLUG WPL 213074 Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
023
FASTENER WPL 215003 Contact Us For Availability
026
COVER, BLOWER WPL 314778 Contact Us For Availability
026
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
026
SWITCH FOR RELAY WPL Y303787 Contact Us For Availability
029
CONTACT BALL KIT WPL 203140 Contact Us For Availability
031
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
033
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
034
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
035
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
036
RELAY, HEATER WPL 306199 Contact Us For Availability
036
TICKET CONTROL WPL 202509 Contact Us For Availability
× ![]()
